Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

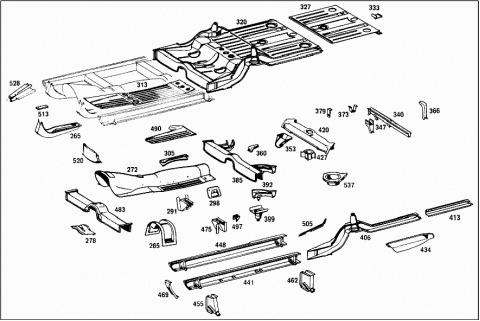

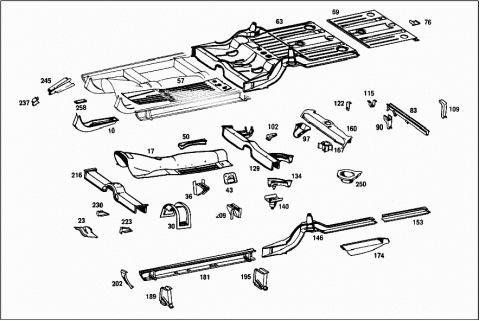

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1106100513 | SIDE MEMBER | |
| Repalced by: A 1086100113 | ||
| 010 | A 1106100713 | SIDE MEMBER |
| Repalced by: A 1086100113 | ||
| 010 | A 1086100113 | SIDE MEMBER |
| A 1086100113 | SIDE MEMBER | |
| LEFT FRONT CONNECTOR | ||
| A 1106100613 | SIDE MEMBER | |
| Repalced by: A 1106100813 | ||
| A 1106100813 | SIDE MEMBER | |
| RIGHT FRONT CONNECTOR | ||
| 017 | A 1106160166 | TUNNEL |
| A 1106100154 | BRIDGE | |
| Repalced by: A 1106100254 | ||
| 023 | A 1106100254 | BRIDGE |
| BELOW FRONT SEATS | ||
| 030 | A 1106100352 | TAKE-UP DEVICE |
| PROPELLER SHAFT BEARING | ||
| A 1106100030 | CONSOLE | |
| Repalced by: A 1106160031 | ||
| A 1106160031 | CONSOLE | |
| DRIVER'S SEAT,INSIDE | ||
| 036 | A 1106160231 | CONSOLE |
| DRIVER'S SEAT,INSIDE | ||
| A 1106100353 | MOUNTING | |
| Repalced by: A 1106100453 | ||
| 043 | A 1106100453 | MOUNTING |
| HAND BRAKE BEARING | ||
| A 1106100091 | GUIDE | |
| Repalced by: A 1106100191 | ||
| 050 | A 1106100191 | GUIDE |
| HAND BRAKE LEVER TO FRAME | ||
| A 1106100311 | PLATE | |
| Repalced by: A 1269840125 | ||
| A 1269840125 | THREADED CHUCK | |
| Repalced by: A 1269840025 | ||
| A 1269840025 | THREADED CHUCK | |
| AT TUNNEL | ||
| 057 | A 1106160367 | FLOOR |
| LEFT | ||
| A 1106160467 | FLOOR | |
| RIGHT | ||
| 063 | A 1106100661 | FLOOR |
| REAR END | ||
| A 1106160062 | FLOOR | |
| 069 | A 1106160162 | FLOOR |
| SEMI-FINISHED | ||
| 076 | A 1106100025 | REINFORCEMENT |
| Repalced by: A 1106100725 | ||
| A 1106100725 | REINFORCEMENT | |
| FUEL TANK TO REAR FLOOR | ||
| 083 | A 1106100016 | CROSS MEMBER |
| Repalced by: A 1106100216 | ||
| A 1106100216 | CROSS MEMBER | |
| 090 | A 1106120324 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 097 | A 1106100131 | CONSOLE |
| CROSS MEMBER TO REAR AXLE | ||
| A 1104270141 | BRACKET | |
| HAND BRAKE CABLE | ||
| 102 | A 1104271041 | BRACKET |
| HAND BRAKE CABLE | ||
| 109 | A 1106160022 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 115 | A 1104200686 | BRACKET |
| BRAKE HOSE TO FITTING AND TO T-FITTING | ||
| 122 | A 1104280340 | BRACKET |
| RIGHT BRAKE HOSE | ||
| 129 | A 1106100014 | CROSS MEMBER |
| BELOW REAR SEAT BENCH | ||
| 134 | A 1106100127 | DIAGONAL GIRDER |
| LEFT,WITH STEP BEARING FOR THRUST ARM | ||
| A 1106100227 | DIAGONAL GIRDER | |
| RIGHT,WITH STEP BEARING FOR THRUST ARM | ||
| A 1103500433 | BELL HUB | |
| Repalced by: A 1103500633 | ||
| 140 | A 1103500633 | BELL HUB |
| A 1106100110 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| 146 | A 1106100510 | SIDE MEMBER |
| Repalced by: A 1106101510 | ||
| 146 | A 1106101510 | SIDE MEMBER |
| A 1106101110 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| A 1106101510 | SIDE MEMBER | |
| A 1106101510 | SIDE MEMBER | |
| REAR LEFT | ||
| A 1106100310 | SIDE MEMBER | |
| Repalced by: A 1106110321 | ||
| 153 | A 1106110321 | TUBE |
| SEMI-FINISHED,REAR LEFT | ||
| A 1106100210 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106100610 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101210 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101610 | SIDE MEMBER | |
| REAR RIGHT | ||
| A 1106100410 | SIDE MEMBER | |
| Repalced by: A 1106110821 | ||
| A 1106110421 | TUBE | |
| Repalced by: A 1106110821 | ||
| A 1106110821 | TUBE | |
| SEMI-FINISHED,REAR RIGHT | ||
| A 1106100311 | PLATE | |
| Repalced by: A 1269840125 | ||
| A 1269840125 | THREADED CHUCK | |
| Repalced by: A 1269840025 | ||
| A 1269840025 | THREADED CHUCK | |
| SAFETY BELT TO SIDE MEMBER | ||
| A 1106100017 | CROSS MEMBER | |
| Repalced by: A 1106100117 | ||
| 160 | A 1106100117 | CROSS MEMBER |
| ABOVE REAR AXLE | ||
| 167 | A 1106100158 | CUP |
| 174 | A 1106110140 | END PIECE |
| REAR SIDE MEMBER TO LEFT SIDE PANEL | ||
| A 1106110240 | END PIECE | |
| REAR SIDE MEMBER TO RIGHT SIDE PANEL | ||
| 181 | A 1106100109 | SUPPORT |
| Repalced by: A 1106100309 | ||
| 181 | A 1106100309 | SUPPORT |
| OUTSIDE LEFT | ||
| A 1106100209 | SUPPORT | |
| Repalced by: A 1106100409 | ||
| A 1106100409 | SUPPORT | |
| OUTSIDE RIGHT | ||
| 189 | A 1116108052 | TAKE-UP DEVICE |
| Repalced by: A 1106100052 | ||
| 189 | A 1106100052 | TAKE-UP DEVICE |
| FRONT | ||
| 195 | A 1116108152 | TAKE-UP DEVICE |
| Repalced by: A 1106100452 | ||
| 195 | A 1106100452 | TAKE-UP DEVICE |
| REAR | ||
| 202 | A 1106110340 | END PIECE |
| LEFT | ||
| A 1106110440 | END PIECE | |
| RIGHT | ||
| A 1106100130 | CONSOLE | |
| Repalced by: A 1106160131 | ||
| A 1106160131 | CONSOLE | |
| DRIVER'S SEAT,OUTSIDE | ||
| 209 | A 1106160331 | CONSOLE |
| DRIVER'S SEAT,OUTSIDE | ||
| 216 | A 1106100120 | CROSS MEMBER |
| DRIVER'S SEAT | ||
| A 1106100266 | REST | |
| Repalced by: A 1106100166 | ||
| 223 | A 1106100166 | REST |
| DRIVER'S SEAT,OUTSIDE | ||
| 230 | A 1106100366 | REST |
| DRIVER'S SEAT,INSIDE | ||
| A 1106100466 | REST | |
| DRIVER'S SEAT,INSIDE | ||
| A 1106110136 | PARTITION | |
| FRONT LEFT | ||
| A 1106110236 | PARTITION | |
| FRONT RIGHT | ||
| A 0009898185 | ADHESIVE TAPE | |
| Repalced by: A 0019895985 | ||
| A 0019895985 | ADHESIVE TAPE | |
| Repalced by: A 0009899885 | ||
| A 0009899885 | ADHESIVE TAPE | |
| 237 | A 1116110214 | BRACKET |
| RIGHT SIDE MEMBER,BOTTOM | ||
| 245 | A 1116110227 | MOUNTING |
| RIGHT SIDE MEMBER,BOTTOM | ||
| 250 | A 1103250915 | SPRING CASE |
| REAR SPRING | ||
| 258 | A 1106110011 | PLATE |
| ENGINE FRONT SUSPENSION | ||
| A 1106100513 | SIDE MEMBER | |
| Repalced by: A 1106100713 | ||
| 265 | A 1106100713 | SIDE MEMBER |
| Repalced by: A 1086100113 | ||
| A 1086100113 | SIDE MEMBER | |
| LEFT FRONT CONNECTOR | ||
| A 1106100613 | SIDE MEMBER | |
| Repalced by: A 1106100813 | ||
| A 1106100813 | SIDE MEMBER | |
| RIGHT FRONT CONNECTOR | ||
| 272 | A 1106160166 | TUNNEL |
| A 1106100154 | BRIDGE | |
| Repalced by: A 1106100254 | ||
| 278 | A 1106100254 | BRIDGE |
| BELOW FRONT SEATS | ||
| 285 | A 1106100352 | TAKE-UP DEVICE |
| PROPELLER SHAFT BEARING | ||
| 291 | A 1106160231 | CONSOLE |
| DRIVER'S SEAT,INSIDE | ||
| A 1106100353 | MOUNTING | |
| Repalced by: A 1106100453 | ||
| 298 | A 1106100453 | MOUNTING |
| HAND BRAKE BEARING | ||
| A 1106100091 | GUIDE | |
| Repalced by: A 1106100191 | ||
| 305 | A 1106100191 | GUIDE |
| HAND BRAKE LEVER TO FRAME | ||
| 313 | A 1106160367 | FLOOR |
| LEFT | ||
| A 1106160467 | FLOOR | |
| RIGHT | ||
| 320 | A 1106100661 | FLOOR |
| REAR END | ||
| A 1106160062 | FLOOR | |
| REAR | ||
| 327 | A 1106160162 | FLOOR |
| SEMI-FINISHED,REAR LEFT | ||
| 333 | A 1106100025 | REINFORCEMENT |
| Repalced by: A 1106100725 | ||
| 333 | A 1106100725 | REINFORCEMENT |
| FUEL TANK TO REAR FLOOR | ||
| 340 | A 1106100016 | CROSS MEMBER |
| Repalced by: A 1106100216 | ||
| 340 | A 1106100216 | CROSS MEMBER |
| 347 | A 1106120324 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 353 | A 1106100131 | CONSOLE |
| CROSS MEMBER TO REAR AXLE | ||
| 360 | A 1104271041 | BRACKET |
| HAND BRAKE CABLE | ||
| 366 | A 1106160022 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 373 | A 1104200686 | BRACKET |
| BRAKE HOSE TO FITTING AND TO T-FITTING | ||
| 379 | A 1104280340 | BRACKET |
| RIGHT BRAKE HOSE | ||
| 385 | A 1106100014 | CROSS MEMBER |
| BELOW REAR SEAT BENCH | ||
| 392 | A 1106100127 | DIAGONAL GIRDER |
| LEFT,WITH STEP BEARING FOR THRUST ARM | ||
| A 1106100227 | DIAGONAL GIRDER | |
| RIGHT,WITH STEP BEARING FOR THRUST ARM | ||
| A 1103500433 | BELL HUB | |
| Repalced by: A 1103500633 | ||
| 399 | A 1103500633 | BELL HUB |
| 406 | A 1106100510 | SIDE MEMBER |
| Repalced by: A 1106101510 | ||
| 406 | A 1106101510 | SIDE MEMBER |
| REAR LEFT | ||
| A 1106100310 | SIDE MEMBER | |
| Repalced by: A 1106110321 | ||
| 413 | A 1106110321 | TUBE |
| SEMI-FINISHED | ||
| A 1106100610 | SIDE MEMBER | |
| REAR RIGHT | ||
| A 1106100410 | SIDE MEMBER | |
| Repalced by: A 1106110421 | ||
| A 1106110421 | TUBE | |
| Repalced by: A 1106110821 | ||
| A 1106110821 | TUBE | |
| SEMI-FINISHED | ||
| A 1106100017 | CROSS MEMBER | |
| Repalced by: A 1106100117 | ||
| 420 | A 1106100117 | CROSS MEMBER |
| ABOVE REAR AXLE | ||
| 427 | A 1106100158 | CUP |
| REAR AXLE SUSPENSION | ||
| 434 | A 1106110140 | END PIECE |
| REAR SIDE MEMBER TO LEFT SIDE PANEL | ||
| A 1106110240 | END PIECE | |
| REAR SIDE MEMBER TO RIGHT SIDE PANEL | ||
| 441 | A 1106100109 | SUPPORT |
| Repalced by: A 1106100309 | ||
| 441 | A 1106100309 | SUPPORT |
| OUTSIDE LEFT | ||
| A 1106100209 | SUPPORT | |
| Repalced by: A 1106100409 | ||
| A 1106100409 | SUPPORT | |
| OUTSIDE RIGHT | ||
| 448 | A 1116108109 | SUPPORT |
| OUTSIDE LEFT | ||
| A 1116108209 | SUPPORT | |
| OUTSIDE RIGHT | ||
| 455 | A 1116108052 | TAKE-UP DEVICE |
| Repalced by: A 1106100052 | ||
| 455 | A 1106100052 | TAKE-UP DEVICE |
| FRONT | ||
| 462 | A 1116108152 | TAKE-UP DEVICE |
| Repalced by: A 1106100452 | ||
| 462 | A 1106100452 | TAKE-UP DEVICE |
| REAR | ||
| 469 | A 1106110340 | END PIECE |
| ON SIDE MEMBER,FRONT LEFT | ||
| A 1106110440 | END PIECE | |
| RIGHT FRONT SIDE MEMBER | ||
| 475 | A 1106160331 | CONSOLE |
| DRIVER'S SEAT,OUTSIDE | ||
| 483 | A 1106100120 | CROSS MEMBER |
| BELOW FRONT SEATS | ||
| A 0009899885 | ADHESIVE TAPE | |
| A 0009898185 | ADHESIVE TAPE | |
| Repalced by: A 0019895985 | ||
| A 0019895985 | ADHESIVE TAPE | |
| Repalced by: A 0009899885 | ||
| A 0009899885 | ADHESIVE TAPE | |
| 490 | A 1116118111 | PLATE |
| LEFT | ||
| A 1116118211 | PLATE | |
| RIGHT | ||
| 497 | A 1116165431 | CONSOLE |
| FRONT SEAT | ||
| 505 | A 1116165189 | COVER PLATE |
| LEFT SIDE MEMBER, BOTTOM | ||
| A 1116165289 | COVER PLATE | |
| RIGHT SIDE MEMBER,BOTTOM | ||
| 513 | A 1106110011 | PLATE |
| ENGINE FRONT SUSPENSION | ||
| 520 | A 1116118511 | PLATE |
| LEFT | ||
| A 1116118611 | PLATE | |
| RIGHT | ||
| 528 | A 1116110227 | MOUNTING |
| 537 | A 1103250915 | SPRING CASE |
| REAR SPRING | ||
