Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

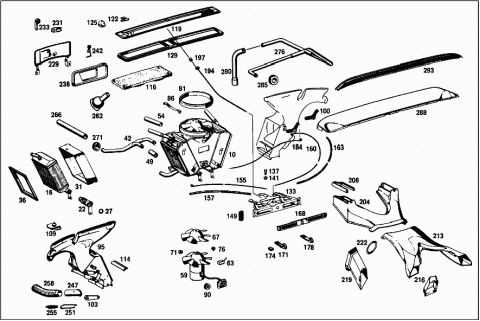

Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1108300262 | HEATER CASE |
| A 1108300562 | HEATER CASE | |
| ON SPECIAL REQUEST,WITH A HIGHER HEATING POWER | ||
| 016 | A 0008350101 | HEAT EXCHANGER |
| LEFT | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT | ||
| A 0008350301 | HEAT EXCHANGER | |
| Repalced by: A 0008350101 | ||
| A 0008350101 | HEAT EXCHANGER | |
| LEFT | ||
| A 0008350401 | HEAT EXCHANGER | |
| Repalced by: A 0008350201 | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT | ||
| 022 | A 0008350320 | CONTROL VALVE |
| LEFT | ||
| A 0008350420 | CONTROL VALVE | |
| RIGHT | ||
| 027 | A 0008350098 | SEAL |
| Repalced by: A 0008351298 | ||
| A 0008351298 | SEAL | |
| Repalced by: A 0008354198 | ||
| A 0008354198 | SEAL | |
| Repalced by: A 0008355898 | ||
| A 0008355898 | SEAL | |
| 031 | A 0008350023 | WEATHERSTRIP |
| 036 | A 0008350123 | WEATHERSTRIP |
| A 0008350015 | PIPE LINE | |
| FEED LINE HOSE TO HEAT EXCHANGER | ||
| 042 | A 0008350615 | PIPE LINE |
| FEED LINE HOSE TO HEAT EXCHANGER | ||
| 049 | N 900271015009 | HOSE |
| FEED LINE HOSE TO HEAT EXCHANGER | ||
| N 900263005000 | STRAP | |
| Repalced by: A 0009977190 | ||
| N 900262005100 | LOOM TIE | |
| Repalced by: A 0009977190 | ||
| A 0009977190 | LOOM TIE | |
| FEED LINE HOSE TO HEAT EXCHANGER | ||
| 054 | N 900271015009 | HOSE |
| RETURN LINE TO HEAT EXCHANGER, LEFT & RIGHT | ||
| A 0009977190 | LOOM TIE | |
| HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| A 0008300302 | SCOOP | |
| Repalced by: A 0008350902 | ||
| A 0008350302 | MOTOR | |
| Repalced by: A 0008350902 | ||
| 059 | A 0008350902 | MOTOR |
| FRESH AIR HEATING | ||
| 063 | A 0008350575 | CARBON BRUSH SET |
| A 0008350385 | FAN | |
| METAL | ||
| 067 | A 0008350785 | FAN |
| PLASTIC VERSION | ||
| A 0008350090 | GROMMET | |
| Repalced by: A 0009976181 | ||
| 071 | A 0009976181 | GROMMET |
| BLOWER WITH BRACKET TO FRAME | ||
| A 0009873040 | RUBBER BUFFER | |
| Repalced by: A 0009871840 | ||
| 076 | A 0009871840 | RUBBER BUFFER |
| BLOWER WITH BRACKET TO FRAME | ||
| N 000137005203 | SPRING WASHER | |
| BLOWER WITH BRACKET TO FRAME | ||
| N 000934005008 | NUT | |
| BLOWER WITH BRACKET TO FRAME | ||
| 081 | A 0008350223 | WEATHERSTRIP |
| 086 | A 0008350034 | SPRING |
| 090 | A 0009976181 | GROMMET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| HEATER CASE TO WATER TANK | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| HEATER CASE TO WATER TANK | ||
| N 912004006102 | LOCK WASHER | |
| HEATER CASE TO WATER TANK | ||
| A 0009905991 | NUT RETAINER | |
| HEATER CASE TO FIRE WALL | ||
| A 1869911640 | SPACER TUBE | |
| HEATER CASE TO FIRE WALL | ||
| N 000933006083 | SCREW | |
| HEATER CASE TO FIRE WALL | ||
| N 000137006204 | PART NAME MISSING | |
| HEATER CASE TO FIRE WALL | ||
| A 1108301119 | DEFROSTER NOZZLE | |
| Repalced by: A 1108300319 | ||
| A 1108300319 | DEFROSTER NOZZLE | |
| WITH LEVER,LEFT | ||
| A 1108301219 | DEFROSTER NOZZLE | |
| Repalced by: A 1108300419 | ||
| A 1108300419 | DEFROSTER NOZZLE | |
| WITH DOUBLE LEVER,RIGHT | ||
| A 1108301419 | DEFROSTER NOZZLE | |
| Repalced by: A 1108300619 | ||
| A 1108300619 | DEFROSTER NOZZLE | |
| WITH DOUBLE LEVER,RIGHT | ||
| 095 | A 1108300719 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1108300819 | DEFROSTER NOZZLE | |
| RIGHT | ||
| A 1108301019 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 100 | A 1108310433 | LEVER |
| DEFROSTER,RIGHT | ||
| 103 | A 1108310733 | LEVER |
| DEFROSTER,LEFT | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| LEVER TO AIR FLAP | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| LEVER TO AIR FLAP | ||
| N 000137006204 | SPRING WASHER | |
| A 1108310233 | LEVER | |
| DEFROSTER,RIGHT | ||
| A 1108310533 | LEVER | |
| DEFROSTER,LEFT | ||
| 109 | A 1108310020 | MOUNTING |
| DEFROSTER NOZZLE | ||
| A 1108310192 | PAD | |
| DEFROSTER NOZZLE | ||
| 114 | A 0009874651 | RUBBER SEAL |
| A 1108300618 | GRILLE | |
| Repalced by: A 1108300518 | ||
| 116 | A 1108300518 | GRILLE |
| LEFT AND RIGHT | ||
| A 1108300443 | AIR DISTRIBUTOR | |
| AT FIRE WALL | ||
| 119 | A 1108300743 | AIR DISTRIBUTOR |
| AT FIRE WALL | ||
| 122 | A 1108300551 | HINGE |
| LEFT | ||
| A 1108300651 | HINGE | |
| RIGHT | ||
| A 0019870540 | RUBBER BUFFER | |
| Repalced by: A 0009871840 | ||
| 125 | A 0009871840 | RUBBER BUFFER |
| N 000933006085 | SCREW | |
| N 006797006242 | TOOTHED WASHER | |
| A 1108310298 | SEAL | |
| Repalced by: A 1108310398 | ||
| 129 | A 1108310398 | SEAL |
| FRESH-AIR FLAP | ||
| A 1108300433 | OPERATING LEVER | |
| Repalced by: A 1108301033 | ||
| 133 | A 1108301033 | OPERATING LEVER |
| Repalced by: A 1108302133 | ||
| 133 | A 1108302133 | OPERATING LEVER |
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| 137 | A 1368310089 | SCREW |
| WIRE CABLE TO AIR FLAP | ||
| 141 | A 1360720050 | BUSHING |
| WIRE CABLE TO AIR FLAP | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO AIR FLAP | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| H 101868880034 | SPRING | |
| Repalced by: A 1868880034 | ||
| 149 | A 1868880034 | SPRING |
| A 1108330131 | WIRE CABLE | |
| Repalced by: A 1108330331 | ||
| A 1108330231 | WIRE CABLE | |
| Repalced by: A 1108330331 | ||
| 155 | A 1108330331 | WIRE CABLE |
| WIRE CABLE TO CONTROL VALVE | ||
| 610 MM | ||
| 157 | A 0009880172 | WIRE SPIRAL |
| Repalced by: A 1108331230 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| WIRE CABLE TO CONTROL VALVE | ||
| 290 MM | ||
| N 040621005200 | INSULATING HOSE | |
| WIRE CABLE TO CONTROL VALVE | ||
| 245 MM | ||
| 160 | A 1108330331 | WIRE CABLE |
| DEFROSTER NOZZLE | ||
| 610 MM | ||
| 163 | A 0009880172 | WIRE SPIRAL |
| Repalced by: A 1108331230 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 500 MM | ||
| A 1118336130 | SPIRAL | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 290 MM | ||
| N 040621005200 | INSULATING HOSE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 465 MM | ||
| N 040621005200 | INSULATING HOSE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 245 MM | ||
| N 000933004020 | SCREW | |
| WIRE CABLE TO BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO BRACKET | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO OPERATING LEVER BEARING | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET | ||
| 168 | A 1108300089 | ESCUTCHEON |
| N 912004006102 | LOCK WASHER | |
| ESCUTCHEON AND ASHTRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| N 000934006007 | NUT | |
| ESCUTCHEON AND ASHTRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| 171 | H 101808300036 | HANDLE |
| OPERATING UNIT | ||
| 174 | H 101808330091 | GROMMET |
| OPERATING UNIT | ||
| 178 | A 1118330340 | OPERATING HANDLE |
| Repalced by: A 1118330440 | ||
| 178 | A 1118330440 | OPERATING HANDLE |
| OPERATING UNIT | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO CONTROL VALVE | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO CONTROL VALVE | ||
| A 0019886878 | CLIP | |
| WIRE CABLE TO HEATER CASE | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO CONTROL VALVE | ||
| A 1108330431 | WIRE CABLE | |
| Repalced by: A 1108330331 | ||
| 184 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 0009880172 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 465 MM | ||
| N 040621005200 | INSULATING HOSE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 430 MM | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO BRACKET | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| WIRE CABLE TO BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET | ||
| N 000125005306 | WASHER | |
| WIRE CABLE TO BRACKET | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO BRACKET | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| N 007981003246 | SHEET METAL SCREW | |
| WIRE CABLE TO RIGHT DEFROSTER NOZZLE | ||
| N 007981003214 | SHEET METAL SCREW | |
| WIRE CABLE TO LEFT DEFROSTER NOZZLE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| H 121368310090 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| A 1108330031 | WIRE CABLE | |
| Repalced by: G 401218330431 | ||
| H 401218330431 | WIRE CABLE | |
| Repalced by: A 1218330431 | ||
| 194 | A 1218330431 | WIRE CABLE |
| FRESH AIR FLAP | ||
| 300 MM | ||
| A 0009880172 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| WIRE CABLE TO AIR FLAP | ||
| 197 | A 1108330091 | GROMMET |
| Repalced by: A 1093270059 | ||
| 197 | A 1093270059 | PROTECTIVE CAP |
| WIRE CABLE TO AIR FLAP | ||
| N 040621005200 | INSULATING HOSE | |
| WIRE CABLE TO AIR FLAP | ||
| 180 MM | ||
| A 0009978481 | GROMMET | |
| Repalced by: A 0009974981 | ||
| A 0009974981 | GROMMET | |
| Repalced by: A 0009971881 | ||
| A 0009971881 | GROMMET | |
| WIRE CABLE TO HEATER CASE | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| A 1369950601 | CLAMP | |
| Repalced by: A 1109950001 | ||
| A 1369950220 | CLAMP | |
| Repalced by: A 1109950001 | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO WATER TANK COVERING | ||
| N 007981003214 | SHEET METAL SCREW | |
| WIRE CABLE TO WATER TANK COVERING | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO WATER TANK COVERING | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO AIR FLAP | ||
| 204 | A 1108300024 | INTERMEDIATE PIECE |
| LEGROOM HEATING | ||
| 208 | A 1108310199 | SEAL |
| REAR DUCT,BOTTOM LEFT | ||
| A 1108310299 | SEAL | |
| REAR DUCT,BOTTOM RIGHT | ||
| A 1109900740 | WASHER | |
| Repalced by: N 009021006103 | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DEFROSTER NOZZLE CONNECTION | ||
| N 000933006130 | SCREW | |
| DEFROSTER NOZZLE CONNECTION | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| CONNECTING DUCT | ||
| 5X20X260 | ||
| 213 | A 1108300045 | AIR DUCT |
| REAR SPACE HEATING | ||
| A 1118305045 | AIR DUCT | |
| FLOOR SHIFT | ||
| 216 | A 1108310399 | SEAL |
| HEATING DUCT TO CROSS MEMBER,LEFT | ||
| A 1108310499 | SEAL | |
| HEATING DUCT TO CROSS MEMBER,RIGHT | ||
| 219 | A 1108310345 | DUCT |
| LEFT REAR SPACE HEATING,IN CROSS MEMBER FRONT SEAT | ||
| A 1108310445 | DUCT | |
| RIGHT REAR SPACE HEATING,IN CROSS MEMBER FRONT SEAT | ||
| 222 | A 1119870141 | RUBBER RING |
| BETWEEN DUCT AND CROSS MEMBER | ||
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| HEATING DUCT TO TUNNEL | ||
| N 007981004254 | SHEET METAL SCREW | |
| HEATING DUCT TO TUNNEL | ||
| A 0009841755 | WASHER | |
| HEATING DUCT TO TUNNEL | ||
| 229 | A 1108300543 | AIR DISTRIBUTOR |
| AT FIRE WALL | ||
| 231 | A 1108310058 | LATCH |
| ENGINE COMPARTMENT FLAP | ||
| 233 | A 1108330645 | LEVER |
| ENGINE COMPARTMENT FLAP | ||
| N 007985006126 | SCREW | |
| HANDLE TO ENGINE COMPARTMENT FLAP | ||
| A 0009900148 | WASHER | |
| HANDLE TO ENGINE COMPARTMENT FLAP | ||
| N 900055012001 | SPRING WASHER | |
| HANDLE TO ENGINE COMPARTMENT FLAP | ||
| 238 | A 1108310198 | SEAL |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| N 912004006102 | LOCK WASHER | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| 242 | A 1108310034 | SPRING |
| ENGINE COMPARTMENT FLAP | ||
| 247 | A 1118300154 | NOZZLE |
| INSTRUMENT PANEL,LEFT | ||
| A 1118300254 | NOZZLE | |
| INSTRUMENT PANEL,RIGHT | ||
| H 101208310032 | WIRE CLAMP | |
| Repalced by: A 1208310032 | ||
| 251 | A 1208310032 | VALVE |
| ANNULAR NOZZLE TO INSTRUMENT PANEL | ||
| 255 | A 1209931610 | SPRING |
| ANNULAR NOZZLE TO INSTRUMENT PANEL | ||
| A 0009974482 | HOSE | |
| ANNULAR NOZZLE TO DEFROSTER NOZZLE | ||
| 165 MM | ||
| H 101208310026 | CONNECTING PIPE | |
| Repalced by: A 1108310188 | ||
| A 1108310088 | HOSE | |
| Repalced by: A 1108310188 | ||
| 258 | A 1108310188 | HOSE |
| ANNULAR NOZZLE TO DEFROSTER NOZZLE | ||
| 168 MM | ||
| A 0029975282 | HOSE | |
| Repalced by: A 1108310132 | ||
| 262 | A 1108310132 | VALVE |
| 266 | N 900271018036 | HOSE |
| FEED LINE | ||
| A 0009976890 | LOOM TIE | |
| Repalced by: N 900262009000 | ||
| N 900262009000 | LOOM TIE | |
| Repalced by: N 900262009100 | ||
| N 900262009100 | LOOM TIE | |
| 271 | A 1109970481 | GROMMET |
| Repalced by: A 1109972181 | ||
| A 1109972181 | GROMMET | |
| FEED LINE THRU FIRE WALL,BOTTOM LEFT | ||
| A 1109971081 | GROMMET | |
| FEED LINE THRU FIRE WALL,BOTTOM LEFT | ||
| A 1118300015 | PIPE LINE | |
| Repalced by: A 1118300315 | ||
| A 1118300115 | PIPE LINE | |
| Repalced by: A 1118300315 | ||
| 276 | A 1118300315 | PIPE LINE |
| HEAT EXCHANGER | ||
| 276 | A 1118300315 | PIPE LINE |
| HEAT EXCHANGER | ||
| A 1118300215 | PIPE LINE | |
| HEAT EXCHANGER | ||
| N 900271018036 | HOSE | |
| FROM RETURN LINE TO ENGINE | ||
| 280 | A 1118310094 | HOSE |
| RETURN LINE TO HEAT EXCHANGER, LEFT & RIGHT | ||
| 240 MM | ||
| A 3049950120 | CLAMP | |
| Repalced by: A 3609950601 | ||
| A 3609950601 | CLAMP | |
| RETURN LINE TO SIDE MEMBER | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| RETURN LINE TO SIDE MEMBER | ||
| A 0009976890 | LOOM TIE | |
| Repalced by: N 900262009000 | ||
| A 0009976990 | LOOM TIE | |
| Repalced by: N 900262009000 | ||
| N 900282009000 | PISTON RING | |
| RETURN LINE TO ENGINE | ||
| A 0009977190 | LOOM TIE | |
| Repalced by: N 900262009000 | ||
| N 900262009000 | LOOM TIE | |
| Repalced by: N 900262009100 | ||
| N 900262009100 | LOOM TIE | |
| HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| 285 | A 1869970781 | GROMMET |
| RETURN LINE THRU FIRE WALL | ||
| 288 | A 1108360023 | CAP |
| N 007982003215 | SHEET METAL SCREW | |
| N 007981003203 | SHEET METAL SCREW | |
| A 1118300118 | GRILLE | |
| Repalced by: A 1118300218 | ||
| 293 | A 1118300218 | GRILLE |
| N 007983004202 | SHEET METAL SCREW | |
| ORNAMENTAL FRAME TO CENTRAL OUTSIDE PART | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| ORNAMENTAL FRAME TO CENTRAL OUTSIDE PART | ||
| A 1118305062 | HEATER CASE | |
| Repalced by: A 1118305162 | ||
| 300 | A 1118305162 | HEATER CASE |
| Repalced by: A 1118305762 | ||
| 300 | A 1118305762 | HEATER CASE |
| A 1118305362 | HEATER CASE | |
| Repalced by: A 1118305962 | ||
| A 1118305962 | HEATER CASE | |
| ON SPECIAL REQUEST,WITH A HIGHER HEATING POWER | ||
| 305 | A 0008350101 | HEAT EXCHANGER |
| LEFT | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT | ||
| A 0008350301 | HEAT EXCHANGER | |
| Repalced by: A 0008350101 | ||
| A 0008350101 | HEAT EXCHANGER | |
| LEFT | ||
| A 0008350401 | HEAT EXCHANGER | |
| Repalced by: A 0008350201 | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT | ||
| 312 | A 0008350320 | CONTROL VALVE |
| LEFT | ||
| A 0008350420 | CONTROL VALVE | |
| RIGHT | ||
| 318 | A 0008350098 | SEAL |
| Repalced by: A 0008351298 | ||
| A 0008351298 | SEAL | |
| Repalced by: A 0008354198 | ||
| A 0008354198 | SEAL | |
| Repalced by: A 0008355898 | ||
| A 0008355898 | SEAL | |
| 323 | A 0008350023 | WEATHERSTRIP |
| 328 | A 0008350123 | WEATHERSTRIP |
| A 0008350315 | PIPE LINE | |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| 334 | A 0008350415 | PIPE LINE |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| A 0008350515 | PIPE LINE | |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| 339 | N 900271015009 | HOSE |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| FEED LINE HOSE TO HEAT EXCHANGER | ||
| 346 | N 900271015009 | HOSE |
| RETURN LINE TO HEAT EXCHANGER, LEFT & RIGHT | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| A 0008350302 | MOTOR | |
| Repalced by: A 0009350902 | ||
| 353 | A 0008350902 | MOTOR |
| 358 | A 0008350575 | CARBON BRUSH SET |
| 364 | A 0008350785 | FAN |
| 369 | A 0009976181 | GROMMET |
| BLOWER WITH BRACKET TO FRAME | ||
| A 0009873040 | RUBBER BUFFER | |
| Repalced by: A 0009871840 | ||
| 375 | A 0009871840 | RUBBER BUFFER |
| BLOWER WITH BRACKET TO FRAME | ||
| N 000137005203 | SPRING WASHER | |
| BLOWER WITH BRACKET TO FRAME | ||
| N 000934005014 | NUT | |
| BLOWER WITH BRACKET TO FRAME | ||
| 381 | A 0008350223 | WEATHERSTRIP |
| 388 | A 0008350034 | SPRING |
| 394 | A 0009976181 | GROMMET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| HEATER CASE TO WATER TANK | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| HEATER CASE TO WATER TANK | ||
| N 912004006102 | LOCK WASHER | |
| HEATER CASE TO WATER TANK | ||
| A 0009905991 | NUT RETAINER | |
| Repalced by: A 0009904291 | ||
| A 0009904291 | NUT RETAINER | |
| HEATER CASE TO FIRE WALL | ||
| N 000933006123 | SCREW | |
| HEATER CASE TO FIRE WALL | ||
| N 000137006204 | PART NAME MISSING | |
| HEATER CASE TO FIRE WALL | ||
| 400 | A 1118305119 | DEFROSTER NOZZLE |
| Repalced by: A 1118305519 | ||
| 400 | A 1118305519 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1118305219 | DEFROSTER NOZZLE | |
| Repalced by: A 1118305619 | ||
| A 1118305619 | DEFROSTER NOZZLE | |
| RIGHT | ||
| A 1118305419 | DEFROSTER NOZZLE | |
| Repalced by: A 1118305619 | ||
| A 1118305619 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 405 | A 1108310433 | LEVER |
| RIGHT | ||
| 409 | A 1108310733 | LEVER |
| LEFT | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| LEVER TO AIR FLAP | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| LEVER TO AIR FLAP | ||
| N 000137006204 | SPRING WASHER | |
| LEVER TO AIR FLAP | ||
| 416 | A 1108310020 | MOUNTING |
| 422 | A 0009874651 | RUBBER SEAL |
| 115 MM | ||
| 427 | A 1118315065 | SCREEN |
| 433 | A 1108300743 | AIR DISTRIBUTOR |
| 439 | A 1119871340 | RUBBER BUFFER |
| Repalced by: A 0009871840 | ||
| 439 | A 0009871840 | RUBBER BUFFER |
| FRESH AIR FLAP | ||
| N 000933006085 | SCREW | |
| FRESH AIR FLAP | ||
| N 006797006242 | TOOTHED WASHER | |
| FRESH AIR FLAP | ||
| 446 | A 1118315198 | SEAL |
| FRESH-AIR FLAP | ||
| 451 | A 1118305333 | OPERATING LEVER |
| H 101868880034 | SPRING | |
| Repalced by: A 1868880034 | ||
| 457 | A 1868880034 | SPRING |
| 464 | A 1118305089 | ESCUTCHEON |
| A 0009900148 | WASHER | |
| ESCUTCHEON AND ASHTRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| N 000934006016 | NUT | |
| ESCUTCHEON AND ASHTRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| 471 | H 101808300036 | HANDLE |
| HEATING AND VENTILATION | ||
| 476 | H 101808330091 | GROMMET |
| HEATING AND VENTILATION | ||
| 483 | A 1118330340 | OPERATING HANDLE |
| Repalced by: A 1118330440 | ||
| 483 | A 1118330440 | OPERATING HANDLE |
| HEATING AND VENTILATION | ||
| 488 | A 1108330331 | WIRE CABLE |
| CONTROL VALVE | ||
| 600 MM | ||
| 493 | A 0009880172 | WIRE SPIRAL |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| WIRE CABLE TO CONTROL VALVE | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| 499 | A 1368310089 | SCREW |
| WIRE CABLE TO CONTROL VALVE | ||
| 506 | A 1360720050 | BUSHING |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO OPERATING LEVER | ||
| A 0019886878 | CLIP | |
| WIRE CABLE TO HEATER CASE | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000933004020 | SCREW | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO CONTROL VALVE | ||
| H 401218330431 | WIRE CABLE | |
| Repalced by: A 1218330431 | ||
| 514 | A 1218330431 | WIRE CABLE |
| DEFROSTER NOZZLE | ||
| 1200 MM | ||
| 519 | A 0009880172 | WIRE SPIRAL |
| Repalced by: A 1108331230 | ||
| N 004621005200 | SPRING CLAMP | |
| Repalced by: A 1108331230 | ||
| 526 | A 1108330331 | WIRE CABLE |
| DEFROSTER NOZZLE CONNECTION | ||
| A 0009880172 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| N 040621005200 | INSULATING HOSE | |
| DEFROSTER NOZZLE CONNECTION WIRE CABLE | ||
| 430 MM | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000433004303 | WASHER | |
| Repalced by: N 000433004307 | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 007981003246 | SHEET METAL SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 007981003214 | SHEET METAL SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| H 121368310090 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| 536 | H 401218330431 | WIRE CABLE |
| Repalced by: A 1108330331 | ||
| A 1108330331 | WIRE CABLE | |
| FRESH AIR FLAP | ||
| 610 MM | ||
| A 0009880172 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| 541 | A 1108330091 | GROMMET |
| Repalced by: A 1093270059 | ||
| 541 | A 1093270059 | PROTECTIVE CAP |
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| A 0009978481 | GROMMET | |
| Repalced by: A 0009974981 | ||
| A 0009974981 | GROMMET | |
| Repalced by: A 0009971881 | ||
| A 0009971881 | GROMMET | |
| FRESH AIR FLAP WIRE CABLE THRU WATER TANK | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO AIR FLAP | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO AIR FLAP | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO AIR FLAP | ||
| A 1369950601 | CLAMP | |
| WIRE CABLE TO AIR FLAP | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| A 1369950220 | CLAMP | |
| Repalced by: A 1109950001 | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO AIR FLAP | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO AIR FLAP | ||
| N 000127004101 | LOCK WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO AIR FLAP | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO AIR FLAP | ||
| 551 | A 1118305024 | INTERMEDIATE PIECE |
| FRONT AND REAR SPACE HEATING | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 5X10X220 MM | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| DEFROSTER NOZZLE CONNECTION | ||
| N 000137006204 | PART NAME MISSING | |
| DEFROSTER NOZZLE CONNECTION | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 5X20X260 MM | ||
| 558 | A 1118305045 | AIR DUCT |
| FRONT AND REAR SPACE HEATING | ||
| 563 | A 1108310399 | SEAL |
| LEFT HEATING DUCT TO CROSS MEMBER FOR REAR SPACE HEATING | ||
| A 1108310499 | SEAL | |
| RIGHT HEATING DUCT TO CROSS MEMBER FOR REAR SPACE HEATING | ||
| 568 | A 1108310345 | DUCT |
| LEFT | ||
| A 1108310445 | DUCT | |
| RIGHT | ||
| 573 | A 1119870141 | RUBBER RING |
| BETWEEN DUCT AND CROSS MEMBER | ||
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| HEATING DUCT AND CONNECTING DUCT TO TUNNEL | ||
| A 0009841755 | WASHER | |
| HEATING DUCT AND CONNECTING DUCT TO TUNNEL | ||
| 581 | A 1118305143 | AIR DISTRIBUTOR |
| AT FIRE WALL | ||
| 588 | A 1108310058 | LATCH |
| 593 | A 1108330645 | LEVER |
| 599 | A 1118315098 | SEAL |
| N 007985006126 | SCREW | |
| HANDLE TO ENGINE COMPARTMENT FLAP | ||
| N 900055012001 | SPRING WASHER | |
| HANDLE TO ENGINE COMPARTMENT FLAP | ||
| A 0009900148 | WASHER | |
| HANDLE TO ENGINE COMPARTMENT FLAP | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| N 000137006204 | PART NAME MISSING | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| A 0009905991 | NUT RETAINER | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| 607 | A 1108310034 | SPRING |
| ENGINE COMPARTMENT FLAP | ||
| 614 | A 1118300154 | NOZZLE |
| LEFT | ||
| A 1118300254 | NOZZLE | |
| RIGHT | ||
| 621 | H 101208310032 | WIRE CLAMP |
| Repalced by: A 1108310188 | ||
| A 1108310188 | HOSE | |
| ANNULAR NOZZLE TO INSTRUMENT PANEL | ||
| 626 | A 1209931610 | SPRING |
| ANNULAR NOZZLE TO INSTRUMENT PANEL | ||
| 631 | H 101208310188 | HOSE |
| ANNULAR NOZZLE TO DEFROSTER NOZZLE | ||
| 160 MM | ||
| H 101208310026 | CONNECTING PIPE | |
| A 0029975282 | HOSE | |
| Repalced by: A 1108310132 | ||
| A 1108310032 | VALVE | |
| Repalced by: A 1108310132 | ||
| 639 | A 1108310132 | VALVE |
| A 1109970481 | GROMMET | |
| Repalced by: A 1869970781 | ||
| A 1869970781 | GROMMET | |
| HOSE THRU FIRE WALL | ||
| A 1108320081 | CLAMPING PIECE | |
| HOSE THRU FIRE WALL | ||
| 646 | N 900271018036 | HOSE |
| HOSE THRU FIRE WALL | ||
| A 1088310094 | HOSE | |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| N 900271018036 | HOSE | |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| A 0009976890 | LOOM TIE | |
| Repalced by: N 900269025101 | ||
| N 900269025101 | CLAMP | |
| N 900269022100 | CLAMP | |
| RETURN LINE TO HEAT EXCHANGER, LEFT & RIGHT | ||
| 653 | A 1109970481 | GROMMET |
| Repalced by: A 1109972181 | ||
| A 1109972181 | GROMMET | |
| FEED LINE THRU FIRE WALL,BOTTOM LEFT | ||
| A 1118300015 | PIPE LINE | |
| Repalced by: A 1118300315 | ||
| A 1118300115 | PIPE LINE | |
| Repalced by: A 1118300315 | ||
| 667 | A 1118300315 | PIPE LINE |
| HEAT EXCHANGER | ||
| A 1118300215 | PIPE LINE | |
| HEAT EXCHANGER | ||
| N 900271018036 | HOSE | |
| 673 | A 1118310094 | HOSE |
| 240 MM | ||
| A 0009976890 | LOOM TIE | |
| Repalced by: N 900269025101 | ||
| N 900269025101 | CLAMP | |
| FROM RETURN LINE TO ENGINE | ||
| A 0009976990 | LOOM TIE | |
| FROM RETURN LINE TO ENGINE | ||
| A 0009977190 | LOOM TIE | |
| HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| 679 | A 1869970781 | GROMMET |
| RETURN LINE THRU FIRE WALL | ||
| A 1539950120 | CLAMP | |
| RETURN LINE TO SIDE MEMBER | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| RETURN LINE TO SIDE MEMBER | ||
| 686 | A 1118365023 | CAP |
| 691 | A 1118300218 | GRILLE |
| N 007982003215 | SHEET METAL SCREW | |
| N 007981003203 | SHEET METAL SCREW | |
| N 007983004202 | SHEET METAL SCREW | |
| ORNAMENTAL FRAME TO CENTRAL OUTSIDE PART | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| ORNAMENTAL FRAME TO CENTRAL OUTSIDE PART | ||
| A 1108300108 | BLOWER | |
| A 0008380208 | FAN ASSEMBLY | |
| A 0005450611 | SWITCH | |
| Repalced by: A 0005458511 | ||
| A 0005458511 | SWITCH | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
