Transporto priemonė: 220 SEB; VIN numerio dalis: 111023
Grupė: 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 001 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MERCEDES-BENZ AUTOMATIC TRANSMISSION | ||

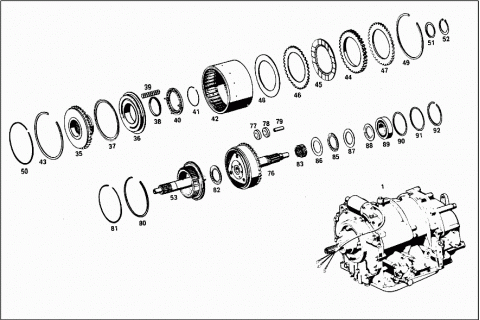

| 001 | A 1112701301 | AUTOMATIC TRANSMISSION |

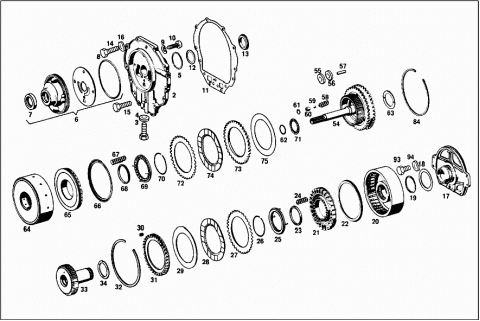

| 002 | A 1122700505 | COVER |
| Repalced by: A 1122700705 | ||
| 002 | A 1122700705 | COVER |
| A 1122710550 | BUSHING | |
| N 007604014106 | SCREW PLUG | |
| Repalced by: N 007604014110 | ||
| N 007604014110 | SCREW PLUG | |
| N 007603014100 | SEAL RING | |
| 003 | A 1129970530 | SCREW PLUG |
| 003 | A 1129970530 | SCREW PLUG |
| 004 | N 007603010100 | SEAL RING |
| 004 | N 007603010100 | SEAL RING |
| 005 | A 1002720155 | SEAL RING |
| 006 | A 1122701490 | HOUSING |
| A 1122774350 | BUSHING | |
| 007 | A 0089979146 | SEAL RING |
| 008 | A 0049970548 | SEAL RING |
| 008 | A 0049970548 | SEAL RING |
| 009 | N 000137008100 | SPRING WASHER |
| 010 | N 006912008000 | SCREW |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 011 | A 1122710480 | GASKET |
| Repalced by: A 1122711380 | ||
| 011 | A 1122711380 | GASKET |
| 012 | A 1122710052 | SPACER WASHER |
| 0.1 MM | ||
| A 1122710152 | SPACER WASHER | |
| Repalced by: A 1122710052 | ||
| A 1122710052 | SPACER WASHER | |
| 0.2 MM | ||
| A 1122710252 | SPACER WASHER | |
| 0.5 MM | ||
| 013 | A 1122710062 | THRUST WASHER |
| 014 | N 000933007019 | SCREW |
| 015 | N 000933007020 | SCREW |
| 016 | N 000137007200 | SPRING WASHER |
| 017 | A 1122700320 | FLANGE |
| 018 | A 1122720762 | GUARD PLATE |
| 019 | A 1002720155 | SEAL RING |
| A 1122704220 | FLANGE | |
| WITH BEARING | ||
| 020 | A 1122703420 | FLANGE |
| WITH BEARING | ||
| 021 | A 1122721231 | PISTON |
| Repalced by: A 1122722331 | ||
| 021 | A 1122722331 | PISTON |
| 022 | A 1122720255 | SEAL RING |
| Repalced by: A 1152721292 | ||
| 022 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 022 | A 3162720792 | BOOT |
| A 0009973841 | SEAL RING | |
| 023 | A 1152721492 | BOOT |
| 024 | A 1129935001 | SPRING |
| A 1129930802 | SPRING | |
| 025 | A 1122720764 | SPRING RETAINER |
| 026 | A 1129940035 | SNAP RING |
| 027 | A 1092721526 | OUTER DISC |
| 028 | A 1122720225 | INNER DISC |
| 029 | A 1122721462 | GUARD PLATE |
| A 1122720473 | LOCK | |
| 030 | A 1129934801 | SPRING |
| A 1122721262 | GUARD PLATE | |
| A 1122723162 | GUARD PLATE | |
| 031 | A 1122723362 | GUARD PLATE |
| 032 | A 1122720173 | LOCK |
| A 1122700325 | DRIVE SHAFT | |
| 033 | A 1122702925 | DRIVE SHAFT |
| 034 | A 1122720062 | GUARD PLATE |
| A 1112700420 | FLANGE | |
| 035 | A 1122703720 | FLANGE |
| A 1112720231 | PISTON | |
| Repalced by: A 1112720431 | ||
| A 1112720431 | PISTON | |
| 036 | A 1122722631 | PISTON |
| A 1112720055 | SEAL RING | |
| Repalced by: A 1112720092 | ||
| A 1112720092 | BOOT | |
| 037 | A 1122721192 | BOOT |
| A 0009973841 | SEAL RING | |
| 038 | A 1152721492 | BOOT |
| A 1129934901 | SPRING | |
| 039 | A 1129933102 | SPRING |
| 040 | A 1122720664 | SPRING RETAINER |
| 041 | A 1129940035 | SNAP RING |
| A 1122720124 | DISC SUPPORT | |
| 042 | A 1122721824 | DISC SUPPORT |
| 043 | A 1122720173 | LOCK |
| A 1122721862 | GUARD PLATE | |
| A 1122720326 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1122720426 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1092720826 | OUTER DISC | |
| 044 | A 1122720826 | OUTER DISC |
| Repalced by: A 1122720726 | ||
| 044 | A 1122720726 | OUTER DISC |
| 045 | A 1122720125 | INNER DISC |
| Repalced by: A 1122720225 | ||
| 045 | A 1122720225 | INNER DISC |
| A 1092721526 | OUTER DISC | |
| 046 | A 1092721526 | OUTER DISC |
| A 1002720026 | OUTER DISC | |
| Repalced by: A 1092721826 | ||
| A 1092721826 | OUTER DISC | |
| 047 | A 1122721126 | OUTER DISC |
| A 1112720162 | GUARD PLATE | |
| A 1112720462 | GUARD PLATE | |
| 048 | A 1122721462 | GUARD PLATE |
| 049 | A 1122720073 | LOCK |
| A 1122720673 | LOCK | |
| 050 | A 1129940039 | WIRE RING |
| N 000063004100 | SCREW | |
| 051 | A 1122720052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1122720152 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.7 MM | ||
| A 1122720252 | SPACER WASHER | |
| Repalced by: A 1122720052 | ||
| A 1122720052 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 1122721052 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| N 000471040002 | LOCK RING | |
| 052 | N 900055040301 | LOCK RING |
| A 1122700525 | DRIVE SHAFT | |
| 053 | A 1122703025 | DRIVE SHAFT |
| 054 | A 1122701643 | PLANETARY CARRIER |
| 055 | A 1122723762 | GUARD PLATE |
| 056 | A 1122723562 | GUARD PLATE |
| 057 | A 1122720074 | PIN |
| 058 | A 1129930005 | SPRING |
| 059 | N 005401307000 | BALL |
| 060 | A 1122720067 | RING |
| 061 | N 000472012000 | LOCK RING |
| 062 | A 3072720255 | SEAL RING |
| 063 | A 1122720062 | GUARD PLATE |
| 064 | A 1122700120 | FLANGE |
| Repalced by: A 1122703920 | ||
| 064 | A 1122701720 | FLANGE |
| Repalced by: A 1122703920 | ||
| 064 | A 1122702820 | FLANGE |
| Repalced by: A 1122703920 | ||
| 064 | A 1122703920 | FLANGE |
| WITH BEARING | ||
| 065 | A 1122720931 | PISTON |
| Repalced by: A 1122722231 | ||
| 065 | A 1122722231 | PISTON |
| 066 | A 1122720255 | SEAL RING |
| Repalced by: A 1152721292 | ||
| 066 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 066 | A 3162720792 | BOOT |
| A 1129934901 | SPRING | |
| 067 | A 1129933102 | SPRING |
| A 0009973841 | SEAL RING | |
| 068 | A 1152721492 | BOOT |
| 069 | A 1122720664 | SPRING RETAINER |
| 070 | A 1129940035 | SNAP RING |
| 071 | A 0009814710 | NEEDLE BEARING |
| A 1092721526 | OUTER DISC | |
| 072 | A 1092721526 | OUTER DISC |
| A 1122720326 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1122720426 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1092720826 | OUTER DISC | |
| 073 | A 1122720626 | OUTER DISC |
| Repalced by: A 1122721126 | ||
| 073 | A 1122721126 | OUTER DISC |
| 074 | A 1122720125 | INNER DISC |
| Repalced by: A 1122720225 | ||
| 074 | A 1122720225 | INNER DISC |
| A 1112720462 | GUARD PLATE | |
| 075 | A 1122721462 | GUARD PLATE |
| A 1122701543 | PLANETARY CARRIER | |
| 076 | A 1122701743 | PLANETARY CARRIER |
| 077 | A 1122723662 | GUARD PLATE |
| 078 | A 1122723862 | GUARD PLATE |
| 079 | A 1122720174 | PIN |
| 080 | A 1122720273 | LOCK |
| A 1152720273 | LOCK | |
| 081 | A 1129940735 | SNAP RING |
| A 1122722262 | GUARD PLATE | |
| 082 | A 0009819910 | NEEDLE BEARING |
| 083 | A 0009814810 | NEEDLE BEARING |
| 084 | A 1122720173 | LOCK |
| A 1122720162 | GUARD PLATE | |
| 085 | A 1009810010 | NEEDLE BEARING |
| 086 | A 0002721062 | GUARD PLATE |
| A 1122720352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1122720452 | SPACER WASHER | |
| Repalced by: A 1122720352 | ||
| A 1122720352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| 087 | A 1002720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1002720252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| 088 | A 1122721962 | GUARD PLATE |
| 089 | N 000625506207 | GROOVED BALL BEARING |
| 090 | A 1122720952 | SPACER WASHER |
| 091 | A 1122720652 | SPACER WASHER |
| 0.1 MM | ||
| A 1122720752 | SPACER WASHER | |
| 0.15 MM | ||
| A 1122720852 | SPACER WASHER | |
| Repalced by: A 1122720652 | ||
| A 1122720652 | SPACER WASHER | |
| 0.20 MM | ||
| 092 | A 0009941640 | SNAP RING |
| 093 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 093 | N 304017008034 | SCREW |
| 094 | N 000137008200 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |

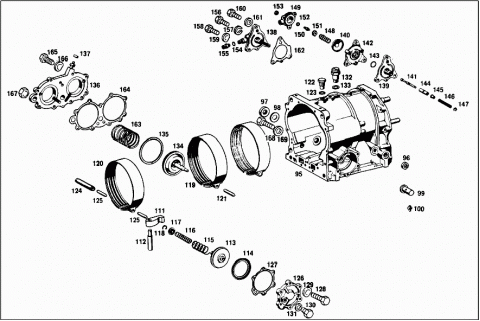

| TRANSMISSION CASE | ||
| 095 | A 1122703611 | TRANSMISSION CASE |
| N 900421006001 | THREADED INSERT | |
| REPAIR SIZE | ||
| N 900421007000 | THREADED INSERT | |
| REPAIR SIZE | ||
| N 900421008003 | THREADED INSERT | |
| REPAIR SIZE | ||
| 096 | N 006503010100 | SEAL RING |
| 097 | A 0019972346 | SEAL RING |
| BRAKE BAND PISTON | ||
| 098 | A 1129900240 | WASHER |
| N 900059022000 | EXPANSION PLUG | |
| A 1129970032 | SCREW PLUG | |
| A 1129970335 | PLUG | |
| 099 | A 1122701389 | VALVE |
| 100 | A 1122770747 | TUBE |
| 101 | A 1122700356 | LEVER |
| Repalced by: A 1122700556 | ||
| 101 | A 1122700756 | LEVER |
| Repalced by: A 1122700556 | ||
| 101 | A 1122700556 | LEVER |
| 102 | A 1122700357 | DETENT |
| 103 | N 000125006421 | WASHER |
| 104 | N 000093006400 | LOCK PLATE |
| 105 | N 000934006007 | NUT |
| 106 | A 1122700064 | SHIFTING FORK |
| 107 | A 1122700065 | LINKAGE |
| 108 | N 071805010200 | BALL SOCKET |
| 109 | N 000439006100 | NUT |
| 110 | N 071805010400 | SECURING CLIP |
| 111 | A 1122770624 | LEVER |
| A 1122770074 | PIN | |
| 112 | A 1122771074 | PIN |
| 113 | A 1122700132 | PISTON |
| 114 | A 1122770192 | BOOT |
| 115 | A 1129937201 | SPRING |
| 116 | A 1129937101 | SPRING |
| 117 | A 1122770853 | SPACER TUBE |
| 118 | A 0009942741 | LOCK |
| 119 | A 1122702062 | BRAKE BAND |
| Repalced by: A 1122702562 | ||
| 119 | A 1122702562 | BRAKE BAND |
| 120 | A 1122700762 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 120 | A 1122701162 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 120 | A 1122702262 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 120 | A 1122702362 | BRAKE BAND |
| Repalced by: A 1122702662 | ||
| 120 | A 1122702662 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 120 | A 1122702362 | BRAKE BAND |
| 121 | A 1122770475 | PIN |
| 35 MM AS REQUIRED | ||
| A 1122770575 | PIN | |
| 36 MM AS REQUIRED | ||
| A 1122770675 | PIN | |
| 37 MM AS REQUIRED | ||
| 122 | A 1129970130 | SCREW PLUG |
| 123 | N 007603016401 | SEAL RING |
| 124 | A 1122770171 | SCREW |
| A 1152775375 | PIN | |
| 125 | A 1122773175 | PIN |
| 126 | A 1122770003 | COVER |
| 127 | A 1122770080 | GASKET |
| Repalced by: A 1122771780 | ||
| 127 | A 1122771780 | GASKET |
| 128 | N 000933070019 | SCREW |
| 129 | N 000137007200 | SPRING WASHER |
| 130 | A 1129970030 | SCREW PLUG |
| 131 | N 007603008101 | SEAL RING |
| A 1112600058 | BREATHER | |
| A 1122700382 | BREATHER | |
| REPAIR SIZE | ||
| 132 | A 1122700182 | BREATHER |
| N 007603010100 | SEAL RING | |
| 133 | N 007603014100 | SEAL RING |
| 134 | A 1122700932 | PISTON |
| 135 | A 1122770055 | SEAL RING |
| 136 | A 1122700114 | BEARING COVER |
| Repalced by: A 1122700814 | ||
| 136 | A 1122700814 | BEARING COVER |
| WITH SHIFTING SHAFT | ||
| 137 | A 0009976041 | SEAL RING |
| A 1122700271 | HOUSING | |
| 138 | A 1112700071 | HOUSING |
| 139 | A 1122700188 | INSULATING PLATE |
| 140 | A 1122700079 | DIAPHRAGM |
| A 1122771375 | PIN | |
| Repalced by: A 1122772475 | ||
| A 1122770233 | DIAPHRAGM | |
| Repalced by: A 1122772475 | ||
| A 1122770352 | SPACER WASHER | |
| Repalced by: A 1122772475 | ||
| N 000127003200 | LOCK WASHER | |
| Repalced by: A 1122772475 | ||
| N 000934003003 | NUT | |
| Repalced by: N 304032003001 | ||
| N 304032003001 | NUT | |

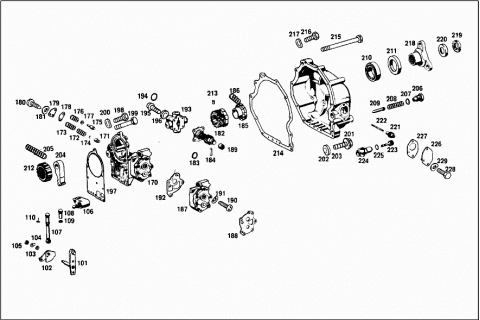

| 141 | A 1122770946 | SPRING RETAINER |
| Repalced by: A 1122772475 | ||
| 141 | A 1122772475 | PIN |
| 80 MM AS REQUIRED | ||
| A 1122772575 | PIN | |
| 81 MM AS REQUIRED | ||
| A 1122772675 | PIN | |
| 82 MM AS REQUIRED | ||
| 142 | A 1122770514 | INTERMEDIATE PLATE |
| 143 | A 0009976845 | SEAL RING |
| 144 | A 1122770753 | SPACER TUBE |
| A 1122770452 | SPACER WASHER | |
| 145 | A 1122770977 | GUIDE |
| A 1129934001 | SPRING | |
| 146 | A 1129932402 | SPRING |
| 147 | N 006799003200 | LOCK PLATE |
| A 1129938801 | SPRING | |
| 148 | A 1129934002 | SPRING |
| A 1129935202 | SPRING | |
| N 000433005300 | WASHER | |
| A 1122771403 | COVER | |
| 149 | A 1112770003 | COVER |
| 150 | A 1122770271 | SCREW |
| 151 | A 1122771046 | SPRING RETAINER |
| 152 | N 007603006100 | SEAL RING |
| 153 | N 000934006007 | NUT |
| 154 | N 007603010100 | SEAL RING |
| 155 | N 915013004002 | SCREW FITTING |
| 156 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 156 | N 304017005002 | SCREW |
| 157 | N 000137005100 | SPRING WASHER |
| 158 | N 000933005103 | SCREW |
| 159 | N 000137005100 | SPRING WASHER |
| A 1122770157 | INSULATING RING | |
| 160 | A 1129970030 | SCREW PLUG |
| 161 | N 007603008101 | SEAL RING |
| 162 | A 1122771380 | GASKET |
| Repalced by: A 1122771580 | ||
| 162 | A 1122771580 | GASKET |
| Repalced by: A 1102770180 | ||
| 162 | A 1102770180 | GASKET |
| 163 | A 1129931401 | SPRING |
| 164 | A 1122770380 | GASKET |
| Repalced by: A 1122771980 | ||
| 164 | A 1122771980 | GASKET |
| 165 | N 000933007017 | SCREW |
| N 000933007021 | SCREW | |
| N 000933007019 | SCREW | |
| 166 | N 000137007200 | SPRING WASHER |
| A 1122770257 | INSULATING RING | |
| 167 | N 000936014005 | NUT |
| 168 | A 1129970030 | SCREW PLUG |
| MEASURING CONNECTION | ||
| 169 | N 007603008101 | SEAL RING |
| MEASURING CONNECTION | ||
| 170 | A 1122701116 | CASE COVER |
| LESS GOVERNOR,PUMP AND DRIVE GEAR | ||
| N 900421005000 | THREADED INSERT | |
| 171 | A 1122772731 | PISTON |
| 172 | A 1129937601 | SPRING |
| 173 | A 1129937701 | SPRING |
| A 1129935402 | SPRING | |
| 174 | A 1122770852 | SPACER WASHER |
| MAXIMUM,4 PIECES | ||
| 175 | A 1122775531 | PISTON |
| 176 | A 1129936801 | SPRING |
| 177 | A 1122770752 | SPACER WASHER |
| MAXIMUM,2 PIECES | ||
| 178 | A 1122770180 | GASKET |
| Repalced by: A 1122771680 | ||
| 178 | A 1122771680 | GASKET |
| 179 | A 1122770083 | LOCKING SHEET |
| 180 | N 000084005131 | SCREW |
| 181 | N 000137005100 | SPRING WASHER |
| 182 | A 1122700993 | DRIVE SHAFT |
| A 1092700193 | DRIVE SHAFT | |
| 183 | A 1862770055 | SEAL RING |
| 184 | A 1129910201 | PIN |
| REPAIR SIZE | ||
| 5,4 MM | ||
| A 1129910301 | PIN | |
| REPAIR SIZE | ||
| 5,5 MM | ||
| 185 | A 1122700950 | BUSHING |
| 186 | A 1129930102 | SPRING |
| 187 | A 1122700097 | OIL PUMP |
| 188 | A 1122700187 | GASKET KIT |
| 189 | A 1122770453 | SPACER TUBE |
| FOLLOWER TO DRIVE SHAFT | ||
| 190 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 190 | N 304017006027 | SCREW |
| 191 | N 000137006204 | SPRING WASHER |
| 192 | A 1122770980 | GASKET |
| Repalced by: A 1122771880 | ||
| 192 | A 1122771880 | GASKET |
| 193 | A 1122700169 | SENDER UNIT |
| 194 | A 0009977845 | SEAL RING |
| 195 | N 000912005004 | SCREW |
| 196 | N 000137005100 | SPRING WASHER |
| 197 | A 1122770480 | GASKET |
| Repalced by: A 1122771480 | ||
| 197 | A 1122771480 | GASKET |
| 198 | N 000933006123 | SCREW |
| 199 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 199 | N 304014006004 | SCREW |
| 200 | N 000137006204 | SPRING WASHER |
| 201 | A 1122701211 | TRANSMISSION CASE |
| WITH DOWEL PINS AND STUDS | ||
| 202 | N 007603008101 | SEAL RING |
| 202 | N 007603008101 | SEAL RING |
| 203 | A 1129970030 | SCREW PLUG |
| 203 | A 1129970030 | SCREW PLUG |
| 204 | A 1122780221 | PAWL |
| 205 | A 1129939001 | SPRING |
| 206 | A 1122780069 | SCREW |
| 207 | N 007603016401 | SEAL RING |
| 208 | A 1129939901 | SPRING |
| 209 | A 1122780374 | PIN |
| N 000625006007 | GROOVED BALL BEARING | |
| 210 | N 000625900201 | GROOVED BALL BEARING |
| A 0029970846 | SEAL RING | |
| 211 | A 0039974746 | SEAL RING |
| A 1122720217 | GEAR | |
| 212 | A 1002720017 | GEAR |
| 213 | A 1002720074 | PIN |
| 214 | A 1122710680 | GASKET |
| Repalced by: A 1122711480 | ||
| 214 | A 1122711480 | GASKET |
| 215 | N 000933007022 | SCREW |
| 216 | N 000933007021 | SCREW |
| 217 | N 000137007200 | SPRING WASHER |
| A 1122720445 | FLANGE | |
| 218 | A 1112620045 | FLANGE |
| 219 | A 1862620226 | GROOVED NUT |
| 220 | A 1862620173 | LOCK |
| 221 | A 1122700527 | SPEEDOMETER DRIVE |
| 222 | A 1122740032 | DRIVE SHAFT |
| 223 | A 1122700627 | SPEEDOMETER DRIVE |
| 224 | A 1122700113 | BEARING BODY |
| 225 | A 0009976845 | SEAL RING |
| 226 | A 1122700008 | COVER |
| 227 | A 1122740180 | GASKET |
| 228 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 228 | N 304017006016 | SCREW |
| 229 | N 000137006204 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |

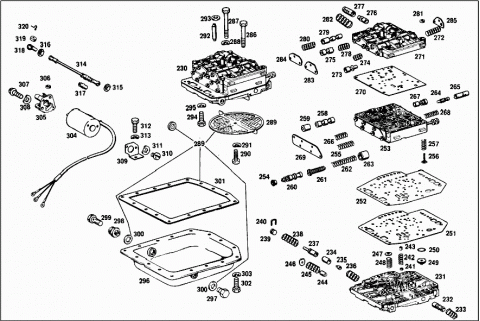

| VALVE BODY ASSEMBLY | ||
| A 1122700807 | VALVE BODY ASSEMBLY | |
| 230 | A 1112700507 | VALVE BODY ASSEMBLY |
| A 1122700907 | VALVE BODY ASSEMBLY | |
| 231 | A 1122702207 | VALVE BODY ASSEMBLY |
| A 1122774129 | SHIFT VALVE | |
| A 1122774229 | SHIFT VALVE | |
| A 1129931402 | SPRING | |
| A 1122771146 | SPRING RETAINER | |
| 232 | A 1122775329 | SHIFT VALVE |
| 233 | A 1129932701 | SPRING |
| 234 | A 1122773550 | BUSHING |
| 235 | A 1122774531 | PISTON |
| 236 | A 1129933502 | SPRING |
| 237 | A 1122774631 | PISTON |
| 238 | A 1129933702 | SPRING |
| 239 | A 1122771174 | PIN |
| 240 | A 1122770073 | LOCK |
| 241 | A 1122773750 | BUSHING |
| 242 | A 1129933802 | SPRING |
| 243 | A 1122774731 | PISTON |
| A 1122773631 | PISTON | |
| 244 | A 1122775031 | PISTON |
| 245 | A 1129934402 | SPRING |
| 246 | A 1122770583 | LOCKING SHEET |
| A 1129935801 | SPRING | |
| 247 | A 1152772936 | VALVE PART |
| 248 | A 1129934802 | SPRING |
| 249 | A 1122701489 | VALVE |
| 250 | A 0059974145 | SEAL RING |
| A 1122771014 | INTERMEDIATE PLATE | |
| 251 | A 1122771314 | INTERMEDIATE PLATE |
| A 1122770880 | GASKET | |
| Repalced by: A 1122772080 | ||
| A 1122772080 | GASKET | |
| 252 | A 1122771280 | GASKET |
| Repalced by: A 1122772380 | ||
| 252 | A 1122772380 | GASKET |
| A 1122701007 | VALVE BODY ASSEMBLY | |
| 253 | A 1112700307 | VALVE BODY ASSEMBLY |
| A 1122770850 | BUSHING | |
| 254 | A 1122773150 | BUSHING |
| 255 | A 1129930902 | SPRING |
| 256 | A 1122770436 | VALVE PART |
| 257 | A 1129930301 | SPRING |
| A 1122775129 | SHIFT VALVE | |
| 258 | A 1122775629 | SHIFT VALVE |
| 259 | A 1122774031 | PISTON |
| A 1122700570 | REGULATOR VALVE | |
| 260 | A 1122700870 | REGULATOR VALVE |
| 261 | A 1122700177 | THRUST PIN |
| 262 | A 1129938501 | SPRING |
| 263 | A 1122772631 | PISTON |
| 264 | A 1122774729 | SHIFT VALVE |
| 265 | A 1122772950 | BUSHING |
| A 1129931002 | SPRING | |
| 266 | A 1129933902 | SPRING |
| A 1122772929 | SHIFT VALVE | |
| 267 | A 1122775429 | SHIFT VALVE |
| 268 | A 1129931901 | SPRING |
| 269 | A 1122771783 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| 270 | A 1122771114 | INTERMEDIATE PLATE |
| A 1122701207 | VALVE BODY ASSEMBLY | |
| 271 | A 1122702107 | VALVE BODY ASSEMBLY |
| 272 | A 1129931502 | SPRING |
| A 1129934302 | SPRING | |
| A 1122775131 | PISTON | |
| 273 | A 1122775231 | PISTON |
| A 1129936501 | SPRING | |
| 274 | A 1129934402 | SPRING |
| 275 | A 1122772929 | SHIFT VALVE |
| 276 | A 1122775529 | SHIFT VALVE |
| 277 | A 1122773650 | BUSHING |
| 278 | A 1129931901 | SPRING |
| 279 | A 1122771530 | SHIFT VALVE |
| 280 | A 1129935002 | SPRING |
| 281 | A 1122770392 | BOOT |
| A 1122774050 | BUSHING | |
| A 1129932601 | SPRING | |
| 282 | A 1129933602 | SPRING |
| A 1129930902 | SPRING | |
| 283 | A 1122770883 | LOCKING SHEET |
| 284 | A 1122770983 | LOCKING SHEET |
| 285 | A 1122770483 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| N 900421005000 | THREADED INSERT | |
| 286 | N 000931006055 | SCREW |
| 287 | N 000931006061 | SCREW |
| 288 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 288 | N 000137006204 | SPRING WASHER |
| 289 | A 1122700098 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012104 OIL DRAN HYDRAULIC CLUTCH | ||
| A 1132700098 | FILTER | |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012113 OIL DRAN HYDRAULIC CLUTCH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| 290 | N 000084006134 | SCREW |
| 291 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 291 | N 000137006204 | SPRING WASHER |
| 292 | A 1122770647 | TUBE |
| 293 | A 0009976345 | SEAL RING |
| 294 | N 000933007019 | SCREW |
| 295 | N 000137007201 | SPRING WASHER |
| 296 | A 1122700412 | OIL PAN |
| 297 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 297 | N 007604014110 | SCREW PLUG |
| 298 | A 1129970372 | FITTING |
| 299 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 299 | N 915036010108 | HOLLOW SCREW |
| 300 | N 007603014100 | SEAL RING |
| 300 | N 007603014100 | SEAL RING |
| 301 | A 1122710980 | GASKET |
| 302 | N 000933007027 | SCREW |
| 303 | N 000137007200 | SPRING WASHER |
| 304 | A 0003040290 | SOLENOID |
| 305 | A 1123000036 | BEARING BRACKET |
| Repalced by: A 1123000636 | ||
| 305 | A 1123000636 | BEARING BRACKET |
| 306 | A 1123040060 | SEAL RING |
| 307 | N 000084005131 | SCREW |
| 308 | N 000137005100 | SPRING WASHER |
| 309 | A 1123040040 | BRACKET |
| 310 | N 000084005402 | SCREW |
| 311 | N 000137005100 | SPRING WASHER |
| 312 | N 000933007023 | SCREW |
| 313 | N 000137007200 | SPRING WASHER |
| A 1123040078 | ROD | |
| 314 | A 1123001015 | ROD |
| 315 | N 000934005008 | NUT |
| 316 | N 000934005010 | NUT |
| 317 | N 900333005001 | TURNBUCKLE |
| 318 | N 071805008204 | BALL SOCKET |
| 319 | A 0009976041 | SEAL RING |
| 320 | N 071805008400 | SECURING CLIP |
| N 900055005000 | SPRING WASHER | |
| N 000433005300 | WASHER | |
| N 000094001501 | COTTER PIN | |
| A 1122700080 | GASKET KIT | |
| Repalced by: A 1122701800 | ||
| A 1122701800 | GASKET KIT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONNECTING PARTS | ||

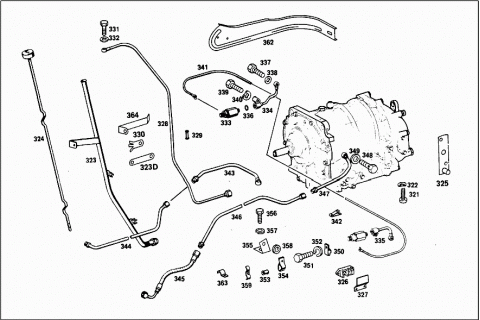

| 321 | N 000912006025 | SCREW |
| Repalced by: N 000912006175 | ||
| 321 | N 000912006175 | SCREW |
| Repalced by: A 0019907212 | ||
| 321 | A 0019907212 | SCREW |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 322 | N 000137006204 | SPRING WASHER |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| N 000912008047 | SCREW | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| N 000137008200 | SPRING WASHER | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| A 1112700084 | OIL FILLER PIPE | |
| 323 | A 1112700284 | OIL FILLER PIPE |
| Repalced by: A 1112700384 | ||
| 323 | A 1112700384 | OIL FILLER PIPE |
| 323D | A 1112710940 | BRACKET |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| OIL FILLER PIPE TO INTAKE MANIFOLD | ||
| N 000127008200 | LOCK WASHER | |
| OIL FILLER PIPE TO INTAKE MANIFOLD | ||
| 324 | A 1122700083 | OIL DIPSTICK |
| 325 | A 1122700656 | LEVER |
| N 000933006130 | SCREW | |
| ADDITIONAL LEVER TO GEAR SELECTOR LEVER | ||
| N 000137006204 | SPRING WASHER | |
| ADDITIONAL LEVER TO GEAR SELECTOR LEVER | ||
| N 000125006407 | WASHER | |
| ADDITIONAL LEVER TO GEAR SELECTOR LEVER | ||
| N 000934006007 | NUT | |
| ADDITIONAL LEVER TO GEAR SELECTOR LEVER | ||
| 326 | A 0005466541 | CABLE CONNECTOR |
| 327 | A 1272570490 | COVER PLATE |
| N 000084004164 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137004100 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| 328 | A 1112701347 | LINE |
| A 1112700747 | LINE | |
| A 1142702247 | LINE | |
| 329 | A 1129970381 | GROMMET |
| 329 | A 1129970381 | GROMMET |
| 330 | A 1112760040 | BRACKET |
| A 1122760240 | BRACKET | |
| N 900195010200 | THREADED INSERT | |
| 331 | N 007623004302 | HOLLOW SCREW |
| 332 | N 007603010100 | SEAL RING |
| 333 | A 0015421317 | SENDER UNIT |
| OIL PRESSURE | ||
| 334 | A 1125400173 | BRACKET |
| 335 | A 1125400273 | BRACKET |
| 336 | N 007603012405 | SEAL RING |
| 337 | A 1129900263 | HOLLOW SCREW |
| 338 | N 007603008101 | SEAL RING |
| 339 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 339 | N 304017006027 | SCREW |
| 340 | N 000137006204 | SPRING WASHER |
| 341 | A 1115400438 | ELECTRIC CABLE |
| 342 | A 1119950101 | CLAMP |
| 343 | A 1112700896 | LINE |
| 344 | A 1142700996 | LINE |
| Repalced by: A 1232700396 | ||
| 344 | A 1232700396 | LINE |
| 345 | A 0019971852 | HOSE |
| 346 | A 1112700696 | LINE |
| 347 | A 1112700796 | LINE |
| 348 | N 007623006302 | HOLLOW SCREW |
| 349 | N 007603012405 | SEAL RING |
| 350 | A 1209950005 | CLAMP |
| 351 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 351 | N 304017006016 | SCREW |
| 352 | N 912004006102 | LOCK WASHER |
| 353 | A 1129970281 | GROMMET |
| 354 | A 1209950005 | CLAMP |
| A 1112770140 | BRACKET | |
| 355 | A 1112770440 | BRACKET |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000137006204 | SPRING WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| 356 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 356 | N 304017008021 | SCREW |
| 357 | N 000127008200 | LOCK WASHER |
| 358 | A 1801550851 | SPACER RING |
| 359 | A 1119951232 | CLAMP |
| N 000084004164 | SCREW | |
| CLAMP TO OIL PIPE | ||
| N 000127004200 | LOCK WASHER | |
| CLAMP TO OIL PIPE | ||
| N 000934004006 | NUT | |
| CLAMP TO OIL PIPE | ||
| N 000931010268 | SCREW | |
| Repalced by: N 304017010050 | ||
| N 304017010050 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010239 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000125010500 | WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000137010200 | SPRING WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 362 | A 1114900030 | PROTECTIVE PLATE |
| 363 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 363 | A 1109950401 | CLAMP |
| 364 | A 1114920819 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO TRANSMISSION | ||
| N 912004006102 | LOCK WASHER | |
| COVER PLATE TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| COVER PLATE TO TRANSMISSION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

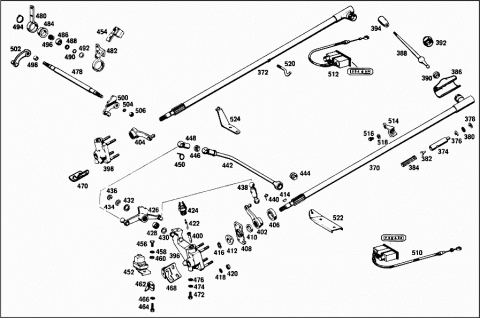

| GEARSHIFT, STEERING COLUMN | ||
| 370 | A 1122600582 | SHIFTING TUBE |
| 372 | A 1122601182 | SHIFTING TUBE |
| 374 | A 1112680539 | GUIDE PIVOT |
| 376 | A 1119971240 | SEAL RING |
| 378 | A 1869906940 | WASHER |
| 380 | A 1862680273 | LOCK |
| 382 | A 1862680274 | PIN |
| 384 | A 1829930801 | SPRING |
| 386 | A 1112680397 | BOOT |
| 388 | A 1802680524 | SHIFT LEVER |
| 390 | A 1112680392 | RUBBER PAD |
| 392 | A 1802680057 | COVER |
| 394 | A 1802680540 | KNOB |
| Repalced by: A 1082680242 | ||
| 394 | A 1082680242 | KNOB |
| DARK GRAPHITE GREY | ||
| A 1802680640 | KNOB | |
| Repalced by: A 1112680842 | ||
| A 1112680842 | KNOB | |
| IVORY-COLORED | ||
| 396 | A 1122601294 | BEARING BRACKET |
| 398 | A 1122601494 | BEARING BRACKET |
| 400 | A 1112680850 | BUSHING |
| 402 | A 1112600315 | LEVER |
| 404 | A 1122600115 | LEVER |
| 406 | A 1112681050 | BUSHING |
| 408 | A 1122680557 | COVER |
| 410 | A 1112680251 | SPACER RING |
| A 1122680246 | SHIFTING SEGMENT | |
| 412 | A 1122680546 | SHIFTING SEGMENT |
| A 1122680446 | SHIFTING SEGMENT | |
| A 1122680646 | SHIFTING SEGMENT | |
| 414 | N 006888002000 | WOODRUFF KEY |
| 416 | N 000471013000 | LOCK RING |
| 418 | N 912004006102 | LOCK WASHER |
| 420 | N 000934006007 | NUT |
| 422 | A 1122680474 | PIN |
| 424 | A 0005450806 | SWITCH |
| BACK-UP LIGHT | ||
| 426 | A 1122600881 | LEVER |
| 428 | A 0009812110 | NEEDLE BEARING |
| 430 | A 1809970840 | SEAL RING |
| 432 | A 3129900340 | WASHER |
| 434 | N 900055012000 | SPRING WASHER |
| 436 | N 006799010001 | LOCK PLATE |
| 438 | A 0002680166 | BALL SOCKET |
| 440 | N 071805010400 | SECURING CLIP |
| 442 | A 1112606233 | SHIFTING ROD |
| A 1082600133 | SHIFTING ROD | |
| 444 | A 1122680150 | BUSHING |
| 446 | N 070616010000 | NUT |
| A 1809910022 | BALL SOCKET | |
| 448 | A 0009913822 | BALL SOCKET |
| 450 | N 071805013400 | SECURING CLIP |
| A 1092680073 | LOCK | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| N 912004006102 | LOCK WASHER | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| N 000934006007 | NUT | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| 452 | A 0015452524 | SWITCH,AUTOMATIC |
| 454 | A 0015453524 | SWITCH,AUTOMATIC |
| 456 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 456 | N 304017005002 | SCREW |
| 458 | N 000127005200 | LOCK WASHER |
| 460 | N 000125005306 | WASHER |
| 462 | A 1122680039 | GUIDE PIVOT |
| 464 | N 000933006130 | SCREW |
| 466 | N 912004006102 | LOCK WASHER |
| A 1122600128 | GUIDE PLATE | |
| 468 | A 1122600228 | GUIDE PLATE |
| A 1122680647 | SLOTTED GATE | |
| 470 | A 1122680847 | SLOTTED GATE |
| 472 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 472 | N 304017006016 | SCREW |
| 474 | N 912004006102 | LOCK WASHER |
| 476 | N 000125006421 | WASHER |
| 478 | A 1112680732 | SHAFT |
| 480 | A 1112680235 | BEARING |
| 482 | A 1112682601 | HOUSING |
| 484 | A 1112680086 | RUBBER RING |
| 486 | A 1119910029 | BALL |
| 488 | A 1802680076 | WASHER |
| 490 | A 1119971040 | SEAL RING |
| 492 | N 000988010000 | FITTED WASHER |
| 494 | N 000471010000 | LOCK RING |
| 496 | A 0009811810 | NEEDLE BEARING |
| 498 | A 1129910340 | SPACER TUBE |
| 500 | A 1122601181 | LEVER |
| 502 | A 1122601081 | LEVER |
| 504 | N 000127007200 | LOCK WASHER |
| 506 | N 000934007000 | NUT |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| A 0009905991 | NUT RETAINER | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| 510 | A 1122700052 | GEAR INDICATOR |
| A 1122700352 | GEAR INDICATOR | |
| 512 | A 1122700252 | GEAR INDICATOR |
| 514 | A 1092680215 | LEVER |
| 516 | N 000933006130 | SCREW |
| 518 | N 000137006204 | SPRING WASHER |
| 520 | A 1129900138 | SCREW |
| N 000934006007 | NUT | |
| 522 | A 1122600162 | BRACKET |
| GEAR INDICATOR BOWDEN CABLE | ||
| 524 | A 1112600062 | BRACKET |
| GEAR INDICATOR BOWDEN CABLE | ||
| A 1122600262 | BRACKET | |
| GEAR INDICATOR BOWDEN CABLE | ||
| A 1112600362 | BRACKET | |
| GEAR INDICATOR BOWDEN CABLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
