Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

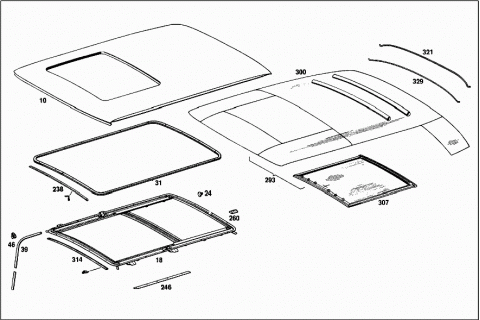

Grupė: 78 SLIDING ROOF
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1106500070 | ROOF PANELLING | |
| Repalced by: A 1106500270 | ||
| 010 | A 1106500270 | ROOF PANELLING |
| Repalced by: A 1106500570 | ||
| 010 | A 1106500570 | ROOF PANELLING |
| REINFORCEMENT FRAME | ||
| A 1107800129 | FRAME | |
| Repalced by: A 1107800529 | ||
| A 1107800329 | FRAME | |
| Repalced by: A 1107800529 | ||
| 018 | A 1107800529 | FRAME |
| BOTTOM | ||
| 024 | A 0009871840 | RUBBER BUFFER |
| FRAME,BOTTOM | ||
| A 1107870297 | PAD | |
| Repalced by: A 0009833087 | ||
| A 1107870397 | PAD | |
| Repalced by: A 0009833087 | ||
| A 0009833087 | CARPET | |
| 2 MM | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| FRAME,BOTTOM | ||
| N 000933006130 | SCREW | |
| FRAME,BOTTOM | ||
| N 912004006102 | LOCK WASHER | |
| FRAME,BOTTOM | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| FRAME,BOTTOM | ||
| N 000433006405 | WASHER | |
| FRAME,BOTTOM | ||
| A 1107800098 | SEAL | |
| FRAME,BOTTOM | ||
| A 1107800598 | SEAL | |
| Repalced by: A 1107820407 | ||
| A 1107800398 | SEAL | |
| Repalced by: A 1107820407 | ||
| 031 | A 1107820407 | SEAL |
| Repalced by: A 1157820098 | ||
| 031 | A 1157820098 | SEAL |
| FRAME,BOTTOM | ||
| A 0009894671 | CLEANER | |
| Repalced by: A 0009899271 | ||
| A 0009899271 | CLEANER | |
| SEAL LESS GLUE | ||
| A 0009899271 | CLEANER | |
| SEAL WITH ADHESIVE PASTE | ||
| A 0009974182 | HOSE | |
| Repalced by: A 0009978482 | ||
| A 0039976382 | HOSE | |
| Repalced by: A 0009978482 | ||
| 039 | A 0009978482 | HOSE |
| 039 | A 0009978482 | HOSE |
| 046 | A 1107820019 | GROMMET |
| WATER DRAIN, FRONT | ||
| N 900285008100 | CLAMP | |
| WATER DRAIN, FRONT | ||
| A 0009894685 | ADHESIVE TAPE | |
| 50 MM | ||
| A 0009871260 | RUBBER PAD | |
| Repalced by: A 1087840297 | ||
| A 1087840297 | PAD | |
| Repalced by: A 1107841597 | ||
| A 1107841597 | PAD | |
| FRAME PART,CENTRAL | ||
| 800 MM | ||

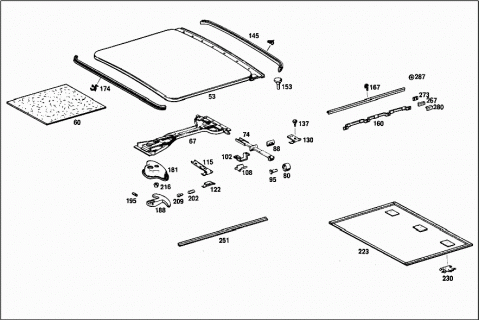

| 053 | A 1107800021 | SLIDING ROOF PLATE |
| A 1107840097 | PAD | |
| Repalced by: A 0009830098 | ||
| A 1107840197 | PAD | |
| Repalced by: A 0009830098 | ||
| A 1107840297 | PAD | |
| Repalced by: A 0009830098 | ||
| 060 | A 0009830098 | FOAM PLASTICS |
| Repalced by: A 0009833598 | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| SLIDING ROOF PLATE | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| REINFORCEMENT FRAME | ||
| 150X950 | ||
| 060 | A 0009833598 | FOAM PLASTICS |
| BETWEEN FRAME AND HEADLINER | ||
| 50X950 MM | ||
| A 1107800222 | SLIDING ROOF MECHANISM | |
| Repalced by: A 1107800322 | ||
| 067 | A 1107800322 | SLIDING ROOF MECHANISM |
| N 007985004123 | SCREW | |
| SLIDING ROOF MECHANISM | ||
| N 006797004132 | TOOTHED WASHER | |
| SLIDING ROOF MECHANISM | ||
| N 007987004122 | SCREW | |
| SLIDING ROOF MECHANISM | ||
| 074 | A 1107800576 | ROD |
| LEFT | ||
| A 1107800676 | ROD | |
| RIGHT | ||
| 080 | A 1107800126 | ROLLER |
| 088 | A 1107830096 | SEAL |
| 095 | A 1107830415 | PIN |
| N 001481002001 | CLAMPING SLEEVE | |
| ROLLER PIN | ||
| N 000933005060 | SCREW | |
| N 006797005132 | TOOTHED WASHER | |
| 102 | A 1107870040 | SHACKLE |
| 108 | A 1107830134 | SPRING |
| N 007985004123 | SCREW | |
| N 006797004132 | TOOTHED WASHER | |
| 115 | A 1107800312 | ANGLE |
| Repalced by: A 1107800612 | ||
| 115 | A 1107800612 | ANGLE |
| FRONT LEFT AND RIGHT | ||
| 122 | A 1107820030 | SLIDING JAW |
| N 007985004123 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| N 006797004132 | TOOTHED WASHER | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 1107800012 | ANGLE | |
| Repalced by: A 1107800512 | ||
| A 1107800512 | ANGLE | |
| REAR LEFT AND RIGHT | ||
| 130 | A 1107800512 | ANGLE |
| REAR LEFT AND RIGHT | ||
| A 1107820030 | SLIDING JAW | |
| A 1109870439 | RUBBER BUFFER | |
| Repalced by: A 1109870539 | ||
| 137 | A 1109870539 | RUBBER BUFFER |
| N 000933006234 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| N 006797006145 | TOOTHED WASHER | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 0009876752 | RUBBER SEAL | |
| Repalced by: A 1107870198 | ||
| A 0009877452 | RUBBER SEAL | |
| Repalced by: A 1107870198 | ||
| A 1107800298 | SEAL | |
| Repalced by: A 1107870198 | ||
| 145 | A 1107870198 | SEAL |
| Repalced by: A 1107870098 | ||
| 145 | A 1107870098 | SEAL |
| SLIDING ROOF PLATE | ||
| A 0009894671 | CLEANER | |
| Repalced by: A 0009899271 | ||
| A 0009899271 | CLEANER | |
| SLIDING ROOF PLATE | ||
| A 0009879740 | RUBBER BUFFER | |
| Repalced by: A 1109870539 | ||
| A 1109870339 | RUBBER BUFFER | |
| Repalced by: A 1109870539 | ||
| 153 | A 1109870539 | RUBBER BUFFER |
| A 1107820224 | RAIL | |
| Repalced by: A 1107820124 | ||
| 160 | A 1107820124 | RAIL |
| Repalced by: A 1107820524 | ||
| A 1107820124 | RAIL | |
| Repalced by: A 1107820624 | ||
| A 1107820524 | RAIL | |
| LEFT | ||
| A 1107820624 | RAIL | |
| RIGHT | ||
| A 0019883378 | CLIP | |
| Repalced by: A 0019881778 | ||
| A 0019881778 | CLIP | |
| N 007981003214 | SHEET METAL SCREW | |
| A 0009850029 | METAL SECTION | |
| Repalced by: A 0009850229 | ||
| 167 | A 0009850229 | METAL SECTION |
| 520 MM | ||
| A 1107800498 | SEAL | |
| Repalced by: A 1107821498 | ||
| 174 | A 1107821498 | SEAL |
| ROOF | ||
| 181 | A 1107830060 | RECESS |
| A 1107830084 | LOCKING HANDLE | |
| Repalced by: A 1107830284 | ||
| A 1107830184 | LOCKING HANDLE | |
| Repalced by: A 1107830284 | ||
| 188 | A 1107830284 | LOCKING HANDLE |
| A 1107830315 | PIN | |
| A 0009901848 | WASHER | |
| 195 | A 1107800016 | PIN |
| Repalced by: A 1235860078 | ||
| 195 | A 1235860078 | REPAIR KIT |
| 202 | A 1897830034 | SPRING |
| Repalced by: A 1235860078 | ||
| 202 | A 1235860078 | REPAIR KIT |
| 209 | A 1897830015 | PIN |
| Repalced by: A 1235860078 | ||
| 209 | A 1235860078 | REPAIR KIT |
| 216 | A 0009879840 | RUBBER BUFFER |
| Repalced by: A 1159870140 | ||
| 216 | A 1159870140 | RUBBER BUFFER |
| N 000084004103 | SCREW | |
| N 000433004300 | WASHER | |
| 223 | A 1107800056 | COVERING |
| SLIDING ROOF | ||
| 230 | A 1107840114 | BRACKET |
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 5 MM | ||
| 20X430 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| 5 MM | ||
| 20X770 MM | ||
| A 1107820013 | COVER RAIL | |
| Repalced by: A 1107820113 | ||
| 238 | A 1107820113 | COVER RAIL |
| FRONT | ||
| N 007983002203 | SHEET METAL SCREW | |
| A 1107820126 | SLIDING RAIL | |
| Repalced by: A 1107820726 | ||
| 246 | A 1107820726 | SLIDING RAIL |
| FRONT LEFT | ||
| A 1107820226 | SLIDING RAIL | |
| Repalced by: A 1107820826 | ||
| A 1107820826 | SLIDING RAIL | |
| FRONT RIGHT | ||
| A 1107821326 | SLIDING RAIL | |
| LEFT,HEADLINER FRAME | ||
| 251 | A 1107821426 | SLIDING RAIL |
| RIGHT,HEADLINER FRAME | ||
| A 1089900036 | SCREW | |
| Repalced by: A 1409900436 | ||
| A 1409900436 | SCREW | |
| SLIDING RAIL TO BOTTOM FRAME | ||
| N 007987004124 | SCREW | |
| SLIDING RAIL TO BOTTOM FRAME | ||
| A 0009832292 | FELT | |
| Repalced by: A 1106820251 | ||
| A 1106820952 | INSULATION | |
| Repalced by: A 1106820251 | ||
| A 1106820251 | INSULATION | |
| BETWEEN REINFORCEMENT FRAME AND ROOF SIDE PANELLING | ||
| 40X10X520 MM | ||
| A 0009830998 | FOAM PLASTICS | |
| REAR CONSOLE | ||
| 7X80X100 MM | ||
| A 0009834192 | FELT | |
| Repalced by: A 0009830698 | ||
| A 1106820151 | INSULATION | |
| Repalced by: A 0009830698 | ||
| A 1106821052 | INSULATION | |
| Repalced by: A 0009830698 | ||
| A 0009830698 | FOAM PLASTICS | |
| Repalced by: A 0009831298 | ||
| A 0009831298 | FOAM PLASTICS | |
| BETWEEN REINFORCEMENT AND ROOF PANELLING | ||
| 15X20X1000 MM | ||
| A 1107820035 | SPRING | |
| Repalced by: A 1107820135 | ||
| A 1107820035 | SPRING | |
| Repalced by: A 1107820235 | ||
| A 1107820135 | SPRING | |
| LEFT | ||
| A 1107820235 | SPRING | |
| RIGHT | ||
| N 007987004023 | SCREW | |
| 260 | A 1107820039 | FILLER |
| REINFORCEMENT FRAME | ||
| 267 | A 1107820028 | SLIDE |
| SLIDING ROOF PLATE | ||
| 273 | A 1107820011 | PLATE |
| 280 | A 1107820111 | PLATE |
| RIGHT | ||
| A 1107820211 | PLATE | |
| LEFT | ||
| 287 | A 1109970441 | SEAL RING |
| Repalced by: A 1159971040 | ||
| 287 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 287 | A 2019870241 | RUBBER RING |
| N 007988004128 | SCREW | |
| 293 | A 1106909950 | HEADLINER |
| IMITATION LEATHER, PERFORATED | ||
| A 1116900152 | PANELLING | |
| LESS BOWS | ||
| 300 | A 1116900352 | PANELLING |
| IMITATION LEATHER, PERFORATED | ||
| A 1107800109 | FRAME | |
| FABRIC | ||
| 307 | A 1107800209 | FRAME |
| IMITATION LEATHER, PERFORATED | ||
| A 0009870932 | HOSE | |
| Repalced by: A 0009877952 | ||
| 314 | A 0009877952 | RUBBER SEAL |
| Repalced by: A 0019876052 | ||
| 314 | A 0019876052 | RUBBER SEAL |
| 795 MM | ||
| A 0009873233 | RUBBER SECTION | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 321 | A 1106960301 | BOW |
| REAR | ||
| 1. | ||
| 329 | A 1106960401 | BOW |
| REAR | ||
| 2. | ||

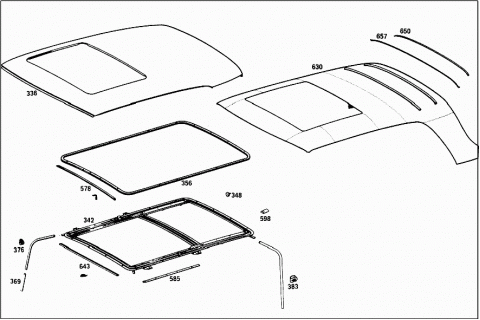

| 336 | A 1116505009 | ROOF PANELLING |
| 342 | A 1107800529 | FRAME |
| BOTTOM | ||
| A 1107870297 | PAD | |
| Repalced by: A 0009833087 | ||
| A 1107870397 | PAD | |
| Repalced by: A 0009833087 | ||
| A 0009833087 | CARPET | |
| BETWEEN TOP AND BOTTOM FRAMES | ||
| 2 MM | ||
| 348 | A 0009871840 | RUBBER BUFFER |
| FRAME,BOTTOM | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| FRAME,BOTTOM | ||
| N 000933006130 | SCREW | |
| FRAME,BOTTOM | ||
| N 912004006102 | LOCK WASHER | |
| FRAME,BOTTOM | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| FRAME,BOTTOM | ||
| N 000433006405 | WASHER | |
| A 1107800598 | SEAL | |
| Repalced by: A 1107820407 | ||
| A 1107800398 | SEAL | |
| Repalced by: A 1107820407 | ||
| 356 | A 1107820407 | SEAL |
| Repalced by: A 1157820098 | ||
| 356 | A 1157820098 | SEAL |
| A 0009894671 | CLEANER | |
| Repalced by: A 0009899271 | ||
| A 0009899271 | CLEANER | |
| SEAL LESS GLUE | ||
| A 0009899271 | CLEANER | |
| SEAL WITH ADHESIVE PASTE | ||
| 369 | A 0039976382 | HOSE |
| 369 | A 0039976382 | HOSE |
| 376 | A 1107820019 | GROMMET |
| WATER DRAIN FRONT | ||
| N 900285008100 | CLAMP | |
| A 0009894685 | ADHESIVE TAPE | |
| 50 MM | ||
| 383 | A 0019881078 | CLIP |
| TUBE TO REAR PILLAR | ||
| A 0009871260 | RUBBER PAD | |
| Repalced by: A 1087840297 | ||
| A 1087840297 | PAD | |
| Repalced by: A 1107841597 | ||
| A 1107841597 | PAD | |
| FRAME PART,CENTRAL | ||
| 800 MM | ||

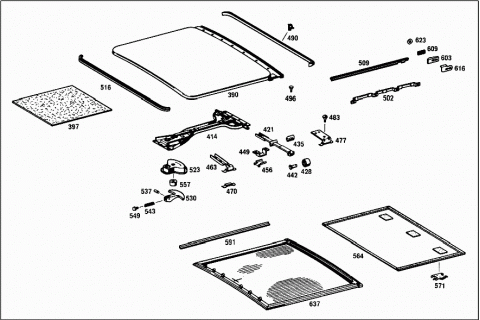

| 390 | A 1107800021 | SLIDING ROOF PLATE |
| A 1106821252 | INSULATION | |
| Repalced by: A 0009830098 | ||
| 397 | A 0009830098 | FOAM PLASTICS |
| Repalced by: A 0009833598 | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| REINFORCEMENT FRAME | ||
| 150X950 | ||
| 397 | A 0009833598 | FOAM PLASTICS |
| BETWEEN FRAME AND HEADLINER | ||
| 50X950 MM | ||
| 414 | A 1107800322 | SLIDING ROOF MECHANISM |
| N 007985004123 | SCREW | |
| SLIDING ROOF MECHANISM | ||
| N 006797004132 | TOOTHED WASHER | |
| SLIDING ROOF MECHANISM | ||
| N 007987004122 | SCREW | |
| SLIDING ROOF MECHANISM | ||
| 421 | A 1107800576 | ROD |
| LEFT | ||
| A 1107800676 | ROD | |
| RIGHT | ||
| 428 | A 1107800126 | ROLLER |
| 435 | A 1107830096 | SEAL |
| 442 | A 1107830415 | PIN |
| N 001481002001 | CLAMPING SLEEVE | |
| N 000933005060 | SCREW | |
| N 006797005132 | TOOTHED WASHER | |
| 449 | A 1107870040 | SHACKLE |
| 456 | A 1107830134 | SPRING |
| N 007985004123 | SCREW | |
| N 006797004132 | TOOTHED WASHER | |
| 463 | A 1107800312 | ANGLE |
| Repalced by: A 1107800612 | ||
| 463 | A 1107800612 | ANGLE |
| FRONT | ||
| 470 | A 1107820030 | SLIDING JAW |
| N 007985004123 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| N 006797004132 | TOOTHED WASHER | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 1107800012 | ANGLE | |
| Repalced by: A 1107800512 | ||
| A 1107800512 | ANGLE | |
| REAR | ||
| 477 | A 1107800512 | ANGLE |
| REAR | ||
| A 1107820030 | SLIDING JAW | |
| 483 | A 1109870539 | RUBBER BUFFER |
| N 000933006234 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| N 006797006145 | TOOTHED WASHER | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 1107800298 | SEAL | |
| Repalced by: A 1107870198 | ||
| 490 | A 1107870198 | SEAL |
| Repalced by: A 1107870098 | ||
| 490 | A 1107870098 | SEAL |
| 496 | A 1109870539 | RUBBER BUFFER |
| 502 | A 1107820124 | RAIL |
| A 0019883378 | CLIP | |
| Repalced by: A 0019881778 | ||
| A 0019881778 | CLIP | |
| N 007981003214 | SHEET METAL SCREW | |
| REINFORCEMENT FRAME | ||
| A 0009850029 | METAL SECTION | |
| Repalced by: A 0009850229 | ||
| 509 | A 0009850229 | METAL SECTION |
| 516 | A 1107821498 | SEAL |
| ROOF,FRONT | ||
| 523 | A 1107830060 | RECESS |
| A 1107830184 | LOCKING HANDLE | |
| Repalced by: A 1107830284 | ||
| 530 | A 1107830284 | LOCKING HANDLE |
| A 1107830315 | PIN | |
| 537 | A 1107800016 | PIN |
| Repalced by: A 1235860078 | ||
| 537 | A 1235860078 | REPAIR KIT |
| 543 | A 1897830034 | SPRING |
| Repalced by: A 1235860078 | ||
| 543 | A 1235860078 | REPAIR KIT |
| 549 | A 1897830015 | PIN |
| Repalced by: A 1235860078 | ||
| 549 | A 1235860078 | REPAIR KIT |
| 557 | A 0009879840 | RUBBER BUFFER |
| Repalced by: A 1159870140 | ||
| 557 | A 1159870140 | RUBBER BUFFER |
| N 000084004137 | SCREW | |
| Repalced by: N 007985004149 | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| N 000433004306 | WASHER | |
| 564 | A 1107800056 | COVERING |
| 571 | A 1107840114 | BRACKET |
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 20X430 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| 20X770 MM | ||
| A 1107820013 | COVER RAIL | |
| Repalced by: A 1107820113 | ||
| 578 | A 1107820113 | COVER RAIL |
| FRONT | ||
| N 007983002203 | SHEET METAL SCREW | |
| 585 | A 1107820726 | SLIDING RAIL |
| FRONT LEFT | ||
| A 1107820826 | SLIDING RAIL | |
| FRONT RIGHT | ||
| A 1107821326 | SLIDING RAIL | |
| LEFT,HEADLINER FRAME | ||
| 591 | A 1107821426 | SLIDING RAIL |
| RIGHT,HEADLINER FRAME | ||
| A 1089900036 | SCREW | |
| Repalced by: A 1409900436 | ||
| A 1409900436 | SCREW | |
| SLIDING RAIL TO BOTTOM FRAME | ||
| N 007987004124 | SCREW | |
| SLIDING RAIL TO BOTTOM FRAME | ||
| A 1106820251 | INSULATION | |
| A 0009830998 | FOAM PLASTICS | |
| 7 MM,80X100 MM | ||
| A 0009830698 | FOAM PLASTICS | |
| Repalced by: A 0009831298 | ||
| A 0009831298 | FOAM PLASTICS | |
| 15 MM,20X1000 MM | ||
| 598 | A 1107820039 | FILLER |
| REINFORCEMENT FRAME | ||
| 603 | A 1107820028 | SLIDE |
| SLIDING ROOF PLATE | ||
| 609 | A 1107820011 | PLATE |
| 616 | A 1107820111 | PLATE |
| LEFT | ||
| A 1107820211 | PLATE | |
| RIGHT | ||
| N 007988004128 | SCREW | |
| REINFORCEMENT FRAME | ||
| 623 | A 1109970441 | SEAL RING |
| Repalced by: A 1159971040 | ||
| 623 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 623 | A 2019870241 | RUBBER RING |
| REINFORCEMENT FRAME | ||
| A 1116905152 | PANELLING | |
| LESS BOWS | ||
| A 1116905352 | PANELLING | |
| Repalced by: A 1116905552 | ||
| 630 | A 1116905552 | PANELLING |
| IMITATION LEATHER, PERFORATED | ||
| A 1107800109 | FRAME | |
| Repalced by: A 1117805109 | ||
| A 1117805109 | FRAME | |
| WITH FABRIC LINING USED FOR SLIDING ROOF PLATE | ||
| A 1117805009 | FRAME | |
| Repalced by: A 1107800209 | ||
| 637 | A 1107800209 | FRAME |
| WITH IMITATION LEATHER LINING USED FOR SLIDING ROOF PLATE | ||
| 643 | A 0009877952 | RUBBER SEAL |
| Repalced by: A 0019876052 | ||
| 643 | A 0019876052 | RUBBER SEAL |
| 795 MM | ||
| A 0009873233 | RUBBER SECTION | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 590 MM | ||
| A 1116965501 | BOW | |
| REAR | ||
| 1. | ||
| 650 | A 1116965601 | BOW |
| REAR | ||
| 1. | ||
| 657 | A 1116965201 | BOW |
| REAR | ||
| 2. | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
