Transporto priemonė: 220 SEB; VIN numerio dalis: 111023
Grupė: 32 SPRINGS AND SUSPENSION

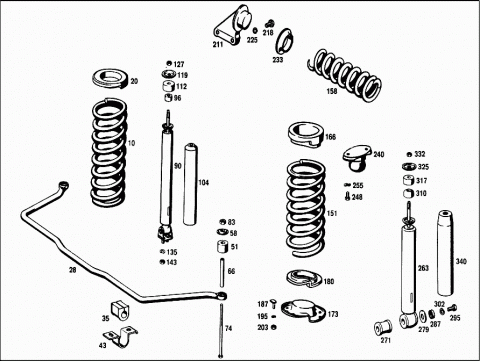

31585
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
FRONT SPRING
A 1113211304 FRONT SPRING
010 A 1113211504 FRONT SPRING
010 A 1113211204 FRONT SPRING
A 1113211804 FRONT SPRING
A 1113211004 FRONT SPRING
A 1113211004 FRONT SPRING
A 1113211904 FRONT SPRING
A 1113211904 FRONT SPRING
A 1103210904 FRONT SPRING
A 1203220084 SHIM
AS REQUIRED
3.0 MM
A 1203220084 SHIM
AS REQUIRED
3.0 MM
A 1113220184 SHIM
AS REQUIRED
5.5 MM
A 1113220184 SHIM
AS REQUIRED
5.5 MM
A 1113220284 SHIM
AS REQUIRED
8.0 MM
A 1113220284 SHIM
AS REQUIRED
8.0 MM
A 1113220384 SHIM
AS REQUIRED
10.0 MM
A 1113220384 SHIM
AS REQUIRED
10.0 MM
A 1113220484 SHIM
AS REQUIRED
12.0 MM
A 1113220484 SHIM
AS REQUIRED
12.0 MM
A 1103221285 RUBBER MOUNTING
AS REQUIRED
13 MM
A 1103221285 RUBBER MOUNTING
AS REQUIRED
13 MM
A 1103221385 RUBBER MOUNTING
AS REQUIRED
15.5 MM
A 1103221385 RUBBER MOUNTING
AS REQUIRED
15.5 MM
A 1103221685 RUBBER MOUNTING
AS REQUIRED
18 MM
A 1103221685 RUBBER MOUNTING
AS REQUIRED
18 MM
A 1103221785 RUBBER MOUNTING
Repalced by: A 1103221885
A 1103221885 RUBBER MOUNTING
AS REQUIRED
20.5 MM
A 1103221885 RUBBER MOUNTING
AS REQUIRED
20.5 MM
A 1103221885 RUBBER MOUNTING
AS REQUIRED
23 MM
A 1103221885 RUBBER MOUNTING
AS REQUIRED
23 MM
020 A 1113220385 RUBBER MOUNTING
AS REQUIRED
20.0 MM
020 A 1113220385 RUBBER MOUNTING
AS REQUIRED
20.0 MM
A 1113220485 RUBBER MOUNTING
AS REQUIRED
22.5 MM
A 1113220485 RUBBER MOUNTING
AS REQUIRED
22.5 MM
A 1113220585 RUBBER MOUNTING
AS REQUIRED
25.0 MM
A 1113220585 RUBBER MOUNTING
AS REQUIRED
25.0 MM
A 1113220685 RUBBER MOUNTING
AS REQUIRED
27.5 MM
A 1113220685 RUBBER MOUNTING
AS REQUIRED
27.5 MM
A 1113220785 RUBBER MOUNTING
AS REQUIRED
30.0 MM
A 1113220785 RUBBER MOUNTING
AS REQUIRED
30.0 MM
A 1113220885 RUBBER MOUNTING
AS REQUIRED
32.5 MM
A 1113220885 RUBBER MOUNTING
AS REQUIRED
32.5 MM
X XXXXXXXXXXXX PART NAME MISSING
TORSION BAR,FRONT
A 1113231265 TORSION BAR
20 MM
028 A 1113231365 TORSION BAR
Repalced by: A 1113231465
028 A 1113231465 TORSION BAR
21.5 MM
028 A 1113231465 TORSION BAR
21.5 MM
A 1113230685 RUBBER MOUNTING
035 A 1113230985 RUBBER MOUNTING
035 A 1113230985 RUBBER MOUNTING
043 A 1113231140 BRACKET
A 1113230173 LOCK
051 A 1113230044 RUBBER BUFFER
058 A 1113230267 RETAINER
066 A 1119911040 SPACER TUBE
074 A 1119900501 SCREW
083 N 000934008010 NUT
Repalced by: N 304032008006
083 N 304032008006 NUT
A 1115860132 REPAIR KIT
TORSION BAR
A 1115860032 REPAIR KIT
TORSION BAR
X XXXXXXXXXXXX PART NAME MISSING
FRONT SHOCK ABSORBERS
A 1113230400 SHOCK ABSORBER
Repalced by: A 1083200030
A 1113230800 SHOCK ABSORBER
Repalced by: A 1083200030
A 1113230900 SHOCK ABSORBER
Repalced by: A 1083200030
090 A 1083200030 SHOCK ABSORBER
FRONT
090 A 1083200030 SHOCK ABSORBER
FRONT
A 1153230767 RETAINER
A 0003231285 RUBBER MOUNTING
A 1803260168 RUBBER BUFFER
N 000934010015 NUT
Repalced by: N 308673010000
N 308673010000 NUT
A 1123230053 SPACER TUBE
096 A 0003231285 RUBBER MOUNTING
096 A 0003231285 RUBBER MOUNTING
A 1803230485 RUBBER MOUNTING
TO 111 323 07 00
A 0003230862 THRUST WASHER
104 A 1113230138 DUST CAP
A 0003231162 THRUST WASHER
112 A 1803260168 RUBBER BUFFER
A 0003230362 THRUST WASHER
A 0003230362 THRUST WASHER
119 A 1153230767 RETAINER
A 1103200056 REPAIR KIT
A 0009905951 NUT
127 N 000934010015 NUT
Repalced by: N 308673010000
127 N 308673010000 NUT
135 N 000127008203 LOCK WASHER
143 N 000934008010 NUT
Repalced by: N 304032008006
143 N 304032008006 NUT
X XXXXXXXXXXXX PART NAME MISSING
REAR SPRING
151 A 1103243004 REAR SPRING
A 1103241204 REAR SPRING
158 A 1103290401 COMPENSATING SPRING
A 1103290501 COMPENSATING SPRING
166 A 1083250285 BUSHING
AS REQUIRED
18 MM
A 1083250285 BUSHING
AS REQUIRED
24 MM
A 1083250185 BUSHING
AS REQUIRED
30 MM
173 A 1103250715 SPRING CASE
BOTTOM
180 A 1103250185 BUSHING
187 A 1103250175 SCREW
195 N 000127008203 LOCK WASHER
203 N 000934008010 NUT
Repalced by: N 304032008006
203 N 304032008006 NUT
A 1103201643 BRACKET
Repalced by: A 1103202343
A 1103201743 BRACKET
Repalced by: A 1103202343
211 A 1103202343 BRACKET
A 1109900301 SCREW
TO 110 320 16 43
218 A 1109900301 SCREW
TO 110 320 17 43,110 320 23 43
225 N 000127012200 LOCK WASHER
233 A 1103290085 RUBBER RING
AS REQUIRED
18 MM
A 1103290185 RUBBER RING
AS REQUIRED
240 A 1103200544 RUBBER BUFFER
248 N 000933008145 SCREW
255 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
255 N 000137008212 SPRING WASHER
X XXXXXXXXXXXX PART NAME MISSING
REAR SHOCK ABSORBERS
A 0003268200 SHOCK ABSORBER
Repalced by: A 1083200131
A 1103260200 SHOCK ABSORBER
Repalced by: A 1083200131
A 0013260100 SHOCK ABSORBER
Repalced by: A 1083200131
A 0013260500 SHOCK ABSORBER
Repalced by: A 1083200131
263 A 1113260100 SHOCK ABSORBER
Repalced by: A 1083200131
263 A 1083200131 SHOCK ABSORBER
REAR
A 1153230767 RETAINER
A 1103230585 RUBBER MOUNTING
A 1103260067 RETAINER
A 1803260168 RUBBER BUFFER
A 1109900240 WASHER
N 000934010015 NUT
Repalced by: N 308673010000
N 308673010000 NUT
271 A 1103260281 RUBBER MOUNTING
279 A 1109900240 WASHER
287 A 1103260067 RETAINER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
295 N 000933010238 SCREW
Repalced by: N 304017010028
295 N 304017010028 SCREW
302 N 912004010102 LOCK WASHER
A 1803230485 RUBBER MOUNTING
TO 000 326 82 00,001 326 01 00
310 A 1103230585 RUBBER MOUNTING
TO 110 326 02 00,001 326 05 00,111 326 01 00
317 A 1803260168 RUBBER BUFFER
TOP
A 0003230853 SPACER TUBE
A 1113230483 RETAINER
TOP
A 1115860232 REPAIR KIT
325 A 1153230767 RETAINER
TOP
A 1103200156 REPAIR KIT
A 1113230583 RETAINER
BOTTOM
A 0009905951 NUT
332 N 000936010003 NUT
340 A 1103260059 DUST CAP
340 A 1103260259 DUST CAP
N 916017040000 CLAMP
Repalced by: N 000000000671
N 000000000671 CLAMP
