Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

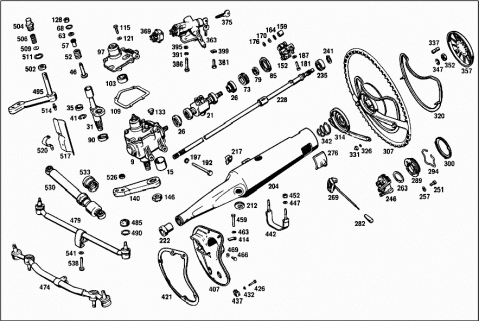

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 1114604301 | STEERING BOX ASSEMBLY |
| A 1114604301 | STEERING BOX ASSEMBLY | |
| A 1114604401 | STEERING BOX ASSEMBLY | |
| 015 | A 1114620350 | BUSHING |
| 021 | A 3094600308 | STEERING WORM |
| A 1114602508 | STEERING WORM | |
| A 1114604108 | STEERING WORM | |
| Repalced by: A 3094600408 | ||
| A 3094600408 | STEERING WORM | |
| A 1114602608 | STEERING WORM | |
| 026 | A 0009815027 | ANGULAR CONTACT BEARING |
| 031 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 035 | A 1114620137 | BALL CUP |
| 041 | N 000472030000 | LOCK RING |
| 046 | A 1114620471 | SCREW |
| A 1119930501 | SPRING | |
| 052 | A 1119932101 | SPRING |
| A 1114620285 | THRUST PIECE | |
| 057 | A 1114620485 | THRUST PIECE |
| 063 | A 1114610462 | THRUST WASHER |
| A 0009943941 | LOCK | |
| 068 | A 0049949241 | LOCK |
| A 1204610406 | SET COLLAR | |
| Repalced by: A 1114610206 | ||
| A 1204610406 | SET COLLAR | |
| Repalced by: A 1114610206 | ||
| A 1114610206 | SET COLLAR | |
| 073 | A 1114610406 | SET COLLAR |
| 079 | A 0029974746 | SEAL RING |
| A 0029977046 | SEAL RING | |
| 085 | A 1209900551 | NUT |
| A 0009974846 | SEAL RING | |
| 090 | A 0019979346 | SEAL RING |
| A 0029977146 | SEAL RING | |
| A 0029977246 | SEAL RING | |
| A 1114600214 | STEERING BOX COVER | |
| Repalced by: A 1114600814 | ||
| A 1114600414 | STEERING BOX COVER | |
| Repalced by: A 1114600814 | ||
| 097 | A 1114600814 | STEERING BOX COVER |
| A 1114600814 | STEERING BOX COVER | |
| A 1114600314 | STEERING BOX COVER | |
| Repalced by: A 1114600714 | ||
| A 1114600514 | STEERING BOX COVER | |
| Repalced by: A 1114600714 | ||
| A 1114600714 | STEERING BOX COVER | |
| REPAIR SIZE | ||
| 103 | A 1114620250 | BUSHING |
| 109 | A 1114610280 | GASKET |
| 115 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 115 | N 304017008034 | SCREW |
| 121 | N 000127008200 | LOCK WASHER |
| 128 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 128 | N 304032010003 | NUT |
| N 007604010102 | SCREW PLUG | |
| Repalced by: N 007604010108 | ||
| N 007604010108 | SCREW PLUG | |
| 133 | N 007604012100 | SCREW PLUG |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PITMAN ARM | ||
| A 1114631401 | PITMAN ARM | |
| Repalced by: A 1114631601 | ||
| 140 | A 1114631601 | PITMAN ARM |
| A 1114632501 | PITMAN ARM | |
| A 1114632301 | PITMAN ARM | |
| A 1114631501 | PITMAN ARM | |
| Repalced by: A 1114631701 | ||
| A 1114631701 | PITMAN ARM | |
| A 1114632601 | PITMAN ARM | |
| A 1114632401 | PITMAN ARM | |
| 146 | N 000937022000 | NUT |
| N 000094005033 | COTTER PIN | |
| 152 | A 1114600310 | STEERING COUPLING |
| Repalced by: A 3094600210 | ||
| A 3094600210 | STEERING COUPLING | |
| 159 | A 1114620165 | RING |
| 164 | A 1119903040 | WASHER |
| 170 | N 900055010000 | SPRING WASHER |
| 176 | A 1369909540 | WASHER |
| N 000094002059 | COTTER PIN | |
| N 000912008016 | SCREW | |
| 181 | A 1119900420 | SCREW |
| 187 | N 000127008203 | LOCK WASHER |
| 192 | N 000931010233 | SCREW |
| STEERING TO FRAME FLOOR UNIT | ||
| 197 | N 912004010102 | LOCK WASHER |
| STEERING TO FRAME FLOOR UNIT | ||
| A 1114601116 | STEER. COLUMN JACKET TUBE | |
| A 1114601616 | STEER. COLUMN JACKET TUBE | |
| 204 | A 1114607116 | STEER. COLUMN JACKET TUBE |
| 204 | A 1114607116 | STEER. COLUMN JACKET TUBE |
| A 1114606916 | STEER. COLUMN JACKET TUBE | |
| A 1114607216 | STEER. COLUMN JACKET TUBE | |
| A 1114607216 | STEER. COLUMN JACKET TUBE | |
| A 1114607016 | STEER. COLUMN JACKET TUBE | |
| 212 | A 1119970081 | GROMMET |
| 217 | A 0009883478 | CLIP |
| 217 | A 0009883478 | CLIP |
| 222 | A 1164620096 | BOOT |
| 228 | A 1114602009 | STEERING SHAFT |
| A 1104605009 | STEERING SHAFT | |
| A 1104603109 | STEERING SHAFT | |
| REPAIR SIZE;BY 8 MM LONGER | ||
| A 1114601209 | STEERING SHAFT | |
| A 1084600409 | STEERING SHAFT | |
| A 1104602409 | STEERING SHAFT | |
| Repalced by: A 1104605009 | ||
| A 1104605009 | STEERING SHAFT | |
| 235 | N 000625006004 | GROOVED BALL BEARING |
| 241 | N 000471020001 | LOCK RING |
| A 1114620328 | BEARING RING | |
| 246 | A 1114620628 | BEARING RING |
| 251 | N 000912006014 | SCREW |
| 257 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 257 | N 000137006204 | SPRING WASHER |
| 263 | N 000472042001 | LOCK RING |
| 269 | A 0015452124 | SWITCH,AUTOMATIC |
| DIRECTION INDICATOR | ||
| N 007985004105 | SCREW | |
| SWITCH TO BEARING BODY | ||
| N 000127004200 | LOCK WASHER | |
| SWITCH TO BEARING BODY | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| SWITCH TO BEARING BODY | ||
| 276 | A 1114620696 | BOOT |
| 282 | A 0005451737 | BUTTON |
| BLACK | ||
| A 1105451037 | BUTTON | |
| IVORY-COLORED | ||
| 289 | A 0004640428 | CONTACT RING |
| A 0004640928 | CONTACT RING | |
| 294 | A 1119940435 | SNAP RING |
| 300 | A 1104640034 | BRACKET |
| A 0009811018 | ROLLER BEARING | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING WHEEL | ||
| 307 | A 1124600003 | STEERING WHEEL |
| DARK GRAPHITE GREY | ||
| A 1124600203 | STEERING WHEEL | |
| A 1124600103 | STEERING WHEEL | |
| IVORY-COLORED | ||
| A 1124600503 | STEERING WHEEL | |
| LIGHT IVORY-COLORED | ||
| 314 | A 1114641236 | HUB |
| 320 | A 1004640115 | SIGNAL RING |
| 326 | A 1114640073 | LOCK |
| 331 | A 1114640172 | NUT |
| 337 | A 1114640024 | INSULATING PART |
| 342 | A 1119932401 | SPRING |
| STEERING WHEEL TO STEERING COLUMN | ||
| 347 | N 912004014100 | LOCK WASHER |
| STEERING WHEEL TO STEERING COLUMN | ||
| 352 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 352 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 352 | N 308675014002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 357 | A 1114600642 | COVER PLATE |
| BLACK | ||
| A 1114600742 | COVER PLATE | |
| IVORY-COLORED | ||
| A 0004621230 | STEERING LOCK | |
| 363 | A 0004622430 | STEERING LOCK |
| A 0004621430 | STEERING LOCK | |
| A 0004622530 | STEERING LOCK | |
| A 0004620393 | IGNITION SWITCH | |
| A 0004620593 | IGNITION SWITCH | |
| A 0004620493 | IGNITION SWITCH | |
| 369 | A 0004620693 | IGNITION SWITCH |
| N 000084004105 | SCREW | |
| A 0004620332 | KEY | |
| BLANK | ||
| 375 | A 1114620132 | KEY |
| A 0005830296 | RING | |
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004200 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| A 1114620271 | SCREW | |
| Repalced by: N 000933008048 | ||
| 381 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 381 | N 304017008021 | SCREW |
| N 000933008145 | SCREW | |
| 386 | N 000931008244 | SCREW |
| 391 | N 000127008200 | LOCK WASHER |
| 395 | N 000125008407 | WASHER |
| 399 | A 1114610175 | WASHER |
| A 1114621795 | COVERING | |
| Repalced by: A 1114622995 | ||
| A 1114622995 | COVERING | |
| STEERING PASSAGE | ||
| A 1114622995 | COVERING | |
| STEERING PASSAGE | ||
| A 1114622195 | COVERING | |
| Repalced by: A 1114623095 | ||
| A 1114623095 | COVERING | |
| Repalced by: A 1114622995 | ||
| A 1114622695 | COVERING | |
| Repalced by: A 1114622995 | ||
| A 1114623095 | COVERING | |
| Repalced by: A 1114622995 | ||
| 407 | A 1114622995 | COVERING |
| STEERING PASSAGE | ||
| A 1114621995 | COVERING | |
| STEERING PASSAGE | ||
| A 1114622395 | COVERING | |
| Repalced by: A 1114621995 | ||
| A 1114621995 | COVERING | |
| A 0009870444 | EXPANSION PLUG | |
| 414 | A 1114620880 | GASKET |
| 421 | A 1114621380 | GASKET |
| COVER PLATE TO FIRE WALL | ||
| A 1114620980 | GASKET | |
| COVER PLATE TO FIRE WALL | ||
| A 1084600161 | GASKET | |
| COVER PLATE TO FIRE WALL | ||
| A 1114621080 | GASKET | |
| COVER PLATE TO FIRE WALL | ||
| A 1114620023 | COVER | |
| COVER PLATE TO FIRE WALL | ||
| 426 | N 000931006016 | SCREW |
| COVER PLATE TO FIRE WALL | ||
| 432 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 432 | N 009021006208 | WASHER |
| COVER PLATE TO FIRE WALL | ||
| 437 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 437 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 437 | A 0019906791 | NUT RETAINER |
| A 1114600765 | STRAP | |
| 442 | A 1114600665 | STRAP |
| 442 | A 1114600665 | STRAP |
| 447 | N 000125008407 | WASHER |
| 452 | N 000985008001 | NUT |
| 459 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 459 | N 304017008042 | SCREW |
| 463 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 463 | N 000137008212 | SPRING WASHER |
| 466 | N 000561006103 | SCREW |
| 469 | N 000137006204 | SPRING WASHER |
| A 1114601505 | DRAG LINK | |
| Repalced by: A 1114601905 | ||
| A 1114601705 | DRAG LINK | |
| Repalced by: A 1114601905 | ||
| A 1114601505 | DRAG LINK | |
| Repalced by: A 1114601905 | ||
| A 1114601705 | DRAG LINK | |
| Repalced by: A 1114601905 | ||
| 474 | A 1114601905 | DRAG LINK |
| A 1114602405 | DRAG LINK | |
| 479 | A 1104600205 | DRAG LINK |
| 485 | A 0003380297 | BOOT |
| Repalced by: A 0003381397 | ||
| 485 | A 0003381397 | BOOT |
| 485 | A 0003381397 | BOOT |
| 490 | A 0003380963 | CLAMPING RING |
| 490 | A 0003380963 | CLAMPING RING |
| 495 | A 1114600719 | INTERMEDIATE LEVER |
| A 1114602319 | INTERMEDIATE LEVER | |
| A 1114601319 | INTERMEDIATE LEVER | |
| A 1114602419 | INTERMEDIATE LEVER | |
| A 1114601419 | INTERMEDIATE LEVER | |
| 502 | A 1114630060 | SEAL RING |
| 504 | A 1114630133 | CAP |
| 506 | A 1119930401 | SPRING |
| 509 | A 1114630062 | THRUST WASHER |
| 511 | A 1819940010 | LOCK |
| 514 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 514 | N 071412008102 | GREASE NIPPLE |
| A 1114600050 | REPAIR KIT | |
| STEERING INTERMEDIATE ARM | ||
| 517 | A 1114630090 | PROTECTIVE PLATE |
| 520 | A 1114631140 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| A 1839900055 | NUT | |
| DRAG LINK TO PITMAN ARM | ||
| N 000094003005 | COTTER PIN | |
| DRAG LINK TO PITMAN ARM | ||
| 526 | A 1209900155 | NUT |
| DRAG LINK TO PITMAN ARM | ||
| 526 | A 1209900155 | NUT |
| DRAG LINK TO PITMAN ARM | ||
| N 000094002008 | COTTER PIN | |
| DRAG LINK TO PITMAN ARM | ||
| N 000094002008 | COTTER PIN | |
| DRAG LINK TO PITMAN ARM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHOCK ABSORBER | ||
| A 0004632032 | SHOCK ABSORBER | |
| Repalced by: A 0004635132 | ||
| A 0004632732 | SHOCK ABSORBER | |
| Repalced by: A 0004635132 | ||
| 530 | A 0004633532 | SHOCK ABSORBER |
| Repalced by: A 0004635132 | ||
| A 0004635132 | SHOCK ABSORBER | |
| (STEERING SHOCK ABSORBER) | ||
| A 1104630096 | BOOT | |
| TO 000 463 20 32,000 463 27 32 | ||
| 533 | A 1104630196 | BOOT |
| TO 000 463 35 32 | ||
| A 1209901201 | SCREW | |
| STEERING SHOCK ABSORBER TO BODY FLOOR AND DRAG LINK | ||
| N 000127010200 | LOCK WASHER | |
| STEERING SHOCK ABSORBER TO BODY FLOOR AND DRAG LINK | ||
| N 000936010010 | NUT | |
| STEERING SHOCK ABSORBER TO BODY FLOOR AND DRAG LINK | ||
| 538 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 538 | N 000961010031 | SCREW |
| 541 | N 912004010102 | LOCK WASHER |
| N 000960010026 | SCREW | |
| Repalced by: N 000961010031 | ||
| N 000961010031 | SCREW | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 912004010102 | LOCK WASHER | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 000936010003 | NUT | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

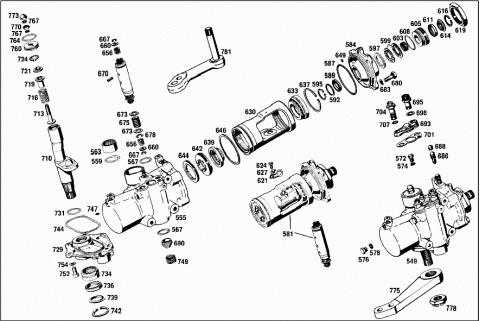

| MERCEDES-BENZ POWER STEERING | ||
| 549 | A 1114604501 | STEERING BOX ASSEMBLY |
| Repalced by: A 1094601001 | ||
| A 1094601001 | STEERING BOX ASSEMBLY | |
| A 1094601001 | STEERING BOX ASSEMBLY | |
| A 1094601101 | STEERING BOX ASSEMBLY | |
| A 1094601101 | STEERING BOX ASSEMBLY | |
| 555 | A 1124601202 | STEERING BOX |
| Repalced by: A 1094600402 | ||
| 555 | A 1094600402 | STEERING BOX |
| A 1124601302 | STEERING BOX | |
| Repalced by: A 1094600802 | ||
| A 1094600802 | STEERING BOX | |
| Repalced by: A 1094601101 | ||
| A 1094601101 | STEERING BOX ASSEMBLY | |
| 559 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 559 | A 0139973648 | SEAL RING |
| 563 | A 0009818210 | NEEDLE BEARING |
| 567 | A 0019972545 | SEAL RING |
| 572 | A 1129970030 | SCREW PLUG |
| 574 | N 007603008109 | SEAL RING |
| 576 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 576 | N 007604010108 | SCREW PLUG |
| 578 | N 007603010100 | SEAL RING |
| 581 | A 1124602885 | PISTON |
| WITH WORM AND SLEEVE VALVE | ||
| A 1124602985 | PISTON | |
| WITH WORM AND SLEEVE VALVE | ||
| 584 | A 1124601114 | STEERING BOX COVER |
| Repalced by: A 1124602014 | ||
| 584 | A 1124602014 | STEERING BOX COVER |
| A 1124602114 | STEERING BOX COVER | |
| 587 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 587 | A 0149976148 | SEAL RING |
| 589 | A 1124600061 | GASKET |
| 592 | A 1124620162 | THRUST WASHER |
| 595 | A 0009942641 | LOCK |
| 597 | A 1124610162 | THRUST WASHER |
| 599 | A 0009810418 | ROLLER BEARING |
| A 0009810818 | ROLLER BEARING | |
| A 1114602808 | STEERING WORM | |
| Repalced by: A 1124602885 | ||
| A 1124602885 | PISTON | |
| A 1114602908 | STEERING WORM | |
| Repalced by: A 1124602985 | ||
| A 1124602985 | PISTON | |
| 603 | A 0009816310 | NEEDLE BEARING |
| 605 | A 1124600386 | THREADED INSERT |
| 608 | A 0009979745 | SEAL RING |
| A 1124600261 | GASKET | |
| Repalced by: A 0059975846 | ||
| 611 | A 0059975846 | SEAL RING |
| 614 | A 0019974040 | SEAL RING |
| 616 | A 0009942641 | LOCK |
| 619 | A 1209900551 | NUT |
| 621 | A 1129950020 | CLAMP |
| 624 | A 1209900520 | SCREW |
| 627 | A 1129940005 | LOCK |
| 630 | A 1124601585 | PISTON |
| A 1124601685 | PISTON | |
| 633 | A 0009813927 | ANGULAR CONTACT BEARING |
| 637 | A 1124660173 | LOCK |
| 639 | A 0009814027 | ANGULAR CONTACT BEARING |
| 642 | A 1124661905 | COVER |
| 644 | A 1124660134 | SCREW COLLAR |
| 646 | A 1124660160 | SEAL RING |
| 649 | A 0049974445 | SEAL RING |
| 656 | A 1129939501 | SPRING |
| 660 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.1 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.2 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.3 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.4 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.5 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.6 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.7 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.8 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.0 MM | ||
| 667 | A 0009943841 | LOCK |
| 670 | A 1129910141 | CLAMPING PIN |
| 673 | A 1124660275 | WASHER |
| 675 | A 1129931902 | SPRING |
| 678 | A 0009945441 | LOCK |
| 680 | N 000933010105 | SCREW |
| 683 | N 000127010200 | LOCK WASHER |
| 686 | A 0004200855 | BLEEDER VALVE |
| 688 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 688 | A 0004210887 | PROTECTIVE CAP |
| 690 | A 1124661105 | COVER |
| 693 | A 1124661205 | COVER |
| TOP | ||
| A 1124661405 | COVER | |
| TOP | ||
| 695 | A 1129971772 | FITTING |
| RETURN | ||
| 698 | N 007603014100 | SEAL RING |
| 701 | A 1124660380 | GASKET |
| A 1124600087 | CONNECTOR | |
| DELIVERY | ||
| 704 | A 1129972172 | FITTING |
| DELIVERY | ||
| 707 | A 0059979845 | SEAL RING |
| 710 | A 1124600511 | STEERG. WORM SECTOR SHAFT |
| 713 | A 1114620471 | SCREW |
| 716 | A 1119932101 | SPRING |
| 719 | A 1114620485 | THRUST PIECE |
| 721 | A 1114610462 | THRUST WASHER |
| 724 | A 0049949241 | LOCK |
| 729 | A 1094600215 | STEERING BOX COVER |
| A 1094600315 | STEERING BOX COVER | |
| 731 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 731 | A 0139973648 | SEAL RING |
| 734 | A 0009818110 | NEEDLE BEARING |
| A 1124600161 | GASKET | |
| Repalced by: A 0059975946 | ||
| 736 | A 0059975946 | SEAL RING |
| 739 | A 0019973940 | SEAL RING |
| 742 | A 0009945341 | LOCK |
| 744 | A 0029974745 | SEAL RING |
| 747 | A 0049974445 | SEAL RING |
| 749 | A 1129939701 | SPRING |
| 752 | N 000912008096 | SCREW |
| Repalced by: N 000912008202 | ||
| 752 | N 000912008202 | SCREW |
| 754 | N 000137008100 | SPRING WASHER |
| 760 | A 1124660172 | NUT |
| 764 | A 0019970145 | SEAL RING |
| 767 | N 007603010100 | SEAL RING |
| 770 | A 1089900051 | NUT |
| 773 | N 001587010000 | CAP NUT |
| 775 | A 1124631601 | PITMAN ARM |
| A 1124631401 | PITMAN ARM | |
| A 1124631701 | PITMAN ARM | |
| A 1124631501 | PITMAN ARM | |
| 778 | N 000937022000 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094005033 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 781 | A 1124600019 | INTERMEDIATE LEVER |
| A 1124600119 | INTERMEDIATE LEVER | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

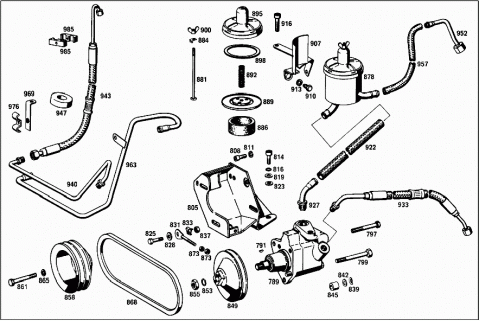

| HYDRAULIC PUMP | ||
| A 0004662101 | HYDRAULIC PUMP | |
| Repalced by: A 1274600580 | ||
| A 1274600480 | HYDRAULIC PUMP | |
| Repalced by: A 1274600580 | ||
| 789 | A 1274600580 | HYDRAULIC PUMP |
| Repalced by: A 1274601280 | ||
| A 1274601280 | HYDRAULIC PUMP | |
| A 0002300004 | COVER | |
| Repalced by: A 1274601280 | ||
| A 1274601280 | HYDRAULIC PUMP | |
| 791 | A 0009910668 | KEY |
| A 0019970240 | SEAL RING | |
| SEE GASKET KIT | ||
| A 0002360027 | CONTROL PLATE | |
| Repalced by: A 0002360127 | ||
| A 0002360127 | CONTROL PLATE | |
| A 0002360020 | ROTOR | |
| A 0002360022 | BLADE | |
| A 0002360025 | PRESSURE PLATE | |
| A 0009977145 | SEAL RING | |
| SEE GASKET KIT | ||
| A 0009977245 | SEAL RING | |
| 797 | A 0002360071 | SCREW |
| 799 | A 0019904301 | SCREW |
| A 0009907467 | SEAL CONE | |
| PRESSURE CONNECTION | ||
| A 0009907567 | SEAL CONE | |
| RETURN | ||
| A 0002360035 | VALVE | |
| Repalced by: A 0005860046 | ||
| A 0005860046 | REPAIR KIT | |
| SEE REPAIR KIT | ||
| A 0009977445 | SEAL RING | |
| PRESSURE VALVE | ||
| TO 127 460 12 80 | ||
| A 0009910160 | DOWEL PIN | |
| SEE REPAIR KIT | ||
| A 0005863146 | REPAIR KIT | |
| CYLINDRICAL DRIVE SHAFT | ||
| A 0005865546 | REPAIR KIT | |
| CONICAL DRIVE SHAFT | ||
| A 0005860046 | REPAIR KIT | |
| PRESSURE VALVE | ||
| A 1274600735 | BRACKET | |
| 805 | A 1294600035 | BRACKET |
| 808 | N 000912010043 | SCREW |
| SUPPORT TO CRANKCASE | ||
| N 000931010331 | SCREW | |
| SUPPORT TO CRANKCASE | ||
| 811 | N 912004010102 | LOCK WASHER |
| SUPPORT TO CRANKCASE | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| SUPPORT TO CRANKCASE | ||
| 814 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 814 | N 000000000190 | SCREW |
| SUPPORT TO OIL PAN | ||
| 816 | N 000127008203 | LOCK WASHER |
| SUPPORT TO OIL PAN | ||
| 819 | N 000433008406 | WASHER |
| SUPPORT TO OIL PAN | ||
| 823 | A 1801550851 | SPACER RING |
| SUPPORT TO OIL PAN | ||
| 825 | N 000933010145 | SCREW |
| HYDRAULIC PUMP TO SUPPORT | ||
| 828 | N 000125010504 | WASHER |
| HYDRAULIC PUMP TO SUPPORT | ||
| 831 | A 1804660074 | CLAMPING SCREW |
| HYDRAULIC PUMP TO SUPPORT | ||
| 833 | A 1274660073 | LOCK |
| HYDRAULIC PUMP TO SUPPORT | ||
| 837 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 837 | N 304032010003 | NUT |
| HYDRAULIC PUMP TO SUPPORT | ||
| 839 | N 000137010200 | SPRING WASHER |
| HYDRAULIC PUMP TO SUPPORT | ||
| 842 | N 000433010505 | WASHER |
| HYDRAULIC PUMP TO SUPPORT | ||
| A 1804660751 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,12,00 MM AS REQUIRED | ||
| A 1804660651 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,12,25 MM AS REQUIRED | ||
| 845 | A 1804660151 | SPACER RING |
| HYDRAULIC PUMP TO SUPPORT,12,50 MM AS REQUIRED | ||
| A 1804660251 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,12,75 MM AS REQUIRED | ||
| A 1804660351 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,13,00 MM AS REQUIRED | ||
| A 1804660851 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,13,75 MM AS REQUIRED | ||
| A 1804660951 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,13,50 MM AS REQUIRED | ||
| A 1804661051 | SPACER RING | |
| HYDRAULIC PUMP TO SUPPORT,11,25 MM AS REQUIRED | ||
| 849 | A 1274660215 | PULLEY |
| HYDRAULIC PUMP | ||
| 853 | N 912004014100 | LOCK WASHER |
| 855 | A 1899900151 | NUT |
| 858 | A 1804660415 | PULLEY |
| Repalced by: A 1084660515 | ||
| 858 | A 1084660515 | PULLEY |
| 861 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 861 | N 304014008001 | SCREW |
| 865 | N 000127008203 | LOCK WASHER |
| 868 | N 007753012500 | NARROW V-BELT |
| 873 | N 000934006007 | NUT |
| A 1274600289 | BRACKET | |
| Repalced by: A 1274600489 | ||
| A 1274600489 | BRACKET | |
| A 1274600489 | BRACKET | |
| N 000933999001 | SCREW | |
| BRACKET TO POWER STEERING PUMP | ||
| A 0019904901 | SCREW | |
| BRACKET TO POWER STEERING PUMP | ||
| A 0019904901 | SCREW | |
| BRACKET TO POWER STEERING PUMP | ||
| N 007603006100 | SEAL RING | |
| BRACKET TO POWER STEERING PUMP | ||
| A 0009970145 | SEAL RING | |
| BRACKET TO POWER STEERING PUMP | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL TANK | ||
| A 1274600389 | BRACKET | |
| Repalced by: A 1274600383 | ||
| A 0004661002 | TANK | |
| A 0004661002 | TANK | |
| Repalced by: A 1274600383 | ||
| 878 | A 1274600383 | OIL TANK |
| 881 | A 0009904133 | SCREW |
| Repalced by: N 000931006172 | ||
| 881 | N 000931006172 | SCREW |
| 884 | A 0004660373 | LOCK |
| 886 | A 0002360055 | FILTER |
| 889 | A 0002360076 | WASHER |
| 892 | A 0019931401 | SPRING |
| 895 | A 0004601282 | COVER |
| 898 | A 0002360080 | GASKET |
| 900 | N 000315006001 | NUT |
| A 1274600589 | BRACKET | |
| Repalced by: A 1274600383 | ||
| A 1274600383 | OIL TANK | |
| OIL TANK | ||
| N 000933006056 | SCREW | |
| BRACKET TO OIL TANK | ||
| N 007603006100 | SEAL RING | |
| BRACKET TO OIL TANK | ||
| N 000934006007 | NUT | |
| BRACKET TO OIL TANK | ||
| A 0009970145 | SEAL RING | |
| BRACKET TO OIL TANK | ||
| A 0039973545 | SEAL RING | |
| BRACKET TO OIL TANK | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO OIL TANK | ||
| N 007603008105 | SEAL RING | |
| BRACKET TO OIL TANK | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BRACKET TO OIL TANK | ||
| A 1274600335 | BRACKET | |
| Repalced by: A 1274600835 | ||
| A 1274600335 | BRACKET | |
| Repalced by: A 1274600835 | ||
| A 1274600335 | BRACKET | |
| Repalced by: A 1274600835 | ||
| 907 | A 1274600835 | BRACKET |
| OIL TANK | ||
| 907 | A 1274600835 | BRACKET |
| OIL TANK | ||
| 907 | A 1274600835 | BRACKET |
| OIL TANK | ||
| 910 | A 1100520171 | SCREW |
| 913 | N 007603012104 | SEAL RING |
| 916 | N 000912008098 | SCREW |
| Repalced by: N 000912008204 | ||
| 916 | N 000912008204 | SCREW |
| N 900288094000 | CLAMP | |
| OIL TANK TO BRACKET | ||
| 922 | A 0039977882 | HOSE |
| Repalced by: A 0009974752 | ||
| 922 | A 0009974752 | HOSE |
| 150 MM | ||
| A 0069970982 | HOSE | |
| A 0069970982 | HOSE | |
| N 900288019000 | CLAMP | |
| N 916001020000 | CLAMP | |
| 927 | A 1274600024 | LINE |
| A 0049979882 | HOSE | |
| Repalced by: A 1099970882 | ||
| A 1124600124 | LINE | |
| Repalced by: A 1099970882 | ||
| 933 | A 1099970882 | HOSE |
| 940 | A 1114600324 | LINE |
| Repalced by: A 1304600124 | ||
| 940 | A 1304600124 | LINE |
| DELIVERY | ||
| 943 | A 0059971182 | HOSE |
| HIGH PRESSURE | ||
| 947 | A 1124660282 | RUBBER RING |
| 952 | A 1114600124 | LINE |
| Repalced by: A 1144600324 | ||
| 952 | A 1144600324 | LINE |
| RETURN LINE | ||
| A 1114600224 | LINE | |
| RETURN LINE | ||
| 957 | A 0069970982 | HOSE |
| 957 | A 0069970982 | HOSE |
| 957 | A 0069970982 | HOSE |
| N 916001020000 | CLAMP | |
| N 916001020000 | CLAMP | |
| A 1114600424 | LINE | |
| RETURN | ||
| 963 | A 1114600524 | LINE |
| RETURN | ||
| 969 | A 1114600435 | BRACKET |
| 976 | A 1219950232 | CLAMP |
| N 007980006003 | LOCK WASHER | |
| N 000912006002 | SCREW | |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BRACKET TO OIL PAN | ||
| 985 | A 1114660040 | BRACKET |
| N 000931005016 | SCREW | |
| N 000127005203 | LOCK WASHER | |
| N 000934005008 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
