Transporto priemonė: 220 SEB; VIN numerio dalis: 111023
Grupė: 67 WINDOWS

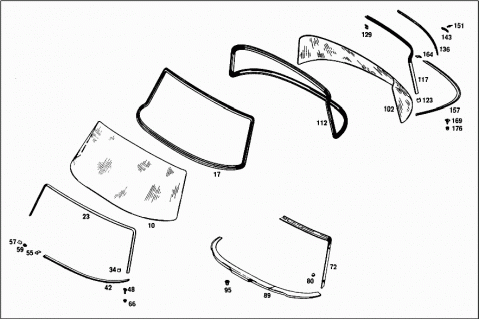

91502

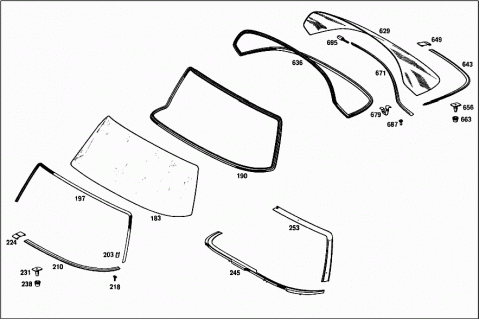

91503

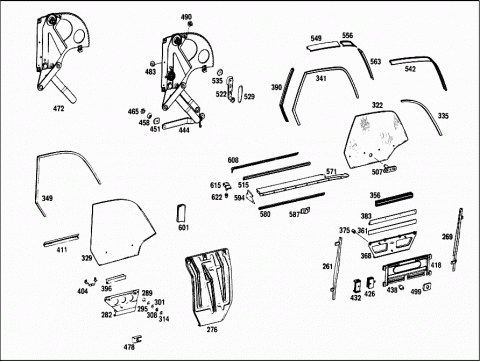

91504
# Kodas Pavadinimas
010 A 1106710010 WINDSHIELD
Repalced by: A 1106710510
A 1106710510 WINDSHIELD
A 1106700039 SEALING FRAME
Repalced by: A 1106700639
A 1106700239 SEALING FRAME
Repalced by: A 1106700639
A 1106700439 SEALING FRAME
Repalced by: A 1106700639
017 A 1106700639 SEALING FRAME
023 A 1106710030 OUTER MOULDING
A 1106710136 COVERING
Repalced by: A 1116710136
034 A 1116710136 COVERING
Repalced by: A 1116780137
034 A 1116780137 JOINT COVER
WINDSHIELD,BOTTOM LEFT
A 1106710236 COVERING
Repalced by: A 1116710236
A 1116710236 COVERING
Repalced by: A 1116780237
A 1116780237 JOINT COVER
WINDSHIELD,BOTTOM RIGHT
A 1106700316 OUTER MOULDING
Repalced by: A 1106700516
A 1106700116 OUTER MOULDING
Repalced by: A 1106700516
A 1106700416 OUTER MOULDING
Repalced by: A 1106700616
A 1106700216 OUTER MOULDING
Repalced by: A 1106700616
042 A 1106700516 OUTER MOULDING
WINDSHIELD,BOTTOM LEFT
A 1106700616 OUTER MOULDING
WINDSHIELD,BOTTOM RIGHT
A 1106710171 SCREW
Repalced by: A 1106710271
048 A 1106710271 SCREW
GARNISH MOULDING
055 A 1106780037 JOINT COVER
JOINT GARNISH MOULDING
057 A 0009880981 FASTENER BUTTON
UPPER PART;GARNISH MOULDING TO WINDSHIELD,BOTTOM
059 A 0009881081 FASTENER BUTTON
WINDSHIELD-TO-FRONT-PANEL CONNECTION
N 009021004108 WASHER
Repalced by: N 009021004207
N 009021004207 WASHER
GARNISH MOULDING TO FRONT FENDER
N 000934004006 NUT
GARNISH MOULDING TO FRONT FENDER
066 A 0009880327 GROMMET
GARNISH MOULDING TO FRONT FENDER
072 A 1116700351 INNER MOULDING
TOP LEFT
A 1116700451 INNER MOULDING
TOP RIGHT
N 007983003225 SHEET METAL SCREW
080 A 0009851062 WASHER
A 1116700151 INNER MOULDING
Repalced by: A 1116700051
A 1116700251 INNER MOULDING
Repalced by: A 1116700051
A 1116700051 INNER MOULDING
BOTTOM
A 1116700551 INNER MOULDING
Repalced by: A 1116700851
A 1116700651 INNER MOULDING
Repalced by: A 1116700851
A 1116700851 INNER MOULDING
BOTTOM
089 A 1116701351 INNER MOULDING
BOTTOM
A 1116701451 INNER MOULDING
BOTTOM
N 000551005011 HEADLESS SETSCREW
A 1119900033 SCREW
BOTTOM INNER WINSHILED MOULDING TO WINDSHIELD
095 A 0009900650 NUT
BOTTOM INNER WINSHILED MOULDING TO WINDSHIELD
102 A 1106780010 GLASS PANE
A 1106700680 REAR WINDOW PANE
Repalced by: A 1106780210
A 1106780210 GLASS PANE
Repalced by: A 1106780010
A 1106780010 GLASS PANE
ELECTRICALLY HEATED
A 1106780210 GLASS PANE
Repalced by: A 1106780010
A 1106780010 GLASS PANE
ELECTRICALLY HEATED
A 0005454128 PLUG
Repalced by: A 0005454228
A 0005454228 PLUG
Repalced by: A 0065458028
A 0065458028 PIN BUSHING HOUSING
A 1109971281 GROMMET
CABLE PASSAGE THRU FIRE WALL
A 0019887778 CLIP
Repalced by: A 0009881778
A 0009881778 CLIP
A 0005453001 FUSE BOX
Repalced by: A 0005456301
A 0005456301 FUSE BOX
Repalced by: A 0005456201
A 0005456201 FUSE BOX
Repalced by: A 0005459901
A 0005459901 FUSE BOX
AT FIRE WALL
N 007981004337 SHEET METAL SCREW
FUSE BOX
A 0005458334 FUSE
A 0005461841 CABLE CONNECTOR
AT REAR PANEL
N 007981004325 SHEET METAL SCREW
CABLE CONNECTOR
A 0009976581 GROMMET
CABLE PASSAGE IN TAIL
A 0009880227 GROMMET
Repalced by: A 1089880027
A 1089880027 GROMMET
A 1008210051 SWITCH
Repalced by: A 0018216151
A 0018216151 SWITCH
HEATED REAR WINDOW PANE
N 072601012800 BULB
A 1108200392 KNOB
SWITCH
A 1108210059 ESCUTCHEON
Repalced by: A 1108210459
A 1108210459 ESCUTCHEON
SWITCH
112 A 1106700139 SEALING FRAME
REAR WINDOW
A 1106780030 FRAME
Repalced by: A 1106780130
A 1106780030 FRAME
Repalced by: A 1106780230
A 1106780130 FRAME
Repalced by: A 1106780330
117 A 1106780330 FRAME
REAR WINDOW, LEFT
A 1106780230 FRAME
Repalced by: A 1106780430
A 1106780430 FRAME
REAR WINDOW,RIGHT
A 1106780137 JOINT COVER
Repalced by: A 1116780137
123 A 1116780137 JOINT COVER
LEFT
A 1106780237 JOINT COVER
Repalced by: A 1116780237
A 1116780237 JOINT COVER
RIGHT
129 A 1106780437 JOINT COVER
ORNAMENTAL FRAME JOINT,CENTRAL
A 1106700122 GARNISH MOULDING
Repalced by: A 1106780583
136 A 1106780583 GARNISH MOULDING
LEFT
A 1106700622 GARNISH MOULDING
RIGHT
A 0009881281 FASTENER BUTTON
UPPER PART
A 0009881081 FASTENER BUTTON
LOWER PART
A 0019883578 CLIP
Repalced by: A 0019885478
143 A 0019885478 CLIP
GARNISH MOULDING TO WINDOW FRAME
A 0009902297 RIVET
Repalced by: A 0009903097
151 N 910001003100 RIVET
GARNISH MOULDING TO WINDOW FRAME
157 A 1106700322 GARNISH MOULDING
REAR WINDOW,BOTTOM LEFT
A 1106700422 GARNISH MOULDING
REAR WINDOW,BOTTOM RIGHT
164 A 1106780037 JOINT COVER
JOINT GARNISH MOULDING
169 A 0009880981 FASTENER BUTTON
UPPER PART
176 A 0009881081 FASTENER BUTTON
LOWER PART
N 007983003003 SHEET METAL SCREW
183 A 1116715010 WINDSHIELD
Repalced by: A 1116715310
A 1116715310 WINDSHIELD
A 1116715110 WINDSHIELD
Repalced by: A 1116715210
A 1116715210 WINDSHIELD
A 1116705039 SEALING FRAME
Repalced by: A 1116705439
190 A 1116705439 SEALING FRAME
Repalced by: A 1116705639
190 A 1116705639 SEALING FRAME
197 A 1116715030 OUTER MOULDING
A 1106710136 COVERING
Repalced by: A 1116710136
203 A 1116710136 COVERING
Repalced by: A 1116780137
203 A 1116780137 JOINT COVER
ORNAMENTAL FRAME,LEFT
A 1106710236 COVERING
Repalced by: A 1116710236
A 1116710236 COVERING
Repalced by: A 1116780237
A 1116780237 JOINT COVER
ORNAMENTAL FRAME,RIGHT
A 1116705116 OUTER MOULDING
Repalced by: A 1116705516
A 1116705316 OUTER MOULDING
Repalced by: A 1116705516
210 A 1116705516 OUTER MOULDING
WINDSHIELD,BOTTOM LEFT
A 1116705216 OUTER MOULDING
Repalced by: A 1116705616
A 1116705416 OUTER MOULDING
Repalced by: A 1116705616
A 1116705616 OUTER MOULDING
WINDSHIELD,BOTTOM RIGHT
A 1106710171 SCREW
Repalced by: A 1106710271
218 A 1106710271 SCREW
GARNISH MOULDING
224 A 1116785037 JOINT COVER
Repalced by: A 1106780037
224 A 1106780037 JOINT COVER
JOINT GARNISH MOULDING
231 A 0009880981 FASTENER BUTTON
UPPER PART
238 A 0009881081 FASTENER BUTTON
LOWER PART
N 000127004203 LOCK WASHER
Repalced by: N 912004004102
N 912004004102 LOCK WASHER
WINDSHIELD,LEFT SIDE
N 000934004006 NUT
GARNISH MOULDING TO FRONT FENDER
245 A 1116708551 INNER MOULDING
BOTTOM
A 1116708651 INNER MOULDING
BOTTOM
A 0009900650 NUT
253 A 1116706351 INNER MOULDING
WINDSHIELD,TOP LEFT
A 1116708751 INNER MOULDING
WINDSHIELD,TOP LEFT
A 1116706451 INNER MOULDING
WINDSHIELD,TOP RIGHT
A 1116708851 INNER MOULDING
WINDSHIELD,TOP RIGHT
N 007983003225 SHEET METAL SCREW
INNER MOULDING TO WINDSHIELD
A 0009851062 WASHER
INNER MOULDING TO WINDSHIELD
A 0009902442 WASHER
INNER MOULDING TO WINDSHIELD
A 0009830392 FELT
40X20X6 MM
261 A 1116705128 RAIL
FRONT LEFT
A 1116705228 RAIL
FRONT RIGHT
269 A 1116705528 RAIL
REAR LEFT
A 1116705628 RAIL
REAR RIGHT
N 000933006083 SCREW
GUIDE RAIL TO INTERIOR PLATE
N 000933006127 SCREW
GUIDE RAIL TO INTERIOR PLATE
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
GUIDE RAIL TO INTERIOR PLATE
N 000125006407 WASHER
GUIDE RAIL TO INTERIOR PLATE
N 912004006102 LOCK WASHER
GUIDE RAIL TO INTERIOR PLATE
N 000934006007 NUT
GUIDE RAIL TO INTERIOR PLATE
276 A 1116735146 GUIDE
LEFT REAR SIDE WINDOW
A 1116735246 GUIDE
RIGHT REAR SIDE WINDOW
282 A 1116705546 WINDOW REGULATOR RAIL
LEFT REAR SIDE WINDOW
A 1116705646 WINDOW REGULATOR RAIL
RIGHT REAR SIDE WINDOW
289 A 1116735077 ROLLER
WINDOW REGULATOR RAIL TO GUIDE PANEL
295 A 1116735076 WASHER
WINDOW REGULATOR RAIL TO GUIDE PANEL
301 A 1119870241 RUBBER RING
WINDOW REGULATOR RAIL TO GUIDE PANEL
308 N 006799007007 LOCK PLATE
WINDOW REGULATOR RAIL TO GUIDE PANEL
314 A 1874270052 SPACER WASHER
WINDOW REGULATOR RAIL TO GUIDE PANEL
A 1119902740 WASHER
Repalced by: A 1839904240
A 1839904240 WASHER
WINDOW REGULATOR RAIL TO GUIDE PANEL
N 900055008002 SPRING WASHER
WINDOW REGULATOR RAIL TO GUIDE PANEL
N 000933006103 SCREW
Repalced by: N 304017006018
N 304017006018 SCREW
WINDOW REGULATOR RAIL TO GUIDE PANEL
N 912004006102 LOCK WASHER
GUIDE PANELS TO EDGE STIFFENING
N 000125006407 WASHER
GUIDE PANELS TO EDGE STIFFENING
A 1116735110 GLASS PANE
LEFT
322 A 1116735210 GLASS PANE
RIGHT
A 1116735310 GLASS PANE
LEFT
329 A 1116735410 GLASS PANE
RIGHT
A 0009877457 RUBBER MOULDING
Repalced by: A 1116735521
335 A 0009879857 RUBBER MOULDING
Repalced by: A 1116735521
A 1116735521 RUBBER MOULDING
1320 MM
A 1116735521 RUBBER MOULDING
1300 MM
A 1116705131 FRAME
Repalced by: A 1116705331
A 1116705331 FRAME
LEFT
341 A 1116705231 FRAME
Repalced by: A 1116705431
341 A 1116705431 FRAME
RIGHT
A 1116705331 FRAME
LEFT
349 A 1116705431 FRAME
RIGHT
356 A 0009876657 RUBBER MOULDING
WINDOW REGULATOR RAIL
317 MM
356 A 0009876657 RUBBER MOULDING
WINDOW REGULATOR RAIL
162 MM
361 A 0009833192 FELT
WINDOW REGULATOR RAIL
28X435 MM
368 A 1116705046 WINDOW REGULATOR RAIL
OUTSIDE
A 0009870142 SPACER
Repalced by: A 0009870842
375 A 0009870842 SPACER
A 1119870242 SPACER
383 A 1116705047 RETAINING RAIL
N 007985005127 SCREW
Repalced by: N 007985005504
N 007985005504 SCREW
N 000137005203 SPRING WASHER
390 A 0009872656 WINDOW RUBBER SEAL
Repalced by: A 1156730224
A 1116735224 SEAL
Repalced by: A 1156730224
A 1156730224 SEAL
WINDOW FRAME,FRONT LEFT
550 MM
A 1156730224 SEAL
WINDOW FRAME,FRONT LEFT
530 MM
396 A 1116705446 WINDOW REGULATOR RAIL
INSIDE
404 A 1116735040 BEARING
N 000125006407 WASHER
CRANK OPERATED WINDOW
N 912004006102 LOCK WASHER
CRANK OPERATED WINDOW
N 000934006007 NUT
CRANK OPERATED WINDOW
N 000933006103 SCREW
Repalced by: N 304017006018
N 304017006018 SCREW
CRANK OPERATED WINDOW TO WINDOW RAILS, BOTTOM
N 912004006102 LOCK WASHER
CRANK OPERATED WINDOW TO WINDOW RAILS, BOTTOM
N 000125006407 WASHER
CRANK OPERATED WINDOW TO WINDOW RAILS, BOTTOM
411 A 1116735036 RETAINING RAIL
REAR SIDE WINDOW
N 007985004132 SCREW
CRANK OPERATED WINDOW TO WINDOW RAILS, TOP
N 912004006102 LOCK WASHER
CRANK OPERATED WINDOW TO WINDOW RAILS, TOP
A 0009870932 HOSE
CRANK OPERATED WINDOW TO WINDOW RAILS, TOP
12 MM
418 A 1116705246 WINDOW REGULATOR RAIL
INSIDE
426 A 1116705023 BRACKET
N 006799004001 LOCK PLATE
AT BRACKET
432 A 1116735022 GUIDE
REAR SIDE WINDOW
438 A 0009879040 RUBBER BUFFER
WINDOW REGULATOR RAIL
A 1116735503 WINDOW REGULATOR
LEFT REAR SIDE WINDOW
444 A 1116735603 WINDOW REGULATOR
RIGHT REAR SIDE WINDOW
A 0007680505 SPRING
451 A 1209840137 SLIDE
Repalced by: A 1155860072
451 A 1155860072 REPAIR KIT
Repalced by: A 1237200114
451 A 1237200114 REPAIR KIT
458 A 0009842456 WASHER
465 A 0009900548 WASHER
N 006799007007 LOCK PLATE
A 1116735903 WINDOW REGULATOR
Repalced by: A 1116736903
A 1116736903 WINDOW REGULATOR
LEFT
472 A 1116736003 WINDOW REGULATOR
RIGHT
A 0007680105 SPRING
Repalced by: A 0007680905
A 0007680905 SPRING
Repalced by: A 0007680734
A 0007680734 SPRING
478 A 1116735042 GUIDE
A 1219900940 WASHER
N 006799008005 LOCK PLATE
WINDOW REGULATOR RAIL TO GUIDE PANEL
A 0009979782 HOSE
13 MM
483 A 0009871840 RUBBER BUFFER
WINDOW REGULATOR
490 A 1119880028 PLUG
WINDOW REGULATOR
A 0009942745 LOCK
N 007985006149 SCREW
Repalced by: N 007985006580
N 007985006580 SCREW
WINDOW REGULATOR TO REAR SIDE PART
N 006797006145 TOOTHED WASHER
WINDOW REGULATOR TO REAR SIDE PART
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
WINDOW REGULATOR TO REAR SIDE PART
499 A 1119840037 SLIDE
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,INSIDE
A 1209840137 SLIDE
Repalced by: A 1155860072
A 1155860072 REPAIR KIT
Repalced by: A 1237200114
A 1237200114 REPAIR KIT
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,INSIDE
N 007987005114 SCREW
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,INSIDE
N 006797005334 TOOTHED WASHER
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,INSIDE
N 900056006004 COUNTERSUNK WASHER
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,INSIDE
507 A 1116705125 PIN
CRANK OPERATED WINDOW
N 006799005002 LOCK PLATE
N 000125006407 WASHER
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,OUTSIDE
N 000137006204 SPRING WASHER
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,OUTSIDE
N 000933006103 SCREW
Repalced by: N 304017006018
N 304017006018 SCREW
REAR SIDE WINDOW TO WINDOW REGULATOR RAIL,OUTSIDE
515 A 0009850330 SEALING SECTION
604 MM
515 A 0009850330 SEALING SECTION
500 MM
515 A 0009850330 SEALING SECTION
575 MM
N 007982002222 SHEET METAL SCREW
A 0009870332 HOSE
CRANK OPERATED WINDOW
10 MM
A 1107600202 CRANK
Repalced by: A 1107600402
A 1107600302 CRANK
Repalced by: A 1107600402
522 A 1107600402 CRANK
N 007987004120 SCREW
WINDOW CRANK TO WINDOW REGULATOR
N 006797004333 TOOTHED WASHER
WINDOW CRANK TO WINDOW REGULATOR
A 1107680095 PAD
Repalced by: A 1107680195
529 A 1107680195 PAD
WINDOW CRANK
535 A 1107680013 WASHER
Repalced by: A 1087680113
A 1087680113 WASHER
WINDOW CRANK
A 1116735165 SEALING RAIL
REAR ROOF RAIL,LEFT
542 A 1116735265 SEALING RAIL
REAR ROOF RAIL,RIGHT
N 007982003228 SHEET METAL SCREW
Repalced by: N 007982003203
N 007982003203 SHEET METAL SCREW
Repalced by: N 007982003238
N 007982003238 SHEET METAL SCREW
SEALING RAIL TO REAR ROOF RAIL
A 1116738165 SEALING RAIL
LEFT REAR FOLDING TOP RAIL
549 A 1116738265 SEALING RAIL
RIGHT REAR FOLDING TOP RAIL
A 1116738365 SEALING RAIL
LEFT REAR FOLDING TOP RAIL
556 A 1116738465 SEALING RAIL
RIGHT REAR FOLDING TOP RAIL
A 1116738565 SEALING RAIL
FOLDING TOP PILLAR,LEFT
563 A 1116738665 SEALING RAIL
FOLDING TOP PILLAR,RIGHT
N 007982003316 SHEET METAL SCREW
SEALING RAIL TO FOLDING TOP FRAME AND TO PILLARS
N 007982003215 SHEET METAL SCREW
SEALING RAIL TO FOLDING TOP FRAME AND TO PILLARS
A 1116707151 INNER MOULDING
Repalced by: A 1116705537
A 1116709151 INNER MOULDING
Repalced by: A 1116705537
A 1116705537 INNER MOULDING
LEFT REAR SIDE WINDOW
A 1116708337 INNER MOULDING
Repalced by: A 1116705737
A 1116708537 INNER MOULDING
Repalced by: A 1116705737
A 1116705737 INNER MOULDING
LEFT REAR SIDE WINDOW
A 1116707251 INNER MOULDING
Repalced by: A 1116705637
A 1116709251 INNER MOULDING
Repalced by: A 1116705637
571 A 1116705637 INNER MOULDING
RIGHT REAR SIDE WINDOW
A 1116708437 INNER MOULDING
Repalced by: A 1116705837
A 1116708637 INNER MOULDING
Repalced by: A 1116705837
A 1116705837 INNER MOULDING
RIGHT REAR SIDE WINDOW
A 1116735383 GARNISH MOULDING
Repalced by: A 1116735583
A 1116735583 GARNISH MOULDING
WINDOW INNER MOULDING,LEFT
A 1116738383 GARNISH MOULDING
WINDOW INNER MOULDING,LEFT
A 1116735483 GARNISH MOULDING
Repalced by: A 1116735683
580 A 1116735683 GARNISH MOULDING
WINDOW INNER MOULDING,RIGHT
A 1116738483 GARNISH MOULDING
WINDOW INNER MOULDING,RIGHT
A 0009830898 FOAM PLASTICS
Repalced by: A 0009831298
A 0009831298 FOAM PLASTICS
3 MM
A 0009830284 LEATHER
LEFT
587 A 0019883178 CLIP
Repalced by: A 0029884578
587 A 0029884578 CLIP
WINDOW INNER MOULDING TO REAR SIDE PART
A 1119880778 CLIP
WINDOW INNER MOULDING TO REAR SIDE PART
N 007983003333 SHEET METAL SCREW
WINDOW INNER MOULDING TO REAR SIDE PART
N 007981003246 SHEET METAL SCREW
WINDOW INNER MOULDING TO REAR SIDE PART
A 1116915108 COVERING
Repalced by: A 1116705308
A 1116705308 COVERING
WINDOW INNER MOULDING,LEFT
A 1116915208 COVERING
Repalced by: A 1116705408
A 1116705408 COVERING
WINDOW INNER MOULDING,RIGHT
A 1116705308 COVERING
WINDOW INNER MOULDING,LEFT
594 A 1116705408 COVERING
WINDOW INNER MOULDING,RIGHT
N 007983002203 SHEET METAL SCREW
A 1116735198 SEAL
LEFT REAR SIDE WINDOW
601 A 1116735298 SEAL
RIGHT REAR SIDE WINDOW
A 1116735183 GARNISH MOULDING
REAR SIDE WINDOW EDGE,LEFT
A 1116738183 GARNISH MOULDING
Repalced by: A 1116708122
A 1116708122 GARNISH MOULDING
REAR SIDE WINDOW EDGE,LEFT
608 A 1116735283 GARNISH MOULDING
REAR SIDE WINDOW EDGE,RIGHT
A 1116738283 GARNISH MOULDING
Repalced by: A 1116708222
A 1116708222 GARNISH MOULDING
REAR SIDE WINDOW EDGE,RIGHT
A 1116708122 GARNISH MOULDING
REAR SIDE WINDOW EDGE,LEFT
A 1116708222 GARNISH MOULDING
REAR SIDE WINDOW EDGE,RIGHT
615 A 0009881881 FASTENER BUTTON
UPPER PART
622 A 0009881581 FASTENER BUTTON
Repalced by: A 0019882081
622 A 0019882081 FASTENER BUTTON
Repalced by: A 0089970381
622 A 0089970381 GROMMET
Repalced by: A 0019882081
622 A 0019882081 FASTENER BUTTON
Repalced by: A 0019887681
622 A 0019887681 FASTENER BUTTON
LOWER PART
N 007982002222 SHEET METAL SCREW
629 A 1116785010 GLASS PANE
Repalced by: A 1116785410
629 A 1116785410 GLASS PANE
A 1116705380 REAR WINDOW PANE
Repalced by: A 1116785410
A 1116785410 GLASS PANE
ELECTRICALLY HEATED
A 1116785210 GLASS PANE
Repalced by: A 1116785410
A 0005454128 PLUG
Repalced by: A 0005454228
A 0005454228 PLUG
Repalced by: A 0065458028
A 0065458028 PIN BUSHING HOUSING
A 1109971281 GROMMET
AT FIRE WALL
A 0019887778 CLIP
Repalced by: A 0009881778
A 0009881778 CLIP
A 0005453001 FUSE BOX
Repalced by: A 0005456301
A 0005456301 FUSE BOX
Repalced by: A 0005456201
A 0005456201 FUSE BOX
Repalced by: A 0005459901
A 0005459901 FUSE BOX
AT FIRE WALL
N 007981004337 SHEET METAL SCREW
FUSE BOX
A 0005461841 CABLE CONNECTOR
AT REAR PANEL
N 007981004325 SHEET METAL SCREW
CABLE CONNECTOR
A 0009976581 GROMMET
CABLE PASSAGE IN TAIL
A 0009880227 GROMMET
Repalced by: A 1089880027
A 1089880027 GROMMET
CABLE PASSAGE IN TAIL
A 1008210051 SWITCH
Repalced by: A 0018216151
A 0018216151 SWITCH
HEATED REAR WINDOW PANE
N 072601012800 BULB
A 1108200392 KNOB
SWITCH
A 1108210059 ESCUTCHEON
Repalced by: A 1108210459
A 1108210459 ESCUTCHEON
SWITCH
636 A 1116705339 SEALING FRAME
REAR WINDOW
A 1116705122 GARNISH MOULDING
Repalced by: A 1116705322
A 1116705322 GARNISH MOULDING
REAR WINDOW,BOTTOM LEFT
643 A 1116705322 GARNISH MOULDING
REAR WINDOW,BOTTOM LEFT
A 1116705222 GARNISH MOULDING
Repalced by: A 1116705422
A 1116705422 GARNISH MOULDING
REAR WINDOW,BOTTOM RIGHT
A 1116705422 GARNISH MOULDING
REAR WINDOW,BOTTOM RIGHT
649 A 1116785037 JOINT COVER
Repalced by: A 1106780037
649 A 1106780037 JOINT COVER
JOINT GARNISH MOULDING
656 A 0009880981 FASTENER BUTTON
UPPER PART
663 A 0009881081 FASTENER BUTTON
LOWER PART
N 007981002218 SHEET METAL SCREW
REAR WINDOW LOWER GARNISH MOULDING TO REAR END
671 A 1116785330 FRAME
AT ROOF ABOVE REAR WINDOW,LEFT
A 1116785430 FRAME
AT ROOF ABOVE REAR WINDOW,RIGHT
679 A 0019885478 CLIP
GARNISH MOULDING TO WINDOW FRAME
687 N 910001003100 RIVET
GARNISH MOULDING TO WINDOW FRAME
695 A 1116785337 JOINT COVER
ORNAMENTAL FRAME JOINT,CENTRAL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
