Transporto priemonė: 220 USA; VIN numerio dalis: 115010

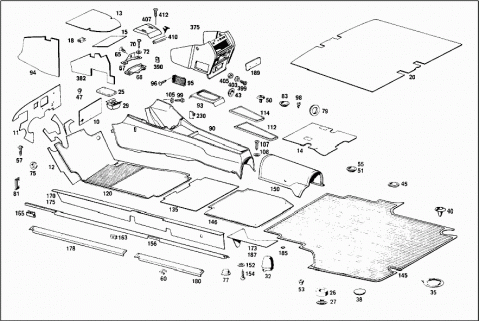

Grupė: 68 COVERING - 001 BOW
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0009833691 | CARDBOARD | |
| FRONT ROOF RAIL | ||
| 184X1224 MM | ||
| A 0009833691 | CARDBOARD | |
| SIDE ROOF RAIL | ||
| 111X1047 MM | ||
| A 0009833691 | CARDBOARD | |
| REAR END PILLAR | ||
| 403X841 MM | ||
| A 0009833691 | CARDBOARD | |
| REAR ROOF RAIL | ||
| 172X1038 MM | ||
| A 0009832991 | CARDBOARD | |
| TUNNEL,FRONT FLOOR | ||
| 506X700MM | ||
| A 0009832991 | CARDBOARD | |
| TUNNEL,IN THE REAR | ||
| 466X428MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 457X1170MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT (CARRIER) | ||
| 40X480MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 105X287MM | ||
| A 0009832991 | CARDBOARD | |
| REAR PANEL/TAIL | ||
| 675X710MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 95X95MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;RIGHT | ||
| 259X547MM | ||
| A 0009832991 | CARDBOARD | |
| FIRE WALL,TOP LEFT | ||
| 162X374MM | ||
| A 0009832991 | CARDBOARD | |
| CENTRAL PART,INSIDE CENTER | ||
| 152X663MM | ||
| A 0009832991 | CARDBOARD | |
| CENTRAL PART,INSIDE CENTER LEFT | ||
| 285X658MM | ||
| A 0009832991 | CARDBOARD | |
| CENTRAL PART, INSIDE BOTTOM RIGHT | ||
| 277X678MM | ||
| A 0009832991 | CARDBOARD | |
| FIRE WALL,CENTER | ||
| 315X590MM | ||
| A 0009832991 | CARDBOARD | |
| FIRE WALL,TOP RIGHT | ||
| 225X584MM | ||
| A 0009832991 | CARDBOARD | |
| FRONT PANEL, LATERAL LEFT | ||
| 440X540MM | ||
| A 0009832991 | CARDBOARD | |
| FRONT PANEL,LATERAL RIGHT | ||
| 423X540MM | ||
| A 0009832991 | CARDBOARD | |
| ENGINE COMPARTMENT,CENTER | ||
| 30X180 MM | ||
| A 0009832991 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 574X676 MM | ||
| A 0009832991 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 577X692 MM | ||
| A 0009832991 | CARDBOARD | |
| IN LUGGAGE COMPARTMENT FLOOR,CENTER | ||
| 160X372 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR FLOOR | ||
| 586X800MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR, LEFT | ||
| 100X160 MM | ||
| A 0009832991 | CARDBOARD | |
| HAT TRAY | ||
| 242X1328MM | ||
| A 0009832991 | CARDBOARD | |
| MOUNTING HOLE UNDER HAT TRAY | ||
| 3MM | ||
| A 0009832991 | CARDBOARD | |
| WHEEL ARCH,LUGGAGE COMPARTMENT,RIGHT | ||
| 80X115MM | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| FRONT ROOF RAIL | ||
| 184X1224 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| SIDE ROOF RAIL | ||
| 111X1047 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR END PILLAR | ||
| 403X841 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR ROOF RAIL | ||
| 172X1038 MM | ||
| 010 | A 1156821601 | INSULATION |
| HEATER CASE | ||
| A 1156820720 | INSULATION | |
| Repalced by: A 1156822520 | ||
| A 1156821520 | INSULATION | |
| Repalced by: A 1156822520 | ||
| 011 | A 1156822520 | INSULATION |
| LEFT IN FRONT END ENGINE COMPARTMENT,THICKNESS: | ||
| 15MM | ||
| A 1156820820 | INSULATION | |
| RIGHT IN FRONT END ENGINE COMPARTMENT,THICKNESS: | ||
| 15MM | ||
| A 1156821420 | INSULATION | |
| RIGHT IN FRONT END ENGINE COMPARTMENT,THICKNESS: | ||
| 15MM | ||
| A 1156822220 | INSULATION | |
| RIGHT IN FRONT END ENGINE COMPARTMENT,THICKNESS: | ||
| 15MM | ||
| A 1156820304 | INSULATION | |
| Repalced by: A 1156821704 | ||
| A 1156820104 | INSULATION | |
| Repalced by: A 1156821704 | ||
| 012 | A 1156821704 | INSULATION |
| LEFT | ||
| 6.5 MM | ||
| A 1156820204 | INSULATION | |
| RIGHT | ||
| 6.5 MM | ||
| 013 | A 1156821801 | INSULATION |
| TRANSMISSION TUNNEL | ||
| 014 | A 1146820007 | INSULATION |
| TUNNEL,IN THE REAR | ||
| A 1156822155 | INSULATION | |
| Repalced by: A 0009830198 | ||
| A 1156820052 | INSULATION | |
| Repalced by: A 0009830198 | ||
| A 1156821904 | INSULATION | |
| RIGHT | ||
| A 1146840109 | LINING | |
| LEFT | ||
| A 1146840309 | LINING | |
| LEFT | ||
| A 1146840209 | LINING | |
| RIGHT | ||
| A 1146840409 | LINING | |
| RIGHT | ||
| A 1086820551 | INSULATION | |
| Repalced by: A 0009830198 | ||
| A 0009834192 | FELT | |
| Repalced by: A 0009830198 | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 10MM | ||
| A 1146821126 | INSULATION | |
| Repalced by: A 1146821526 | ||
| A 1146821226 | INSULATION | |
| Repalced by: A 1146821526 | ||
| 015 | A 1146821526 | INSULATION |
| A 0019887678 | CLIP | |
| Repalced by: A 1146820085 | ||
| 018 | A 1146820085 | CLIP |
| Repalced by: A 0019887678 | ||
| 018 | A 0019887678 | CLIP |
| A 1146821326 | INSULATION | |
| Repalced by: A 1146821426 | ||
| 020 | A 1146821426 | INSULATION |
| ENGINE HOOD | ||
| A 1146820207 | INSULATION | |
| Repalced by: A 0009831298 | ||
| A 0009831298 | FOAM PLASTICS | |
| TUNNEL,IN THE REAR | ||
| A 1166821110 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 0009891810 | FIBREGLAS MAT | |
| BELOW REAR SEAT | ||
| A 1146820041 | INSULATION | |
| LUGGAGE COMPARTMENT FLOOR | ||
| A 1156820901 | INSULATION | |
| FRONT FLOOR | ||
| A 1156821002 | INSULATION | |
| REAR FLOOR | ||
| 025 | A 1156830098 | SEAL |
| 15MM | ||
| 026 | A 1148050036 | SPRING |
| REAR AXLE STEP BEARING TO SUBSTRUCTURE | ||
| A 1158050236 | SPRING | |
| Repalced by: A 0019943945 | ||
| A 0019943945 | LOCK | |
| REAR AXLE STEP BEARING TO SUBSTRUCTURE | ||
| 027 | A 1168350198 | SEAL |
| REAR AXLE STEP BEARING TO SUBSTRUCTURE | ||
| N 007985006128 | SCREW | |
| 029 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 029 | A 0009902291 | NUT RETAINER |
| 032 | A 1156830036 | COVERING |
| A 1106830110 | COVER | |
| Repalced by: A 1236830010 | ||
| 035 | A 1236830010 | COVER |
| A 0009895120 | SEALANT | |
| Repalced by: A 0019893320 | ||
| A 0019893320 | SEALANT | |
| 038 | A 1109870145 | LOCKING CAP |
| 040 | A 1119971281 | GROMMET |
| 043 | A 1109870844 | EXPANSION PLUG |
| A 1158990108 | COVERING | |
| Repalced by: A 1159870444 | ||
| 045 | A 1159870444 | EXPANSION PLUG |
| 047 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 047 | A 0009871840 | RUBBER BUFFER |
| A 1159970286 | PLUG | |
| 050 | A 0009901322 | SCREW |
| 051 | A 1109871444 | EXPANSION PLUG |
| 053 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 053 | A 0009973320 | EXPANSION PLUG |
| 055 | A 1109870544 | EXPANSION PLUG |
| A 0009871115 | PLUG | |
| Repalced by: A 0009974886 | ||
| 057 | A 0009974886 | PLUG |
| 060 | A 0009870415 | PLUG |
| 065 | N 007973003216 | SHEET METAL SCREW |
| 067 | A 1156830435 | ANGLE |
| FRONT | ||
| 068 | A 1156830535 | ANGLE |
| REAR | ||
| 070 | N 007981003243 | SHEET METAL SCREW |
| 072 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 072 | N 009021004207 | WASHER |
| 075 | A 1109871044 | EXPANSION PLUG |
| 077 | A 1139870044 | EXPANSION PLUG |
| A 1159870144 | EXPANSION PLUG | |
| Repalced by: A 1109870944 | ||
| 079 | A 1109870044 | EXPANSION PLUG |
| Repalced by: A 1139870044 | ||
| 079 | A 1139870044 | EXPANSION PLUG |
| 081 | A 1009870044 | EXPANSION PLUG |
| 083 | A 0009971986 | PLUG |
| 085 | A 0008210038 | COVER |
| A 1156800050 | PANELLING | |
| Repalced by: A 1156800850 | ||
| 090 | A 1156800850 | PANELLING |
| 093 | A 1156830136 | COVERING |
| FLOOR SHIFT | ||
| 094 | A 1156821301 | INSULATION |
| 095 | A 1156870279 | HOUSING |
| 096 | N 007982004227 | SHEET METAL SCREW |
| Repalced by: N 007982004203 | ||
| 096 | N 007982004203 | SHEET METAL SCREW |
| A 1119880778 | CLIP | |
| Repalced by: A 0039881478 | ||
| 098 | A 0039881478 | CLIP |
| 099 | N 007981004261 | SHEET METAL SCREW |
| Repalced by: N 000000000454 | ||
| 099 | N 000000000454 | TAPPING SCREW |
| AT FIRE WALL AND AT MAIN FLOOR | ||
| 099 | N 007981003247 | SHEET METAL SCREW |
| AT FIRE WALL AND AT MAIN FLOOR | ||
| 105 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 105 | N 009021004207 | WASHER |
| AT FIRE WALL AND AT MAIN FLOOR | ||
| 107 | N 007983004245 | SHEET METAL SCREW |
| 108 | A 1129900042 | WASHER |
| Repalced by: A 3019900042 | ||
| 108 | A 3019900042 | WASHER |
| A 1146830151 | LINING | |
| Repalced by: A 1156830151 | ||
| A 1146800168 | LINING | |
| Repalced by: A 1156830151 | ||
| 112 | A 1156830151 | LINING |
| WITH STEERING COLUMN SHIFT | ||
| 114 | A 1146800068 | LINING |
| Repalced by: A 1156830651 | ||
| 114 | A 1156830651 | LINING |
| WITH FLOOR SHIFT | ||
| A 1156830651 | LINING | |
| WITH FLOOR SHIFT | ||
| 120 | A 1146802366 | CARPET |
| LEFT | ||
| A 1146802466 | CARPET | |
| RIGHT | ||
| A 1369880781 | FASTENER BUTTON | |
| A 1119901040 | WASHER | |
| A 1159870042 | SPACER | |
| Repalced by: A 0009888581 | ||
| A 0009888581 | FASTENER BUTTON | |
| N 007981003239 | SHEET METAL SCREW | |
| N 007981003238 | SHEET METAL SCREW | |
| A 1156840902 | LINING | |
| Repalced by: A 1156841702 | ||
| 135 | A 1156841702 | LINING |
| LEFT | ||
| A 1156841902 | LINING | |
| Repalced by: A 1156842302 | ||
| 135 | A 1156842302 | LINING |
| LEFT | ||
| A 1156841002 | LINING | |
| Repalced by: A 1156841802 | ||
| A 1156841802 | LINING | |
| RIGHT | ||
| A 1156842002 | LINING | |
| Repalced by: A 1156842302 | ||
| A 1156842302 | LINING | |
| RIGHT | ||
| A 1156840005 | LINING | |
| Repalced by: A 1156840205 | ||
| 145 | A 1156840205 | LINING |
| 146 | A 1146800966 | CARPET |
| LEFT | ||
| A 1146801066 | CARPET | |
| RIGHT | ||
| A 1146800066 | CARPET | |
| Repalced by: A 1146801745 | ||
| A 1146801745 | LINING | |
| TUNNEL,IN THE REAR | ||
| 150 | A 1146801745 | LINING |
| 152 | A 1119901040 | WASHER |
| 154 | N 007981003226 | SHEET METAL SCREW |
| 156 | A 1156860136 | RAIL |
| LEFT,BELOW FRONT AND REAR DOORS | ||
| 156 | A 1146860336 | RAIL |
| LEFT,BELOW FRONT AND REAR DOORS | ||
| A 1156860236 | RAIL | |
| RIGHT,BELOW FRONT AND REAR DOORS | ||
| A 1146860436 | RAIL | |
| RIGHT,BELOW FRONT AND REAR DOORS | ||
| 163 | A 0029885478 | CLIP |
| 165 | A 0029882778 | CLIP |
| Repalced by: A 0039886278 | ||
| 165 | A 0039886278 | CLIP |
| A 1146860180 | LINING | |
| Repalced by: A 1146801380 | ||
| A 1146800543 | LINING | |
| Repalced by: A 1146801380 | ||
| A 1146860280 | LINING | |
| Repalced by: A 1146801480 | ||
| A 1146800643 | LINING | |
| Repalced by: A 1146801480 | ||
| 170 | A 1146861380 | LINING |
| Repalced by: A 1156863380 | ||
| 170 | A 1156863380 | LINING |
| INSIDE FRONT LEFT | ||
| A 1146861480 | LINING | |
| Repalced by: A 1156863480 | ||
| A 1156863480 | LINING | |
| INSIDE FRONT RIGHT | ||
| 173 | A 1146801343 | LINING |
| INTERIOR,REAR,LEFT | ||
| A 1146801443 | LINING | |
| INSIDE REAR RIGHT | ||
| 175 | A 1156863380 | LINING |

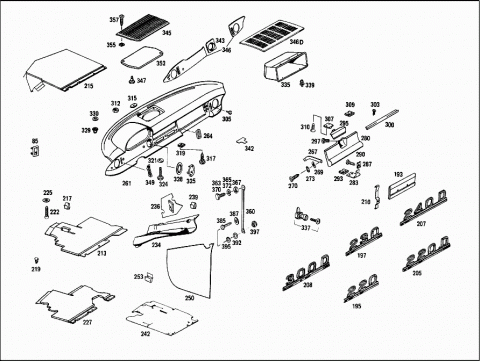

| INSIDE LEFT | ||
| A 1156863480 | LINING | |
| INSIDE RIGHT | ||
| 178 | A 1156860980 | LINING |
| OUTSIDE LEFT,BELOW FRONT DOORS | ||
| A 1156861080 | LINING | |
| OUTSIDE RIGHT,BELOW FRONT DOORS | ||
| 180 | A 1156861180 | LINING |
| OUTER LEFT,BELOW REAR DOOR | ||
| A 1156861280 | LINING | |
| OUTER RIGHT,BELOW REAR DOOR | ||
| 185 | A 1146841366 | VELOURS CARPET |
| 187 | A 1146800143 | LINING |
| LEFT | ||
| A 1146800243 | LINING | |
| RIGHT | ||
| 189 | A 1156800096 | COVER |
| A 1146800096 | COVER | |
| Repalced by: A 1146870139 | ||
| 193 | A 1146870139 | COVER |
| Repalced by: A 1146800096 | ||
| 193 | A 1146800096 | COVER |
| A 1158170314 | TYPE DESIGNATION | |
| Repalced by: A 1158170814 | ||
| 195 | A 1158170814 | TYPE DESIGNATION |
| 197 | A 1148170814 | TYPE DESIGNATION |
| A 1158170414 | TYPE DESIGNATION | |
| Repalced by: A 1158171014 | ||
| 205 | A 1158171014 | TYPE DESIGNATION |
| 207 | A 1158171114 | TYPE DESIGNATION |
| 208 | A 1158171214 | TYPE DESIGNATION |
| 210 | A 1159940345 | LOCK |
| 213 | A 1156870709 | COVERING |
| LEFT | ||
| A 1156870879 | COVERING | |
| RIGHT | ||
| 215 | A 1156871009 | COVERING |
| 217 | A 0029883878 | CLIP |
| A 0019886678 | CLIP | |
| 219 | A 0009882378 | CLIP |
| 222 | N 007983004331 | SHEET METAL SCREW |
| 225 | A 1129900042 | WASHER |
| Repalced by: A 3019900042 | ||
| 225 | A 3019900042 | WASHER |
| 227 | A 1156870909 | COVERING |
| A 1146870909 | COVERING | |
| A 1156870010 | COVERING | |
| AT TUNNEL COVERING,FRONT | ||
| 230 | A 1156870610 | COVERING |
| AT TUNNEL COVERING,FRONT | ||
| 234 | A 1146800117 | COVERING |
| 236 | A 1146870009 | COVERING |
| 239 | A 0029883878 | CLIP |
| 242 | A 1146870709 | COVERING |
| A 1156880906 | PANELLING | |
| Repalced by: A 1156882306 | ||
| A 1156882306 | PANELLING | |
| LEFT | ||
| 250 | A 1156882706 | PANELLING |
| LEFT | ||
| A 1156881006 | PANELLING | |
| Repalced by: A 1156882406 | ||
| A 1156882406 | PANELLING | |
| RIGHT | ||
| A 1156882806 | PANELLING | |
| RIGHT | ||
| 253 | A 1106880013 | CLIP |
| A 1156801587 | INSTRUMENT PANEL | |
| Repalced by: A 1156804387 | ||
| A 1156801787 | INSTRUMENT PANEL | |
| Repalced by: A 1156804387 | ||
| A 1156804387 | INSTRUMENT PANEL | |
| Repalced by: A 1156809187 | ||
| A 1156809187 | INSTRUMENT PANEL | |
| Repalced by: A 1156808787 | ||
| 261 | A 1156808787 | INSTRUMENT PANEL |
| FOAM RUBBER PADDED | ||
| A 1146801987 | INSTRUMENT PANEL | |
| FOAM RUBBER PADDED | ||
| 264 | A 1159970381 | GROMMET |
| 267 | A 1156891387 | STOP |
| LEFT | ||
| A 1156892487 | STOP | |
| RIGHT | ||
| 269 | N 000137004202 | SPRING WASHER |
| 270 | A 1159840029 | SCREW |
| 273 | N 006797004333 | TOOTHED WASHER |
| A 1156800887 | INSTRUMENT PANEL | |
| Repalced by: A 1156800698 | ||
| A 1156804987 | INSTRUMENT PANEL | |
| Repalced by: A 1156800698 | ||
| A 1156800198 | GLOVE COMPARTMENT LID | |
| Repalced by: A 1156800698 | ||
| A 1156800698 | GLOVE COMPARTMENT LID | |
| 280 | A 1156801098 | GLOVE COMPARTMENT LID |
| A 1146800798 | GLOVE COMPARTMENT LID | |
| A 1156890037 | SPACER TUBE | |
| Repalced by: A 1156890052 | ||
| 283 | A 1156890052 | HINGE |
| A 0009944545 | LOCK | |
| A 0009941445 | LOCK | |
| Repalced by: A 0009947145 | ||
| 287 | A 0009947145 | LOCK |
| N 007981003205 | SHEET METAL SCREW | |
| 290 | N 007981004225 | SHEET METAL SCREW |
| 293 | A 1159940145 | LOCK |
| A 1156891487 | STOP | |
| Repalced by: A 1156890101 | ||
| A 1156890001 | LOCK | |
| Repalced by: A 1156890101 | ||
| 295 | A 1156890101 | LOCK |
| 297 | N 000966004005 | SCREW |
| 300 | A 1156890072 | GARNISH MOULDING |
| 303 | N 007982003201 | SHEET METAL SCREW |
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | TAPPING SCREW | |
| 305 | A 1159870240 | RUBBER BUFFER |
| A 1156890025 | STRIKER | |
| Repalced by: A 1156890225 | ||
| 307 | A 1156890225 | STRIKER |
| 309 | A 1159940145 | LOCK |
| 310 | N 007983004237 | SHEET METAL SCREW |
| 312 | N 913002005000 | NUT |
| INSTRUMENT PANEL TO COWL | ||
| 315 | A 1114620175 | WASHER |
| INSTRUMENT PANEL TO COWL | ||
| 317 | N 914032004200 | COMBINATION BOLT |
| INSTRUMENT PANEL TO REINFORCEMENT, BOTTOM | ||
| 319 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 319 | A 1409941045 | LOCK |
| INSTRUMENT PANEL TO REINFORCEMENT, BOTTOM | ||
| 321 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 321 | N 009021006208 | WASHER |
| INSTRUMENT PANEL TO REINFORCEMENT, BOTTOM | ||
| 324 | N 000933006130 | SCREW |
| INSTRUMENT PANEL TO REINFORCEMENT, BOTTOM | ||
| 325 | A 1156890080 | ESCUTCHEON |
| 328 | A 1156890097 | PAD |
| A 0009900650 | NUT | |
| Repalced by: N 912003005000 | ||
| 329 | N 912003005000 | DUO CLIP |
| Repalced by: N 912010005001 | ||
| 329 | N 912010005001 | LOCK PLATE |
| 330 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 330 | N 009021005205 | WASHER |
| A 1156890047 | SHELL | |
| Repalced by: A 1156890291 | ||
| A 1156890247 | SHELL | |
| Repalced by: A 1156890291 | ||
| A 1156890091 | GLOVE COMPARTMENT | |
| Repalced by: A 1156890291 | ||
| 335 | A 1156890291 | GLOVE COMPARTMENT |
| A 1156800184 | FASTENER | |
| WITH KEY | ||
| 337 | A 1156800084 | FASTENER |
| LESS KEY | ||
| 339 | A 0009900192 | RIVET |
| Repalced by: A 1239900092 | ||
| 339 | A 1239900092 | RIVET |
| 342 | A 1156890297 | PAD |
| 343 | A 1146890330 | CAP |
| N 912003004000 | DUO CLIP | |
| 345 | A 1156890066 | SCREEN |
| 346 | A 1156800283 | PANELLING |
| A 0009900750 | NUT | |
| 346D | A 1146800339 | ORNAMENTAL COVER |
| A 1149880278 | CLIP | |
| 347 | A 0009879440 | RUBBER BUFFER |
| 349 | A 1156890018 | ORNAMENTAL FRAME |
| A 1156800039 | ORNAMENTAL COVER | |
| Repalced by: A 1156803539 | ||
| 352 | A 1156803539 | ORNAMENTAL COVER |
| 355 | A 0009944245 | LOCK |
| Repalced by: A 0019945445 | ||
| 355 | A 0019945445 | LOCK |
| 357 | N 007983002237 | SHEET METAL SCREW |
| Repalced by: N 007982003261 | ||
| 357 | N 007982003261 | SHEET METAL SCREW |
| 360 | A 1156890042 | STAY |
| 363 | N 000933008105 | SCREW |
| 365 | N 000137008204 | SPRING WASHER |
| 367 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 367 | N 304032008006 | NUT |
| 370 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 370 | N 304017008016 | SCREW |
| 372 | N 000137008204 | SPRING WASHER |
| A 1156800079 | HOUSING | |
| Repalced by: A 1156803079 | ||
| A 1156802079 | HOUSING | |
| Repalced by: A 1156803079 | ||
| 375 | A 1156803079 | HOUSING |
| 375 | A 1156803179 | HOUSING |
| 375 | A 1156803279 | HOUSING |
| 382 | A 1156821501 | INSULATION |
| LEFT | ||
| A 1156821401 | INSULATION | |
| RIGHT | ||
| 385 | N 007981003246 | SHEET METAL SCREW |
| HOUSING TO TRAY | ||
| 387 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 387 | N 009021004207 | WASHER |
| HOUSING TO TRAY | ||
| 390 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 390 | A 1409941045 | LOCK |
| HOUSING TO TRAY | ||
| 392 | A 1159902740 | WASHER |
| Repalced by: A 1109900940 | ||
| 392 | A 1109900940 | WASHER |
| HOUSING TO TRAY | ||
| 395 | A 1159902840 | WASHER |
| HOUSING TO STAY | ||
| 397 | A 1159900065 | NUT |
| HOUSING TO STAY | ||
| 399 | N 007981003275 | SHEET METAL SCREW |
| HOUSING TO CONNECTION DUCT | ||
| 403 | N 000125004314 | WASHER |
| HOUSING TO CONNECTION DUCT | ||
| 405 | A 0009944945 | LOCK |
| Repalced by: A 0009948245 | ||
| 405 | A 0009948245 | LOCK |
| HOUSING TO CONNECTION DUCT | ||
| A 1156830473 | FRAME | |
| STEERING COLUMN SHIFT | ||
| 407 | A 1156831273 | FRAME |
| FLOOR SHIFT | ||
| A 1156832273 | FRAME | |
| STEERING COLUMN SHIFT | ||
| A 1156832373 | FRAME | |
| FLOOR SHIFT | ||
| 410 | A 0019875051 | RUBBER SEAL |
| ELECTRIC WINDOW REGULATOR SWITCH | ||
| 170MM | ||
| 412 | N 007983004322 | SHEET METAL SCREW |
| ELECTRIC WINDOW REGULATOR SWITCH | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
