Transporto priemonė: 220 USA; VIN numerio dalis: 115010

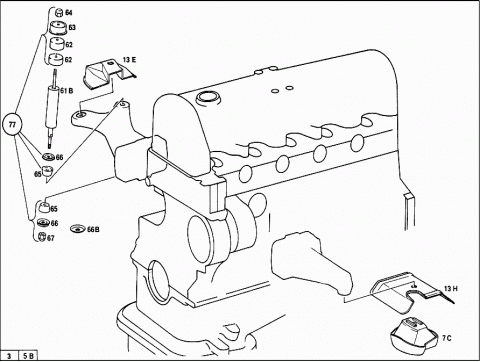

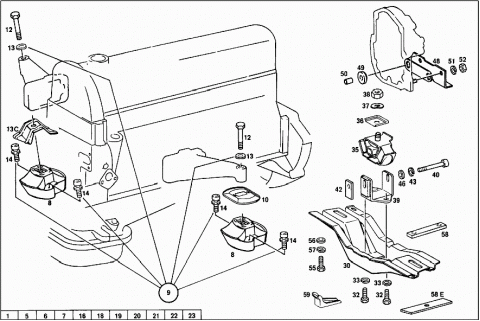

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST008,GROUP,22 FIG.-NO.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 167,GROUP 22,FIG.-NO.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.10 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.19 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 167,GROUP 22,FIG.-NO.10 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.28 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.15 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.30 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 167,GROUP 22,FIG.-NO.14 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.22 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.35 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 167,GROUP 22,FIG.-NO.18 | ||
| 007C | A 1152410813 | RUBBER MOUNTING |
| A 1152231412 | RUBBER MOUNTING | |
| Repalced by: A 1152410713 | ||
| 008 | A 1152410713 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 008 | A 1152410713 | RUBBER MOUNTING |
| LEFT | ||
| 008 | A 1152410713 | RUBBER MOUNTING |
| RIGHT | ||
| A 1142230212 | RUBBER MOUNTING | |
| Repalced by: A 1072410913 | ||
| A 1152410113 | RUBBER MOUNTING | |
| LEFT | ||
| A 1072410913 | RUBBER MOUNTING | |
| RIGHT | ||
| A 1072410913 | RUBBER MOUNTING | |
| LEFT | ||
| A 6152230112 | RUBBER MOUNTING | |
| LEFT | ||
| 009 | A 1155860022 | REPAIR KIT |
| ENGINE FRONT SUSPENSION | ||
| A 1155860122 | REPAIR KIT | |
| ENGINE FRONT SUSPENSION | ||
| A 1142410284 | SHIM | |
| A 1152230231 | PLATE | |
| 010 | A 1152230431 | PLATE |
| 012 | N 000931012251 | SCREW |
| 013 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 013 | N 000137012206 | SPRING WASHER |
| A 1152230234 | COVERING | |
| A 1162230534 | COVERING | |
| 013C | A 1142410334 | SCREENING PLATE |
| Repalced by: A 1142410234 | ||
| 013C | A 1142410234 | SCREENING PLATE |
| 013E | A 1162230434 | COVERING |
| Repalced by: A 1162230534 | ||
| 013E | A 1162230534 | COVERING |
| RIGHT | ||
| A 1162230534 | COVERING | |
| RIGHT | ||
| 013H | A 1152410034 | SCREENING PLATE |
| LEFT | ||
| 014 | N 914019008000 | COMBINATION BOLT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.27 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.49 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.31 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.60 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.53 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.35 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.71 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.57 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.39 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.84 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.61 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.44 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.65 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.96 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 007,GROUP 22,FIG.-NO.69 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 008,GROUP 22,FIG.-NO.53 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 009,GROUP 22,FIG.-NO.102 | ||
| 030 | A 1152422601 | ENGINE SUPPORT |
| A 1152422701 | ENGINE SUPPORT | |
| 032 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 032 | N 304017008016 | SCREW |
| 032 | N 304017008016 | SCREW |
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| 033 | N 912004008102 | LOCK WASHER |
| A 1152401818 | RUBBER MOUNTING | |
| Repalced by: A 1232420413 | ||
| 035 | A 1232420413 | RUBBER MOUNTING |
| A 1232402518 | RUBBER MOUNTING | |
| A 1155860124 | REPAIR KIT | |
| Repalced by: A 1232420413 | ||
| A 1232420413 | RUBBER MOUNTING | |
| ENGINE REAR SUSPENSION | ||
| 036 | A 1082420031 | MOUNTING PLATE |
| 037 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 037 | N 000137012206 | SPRING WASHER |
| 038 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 038 | N 308673012002 | HEXAGON NUT |
| A 1232420140 | BRACKET | |
| 039 | A 1152400340 | BRACKET |
| 039 | A 1152400340 | BRACKET |
| N 000912008067 | SCREW | |
| 040 | N 000912008054 | SCREW |
| 040 | N 000912008054 | SCREW |
| 042 | A 1232420272 | NUT |
| 042 | A 1232420272 | NUT |
| 043 | N 912004008102 | LOCK WASHER |
| 043 | N 912004008102 | LOCK WASHER |
| 046 | N 007349008002 | WASHER |
| 046 | N 007349008002 | WASHER |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| 048 | A 1144900444 | PLATE |
| A 1144920318 | BASE PLATE | |
| 049 | A 1211550181 | RUBBER RING |
| 050 | A 1084920053 | SPACER TUBE |
| 051 | N 000127010202 | LOCK WASHER |
| N 000137008204 | SPRING WASHER | |
| 052 | N 000934010005 | NUT |
| N 000933008153 | SCREW | |
| 055 | N 000933010128 | SCREW |
| 055 | N 000933010128 | SCREW |
| N 000933010035 | SCREW | |
| 056 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 056 | N 007349010007 | WASHER |
| 057 | N 000127010202 | LOCK WASHER |
| 058 | A 1152421240 | BRACKET |
| 058E | A 1152420126 | SHIM |
| 059 | A 1152420543 | STOP |
| N 000912010049 | SCREW | |
| N 000934010005 | NUT | |
| 061B | A 1152400148 | ENGINE VIBRATION ABSORBER |
| 062 | A 1232410065 | RUBBER BUFFER |
| 063 | A 1232410212 | RETAINER |
| Repalced by: A 1232410312 | ||
| 063 | A 1232410312 | RETAINER |
| 064 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 064 | N 913002006009 | NUT |
| 065 | A 1232410365 | RUBBER BUFFER |
| 066 | A 1152410712 | RETAINER |
| 066B | A 1152411312 | RETAINER |
| 067 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 067 | N 913002006009 | NUT |
| 077 | A 1232400217 | REPAIR KIT |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
