Transporto priemonė: 220 USA; VIN numerio dalis: 115010

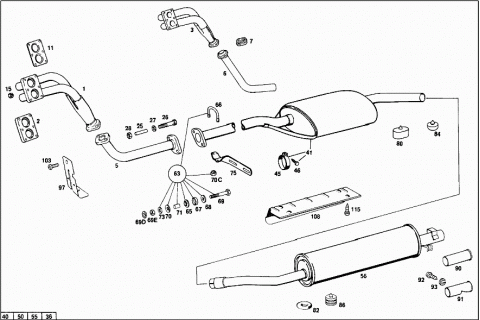

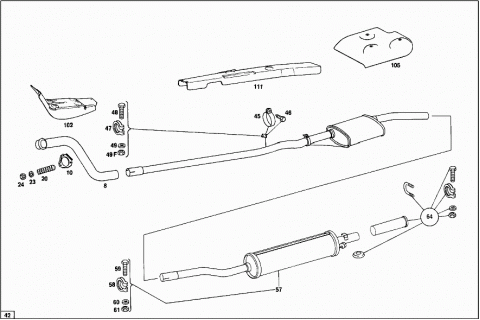

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1154900220 | EXHAUST PIPE | |
| Repalced by: A 1154901020 | ||
| A 1154900820 | EXHAUST PIPE | |
| Repalced by: A 1154901020 | ||
| 001 | A 1154901020 | EXHAUST PIPE |
| FRONT | ||
| 002 | A 1154920045 | FLANGE |
| 003 | A 1154901520 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 1154900720 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 1154901719 | EXHAUST PIPE |
| Repalced by: A 1154902119 | ||
| 006 | A 1154902119 | EXHAUST PIPE |
| FRONT | ||
| 007 | A 1164920345 | FLANGE |
| A 1154901120 | EXHAUST PIPE | |
| FRONT | ||
| 008 | A 1154900519 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 1154920345 | FLANGE |
| A 1154901320 | EXHAUST PIPE | |
| FRONT | ||
| 011 | A 1104920280 | FLANGE GASKET |
| A 1104920380 | FLANGE GASKET | |
| Repalced by: A 1104920580 | ||
| A 1104920580 | FLANGE GASKET | |
| 015 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 015 | A 0009903250 | NUT |
| 015 | A 0009903250 | NUT |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| 020 | A 1169937801 | SPRING |
| N 000931008190 | SCREW | |
| 023 | N 000125008407 | WASHER |
| 024 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 024 | A 0009903250 | NUT |
| A 1159939302 | SPRING | |
| Repalced by: A 0004920153 | ||
| 025 | A 0004920153 | SPACER TUBE |
| N 000125008418 | WASHER | |
| 026 | N 000931008190 | SCREW |
| 027 | N 000125008407 | WASHER |
| 028 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 028 | A 0009903250 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 47 | ||
| 040 | A 1154900421 | EXHAUST PIPE |
| Repalced by: A 1154900515 | ||
| 040 | A 1154900515 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| (114 491 14 01/16 01) | ||
| 041 | A 1154900515 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| A1144911401,1144911601 | ||
| 042 | A 1154900321 | EXHAUST PIPE |
| Repalced by: A 1154900115 | ||
| 042 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| (114 491 14 01/16 01) | ||
| 042 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| (114 491 14 01/16 01) | ||
| 043 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| A1144913101,1144913501 | ||
| 043 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| A1144913101,1144913501 | ||
| A 1154901221 | EXHAUST PIPE | |
| Repalced by: A 1154902021 | ||
| A 1154902021 | EXHAUST PIPE | |
| WELDED VERSION | ||
| A1154910001,11549102 01) | ||
| A 1154900315 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| A1154910601,1154910701 | ||
| 045 | A 1159950435 | CLAMP |
| 046 | N 007976005201 | SHEET METAL SCREW |
| 047 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 047 | A 1074900041 | CLAMP |
| 048 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 048 | N 304017008043 | SCREW |
| 049 | N 000433008406 | WASHER |
| 049F | N 000934008013 | NUT |
| 050 | A 1144900421 | EXHAUST PIPE |
| WELDED VERSION | ||
| 055 | A 1144911501 | MUFFLER |
| WELDED VERSION | ||
| A 1144911701 | MUFFLER | |
| WELDED VERSION | ||
| 056 | A 1144900515 | EXHAUST MUFFLER WITH PIPE |
| REAR;CLAMP-ON VERSION | ||
| A1144913401 | ||
| 057 | A 1154900715 | EXHAUST MUFFLER WITH PIPE |
| REAR;CLAMP-ON VERSION | ||
| A1144911501,1144911701 | ||
| A 1154910101 | MUFFLER | |
| Repalced by: A 1154900615 | ||
| A 1154900615 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154910301 | MUFFLER | |
| Repalced by: A 1154900615 | ||
| A 1154900615 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154900615 | EXHAUST MUFFLER WITH PIPE | |
| REAR;CLAMP-ON VERSION | ||
| A1154910101,1154910301 | ||
| 058 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 058 | A 1074900041 | CLAMP |
| 059 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 059 | N 304017008043 | SCREW |
| 060 | N 000433008406 | WASHER |
| 061 | N 000934008013 | NUT |
| 063 | A 1264900337 | REPAIR KIT |
| FRONT EXHAUST PIPE SUSPENSION | ||
| A 1155860249 | REPAIR KIT | |
| FROM FLANGED CONNECTION | ||
| 064 | A 1155860349 | REPAIR KIT |
| FROM PLUG CONNECTION | ||
| A 1155860449 | REPAIR KIT | |
| FROM PLUG CONNECTION | ||
| 065 | A 1211550181 | RUBBER RING |
| A 3094902330 | PROTECTIVE PLATE | |
| 066 | A 1234920027 | CLAMPING BRACKET |
| 067 | N 000440009103 | WASHER |
| 068 | A 1089900340 | WASHER |
| 069 | N 000931008244 | SCREW |
| 069D | N 912004008102 | LOCK WASHER |
| 069E | N 000934008013 | NUT |
| 070 | N 002093016101 | DISC SPRING |
| 070C | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 070C | A 0009903250 | NUT |
| 071 | A 1084920053 | SPACER TUBE |
| 073 | N 000125008418 | WASHER |
| 075 | A 1154920141 | BRACKET |
| 080 | A 1159870540 | RUBBER BUFFER |
| 082 | A 1074920082 | DAMPING PAD |
| 084 | A 1149870139 | RUBBER BUFFER |
| Repalced by: A 1079870840 | ||
| 084 | A 1079870840 | RUBBER BUFFER |
| Repalced by: A 1079871140 | ||
| 084 | A 1079871140 | RUBBER BUFFER |
| 086 | A 1239870940 | RUBBER BUFFER |
| 090 | A 1234920714 | END PIECE |
| 091 | A 1154920914 | END PIECE |
| 092 | N 007981003335 | SHEET METAL SCREW |
| Repalced by: N 007981003203 | ||
| 092 | N 007981003203 | SHEET METAL SCREW |
| 093 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 093 | N 912004004102 | LOCK WASHER |
| 097 | A 1144920830 | PROTECTIVE PLATE |
| 102 | A 1144900230 | PROTECTIVE PLATE |
| 103 | A 0009902036 | SCREW |
| 105 | A 1144921430 | PROTECTIVE PLATE |
| 108 | A 1144920630 | PROTECTIVE PLATE |
| 111 | A 1144920930 | PROTECTIVE PLATE |
| 115 | A 0009902036 | SCREW |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 007976006203 | SHEET METAL SCREW | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
