Transporto priemonė: 220 USA; VIN numerio dalis: 115010

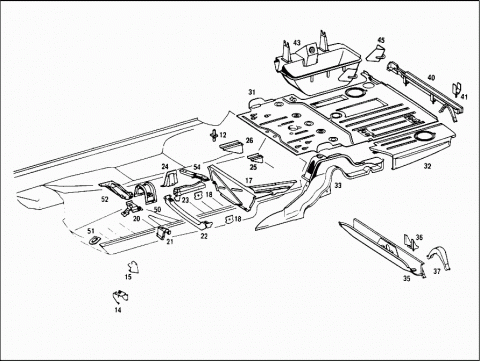

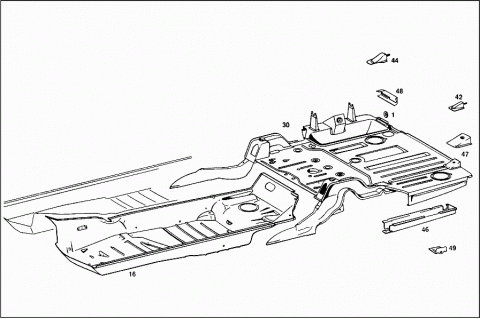

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1159971240 | SEAL RING |
| 012 | A 1156120017 | THREADED BUSHING |
| 014 | A 1156261114 | BRACKET |
| LEFT | ||
| A 1156261214 | BRACKET | |
| RIGHT | ||
| 015 | A 1156221914 | BRACKET |
| A 1156160167 | FLOOR | |
| Repalced by: A 1156160967 | ||
| 016 | A 1156160967 | FLOOR |
| LEFT | ||
| A 1156160267 | FLOOR | |
| Repalced by: A 1156161067 | ||
| A 1156161067 | FLOOR | |
| RIGHT | ||
| A 1156100136 | BRACKET | |
| Repalced by: A 1156100336 | ||
| 017 | A 1156100336 | BRACKET |
| LEFT | ||
| A 1156100236 | BRACKET | |
| Repalced by: A 1156100436 | ||
| A 1156100436 | BRACKET | |
| RIGHT | ||
| A 1156100521 | CROSS MEMBER | |
| Repalced by: A 1156100336 | ||
| A 1156100621 | CROSS MEMBER | |
| Repalced by: A 1156100436 | ||
| A 1156100511 | PLATE | |
| Repalced by: A 1106100311 | ||
| A 1156100811 | PLATE | |
| Repalced by: A 1106100311 | ||
| 018 | A 1106100311 | PLATE |
| Repalced by: A 1269840125 | ||
| 018 | A 1269840125 | THREADED CHUCK |
| Repalced by: A 1269840025 | ||
| 018 | A 1269840025 | THREADED CHUCK |
| 020 | A 1156100536 | BRACKET |
| LEFT | ||
| A 1156100636 | BRACKET | |
| RIGHT | ||
| 021 | A 1156160736 | COVERING |
| LEFT | ||
| A 1156160836 | COVERING | |
| RIGHT | ||
| 022 | A 1156160936 | COVERING |
| 023 | A 1156100122 | RAIL |
| 024 | A 1156160320 | MOUNTING |
| 025 | A 1156161414 | BRACKET |
| 026 | A 1156162014 | BRACKET |
| A 1156100061 | FLOOR | |
| Repalced by: A 1156100261 | ||
| A 1156100261 | FLOOR | |
| Repalced by: A 1156100661 | ||
| A 1156100661 | FLOOR | |
| A 1156100561 | FLOOR | |
| Repalced by: A 1156100761 | ||
| 030 | A 1156100761 | FLOOR |
| A 1156180061 | REAR END FLOOR | |
| Repalced by: A 1156180761 | ||
| 031 | A 1156180761 | REAR END FLOOR |
| A 1156180161 | REAR END FLOOR | |
| Repalced by: A 1156180561 | ||
| 032 | A 1156180561 | REAR END FLOOR |
| 033 | A 1156100110 | SIDE MEMBER |
| REAR LEFT | ||
| A 1156100210 | SIDE MEMBER | |
| REAR RIGHT | ||
| 035 | A 1156100604 | CROSS MEMBER |
| 036 | A 1156100014 | BRACKET |
| 037 | A 1156120714 | BRACKET |
| A 1156100616 | CROSS MEMBER | |
| Repalced by: A 1156100916 | ||
| 040 | A 1156100916 | CROSS MEMBER |
| A 1156120714 | BRACKET | |
| 041 | A 1156100114 | BRACKET |
| 042 | A 1156100331 | CONSOLE |
| A 1156100086 | PIPE SOCKET | |
| Repalced by: A 1156100475 | ||
| A 1156100175 | SPARE WHEEL WELL | |
| Repalced by: A 1156100475 | ||
| A 1156100475 | SPARE WHEEL WELL | |
| 043 | A 1156100375 | SPARE WHEEL WELL |
| 044 | A 1156100431 | CONSOLE |
| 045 | A 1156100531 | CONSOLE |
| 046 | A 1156100143 | STAY |
| LEFT | ||
| A 1156100243 | STAY | |
| RIGHT | ||
| 047 | A 1156102331 | CONSOLE |
| 048 | A 1156102431 | CONSOLE |
| 049 | A 1146180131 | CONSOLE |
| A 1156100021 | CROSS MEMBER | |
| Repalced by: A 1156160221 | ||
| 050 | A 1156160221 | PIN |
| 051 | A 1156160030 | COVERING |
| A 1156160044 | WEB | |
| Repalced by: A 1156160844 | ||
| 052 | A 1156160844 | WEB |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000127008203 | LOCK WASHER | |
| N 009021008213 | WASHER | |
| A 1156160044 | WEB | |
| Repalced by: A 1156160344 | ||
| 054 | A 1156160344 | WEB |
| N 000933010106 | SCREW | |
| N 000127010202 | LOCK WASHER | |
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| A 1156160520 | MOUNTING | |
| ACCELERATOR PEDAL, AT FRONT FLOOR | ||
