Transporto priemonė: 220 USA; VIN numerio dalis: 115010
Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|

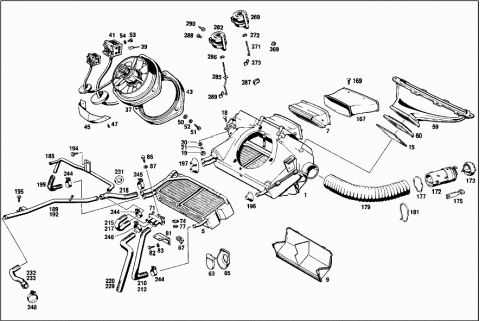

| A 1158301362 | HEATER CASE | |
| Repalced by: A 1158303762 | ||
| A 1158303762 | HEATER CASE | |
| A 1158302762 | HEATER CASE | |
| Repalced by: A 1158304462 | ||
| 001 | A 1158304462 | HEATER CASE |
| A 0008357101 | HEAT EXCHANGER | |
| Repalced by: A 0018353001 | ||
| 005 | A 0018353001 | HEAT EXCHANGER |
| A 1158300024 | INTERMEDIATE PIECE | |
| Repalced by: A 1148300024 | ||
| 007 | A 1148300024 | INTERMEDIATE PIECE |
| 009 | A 1158350039 | COVER |
| A 1158300124 | INTERMEDIATE PIECE | |
| (FRONT AND REAR SPACE HEATING) | ||
| A 1158300224 | INTERMEDIATE PIECE | |
| (FRONT AND REAR SPACE HEATING) | ||
| 012 | A 1158300424 | INTERMEDIATE PIECE |
| (FRONT AND REAR SPACE HEATING) | ||
| 013 | N 007981004226 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 013 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 013 | N 000000000460 | SHEET METAL SCREW |
| 015 | A 1158350198 | SEAL |
| 016 | N 007976006303 | SHEET METAL SCREW |
| HEATER CASE TO TUNNEL | ||
| 017 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 017 | N 009021006208 | WASHER |
| HEATER CASE TO TUNNEL | ||
| 018 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 018 | A 0009905233 | SCREW |
| 019 | N 000934006007 | NUT |
| 020 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 020 | N 009021006208 | WASHER |
| 021 | N 006797006145 | TOOTHED WASHER |
| A 1156870110 | COVERING | |
| Repalced by: A 1156870710 | ||
| 030 | A 1156870710 | COVERING |
| 031 | A 0019882378 | CLIP |
| 032 | A 0019874651 | RUBBER SEAL |
| 125 MM | ||
| A 1158350007 | BLOWER | |
| Repalced by: A 1158350407 | ||
| A 1158350107 | BLOWER | |
| Repalced by: A 1158350407 | ||
| A 1158350407 | BLOWER | |
| Repalced by: A 1158350207 | ||
| 037 | A 1158350207 | BLOWER |
| 039 | A 0008352575 | CARBON BRUSH SET |
| A 1158210451 | SWITCH | |
| Repalced by: A 1158211951 | ||
| A 1158211651 | PLUG | |
| Repalced by: A 1158211951 | ||
| 041 | A 1158211951 | SWITCH |
| 043 | A 1158350098 | SEAL |
| 045 | A 1158360133 | SCREENING |
| 047 | A 0009900492 | RIVET |
| A 1109970441 | SEAL RING | |
| Repalced by: A 1159971040 | ||
| A 1119971140 | SEAL RING | |
| Repalced by: A 1159971040 | ||
| 050 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 050 | A 2019870241 | RUBBER RING |
| 051 | N 007976004207 | SHEET METAL SCREW |
| 052 | N 000125005306 | WASHER |
| 053 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 053 | N 000000001933 | SCREW |
| BLOWER RESISTOR TO FIRE WALL | ||
| 054 | N 000137004202 | SPRING WASHER |
| BLOWER RESISTOR TO FIRE WALL | ||
| 055 | A 1158310145 | DUCT |
| REAR LEFT | ||
| A 1158310245 | DUCT | |
| REAR RIGHT | ||
| 057 | N 007981004331 | SHEET METAL SCREW |
| A 1158300119 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300719 | ||
| 059 | A 1158300719 | DEFROSTER NOZZLE |
| Repalced by: A 1158300119 | ||
| 059 | A 1158300119 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300819 | ||
| A 1158300819 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300219 | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 060 | A 1158310098 | SEAL |
| 063 | A 1158310046 | VALVE |
| 065 | A 1158313751 | WATER PASSAGE |
| 067 | A 0019886878 | CLIP |
| A 1158350020 | CONTROL VALVE | |
| 069 | A 1158350120 | CONTROL VALVE |
| 071 | A 1158350220 | CONTROL VALVE |
| A 0008350098 | SEAL | |
| Repalced by: A 0008351298 | ||
| 074 | A 0008351298 | SEAL |
| A 0008350898 | SEAL | |
| Repalced by: A 0008351398 | ||
| 077 | A 0008351398 | SEAL |
| Repalced by: A 0008354898 | ||
| 077 | A 0008354898 | SEAL |
| A 0008351520 | CONTROL VALVE | |
| A 1158351514 | BRACKET | |
| 081 | A 1158351814 | BRACKET |
| 082 | N 007976004205 | SHEET METAL SCREW |
| 083 | N 000125005306 | WASHER |
| 084 | N 007976005208 | SHEET METAL SCREW |
| WATER FAUCET TO FIRE WALL | ||
| 085 | N 000125006407 | WASHER |
| WATER FAUCET TO FIRE WALL | ||
| 086 | N 007976004215 | SHEET METAL SCREW |
| WATER FAUCET TO BRACKET | ||
| 087 | N 000125005306 | WASHER |
| WATER FAUCET TO BRACKET | ||
| A 1158300085 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| A 1158300485 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| A 1158300585 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| 090 | A 1158300785 | OPERATING UNIT |
| A 0018351906 | SWITCH | |
| Repalced by: A 0008353706 | ||
| 093 | A 0008353706 | SWITCH |
| A 1155860083 | REPAIR KIT | |
| Repalced by: A 1238300133 | ||
| A 1238300133 | REPAIR KIT | |
| Repalced by: A 1158300033 | ||
| A 1158300033 | REPAIR KIT | |
| LEFT, MAKE KAMMERER | ||
| A 0008351943 | LEVER | |
| Repalced by: A 1155860083 | ||
| 095 | A 0008352743 | LEVER |
| Repalced by: A 1155860083 | ||
| A 1155860183 | REPAIR KIT | |
| Repalced by: A 1238300233 | ||
| A 1238300233 | REPAIR KIT | |
| Repalced by: A 1158300133 | ||
| A 1158300133 | REPAIR KIT | |
| RIGHT, MAKE KAMMERER | ||
| A 0008352043 | LEVER | |
| Repalced by: A 1155860183 | ||
| 097 | A 0008352843 | LEVER |
| Repalced by: A 1155860183 | ||
| A 0008352443 | LEVER | |
| LEFT, MAKE R&S | ||
| A 0008352543 | LEVER | |
| RIGHT, MAKE R&S | ||
| 099 | A 0009902248 | WASHER |
| 100 | N 912003005000 | DUO CLIP |
| Repalced by: N 912010005001 | ||
| 100 | N 912010005001 | LOCK PLATE |
| 101 | A 0008330081 | CLIP |
| 103 | A 0009949941 | LOCK |
| 104 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 104 | N 304017006018 | SCREW |
| 105 | N 006797006145 | TOOTHED WASHER |
| 106 | A 1158330240 | OPERATING HANDLE |
| DEFROSTER NOZZLE VENTILATION | ||
| 107 | A 1158330540 | OPERATING HANDLE |
| LEGROOM VENTILATION | ||
| 109 | A 1158330340 | OPERATING HANDLE |
| HEAT EXCHANGER,LEFT | ||
| 111 | A 1158330440 | OPERATING HANDLE |
| HEAT EXCHANGER,RIGHT | ||
| A 1158330131 | WIRE CABLE | |
| Repalced by: A 1158300231 | ||
| A 1158330231 | WIRE CABLE | |
| Repalced by: A 1158300331 | ||
| A 1158300231 | WIRE CABLE | |
| BETWEEN CONTROL UNIT AND LEFT AND RIGHT FAUCETS,830 MM | ||
| A 1158300331 | WIRE CABLE | |
| BETWEEN CONTROL UNIT AND LEFT AND RIGHT FAUCETS,930 MM | ||
| 114 | A 0029884978 | CLIP |
| 117 | A 1158300731 | WIRE CABLE |
| LEFT | ||
| A 1158300431 | WIRE CABLE | |
| RIGHT | ||
| A 0029975982 | HOSE | |
| 119 | A 1159971581 | GROMMET |
| A 1158330030 | SPIRAL | |
| Repalced by: A 1158330330 | ||
| 121 | A 1158330330 | SPIRAL |
| Repalced by: A 1158301331 | ||
| 121 | A 1158301331 | WIRE CABLE |
| 123 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 1158301231 | WIRE CABLE | |
| (BETWEEN CONTROL UNIT AND DEFROSTER NOZZLE FLAP),300 MM | ||
| A 1158300631 | WIRE CABLE | |
| Repalced by: A 1158301431 | ||
| 127 | A 1158301431 | WIRE CABLE |
| (BETWEEN CONTROL UNIT AND DE FROSTER NOZZLE FLAP),280 MM | ||
| 129 | A 1158301331 | WIRE CABLE |
| 131 | A 1159971681 | GROMMET |
| 133 | A 1159840556 | WASHER |
| 134 | N 000471012001 | LOCK RING |
| 135 | A 0019886878 | CLIP |
| 137 | A 0009840429 | SCREW |
| 139 | A 0019903840 | WASHER |
| 141 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 141 | N 912004004102 | LOCK WASHER |
| 143 | N 000934004004 | NUT |
| A 1158300289 | ESCUTCHEON | |
| Repalced by: A 1158301189 | ||
| A 1158301189 | ESCUTCHEON | |
| A 1158300389 | ESCUTCHEON | |
| Repalced by: A 1158300789 | ||
| 145 | A 1158300789 | ESCUTCHEON |
| Repalced by: A 1158301189 | ||
| 145 | A 1158301189 | ESCUTCHEON |
| 148 | A 1158301089 | ESCUTCHEON |
| 149 | A 0009912022 | BALL SOCKET |
| 151 | A 0009970381 | GROMMET |
| 153 | A 1158330083 | GARNISH MOULDING |
| 155 | A 1158330183 | GARNISH MOULDING |
| A 1158300088 | CONSOLE | |
| Repalced by: A 1158300188 | ||
| 158 | A 1158300188 | LOUVRE |
| 161 | A 1108210159 | ESCUTCHEON |
| 162 | N 007981003341 | SHEET METAL SCREW |
| A 1158313851 | HOSE | |
| Repalced by: A 1158300096 | ||
| 167 | A 1158300096 | HOSE |
| 169 | A 0009900292 | RIVET |
| 172 | A 1158300154 | NOZZLE |
| LEFT | ||
| A 1158300354 | NOZZLE | |
| LEFT | ||
| A 1158300254 | NOZZLE | |
| RIGHT | ||
| A 1158300454 | NOZZLE | |
| RIGHT | ||
| 173 | A 1158314351 | BALL INSERT |
| 175 | A 1158310001 | HANDLE |
| 177 | A 1158311351 | WAVE RING |
| A 0079973682 | HOSE | |
| Repalced by: A 1158310497 | ||
| A 0089970082 | HOSE | |
| Repalced by: A 1158310497 | ||
| 179 | A 0089970082 | HOSE |
| 485 MM | ||
| 181 | A 1158310114 | BRACKET |

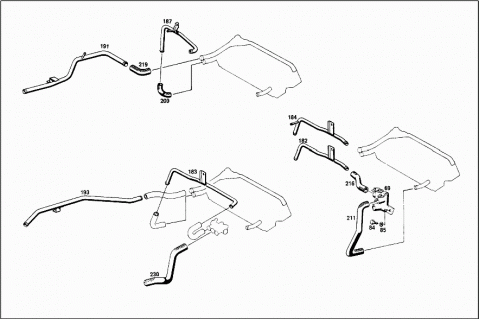

| 182 | A 1158300015 | PIPE LINE |
| 183 | A 1158300715 | PIPE LINE |
| 184 | A 1158300115 | PIPE LINE |
| 185 | A 1158300815 | PIPE LINE |
| 187 | A 1158301215 | PIPE LINE |
| A 1158300259 | BURNER | |
| Repalced by: A 1158300615 | ||
| A 1158300059 | BURNER | |
| Repalced by: A 1158300915 | ||
| 189 | A 1158300615 | PIPE LINE |
| 191 | A 1158301115 | PIPE LINE |
| A 1158300515 | PIPE LINE | |
| Repalced by: A 1158300915 | ||
| 192 | A 1158300915 | PIPE LINE |
| 193 | A 1158301315 | PIPE LINE |
| 194 | N 007976005203 | SHEET METAL SCREW |
| 195 | N 007976004205 | SHEET METAL SCREW |
| 196 | A 1139970081 | GROMMET |
| 197 | A 1159970481 | GROMMET |
| A 1158310194 | HOSE | |
| Repalced by: A 1148312394 | ||
| A 1158313894 | HOSE | |
| Repalced by: A 1148312394 | ||
| 199 | A 1148312394 | HOSE |
| RIGHT | ||
| 200 | A 1158314294 | HOSE |
| RIGHT | ||
| 210 | A 1158310294 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 211 | A 1158312894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 212 | A 1158313894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 215 | N 900271015069 | HOSE |
| Repalced by: N 900271015037 | ||
| 215 | N 900271015037 | HOSE |
| BETWEEN FAUCET AND FEED LINE 15X22X1000 MM | ||
| 216 | A 1158312994 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| 217 | A 1158313694 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| 218 | N 900271018036 | HOSE |
| BETWEEN HEATER CASE AND RETURN LINE | ||
| 219 | A 1158314394 | HOSE |
| 220 | A 1158310094 | HOSE |
| BETWEEN ENGINE AND FAUCET 18X25X1000 MM | ||
| A 1158312694 | HOSE | |
| Repalced by: A 1158303594 | ||
| 229 | A 1158313594 | HOSE |
| BETWEEN ENGINE AND WATER FAUCET | ||
| 230 | A 1158314194 | HOSE |
| BETWEEN ENGINE AND WATER FAUCET | ||
| 231 | A 1109870541 | RUBBER RING |
| 232 | A 1118310094 | HOSE |
| BETWEEN WATER PUMP AND RETURN LINE 240 MM | ||
| 233 | A 1158311094 | HOSE |
| 244 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 244 | A 0059970190 | HOSE CLAMP |
| 245 | N 916026020001 | CLAMP |
| 246 | N 916026020001 | CLAMP |
| 248 | N 916026023001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 248 | N 000000000667 | CLAMP |
| 259 | A 1158360465 | GRILLE |
| A 1158360365 | GRILLE | |
| 261 | A 1158360018 | SCREEN |
| 263 | A 0019872451 | RUBBER SEAL |

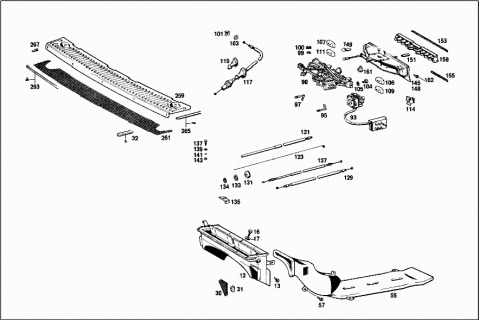

| 265 | A 0019872651 | RUBBER SEAL |
| 267 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 267 | A 0009902292 | RIVET |
| A 1158000675 | ELEMENT | |
| Repalced by: A 0008001775 | ||
| A 1158001475 | ELEMENT | |
| Repalced by: A 0008001775 | ||
| 269 | A 0008001775 | ELEMENT |
| 271 | A 1158050974 | ROD |
| 272 | N 912001004000 | LOCK |
| 273 | N 918002004000 | CLAMPING SPRING |
| A 1158000775 | ELEMENT | |
| Repalced by: A 0008000875 | ||
| A 1158001575 | ELEMENT | |
| Repalced by: A 0008000875 | ||
| 282 | A 0008000875 | ELEMENT |
| Repalced by: A 0008001175 | ||
| 282 | A 0008001175 | ELEMENT |
| 285 | A 1158051074 | ROD |
| 286 | N 912001004000 | LOCK |
| 287 | A 1159950101 | CLAMP |
| 288 | N 007985004125 | SCREW |
| Repalced by: N 007985004107 | ||
| 288 | N 007985004107 | SCREW |
| 289 | N 918002004000 | CLAMPING SPRING |
| 290 | N 007981005211 | SHEET METAL SCREW |

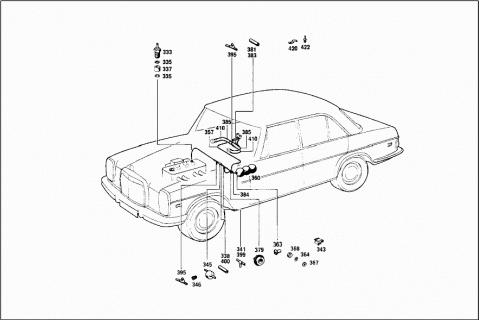

| 333 | A 1002700072 | SCREW |
| Repalced by: A 1009900663 | ||
| 333 | A 1009900663 | HOLLOW SCREW |
| 335 | N 007603010100 | SEAL RING |
| 337 | A 1869912740 | SPACER TUBE |
| 338 | A 0059975982 | HOSE |
| 338 | A 0059975982 | HOSE |
| 341 | A 1158050422 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 341 | A 1170780145 | BRANCH-OFF FITTING |
| 343 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 343 | A 1149880178 | CLIP |
| A 1128000178 | VALVE | |
| Repalced by: A 1158000778 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1158000778 | ||
| 345 | A 1078000778 | VALVE |
| Repalced by: A 1168000378 | ||
| 345 | A 1168000378 | VALVE |
| 346 | A 1118055090 | CAP |
| A 0004353182 | HOSE | |
| Repalced by: A 1158000183 | ||
| A 0004313207 | VALVE | |
| Repalced by: A 1158000183 | ||
| A 1154350325 | LINE | |
| Repalced by: A 1158000183 | ||
| A 1154350225 | CONNECTOR | |
| Repalced by: A 1158000183 | ||
| N 915001008004 | UNION NUT | |
| Repalced by: A 1158000183 | ||
| 357 | A 1158000183 | LINE |
| A 1158050119 | TANK | |
| Repalced by: A 1158000119 | ||
| A 1158000119 | TANK | |
| Repalced by: A 1158000519 | ||
| A 1158000419 | TANK | |
| Repalced by: A 1158000519 | ||
| 360 | A 1158000519 | TANK |
| A 1098050098 | SEAL | |
| Repalced by: A 1238050298 | ||
| A 1238050298 | SEAL | |
| 363 | A 1078050198 | SEAL |
| 364 | N 006797006145 | TOOTHED WASHER |
| 367 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 367 | A 2019870241 | RUBBER RING |
| 368 | N 000934006007 | NUT |
| 369 | A 1128050055 | GUIDE |
| 379 | A 1159971981 | GROMMET |
| 381 | A 0079976182 | HOSE |
| 381 | A 0079976182 | HOSE |
| 383 | A 0059975982 | HOSE |
| 384 | A 0089978482 | HOSE |
| Repalced by: A 0089978582 | ||
| 384 | A 0089978582 | HOSE |
| MEDIUM GREEN | ||
| 384 | A 0089978582 | HOSE |
| MEDIUM GREEN | ||
| 384 | A 0089978582 | HOSE |
| MEDIUM GREEN | ||
| A 0009976652 | HOSE | |
| GREY-LIGHT BLEU | ||
| A 0009970352 | HOSE | |
| MEDIUM GREEN | ||
| A 0009970752 | HOSE | |
| Repalced by: A 0009976552 | ||
| A 0009976552 | HOSE | |
| MEDIUM-GREEN-YELLOW | ||
| 385 | A 0089978582 | HOSE |
| 385 | A 0089978582 | HOSE |
| 385 | A 0089978582 | HOSE |
| A 0009976452 | HOSE | |
| MEDIUM GREEN-ORANGE | ||
| A 0009976452 | HOSE | |
| MEDIUM GREEN-ORANGE | ||
| 395 | A 1158050322 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 395 | A 1170780145 | BRANCH-OFF FITTING |
| 399 | A 1158050422 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 399 | A 1170780145 | BRANCH-OFF FITTING |
| 400 | A 0079976182 | HOSE |
| 400 | A 0079976182 | HOSE |
| 400 | A 0079976182 | HOSE |
| 400 | A 0079976182 | HOSE |
| 400 | A 0079976182 | HOSE |
| 400 | A 0079976182 | HOSE |
| 410 | A 0089978382 | HOSE |
| LIGHT GREEN | ||
| 410 | A 0089978382 | HOSE |
| LIGHT GREEN | ||
| 420 | N 072571002015 | CLAMP |
| A 0009900392 | RIVET | |
| Repalced by: A 0009902292 | ||
| 422 | A 0009902292 | RIVET |

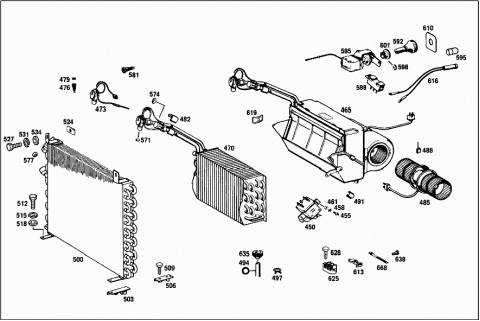

| 450 | A 1158211851 | SWITCH |
| 455 | N 007985004125 | SCREW |
| Repalced by: N 007985004107 | ||
| 455 | N 007985004107 | SCREW |
| 458 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 458 | N 912004004102 | LOCK WASHER |
| 461 | N 000433004303 | WASHER |
| 465 | A 1158300358 | EVAPORATOR |
| 470 | A 0008350474 | EVAPORATOR |
| 473 | A 1158350072 | VALVE |
| 476 | A 1088350247 | FILTER |
| 479 | A 0008350598 | SEAL |
| 482 | A 1088350391 | CLAMP |
| Repalced by: A 0009952920 | ||
| 482 | A 0009952920 | CLAMP |
| 485 | A 1158300008 | BLOWER |
| 488 | A 0008352575 | CARBON BRUSH SET |
| 491 | A 0008351334 | SPRING |
| 494 | A 0009978482 | HOSE |
| 65 MM | ||
| 497 | A 0009954244 | CLAMP |
| A 1158350270 | CONDENSER | |
| Repalced by: A 1158300270 | ||
| 500 | A 1158300270 | CONDENSER |
| A 1158300470 | CONDENSER | |
| 503 | A 1158301114 | BRACKET |
| LEFT | ||
| 506 | A 1158301214 | BRACKET |
| RIGHT | ||
| 509 | N 007976004205 | SHEET METAL SCREW |
| 512 | N 000933006026 | SCREW |
| 515 | N 912004006102 | LOCK WASHER |
| 518 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 518 | N 009021006208 | WASHER |
| 524 | N 913008006300 | SHEET METAL NUT |
| 527 | N 000933006026 | SCREW |
| 531 | N 912004006102 | LOCK WASHER |
| 534 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 534 | N 009021006208 | WASHER |
| 540 | A 1158350471 | TANK |
| 543 | A 0018218551 | REGULATOR |
| Repalced by: A 0008208010 | ||
| 543 | A 0008208010 | SWITCH |
| 546 | A 1158350714 | BRACKET |
| 549 | A 1149950335 | CLAMP |
| 552 | N 000933006179 | SCREW |
| 555 | N 912004006102 | LOCK WASHER |
| 558 | N 000934006007 | NUT |
| 561 | N 007976004205 | SHEET METAL SCREW |
| 564 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 564 | N 000433005304 | WASHER |
| 567 | N 000127005204 | LOCK WASHER |
| 571 | A 0008350298 | SEAL |
| Repalced by: A 0008356598 | ||
| 571 | A 0008356598 | SEAL |
| 5/8" | ||
| 574 | A 0008350398 | SEAL |
| Repalced by: A 0008356798 | ||
| 574 | A 0008356798 | SEAL |
| 7/8" | ||
| 577 | A 0008350498 | SEAL |
| Repalced by: A 0008356698 | ||
| 577 | A 0008356698 | SEAL |
| 3/4" | ||
| 581 | A 1088350047 | FILTER |
| 585 | A 0018351106 | SWITCH |
| 588 | A 0018352606 | SWITCH |
| Repalced by: A 0018352906 | ||
| 588 | A 0018352906 | SWITCH |
| 592 | A 1158202192 | KNOB |
| 595 | N 072601012230 | BULB |
| 598 | N 009045012002 | SNAP RING |
| 601 | A 1158330289 | ESCUTCHEON |
| 610 | A 1158330173 | SIGN |
| 613 | A 0019886878 | CLIP |
| 616 | A 1158200252 | TELL-TALE LAMP |
| 619 | A 0009947045 | LOCK |
| 622 | A 1158210914 | BRACKET |
| 625 | A 0005467041 | CABLE CONNECTOR |
| 2-POLE | ||
| 628 | N 007981003326 | SHEET METAL SCREW |
| 632 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 632 | A 3359970081 | GROMMET |
| HOSE THRU FIRE WALL | ||
| 635 | A 1109970481 | GROMMET |
| HOSE THRU FIRE WALL | ||
| 638 | A 1109870539 | RUBBER BUFFER |
| FOR HOLE IN TUNNEL | ||

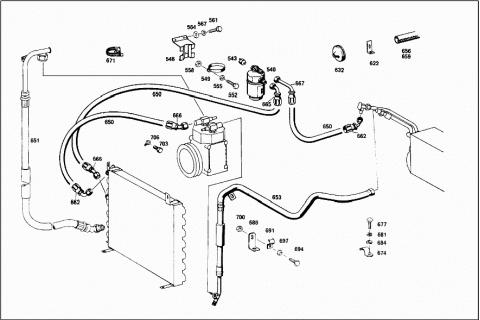

| 650 | A 0009973552 | HOSE |
| Repalced by: A 0189971882 | ||
| 650 | A 0189971882 | HOSE |
| Repalced by: A 0189975982 | ||
| 650 | A 0189975982 | HOSE |
| Repalced by: A 0009971752 | ||
| 650 | A 0009971752 | HOSE |
| I.D.6 MM,BLACK,2700 MM | ||
| A 1158302015 | PIPE LINE | |
| FROM CONDENSATOR TO FORD COMPRESSOR | ||
| 651 | A 1158301615 | PIPE LINE |
| FROM CONDENSATOR TO YORK COMPRESSOR | ||
| 653 | A 1158301796 | HOSE |
| 1000 MM | ||
| A 0009971752 | HOSE | |
| I.D.8 MM,5250 MM | ||
| 656 | N 040621020200 | INSULATING HOSE |
| BLACK | ||
| 659 | N 040621030200 | INSULATING HOSE |
| BLACK | ||
| 662 | A 0009979368 | CONNECTOR |
| 3/4 IN.,90 DEGS.WITH UNION NUT | ||
| A 0019971568 | CONNECTOR | |
| 3/4 IN.,90 DEGS., WITH SOLDERED FITTING | ||
| 665 | A 0009972168 | CONNECTOR |
| 7/8 IN.,90 DEGS.,WITH UNION NUT | ||
| 666 | A 0009970568 | CONNECTOR |
| 5/8 IN.,135 DEGS.,WITH UNION NUT | ||
| 667 | A 0009976668 | CONNECTOR |
| 3/4 IN.90 DEGRS.,WITH LONG COLLAR AND UNION NUT | ||
| 668 | A 0019974390 | LOOM TIE |
| 671 | A 1149970190 | LOOM TIE |
| 674 | A 1539950120 | CLAMP |
| 677 | N 007976004205 | SHEET METAL SCREW |
| 681 | N 912004005100 | LOCK WASHER |
| 684 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 684 | N 000433005304 | WASHER |
| 688 | A 1158352514 | BRACKET |
| 691 | A 1879950037 | CLAMP |
| 694 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 694 | N 304017006018 | SCREW |
| 697 | N 912004006102 | LOCK WASHER |
| 700 | N 000934006007 | NUT |
| 703 | A 1159903101 | SCREW |
| Repalced by: A 0049903001 | ||
| 703 | A 0049903001 | SCREW |
| 706 | N 000137010201 | SPRING WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
