Transporto priemonė: 220 USA; VIN numerio dalis: 115010

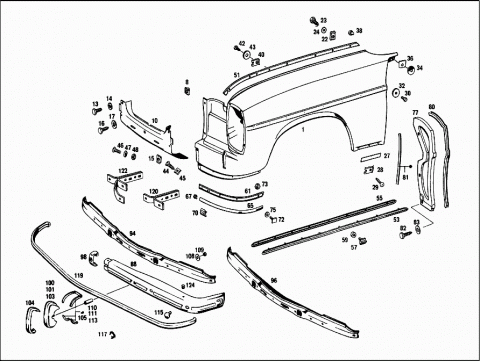

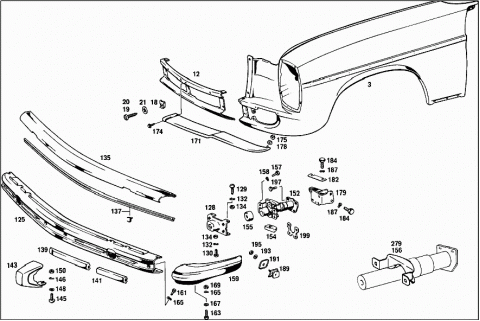

Grupė: 88 SHEET METAL - 001 ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1158800318 | FRONT FENDER | |
| Repalced by: A 1158800918 | ||
| A 1158800918 | FRONT FENDER | |
| Repalced by: A 1158801318 | ||
| 001 | A 1158801318 | FRONT FENDER |
| LEFT | ||
| 003 | A 1158801718 | FRONT FENDER |
| LEFT | ||
| A 1158800418 | FRONT FENDER | |
| Repalced by: A 1158801418 | ||
| A 1158801418 | FRONT FENDER | |
| RIGHT | ||
| A 1158801818 | FRONT FENDER | |
| Repalced by: A 1158801018 | ||
| A 1158801018 | FRONT FENDER | |
| RIGHT | ||
| 008 | A 0009945645 | LOCK |
| 010 | A 1158810509 | FRONT PART |
| 012 | A 1158810001 | PANELLING |
| 013 | N 000933008108 | SCREW |
| CENTRAL FRONT PART TO FRONT FENDERS | ||
| 014 | N 009021008213 | WASHER |
| CENTRAL FRONT PART TO FRONT FENDERS | ||
| 015 | A 0009941445 | LOCK |
| Repalced by: A 1269941345 | ||
| 015 | A 1269941345 | LOCK |
| CENTRAL FRONT PART TO FRONT FENDERS | ||
| 016 | N 007976004205 | SHEET METAL SCREW |
| CENTRAL FRONT PART TO FRONT FENDERS | ||
| 017 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 017 | N 000433005304 | WASHER |
| CENTRAL FRONT PART TO FRONT FENDERS | ||
| 018 | A 0009941445 | LOCK |
| Repalced by: A 1269941345 | ||
| 018 | A 1269941345 | LOCK |
| PANELLING TO FRONT FENDER,BOTTOM | ||
| 019 | N 007981004226 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 019 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 019 | N 000000000460 | SHEET METAL SCREW |
| PANELLING TO FRONT FENDER,BOTTOM | ||
| 020 | N 007981004258 | SHEET METAL SCREW |
| PANELLING TO FRONT FENDER,BOTTOM | ||
| 021 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 021 | N 009021005205 | WASHER |
| PANELLING TO FRONT FENDER,BOTTOM | ||
| 022 | A 0009945045 | LOCK |
| 023 | N 007976006205 | SHEET METAL SCREW |
| Repalced by: A 0009906836 | ||
| A 0009906836 | SCREW | |
| 024 | A 1119903640 | WASHER |
| A 1155860088 | REPAIR KIT | |
| Repalced by: A 1158800997 | ||
| A 1158800997 | SEAL | |
| REPAIR KIT | ||
| A 1158810097 | PAD | |
| Repalced by: A 1158810997 | ||
| 027 | A 1158810997 | PAD |
| 2 MM | ||
| 028 | A 0009944745 | LOCK |
| 029 | N 007981005212 | SHEET METAL SCREW |
| 030 | N 000933006026 | SCREW |
| 032 | A 1119903640 | WASHER |
| 034 | A 0009900848 | WASHER |
| 036 | A 1158811197 | PAD |
| RIGHT | ||
| A 1158811297 | PAD | |
| RIGHT | ||
| 038 | A 0019870340 | RUBBER BUFFER |
| Repalced by: A 1269870139 | ||
| 038 | A 1269870139 | RUBBER BUFFER |
| 040 | A 0009945045 | LOCK |
| 042 | N 007976006206 | SHEET METAL SCREW |
| Repalced by: N 007976006208 | ||
| 042 | N 007976006208 | SHEET METAL SCREW |
| 043 | A 1119903640 | WASHER |
| 044 | N 007982005205 | SHEET METAL SCREW |
| FRONT FENDER TO FRONT STIFFENING | ||
| 045 | A 0009944745 | LOCK |
| FRONT FENDER TO FRONT STIFFENING | ||
| 046 | N 000965006006 | SCREW |
| FRONT FENDER TO FRONT STIFFENING | ||
| 047 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 047 | N 009021006208 | WASHER |
| FRONT FENDER TO FRONT STIFFENING | ||
| 048 | N 000934006007 | NUT |
| FRONT FENDER TO FRONT STIFFENING | ||
| A 1158810197 | PAD | |
| Repalced by: A 0039895485 | ||
| 051 | A 0039895485 | ADHESIVE TAPE |
| 053 | A 1148800182 | GARNISH MOULDING |
| LEFT | ||
| A 1148800282 | GARNISH MOULDING | |
| RIGHT | ||
| 055 | A 1148800197 | SEAL |
| Repalced by: A 1148800182 | ||
| 055 | A 1148800182 | GARNISH MOULDING |
| LEFT | ||
| A 1148800297 | SEAL | |
| Repalced by: A 1148800282 | ||
| A 1148800282 | GARNISH MOULDING | |
| RIGHT | ||
| 057 | A 0009886081 | FASTENER BUTTON |
| 059 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 059 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 059 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 059 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 059 | A 0019887681 | FASTENER BUTTON |
| A 1158800382 | GARNISH MOULDING | |
| Repalced by: A 1158810332 | ||
| 061 | A 1158810332 | GARNISH MOULDING |
| FRONT LEFT | ||
| A 1158800482 | GARNISH MOULDING | |
| Repalced by: A 1158810432 | ||
| A 1158810432 | GARNISH MOULDING | |
| FRONT RIGHT | ||
| 065 | A 1158800797 | SEAL |
| LEFT | ||
| A 1158800897 | SEAL | |
| RIGHT | ||
| 067 | A 1158810040 | FILLER |
| A 0009881581 | GROMMET | |
| Repalced by: A 0029889078 | ||
| A 0009884481 | FASTENER BUTTON | |
| Repalced by: A 0029889078 | ||
| 070 | A 0029889078 | CLIP |
| 072 | A 1086900071 | SCREW |
| 073 | N 000934004004 | NUT |
| 075 | A 0009840955 | WASHER |
| A 1158840335 | PARTITION PANEL | |
| Repalced by: A 1158840535 | ||
| A 1158840535 | PARTITION PANEL | |
| LEFT | ||
| A 1158840135 | PARTITION PANEL | |
| Repalced by: A 1158840535 | ||
| 077 | A 1158840535 | PARTITION PANEL |
| LEFT | ||
| A 1158840235 | PARTITION PANEL | |
| Repalced by: A 1158840635 | ||
| A 1158840635 | PARTITION PANEL | |
| RIGHT | ||
| A 0009871651 | RUBBER SEAL | |
| Repalced by: A 1108840098 | ||
| 080 | A 1108840098 | SEAL |
| 770 MM | ||
| A 0029894185 | ADHESIVE TAPE | |
| Repalced by: A 0009897085 | ||
| A 0009897085 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| 081 | A 0019875646 | SEALING CORD |
| 660 MM | ||
| 082 | N 007976005202 | SHEET METAL SCREW |
| 083 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 083 | N 009021006208 | WASHER |
| A 1158800970 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1158802370 | ||
| A 1158800570 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1158802370 | ||
| A 1148800970 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1158802370 | ||
| 088 | A 1158802370 | FRONT BUMPER FACE BAR |
| LEFT | ||
| A 1158801070 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1158802470 | ||
| A 1158800670 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1158802470 | ||
| A 1148801070 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1158802470 | ||
| A 1158802470 | FRONT BUMPER FACE BAR | |
| RIGHT | ||
| A 1158800016 | REINFORCEMENT | |
| Repalced by: A 1158801216 | ||
| 094 | A 1158801216 | REINFORCEMENT |
| Repalced by: A 1158801616 | ||
| 094 | A 1158801616 | REINFORCEMENT |
| 096 | A 1158801416 | REINFORCEMENT |
| 098 | A 1158850023 | BUMPER JOINT COVER |
| 100 | A 1158800255 | BUMPER GUARD |
| 101 | A 1158800555 | BUMPER GUARD |
| LEFT | ||
| 103 | A 1158800955 | BUMPER GUARD |
| LEFT | ||
| A 1158800655 | BUMPER GUARD | |
| RIGHT | ||
| A 1158801055 | BUMPER GUARD | |
| RIGHT | ||
| 104 | A 1158850196 | BUFFER |
| 105 | A 0009874735 | RUBBER SECTION |
| 108 | A 1159840856 | WASHER |
| N 000127008203 | LOCK WASHER | |
| 109 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 109 | N 304032008006 | NUT |
| 110 | A 1159911340 | SPACER TUBE |
| 111 | A 1149910140 | SPACER TUBE |
| 113 | A 1159911840 | SPACER TUBE |
| Repalced by: A 1149910140 | ||
| 113 | A 1149910140 | SPACER TUBE |
| N 009021008213 | WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 115 | A 1119900029 | SCREW |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| N 000125008418 | WASHER | |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| N 912004008102 | LOCK WASHER | |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000137008204 | SPRING WASHER | |
| A 1159870015 | PLUG | |
| Repalced by: A 1079970086 | ||
| 117 | A 1079970086 | PLUG |
| 119 | A 1158850321 | RAIL |
| Repalced by: A 1158850021 | ||
| 119 | A 1158850021 | RAIL |
| Repalced by: A 1148850121 | ||
| 119 | A 1148850121 | RAIL |
| 3100 MM | ||
| A 1158800014 | BRACKET | |
| Repalced by: A 1158800714 | ||
| 120 | A 1158800714 | BRACKET |
| LEFT | ||
| A 1158800814 | BRACKET | |
| RIGHT | ||
| 122 | A 1158800114 | BRACKET |
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| N 000127010202 | LOCK WASHER | |
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| A 1169970486 | PLUG | |
| Repalced by: A 1239970386 | ||
| 124 | A 1239970386 | PLUG |
| 125 | A 1158850001 | FRONT BUMPER FACE BAR |
| A 0039896785 | ADHESIVE TAPE | |
| 1850 MM | ||
| A 1168800161 | CUP | |
| Repalced by: A 1168800561 | ||
| 128 | A 1168800561 | CUP |
| LEFT | ||
| A 1168800261 | BOX | |
| Repalced by: A 1168800661 | ||
| A 1168800661 | CUP | |
| RIGHT | ||
| 129 | N 000603008070 | SCREW |
| 130 | N 000933008108 | SCREW |
| 132 | N 000137008204 | SPRING WASHER |
| 134 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 134 | N 304032008006 | NUT |
| 135 | A 1078850074 | FENDER SKIRT |
| 137 | A 1078850897 | PAD |
| Repalced by: A 1168850397 | ||
| 137 | A 1168850397 | PAD |
| 1570 MM | ||
| 139 | A 1168850621 | RAIL |
| FRONT INSIDE | ||
| 980 MM | ||
| 141 | A 1078851421 | RAIL |
| Repalced by: A 1168850821 | ||
| 141 | A 1168850821 | RAIL |
| FRONT OUTSIDE | ||
| 980 MM | ||
| 143 | A 1168800355 | BUMPER GUARD |
| FRONT LEFT | ||
| A 1168800455 | BUMPER GUARD | |
| FRONT RIGHT | ||
| 145 | N 000603008025 | SCREW |
| 146 | N 000137008204 | SPRING WASHER |
| 148 | N 009021008213 | WASHER |
| 150 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 150 | N 304032008006 | NUT |
| A 1158801214 | ENERGY-ABSORBING UNIT | |
| Repalced by: A 1158800314 | ||
| 152 | A 1158800314 | ENERGY-ABSORBING UNIT |
| 154 | A 1168850020 | MOUNTING |
| Repalced by: A 1078850020 | ||
| 154 | A 1078850020 | MOUNTING |
| LEFT BOTTOM, AND RIGHT TOP | ||
| A 1168850120 | MOUNTING | |
| Repalced by: A 1078850020 | ||
| A 1078850020 | MOUNTING | |
| LEFT TOP AND RIGHT BOTTOM | ||
| 155 | A 1168850033 | CAP |
| 156 | A 1168850042 | CLAMP |
| 157 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 157 | N 304017008016 | SCREW |
| 158 | N 000137008204 | SPRING WASHER |
| 159 | A 1158803170 | FRONT BUMPER FACE BAR |
| FRONT LEFT | ||
| A 1158803270 | FRONT BUMPER FACE BAR | |
| FRONT RIGHT | ||
| 161 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 161 | N 304017008016 | SCREW |
| 163 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 163 | N 304017008021 | SCREW |
| 165 | N 000137008204 | SPRING WASHER |
| 167 | A 1089900340 | WASHER |
| 169 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 169 | N 304032008006 | NUT |
| 171 | A 1158800144 | COVERING |
| FRONT LEFT | ||
| A 1158800244 | COVERING | |
| FRONT RIGHT | ||
| 174 | N 914031005207 | COMBINATION BOLT |
| 175 | N 000934006007 | NUT |
| 178 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 178 | N 009021006208 | WASHER |
| 179 | A 1158800131 | ROCKER PANEL |
| LEFT | ||
| A 1158800231 | ROCKER PANEL | |
| RIGHT | ||
| 182 | A 1156260097 | PAD |
| 184 | N 000933010145 | SCREW |
| 187 | N 000137010201 | SPRING WASHER |
| 189 | A 1158800914 | BRACKET |
| LEFT | ||
| A 1158801014 | BRACKET | |
| RIGHT | ||
| 191 | A 1168850497 | PAD |
| 193 | N 009021008213 | WASHER |
| 195 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 195 | N 304032008006 | NUT |
| 197 | N 000933008183 | SCREW |
| A 1158850111 | PLATE | |
| Repalced by: A 1089900340 | ||
| 199 | A 1089900340 | WASHER |

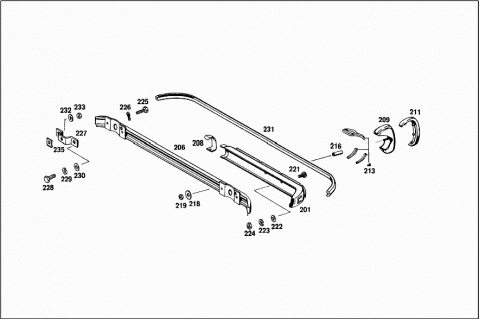

| 201 | A 1158800371 | REAR BUMPER FACE BAR |
| LEFT | ||
| A 1158800471 | REAR BUMPER FACE BAR | |
| RIGHT | ||
| A 1158800516 | REINFORCEMENT | |
| Repalced by: A 1158800816 | ||
| 206 | A 1158800816 | REINFORCEMENT |
| 208 | A 1158850022 | BUMPER JOINT COVER |
| 209 | A 1158800255 | BUMPER GUARD |
| 211 | A 1158850196 | BUFFER |
| 213 | A 0009874735 | RUBBER SECTION |
| 213 | A 0009874735 | RUBBER SECTION |
| 216 | A 1159911340 | SPACER TUBE |
| 218 | N 009021008213 | WASHER |
| 219 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 219 | N 304032008006 | NUT |
| 221 | A 1119900029 | SCREW |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| 222 | N 000125008418 | WASHER |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| 223 | N 000127008203 | LOCK WASHER |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| 224 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 224 | N 304032008006 | NUT |
| LEFT AND RIGHT BUMPER FACE BARS TO REINFORCEMENT | ||
| 225 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 225 | N 304017008016 | SCREW |
| 226 | N 000137008204 | SPRING WASHER |
| 227 | A 1158850014 | BRACKET |
| 228 | N 000933010035 | SCREW |
| 229 | N 000127010202 | LOCK WASHER |
| 230 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 230 | N 009021010209 | WASHER |
| 231 | A 1158850121 | RAIL |
| Repalced by: A 1148850121 | ||
| 231 | A 1148850121 | RAIL |
| 3100 MM | ||
| 232 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 232 | N 000125010532 | WASHER |
| 233 | N 000934010005 | NUT |
| A 1109971141 | SEAL RING | |
| Repalced by: A 1159970940 | ||
| 235 | A 1159970940 | SEAL RING |

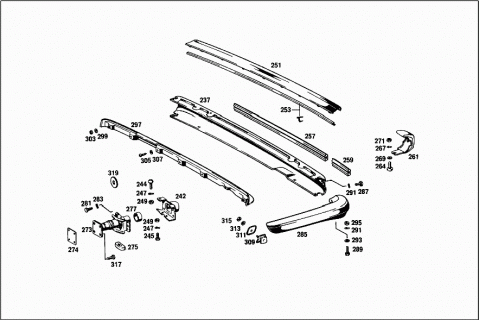

| 237 | A 1078850705 | REAR BUMPER FACE BAR |
| A 0039896785 | ADHESIVE TAPE | |
| AS REQUIRED | ||
| 1850 MM | ||
| A 1168800161 | CUP | |
| Repalced by: A 1168800561 | ||
| A 1168800561 | CUP | |
| RIGHT | ||
| A 1168800361 | CUP | |
| Repalced by: A 1168800761 | ||
| 242 | A 1168800761 | CUP |
| LEFT | ||
| 244 | N 000603008070 | SCREW |
| 245 | N 000933008108 | SCREW |
| 247 | N 000137008204 | SPRING WASHER |
| 249 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 249 | N 304032008006 | NUT |
| 251 | A 1078850174 | FENDER SKIRT |
| 253 | A 1078850997 | PAD |
| Repalced by: A 1168850397 | ||
| 253 | A 1168850397 | PAD |
| 1530 MM | ||
| 257 | A 1168850821 | RAIL |
| 980 MM | ||
| 259 | A 1078851521 | RAIL |
| Repalced by: A 1168850821 | ||
| 259 | A 1168850821 | RAIL |
| 980 MM | ||
| 261 | A 1168800755 | BUMPER GUARD |
| LEFT | ||
| A 1168800855 | BUMPER GUARD | |
| RIGHT | ||
| 264 | N 000603008067 | SCREW |
| Repalced by: N 000603008096 | ||
| 264 | N 000603008096 | SCREW |
| 267 | N 000137008204 | SPRING WASHER |
| 269 | N 009021008213 | WASHER |
| 271 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 271 | N 304032008006 | NUT |
| A 1158801314 | ENERGY-ABSORBING UNIT | |
| Repalced by: A 1158800514 | ||
| 273 | A 1158800514 | ENERGY-ABSORBING UNIT |
| 274 | A 1158851197 | PAD |
| A 1168850020 | MOUNTING | |
| Repalced by: A 1078850020 | ||
| A 1078850020 | MOUNTING | |
| LEFT TOP AND RIGHT BOTTOM | ||
| 275 | A 1168850120 | MOUNTING |
| Repalced by: A 1078850020 | ||
| 275 | A 1078850020 | MOUNTING |
| RIGHT TOP AND LEFT BOTTOM | ||
| 277 | A 1168850033 | CAP |
| 279 | A 1168850042 | CLAMP |
| 281 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 281 | N 304017008016 | SCREW |
| 283 | N 000137008204 | SPRING WASHER |
| 285 | A 1168801771 | REAR BUMPER FACE BAR |
| LEFT | ||
| A 1168801871 | REAR BUMPER FACE BAR | |
| RIGHT | ||
| 287 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 287 | N 304017008016 | SCREW |
| 289 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 289 | N 304017008021 | SCREW |
| 291 | N 000137008204 | SPRING WASHER |
| 293 | N 009021008213 | WASHER |
| 295 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 295 | N 304032008006 | NUT |
| 297 | A 1158800044 | COVERING |
| 299 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 299 | N 000125006449 | WASHER |
| 303 | N 000934006007 | NUT |
| 305 | N 007981004252 | SHEET METAL SCREW |
| 307 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 307 | N 000433005304 | WASHER |
| 309 | A 1158801114 | BRACKET |
| 311 | A 1168850497 | PAD |
| 313 | N 009021008213 | WASHER |
| 315 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 315 | N 304032008006 | NUT |
| 317 | N 000933008183 | SCREW |
| 319 | A 1089900340 | WASHER |

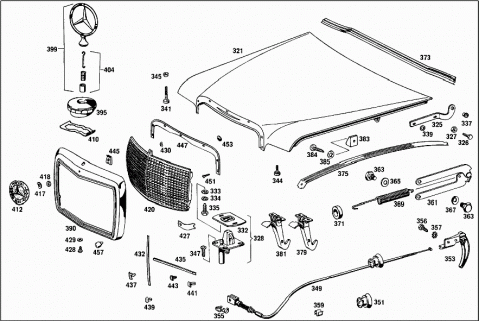

| A 1158800157 | ENGINE HOOD | |
| Repalced by: A 1158800357 | ||
| A 1158800357 | ENGINE HOOD | |
| Repalced by: A 1158800557 | ||
| A 1158800557 | ENGINE HOOD | |
| Repalced by: A 1158800657 | ||
| 321 | A 1158800657 | ENGINE HOOD |
| A 1158800857 | ENGINE HOOD | |
| Repalced by: A 1158801057 | ||
| A 1158801057 | ENGINE HOOD | |
| Repalced by: A 1158801157 | ||

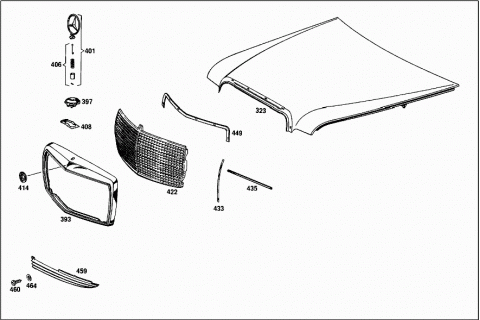

| 323 | A 1158801157 | ENGINE HOOD |
| N 914126006001 | SCREW | |
| Repalced by: N 910105006002 | ||
| N 910105006002 | HEXAGON HEAD BOLT | |
| 325 | A 1108870574 | LEVER |
| LEFT | ||
| A 1108870674 | LEVER | |
| RIGHT | ||
| N 000933006130 | SCREW | |
| 326 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 326 | N 304017006016 | SCREW |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| 327 | N 000934006007 | NUT |
| 328 | A 1155860588 | REPAIR KIT |
| Repalced by: A 1158800160 | ||
| A 1158800160 | ENGINE HOOD CATCH | |
| A 1108800560 | ENGINE HOOD CATCH | |
| Repalced by: A 1158870006 | ||
| 332 | A 1158870006 | ENGINE HOOD CATCH |
| Repalced by: A 1078800060 | ||
| 332 | A 1078800060 | ENGINE HOOD CATCH |
| 333 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 333 | N 009021006208 | WASHER |
| 334 | N 912004006102 | LOCK WASHER |
| 335 | N 000933006026 | SCREW |
| 337 | A 1108870149 | BUSHING |
| N 000933008114 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 900055012001 | SPRING WASHER | |
| N 000125008407 | WASHER | |
| Repalced by: A 1159905140 | ||
| 339 | A 1159905140 | WASHER |
| Repalced by: N 000125008417 | ||
| 339 | N 000125008418 | WASHER |
| 341 | A 1008800017 | STOP SCREW |
| Repalced by: A 2019880211 | ||
| 341 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 341 | A 2019880511 | BUFFER |
| LEFT AND RIGHT | ||
| 341 | A 2019880511 | BUFFER |
| RIGHT | ||
| 341 | A 2019880511 | BUFFER |
| LEFT | ||
| 344 | A 1158800017 | STOP SCREW |
| LEFT | ||
| 345 | N 000934006007 | NUT |
| A 1108800860 | ENGINE HOOD CATCH | |
| Repalced by: A 1155860588 | ||
| 347 | N 007987006127 | SCREW |
| A 1158800059 | ENGINE HOOD RELEASE CABLE | |
| Repalced by: A 1158800159 | ||
| 349 | A 1158800159 | ENGINE HOOD RELEASE CABLE |
| 351 | A 1119972181 | GROMMET |
| 353 | A 1108800020 | HANDLE |
| 355 | N 918001005001 | PIN |
| 356 | N 007976004207 | SHEET METAL SCREW |
| 357 | N 006797005132 | TOOTHED WASHER |
| 359 | A 0019889878 | CLIP |
| 361 | A 1108800177 | SUPPORT |
| LEFT | ||
| A 1108800277 | SUPPORT | |
| RIGHT | ||
| 363 | A 1209840033 | SCREW |
| 365 | A 0009900048 | WASHER |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| 367 | A 0009900448 | WASHER |
| 369 | A 1158870034 | TENSION SPRING |
| 371 | A 1109870541 | RUBBER RING |
| A 1158870198 | SEAL | |
| Repalced by: A 1158870298 | ||
| 373 | A 1158870298 | SEAL |
| 1240 MM | ||
| 375 | A 1158870060 | STRUT |
| A 1108800264 | SAFETY HOOK | |
| 379 | A 1148800064 | SAFETY HOOK |
| Repalced by: A 1158800064 | ||
| 381 | A 1158800064 | SAFETY HOOK |
| 381 | A 1158800064 | SAFETY HOOK |
| N 000933006130 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 383 | A 1119870340 | RUBBER BUFFER |
| 384 | N 007981003327 | SHEET METAL SCREW |
| 385 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 385 | N 000125004319 | WASHER |
| A 1158880015 | RADIATOR GRILLE SHELL | |
| Repalced by: A 1158880315 | ||
| 390 | A 1158880315 | RADIATOR GRILLE SHELL |
| A 1158880115 | RADIATOR GRILLE SHELL | |
| Repalced by: A 1158880415 | ||
| A 1158880415 | RADIATOR GRILLE SHELL | |
| Repalced by: A 1158880315 | ||
| A 1158800583 | RADIATOR GRILLE SHELL | |
| LESS MERCEDES STAR | ||
| A 1158880515 | RADIATOR GRILLE SHELL | |
| Repalced by: A 1158800583 | ||
| 393 | A 1158880615 | RADIATOR GRILLE SHELL |
| A 1158880117 | ESCUTCHEON | |
| 395 | A 1158800005 | ESCUTCHEON |
| 397 | A 1158880417 | ESCUTCHEON |
| A 1158880009 | MERCEDES STAR | |
| Repalced by: A 1155860388 | ||
| 399 | A 1155860388 | REPAIR KIT |
| 401 | A 1155860488 | REPAIR KIT |
| A 1088880034 | SPRING | |
| Repalced by: A 1155860288 | ||
| A 1088880126 | SLEEVE | |
| Repalced by: A 1155860288 | ||
| A 1088880026 | SLEEVE | |
| Repalced by: A 1155860288 | ||
| A 1088880046 | HOOK | |
| Repalced by: A 1155860288 | ||
| A 1088880146 | HOOK | |
| Repalced by: A 1155860288 | ||
| A 1088880074 | PIN | |
| Repalced by: A 1155860288 | ||
| A 1158880017 | ESCUTCHEON | |
| Repalced by: A 1155860288 | ||
| A 1158880026 | PULL HOOK | |
| Repalced by: A 1155860288 | ||
| A 1088880034 | SPRING | |
| Repalced by: A 1155860288 | ||
| 404 | A 1155860288 | REPAIR KIT |
| 406 | A 1085860088 | REPAIR KIT |
| Repalced by: A 1155860288 | ||
| 408 | A 0009940121 | LOCK |
| A 1159940021 | LOCK | |
| Repalced by: A 1159940121 | ||
| 410 | A 1159940121 | LOCK |
| A 1158800088 | MERCEDES BADGE | |
| Repalced by: A 1158800188 | ||
| 412 | A 1158800188 | MERCEDES BADGE |
| A 1158800288 | MERCEDES BADGE | |
| 414 | A 1158800388 | MERCEDES BADGE |
| A 0009902045 | PLATE | |
| Repalced by: A 0009902048 | ||
| 417 | A 0009902048 | WASHER |
| 418 | N 000934004004 | NUT |
| N 000137005203 | SPRING WASHER | |
| N 000934005008 | NUT | |
| A 1158800785 | RADIATOR GRILLE | |
| Repalced by: A 1148880285 | ||
| 420 | A 1148880285 | GRILLE |
| A 1158882285 | GRILLE | |
| Repalced by: A 1158880523 | ||
| 422 | A 1158880523 | GRILLE |
| A 1108880134 | SPRING | |
| A 1158880034 | SPRING | |
| Repalced by: A 1158880334 | ||
| 427 | A 1158880334 | SPRING |
| A 0039889578 | CLIP | |
| Repalced by: A 0019942745 | ||
| A 0019942745 | LOCK | |
| A 0039889678 | CLIP | |
| Repalced by: A 0019942745 | ||
| A 0019942745 | LOCK | |
| 428 | N 007985004136 | SCREW |
| 429 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 429 | N 000125004319 | WASHER |
| A 0009902045 | PLATE | |
| Repalced by: A 0009902048 | ||
| 430 | A 0009902048 | WASHER |
| N 000934004004 | NUT | |
| N 007981004248 | SHEET METAL SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| 432 | A 1158880885 | GARNISH MOULDING |
| 433 | A 1158882385 | GARNISH MOULDING |
| A 1158880785 | GARNISH MOULDING | |
| Repalced by: A 1168880185 | ||
| A 1118885585 | GARNISH MOULDING | |
| Repalced by: A 1168880185 | ||
| 435 | A 1168880185 | GARNISH MOULDING |
| 435 | A 1158882485 | GARNISH MOULDING |
| 370 MM | ||
| 435 | A 1158882585 | GARNISH MOULDING |
| Repalced by: A 1168880185 | ||
| 435 | A 1168880185 | GARNISH MOULDING |
| 360 MM | ||
| 437 | A 0019885678 | CLIP |
| 439 | A 0039882078 | CLIP |
| A 0009885078 | CLIP | |
| Repalced by: A 0029888578 | ||
| 441 | A 0029888578 | CLIP |
| 443 | A 0039881978 | CLIP |
| Repalced by: A 2019882578 | ||
| 443 | A 2019882578 | CLIP |
| 445 | A 0009940545 | LOCK |
| 447 | A 1158880097 | INSERT |
| 449 | A 1158880297 | INSERT |
| 451 | N 007976004205 | SHEET METAL SCREW |
| 453 | A 0009900348 | WASHER |
| 457 | A 1089870240 | RUBBER BUFFER |
| 459 | A 1158880323 | GRILLE |
| LEFT | ||
| A 1158880423 | GRILLE | |
| RIGHT | ||
| 460 | N 007981004248 | SHEET METAL SCREW |
| 464 | N 000433005302 | WASHER |
| A 1145860088 | REPAIR KIT | |
| Repalced by: A 1145860288 | ||
| A 1145860288 | REPAIR KIT | |
| Repalced by: A 1238800797 | ||
| A 1238800797 | REPAIR KIT | |
| Repalced by: A 1148800397 | ||
| A 1148800397 | SEAL | |
| RADIATOR GRILLE SHELL MOUNTING MATERIAL | ||
| A 1145860188 | REPAIR KIT | |
| Repalced by: A 1145860488 | ||
| A 1145860488 | REPAIR KIT | |
| Repalced by: A 1238800897 | ||
| A 1238800897 | REPAIR KIT | |
| Repalced by: A 1148800497 | ||
| A 1148800497 | SEAL | |
| RADIATOR GRILLE SHELL MOUNTING MATERIAL | ||
| A 1145860388 | REPAIR KIT | |
| Repalced by: A 1145860588 | ||
| A 1145860588 | REPAIR KIT | |
| Repalced by: A 1238800997 | ||
| A 1238800997 | REPAIR KIT | |
| Repalced by: A 1148800597 | ||
| A 1148800597 | SEAL | |
| RADIATOR GRILLE SHELL MOUNTING MATERIAL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
