Transporto priemonė: 220 USA; VIN numerio dalis: 115010
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |

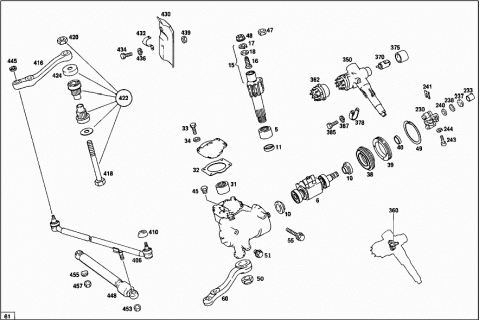

| 005 | A 0019818810 | NEEDLE BEARING |
| 006 | A 1154601018 | STEERING NUT |
| 010 | A 0009815027 | ANGULAR CONTACT BEARING |
| 011 | A 0029977246 | SEAL RING |
| 015 | A 1154600011 | STEERG. WORM SECTOR SHAFT |
| 016 | A 1154620271 | SCREW |
| 017 | N 000984020000 | LOCK RING |
| 018 | A 1154620275 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 1154620375 | WASHER | |
| AS REQUIRED | ||
| 3.1MM | ||
| A 1154620475 | WASHER | |
| AS REQUIRED | ||
| 3.2MM | ||
| A 1154620575 | WASHER | |
| AS REQUIRED | ||
| 3.3MM | ||
| A 1154600214 | STEERING BOX COVER | |
| Repalced by: A 1154600514 | ||
| A 1154600514 | STEERING BOX COVER | |
| Repalced by: A 1154600814 | ||
| A 1154600814 | STEERING BOX COVER | |
| 031 | A 0019818810 | NEEDLE BEARING |
| 032 | A 1154610180 | GASKET |
| A 0029901901 | SCREW | |
| 033 | A 0049900701 | SCREW |
| 033 | A 0049900701 | SCREW |
| 034 | N 000433008406 | WASHER |
| 034 | N 000433008406 | WASHER |
| 038 | A 1154620151 | RING |
| 039 | A 1154620134 | SCREW COLLAR |
| 040 | A 0029974746 | SEAL RING |
| A 0049971546 | SEAL RING | |
| 045 | N 007604012102 | SCREW PLUG |
| 047 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 047 | N 304032010002 | NUT |
| 048 | A 0019908651 | NUT |
| 049 | N 900055080210 | LOCK RING |
| 050 | A 0019901251 | NUT |
| 051 | A 1159901901 | SCREW |
| A 1159902301 | SCREW | |
| 055 | A 1159902101 | SCREW |
| A 1159902501 | SCREW | |
| 060 | A 1154630701 | PITMAN ARM |
| A 1154631201 | PITMAN ARM | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 50 | ||
| A 1154631201 | PITMAN ARM | |
| 070 | A 1074601701 | STEERING BOX ASSEMBLY |
| 074 | A 1074600286 | THREADED INSERT |
| A 1074660583 | PISTON | |
| A 1074600211 | STEERG. WORM SECTOR SHAFT | |
| 086 | A 1234620071 | SCREW |
| 089 | A 1074620862 | THRUST WASHER |
| AS REQUIRED | ||
| 2.65MM | ||
| A 1074620962 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.70MM | ||
| A 1074621062 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.75MM | ||
| A 1074621162 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.80MM | ||
| Repalced by: A 1074620262 | ||
| A 1074620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.90MM | ||
| A 1074620162 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.85MM | ||
| A 1074620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.90MM | ||
| A 1074620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.95MM | ||
| A 1074620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 1074620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.050 MM | ||
| A 1074620662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.10MM | ||
| 095 | A 0049949241 | LOCK |
| 098 | A 1074620762 | THRUST WASHER |
| 101 | N 000471012001 | LOCK RING |
| 105 | A 1144600015 | STEERING BOX COVER |
| A 1149900001 | SCREW | |
| 106 | A 1159970630 | SCREW PLUG |
| 107 | N 915013010001 | SCREW FITTING |
| 108 | N 915013006001 | SCREW FITTING |
| 109 | A 0019905451 | NUT |
| A 1239900201 | SCREW | |
| M10X80 | ||
| Repalced by: A 2019900801 | ||
| A 2019900801 | SCREW | |
| 80 MM | ||
| 110 | A 1144630801 | PITMAN ARM |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 109 | ||
| A 1154630052 | SPACER WASHER | |

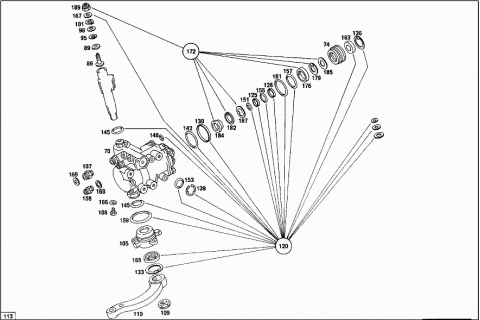

| 120 | A 1074600061 | GASKET KIT |
| 125 | A 1074660060 | SEAL RING |
| 128 | A 1074660160 | SEAL RING |
| 130 | A 1074660260 | SEAL RING |
| A 0049949241 | LOCK | |
| 133 | A 0009949841 | LOCK |
| 136 | A 0019942541 | LOCK |
| 139 | A 0019948441 | LOCK |
| 142 | A 0149976148 | SEAL RING |
| 145 | A 0049974545 | SEAL RING |
| Repalced by: A 0139973748 | ||
| 145 | A 0139973748 | SEAL RING |
| 148 | A 0099974245 | SEAL RING |
| 151 | A 0099974345 | SEAL RING |
| 153 | A 0099974445 | SEAL RING |
| 155 | A 0099974545 | SEAL RING |
| 157 | A 0099974645 | SEAL RING |
| 159 | A 0099974745 | SEAL RING |
| 161 | A 0099974845 | SEAL RING |
| 163 | A 0129978047 | SEAL RING |
| Repalced by: A 0119976746 | ||
| 163 | A 0119976746 | SEAL RING |
| 165 | A 0069978246 | SEAL RING |
| Repalced by: A 0119976846 | ||
| 165 | A 0119976846 | SEAL RING |
| Repalced by: A 0199975047 | ||
| 165 | A 0199975047 | SEAL RING |
| 166 | N 007603008109 | SEAL RING |
| 167 | N 007603012110 | SEAL RING |
| 168 | N 007603012111 | SEAL RING |
| 169 | N 007603016401 | SEAL RING |
| 172 | A 1074600037 | REPAIR KIT |
| 176 | A 0049811010 | NEEDLE BEARING |
| 179 | A 0009814818 | ROLLER BEARING |
| 182 | A 0009814918 | ROLLER BEARING |
| 184 | A 0009815427 | ANGULAR CONTACT BEARING |
| 185 | A 0019905540 | WASHER |
| 187 | A 0019905640 | WASHER |
| 189 | A 0019906251 | NUT |
| Repalced by: A 0019907051 | ||
| 189 | A 0019907051 | NUT |
| Repalced by: A 0009904050 | ||
| 189 | A 0009904050 | NUT |
| 194 | A 1149974182 | HOSE |
| A 1159974482 | HOSE | |
| 198 | A 1154660082 | RUBBER RING |
| A 1109950065 | CLAMP | |
| Repalced by: A 0004760436 | ||
| A 0004760436 | BRACKET | |
| A 1109950165 | CLAMP | |
| 200 | A 1144600624 | LINE |
| A 1154600724 | LINE | |
| A 1154601124 | LINE | |
| A 1154601524 | LINE | |
| 203 | A 0069970982 | HOSE |
| 200MM | ||
| A 0069970982 | HOSE | |
| 80MM | ||
| N 916026020001 | CLAMP | |
| N 900288094102 | CLAMP | |

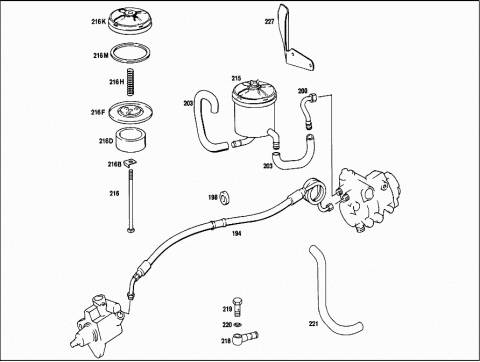

| 215 | A 1144600383 | OIL TANK |
| A 1154600483 | OIL TANK | |
| A 1154600583 | OIL TANK | |
| Repalced by: A 1154600783 | ||
| A 1154600783 | OIL TANK | |
| 216 | A 1892360171 | SCREW |
| 216B | A 0004660373 | LOCK |
| 216D | A 0002360055 | FILTER |
| 216F | A 0002360076 | WASHER |
| 216H | A 0019931401 | SPRING |
| 216K | A 0004601182 | COVER |
| 216M | A 0002360080 | GASKET |
| 218 | A 1154601324 | LINE |
| 219 | A 1109900263 | HOLLOW SCREW |
| 220 | N 007603018101 | SEAL RING |
| A 1154600024 | LINE | |
| 221 | A 0069970982 | HOSE |
| 230MM | ||
| A 0069970982 | HOSE | |
| 465MM | ||
| A 0069970982 | HOSE | |
| 430MM | ||
| N 916026020001 | CLAMP | |
| 227 | A 1144660440 | BRACKET |
| A 1154603835 | BRACKET | |
| A 0019900091 | NUT RETAINER | |
| A 0009909491 | NUT RETAINER | |
| 230 | A 1154600510 | STEERING COUPLING |
| 233 | A 1114620165 | RING |
| 237 | A 1119903040 | WASHER |
| 238 | N 000137010205 | SPRING WASHER |
| 240 | A 1369909540 | WASHER |
| 241 | N 912002010001 | LOCK |
| N 000094002059 | COTTER PIN | |
| 243 | A 1119900420 | SCREW |
| 244 | N 007980008001 | LOCK WASHER |
| A 1154603116 | STEER. COLUMN JACKET TUBE | |
| STEERING COLUMN SHIFT | ||
| A 1154603516 | STEER. COLUMN JACKET TUBE | |
| FLOOR SHIFT | ||
| 249 | A 1154607116 | STEER. COLUMN JACKET TUBE |
| FLOOR SHIFT | ||
| A 1134620035 | BEARING BODY | |
| Repalced by: A 1154621835 | ||
| A 1134620235 | BEARING BODY | |
| Repalced by: A 1154621835 | ||
| A 1154621735 | BEARING BODY | |
| Repalced by: A 1154621835 | ||
| 257 | A 1154621835 | BEARING BODY |
| 259 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 259 | A 0189816110 | NEEDLE BEARING |
| 261 | N 000912006014 | SCREW |
| 263 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 263 | N 000137006204 | SPRING WASHER |
| 265 | A 1154600895 | COVERING |
| 267 | A 1159950535 | CLAMP |
| 269 | N 000931006159 | SCREW |
| 271 | N 000125006407 | WASHER |
| 273 | N 912004006102 | LOCK WASHER |
| 274 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 274 | N 304032006008 | NUT |

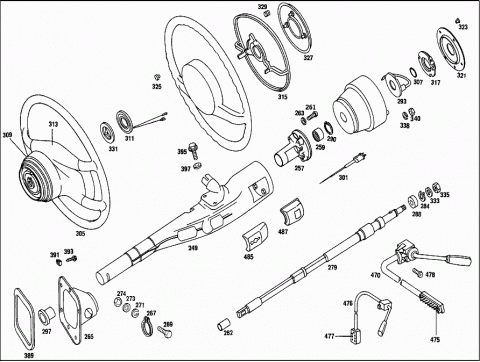

| 279 | A 1154608309 | STEERING SHAFT |
| 282 | A 1164620060 | SEAL RING |
| 284 | N 000471020000 | LOCK RING |
| 288 | N 000625006004 | GROOVED BALL BEARING |
| 290 | N 000472042001 | LOCK RING |
| A 1154600897 | PROTECTIVE SLEEVE | |
| Repalced by: A 1164600003 | ||
| 293 | A 1154640017 | CONTACT PLATE |
| 297 | A 1164620096 | BOOT |
| A 1164620096 | BOOT | |
| 301 | A 1074640143 | CONTACT PIECE |
| A 1154640201 | STEERING WHEEL | |
| Repalced by: A 1164600003 | ||
| 305 | A 1164600003 | STEERING WHEEL |
| 307 | N 900055032200 | LOCK RING |
| 309 | A 1164640025 | PANELLING |
| A 1169900121 | SCREW | |
| A 1169935501 | SPRING | |
| A 1169935101 | SPRING | |
| A 1164640050 | BUSHING | |
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| A 1164640077 | PROTECTIVE RING | |
| A 1169901040 | WASHER | |
| 311 | A 1164640017 | CONTACT PLATE |
| 313 | A 1164640087 | PAD |
| A 1164640187 | PAD | |
| Repalced by: A 1164640087 | ||
| A 1164640087 | PAD | |
| 315 | A 1154640515 | SIGNAL RING |
| 317 | A 0004640928 | CONTACT RING |
| 321 | A 1154640134 | BRACKET |
| 323 | N 007987003122 | SCREW |
| 325 | A 1154640024 | INSULATING PART |
| 327 | A 1154640342 | PAD |
| 329 | A 1154640035 | GUIDE PIN |
| 331 | A 0004640432 | BADGE |
| 333 | N 000137014201 | SPRING WASHER |
| 335 | N 000439014203 | NUT |
| 338 | N 000137008204 | SPRING WASHER |
| 340 | N 000934008013 | NUT |
| A 1154621530 | STEERING LOCK | |
| 350 | A 1154622330 | STEERING LOCK |
| A 1154622730 | STEERING LOCK | |
| Repalced by: A 1154623730 | ||
| A 1154623130 | STEERING LOCK | |
| Repalced by: A 1154623730 | ||
| A 1154623730 | STEERING LOCK | |
| A 1154621730 | STEERING LOCK | |
| A 1154622530 | STEERING LOCK | |
| A 1154622930 | STEERING LOCK | |
| Repalced by: A 1154623930 | ||
| A 1154623930 | STEERING LOCK | |
| A 1154624230 | STEERING LOCK | |
| 360 | A 0004600284 | VALVE |
| 362 | A 1164620093 | IGNITION SWITCH |
| A 0004621993 | IGNITION SWITCH | |
| A 0004624830 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004626630 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004627930 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| 370 | A 6014600304 | TUMBLER |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 1164620079 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004629330 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004620923 | COVER | |
| A 0004621023 | COVER | |
| A 0004621323 | COVER | |
| 375 | A 1234620523 | COVER |
| 378 | A 1154600322 | CLAMPING PIECE |
| 385 | N 000931006094 | SCREW |
| 387 | N 912004006102 | LOCK WASHER |
| 389 | A 1154620780 | GASKET |
| A 1114620175 | WASHER | |
| 391 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 391 | A 0009902291 | NUT RETAINER |
| 393 | N 914007006004 | COMBINATION BOLT |
| 395 | N 000931008244 | SCREW |
| 397 | N 009021008213 | WASHER |
| 406 | A 1144600305 | DRAG LINK |
| Repalced by: A 0004600005 | ||
| 406 | A 0004600005 | DRAG LINK |
| A 0004630097 | WASHER | |
| TO 115 460 15 05, 114 460 02 05 | ||
| 410 | A 0004630496 | BOOT |
| TO 115 460 15 05 , 114 460 02 05 | ||
| A 0003300485 | REPAIR KIT | |
| TO 114 460 03 05 | ||
| 416 | A 1154631510 | STEERING INTERMEDIATE ARM |
| A 1114630052 | SPACER WASHER | |
| Repalced by: A 1244630077 | ||
| A 1244630077 | WASHER | |
| 418 | N 000960016287 | SCREW |
| 420 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 420 | N 910113016002 | NUT |
| 422 | A 1244600019 | REPAIR KIT |
| Repalced by: A 1264600819 | ||
| 422 | A 1264600819 | INTERMEDIATE LEVER |
| REPAIR KIT | ||
| A 1154630152 | SPACER WASHER | |
| 424 | A 1114631056 | DUST CAP |
| 430 | A 1154630190 | PROTECTIVE PLATE |
| A 1144630190 | PROTECTIVE PLATE | |
| 432 | A 1154630340 | BRACKET |
| 434 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 434 | N 304017006016 | SCREW |
| 436 | N 912004006102 | LOCK WASHER |
| 439 | N 000934006007 | NUT |
| 445 | A 1209900155 | NUT |
| N 000094002120 | COTTER PIN | |
| 448 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| N 000127010202 | LOCK WASHER | |
| N 000960010037 | SCREW | |
| 453 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 453 | N 910113010002 | HEXAGON NUT |
| N 000960010026 | SCREW | |
| Repalced by: N 000961010031 | ||
| N 000961010031 | SCREW | |
| Repalced by: N 308676010023 | ||
| N 308676010023 | SCREW | |
| 455 | N 000137010201 | SPRING WASHER |
| 457 | N 000936010010 | NUT |
| A 0025459524 | SWITCH,AUTOMATIC | |
| A 0035457924 | SWITCH,AUTOMATIC | |
| 470 | A 0045450824 | SWITCH,AUTOMATIC |
| A 0045453224 | SWITCH,AUTOMATIC | |
| A 0045457624 | SWITCH,AUTOMATIC | |
| A 0045457524 | SWITCH,AUTOMATIC | |
| 475 | A 0035453728 | PLUG |
| Repalced by: A 0125450328 | ||
| 475 | A 0125450328 | PLUG HOUSING |
| Repalced by: A 0095455628 | ||
| 475 | A 0095455628 | PLUG HOUSING |
| A 0095455728 | COVER | |
| TO 009 545 56 28 | ||
| 476 | A 0045458724 | SWITCH,AUTOMATIC |
| TEMPOMAT (CRUISE CONTROL) | ||
| 477 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 477 | A 0065457828 | PLUG HOUSING |
| SIXFOLD | ||
| 478 | N 914025004103 | COMBINATION BOLT |
| N 007985004179 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| 485 | A 1154621396 | BOOT |
| 487 | A 1164620396 | BOOT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
