Transporto priemonė: 220 USA; VIN numerio dalis: 115010
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1152604201 | TRANSMISSION | |
| LESS BELL HOUSING | ||

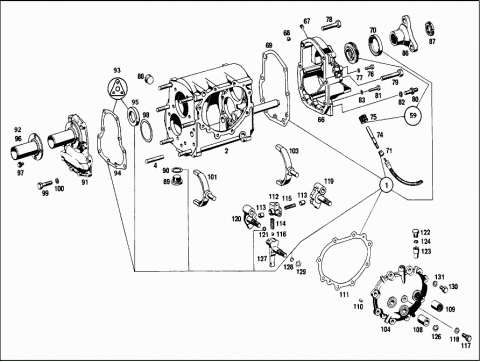

| 001 | A 1152600168 | GASKET KIT |
| 002 | A 1152600911 | TRANSMISSION CASE |
| 004 | N 000939010012 | STUD BOLT |

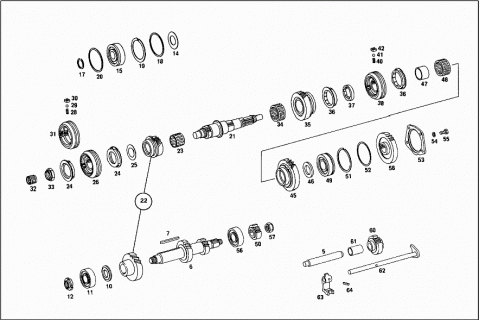

| A 1152631330 | REVERSE IDLER SHAFT | |
| 005 | A 1152630530 | REVERSE IDLER SHAFT |
| 006 | A 1152631002 | COUNTERSHAFT |
| A 1152631802 | COUNTERSHAFT | |
| 007 | A 1159910668 | KEY |
| A 1152600608 | GEAR | |
| (GEAR SET),CONSTANT | ||
| 010 | A 1152630752 | SPACER WASHER |
| 011 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 011 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 012 | A 1159900851 | NUT |
| 014 | A 1862620066 | OIL RING |
| 015 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 017 | A 1232620494 | SNAP RING |
| 018 | A 1862620451 | SPACER RING |
| 019 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| 020 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1152621105 | MAIN SHAFT | |
| Repalced by: A 1152621505 | ||
| A 1152621205 | MAIN SHAFT | |
| Repalced by: A 1152621505 | ||
| A 1152621305 | MAIN SHAFT | |
| Repalced by: A 1152621505 | ||
| 021 | A 1152621505 | MAIN SHAFT |
| 022 | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 023 | A 0059815510 | NEEDLE BEARING |
| A 0039810310 | NEEDLE BEARING | |
| A 0039810810 | NEEDLE BEARING | |
| A 0039810910 | NEEDLE BEARING | |
| 024 | A 1152621634 | SYNCHRONIZER RING |
| A 1152623234 | SYNCHRONIZER RING | |
| 025 | A 1202622362 | THRUST WASHER |
| 026 | A 1152601845 | SYNCHRONIZER BODY |
| Repalced by: A 1152604445 | ||
| A 1152621235 | SYNCHRONIZER BODY | |
| 028 | A 1809934101 | SPRING |
| 029 | N 005401306500 | BALL |
| 030 | A 1152620140 | FOLLOWER |
| 031 | A 1152621823 | SLIDING COLLAR |
| A 0049810410 | NEEDLE BEARING | |
| 032 | A 0029818110 | NEEDLE BEARING |
| 033 | A 1159901051 | NUT |
| 034 | A 0059815610 | NEEDLE BEARING |
| A 0039811010 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0039811110 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| 035 | A 1152603144 | GEAR |
| 036 | A 1152621534 | SYNCHRONIZER RING |
| 1ST AND 2ND SPEED | ||
| A 1152623134 | SYNCHRONIZER RING | |
| 1ST AND 2ND SPEED | ||
| 037 | A 1152620962 | THRUST WASHER |
| 038 | A 1152602145 | SYNCHRONIZER BODY |
| Repalced by: A 1152604345 | ||
| A 1152621335 | SYNCHRONIZER BODY | |
| 040 | A 1809934101 | SPRING |
| 041 | N 005401306500 | BALL |
| 042 | A 1152620240 | FOLLOWER |
| A 1152621423 | SLIDING COLLAR | |
| A 1152620962 | THRUST WASHER | |
| THICKNESS, | ||
| 4.00MM | ||
| 045 | A 1152620711 | GEAR |
| A 1152621311 | GEAR | |
| Repalced by: A 1152621611 | ||
| A 1152621611 | GEAR | |
| A 1152620162 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 1152620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 1152620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 1152620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.10 MM | ||
| A 1152620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.20 MM | ||
| 046 | A 1152622562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 1152622662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 1152622762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 1152622862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.10 MM | ||
| A 1152622962 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.20 MM | ||
| 047 | A 1152620251 | SPACER RING |
| 048 | A 0059815610 | NEEDLE BEARING |
| A 0039811010 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0039811110 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| 049 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 050 | A 1152630932 | REVERSE IDLER GEAR |
| A 1152632232 | REVERSE IDLER GEAR | |
| 051 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| 052 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.20MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.30MM | ||
| 053 | A 1152622639 | RETAINING RING |
| 054 | N 000137007201 | SPRING WASHER |
| 055 | A 1159900601 | SCREW |
| 056 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 056 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 057 | A 1159900951 | NUT |
| 058 | A 1172620721 | GEAR |
| 059 | A 1152600648 | DRIVE GEAR |
| 060 | A 1152601025 | GEAR |
| 061 | A 1172630150 | BUSHING |
| 062 | A 1152600631 | SHIFTING ROD |
| 063 | A 1152650219 | FOLLOWER |
| 064 | N 001481006005 | CLAMPING SLEEVE |
| 066 | A 1152602216 | TRANSMISSION CASE COVER |
| A 1152603916 | TRANSMISSION CASE COVER | |
| REAR | ||
| 067 | A 1532640055 | PLUG |
| 068 | A 0019812185 | BALL |
| Repalced by: A 0019813385 | ||
| 068 | A 0019813385 | BALL |
| 069 | A 1152610279 | GASKET |
| 070 | A 0059972046 | SEAL RING |
| Repalced by: A 0059978747 | ||
| 070 | A 0059978747 | SEAL RING |
| 071 | A 1152740060 | SEAL RING |
| 074 | A 1152640132 | SHAFT |
| 075 | A 1202640231 | DRIVE GEAR |
| SEE FIG. NO.: | ||
| 059E | ||
| 076 | N 000931006083 | SCREW |
| 077 | N 000137006204 | SPRING WASHER |
| 078 | N 000931010232 | SCREW |
| 079 | N 000931010300 | SCREW |
| 080 | A 1159901310 | SCREW |
| 081 | N 000933007019 | SCREW |
| 082 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 082 | N 000125010532 | WASHER |
| 083 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 083 | N 006902007100 | WASHER |
| 086 | A 1152621145 | FLANGE |
| A 1153531126 | NUT | |
| 087 | A 1239900060 | NUT |
| 088 | A 1869970032 | SCREW PLUG |
| 089 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 089 | A 2109970132 | SCREW PLUG |
| 090 | N 007603024105 | SEAL RING |
| 091 | A 1152601121 | TRANSMISSION CASE COVER |
| Repalced by: A 1152611618 | ||
| 091 | A 1152611618 | TRANSMISSION CASE COVER |
| Repalced by: A 6022610218 | ||
| 091 | A 6022610218 | TRANSMISSION CASE COVER |
| FRONT | ||
| 092 | A 1152610243 | GUIDE TUBE |
| 093 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 094 | A 1152610079 | GASKET |
| 095 | A 0059978647 | SEAL RING |
| A 1172610079 | GASKET | |
| 096 | A 1152610243 | GUIDE TUBE |
| SEE FIG. NO.: | ||
| 92 | ||
| 097 | N 914005006002 | COMBINATION BOLT |
| Repalced by: N 914005006042 | ||
| 097 | N 914005006042 | COMBINATION BOLT |
| 098 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.50 MM | ||
| 099 | N 000933007032 | SCREW |
| 100 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 100 | N 006902007100 | WASHER |
| 101 | A 6022650102 | SHIFTING FORK |
| 103 | A 3092650201 | SHIFTING FORK |
| A 1152601613 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| A 1152601113 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| A 1152602613 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| 104 | A 1152603713 | TRANSMISSION CASE COVER |
| Repalced by: A 1152604713 | ||
| 104 | A 1152604713 | TRANSMISSION CASE COVER |
| 108 | A 1152620550 | BUSHING |
| 109 | A 0149816710 | NEEDLE BEARING |
| Repalced by: A 0109816010 | ||
| 109 | A 0109816010 | NEEDLE BEARING |
| A 0099978248 | SEAL RING | |
| 110 | N 000007006203 | CYLINDRICAL PIN |
| 111 | A 1152610080 | GASKET |
| 112 | A 1152604273 | DETENT |
| 113 | A 1152650574 | PIN |
| 114 | A 1159936102 | SPRING |
| 115 | A 1159933304 | SPRING |
| 116 | N 005401999008 | BALL |
| 117 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 117 | N 304017008021 | SCREW |
| 118 | N 000125008418 | WASHER |
| 119 | A 1152601973 | DETENT |
| 1ST AND 2ND SPEED | ||
| A 1152602073 | DETENT | |
| Repalced by: A 1152603873 | ||
| 120 | A 1152603873 | DETENT |
| 3RD AND 4TH SPEED | ||
| 121 | A 0079970348 | SEAL RING |
| 122 | A 1152610066 | BREATHER |
| 123 | A 1152610053 | SPACER TUBE |
| 124 | N 009045012000 | SNAP RING |
| A 1159901640 | WASHER | |
| 126 | N 006799010001 | LOCK PLATE |
| 127 | A 1152601238 | SHAFT |
| 128 | A 0079970348 | SEAL RING |
| 129 | N 006799010001 | LOCK PLATE |
| 130 | N 000933007027 | SCREW |
| 131 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 131 | N 006902007100 | WASHER |

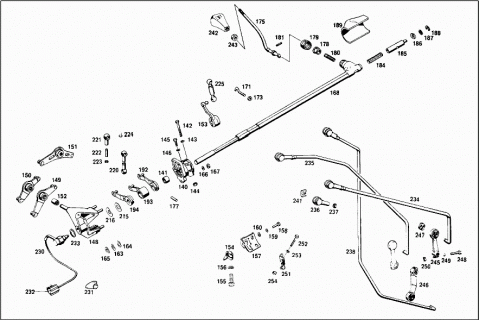

| 140 | A 1152603280 | SUPPORT |
| 141 | A 0019818410 | NEEDLE BEARING |
| 142 | N 000931008217 | SCREW |
| 143 | N 000137008204 | SPRING WASHER |
| 144 | N 000934008013 | NUT |
| 145 | N 000561006105 | SCREW |
| 146 | N 000137006204 | SPRING WASHER |
| 148 | A 1152602980 | SUPPORT |
| A 1152603580 | SUPPORT | |
| 149 | A 1152604737 | LEVER |
| 150 | A 1152604837 | LEVER |
| 151 | A 1152606237 | LEVER |
| 152 | A 0029810210 | NEEDLE BEARING |
| 152 | A 0029810210 | NEEDLE BEARING |
| 153 | A 1152608237 | LEVER |
| 154 | A 1122680039 | GUIDE PIVOT |
| 155 | N 000933006130 | SCREW |
| 156 | N 912004006102 | LOCK WASHER |
| 157 | A 1152680347 | SLOTTED GATE |
| 158 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 158 | N 304017006016 | SCREW |
| 159 | N 912004006102 | LOCK WASHER |
| 160 | N 000125006407 | WASHER |
| 163 | N 900055012001 | SPRING WASHER |
| 164 | A 3129900340 | WASHER |
| 165 | N 006799010001 | LOCK PLATE |
| 166 | N 000137008204 | SPRING WASHER |
| 167 | N 000934008013 | NUT |
| 168 | A 1152605382 | SHIFTING TUBE |
| A 1152603882 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152605282 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152605482 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152606682 | SHIFTING TUBE | |
| A 1152606682 | SHIFTING TUBE | |
| 171 | A 1159900238 | SCREW |
| A 1159900338 | SCREW | |
| A 1099900238 | SCREW | |
| 173 | N 000934006007 | NUT |
| N 000934005008 | NUT | |
| A 1152681224 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681324 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681324 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152602639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| 175 | A 1152604439 | SHIFT LEVER |
| 177 | A 1159910301 | PIN |
| 178 | A 1152680550 | BUSHING |
| A 1152680950 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152681050 | BUSHING | |
| 179 | A 1152670114 | CAP |
| 180 | A 1159939902 | SPRING |
| 181 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 181 | N 001481005017 | CLAMPING SLEEVE |
| A 1159920225 | SLEEVE | |
| 184 | A 1209932101 | SPRING |
| 185 | A 1152680439 | GUIDE PIVOT |
| A 1119971240 | SEAL RING | |
| 186 | A 1159971440 | SEAL RING |
| 187 | A 1869906940 | WASHER |
| 188 | A 1862680273 | LOCK |
| 189 | A 1162680497 | BOOT |
| 192 | A 1152607837 | LEVER |
| 193 | A 1152608037 | LEVER |
| 194 | A 1152609437 | LEVER |
| 215 | A 1152680276 | WASHER |
| 216 | A 1159900248 | WASHER |
| 220 | A 1152600389 | PULL ROD |
| Repalced by: A 1112600066 | ||
| 220 | A 1112600066 | BALL SOCKET |
| 221 | N 071805010204 | BALL SOCKET |
| 222 | N 000939006011 | STUD BOLT |
| 223 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 223 | N 304035006001 | NUT |
| 224 | N 071805010400 | CIRCLIP |
| 225 | A 0002681066 | BALL SOCKET |
| Repalced by: A 0002681266 | ||
| 225 | A 0002681266 | BALL SOCKET |
| A 0005452106 | SWITCH | |
| Repalced by: A 0005453406 | ||
| 230 | A 0005453406 | SWITCH |
| A 0005454006 | SWITCH | |
| Repalced by: A 0005453506 | ||
| A 0005453506 | SWITCH | |
| 231 | A 1159971181 | GROMMET |
| Repalced by: A 1269972581 | ||
| 231 | A 1269972581 | GROMMET |
| 232 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 232 | A 0065457828 | PLUG HOUSING |
| QUADRUPLE | ||
| 233 | N 007603018104 | SEAL RING |
| 234 | A 1152600333 | SHIFTING ROD |
| 235 | A 1152600433 | SHIFTING ROD |
| 236 | A 0009913822 | BALL SOCKET |
| 237 | N 070616010004 | NUT |
| 238 | A 1152600533 | SHIFTING ROD |
| N 070616010004 | NUT | |
| A 0009913822 | BALL SOCKET | |
| A 1152601933 | SHIFTING ROD | |
| A 1152602733 | SHIFTING ROD | |
| A 1142602433 | SHIFTING ROD | |
| A 0009913822 | BALL SOCKET | |
| N 070616010004 | NUT | |
| 241 | A 0009942960 | LOCK |
| 241 | A 0009942960 | LOCK |
| A 1159920210 | BUSHING | |
| A 1082680042 | KNOB | |
| A 1152680942 | KNOB | |
| Repalced by: A 1082680042 | ||
| A 1082680042 | KNOB | |
| 242 | A 1152681242 | KNOB |
| A 1082680242 | KNOB | |
| A 1152680842 | KNOB | |
| A 1152681442 | KNOB | |
| 243 | A 1152680172 | NUT |
| 245 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 245 | A 1152682530 | SHIFT LEVER |
| 246 | A 1152607737 | LEVER |
| 247 | A 0009920510 | BUSHING |
| 248 | N 000933006089 | SCREW |
| 249 | N 912004006102 | LOCK WASHER |
| 250 | N 000934006007 | NUT |
| 251 | A 1152600562 | BRACKET |
| 252 | N 000931006094 | SCREW |
| 253 | N 912004006102 | LOCK WASHER |
| 254 | N 000934006007 | NUT |
| 260 | A 1152671405 | BEARING |
| Repalced by: A 1152673605 | ||
| 260 | A 1152673605 | BEARING |
| A 1152604582 | SHIFTING TUBE | |
| Repalced by: A 1152607282 | ||
| A 1152606182 | SHIFTING TUBE | |
| Repalced by: A 1152607282 | ||
| A 1152606382 | SHIFTING TUBE | |
| Repalced by: A 1152607282 | ||
| 261 | A 1152607282 | SHIFTING TUBE |
| A 1152671150 | BUSHING | |
| 262 | A 1159910301 | PIN |
| A 1152670401 | SHIFT LEVER | |
| Repalced by: A 1152601639 | ||
| A 1152670601 | SHIFT LEVER | |
| Repalced by: A 1152601639 | ||
| A 1152600439 | SHIFT LEVER | |
| Repalced by: A 1152601639 | ||
| A 1152601639 | SHIFT LEVER | |
| Repalced by: A 1152603339 | ||
| A 1152603339 | SHIFT LEVER | |
| A 1152670701 | SHIFT LEVER | |
| Repalced by: A 1232602239 | ||
| A 1152600539 | SHIFT LEVER | |
| Repalced by: A 1232602239 | ||

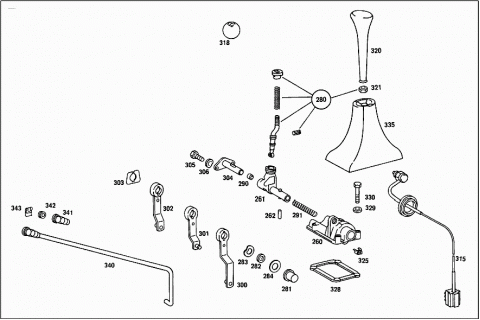

| 280 | A 1232602239 | SHIFT LEVER |
| RANGE OF DELIVERY | ||
| A 1152680550 | BUSHING | |
| A 1152670114 | CAP | |
| A 1159939902 | SPRING | |
| N 007346005000 | CLAMPING SLEEVE | |
| Repalced by: N 001481005017 | ||
| N 001481005017 | CLAMPING SLEEVE | |
| 281 | A 1152670750 | BUSHING |
| 282 | A 1159902640 | WASHER |
| 283 | N 900055018001 | SPRING WASHER |
| 284 | A 1232670252 | SPACER WASHER |
| A 1152671050 | BUSHING | |
| 290 | A 1152672250 | BUSHING |
| A 1829930801 | SPRING | |
| 291 | A 1159939303 | SPRING |
| A 1152608337 | LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152609537 | LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152601937 | LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152603839 | SHIFT LEVER | |
| Repalced by: A 1152604139 | ||
| 300 | A 1152604139 | SHIFT LEVER |
| REVERSE SPEED | ||
| A 1152608437 | LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152609637 | LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152601739 | SHIFT LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152603639 | SHIFT LEVER | |
| Repalced by: A 1152604339 | ||
| 301 | A 1152604339 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| A 1152608537 | LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152609737 | LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152601839 | SHIFT LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152603739 | SHIFT LEVER | |
| Repalced by: A 1152604239 | ||
| 302 | A 1152604239 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 303 | A 1152670676 | WASHER |
| 304 | A 1152600376 | GUIDE |
| 305 | N 000933006130 | SCREW |
| 306 | N 000137006204 | SPRING WASHER |
| 315 | A 0005452406 | SWITCH |
| A 0005454306 | SWITCH | |
| A 0005453906 | SWITCH | |
| Repalced by: A 0005452406 | ||
| A 0005452406 | SWITCH | |
| 318 | A 1112680942 | KNOB |
| 320 | A 1262670410 | HANDLE |
| 321 | N 070616010003 | NUT |
| 325 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 325 | A 0009902291 | NUT RETAINER |
| 328 | A 1152670380 | GASKET |
| 329 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 329 | N 000125006449 | WASHER |
| 330 | N 000931006137 | SCREW |
| N 000931006095 | SCREW | |
| A 1152670197 | BOOT | |
| 335 | A 1232670097 | BOOT |
| 340 | A 1152601533 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| A 1152601633 | SHIFTING ROD | |
| 3RD AND 4TH SPEED | ||
| A 1152601733 | SHIFTING ROD | |
| REVERSE SPEED | ||
| 341 | A 1152600353 | END PIECE |
| 342 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 342 | A 2109920010 | BUSHING |
| 343 | A 0009942960 | LOCK |
| N 000137010205 | SPRING WASHER | |
| A 1152671905 | BEARING | |
| Repalced by: A 1152673505 | ||
| 350 | A 1152673505 | BEARING |
| A 1152600138 | SHAFT | |
| 355 | A 1152600538 | SHAFT |
| 358 | A 1159920210 | BUSHING |
| A 1159920310 | BUSHING | |
| 361 | A 1152671250 | BUSHING |
| 363 | A 1152671250 | BUSHING |
| 365 | N 000471016001 | LOCK RING |
| 367 | A 1152670052 | SPACER WASHER |
| A 1152600139 | SHIFT LEVER | |
| Repalced by: A 1232670410 | ||

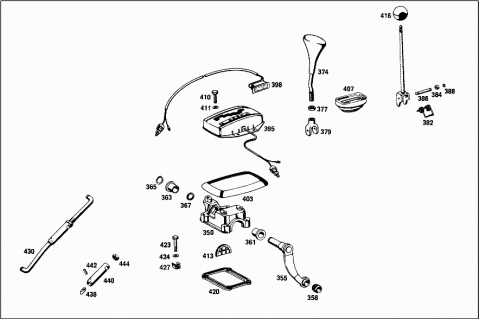

| 374 | A 1232670410 | HANDLE |
| 377 | N 070616010003 | NUT |
| A 1152601253 | END PIECE | |
| Repalced by: A 1262670123 | ||
| A 1152670323 | YOKE | |
| Repalced by: A 1262670123 | ||
| 379 | A 1262670123 | YOKE |
| 382 | A 1269930120 | SPRING |
| 384 | A 1152670950 | BUSHING |
| 386 | A 1152670174 | PIN |
| 388 | N 912002006000 | LOCK |
| A 1152600128 | GUIDE PLATE | |
| Repalced by: A 0002600172 | ||
| A 0002600072 | SHIFT CASE | |
| Repalced by: A 0002600972 | ||
| A 0002600172 | SHIFT CASE | |
| Repalced by: A 0002600972 | ||
| 395 | A 0002600972 | SHIFT CASE |
| A 0005420139 | PLATE | |
| Repalced by: A 0005420239 | ||
| 398 | A 0005420239 | PLATE |
| A 0005444993 | LAMP SOCKET | |
| A 1155404009 | CABLE HARNESS | |
| 403 | A 1232670197 | BOOT |
| 407 | A 1152670597 | BOOT |
| A 0019974190 | LOOM TIE | |
| 410 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 410 | N 304017006018 | SCREW |
| 411 | N 000137006204 | SPRING WASHER |
| 413 | A 1152670376 | WASHER |
| 416 | A 1132670010 | HANDLE |
| 420 | A 1152670380 | GASKET |
| 423 | N 000931006137 | SCREW |
| 424 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 424 | N 009021006208 | WASHER |
| 427 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 427 | A 0009902291 | NUT RETAINER |
| 430 | A 1142602333 | SHIFTING ROD |
| A 1152602033 | SHIFTING ROD | |
| A 1152602033 | SHIFTING ROD | |
| A 1152602633 | SHIFTING ROD | |
| A 1152602633 | SHIFTING ROD | |
| 438 | A 1132670183 | SEAL |
| 440 | A 1132670059 | GUIDE |
| 442 | N 007341001105 | RIVET |
| 444 | N 070616010004 | NUT |
| A 1159920210 | BUSHING | |
| A 1159920310 | BUSHING | |
| A 0009942960 | LOCK | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
