Transporto priemonė: 230 SL; VIN numerio dalis: 113042

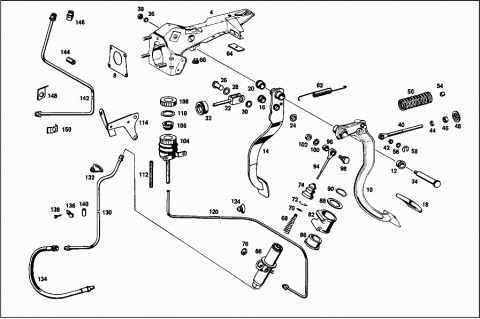

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PEDAL ASSEMBLY | ||
| 004 | A 1132900033 | BRACKET |
| Repalced by: A 1132900533 | ||
| 004 | A 1132900533 | BRACKET |
| 004 | A 1132900133 | BRACKET |
| 004 | A 1132900633 | BRACKET |
| N 000931008116 | SCREW | |
| Repalced by: N 000931008228 | ||
| N 000931008228 | SCREW | |
| Repalced by: N 000933008134 | ||
| N 000933008134 | SCREW | |
| PEDAL ASSEMBLY SUPPORT TO FRAME FLOOR UNIT | ||
| N 000125008400 | WASHER | |
| Repalced by: N 000125008418 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| PEDAL ASSEMBLY SUPPORT TO FRAME FLOOR UNIT | ||
| N 000985008000 | NUT | |
| Repalced by: N 913002008004 | ||
| N 913002008004 | NUT | |
| PEDAL ASSEMBLY SUPPORT TO FRAME FLOOR UNIT | ||
| 008 | A 1134310380 | GASKET |
| PEDAL ASSEMBLY SUPPORT TO FRAME FLOOR UNIT | ||
| 010 | A 1102905016 | PEDAL |
| Repalced by: A 1102905216 | ||
| 010 | A 1102905216 | PEDAL |
| CLUTCH | ||
| 012 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 012 | A 1242920050 | BUSHING |
| 014 | A 1132900101 | PEDAL |
| BRAKE | ||
| 016 | A 1132920050 | BUSHING |
| 018 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 018 | A 1072910182 | PAD |
| CLUTCH AND BRAKE PEDALS | ||
| 018 | A 1072910182 | PAD |
| 020 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 020 | A 1242920050 | BUSHING |
| 022 | A 1132920132 | ROD |
| Repalced by: A 1132900239 | ||
| 022 | A 1132900239 | ROD |
| 022 | A 1132920232 | ROD |
| Repalced by: A 1132900339 | ||
| 022 | A 1132900339 | ROD |
| 024 | A 1132920150 | BUSHING |
| 026 | N 001434014013 | PIN |
| 028 | N 900055014000 | SPRING WASHER |
| Repalced by: N 900055014002 | ||
| 028 | N 900055014002 | SPRING WASHER |
| 030 | A 1535010252 | SPACER WASHER |
| N 000094004002 | COTTER PIN | |
| N 000094004023 | COTTER PIN | |
| 032 | A 1132920097 | BOOT |
| 034 | A 1102910674 | PIN |
| A 1102910574 | PIN | |
| 036 | N 000127010200 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 036 | N 912004010102 | LOCK WASHER |
| 038 | N 000936010002 | NUT |
| Repalced by: N 000936010010 | ||
| 038 | N 000936010010 | NUT |
| 040 | A 1102901939 | ROD |
| 040 | A 1152901339 | ROD |
| 042 | A 1102910750 | BUSHING |
| 044 | N 007976010000 | SHEET METAL SCREW |
| 046 | N 070615010001 | NUT |
| 048 | A 1112910491 | SPRING RETAINER |
| 050 | A 1109930501 | SPRING |
| 050 | A 1159937902 | SPRING |
| 054 | A 1102900033 | BRACKET |
| Repalced by: A 1102900633 | ||
| 054 | A 1102900633 | BRACKET |
| Repalced by: A 1072910091 | ||
| 054 | A 1072910091 | SPRING RETAINER |
| A 1102950150 | BUSHING | |
| 056 | A 1109901740 | WASHER |
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| 058 | A 0009940410 | LOCK |
| 058 | N 006799006003 | LOCK PLATE |
| 060 | A 1112910086 | STOP |
| 062 | A 1809931010 | SPRING |
| Repalced by: A 1079930410 | ||
| 062 | A 1079930410 | SPRING |
| 064 | A 1114620075 | WASHER |
| A 0009883378 | CLIP | |
| A 0009883478 | CLIP | |
| 066 | A 0002952206 | MASTER CYLINDER |
| Repalced by: A 0002952406 | ||
| 066 | A 0002952406 | MASTER CYLINDER |
| 066 | A 0002952906 | MASTER CYLINDER |
| 066 | A 0002955206 | MASTER CYLINDER |
| 068 | A 0009932105 | SPRING |
| 070 | A 0009907040 | WASHER |
| 072 | A 0009943395 | PART NAME MISSING |
| Repalced by: A 0009943335 | ||
| 072 | A 0009943335 | SNAP RING |
| 074 | A 0002950983 | BOOT |
| 074 | A 0002951583 | BOOT |
| 076 | N 000470020000 | EXPANSION PLUG |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005860629 | REPAIR KIT | |
| A 0005861129 | REPAIR KIT | |
| A 0005861529 | REPAIR KIT | |
| 082 | A 1082950040 | BRACKET |
| Repalced by: A 1152950340 | ||
| 082 | A 1152950340 | BRACKET |
| A 1082950140 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| A 1152950240 | BRACKET | |
| A 1152950340 | BRACKET | |
| 086 | A 1082950050 | BUSHING |
| 088 | A 1082950076 | WASHER |
| 090 | A 0019943241 | LOCK |
| N 000931006050 | SCREW | |
| Repalced by: N 000931006115 | ||
| N 000931006115 | SCREW | |
| Repalced by: N 000933006151 | ||
| N 000933006151 | SCREW | |
| MASTER CYLINDER TO PEDAL ASSEMBLY | ||
| N 000137006200 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| MASTER CYLINDER TO PEDAL ASSEMBLY | ||
| N 000934006000 | NUT | |
| Repalced by: N 304032006004 | ||
| N 304032006004 | NUT | |
| MASTER CYLINDER TO PEDAL ASSEMBLY | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| MASTER CYLINDER TO PEDAL ASSEMBLY | ||
| 094 | A 1102901839 | ROD |
| 096 | A 1102950250 | BUSHING |
| 098 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 098 | A 1152950172 | NUT |
| 100 | N 000127008200 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 100 | N 912004008102 | LOCK WASHER |
| 102 | N 000936008003 | NUT |
| Repalced by: N 308675008001 | ||
| 102 | N 308675008001 | NUT |
| 102 | N 000936008012 | NUT |
| 104 | A 0002950115 | RESERVOIR |
| Repalced by: A 0002950815 | ||
| 104 | A 0002950015 | RESERVOIR |
| Repalced by: A 0002950815 | ||
| 104 | A 0002950815 | RESERVOIR |
| Repalced by: A 1112900215 | ||
| 104 | A 1112900215 | RESERVOIR |
| 106 | A 0002950023 | STRAINER |
| Repalced by: A 0004314334 | ||
| 106 | A 0004314334 | STRAINER |
| 108 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 108 | A 0004315433 | FILLER CAP |
| 110 | A 0009976841 | SEAL RING |
| 112 | A 0002951083 | BOOT |
| 114 | A 1132950140 | BRACKET |
| Repalced by: A 1132900086 | ||
| 114 | A 1132900086 | BRACKET |
| 114 | A 1132900086 | BRACKET |
| A 1132950240 | BRACKET | |
| A 1132950240 | BRACKET | |
| N 000933006074 | SCREW | |
| Repalced by: N 000933006122 | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| EXPANSION TANK TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| EXPANSION TANK TO BRACKET | ||
| N 000934006006 | NUT | |
| Repalced by: N 304032006004 | ||
| N 304032006004 | NUT | |
| EXPANSION TANK TO BRACKET | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| EXPANSION TANK TO BRACKET | ||
| 120 | A 1132900813 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1132900313 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1132901213 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1112901313 | LINE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 120 | A 1132901413 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1112901313 | LINE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 120 | A 1132901513 | LINE |
| Repalced by: A 1132901713 | ||
| 120 | A 1132901713 | LINE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 120 | A 1132900413 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1132900913 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1132901313 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1112901313 | LINE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 120 | A 1132900913 | LINE |
| Repalced by: A 1112901313 | ||
| 120 | A 1112901313 | LINE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 120 | A 1132901613 | LINE |
| Repalced by: A 1132901713 | ||
| 120 | A 1132901713 | LINE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 124 | A 1109971581 | GROMMET |
| 124 | A 1119971581 | GROMMET |
| 124 | A 1109970281 | GROMMET |
| 124 | A 1119970281 | GROMMET |
| A 0029884978 | CLIP | |
| A 0059978382 | HOSE | |
| A 0009870244 | EXPANSION PLUG | |
| A 1109871044 | EXPANSION PLUG | |
| 130 | A 1132900513 | LINE |
| Repalced by: A 1132900213 | ||
| 130 | A 1132900213 | LINE |
| 130 | A 1132901013 | LINE |
| Repalced by: A 1123205653 | ||
| 130 | A 1123205653 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 130 | A 1132901113 | LINE |
| Repalced by: A 1093207653 | ||
| 130 | A 1093207653 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 132 | A 1109971481 | GROMMET |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 132 | A 0079975881 | GROMMET |
| A 1109870944 | EXPANSION PLUG | |
| A 1109870044 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1139870044 | EXPANSION PLUG | |
| A 0009870444 | EXPANSION PLUG | |
| A 0002950135 | HOSE | |
| Repalced by: A 0002950335 | ||
| A 0002950335 | HOSE | |
| 134 | A 0002950835 | HOSE |
| 136 | N 072571001034 | CLAMP |
| Repalced by: N 072571001025 | ||
| 136 | N 072571001025 | CLAMP |
| 138 | N 007976004216 | SHEET METAL SCREW |
| Repalced by: N 007976004205 | ||
| 138 | N 007976004205 | SHEET METAL SCREW |
| 140 | N 073379006101 | HOSE |
| 142 | A 1112900613 | LINE |
| 144 | A 1109970782 | HOSE |
| Repalced by: N 073379008100 | ||
| 144 | N 073379008100 | HOSE |
| 144 | A 1289970282 | HOSE |
| Repalced by: N 073379008100 | ||
| 144 | N 073379008100 | HOSE |
| 144 | N 073379008100 | HOSE |
| 146 | A 1119970772 | FITTING |
| 148 | A 1102950140 | BRACKET |
| Repalced by: A 1102950640 | ||
| 148 | A 1102950640 | BRACKET |
| 150 | A 0002950173 | LOCK |
| 150 | A 0002950173 | LOCK |
