Transporto priemonė: 230 SL; VIN numerio dalis: 113042
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

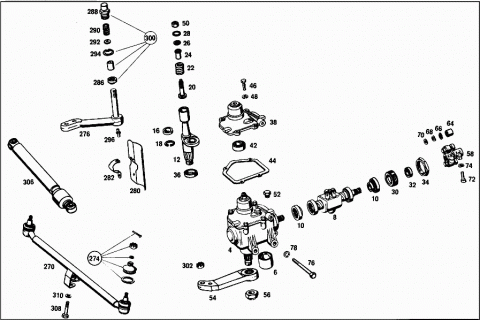

| STEERING | ||
| 004 | A 1114603701 | STEERING BOX ASSEMBLY |
| Repalced by: A 1114604301 | ||
| 004 | A 1114604301 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 004 | A 1114603801 | STEERING BOX ASSEMBLY |
| Repalced by: A 1114604401 | ||
| 004 | A 1114604401 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 006 | A 1114620350 | BUSHING |
| 008 | A 1114603608 | STEERING WORM |
| Repalced by: A 3094600308 | ||
| 008 | A 3094600308 | STEERING WORM |
| 008 | A 1114603708 | STEERING WORM |
| Repalced by: A 3094600408 | ||
| 008 | A 3094600408 | STEERING WORM |
| 010 | A 0009811827 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009815027 | ||
| 010 | A 0009815027 | ANGULAR CONTACT BEARING |
| 012 | A 1114600611 | STEERG. WORM SECTOR SHAFT |
| Repalced by: A 3094600211 | ||
| 012 | A 1114600511 | STEERG. WORM SECTOR SHAFT |
| Repalced by: A 3094600211 | ||
| 012 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| DIA., | ||
| 30 MM | ||
| 016 | A 1114620137 | BALL CUP |
| A 3094600211 | STEERG. WORM SECTOR SHAFT | |
| 018 | N 000472030000 | LOCK RING |
| 020 | A 1114620471 | SCREW |
| 022 | A 1119932101 | SPRING |
| 024 | A 1114620485 | THRUST PIECE |
| 026 | A 1114610462 | THRUST WASHER |
| 028 | A 0009944641 | LOCK |
| Repalced by: A 0049949241 | ||
| 028 | A 0049949241 | LOCK |
| 030 | A 1114610406 | SET COLLAR |
| 032 | A 0029974746 | SEAL RING |
| 032 | A 0029977046 | SEAL RING |
| 032 | A 0049971546 | SEAL RING |
| 034 | A 1209900551 | NUT |
| 036 | A 0019979346 | SEAL RING |
| 036 | A 0029977146 | SEAL RING |
| 036 | A 0029977246 | SEAL RING |
| 038 | A 1114600814 | STEERING BOX COVER |
| 038 | A 1114600714 | STEERING BOX COVER |
| A 1114601014 | STEERING BOX COVER | |
| Repalced by: A 1114601214 | ||
| A 1114601214 | STEERING BOX COVER | |
| A 1114600914 | STEERING BOX COVER | |
| Repalced by: A 1114601114 | ||
| A 1114601114 | STEERING BOX COVER | |
| 042 | A 1114620250 | BUSHING |
| 044 | A 1114610280 | GASKET |
| 046 | N 000933008057 | SCREW |
| Repalced by: N 000933008153 | ||
| 046 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 046 | N 304017008034 | SCREW |
| 048 | N 000127008200 | LOCK WASHER |
| 050 | N 000934010000 | NUT |
| Repalced by: N 304032010003 | ||
| 050 | N 304032010003 | NUT |
| 050 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 050 | N 304032010002 | NUT |
| 052 | N 007604012100 | SCREW PLUG |
| Repalced by: N 007604012102 | ||
| 052 | N 007604012102 | SCREW PLUG |
| Repalced by: N 007604012105 | ||
| 052 | N 007604012105 | SCREW PLUG |
| 054 | A 1114632101 | PITMAN ARM |
| Repalced by: A 1114632501 | ||
| 054 | A 1114632501 | PITMAN ARM |
| 054 | A 1114632201 | PITMAN ARM |
| Repalced by: A 1114632601 | ||
| 054 | A 1114632601 | PITMAN ARM |
| 056 | N 000937022000 | NUT |
| N 000094005004 | COTTER PIN | |
| Repalced by: N 000094005033 | ||
| N 000094005033 | COTTER PIN | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

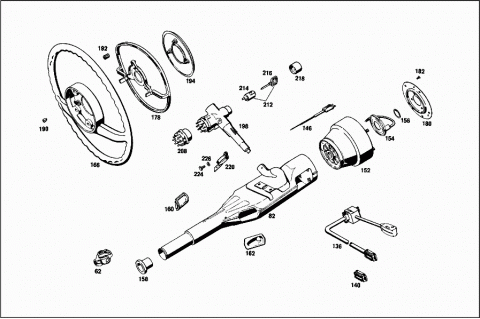

| STEERING COUPLING | ||
| 058 | A 1114600310 | STEERING COUPLING |
| Repalced by: A 3094600210 | ||
| 058 | A 3094600210 | STEERING COUPLING |
| 062 | A 1154600957 | UNIVERSAL JOINT |
| 064 | A 1114620065 | RING |
| Repalced by: A 1114620165 | ||
| 064 | A 1114620165 | RING |
| 064 | A 1114620165 | RING |
| 066 | A 1119900440 | WASHER |
| Repalced by: A 1119903040 | ||
| 066 | A 1119903040 | WASHER |
| 066 | A 1119903040 | WASHER |
| 068 | N 900055010000 | SPRING WASHER |
| Repalced by: N 900055010002 | ||
| 068 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 068 | N 000137010205 | SPRING WASHER |
| 068 | N 000137010205 | SPRING WASHER |
| 070 | A 1369909540 | WASHER |
| 070 | A 1369909540 | WASHER |
| 070 | N 000094002003 | COTTER PIN |
| Repalced by: N 000094002059 | ||
| 070 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 070 | N 000094002060 | COTTER PIN |
| 070 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 070 | N 000094002060 | COTTER PIN |
| 072 | A 1119900420 | SCREW |
| 074 | N 000127008203 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 074 | N 912004008102 | LOCK WASHER |
| 076 | N 000931010233 | SCREW |
| Repalced by: N 000931010253 | ||
| 076 | N 000931010253 | SCREW |
| 078 | N 000127010202 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 078 | N 912004010102 | LOCK WASHER |
| 080 | A 1134602316 | STEER. COLUMN JACKET TUBE |
| Repalced by: A 1134603416 | ||
| 080 | A 1134603416 | STEER. COLUMN JACKET TUBE |
| 080 | A 1134603416 | STEER. COLUMN JACKET TUBE |
| 082 | A 1134605816 | STEER. COLUMN JACKET TUBE |
| 082 | A 1134602416 | STEER. COLUMN JACKET TUBE |
| Repalced by: A 1134603516 | ||
| 082 | A 1134603516 | STEER. COLUMN JACKET TUBE |
| 082 | A 1134603516 | STEER. COLUMN JACKET TUBE |
| 082 | A 1134604316 | STEER. COLUMN JACKET TUBE |
| Repalced by: A 1134605916 | ||
| 082 | A 1134605916 | STEER. COLUMN JACKET TUBE |
| 086 | A 1114620596 | BOOT |
| Repalced by: A 1164620096 | ||
| 086 | A 1164620096 | BOOT |
| 088 | A 0009870444 | EXPANSION PLUG |
| Repalced by: A 1109871444 | ||
| 088 | A 1109871444 | EXPANSION PLUG |
| 088 | A 1109871444 | EXPANSION PLUG |
| X XXXXXXXXXXXX | PART NAME MISSING | |

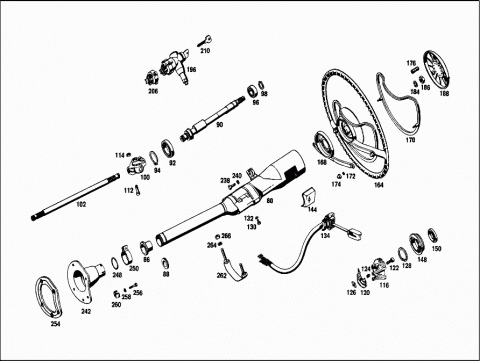

| STEERING SHAFT | ||
| 090 | A 1134600509 | STEERING SHAFT |
| Repalced by: A 1134602309 | ||
| 090 | A 1134602309 | STEERING SHAFT |
| UPPER | ||
| 090 | A 1134602309 | STEERING SHAFT |
| UPPER | ||
| 090 | A 1134600609 | STEERING SHAFT |
| Repalced by: A 1134602409 | ||
| 090 | A 1134602409 | STEERING SHAFT |
| UPPER | ||
| 090 | A 1134602409 | STEERING SHAFT |
| UPPER | ||
| 092 | N 000625016007 | GROOVED BALL BEARING |
| 092 | N 000625016007 | GROOVED BALL BEARING |
| 094 | N 000471035000 | LOCK RING |
| 094 | N 000471035000 | LOCK RING |
| 096 | A 0009814925 | BALL BEARING |
| Repalced by: N 000625006004 | ||
| 096 | N 000625006004 | GROOVED BALL BEARING |
| 098 | N 000471020000 | LOCK RING |
| Repalced by: N 000471020001 | ||
| 098 | N 000471020001 | LOCK RING |
| 100 | A 1134600057 | UNIVERSAL JOINT |
| Repalced by: A 1134600157 | ||
| 100 | A 1134600157 | UNIVERSAL JOINT |
| Repalced by: A 1134600457 | ||
| 100 | A 1134600457 | UNIVERSAL JOINT |
| 100 | A 1134600457 | UNIVERSAL JOINT |
| 102 | A 1134620101 | STEERING SHAFT |
| Repalced by: A 1134620501 | ||
| 102 | A 1134620501 | STEERING SHAFT |
| LOWER | ||
| 102 | A 1134620501 | STEERING SHAFT |
| LOWER | ||
| 102 | A 1134603909 | STEERING SHAFT |
| 102 | A 1134603909 | STEERING SHAFT |
| 102 | A 1134603909 | STEERING SHAFT |
| 102 | A 1134604409 | STEERING SHAFT |
| 102 | A 1134604409 | STEERING SHAFT |
| A 1164620060 | SEAL RING | |
| 112 | A 1139900112 | SCREW |
| Repalced by: A 1139900001 | ||
| 112 | A 1139900012 | SCREW |
| Repalced by: A 1139900001 | ||
| 112 | A 1139900001 | SCREW |
| Repalced by: A 1009900312 | ||
| 112 | A 1009900312 | SCREW |
| 114 | N 900071008200 | NUT |
| Repalced by: N 900071008100 | ||
| 114 | N 900071008100 | NUT |
| Repalced by: A 0009900851 | ||
| 114 | A 0009900851 | NUT |
| 116 | A 1114620628 | BEARING RING |
| 116 | A 1114620428 | BEARING RING |
| Repalced by: A 1114620628 | ||
| 116 | A 1114620528 | BEARING RING |
| Repalced by: A 1114620628 | ||
| 116 | A 1114620628 | BEARING RING |
| A 1154621835 | BEARING BODY | |
| A 1154621835 | BEARING BODY | |
| 120 | A 1134620233 | LOCK RING |
| 120 | A 1134620233 | LOCK RING |
| A 0009818910 | NEEDLE BEARING | |
| Repalced by: A 0189816110 | ||
| A 0189816110 | NEEDLE BEARING | |
| A 0189816110 | NEEDLE BEARING | |
| 122 | N 000912006026 | SCREW |
| 122 | N 000912006036 | SCREW |
| 124 | A 1139930201 | SPRING |
| 124 | A 1139930201 | SPRING |
| 126 | A 1139900052 | NUT |
| 126 | A 1139900052 | NUT |
| 128 | N 000472042000 | LOCK RING |
| Repalced by: N 000472042001 | ||
| 128 | N 000472042001 | LOCK RING |
| 130 | N 000912005001 | SCREW |
| 130 | N 000912005001 | SCREW |
| 132 | N 000127005200 | LOCK WASHER |
| Repalced by: N 912004005100 | ||
| 132 | N 912004005100 | LOCK WASHER |
| 132 | N 912004005100 | LOCK WASHER |
| 134 | A 0015455524 | SWITCH,AUTOMATIC |
| 134 | A 0015455524 | SWITCH,AUTOMATIC |
| A 0005453728 | PLUG | |
| 12-POLE | ||
| A 0005453728 | PLUG HOUSING | |
| 12-POLE | ||
| 136 | A 0025452924 | SWITCH,AUTOMATIC |
| 136 | A 0025452924 | SWITCH,AUTOMATIC |
| 136 | A 0025455424 | SWITCH,AUTOMATIC |
| 136 | A 0025455424 | SWITCH,AUTOMATIC |
| 140 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 140 | A 0095455428 | PLUG HOUSING |
| 140 | A 0095455428 | PLUG |
| N 007985004105 | SCREW | |
| COMBINATION SWITCH TO BASE PLATE | ||
| N 000127004200 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| COMBINATION SWITCH TO BASE PLATE | ||
| N 000125004304 | WASHER | |
| Repalced by: N 000125004311 | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| COMBINATION SWITCH TO BASE PLATE | ||
| 144 | A 1134620096 | BOOT |
| 144 | A 1134620096 | BOOT |
| A 1134620196 | BOOT | |
| 146 | A 1074640143 | CONTACT PIECE |
| 148 | A 0004640428 | CONTACT RING |
| 148 | A 0004640928 | CONTACT RING |
| 148 | A 0004640928 | CONTACT RING |
| A 1119940435 | SNAP RING | |
| A 1104640034 | BRACKET | |
| 150 | A 0009811018 | ROLLER BEARING |
| 150 | A 0009811018 | ROLLER BEARING |
| 152 | A 1154600897 | PROTECTIVE SLEEVE |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| 154 | A 1154640017 | CONTACT PLATE |
| 156 | N 900055032200 | LOCK RING |
| 158 | A 1164620096 | BOOT |
| 160 | A 1134620296 | BOOT |
| 162 | A 1084620496 | BOOT |
| 164 | A 1114601103 | STEERING WHEEL |
| Repalced by: A 1124600003 | ||
| 164 | A 1124600003 | STEERING WHEEL |
| 164 | A 1124600203 | STEERING WHEEL |
| LESS HUB PAD | ||
| 164 | A 1124600203 | STEERING WHEEL |
| 166 | A 1154640201 | STEERING WHEEL |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| A 1169900121 | SCREW | |
| TO 116 460 00 03 | ||
| A 1169935501 | SPRING | |
| TO 116 460 00 03 | ||
| A 1169935101 | SPRING | |
| TO 116 460 00 03 | ||
| A 1164640050 | BUSHING | |
| TO 116 460 00 03 | ||
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| TO 116 460 00 03 | ||
| A 1164640077 | PROTECTIVE RING | |
| TO 116 460 00 03 | ||
| A 1169901040 | WASHER | |
| TO 116 460 00 03 | ||
| 168 | A 1114640736 | HUB |
| Repalced by: A 1114640636 | ||
| 168 | A 1114640636 | HUB |
| 168 | A 1114641336 | HUB |
| Repalced by: A 1114641236 | ||
| 168 | A 1114641236 | HUB |
| 168 | A 1114641236 | HUB |
| 170 | A 1104640015 | SIGNAL RING |
| Repalced by: A 1004640115 | ||
| 170 | A 1114640615 | SIGNAL RING |
| Repalced by: A 1004640115 | ||
| 170 | A 1004640115 | SIGNAL RING |
| 170 | A 1004640115 | SIGNAL RING |
| 172 | A 1114640073 | LOCK |
| 172 | A 1114640073 | LOCK |
| 174 | A 1114640172 | NUT |
| 174 | A 1114640172 | NUT |
| 176 | A 1114640024 | INSULATING PART |
| 176 | A 1114640024 | INSULATING PART |
| 178 | A 1154640415 | SIGNAL RING |
| 180 | A 1154640134 | BRACKET |
| 182 | N 007987003122 | SCREW |
| A 1119932401 | SPRING | |
| 184 | N 000127014200 | LOCK WASHER |
| 184 | N 912004014100 | LOCK WASHER |
| N 000137008210 | SPRING WASHER | |
| 186 | N 000936014008 | NUT |
| 188 | A 1114600342 | COVER PLATE |
| Repalced by: A 1114600642 | ||
| 188 | A 1114600642 | COVER PLATE |
| 188 | A 1114600642 | COVER PLATE |
| 190 | A 1154640024 | INSULATING PART |
| 192 | A 1154640035 | GUIDE PIN |
| 194 | A 1154640342 | PAD |
| 196 | A 0004622830 | STEERING LOCK |
| 196 | A 0004622830 | STEERING LOCK |
| 198 | A 0004625930 | STEERING LOCK |
| 198 | A 0004625930 | STEERING LOCK |
| 198 | A 0004626330 | STEERING LOCK |
| Repalced by: A 0004627230 | ||
| 198 | A 0004627230 | STEERING LOCK |
| 198 | A 0004622930 | STEERING LOCK |
| 198 | A 0004622930 | STEERING LOCK |
| 198 | A 0004626030 | STEERING LOCK |
| 198 | A 0004626430 | STEERING LOCK |
| Repalced by: A 0004627330 | ||
| 198 | A 0004627330 | STEERING LOCK |
| 206 | A 0004620693 | IGNITION SWITCH |
| WITH STARTER NON-REPEAT UNIT | ||
| 206 | A 0004620693 | IGNITION SWITCH |
| 208 | A 1164620093 | IGNITION SWITCH |
| WITH STARTER NON-REPEAT UNIT | ||
| N 000084004105 | SCREW | |
| IGNITION/STARTING SWITCH | ||
| A 0004620332 | KEY | |
| BLANK | ||
| A 0004620332 | KEY | |
| BLANK | ||
| 210 | A 1114620132 | KEY |
| 210 | A 1114620132 | KEY |
| N 900397000201 | RING | |
| Repalced by: A 0005830296 | ||
| A 0005830296 | RING | |
| A 0005830296 | RING | |
| 212 | A 0004600004 | TUMBLER |
| WITH MASTER KEY | ||
| 214 | A 0004624830 | TUMBLER |
| STATE KEY NO. WHEN ORDERING | ||
| 214 | A 0004624830 | TUMBLER |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004626630 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| 216 | A 0007663506 | KEY |
| Repalced by: A 0007600406 | ||
| 216 | A 0007600406 | KEY |
| 216 | A 0007600406 | KEY |
| 218 | A 0004620923 | COVER |
| 218 | A 0004620923 | COVER |
| A 0004621023 | COVER | |
| 220 | A 1134600164 | CLAMP |
| 220 | A 1134600164 | CLAMP |
| A 1134600264 | CLAMP | |
| A 1154600322 | CLAMPING PIECE | |
| A 1154600322 | CLAMPING PIECE | |
| 224 | N 000933006130 | SCREW |
| 224 | N 000933006130 | SCREW |
| 224 | N 000933005049 | SCREW |
| 226 | N 912004006102 | LOCK WASHER |
| 226 | N 912004006102 | LOCK WASHER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 000931006094 | SCREW | |
| N 000931006094 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 304032006008 | NUT | |
| N 304032006008 | NUT | |
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 912004004102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| 238 | N 000931006016 | SCREW |
| Repalced by: N 000933006127 | ||
| 238 | N 000933006127 | SCREW |
| 240 | N 007980006200 | LOCK WASHER |
| Repalced by: N 912004006102 | ||
| 240 | N 912004006102 | LOCK WASHER |
| 242 | A 1134600195 | COVERING |
| 242 | A 1134600295 | COVERING |
| 242 | A 1134600395 | COVERING |
| 242 | A 1134600395 | COVERING |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| 242 | A 1134600595 | COVERING |
| 242 | A 1134600595 | COVERING |
| 242 | A 1134600495 | COVERING |
| 242 | A 1134600495 | COVERING |
| 242 | A 1134600695 | COVERING |
| 242 | A 1134600695 | COVERING |
| 248 | A 0009972041 | SEAL RING |
| COVER PLATE TO STEERING COLUMN JACKET TUBE | ||
| 250 | N 071555045500 | CLAMP |
| COVER PLATE TO STEERING COLUMN JACKET TUBE | ||
| N 000933008048 | SCREW | |
| Repalced by: N 000933008154 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| COVER PLATE TO STEERING COLUMN JACKET TUBE | ||
| N 000127008200 | LOCK WASHER | |
| Repalced by: N 912004008102 | ||
| N 912004008102 | LOCK WASHER | |
| COVER PLATE TO STEERING COLUMN JACKET TUBE | ||
| N 070616008000 | NUT | |
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| COVER PLATE TO STEERING COLUMN JACKET TUBE | ||
| 254 | A 1134620080 | GASKET |
| 254 | A 1134620280 | GASKET |
| COVER PLATE TO FIRE WALL | ||
| 254 | A 1134620280 | GASKET |
| 256 | N 000931006016 | SCREW |
| 256 | N 000931006082 | SCREW |
| COVER PLATE TO FIRE WALL | ||
| 256 | N 000931006082 | SCREW |
| COVER PLATE TO FIRE WALL | ||
| 258 | A 1205450076 | WASHER |
| 258 | A 1809901040 | WASHER |
| COVER PLATE TO FIRE WALL | ||
| 258 | A 1809901040 | WASHER |
| COVER PLATE TO FIRE WALL | ||
| 260 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 260 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 260 | A 0019906791 | NUT RETAINER |
| COVER PLATE TO FIRE WALL | ||
| 262 | A 1134600265 | STRAP |
| Repalced by: A 1134600165 | ||
| 262 | A 1134600165 | STRAP |
| 262 | A 1134600165 | STRAP |
| 264 | N 009021008102 | WASHER |
| Repalced by: N 009021008205 | ||
| 264 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 264 | N 009021008213 | WASHER |
| STRAP | ||
| Repalced by: N 000000003250 | ||
| 264 | N 000000003250 | WASHER |
| STRAP | ||
| 264 | N 009021008213 | WASHER |
| STRAP | ||
| Repalced by: N 000000003250 | ||
| 264 | N 000000003250 | WASHER |
| STRAP | ||
| 266 | N 000985008000 | NUT |
| Repalced by: N 913002008004 | ||
| 266 | N 913002008004 | NUT |
| STRAP | ||
| 266 | N 913002008004 | NUT |
| STRAP | ||
| N 000931008046 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| N 000931008046 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| Repalced by: N 000000003250 | ||
| N 000000003250 | WASHER | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| 270 | A 1104600205 | DRAG LINK |
| A 1803380397 | BOOT | |
| Repalced by: A 0003380297 | ||
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0019971140 | SEAL RING | |
| Repalced by: A 0003380963 | ||
| A 0003380963 | CLAMPING RING | |
| A 0003381063 | CLAMPING RING | |
| 274 | A 0003300485 | REPAIR KIT |
| 276 | A 1114601319 | INTERMEDIATE LEVER |
| 276 | A 1114601319 | INTERMEDIATE LEVER |
| 276 | A 1084630310 | STEERING INTERMEDIATE ARM |
| 276 | A 1114601419 | INTERMEDIATE LEVER |
| 276 | A 1114601419 | INTERMEDIATE LEVER |
| A 1084630410 | STEERING INTERMEDIATE ARM | |
| 280 | A 1114630090 | PROTECTIVE PLATE |
| 280 | A 1114630090 | PROTECTIVE PLATE |
| Repalced by: A 1134630090 | ||
| 280 | A 1134630090 | PROTECTIVE PLATE |
| A 1084630090 | PROTECTIVE PLATE | |
| 282 | A 1114631140 | BRACKET |
| 282 | A 1114631140 | BRACKET |
| N 000933006026 | SCREW | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006006 | NUT | |
| Repalced by: N 000934006013 | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 304032006008 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| 286 | A 1114630060 | SEAL RING |
| 288 | A 1114630133 | CAP |
| 290 | A 1119930401 | SPRING |
| 292 | A 1114630062 | THRUST WASHER |
| 294 | A 1819940010 | LOCK |
| 296 | N 071412008100 | GREASE NIPPLE |
| Repalced by: N 071412008101 | ||
| 296 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 296 | N 071412008102 | GREASE NIPPLE |
| A 1114631056 | DUST CAP | |
| A 1114630052 | SPACER WASHER | |
| Repalced by: A 1244630077 | ||
| A 1244630077 | WASHER | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| 300 | A 1114600050 | REPAIR KIT |
| STEERING INTERMEDIATE ARM | ||
| A 1244600019 | REPAIR KIT | |
| Repalced by: A 1264600819 | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| 302 | A 1209900155 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| N 000094002008 | COTTER PIN | |
| Repalced by: N 000094002077 | ||
| N 000094002077 | COTTER PIN | |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHOCK ABSORBER | ||
| 306 | A 0004633532 | SHOCK ABSORBER |
| Repalced by: A 0004633932 | ||
| 306 | A 0004633932 | SHOCK ABSORBER |
| Repalced by: A 0004635132 | ||
| 306 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| A 1104630196 | BOOT | |
| 308 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 308 | N 000961010031 | SCREW |
| 310 | N 000127010202 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 310 | N 912004010102 | LOCK WASHER |
| N 000960010026 | SCREW | |
| Repalced by: N 000961010031 | ||
| N 000961010031 | SCREW | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 000127010202 | LOCK WASHER | |
| Repalced by: N 912004010102 | ||
| N 912004010102 | LOCK WASHER | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 000936010003 | NUT | |
| Repalced by: N 000936010010 | ||
| N 000936010010 | NUT | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
