Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

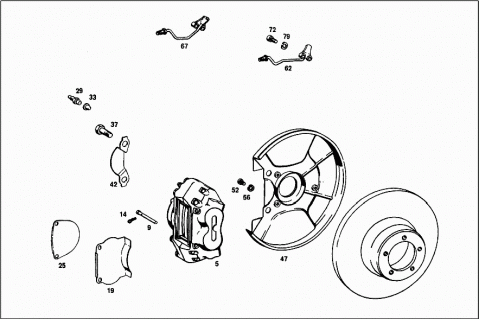

| FRONT WHEEL DISC BRAKE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CALIPERS | ||
| 005 | A 0004215498 | CALIPER |
| Repalced by: A 0004216498 | ||
| A 0004216498 | CALIPER | |
| Repalced by: A 0004219798 | ||
| A 0004219798 | CALIPER | |
| Repalced by: A 0014210298 | ||
| A 0014210298 | CALIPER | |
| Repalced by: A 0014218198 | ||
| A 0014218198 | CALIPER | |
| LEFT,TEVES,LESS LINING | ||
| A 0004215598 | CALIPER | |
| Repalced by: A 0004216598 | ||
| A 0004216598 | CALIPER | |
| Repalced by: A 0004219898 | ||
| A 0004219898 | CALIPER | |
| Repalced by: A 0014210398 | ||
| A 0014210398 | CALIPER | |
| Repalced by: A 0014218298 | ||
| A 0014218298 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0004213383 | PISTON | |
| A 0004213483 | PISTON | |
| A 0004214083 | PISTON | |
| 009 | A 0004210874 | PIN |
| A 0009910260 | DOWEL PIN | |
| 014 | A 0004210573 | LOCK |
| 019 | A 0004210020 | PROTECTIVE PLATE |
| A 0004210320 | PROTECTIVE PLATE | |
| 025 | A 0004210120 | PROTECTIVE PLATE |
| A 0004210220 | PROTECTIVE PLATE | |
| A 0004211465 | BLEEDER VALVE | |
| M 10 X 1 | ||
| 029 | A 0004211665 | BLEEDER VALVE |
| M 8 | ||
| 033 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 033 | A 0004210887 | PROTECTIVE CAP |
| A 0014217398 | CALIPER | |
| LEFT,BENDIX,LESS LINING | ||
| A 0014217498 | CALIPER | |
| RIGHT,BENDIX,LESS LINING | ||
| A 0004214483 | PISTON | |
| A 0009911860 | DOWEL PIN | |
| Repalced by: A 0009912660 | ||
| A 0009912660 | DOWEL PIN | |
| A 0004211291 | SPRING | |
| A 0004210273 | LOCK | |
| Repalced by: A 0004210573 | ||
| A 0004210573 | LOCK | |
| A 0004210373 | LOCK | |
| Repalced by: A 0004210573 | ||
| A 0004210573 | LOCK | |
| A 0004210520 | PROTECTIVE PLATE | |
| A 0004204655 | BLEEDER VALVE | |
| A 0014208220 | BRAKE PAD | |
| A 0014208220 | BRAKE PAD | |
| PARTS KIT | ||
| A 0014207720 | BRAKE PAD | |
| PARTS KIT | ||
| A 0014207720 | BRAKE PAD | |
| PARTS KIT | ||
| A 0005868642 | REPAIR KIT | |
| CALIPERS,MAKE GIRLING | ||
| A 0005862443 | REPAIR KIT | |
| CALIPERS,MAKE GIRLING | ||
| A 0015860042 | REPAIR KIT | |
| CALIPERS,MAKE BENDIX | ||
| 037 | A 1114210371 | SCREW |
| 042 | A 1159940732 | LOCK |
| 047 | A 1114200444 | PROTECTIVE PLATE |
| LEFT | ||
| A 1114200544 | PROTECTIVE PLATE | |
| RIGHT | ||
| 052 | N 000912006024 | SCREW |
| 056 | N 007980006000 | LOCK WASHER |
| 062 | A 1114206228 | LINE |
| LEFT | ||
| 067 | A 1114206328 | LINE |
| RIGHT | ||
| 072 | N 000912006024 | SCREW |
| BRAKE LINE TO STEERING KNUCKLE | ||
| N 000912006064 | SCREW | |
| BRAKE LINE TO STEERING KNUCKLE | ||
| 079 | N 007980006000 | LOCK WASHER |
| BRAKE LINE TO STEERING KNUCKLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

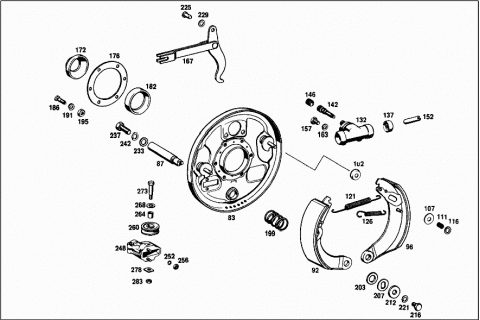

| REAR WHEEL BRAKE | ||
| 083 | A 1104203017 | BRAKE ANCHOR PLATE |
| LEFT | ||
| A 1104203117 | BRAKE ANCHOR PLATE | |
| RIGHT | ||
| 087 | A 1104230118 | PIVOT PIN |
| 092 | A 1104201820 | BRAKE SHOE |
| Repalced by: A 1104202720 | ||
| 092 | A 1104202720 | BRAKE SHOE |
| FRONT WITH BRAKE LINING | ||
| 096 | A 1104201720 | BRAKE SHOE |
| Repalced by: A 1104202620 | ||
| 096 | A 1104202620 | BRAKE SHOE |
| REAR WITH BRAKE LINING | ||
| 102 | A 1104230377 | RETAINER |
| 107 | A 1109900540 | WASHER |
| 111 | A 1209930601 | SPRING |
| 116 | N 000433008406 | WASHER |
| N 000094003000 | COTTER PIN | |
| 121 | A 1109931210 | SPRING |
| 126 | A 1364230092 | SPRING |
| 132 | A 0024204918 | WHEEL BRAKE CYLINDER |
| A 0024204318 | WHEEL BRAKE CYLINDER | |
| 137 | A 0004211587 | PROTECTIVE CAP |
| Repalced by: A 0004210348 | ||
| 137 | A 0004210348 | DUST CAP |
| A 0004210087 | PROTECTIVE CAP | |
| 142 | A 0004200855 | BLEEDER VALVE |
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| 146 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 146 | A 0004210887 | PROTECTIVE CAP |
| A 0005861242 | REPAIR KIT | |
| WHEEL CYLINDER | ||
| A 0005869542 | REPAIR KIT | |
| Repalced by: A 0015869242 | ||
| A 0015869242 | REPAIR KIT | |
| WHEEL CYLINDER | ||
| 152 | A 0004210488 | THRUST PIN |
| 157 | N 000933018106 | SCREW |
| WHEEL CYLINDERS TO BRAKE ANCHOR PLATES | ||
| 163 | N 000127008203 | LOCK WASHER |
| WHEEL CYLINDERS TO BRAKE ANCHOR PLATES | ||
| 167 | A 1104201342 | BRAKE LEVER |
| LEFT | ||
| A 1104201242 | BRAKE LEVER | |
| RIGHT | ||
| 172 | A 0019973446 | SEAL RING |
| 176 | A 1104230079 | GASKET |
| 182 | A 0019974746 | SEAL RING |
| 186 | A 1083570071 | SCREW |
| 191 | N 000127008203 | LOCK WASHER |
| 195 | N 000934008013 | NUT |
| 199 | A 1109930401 | SPRING |
| 203 | A 1209900640 | WASHER |
| 207 | A 1204230156 | RING |
| 212 | A 1209900740 | WASHER |
| 216 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 216 | N 304017008016 | SCREW |
| 221 | N 000127008200 | LOCK WASHER |
| 225 | A 1834230674 | PIN |
| 229 | N 000125008407 | WASHER |
| N 000094003000 | COTTER PIN | |
| 233 | A 1119900840 | WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| A 1119900940 | WASHER | |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 1119903840 | WASHER | |
| AS REQUIRED | ||
| 1.50 MM | ||
| 237 | A 1819900014 | SCREW |
| 242 | N 912004012100 | LOCK WASHER |
| 248 | A 1104200790 | GUIDE |
| 252 | N 000127006000 | LOCK WASHER |
| 256 | N 000934006007 | NUT |
| 260 | A 1104270242 | CABLE PULLEY |
| Repalced by: A 1104270442 | ||
| A 1104270442 | CABLE PULLEY | |
| 264 | A 1874270153 | SPACER TUBE |
| Repalced by: A 1104270253 | ||
| A 1104270253 | SPACER TUBE | |
| 268 | A 1874270052 | SPACER WASHER |
| 273 | A 1104270074 | PIN |
| 278 | A 1109940101 | LOCK |
| 283 | N 000934006007 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TWO-CIRCUIT BRAKE | ||
| 287 | A 0004305530 | BRAKE BOOSTER ASSEMBLY |
| T 51/200 | ||
| A 0015864143 | REPAIR KIT | |
| BRAKE BOOSTER ASSEMBLY | ||
| 302 | A 0004303681 | CONNECTION HOUSING |
| 307 | A 0004312987 | PROTECTIVE CAP |
| 311 | A 0014306301 | BRAKE MASTER CYLINDER |
| 316 | A 0004310722 | THREADED UNION |
| 321 | N 007603018100 | SEAL RING |
| 325 | A 0004302481 | VALVE |
| 329 | A 0004315593 | SPRING |
| 333 | N 000472028000 | LOCK RING |
| N 007603006106 | SEAL RING | |
| 339 | A 0049973245 | SEAL RING |
| A 0005860643 | REPAIR KIT | |
| BRAKE MASTER CYLINDER | ||
| 343 | N 000127008200 | LOCK WASHER |
| 347 | N 000934008013 | NUT |
| 353 | A 0004314502 | RESERVOIR |
| A 0009870345 | LOCKING CAP | |
| N 900288010001 | CLAMP | |
| 358 | A 0004314334 | STRAINER |
| 363 | A 0004315433 | FILLER CAP |
| 367 | A 0009972940 | SEAL RING |
| A 0005860143 | REPAIR KIT | |
| RESERVOIR TO MASTER CYLINDER | ||
| 372 | A 1104300045 | FLANGE |
| Repalced by: A 1084300145 | ||
| A 1084300145 | FLANGE | |
| A 1104300145 | FLANGE | |
| 376 | N 000835008004 | STUD |
| N 000137008200 | SPRING WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 382 | A 1084310080 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| A 1104310380 | GASKET | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 000137008200 | SPRING WASHER | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 387 | A 1104300229 | LINE |
| AT INTAKE MANIFOLD | ||
| A 1104300129 | LINE | |
| AT INTAKE MANIFOLD | ||
| 393 | N 915017012200 | UNION NUT |
| 397 | A 0004313607 | VALVE |
| 402 | A 1114350227 | TRAP |
| 408 | A 0004352182 | HOSE |
| N 900262005100 | LOOM TIE | |
| N 900263005000 | STRAP | |
| 170 MM | ||
| N 900263005000 | STRAP | |
| 170 MM | ||
| A 0009950065 | CLAMP | |
| A 0009950065 | CLAMP | |
| 412 | A 1234205528 | LINE |
| A 1114208128 | LINE | |
| Repalced by: A 1094201828 | ||
| A 1094201828 | LINE | |
| 418 | A 1234207028 | LINE |
| A 1234205128 | LINE | |
| 424 | A 1234208728 | LINE |
| A 1234206728 | LINE | |
| FROM BRAKE MASTER CYLINDER TO ADAPTER FITTING | ||
| A 1214290134 | ADAPTER FITTING | |
| A 1104204628 | LINE | |
| Repalced by: A 1234208928 | ||
| A 1234208928 | LINE | |
| FROM ADAPTER FITTING TO LEFT REAR DISTRIBUTOR | ||
| 429 | A 0004283624 | DISTRIBUTOR |
| N 000933008166 | SCREW | |
| DISTRIBUTOR TO FRAME FLOOR UNIT | ||
| N 000127008203 | LOCK WASHER | |
| DISTRIBUTOR TO FRAME FLOOR UNIT | ||
| 433 | A 1234206228 | LINE |
| 439 | A 1234280535 | BRAKE HOSE |
| 443 | A 0004280673 | RETAINING SPRING |
| TO LEFT AND RIGHT FRONT WHEELS | ||
| 448 | A 1104280073 | LOCK |
| TO LEFT AND RIGHT FRONT WHEELS | ||
| 453 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 453 | N 304017006018 | SCREW |
| TO LEFT AND RIGHT FRONT WHEELS | ||
| 458 | N 000137006204 | SPRING WASHER |
| 463 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 463 | A 0019906791 | NUT RETAINER |
| 467 | A 1869970681 | GROMMET |
| 473 | A 0004283035 | BRAKE HOSE |
| TO LEFT REAR WHEEL | ||
| A 0004280673 | RETAINING SPRING | |
| TO LEFT REAR WHEEL | ||
| 478 | A 1234205928 | LINE |
| TO LEFT REAR WHEEL | ||
| 482 | A 0004283135 | BRAKE HOSE |
| Repalced by: A 0004282635 | ||
| 482 | A 0004282635 | BRAKE HOSE |
| TO RIGHT REAR WHEEL | ||
| A 0004280673 | RETAINING SPRING | |
| TO RIGHT REAR WHEEL | ||
| 486 | A 1234205728 | LINE |
| TO RIGHT REAR WHEEL | ||
| 492 | A 1263280181 | BUFFER |
| 20 MM | ||
| N 900262009100 | LOOM TIE | |
| BRAKE LINE TO AXLE TUBE | ||
| N 900263009000 | STRAP | |
| BRAKE LINE TO AXLE TUBE,285 MM | ||
| 496 | A 0009883378 | CLIP |
| BRAKE LINE TO FRONT PANEL REINFORCEMENT AND TO FRAME FLOOR UNIT | ||
| 506 | A 0009870932 | HOSE |
| 25 MM | ||
| 512 | A 1104280185 | DAMPING STRIP |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| N 072571001035 | CLAMP | |
| Repalced by: A 1279950020 | ||
| A 1279950020 | CLAMP | |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| 516 | A 2014280040 | BRACKET |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| N 007981004245 | SHEET METAL SCREW | |
| Repalced by: N 007981004339 | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| N 000000000459 | SHEET METAL SCREW | |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| N 000137005203 | SPRING WASHER | |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| N 000137005203 | SPRING WASHER | |
| BRAKE-CLUTCH-OIL-PRESSURE-GAUGE LINE TO FRONT PANEL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

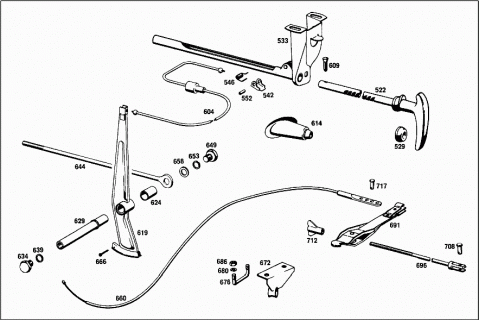

| PISTOL-GRIP HAND BRAKE | ||
| 522 | A 1084200188 | RATCHET ROD |
| 529 | A 1124270086 | DAMPING RING |
| 533 | A 1104200477 | GUIDE |
| 538 | A 1124200477 | GUIDE |
| 542 | A 1204270115 | PAWL |
| 546 | A 1209930020 | SPRING |
| 552 | A 0009910081 | CLINCH-BOLT |
| 556 | A 1104271381 | HOUSING |
| N 000933006130 | SCREW | |

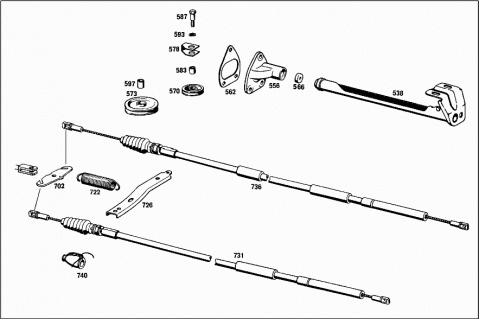

| CABLE PULLEY BEARING TO FIRE WALL | ||
| N 000137006204 | SPRING WASHER | |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| A 0009905991 | NUT RETAINER | |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| 562 | A 1104270384 | SHIM |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| 566 | A 1214270059 | SEAL WASHER |
| FRONT BRAKE CABLE TO FRONT PANEL | ||
| 570 | A 1104270242 | CABLE PULLEY |
| FRONT BRAKE CABLE TO FRONT PANEL | ||
| 573 | A 1104270142 | CABLE PULLEY |
| FRONT BRAKE CABLE TO FRONT PANEL | ||
| 578 | A 1104270246 | GUIDE PLATE |
| 583 | A 1874270153 | SPACER TUBE |
| 587 | A 1804270174 | PIN |
| 593 | N 000137008100 | SPRING WASHER |
| 597 | A 1104270153 | SPACER TUBE |
| CABLE PULLEY TO BRACKET | ||
| N 000931006016 | SCREW | |
| CABLE PULLEY TO BRACKET | ||
| N 000127006003 | LOCK WASHER | |
| CABLE PULLEY TO BRACKET | ||
| N 000934006007 | NUT | |
| CABLE PULLEY TO BRACKET | ||
| 604 | A 1114203285 | BRAKE CABLE |
| FRONT | ||
| A 1114202785 | BRAKE CABLE | |
| FRONT | ||
| 609 | A 1209910061 | DOWEL PIN |
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| GUIDE TUBE BEARING BRACKET TO COWL | ||
| N 912004006102 | LOCK WASHER | |
| GUIDE TUBE BEARING BRACKET TO COWL | ||
| N 000125006407 | WASHER | |
| GUIDE TUBE BEARING BRACKET TO COWL | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| GUIDE TUBE BEARING BRACKET TO COWL | ||
| 614 | A 1104270096 | CUP |
| 619 | A 1124200412 | BRAKE LEVER |
| 624 | A 1104270050 | BUSHING |
| I.D., 14.5 MM | ||
| A 1104270412 | GUIDE | |
| A 1104270712 | GUIDE | |
| 629 | A 1104270712 | GUIDE |
| 634 | N 000961010017 | SCREW |
| 639 | N 912004010102 | LOCK WASHER |
| 644 | A 1114270331 | ROD |
| 320 MM | ||
| 649 | N 000961010017 | SCREW |
| 653 | N 912004010102 | LOCK WASHER |
| 658 | N 000125010504 | WASHER |
| 660 | A 1084200185 | BRAKE CABLE |
| CENTRAL | ||
| 666 | N 000094003000 | COTTER PIN |
| N 000094003013 | COTTER PIN | |
| TO SECURE BRAKE CABLE | ||
| A 1124200290 | GUIDE | |
| Repalced by: A 1124200490 | ||
| A 1124200490 | GUIDE | |
| A 1124200490 | GUIDE | |
| 672 | A 1124200090 | GUIDE |
| 676 | A 1114270240 | SCREW |
| 680 | N 912004006102 | LOCK WASHER |
| 686 | N 000934006007 | NUT |
| 691 | A 1104201442 | BRAKE LEVER |
| 696 | A 1084200673 | SCREW |
| 702 | A 1104270113 | LEVER |
| 708 | N 001434008031 | PIN |
| CLAMPING BOLT TO COMPENSATING LEVER | ||
| N 000094002059 | COTTER PIN | |
| CLAMPING BOLT TO COMPENSATING LEVER | ||
| 712 | A 1084270072 | NUT |
| HAND BRAKE ADJUSTMENT | ||
| N 000094002059 | COTTER PIN | |
| IN CLAMPING BOLT | ||
| 717 | N 001434006034 | PIN |
| CENTRAL BRAKE CABLE TO INTERMEDIATE LEVER | ||
| N 000094001502 | COTTER PIN | |
| CENTRAL BRAKE CABLE TO INTERMEDIATE LEVER | ||
| N 000094003005 | COTTER PIN | |
| INTERMEDIATE LEVER IN TROUGH-LINE GUIDE | ||
| 722 | A 1109931110 | SPRING |
| A 1109930810 | SPRING | |
| ON SPECIAL REQUEST, UNDERSHIELD | ||
| 726 | A 1104270941 | BRACKET |
| RELEASE SPRING | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| RELEASE SPRING BRACKET TO TUNNEL | ||
| N 912004006102 | LOCK WASHER | |
| RELEASE SPRING BRACKET TO TUNNEL | ||
| N 000934006007 | NUT | |
| RELEASE SPRING BRACKET TO TUNNEL | ||
| 731 | A 1104202385 | BRAKE CABLE |
| REAR LEFT | ||
| 736 | A 1104202485 | BRAKE CABLE |
| REAR RIGHT | ||
| 740 | A 1804200176 | END PIECE |
| REPAIR SIZE | ||
| N 000931006027 | SCREW | |
| BRAKE CABLE TO CABLE PULLEY CASE | ||
| N 000137006204 | SPRING WASHER | |
| BRAKE CABLE TO CABLE PULLEY CASE | ||
| N 000934006007 | NUT | |
| BRAKE CABLE TO CABLE PULLEY CASE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
