Transporto priemonė: 230 S; VIN numerio dalis: 111010

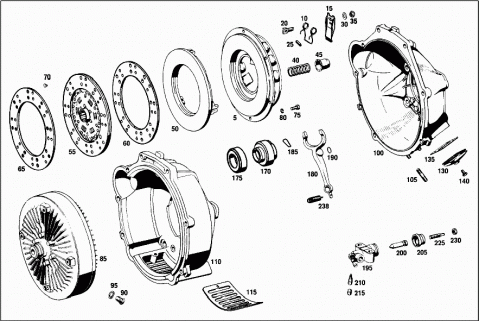

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH | ||
| 005 | A 0002509604 | CLUTCH PRESSURE PLATE |
| 010 | A 0002520427 | SPRING |
| 015 | A 0002524213 | RELEASE LEVER |
| 020 | A 0002520374 | PIN |
| 025 | N 001481006002 | CLAMPING SLEEVE |
| 030 | A 0002520151 | SPACER RING |
| 035 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 035 | A 0002522772 | NUT |
| 040 | A 0002521820 | PRESSURE SPRING |
| 045 | A 0002520335 | SLEEVE |
| 050 | A 0002522106 | CLUTCH PRESSURE PLATE |
| 055 | A 0102502603 | CLUTCH DISC |
| 060 | A 0002521910 | CLUTCH LINING |
| Repalced by: A 1085860025 | ||
| 060 | A 1085860025 | REPAIR KIT |
| ON CLUTCH END | ||
| 065 | A 0002522110 | CLUTCH LINING |
| ON FLYWHEEL END | ||
| 070 | A 0002521075 | RIVET |
| A 1085860025 | REPAIR KIT | |
| 075 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 075 | N 304017008021 | SCREW |
| 080 | N 000127008203 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HYDRAULIC CLUTCH FOR AUTOMATIC DB TRANSMISSION, ON SPECIAL REQUEST | ||
| 085 | A 1112501602 | HYDRAULIC CLUTCH |
| A 1112501502 | HYDRAULIC CLUTCH | |
| 090 | A 1809970530 | SCREW PLUG |
| 095 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| 100 | A 1112502005 | HOUSING |
| 105 | N 000835008062 | STUD |
| 110 | A 1112502205 | HOUSING |
| 115 | A 1122570590 | COVER PLATE |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO HOUSING | ||
| 130 | A 1202540097 | BOOT |
| 135 | A 1202540058 | SEAL HOLDER |
| 140 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 140 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012050 | SCREW | |
| Repalced by: N 304017012002 | ||
| N 304017012002 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RELEASE PARTS | ||
| 170 | A 1112500115 | RELEASE BEARING |
| A 1112500215 | RELEASE BEARING | |
| 175 | A 0009814325 | BALL BEARING |
| A 0019815225 | BALL BEARING | |
| 180 | A 1112930211 | RELEASE YOKE |
| 185 | A 3199930025 | SPRING |
| 190 | N 071805016301 | SNAP RING |
| 195 | A 0002951907 | SLAVE CYLINDER |
| 200 | A 0002950374 | PIN |
| 205 | A 0002950583 | BOOT |
| A 0002951683 | BOOT | |
| 210 | A 0002950120 | VALVE |
| 215 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 215 | A 0004210887 | PROTECTIVE CAP |
| A 0005860929 | REPAIR KIT | |
| A 0005861329 | REPAIR KIT | |
| 225 | A 1112950733 | ROD |
| 230 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 230 | N 304035008001 | NUT |
| 238 | A 1119931110 | SPRING |
| N 000127008203 | LOCK WASHER | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000934008013 | NUT | |
| SLAVE CYLINDER TO BELL HOUSING | ||
