Transporto priemonė: 230 S; VIN numerio dalis: 111010

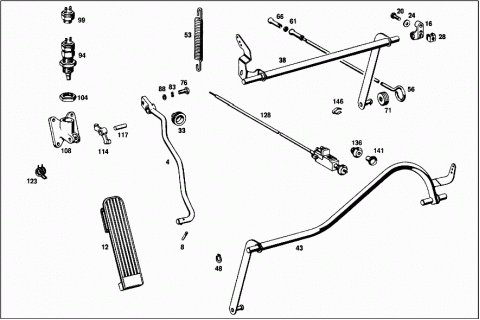

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ACCELERATOR PEDAL ASSEMBLY | ||
| 004 | A 1103000304 | ACCELERATOR PEDAL |
| A 1113000204 | ACCELERATOR PEDAL | |
| 008 | N 001472004002 | GROOVED PIN |
| 012 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 012 | A 1103000002 | PLATE |
| A 1103000002 | PLATE | |
| 016 | A 1103010018 | BEARING |
| 020 | N 000931006082 | SCREW |
| 024 | N 000125006407 | WASHER |
| N 000137006204 | SPRING WASHER | |
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| 028 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 028 | A 0019906791 | NUT RETAINER |
| 033 | A 1839970081 | GROMMET |
| A 1113002320 | SHAFT | |
| Repalced by: A 1113002820 | ||
| 038 | A 1113002820 | SHAFT |
| 043 | A 1083000920 | SHAFT |
| 048 | N 900055012402 | LOCK RING |
| CONTROL SHAFT TO BEARING | ||
| 053 | A 1219930010 | SPRING |
| A 1169930610 | SPRING | |
| A 1869931810 | SPRING | |
| 056 | A 1113001315 | ROD |
| 061 | N 000934005008 | NUT |
| 066 | A 0009910220 | BALL PIVOT |
| Repalced by: A 0009911622 | ||
| 066 | A 0009911622 | BALL SOCKET |
| 071 | A 1213010097 | BOOT |
| Repalced by: A 1803010097 | ||
| 071 | A 1803010097 | BOOT |
| 076 | N 000933008113 | SCREW |
| 083 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 083 | N 000137008212 | SPRING WASHER |
| 088 | N 000125008407 | WASHER |
| 094 | A 1123000241 | STOP |
| A 1123000341 | STOP | |
| 099 | A 0005451706 | SWITCH |
| KICK-DOWN | ||
| 104 | A 1129900151 | NUT |
| 108 | A 1123040027 | HOUSING |
| A 1123040127 | HOUSING | |
| 114 | A 1123040120 | LEVER |
| 117 | A 1129970010 | PIN |
| 123 | A 1129930020 | SPRING |
| N 007985006131 | SCREW | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| N 912004006102 | LOCK WASHER | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| 128 | A 1113001130 | WIRE CABLE |
| CHOKE WITHOUT KNOB 940 MM SHORTEN LENGTH AS REQUIRED | ||
| 136 | A 1103020008 | GUIDE |
| A 1109970582 | HOSE | |
| 141 | A 1103000207 | KNOB |
| 146 | A 1209930225 | SPRING |
| CHOKE CABLE TO WATER RETURN PIPE | ||
