Transporto priemonė: 230 S; VIN numerio dalis: 111010

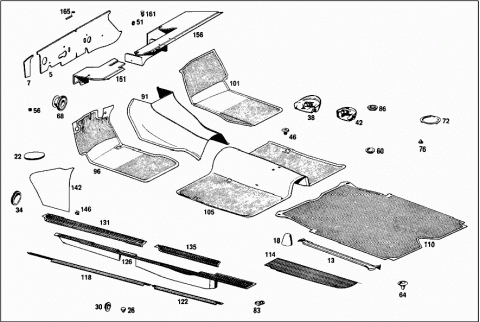

Grupė: 68 COVERING-LINING - 001 BOW
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0009833091 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 547X560 MM | ||
| A 0009833091 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 540X555 | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 635X665 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 85X640 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 192X595 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR END PILLAR | ||
| 302X700 MM | ||
| A 1086820107 | INSULATION | |
| TUNNEL,FRONT | ||
| A 1126825207 | INSULATION | |
| TUNNEL,FRONT | ||
| A 0009832991 | CARDBOARD | |
| Repalced by: A 0009833691 | ||
| A 0009833691 | CARDBOARD | |
| SIDE ROOF RAIL | ||
| 160X670 MM | ||
| A 0009833691 | CARDBOARD | |
| REAR ROOF RAIL | ||
| 170 X 1070 MM | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR END PILLAR | ||
| 340X700 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR ROOF RAIL | ||
| 187 X 984 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR ROOF RAIL | ||
| 100 X 1000 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| SIDE ROOF RAIL | ||
| 173X670 MM | ||
| A 0009834192 | FELT | |
| Repalced by: A 0009830198 | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 8 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| 8 MM | ||
| 005 | A 1106822120 | INSULATION |
| 15 X 317 X 1171 MM | ||
| A 1106822220 | INSULATION | |
| 15 MM,322 X 1061 MM | ||
| A 1106800325 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,LEFT | ||
| 007 | A 1106822320 | INSULATION |
| Repalced by: A 1156820204 | ||
| 007 | A 1156820204 | INSULATION |
| LEFT OUTSIDE | ||
| A 1106800425 | INSULATION | |
| FIRE WALL,RIGHT | ||
| N 007982005205 | SHEET METAL SCREW | |
| INSULATION TO FIRE WALL,INSIDE | ||
| A 0009901742 | WASHER | |
| INSULATION TO FIRE WALL,INSIDE | ||
| N 007983004245 | SHEET METAL SCREW | |
| INSULATION TO FIRE WALL,INSIDE | ||
| N 900056004506 | COUNTERSUNK WASHER | |
| INSULATION TO FIRE WALL,INSIDE | ||
| A 1106870045 | CAP | |
| KICK-DOWN SWITCH | ||
| A 1106830310 | COVER | |
| A 1106820610 | INSULATION | |
| A 0019890985 | ADHESIVE TAPE | |
| 20 X 20 X 685 MM | ||
| N 007976004215 | SHEET METAL SCREW | |
| A 1106830298 | SEAL | |
| Repalced by: A 0039895485 | ||
| A 0039895485 | ADHESIVE TAPE | |
| KICK-DOWN SWITCH | ||
| A 0009942345 | LOCK | |
| COVERING TO TUNNEL | ||
| N 007981004318 | SHEET METAL SCREW | |
| COVERING TO TUNNEL | ||
| A 1116835136 | COVERING | |
| FRONT;FLOOR SHIFT | ||
| A 1116835398 | SEAL | |
| FRONT COVERING;FLOOR SHIFT | ||
| A 1116805036 | COVERING | |
| REAR;FLOOR SHIFT | ||
| A 1116800036 | COVERING | |
| A 1116805436 | COVERING | |
| A 1116805073 | SEAL | |
| REAR COVERING;FLOOR SHIFT | ||
| 013 | A 1106830124 | LEDGE |
| LEFT | ||
| A 1106830224 | LEDGE | |
| Repalced by: A 1106830624 | ||
| A 1106830625 | REINFORCEMENT | |
| RIGHT | ||
| N 007983004318 | SHEET METAL SCREW | |
| LUGGAGE COMPARTMENT | ||
| A 0019886678 | CLIP | |
| LUGGAGE COMPARTMENT | ||
| 018 | A 1106830336 | COVERING |
| REAR BUMPER | ||
| 022 | A 1106830010 | COVER |
| FRONT SUBFRAME | ||
| A 0019884478 | CLIP | |
| TO SECURE SLIDING ROOF PLATE | ||
| A 1106830028 | SLIDING PLATE | |
| ACCELERATOR PEDAL | ||
| A 0019877625 | PLASTIC SECTION | |
| 85 MM | ||
| N 007981003237 | SHEET METAL SCREW | |
| FOR ACCELERATOR PEDAL | ||
| A 0009976581 | GROMMET | |
| REAR SEAT BENCH CUSHION MOUNTING | ||
| 026 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 026 | A 0009973320 | EXPANSION PLUG |
| FLOOR WATER DRAIN,LATERAL LEFT & RIGHT | ||
| 030 | A 1139870044 | EXPANSION PLUG |
| FLOOR WATER DRAIN,LATERAL LEFT & RIGHT | ||
| 034 | A 1109870744 | EXPANSION PLUG |
| ELECTRIC CABLE LEADING TO BLINKER LAMP | ||
| 038 | A 1108990408 | COVERING |
| Repalced by: A 1088990108 | ||
| A 1088990108 | COVERING | |
| 042 | A 1108990308 | COVERING |
| Repalced by: A 1088990008 | ||
| A 1088990008 | COVERING | |
| 046 | A 0009901322 | SCREW |
| TO PLUG SAFETY BELT ANCHORAGE POINTS IN THE REAR | ||
| 051 | A 1109870844 | EXPANSION PLUG |
| IN FIRE WALL, RIGHT BOTTOM | ||
| A 0009870415 | PLUG | |
| PAINT RUN-OFF IN FLOOR,LATERAL | ||
| 056 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 056 | A 0009871840 | RUBBER BUFFER |
| FOR WATER DRAIN HOLES IN COWL,IN WATER TANK & IN LUGGAGE COMPARTMENT FLOOR | ||
| A 1109870544 | EXPANSION PLUG | |
| Repalced by: A 0009974020 | ||
| A 0009974020 | EXPANSION PLUG | |
| SLIDING ROOF WATER DRAIN | ||
| 060 | A 1109870644 | EXPANSION PLUG |
| IN REAR END PILLAR,INSIDE | ||
| 060 | A 1109870644 | EXPANSION PLUG |
| SIDE MEMBER, REAR BOTTOM | ||
| A 0009871115 | PLUG | |
| Repalced by: A 0009974886 | ||
| A 0009974886 | PLUG | |
| 064 | A 1119971281 | GROMMET |
| SPARE WHEEL WELL WATER DRAIN | ||
| 068 | A 1109971281 | GROMMET |
| IN FIRE WALL | ||
| A 0009871840 | RUBBER BUFFER | |
| WHEELHOUSE, FRONT RIGHT | ||
| 072 | A 1106830110 | COVER |
| Repalced by: A 1236830010 | ||
| 072 | A 1236830010 | COVER |
| LUGGAGE COMPARTMENT FLOOR | ||
| 076 | A 0009879240 | RUBBER BUFFER |
| REAR LID | ||
| 083 | A 1109871144 | EXPANSION PLUG |
| FUEL TANK TO SUPPORT | ||
| 086 | A 1109871244 | EXPANSION PLUG |
| Repalced by: A 1169871144 | ||
| 086 | A 1169871144 | EXPANSION PLUG |
| IN REAR END FLOOR | ||
| 091 | A 1106840713 | LINING |
| A 1116802345 | LINING | |
| A 1116802445 | LINING | |
| A 1116801045 | LINING | |
| FLOOR SHIFT | ||
| A 1116801145 | LINING | |
| FLOOR SHIFT | ||
| A 1116802945 | LINING | |
| A 1116803045 | LINING | |
| A 1119971081 | GROMMET | |
| SHIFT LEVER | ||
| A 1116801745 | LINING | |
| A 1116801845 | LINING | |
| 096 | A 1086840102 | LINING |
| FRONT FLOOR,LEFT | ||
| 101 | A 1086840202 | LINING |
| RIGHT FRONT FLOOR | ||
| A 1086840302 | LINING | |
| FRONT FLOOR,LEFT | ||
| A 1086840402 | LINING | |
| RIGHT FRONT FLOOR | ||
| A 1086842602 | LINING | |
| Repalced by: A 1086840402 | ||
| A 1086840402 | LINING | |
| LEFT | ||
| A 1106842302 | LINING | |
| A 1106842402 | LINING | |
| RIGHT | ||
| A 1106841714 | LINING | |
| Repalced by: A 1106842514 | ||
| A 1106841814 | LINING | |
| Repalced by: A 1106842514 | ||
| 105 | A 1106841414 | LINING |
| Repalced by: A 1106842514 | ||
| A 1106842514 | LINING | |
| A 1106842414 | LINING | |
| A 1086800645 | LINING | |
| 110 | A 1106840205 | LINING |
| Repalced by: A 1086840105 | ||
| A 1086840105 | LINING | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 114 | A 1106840506 | LINING |
| LUGGAGE COMPARTMENT FLOOR, LEFT | ||
| 118 | A 1116860136 | RAIL |
| Repalced by: A 1156860136 | ||
| 118 | A 1156860136 | RAIL |
| FRONT DOOR,LEFT BOTTOM | ||
| A 1116860236 | RAIL | |
| Repalced by: A 1156860236 | ||
| A 1156860236 | RAIL | |
| FRONT DOOR,RIGHT BOTTOM | ||
| N 007983003248 | SHEET METAL SCREW | |
| Repalced by: N 007983004205 | ||
| N 007983004205 | SHEET METAL SCREW | |
| BINDING RAIL | ||
| 122 | A 1116860336 | RAIL |
| Repalced by: A 1156860136 | ||
| 122 | A 1156860136 | RAIL |
| REAR DOOR,LEFT BOTTOM | ||
| A 1116860436 | RAIL | |
| Repalced by: A 1156860236 | ||
| A 1156860236 | RAIL | |
| REAR DOOR,RIGHT BOTTOM | ||
| N 007983003248 | SHEET METAL SCREW | |
| Repalced by: N 007983004205 | ||
| N 007983004205 | SHEET METAL SCREW | |
| BINDING RAIL | ||
| A 1106860936 | RAIL | |
| A 1106861036 | RAIL | |
| A 0029885478 | CLIP | |
| A 1106861536 | RAIL | |
| Repalced by: A 1156860136 | ||
| A 1156860136 | RAIL | |
| A 1106861636 | RAIL | |
| Repalced by: A 1156860236 | ||
| A 1156860236 | RAIL | |
| A 0029882778 | CLIP | |
| Repalced by: A 0039886278 | ||
| A 0039886278 | CLIP | |
| 126 | A 1086860580 | LINING |
| Repalced by: A 1086860980 | ||
| A 1086860980 | LINING | |
| LEFT | ||
| A 1086860680 | LINING | |
| Repalced by: A 1086861080 | ||
| A 1086861080 | LINING | |
| RIGHT | ||
| 131 | A 1106862380 | LINING |
| FRONT DOOR,LEFT BOTTOM | ||
| A 1106862480 | LINING | |
| FRONT DOOR,RIGHT BOTTOM | ||
| 135 | A 1106862580 | LINING |
| REAR DOOR,LEFT BOTTOM | ||
| A 1106862680 | LINING | |
| REAR DOOR,RIGHT BOTTOM | ||
| 142 | A 1106880306 | PANELLING |
| LEFT | ||
| A 1106880406 | PANELLING | |
| RIGHT | ||
| 146 | A 1106880013 | CLIP |
| PANELLING TO FRONT PANEL PILLAR | ||
| 151 | A 1106803317 | COVERING |
| Repalced by: A 1106804717 | ||
| 151 | A 1106804717 | COVERING |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1106803717 | COVERING | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| 156 | A 1106803417 | COVERING |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| A 1106804217 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| A 1126800717 | COVERING | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1126804417 | COVERING | |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| LEFT;FRONT PANEL;LATERAL | ||
| N 007983004245 | SHEET METAL SCREW | |
| RIGHT,FRONT PANEL, LATERAL | ||
| A 1129900042 | WASHER | |
| Repalced by: A 3019900042 | ||
| A 3019900042 | WASHER | |
| RIGHT,FRONT PANEL, LATERAL | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| RIGHT,FRONT PANEL, LATERAL | ||
| A 3129951220 | CLAMP | |
| RIGHT,FRONT PANEL, LATERAL | ||
| 161 | A 0009882378 | CLIP |
| COVERING TO AIR DUCT | ||
| 165 | A 0009871036 | RUBBER SECTION |
| Repalced by: A 0009870772 | ||
| 165 | A 0009870772 | EDGE GUARD SECTION |
| 28 MM FOR RAIN GROOVE AT ENGINE HOOD CENTRAL PART | ||
| 172 | A 1106890391 | GLOVE COMPARTMENT |
| A 1106890491 | GLOVE COMPARTMENT | |
| 176 | A 0009942545 | LOCK |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||

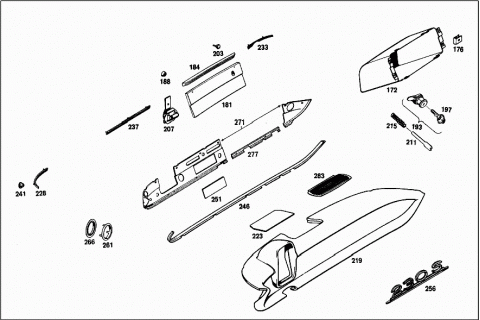

| 181 | A 1126890183 | COVER |
| A 1126890283 | COVER | |
| 184 | A 1106890170 | HANDLE |
| A 1106890270 | HANDLE | |
| N 007988004110 | SCREW | |
| HANDLE TO LID | ||
| 188 | A 1119870840 | RUBBER BUFFER |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 193 | A 1106890001 | LOCK |
| 197 | A 0007661006 | KEY |
| MARKED WITH LETTER "K" | ||
| A 0007662006 | KEY | |
| BLANK;REAR LID AND GLOVE COMPARTMENT LID | ||
| 203 | A 0009879740 | RUBBER BUFFER |
| GLOVE COMPARTMENT LID | ||
| 207 | A 1116800551 | HINGE |
| GLOVE COMPARTMENT LID | ||
| N 007995003501 | WOOD SCREW | |
| HINGE TO GLOVE COMPARTMENT LID | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 000137004202 | SPRING WASHER | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 211 | A 1116890032 | CLAMP |
| 215 | A 1109930901 | SPRING |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 219 | A 1116801106 | PANELLING |
| Repalced by: A 1116801306 | ||
| A 1116801206 | PANELLING | |
| Repalced by: A 1116801406 | ||
| A 1116801306 | PANELLING | |
| TOP AND BOTTOM | ||
| A 1116801406 | PANELLING | |
| TOP AND BOTTOM | ||
| N 007982003215 | SHEET METAL SCREW | |
| TOP PANELLING TO INSTRUMENT PANEL | ||
| A 0009850562 | WASHER | |
| TOP PANELLING TO INSTRUMENT PANEL | ||
| N 007981004263 | SHEET METAL SCREW | |
| BOTTOM PANELLING TO INSTRUMENT PANEL | ||
| A 0009941845 | LOCK | |
| BOTTOM PANELLING TO INSTRUMENT PANEL | ||
| N 000934005008 | NUT | |
| BOTTOM PANELLING TO INSTRUMENT PANEL | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| BOTTOM PANELLING TO INSTRUMENT PANEL | ||
| N 000127005203 | LOCK WASHER | |
| BOTTOM PANELLING TO INSTRUMENT PANEL | ||
| A 1106800067 | END PIECE | |
| Repalced by: A 1156803539 | ||
| 223 | A 1156803539 | ORNAMENTAL COVER |
| FRONT LOUDSPEAKER | ||
| 228 | A 1106890172 | GARNISH MOULDING |
| Repalced by: A 1106890772 | ||
| 228 | A 1106890772 | GARNISH MOULDING |
| HEATING LEFT | ||
| A 1106890472 | GARNISH MOULDING | |
| HEATING RIGHT | ||
| 233 | A 1106890272 | GARNISH MOULDING |
| HEATING RIGHT | ||
| A 1106890572 | GARNISH MOULDING | |
| HEATING LEFT | ||
| 237 | A 1106890072 | GARNISH MOULDING |
| HEATER OPERATING UNIT CENTRAL | ||
| A 1106890372 | GARNISH MOULDING | |
| HEATER OPERATING UNIT CENTRAL | ||
| 241 | A 0009900750 | NUT |
| 246 | A 1106800371 | GARNISH MOULDING |
| Repalced by: A 1106891171 | ||
| A 1106891171 | GARNISH MOULDING | |
| A 1106800471 | GARNISH MOULDING | |
| Repalced by: A 1106891271 | ||
| A 1106891271 | GARNISH MOULDING | |
| A 1106800471 | GARNISH MOULDING | |
| Repalced by: A 1106891071 | ||
| A 1106891071 | GARNISH MOULDING | |
| A 0009833810 | STRIP | |
| 15 X 1 X 1470 MM | ||
| N 007983002216 | SHEET METAL SCREW | |
| GARNISH MOULDING TO INSTRUMENT PANEL | ||
| 251 | A 1116890139 | COVER |
| INSTRUMENT PANEL | ||
| 256 | A 1118170114 | TYPE DESIGNATION |
| "230 S" | ||
| A 1119940345 | LOCK | |
| TYPE DESIGNATION | ||
| 261 | A 1106890180 | ESCUTCHEON |
| STEERING LOCK | ||
| A 1156890203 | MAGNET | |
| 266 | A 1106890098 | SEAL |
| A 1156890097 | PAD | |
| 271 | A 1116800187 | INSTRUMENT PANEL |
| A 1116802787 | INSTRUMENT PANEL | |
| Repalced by: A 1116800187 | ||
| A 1116800187 | INSTRUMENT PANEL | |
| A 1116800287 | INSTRUMENT PANEL | |
| A 1116802887 | INSTRUMENT PANEL | |
| 277 | A 1116803383 | PANELLING |
| INSTRUMENT PANEL,CENTER | ||
| A 1116803483 | PANELLING | |
| INSTRUMENT PANEL,CENTER | ||
| N 007983002216 | SHEET METAL SCREW | |
| PANELLING TO INSTRUMENT PANEL | ||
| 283 | A 1106800017 | COVERING |
| LOUDSPEAKER | ||
| A 0019885378 | CLIP | |
| COVERING TO INSTRUMENT PANEL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
