Transporto priemonė: 230 S; VIN numerio dalis: 111010

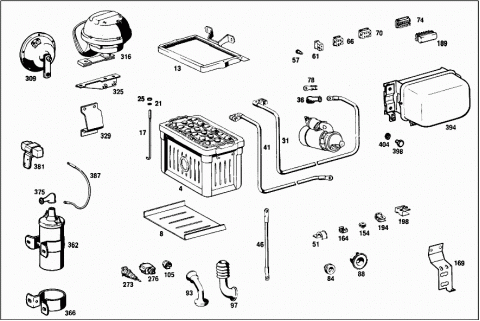

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BATTERY STARTING CABLE | ||
| A 0005419001 | BATTERY | |
| Repalced by: A 0035413301 | ||
| 004 | A 0035413301 | BATTERY |
| 12 V/55 AH | ||
| A 0009890515 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891315 | ||
| A 0009891315 | BATTERY ACID BOTTLE SET | |
| A 0025419901 | BATTERY | |
| 12V/70AH | ||
| A 0009890415 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891315 | ||
| A 0009891315 | BATTERY ACID BOTTLE SET | |
| 008 | A 1105410735 | BOTTOM |
| A 1105410135 | BOTTOM | |
| A 1115400023 | MOUNTING FRAME | |
| 013 | A 1085400023 | MOUNTING FRAME |
| A 1105400823 | MOUNTING FRAME | |
| A 1205410124 | CLAMPING SCREW | |
| 017 | A 1865410124 | CLAMPING SCREW |
| 021 | N 912004006102 | LOCK WASHER |
| 025 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 025 | N 304032006008 | NUT |
| 031 | A 1085400030 | POSITIVE CABLE |
| Repalced by: A 1145400030 | ||
| 031 | A 1145400030 | POSITIVE CABLE |
| 036 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 036 | A 1165460135 | BOOT |
| A 1115400031 | NEG. CABLE | |
| FROM BATTERY TO ENGINE | ||
| A 1215400141 | GROUND STRAP | |
| FROM ENGINE TO FIRE WALL | ||
| A 1204200227 | SCREW | |
| GROUND CABLE TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO FIRE WALL | ||
| N 000934006007 | NUT | |
| GROUND CABLE TO FIRE WALL | ||
| 041 | A 1105400631 | NEG. CABLE |
| FROM BATTERY TO SIDE MEMBER | ||
| 046 | A 1105400131 | NEG. CABLE |
| Repalced by: A 1095400131 | ||
| 046 | A 1095400131 | NEG. CABLE |
| FROM SIDE MEMBER TO ENGINE | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 000127008203 | LOCK WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| A 0009908691 | NUT RETAINER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| 051 | A 1879950037 | CLAMP |
| STARTING CABLE AND GROUND CABLES TO FIRE WALL AND TO WHEELHOUSE PANEL | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| STARTING CABLE AND GROUND CABLES TO FIRE WALL AND TO WHEELHOUSE PANEL | ||
| A 0005462930 | INSULATING HOSE | |
| A 1809971582 | HOSE | |
| A 1805400441 | GROUND STRAP | |
| FROM ENGINE HOOD TO COWL | ||
| N 007981004258 | SHEET METAL SCREW | |
| GROUND STRAP TO COWL | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| GROUND STRAP TO COWL | ||
| A 1115400041 | GROUND STRAP | |
| Repalced by: A 0005460720 | ||
| A 0005460720 | GROUND STRAP | |
| FROM ENGINE TO RADIATOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINES | ||
| A 1115409705 | CABLE HARNESS | |
| A 1115409805 | CABLE HARNESS | |
| A 1115409905 | CABLE HARNESS | |
| A 1115400006 | CABLE HARNESS | |
| 057 | A 0005454728 | PLUG |
| 057 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 057 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 061 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| STOP LIGHT SWITCH | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 066 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 066 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 066 | A 0155454928 | PLUG |
| 4-POLE | ||
| 066 | A 0155454928 | PLUG |
| 4-POLE | ||
| 070 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 070 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 074 | A 0025453128 | PLUG |
| 12-POLE | ||
| 078 | A 0005463540 | CABLE SHOE |
| STARTING MOTOR | ||
| A 0005464940 | CABLE SHOE | |
| CABLE TO ALTERNATOR | ||
| A 1119970681 | GROMMET | |
| 084 | A 1119970181 | GROMMET |
| BACK-UP LAMP CABLE | ||
| A 1119971581 | GROMMET | |
| A 1119970581 | GROMMET | |
| 088 | A 1119971381 | GROMMET |
| 093 | A 1105460085 | PROTECTIVE TUBE |
| 097 | A 1155460085 | PROTECTIVE TUBE |
| 105 | A 0005440486 | PLUG |
| HEADLAMP | ||
| A 0025459528 | PIN BUSHING HOUSING | |
| GENERATOR REGULATOR AND CUT-OUT | ||
| A 0005464040 | CABLE SHOE | |
| GENERATOR REGULATOR AND CUT-OUT | ||
| A 0005464640 | CABLE SHOE | |
| GENERATOR REGULATOR AND CUT-OUT | ||
| A 0005464340 | PIN BUSHING | |
| FOR STARTING DEVICE | ||
| A 0005464540 | CABLE SHOE | |
| FOR STARTING DEVICE | ||
| A 0005464740 | CABLE SHOE | |
| Repalced by: A 0005464640 | ||
| A 0005464640 | CABLE SHOE | |
| FOR STARTING DEVICE | ||
| A 0005460845 | INSULATING SLEEVE | |
| A 0005460145 | INSULATING SLEEVE | |
| 117 | A 1115450019 | SOCKET |
| 121 | A 1115400050 | FUSE BOX |
| 125 | A 0005451003 | CAP |
| 131 | A 0005450180 | GASKET |
| 135 | A 0005450280 | GASKET |
| 141 | A 0005452004 | SWITCH |
| A 0005452604 | SWITCH | |
| N 000085004100 | SCREW | |
| N 006797004230 | TOOTHED WASHER | |
| 145 | A 1105451137 | BUTTON |
| 149 | A 1105450272 | NUT |
| A 0005458334 | FUSE | |
| FUSE BOX | ||
| N 072581025100 | FUSE | |
| FUSE BOX | ||
| N 007985004136 | SCREW | |
| FUSE BOX TO FIRE WALL | ||
| N 000137004202 | SPRING WASHER | |
| FUSE BOX TO FIRE WALL | ||
| 154 | A 0029880178 | CLIP |
| BACK-UP LIGHT SWITCH CABLE TO TOEBOARD | ||
| A 0009873272 | EDGE GUARD SECTION | |
| Repalced by: A 0029873572 | ||
| A 0029873572 | EDGE GUARD SECTION | |
| 60 MM | ||
| 164 | A 1119880178 | CLIP |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| 164 | A 0019881078 | CLIP |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| 164 | A 0009885378 | CLIP |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| A 1369950037 | CLAMP | |
| A 1369950037 | CLAMP | |
| A 1369950137 | CLAMP | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| A 1869950242 | CLAMP | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| A 1809950042 | CLAMP | |
| Repalced by: A 1239950222 | ||
| A 1239950222 | CLAMP | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| A 1085460053 | SPACER TUBE | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| N 007976004211 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| N 007976004211 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| N 007985006131 | SCREW | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| 164 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 164 | A 0019906791 | NUT RETAINER |
| MAIN CABLE HARNESS AND STARTING CABLE TO FIRE WALL | ||
| A 1879950037 | CLAMP | |
| STARTING CABLE TO BATTERY FRAME | ||
| N 007976004205 | SHEET METAL SCREW | |
| STARTING CABLE TO BATTERY FRAME | ||
| A 0009970781 | GROMMET | |
| STARTING CABLE TO BATTERY FRAME | ||
| 169 | A 1085450240 | BRACKET |
| Repalced by: A 1085400473 | ||
| A 1085400473 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| COUPLER TO INSTRUMENT PANEL BRACE | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| COUPLER TO INSTRUMENT PANEL BRACE | ||
| A 1369950137 | CLAMP | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| N 040621014200 | INSULATING HOSE | |
| 85 MM | ||
| A 0029880278 | CLIP | |
| MAIN CABLE HARNESS TO AUTOMATIC TRANSMISSION | ||
| A 0019882178 | CLIP | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL BRACE | ||
| A 1109880478 | CLIP | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL BRACE | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS | ||
| A 0009972881 | GROMMET | |
| A 0009883378 | CLIP | |
| FOR MAIN CABLE HARNESS AND CABLE HARNESS TO CROSS MEMBER | ||
| A 0009885378 | CLIP | |
| MAIN CABLE HARNESS TO PEDAL ASSEMBLY | ||
| A 1125450540 | BRACKET | |
| MAIN CABLE HARNESS TO GENERATOR REGULATOR | ||
| A 0009972981 | GROMMET | |
| MAIN CABLE HARNESS TO GENERATOR REGULATOR | ||
| A 1119971581 | GROMMET | |
| CABLE FROM DOUBLE SOLENOID THRU FRONT PANEL | ||
| 179 | A 1125401173 | BRACKET |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL CROSS STRUT OR JACKET TUBE, RESP. | ||
| N 040621014200 | INSULATING HOSE | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL BRACE | ||
| 85 MM | ||
| N 007976004205 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL CROSS STRUT OR JACKET TUBE, RESP. | ||
| N 007976004205 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL CROSS STRUT OR JACKET TUBE, RESP. | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL CROSS STRUT OR JACKET TUBE, RESP. | ||
| A 3129951401 | CLAMP | |
| ELECTRIC CABLE TO CARBURETOR | ||
| A 0019974190 | LOOM TIE | |
| IDLING SWITCH CABLE HARNESS TO WATER PIPE | ||
| N 007981002241 | SHEET METAL SCREW | |
| COUPLER TO TAIL LAMP CABLE HARNESS | ||
| N 000933004016 | SCREW | |
| GROUND CONNECTION | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| GROUND CONNECTION | ||
| N 000934004006 | NUT | |
| GROUND CONNECTION | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| GROUND CABLE TO THE INSIDE OF COWL | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO THE INSIDE OF COWL | ||
| N 000934006007 | NUT | |
| GROUND CABLE TO THE INSIDE OF COWL | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 1105400107 | CABLE HARNESS | |
| A 1105400307 | CABLE HARNESS | |
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 189 | A 0005453728 | PLUG |
| 12-POLE | ||
| A 1119971581 | GROMMET | |
| 194 | A 0029880878 | CLIP |
| A 0009883478 | CLIP | |
| TAIL LAMP CABLE HARNESS TO STIFFENING PLATE | ||
| 198 | A 0029884878 | CLIP |
| A 0005463335 | BOOT | |
| CABLE HARNESS TO ALTERNATOR | ||
| A 0009972881 | GROMMET | |
| CABLE HARNESS TO ALTERNATOR | ||
| 206 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS | ||
| N 040621014200 | INSULATING HOSE | |
| 85 MM | ||
| N 007976004205 | SHEET METAL SCREW | |
| A 0009972490 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| A 0009881778 | CLIP | |
| A 0009883378 | CLIP | |
| A 1879950037 | CLAMP | |
| N 007981003214 | SHEET METAL SCREW | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| INSTRUMENTS AND SWITCHES | ||

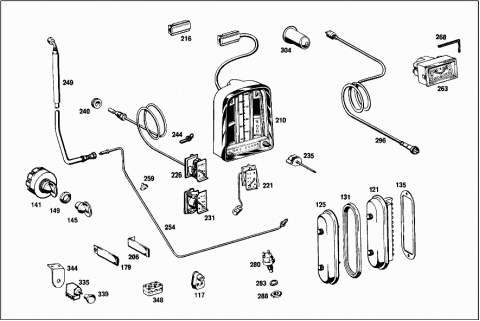

| 210 | A 0045429806 | SPEEDOMETER |
| READING IN KILOMETRES | ||
| A 0045429606 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0045429706 | SPEEDOMETER | |
| READING IN MILES | ||
| A 0045429906 | SPEEDOMETER | |
| READING IN MILES | ||
| 216 | A 0025457428 | PLUG |
| 12-POLE | ||
| 221 | A 0015420702 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| A 0015420802 | OIL PRESSURE GAUGE | |
| READING IN LB./SQ. IN. | ||
| 226 | A 0025421505 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE;CAPILLARY TUBE LENGHT: | ||
| 1550 MM | ||
| A 0025424105 | TEMPERATURE GAUGE | |
| GRADUATION IN DEGS. F.; LENGTH OF CAPILLARY TUBE: | ||
| 1550 MM | ||
| 231 | A 0005429503 | FUEL GAUGE DASH UNIT |
| 235 | A 0005420325 | POTENTIOMETER |
| N 000084003100 | SCREW | |
| OIL PRESSURE GAUGE AND COOLING WATER TEMPERATURE GAUGE | ||
| N 000084003101 | SCREW | |
| FUEL GAUGE | ||
| N 000084003122 | SCREW | |
| POTENTIOMETER | ||
| N 072601012800 | BULB | |
| INSTRUMENT CLUSTER | ||
| N 072601012800 | BULB | |
| INSTRUMENT CLUSTER | ||
| 240 | A 0009972481 | GROMMET |
| INSTRUMENT CLUSTER | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| INSTRUMENT CLUSTER | ||
| 244 | N 000315008000 | NUT |
| INSTRUMENT CLUSTER | ||
| A 1209930225 | SPRING | |
| CAPILLARY TUBE TO RETURN LINE | ||
| A 1119971481 | GROMMET | |
| CAPILLARY TUBE AND CHOKE CABLE THRU FIRE WALL | ||
| 249 | A 1215400159 | HOSE |
| OIL PRESSURE GAUGE LINE | ||
| 254 | A 1105400260 | ELECTRIC CABLE |
| OIL PRESSURE GAUGE | ||
| A 1105400360 | ELECTRIC CABLE | |
| OIL PRESSURE GAUGE | ||
| A 1085400459 | HOSE | |
| A 1085400559 | HOSE | |
| A 1109971681 | GROMMET | |
| A 1115400573 | BRACKET | |
| OIL PRESSURE GAUGE LINE | ||
| A 1115400678 | STARTER SWITCH | |
| A 0009881878 | CLIP | |
| 259 | A 1119970581 | GROMMET |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| OIL PRESSURE GAUGE LINE AND HOSE TO BRACKET | ||
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| OIL PRESSURE GAUGE LINE AND HOSE TO BRACKET | ||
| A 0009909690 | SLEEVE | |
| 263 | A 1115420411 | CLOCK |
| N 072601012800 | BULB | |
| 268 | A 1105420138 | SHIM |
| 273 | A 0005451525 | PLUG SOCKET |
| HAND LAMP | ||
| 276 | A 0015450211 | SWITCH |
| HAND BRAKE CONTROL | ||
| 280 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 283 | N 006797012251 | TOOTHED WASHER |
| 288 | A 0009909251 | NUT |
| A 0005420623 | BUZZER | |
| BLINKER LAMP | ||
| A 1105400209 | CABLE HARNESS | |
| BUZZER | ||
| A 0005425919 | RELAY | |
| A 1105422109 | ADAPTER | |
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| N 072586001200 | CABLE CONNECTOR | |
| N 007985004159 | SCREW | |
| RELAY | ||
| N 912004004102 | LOCK WASHER | |
| RELAY | ||
| N 000934004006 | NUT | |
| RELAY | ||
| A 1109971281 | GROMMET | |
| CABLE HARNESS THRU FRONT PANEL | ||
| A 1106261914 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| A 1105402309 | CABLE HARNESS | |
| A 0005459901 | FUSE BOX | |
| BIPOLAR | ||
| A 1105421640 | BRACKET | |
| N 007985004136 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| 296 | A 1105421207 | FLEXIBLE SHAFT |
| 1250 MM | ||
| A 1105420807 | FLEXIBLE SHAFT | |
| 1250 MM | ||
| A 1105421107 | FLEXIBLE SHAFT | |
| 1980 MM | ||
| A 1105420907 | FLEXIBLE SHAFT | |
| 1700 MM | ||
| A 0009881878 | CLIP | |
| FLEXIBLE SHAFT | ||
| A 0009883378 | CLIP | |
| FLEXIBLE SHAFT | ||
| A 1109880878 | CLIP | |
| FLEXIBLE SHAFT | ||
| A 1085420240 | BRACKET | |
| FLEXIBLE SHAFT TO BELL HOUSING | ||
| 304 | A 1089970381 | GROMMET |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 1109970381 | GROMMET | |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 1369970081 | GROMMET | |
| Repalced by: A 1839970081 | ||
| A 1839970081 | GROMMET | |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SUPERTONE HORN | ||
| 309 | A 0015423820 | HORN |
| Repalced by: A 0035421920 | ||
| A 0025420020 | HORN | |
| Repalced by: A 0035421920 | ||
| A 0035421920 | HORN | |
| LOW NOTE | ||
| A 0015423920 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0025420120 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0035422020 | HORN | |
| MEDIUM NOTE | ||
| A 0015424920 | HORN | |
| Repalced by: A 0025420920 | ||
| A 0025420920 | HORN | |
| LOW NOTE | ||
| BOSCH | ||
| A 0015425020 | HORN | |
| Repalced by: A 0025421020 | ||
| A 0025421020 | HORN | |
| HIGH NOTE | ||
| BOSCH | ||
| 316 | A 0015425420 | HORN |
| LOW NOTE | ||
| HELLA | ||
| A 0015425320 | HORN | |
| HIGH NOTE | ||
| HELLA | ||
| N 900161010102 | SCREW | |
| HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HORN TO BRACKET | ||
| N 000084004151 | SCREW | |
| CABLE CONNECTION TO HORN | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTION TO HORN | ||
| 325 | A 1105400873 | BRACKET |
| HORN | ||
| A 1115241440 | BRACKET | |
| HORN | ||
| 329 | A 1105420740 | BRACKET |
| HORN | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO FRONT TRANSVERSE PIPE | ||
| N 000127008200 | LOCK WASHER | |
| BRACKET TO FRONT TRANSVERSE PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BRACKET TO FRONT TRANSVERSE PIPE | ||
| N 000933010105 | SCREW | |
| HELLA HORN TO BRACKET | ||
| N 000933010062 | SCREW | |
| BOSCH HORN TO BRACKET | ||
| A 3199910840 | SPACER TUBE | |
| BOSCH HORN TO BRACKET | ||
| A 1115404209 | CABLE HARNESS | |
| A 1115402709 | CABLE HARNESS | |
| A 1109971281 | GROMMET | |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 335 | A 0005455611 | SWITCH |
| Repalced by: A 0015450011 | ||
| 335 | A 0015450011 | SWITCH |
| 339 | A 1105400983 | HANDLE |
| 344 | A 1115450340 | BRACKET |
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| BRACKET TO WALL PLATE, LEFT | ||
| 348 | N 072586001200 | CABLE CONNECTOR |
| 3-POLE | ||
| A 1119880078 | CLIP | |
| ELECTRIC CABLE TO FANFARE | ||
| A 0009972281 | GROMMET | |
| ADDITIONAL CABLE HARNESS THRU AIR BAFFLE | ||
| A 0009881678 | CLIP | |
| A 0019881078 | CLIP | |
| N 072586001200 | CABLE CONNECTOR | |
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 0019974390 | LOOM TIE | |
| 250 MM | ||
| A 0015427720 | HORN | |
| A 0015427820 | HORN | |
| A 1105401173 | BRACKET | |
| A 1115240240 | BRACKET | |
| A 1115241440 | BRACKET | |
| A 1105420740 | BRACKET | |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 000127008203 | LOCK WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| N 000125008407 | WASHER | |
| N 000127008203 | LOCK WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| N 000933010128 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| A 1115403209 | CABLE HARNESS | |
| A 1115403309 | CABLE HARNESS | |
| A 1105450740 | BRACKET | |
| A 1115450340 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| A 0015450011 | SWITCH | |
| A 1105400983 | HANDLE | |
| A 0019974390 | LOOM TIE | |
| A 0009972490 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| A 1109971281 | GROMMET | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TOWN HORN FOR FRANCE, ON SPECIAL REQUEST | ||
| A 0015426220 | HORN | |
| A 1115400473 | BRACKET | |
| TOWN HORN | ||
| N 000933010128 | SCREW | |
| TOWN HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| TOWN HORN TO BRACKET | ||
| A 1115402909 | CABLE HARNESS | |
| N 000084004151 | SCREW | |
| LINE CONNECTION | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| LINE CONNECTION | ||
| A 0005450611 | SWITCH | |
| Repalced by: A 0005458511 | ||
| A 0005458511 | SWITCH | |
| A 1365450672 | NUT | |
| PUSH-PULL SWITCH | ||
| A 1105400983 | HANDLE | |
| PUSH-PULL SWITCH | ||
| A 1105450740 | BRACKET | |
| PUSH-PULL SWITCH | ||
| N 007976004205 | SHEET METAL SCREW | |
| PUSH-PULL SWITCH | ||
| 362 | A 0001580703 | IGNITION COIL |
| 366 | A 0001580240 | BRACKET |
| N 000084005175 | SCREW | |
| N 000562005001 | NUT | |
| N 000934005008 | NUT | |
| CABLES TO IGNITION COIL | ||
| N 912004005100 | LOCK WASHER | |
| CABLES TO IGNITION COIL | ||
| 375 | A 0005463335 | BOOT |
| N 000933006130 | SCREW | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| A 0009900848 | WASHER | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| A 0009905991 | NUT RETAINER | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| 381 | A 0001580845 | SERIES RESISTOR |
| N 007981003254 | SHEET METAL SCREW | |
| SERIES RESISTANCE TO WHEEL ARCH PANEL | ||
| 387 | A 1085460003 | ELECTRIC CABLE |
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| CONNECTING CABLE TO SERIES RESISTANCE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CONNECTING CABLE TO SERIES RESISTANCE | ||
| 394 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 394 | A 0021547406 | REGULATOR AND CUT-OUT |
| A 0001568501 | CONDENSER | |
| 398 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 398 | N 304017006034 | SCREW |
| REGULATOR AND CUT-OUT TO WHEEL ARCH PANEL | ||
| 404 | N 912004006102 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO WHEEL ARCH PANEL | ||
| N 000934005008 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 000137005203 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| N 000934006007 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 000137006204 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| A 0001540585 | BOOT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
