Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

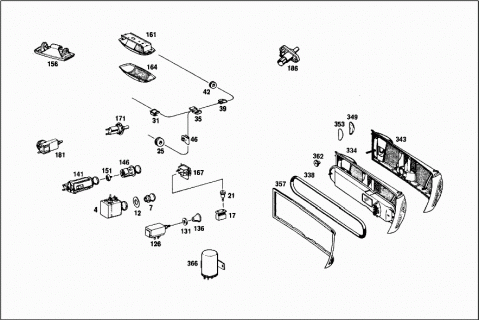

| 004 | A 1118210351 | SWITCH |
| Repalced by: A 1118210851 | ||
| A 1118210551 | SWITCH | |
| Repalced by: A 1118210851 | ||
| A 1118210751 | SWITCH | |
| Repalced by: A 1118210851 | ||
| A 1118210851 | SWITCH | |
| N 072601012800 | BULB | |
| 007 | A 1118200392 | KNOB |
| Repalced by: A 1108201392 | ||
| A 1118200692 | KNOB | |
| Repalced by: A 1108201392 | ||
| A 1108201392 | KNOB | |
| Repalced by: A 1108201592 | ||
| A 1108201592 | KNOB | |
| 012 | A 0009870741 | RUBBER RING |
| A 1088210051 | SWITCH | |
| Repalced by: A 1088210751 | ||
| A 1088210751 | SWITCH | |
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006407 | WASHER | |
| A 0009881878 | CLIP | |
| 017 | A 0005453028 | PLUG |
| Repalced by: A 0025454928 | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 021 | A 0005454928 | PLUG |
| Repalced by: A 0045458428 | ||
| 021 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 021 | A 1265401081 | PLUG SOCKET |
| UNIPOLAR | ||
| 025 | A 0009973181 | GROMMET |
| DOME LAMP CABLE THRU INSTRUMENT PANEL | ||
| 031 | A 0009881678 | CLIP |
| DOME LAMP CABLE TO ROOF FRONT RAIL | ||
| 035 | A 0009885578 | CLIP |
| DOME LAMP CABLE TO ROOF FRONT RAIL | ||
| 039 | A 0019887778 | CLIP |
| Repalced by: A 0009881778 | ||
| 039 | A 0009881778 | CLIP |
| DOME LAMP CABLE TO ROOF FRONT RAIL | ||
| A 0009972181 | GROMMET | |
| Repalced by: A 0009972081 | ||
| A 0009972081 | GROMMET | |
| WINDSHIELD | ||
| 042 | A 0009972281 | GROMMET |
| DOME LAMP CABLE THRU ROOF RAIL | ||
| 046 | A 0009882878 | CLIP |
| DOOR CONTACT CABLE | ||
| A 0009832991 | CARDBOARD | |
| TAIL LAMP CABLE HARNESS TO LUGGAGE COMPARTMENT FLOOR | ||
| 3 M | ||

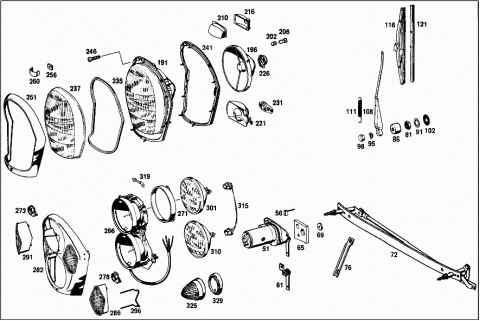

| 051 | A 1118200042 | ELECTRIC MOTOR |
| 056 | A 0008241775 | CARBON BRUSH SET |
| Repalced by: A 0008242775 | ||
| A 0008242775 | CARBON BRUSH SET | |
| 061 | A 1108240110 | CRANK |
| 065 | A 1108240097 | PAD |
| WIPER MOTOR TO FIRE WALL | ||
| 069 | A 1119971140 | SEAL RING |
| Repalced by: A 1159971040 | ||
| 069 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 069 | A 2019870241 | RUBBER RING |
| WIPER MOTOR TO FIRE WALL | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| WIPER MOTOR TO FIRE WALL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| WIPER MOTOR TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| WIPER MOTOR TO FIRE WALL | ||
| 072 | A 1108200643 | LINKAGE |
| 076 | A 0008240806 | ROD |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| DRIVE ROD TO LINKAGE | ||
| N 912004006102 | LOCK WASHER | |
| DRIVE ROD TO LINKAGE | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DRIVE ROD TO LINKAGE | ||
| A 0008241472 | NUT | |
| Repalced by: A 0029902651 | ||
| 081 | A 0029902651 | NUT |
| WIPER SPINDLE TO CENTRAL OUTSIDE PART | ||
| 086 | A 1118240072 | NUT |
| Repalced by: A 1108240472 | ||
| 086 | A 1108240472 | CAPSULE |
| WIPER SPINDLE TO CENTRAL OUTSIDE PART | ||
| 091 | A 0008242282 | WASHER |
| 095 | A 0009901748 | WASHER |
| 098 | A 0008241172 | NUT |
| A 0008242572 | NUT | |
| Repalced by: A 0009901253 | ||
| A 0009901253 | NUT | |
| 102 | A 0009870741 | RUBBER RING |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| N 000931006079 | SCREW | |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| N 912004006102 | LOCK WASHER | |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| 108 | A 1108200144 | WIPER ARM |
| Repalced by: A 1108200744 | ||
| 108 | A 1108200744 | WIPER ARM |
| LEFT | ||
| A 1108200244 | WIPER ARM | |
| Repalced by: A 1108200844 | ||
| A 1108200844 | WIPER ARM | |
| RIGHT | ||
| 111 | A 0008240135 | SPRING |
| 116 | A 1108200045 | WIPER BLADE |
| Repalced by: A 1108200345 | ||
| 116 | A 1108200345 | WIPER BLADE |
| A 1108200245 | WIPER BLADE | |
| 121 | A 0008240227 | WIPER RUBBER |
| Repalced by: A 1108200345 | ||
| 121 | A 1108200345 | WIPER BLADE |
| 330 MM | ||
| A 0008241027 | WIPER RUBBER | |
| 126 | A 1108210151 | SWITCH |
| Repalced by: A 1108210651 | ||
| A 1108210651 | SWITCH | |
| 131 | A 1108210059 | ESCUTCHEON |
| Repalced by: A 1108210459 | ||
| 131 | A 1108210459 | ESCUTCHEON |
| WINDSHIELD WIPER SWITCH | ||
| 136 | A 1108200092 | KNOB |
| Repalced by: A 1108200392 | ||
| 136 | A 1108200392 | KNOB |
| WINDSHIELD WIPER SWITCH | ||
| A 1108210259 | ESCUTCHEON | |
| A 1108200892 | KNOB | |
| 141 | A 1108250353 | CIGAR LIGHTER |
| Repalced by: A 1108250553 | ||
| A 1108250553 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| A 1158250253 | CIGAR LIGHTER | |
| 146 | A 1108250251 | ELEMENT |
| Repalced by: A 0008250551 | ||
| A 1108250351 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| A 0008250551 | ELEMENT | |
| 151 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 151 | A 0008250252 | INCANDESCENT SPIRAL |
| 156 | A 0008250501 | DOME LAMP |
| A 0008250601 | DOME LAMP | |
| Repalced by: A 0008251101 | ||
| A 0008251101 | DOME LAMP | |
| N 072601012120 | BULB | |
| 161 | A 1088200152 | READING LAMP |
| REAR | ||
| 164 | H 101808250109 | SHELL |
| N 072601012130 | BULB | |
| N 007982003316 | SHEET METAL SCREW | |
| DOME LAMP | ||
| 167 | A 0018210251 | SWITCH |
| DOME LAMP | ||
| 171 | A 0008210452 | CONTACTOR |
| Repalced by: A 0008211552 | ||
| A 0008211552 | CONTACTOR | |
| A 0008210252 | CONTACTOR | |
| Repalced by: A 0008210652 | ||
| A 1108210096 | PAD | |
| Repalced by: A 0008210652 | ||
| A 0008210652 | CONTACTOR | |
| DOOR CONTACT SWITCH | ||
| A 0009973181 | GROMMET | |
| DOOR CONTACT SWITCH | ||
| N 007982002230 | SHEET METAL SCREW | |
| DOOR CONTACT SWITCH | ||
| A 1008200352 | READING LAMP | |
| LEFT | ||
| A 1008200452 | READING LAMP | |
| RIGHT | ||
| N 072601012701 | BULB | |
| N 007981004242 | SHEET METAL SCREW | |
| Repalced by: N 007981004250 | ||
| N 007981004250 | SHEET METAL SCREW | |
| READING LAMP | ||
| 181 | A 1128200023 | INTERIOR LAMP |
| N 072601012800 | BULB | |
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 186 | A 1108250041 | INTERIOR LAMP |
| N 072601012701 | BULB | |
| N 007981003246 | SHEET METAL SCREW | |
| LAMPS | ||
| 191 | A 1088200061 | LIGHTING UNIT |
| ASYMMETRICAL;R.H.TRAFFIC | ||
| A 1088200161 | LIGHTING UNIT | |
| ASYMMETRICAL;L.S.TRAFFIC | ||
| 196 | A 0008260178 | REFLECTOR |
| HEADLAMP;R.H. TRAFFIC | ||
| A 0008260378 | REFLECTOR | |
| HEADLAMP;L.H. TRAFFIC | ||
| 202 | A 0008260094 | BUSHING |
| 206 | A 0008260139 | SHACKLE |
| 210 | A 0008260357 | LENS |
| BLINKER LAMP | ||
| A 1008260182 | LAMP SOCKET | |
| BLINKER LAMP | ||
| 216 | A 0008261278 | REFLECTOR |
| BLINKER LAMP | ||
| 221 | A 0008260078 | REFLECTOR |
| FOGLIGHT AND CLEARANCE LIGHT | ||
| A 0008260094 | BUSHING | |
| A 0008260139 | SHACKLE | |
| 226 | A 0008262582 | LAMP SOCKET |
| HEADLAMP | ||
| 231 | A 0008261182 | LAMP SOCKET |
| Repalced by: A 1008260182 | ||
| 231 | A 1008260182 | LAMP SOCKET |
| FOGLIGHT AND CLEARANCE LIGHT | ||
| 235 | A 0008260580 | SEAL |
| Repalced by: A 0008265780 | ||
| 235 | A 0008265780 | SEAL |
| 237 | A 1088260190 | LENS |
| R.H.TRAFFIC | ||
| A 1088260290 | LENS | |
| L.H. TRAFFIC | ||
| 241 | A 0008263780 | SEAL |
| Repalced by: A 0008265580 | ||
| 241 | A 0008265580 | SEAL |
| LIGHTING UNIT TO FRONT FENDER | ||
| 246 | A 1119900121 | SCREW |
| LIGHTING UNIT TO FRONT FENDER | ||
| 251 | A 1118260089 | RIM |
| 256 | A 1119900052 | NUT |
| 260 | A 1119930125 | SPRING |
| N 072601012100 | BULB | |
| HEADLAMP | ||
| N 072601012101 | BULB | |
| AMBER;FOR HEADLAMP | ||
| N 072601012900 | BULB | |
| PARKING LIGHT | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT | ||
| N 072601012400 | BULB | |
| FOGLAMP | ||
| N 072601012401 | BULB | |
| AMBER;FOR FOGLAMP | ||
| N 072601012701 | BULB | |
| CLEARANCE LIGHT | ||
| 266 | A 1088200461 | LIGHTING UNIT |
| Repalced by: A 1088207161 | ||
| 266 | A 1088207161 | LIGHTING UNIT |
| LESS SEALED BEAM UNIT AND LESS DECORATIVE RIM | ||
| 271 | A 1118260389 | RIM |
| 273 | A 0008261382 | LAMP SOCKET |
| Repalced by: A 0008265382 | ||
| 273 | A 0008265382 | LAMP SOCKET |
| CLEARANCE LIGHT | ||
| 278 | A 0008261482 | LAMP SOCKET |
| BLINKER AND PARKING LIGHTS | ||
| 282 | A 1088260189 | RIM |
| Repalced by: A 1088260389 | ||
| 282 | A 1088260389 | RIM |
| SEALED BEAM | ||
| 286 | A 1118260590 | LENS |
| LEFT | ||
| 291 | A 1118260690 | LENS |
| RIGHT | ||
| 296 | A 0008260884 | SPRING |
| LENS | ||
| 301 | A 0008260099 | BEAM UNIT |
| Repalced by: A 0008263699 | ||
| 301 | A 0008263699 | BEAM UNIT |
| Repalced by: A 0008265599 | ||
| 301 | A 0008265599 | BEAM UNIT |
| HIGH/LOW BEAM; TYPE 2 | ||
| A 0008260699 | BEAM UNIT | |
| HIGH/LOW BEAM, TYPE 1 | ||
| 310 | A 0008260199 | BEAM UNIT |
| Repalced by: A 0008265499 | ||
| 310 | A 0008265499 | BEAM UNIT |
| SEALED BEAM; BRIGHT LIGHT,TYPE 1 | ||
| 315 | A 0008210124 | PLUG SOCKET |
| N 072601012170 | BULB | |
| BLINKER AND PARKING LIGHTS | ||
| 319 | A 1118260012 | ANGLE |
| SEALED BEAM | ||
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| 325 | A 1118200520 | BLINKER LAMP |
| A 1118260790 | LENS | |
| 329 | A 1118200096 | PAD |
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| FRONT BLINKER LAMP | ||
| N 072601012170 | BULB | |
| FRONT BLINKER LAMP | ||
| A 0008225720 | BLINKER LAMP | |
| Repalced by: A 0008260341 | ||
| A 0008260341 | SIDE REFLECTOR | |
| A 1118220098 | SEAL | |
| A 1869970681 | GROMMET | |
| N 072601012800 | BULB | |
| A 0018210851 | SWITCH | |
| Repalced by: A 0015449532 | ||
| A 0015449532 | SENDER UNIT | |
| A 1108210059 | ESCUTCHEON | |
| Repalced by: A 1108210459 | ||
| A 1108210459 | ESCUTCHEON | |
| A 1108260524 | COVERING | |
| A 1108200392 | KNOB | |
| A 1108200092 | KNOB | |
| Repalced by: A 1108200392 | ||
| A 1108200392 | KNOB | |
| A 1108260022 | WASHER | |
| A 0025454428 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| A 0025457228 | PLUG | |
| Repalced by: A 0025457428 | ||
| A 0025457428 | PLUG | |
| 10-POLE | ||
| A 0025453328 | PLUG | |
| Repalced by: A 0025453128 | ||
| A 0025453128 | PLUG | |
| 10-POLE | ||
| 334 | A 1118200964 | TAIL LAMP |
| LEFT | ||
| A 1118201064 | TAIL LAMP | |
| RIGHT | ||
| A 1118201364 | TAIL LAMP | |
| ORANGE BLINKER LAMP,LEFT;FOR FRANCE | ||
| A 1118201464 | TAIL LAMP | |
| ORANGE BLINKER LAMP,RIGHT;FOR FRANCE | ||
| A 1118201164 | TAIL LAMP | |
| LEFT | ||
| A 1118201264 | TAIL LAMP | |
| RIGHT | ||
| A 1118260752 | RIM | |
| LEFT | ||
| A 1118260852 | RIM | |
| RIGHT | ||
| 338 | A 1118260058 | SEAL |
| 343 | A 1118260552 | RIM |
| LEFT | ||
| A 1118260652 | RIM | |
| RIGHT | ||
| A 1118260952 | RIM | |
| FOR FRANCE; LEFT | ||
| A 1118261052 | RIM | |
| FOR FRANCE; RIGHT | ||
| 349 | A 1118260067 | LENS |
| LICENSE PLATE LAMP | ||
| 353 | A 1118260197 | PAD |
| 357 | A 1118260158 | SEAL |
| COVER TO REAR END,LEFT | ||
| A 1118260258 | SEAL | |
| COVER TO REAR END,RIGHT | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT | ||
| N 072601012160 | BULB | |
| STOP LIGHT | ||
| N 072601012600 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012700 | BULB | |
| TAIL AND CLEARANCE LIGHTS | ||
| N 072601012702 | BULB | |
| LICENSE PLATE LAMP | ||
| A 0009840355 | WASHER | |
| Repalced by: A 1119903640 | ||
| A 1119903640 | WASHER | |
| COVER TO REAR END | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| COVER TO REAR END | ||
| N 000934006007 | NUT | |
| COVER TO REAR END | ||
| 362 | A 1119900057 | NUT |
| 366 | A 0005445332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 366 | A 0005446132 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 366 | A 0005448332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 366 | A 0015444232 | SENDER UNIT |
| Repalced by: A 0005445832 | ||
| 366 | A 0005445832 | SENDER UNIT |
| BOSCH | ||
| N 007981003246 | SHEET METAL SCREW | |
| BLINKER SENDER UNIT | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| BLINKER SENDER UNIT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
