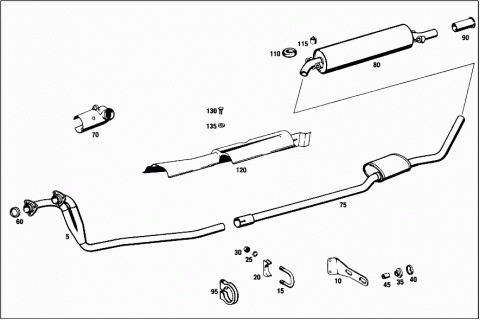

Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1084900820 | EXHAUST PIPE |
| FRONT | ||
| A 1084900920 | EXHAUST PIPE | |
| FRONT | ||
| 010 | A 1080940141 | BRACKET |
| 010 | A 1084900040 | BRACKET |
| 015 | A 1104920027 | CLAMPING BRACKET |
| 020 | A 1084920026 | CLAMPING PIECE |
| 025 | N 000127008203 | LOCK WASHER |
| 030 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 030 | N 304032008006 | NUT |
| 035 | A 1211550181 | RUBBER RING |
| BRACKET TO MOUNTING PLATE | ||
| 040 | N 000440009103 | WASHER |
| 045 | A 1084920053 | SPACER TUBE |
| BRACKET TO MOUNTING PLATE | ||
| A 1089900340 | WASHER | |
| BRACKET TO MOUNTING PLATE | ||
| N 000931008244 | SCREW | |
| BRACKET TO MOUNTING PLATE | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| BRACKET TO MOUNTING PLATE | ||
| N 000127008203 | LOCK WASHER | |
| BRACKET TO MOUNTING PLATE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BRACKET TO MOUNTING PLATE | ||
| 060 | N 915035000023 | SEAL RING |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| N 000125008407 | WASHER | |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| 070 | A 0000940311 | SCOOP |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| 075 | A 1104901221 | EXHAUST PIPE |
| REAR | ||
| 080 | A 1114914601 | MUFFLER |
| 090 | A 1234920714 | END PIECE |
| 095 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 095 | A 1074900041 | CLAMP |
| N 000931008251 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000125008407 | WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 110 | A 1074920082 | DAMPING PAD |
| 115 | A 1129870140 | RUBBER BUFFER |
| 120 | A 1084920030 | PROTECTIVE PLATE |
| N 007976006203 | SHEET METAL SCREW | |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| N 000137006204 | SPRING WASHER | |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| 130 | A 1204200227 | SCREW |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| 135 | A 0009873841 | RUBBER RING |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| N 000137006204 | SPRING WASHER | |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| N 000934006007 | NUT | |
| SCREENING PLATE TO FRAME FLOOR UNIT | ||
| A 1124900830 | PROTECTIVE PLATE | |
| Repalced by: A 1094920530 | ||
| A 1094920530 | PROTECTIVE PLATE | |
| N 000087006125 | SCREW | |
| A 1084900037 | REPAIR KIT | |
| A 1084920027 | CLAMPING BRACKET | |
| Repalced by: A 1104920027 | ||
| A 1104920027 | CLAMPING BRACKET | |
| N 000440009103 | WASHER | |
| A 1211550181 | RUBBER RING | |
| A 1084920053 | SPACER TUBE | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 000931008244 | SCREW | |
| N 000934008013 | NUT | |
| A 1089900340 | WASHER | |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| A 1085860349 | REPAIR KIT | |
