Transporto priemonė: 230 S; VIN numerio dalis: 111010

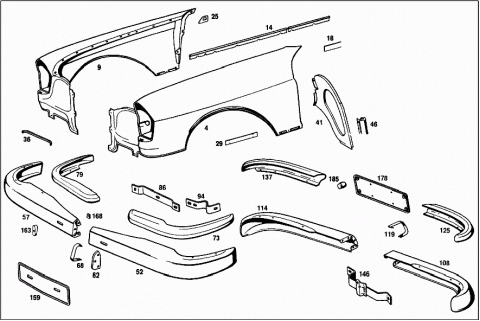

Grupė: 88 FRONT AND REAR END SHEET METAL - 001 ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1118800118 | FRONT FENDER |
| LEFT | ||
| 009 | A 1118800218 | FRONT FENDER |
| RIGHT | ||
| A 1118801318 | FRONT FENDER | |
| Repalced by: A 1118801418 | ||
| A 1118801418 | FRONT FENDER | |
| Repalced by: A 1115860188 | ||
| A 1115860188 | REPAIR KIT | |
| Repalced by: A 1268800497 | ||
| A 1268800497 | REPAIR KIT | |
| Repalced by: A 1118800097 | ||
| A 1118800097 | SEAL | |
| 014 | A 1118810095 | INTERMEDIATE LAYER |
| Repalced by: A 0039895485 | ||
| A 0039895485 | ADHESIVE TAPE | |
| FRONT FENDER TO WHEELHOUSE | ||
| N 007976006205 | SHEET METAL SCREW | |
| FRONT FENDER TO WHEELHOUSE | ||
| N 007976006208 | SHEET METAL SCREW | |
| FRONT FENDER TO WHEELHOUSE | ||
| A 0009943845 | LOCK | |
| FRONT FENDER TO WHEELHOUSE | ||
| A 1119903640 | WASHER | |
| FRONT FENDER TO WHEELHOUSE | ||
| 018 | A 0009875851 | RUBBER SEAL |
| Repalced by: A 0009878651 | ||
| 025 | A 1108810082 | WASHER |
| Repalced by: A 0009878651 | ||
| A 0009878651 | RUBBER SEAL | |
| Repalced by: A 0039895485 | ||
| A 0039895485 | ADHESIVE TAPE | |
| 655 MM | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| A 0009900848 | WASHER | |
| Repalced by: A 1119903640 | ||
| A 1119903640 | WASHER | |
| 029 | A 1108810395 | INTERMEDIATE LAYER |
| Repalced by: A 1158810997 | ||
| A 1158810997 | PAD | |
| FRONT FENDER TO SIDE MEMBER | ||
| N 007981005212 | SHEET METAL SCREW | |
| FRONT FENDER TO SIDE MEMBER | ||
| N 000137006204 | SPRING WASHER | |
| FRONT FENDER TO SIDE MEMBER | ||
| A 0009944745 | LOCK | |
| FRONT FENDER TO SIDE MEMBER | ||
| N 007982005211 | SHEET METAL SCREW | |
| FRONT FENDER TO FRONT STIFFENING | ||
| A 0009944745 | LOCK | |
| FRONT FENDER TO FRONT STIFFENING | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| FRONT FENDER TO CROSS MEMBER | ||
| A 0009900848 | WASHER | |
| Repalced by: A 1119903640 | ||
| A 1119903640 | WASHER | |
| 036 | A 1118810544 | GARNISH MOULDING |
| FRONT FENDER | ||
| A 0009880028 | PLUG | |
| FRONT FENDER | ||
| A 0009880027 | GROMMET | |
| Repalced by: A 0009881427 | ||
| A 0009881427 | GROMMET | |
| FRONT FENDER | ||
| 041 | A 1108840335 | PARTITION PANEL |
| LEFT FRONT FENDER | ||
| A 1118840035 | PARTITION PANEL | |
| RIGHT FRONT FENDER | ||
| 046 | A 0009871651 | RUBBER SEAL |
| Repalced by: A 1108840098 | ||
| A 1108840098 | SEAL | |
| 770 MM | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| N 009021006208 | WASHER | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| N 007976005202 | SHEET METAL SCREW | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| N 007976005202 | SHEET METAL SCREW | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| A 0009894585 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0029894185 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| N 007976004205 | SHEET METAL SCREW | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| A 0009941345 | LOCK | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| 052 | A 1128800170 | FRONT BUMPER FACE BAR |
| LEFT | ||
| 057 | A 1128800270 | FRONT BUMPER FACE BAR |
| RIGHT | ||
| 062 | A 1108850016 | REINFORCEMENT |
| 068 | A 1108850123 | BUMPER JOINT COVER |
| FRONT BUMPER | ||
| N 000933008145 | SCREW | |
| FRONT BUMPER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| FRONT BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| FRONT BUMPER | ||
| 073 | A 1128850501 | FRONT BUMPER FACE BAR |
| UPPER PART, LEFT | ||
| 079 | A 1128850601 | FRONT BUMPER FACE BAR |
| UPPER PART,RIGHT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BUMPER FACE BAR UPPER PART TO FRONT BUMPER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BUMPER FACE BAR UPPER PART TO FRONT BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BUMPER FACE BAR UPPER PART TO FRONT BUMPER | ||
| A 1129900640 | WASHER | |
| BUMPER FACE BAR UPPER PART TO FRONT BUMPER | ||
| 086 | A 1118850040 | BRACKET |
| FRONT BUMPER,INSIDE | ||
| 094 | A 1108850040 | BRACKET |
| FRONT BUMPER,OUTSIDE | ||
| N 000933010105 | SCREW | |
| BRACKET TO BUMPER | ||
| N 000933010164 | SCREW | |
| BRACKET TO BUMPER | ||
| N 000125010504 | WASHER | |
| BRACKET TO BUMPER | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| BRACKET TO BUMPER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO BUMPER | ||
| N 000933010105 | SCREW | |
| FRONT BUMPER TO CROSS MEMBER | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| FRONT BUMPER TO CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| FRONT BUMPER TO CROSS MEMBER | ||
| A 1109840156 | WASHER | |
| FRONT BUMPER TO CROSS MEMBER 5 MM | ||
| A 1109840356 | WASHER | |
| FRONT BUMPER TO CROSS MEMBER 2 MM | ||
| N 000933010105 | SCREW | |
| FRONT BUMPER TO CROSS MEMBER | ||
| N 000125010504 | WASHER | |
| FRONT BUMPER TO CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| FRONT BUMPER TO CROSS MEMBER | ||
| 108 | A 1128800171 | REAR BUMPER FACE BAR |
| LEFT | ||
| 114 | A 1128800271 | REAR BUMPER FACE BAR |
| RIGHT | ||
| 119 | A 1108850122 | BUMPER JOINT COVER |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| REAR BUMPER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| REAR BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| REAR BUMPER | ||
| 125 | A 1128850505 | REAR BUMPER FACE BAR |
| UPPER PART, LEFT | ||
| 137 | A 1128850605 | REAR BUMPER FACE BAR |
| UPPER PART,RIGHT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| REAR BUMPER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| REAR BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| REAR BUMPER | ||
| A 1129900640 | WASHER | |
| REAR BUMPER | ||
| 146 | A 1108800114 | BRACKET |
| LEFT,REAR BUMPER | ||
| A 1108800214 | BRACKET | |
| RIGHT,REAR BUMPER | ||
| N 000933010105 | SCREW | |
| BRACKET TO BUMPER | ||
| N 000933010105 | SCREW | |
| BUMPER TO BODY | ||
| N 000933010105 | SCREW | |
| REAR BUMPER TO REAR BODY PANEL CROSS MEMBER | ||
| N 000125010504 | WASHER | |
| BUMPER TO BRACKET | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| REAR BUMPER TO REAR BODY PANEL CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BUMPER TO BRACKET | ||
| N 000934010017 | NUT | |
| BUMPER TO BRACKET | ||
| 159 | A 1108850081 | LICENSE PLATE MOULDING |
| FRONT | ||
| 163 | A 1108850097 | PAD |
| 168 | A 1108850197 | PAD |
| N 000085005133 | SCREW | |
| LICENSE PLATE TO FRONT BUMPER | ||
| N 000125005306 | WASHER | |
| LICENSE PLATE TO FRONT BUMPER | ||
| N 000934005008 | NUT | |
| LICENSE PLATE TO FRONT BUMPER | ||
| 178 | A 1108850080 | LICENSE PLATE MOULDING |
| Repalced by: A 1158170078 | ||
| A 1158170078 | LICENSE PLATE MOULDING | |
| Repalced by: A 1158170378 | ||
| A 1158170378 | LICENSE PLATE MOULDING | |
| REAR | ||
| 185 | A 1119870140 | RUBBER BUFFER |
| Repalced by: A 1119871740 | ||
| A 1119871740 | RUBBER BUFFER | |
| N 000085005129 | SCREW | |
| LICENSE PLATE TO FRONT BUMPER | ||
| A 0009873741 | RUBBER RING | |
| LICENSE PLATE TO FRONT BUMPER | ||
| N 000125005306 | WASHER | |
| LICENSE PLATE TO FRONT BUMPER | ||
| N 000934005008 | NUT | |
| LICENSE PLATE TO FRONT BUMPER | ||

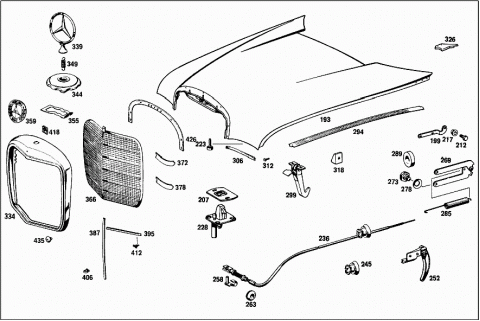

| 193 | A 1118800457 | ENGINE HOOD |
| 199 | A 1108870574 | LEVER |
| LEFT | ||
| A 1108870674 | LEVER | |
| RIGHT | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 912004006102 | LOCK WASHER | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 000934006007 | NUT | |
| HINGE LEVER TO ENGINE HOOD | ||
| 207 | A 1108800560 | ENGINE HOOD CATCH |
| Repalced by: A 1158870006 | ||
| 207 | A 1158870006 | ENGINE HOOD CATCH |
| Repalced by: A 1078800060 | ||
| 207 | A 1078800060 | ENGINE HOOD CATCH |
| UPPER PART | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| ENGINE HOOD CATCH | ||
| N 912004006102 | LOCK WASHER | |
| ENGINE HOOD CATCH | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| ENGINE HOOD CATCH | ||
| 212 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 212 | N 304017008034 | SCREW |
| HINGE LEVER TO COWL | ||
| N 900055012001 | SPRING WASHER | |
| HINGE LEVER TO COWL | ||
| N 000125008407 | WASHER | |
| HINGE LEVER TO COWL | ||
| 217 | A 1108870149 | BUSHING |
| 223 | A 1108800017 | STOP SCREW |
| Repalced by: A 1269900015 | ||
| 223 | A 1269900015 | SCREW |
| Repalced by: A 2019880211 | ||
| 223 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 223 | A 2019880511 | BUFFER |
| ENGINE HOOD | ||
| N 000934006007 | NUT | |
| 228 | A 1108800860 | ENGINE HOOD CATCH |
| Repalced by: A 1158800160 | ||
| 228 | A 1158800160 | ENGINE HOOD CATCH |
| LOWER PART | ||
| N 007987006127 | SCREW | |
| ENGINE HOOD CATCH | ||
| 236 | A 1118800159 | ENGINE HOOD RELEASE CABLE |
| Repalced by: A 1088800159 | ||
| A 1088800159 | ENGINE HOOD RELEASE CABLE | |
| 245 | A 1109971181 | GROMMET |
| 252 | A 1108800020 | HANDLE |
| Repalced by: A 9703100173 | ||
| 252 | A 9703100173 | LEVER |
| 258 | N 918001005001 | PIN |
| ENGINE HOOD RELEASE CABLE TO ENGINE HOOD CATCH LOWER PART | ||
| N 007976004207 | SHEET METAL SCREW | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM | ||
| N 006797005132 | TOOTHED WASHER | |
| 263 | A 0009972781 | GROMMET |
| 269 | A 1108800177 | SUPPORT |
| LEFT | ||
| A 1108800277 | SUPPORT | |
| RIGHT | ||
| 273 | A 1209840033 | SCREW |
| ENGINE HOOD SUPPORT TO WHEELHOUSE | ||
| 278 | A 0009900048 | WASHER |
| ENGINE HOOD SUPPORT TO WHEELHOUSE | ||
| N 000125010504 | WASHER | |
| ENGINE HOOD SUPPORT TO WHEELHOUSE | ||
| A 0009900448 | WASHER | |
| ENGINE HOOD SUPPORT TO WHEELHOUSE | ||
| 285 | A 1118870079 | SPRING |
| ENGINE HOOD SUPPORT | ||
| 289 | A 1109870541 | RUBBER RING |
| ENGINE HOOD SUPPORT | ||
| 294 | A 1118870160 | STRUT |
| 299 | A 1108800064 | SAFETY HOOK |
| Repalced by: A 1108800264 | ||
| A 1108800264 | SAFETY HOOK | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| SAFETY HOOK | ||
| N 912004006102 | LOCK WASHER | |
| SAFETY HOOK | ||
| 306 | A 1118870309 | GARNISH MOULDING |
| FRONT | ||
| 312 | A 0009901533 | SCREW |
| GARNISH MOULDING | ||
| N 000127003206 | LOCK WASHER | |
| GARNISH MOULDING | ||
| N 000934003002 | NUT | |
| GARNISH MOULDING | ||
| 318 | A 1119870340 | RUBBER BUFFER |
| ENGINE HOOD REST AT FRONT FENDERS | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| ENGINE HOOD REST AT FRONT FENDERS | ||
| N 007981003327 | SHEET METAL SCREW | |
| ENGINE HOOD REST AT FRONT FENDERS | ||
| 326 | A 1108870125 | COVERING |
| LEFT | ||
| A 1108870225 | COVERING | |
| RIGHT | ||
| N 007982002222 | SHEET METAL SCREW | |
| COVERING TO BODY | ||
| 334 | A 1108880015 | RADIATOR GRILLE SHELL |
| LESS MERCEDES STAR | ||
| H 101808880109 | MERCEDES STAR | |
| Repalced by: A 1808880109 | ||
| 339 | A 1808880109 | MERCEDES STAR |
| 344 | A 1108880017 | ESCUTCHEON |
| H 101808880034 | SPRING | |
| Repalced by: A 1808880034 | ||
| 349 | A 1808880034 | SPRING |
| 355 | A 0009940121 | LOCK |
| 359 | A 1108800088 | MERCEDES BADGE |
| Repalced by: A 1088800088 | ||
| A 1088800088 | MERCEDES BADGE | |
| A 0009902048 | WASHER | |
| N 000934004006 | NUT | |
| A 1108800185 | RADIATOR GRILLE | |
| Repalced by: A 1108800085 | ||
| 366 | A 1108800085 | RADIATOR GRILLE |
| RADIATOR GRILLE SHELL | ||
| 372 | A 1108880034 | SPRING |
| RADIATOR GRILLE SHELL | ||
| 378 | A 1108880134 | SPRING |
| RADIATOR GRILLE SHELL | ||
| N 007985004140 | SCREW | |
| RADIATOR GRILLE SHELL | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| RADIATOR GRILLE SHELL | ||
| A 0009902045 | PLATE | |
| Repalced by: A 0009902048 | ||
| A 0009902048 | WASHER | |
| N 000934004006 | NUT | |
| RADIATOR GRILLE SHELL | ||
| 387 | A 1108880021 | GARNISH MOULDING |
| ALONGSIDE | ||
| 395 | A 1088880122 | GARNISH MOULDING |
| TRANSVERSE | ||
| 406 | A 0019885678 | CLIP |
| GARNISH MOULDING TO RADIATOR GRILL | ||
| 412 | A 0019887478 | CLIP |
| GARNISH MOULDING TO RADIATOR GRILL | ||
| 418 | A 0009940545 | LOCK |
| RADIATOR GRILLE SHELL TO ENGINE HOOD | ||
| 426 | A 1118885098 | SEAL |
| RADIATOR GRILLE SHELL TO ENGINE HOOD | ||
| N 007981004322 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| RADIATOR GRILLE SHELL TO ENGINE HOOD | ||
| A 0009900348 | WASHER | |
| RADIATOR GRILLE SHELL TO ENGINE HOOD | ||
| 435 | A 0009871840 | RUBBER BUFFER |
| RADIATOR GRILLE SHELL TO FRONT FENDERS | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
