Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

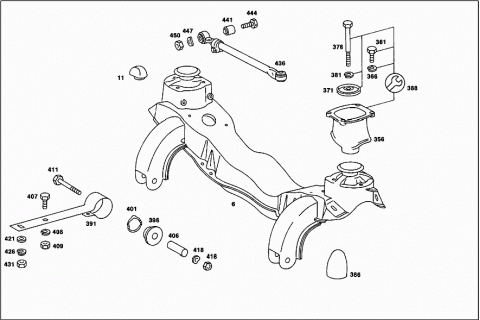

| 006 | A 1113303042 | FRONT SUBFRAME |
| 011 | A 1123330165 | RUBBER BUFFER |
| A 1113302498 | HALF FRONT AXLE | |
| Repalced by: A 1113303098 | ||
| A 1113303098 | HALF FRONT AXLE | |
| Repalced by: A 1103301498 | ||
| A 1103301498 | HALF FRONT AXLE | |
| LEFT | ||
| A 1113302598 | HALF FRONT AXLE | |
| Repalced by: A 1113303198 | ||
| A 1113303198 | HALF FRONT AXLE | |
| Repalced by: A 1103301598 | ||
| A 1103301598 | HALF FRONT AXLE | |
| RIGHT | ||

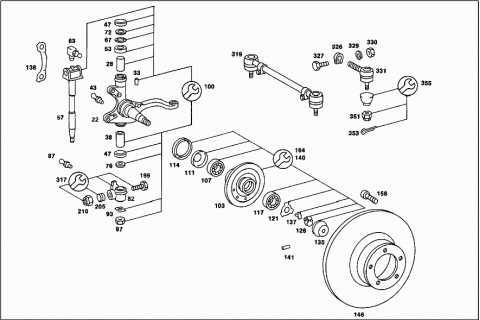

| 022 | A 1113303820 | STEERING KNUCKLE |
| LEFT | ||
| 022 | A 1113303920 | STEERING KNUCKLE |
| RIGHT | ||
| 028 | A 1803320148 | BUSHING |
| TOP | ||
| 033 | N 000007002208 | CYLINDRICAL PIN |
| 038 | A 1113320148 | BUSHING |
| BOTTOM | ||
| 043 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 043 | N 071412008102 | GREASE NIPPLE |
| 047 | A 1203320260 | DUST CAP |
| 053 | A 1203320051 | SPACER RING |
| 057 | A 1113320106 | KINGPIN |
| 063 | N 071412008200 | GREASE NIPPLE |
| 067 | A 1203320162 | THRUST WASHER |
| BOTTOM | ||
| 072 | A 1203320262 | THRUST WASHER |
| TOP | ||
| 076 | A 1363320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 076 | A 1363320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 076 | A 1363321052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.1 MM | ||
| 076 | A 1363320052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.3 MM | ||
| 076 | A 1363320152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.5 MM | ||
| 076 | A 1363320252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.7 MM | ||
| 082 | A 1803330009 | STEERING KNUCKLE SUPPORT |
| 087 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 087 | N 071412008102 | GREASE NIPPLE |
| 093 | A 1819940015 | LOCK |
| 097 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 097 | N 308673014001 | NUT |
| 100 | A 1115860033 | REPAIR KIT |
| 103 | A 1123340501 | WHEEL HUB |
| 107 | A 0009815805 | TAPERED ROLLER BEARING |
| 111 | A 1113340064 | RETAINER |
| 114 | A 0039979346 | SEAL RING |
| 117 | A 0009815905 | TAPERED ROLLER BEARING |
| 121 | A 1153340315 | RING |
| 126 | A 1203340772 | NUT |
| A 1209901320 | SCREW | |
| 135 | A 1123300057 | HUB CAP |
| Repalced by: A 1083340025 | ||
| 135 | A 1083340025 | HUB CAP |
| 137 | A 2015470085 | CONTACT SPRING |
| 138 | A 1159940732 | LOCK |
| 138 | A 1159940732 | LOCK |
| 140 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 140 | A 1073300051 | REPAIR KIT |
| 141 | N 001474004001 | GROOVED PIN |
| ON SPECIAL REQUEST, INTERFERENCE SUPPRESSION FOR RADIO INSTALLATION | ||
| 146 | A 1104210112 | BRAKE DISC |
| A 1235860042 | REPAIR KIT | |
| BRAKE DISC TO WHEEL HUB | ||
| 158 | A 0009907212 | SCREW |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 40,FIG.NO.42 | ||
| 164 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 164 | A 1073300051 | REPAIR KIT |

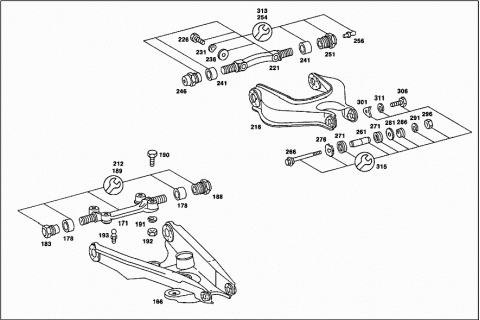

| 166 | A 1113302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 166 | A 1113303007 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 171 | A 1113330330 | PIN |
| 178 | A 1203330180 | SEAL RING |
| 183 | A 1113330548 | SCREW COLLAR |
| THREAD O.D., 29.9 MM | ||
| 188 | A 1113330448 | SCREW COLLAR |
| THREAD O.D., 30.9 MM | ||
| 189 | A 1103300118 | REPAIR KIT |
| 190 | A 1089900801 | SCREW |
| PIVOT PIN TO FRONT SUBFRAME | ||
| 191 | N 912004012100 | LOCK WASHER |
| PIVOT PIN TO FRONT SUBFRAME | ||
| 192 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 192 | N 308673012002 | NUT |
| PIVOT PIN TO FRONT SUBFRAME | ||
| 193 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 193 | N 071412008102 | GREASE NIPPLE |
| 199 | A 1203330474 | PIN |
| 205 | A 1813330180 | SEAL RING |
| 210 | A 1819900055 | NUT |
| N 000094003007 | COTTER PIN | |
| 212 | A 1103300118 | REPAIR KIT |
| LOWER CONTROL ARM PIVOT PIN | ||
| 216 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| 221 | A 1113330230 | PIN |
| 226 | A 1089900801 | SCREW |
| 231 | A 1109940010 | LOCK |
| 236 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 236 | N 000433013010 | WASHER |
| 241 | A 1203330180 | SEAL RING |
| 246 | A 1203330248 | SCREW COLLAR |
| THREAD O.D., 29.9 MM | ||
| 251 | A 1203330348 | SCREW COLLAR |
| THREAD O.D., 30.9 MM | ||
| 254 | A 1103300018 | REPAIR KIT |
| 256 | N 071412008200 | GREASE NIPPLE |
| 261 | A 1203330548 | SCREW COLLAR |
| 266 | A 1203330374 | PIN |
| 271 | A 1813330180 | SEAL RING |
| 276 | A 1209903240 | WASHER |
| 281 | A 1209901340 | WASHER |
| 286 | A 1203300187 | ECCENTRIC BUSHING |
| 291 | N 000127010200 | LOCK WASHER |
| 296 | N 000934010014 | NUT |
| 301 | A 1203330073 | LOCK |
| 306 | N 000933006010 | SCREW |
| 311 | N 912004006102 | LOCK WASHER |
| 313 | A 1103300018 | REPAIR KIT |
| UPPER CONTROL ARM PIVOT PIN | ||
| 315 | A 1103300218 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 317 | A 1103300318 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| A 1153300703 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 319 | A 1073300103 | TIE ROD |
| A 0003381515 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| 326 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 326 | A 0003384245 | CLAMP |
| 327 | N 000960008011 | SCREW |
| FOR CLAMP | ||
| 329 | N 000127008200 | LOCK WASHER |
| FOR CLAMP | ||
| 330 | N 000934008007 | NUT |
| Repalced by: N 000934008020 | ||
| 330 | N 000934008020 | NUT |
| FOR CLAMP | ||
| 331 | A 0003381910 | BALL JOINT |
| Repalced by: A 0003385210 | ||
| 331 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 331 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| 331 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 331 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| 331 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 351 | A 1209900155 | NUT |
| TO 115 330 07 03,08 03 | ||
| 351 | N 913002010010 | NUT |
| TO 107 330 01 03 | ||
| 353 | N 000094002077 | COTTER PIN |
| 355 | A 0003300485 | REPAIR KIT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SUSPENSION | ||
| 356 | A 1113301575 | RUBBER MOUNTING |
| 361 | N 000933008145 | SCREW |
| 366 | N 000127008203 | LOCK WASHER |
| 371 | A 1113310645 | RETAINER |
| 376 | N 000960012095 | SCREW |
| 381 | N 000127012200 | LOCK WASHER |
| 386 | A 1113330265 | RUBBER BUFFER |
| 386 | A 1113330765 | RUBBER BUFFER |
| 388 | A 1083300275 | REPAIR KIT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SUPPORT | ||
| 391 | A 1123310012 | STRUT |
| 396 | A 1103221585 | RUBBER MOUNTING |
| 396 | A 1123220385 | RUBBER MOUNTING |
| FOR POWER STEERING, ON SPECIAL REQUEST | ||
| 401 | A 1103220276 | WASHER |
| 406 | A 1113320053 | SPACER TUBE |
| 407 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO TRACTION STRUT | ||
| 408 | N 000127008203 | LOCK WASHER |
| RUBBER MOUNTING TO TRACTION STRUT | ||
| 409 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 409 | N 304032008006 | NUT |
| RUBBER MOUNTING TO TRACTION STRUT | ||
| 411 | N 000960016105 | SCREW |
| 416 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 416 | N 308673016001 | NUT |
| 418 | N 000137016202 | SPRING WASHER |
| 421 | N 000125015004 | WASHER |
| 426 | N 912004014100 | LOCK WASHER |
| 431 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 431 | N 308673014001 | NUT |
| 436 | A 1113300330 | GUIDE ROD |
| 441 | A 0009883310 | RUBBER MOUNTING |
| 444 | N 000960012225 | SCREW |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| 447 | N 912004012100 | LOCK WASHER |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| 450 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 450 | N 308673012002 | NUT |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
