Transporto priemonė: 230 S; VIN numerio dalis: 111010

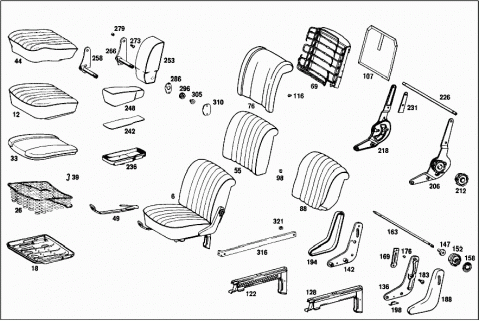

Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1109108909 | FRONT SEAT |
| FABRIC; LEFT | ||
| A 1109109009 | FRONT SEAT | |
| FABRIC; RIGHT | ||
| A 1109109709 | FRONT SEAT | |
| LEFT; LEATHER | ||
| A 1109109809 | FRONT SEAT | |
| RIGHT;LEATHER | ||
| A 1109109509 | FRONT SEAT | |
| LEFT; IMITATION LEATHER | ||
| A 1109109609 | FRONT SEAT | |
| RIGHT; IMITATION LEATHER | ||
| 012 | A 1109109530 | SEAT CUSHION |
| FABRIC | ||
| A 1109100731 | SEAT CUSHION | |
| LEATHER | ||
| A 1109100831 | SEAT CUSHION | |
| IMITATION LEATHER | ||
| 018 | A 1109102022 | CUSHION FRAME |
| Repalced by: A 1159104322 | ||
| A 1159104322 | CUSHION FRAME | |
| 026 | A 1089100040 | SPRING CORE |
| 033 | A 1089140014 | PAD |
| Repalced by: A 1089142214 | ||
| 033 | A 1089142214 | PAD |
| FABRIC | ||
| A 1109140814 | PAD | |
| LEATHER | ||
| A 1109140714 | PAD | |
| Repalced by: A 1089142214 | ||
| A 1089142214 | PAD | |
| IMITATION LEATHER | ||
| 039 | A 0009842061 | CLIP |
| 044 | A 1109107846 | COVER |
| FABRIC | ||
| A 1109108846 | COVER | |
| LEATHER | ||
| A 1109108546 | COVER | |
| Repalced by: A 1109109346 | ||
| A 1109109346 | COVER | |
| IMITATION LEATHER | ||
| A 0009842061 | CLIP | |
| 049 | A 1109108105 | ADJUSTER |
| LEFT SEAT, LEFT | ||
| A 1109108205 | ADJUSTER | |
| RIGHT SEAT, RIGHT | ||
| 055 | A 1109108932 | BACKREST |
| Repalced by: A 1109101733 | ||
| A 1109101733 | BACKREST | |
| Repalced by: A 1109103733 | ||
| A 1109103733 | BACKREST | |
| LEFT | ||
| A 1109109032 | BACKREST | |
| Repalced by: A 1109101833 | ||
| A 1109101833 | BACKREST | |
| Repalced by: A 1109103833 | ||
| A 1109103833 | BACKREST | |
| RIGHT | ||
| A 1109100133 | BACKREST | |
| Repalced by: A 1109102333 | ||
| A 1109102333 | BACKREST | |
| ORTHOPAEDIC;FABRIC;LEFT | ||
| A 1109100233 | BACKREST | |
| Repalced by: A 1109102433 | ||
| A 1109102433 | BACKREST | |
| ORTHOPAEDIC;FABRIC;RIGHT | ||
| A 1109109532 | BACKREST | |
| Repalced by: A 1109101933 | ||
| A 1109101933 | BACKREST | |
| FABRIC; LEFT | ||
| A 1109109632 | BACKREST | |
| Repalced by: A 1109102033 | ||
| A 1109102033 | BACKREST | |
| FABRIC; RIGHT | ||
| A 1109100533 | BACKREST | |
| Repalced by: A 1109102733 | ||
| A 1109102733 | BACKREST | |
| ORTHOPAEDIC;FABRIC;LEFT | ||
| A 1109100633 | BACKREST | |
| Repalced by: A 1109102833 | ||
| A 1109102833 | BACKREST | |
| ORTHOPAEDIC;FABRIC;RIGHT | ||
| A 1109109332 | BACKREST | |
| Repalced by: A 1109102133 | ||
| A 1109102133 | BACKREST | |
| LEFT; IMITATION LEATHER | ||
| A 1109109432 | BACKREST | |
| Repalced by: A 1109102233 | ||
| A 1109102233 | BACKREST | |
| RIGHT; IMITATION LEATHER | ||
| A 1109100333 | BACKREST | |
| Repalced by: A 1109102533 | ||
| A 1109102533 | BACKREST | |
| ORTHOPAEDIC, LEFT IMITATION LEATHER TRIM | ||
| A 1109100433 | BACKREST | |
| Repalced by: A 1109102633 | ||
| A 1109102633 | BACKREST | |
| ORTHOPAEDIC, RIGHT IMITATION LEATHER TRIM | ||
| 069 | A 1109101434 | BACKREST FRAME |
| Repalced by: A 1109101934 | ||
| A 1109101934 | BACKREST FRAME | |
| Repalced by: A 1109102134 | ||
| A 1109102134 | BACKREST FRAME | |
| 076 | A 1089140016 | PAD |
| FABRIC; LEFT | ||
| A 1089140116 | PAD | |
| Repalced by: A 1089141116 | ||
| A 1089141116 | PAD | |
| Repalced by: A 1159140216 | ||
| A 1089140216 | PAD | |
| Repalced by: A 1089141216 | ||
| A 1089141216 | PAD | |
| Repalced by: A 1159140216 | ||
| A 1159140216 | PAD | |
| RIGHT | ||
| A 1109141116 | PAD | |
| LEFT; LEATHER | ||
| A 1109141216 | PAD | |
| RIGHT;LEATHER | ||
| A 1109140916 | PAD | |
| LEFT; IMITATION LEATHER | ||
| A 1109141016 | PAD | |
| RIGHT; IMITATION LEATHER | ||
| A 1089140516 | PAD | |
| ORTHOPAEDIC BACKREST;FABRIC;LEFT | ||
| A 1089140616 | PAD | |
| ORTHOPAEDIC BACKREST;FABRIC;RIGHT | ||
| A 1089140916 | PAD | |
| ORTHOPAEDIC BACKREST;LEATHER,LEFT | ||
| A 1089141016 | PAD | |
| ORTHOPAEDIC BACKREST;LEATHER;RIGHT | ||
| A 1089140716 | PAD | |
| ORTHOPAEDIC BACKREST;IMITATION LEATHER ;LEFT | ||
| A 1089140816 | PAD | |
| ORTHOPAEDIC BACKREST;IMITATION LEATHER ;RIGHT | ||
| A 1209100075 | SEAT ADAPTER | |
| ORTHOPAEDIC BACKREST | ||
| A 0009880155 | BUCKLE | |
| ORTHOPAEDIC BACKREST | ||
| A 1109880053 | LOOP | |
| ORTHOPAEDIC BACKREST | ||
| N 007331004232 | RIVET | |
| A 0009842061 | CLIP | |
| 088 | A 1109109547 | COVER |
| Repalced by: A 1109104393 | ||
| A 1109104393 | COVER | |
| FABRIC; LEFT | ||
| A 1109109647 | COVER | |
| Repalced by: A 1109104493 | ||
| A 1109104493 | COVER | |
| FABRIC; RIGHT | ||
| A 1109100393 | COVER | |
| Repalced by: A 1109104593 | ||
| A 1109104593 | COVER | |
| LEFT; LEATHER | ||
| A 1109100493 | COVER | |
| Repalced by: A 1109104693 | ||
| A 1109104693 | COVER | |
| RIGHT, RIGHT FRONT SEAT BACKREST | ||
| A 1109100193 | COVER | |
| Repalced by: A 1109104793 | ||
| A 1109104793 | COVER | |
| LEFT; IMITATION LEATHER | ||
| A 1109100293 | COVER | |
| Repalced by: A 1109104893 | ||
| A 1109104893 | COVER | |
| RIGHT; IMITATION LEATHER | ||
| A 1109102193 | COVER | |
| Repalced by: A 1109105593 | ||
| A 1109105593 | COVER | |
| ORTHOPAEDIC BACKREST;FABRIC;LEFT | ||
| A 1109102293 | COVER | |
| Repalced by: A 1109105693 | ||
| A 1109105693 | COVER | |
| ORTHOPAEDIC BACKREST;FABRIC;RIGHT | ||
| A 1109102393 | COVER | |
| Repalced by: A 1109105393 | ||
| A 1109105393 | COVER | |
| ORTHOPAEDIC BACKREST;LEATHER,LEFT | ||
| A 1109102493 | COVER | |
| Repalced by: A 1109105493 | ||
| A 1109105493 | COVER | |
| ORTHOPAEDIC BACKREST;LEATHER;RIGHT | ||
| A 1109102593 | COVER | |
| Repalced by: A 1109105193 | ||
| A 1109105193 | COVER | |
| ORTHOPAEDIC BACKREST;IMITATION LEATHER ;LEFT | ||
| A 1109102693 | COVER | |
| Repalced by: A 1109105293 | ||
| A 1109105293 | COVER | |
| ORTHOPAEDIC BACKREST;IMITATION LEATHER ;RIGHT | ||
| 098 | A 1369880278 | CLIP |
| 107 | A 1109102539 | PANELLING |
| FABRIC | ||
| A 1109102939 | PANELLING | |
| LEATHER | ||
| A 1109103039 | PANELLING | |
| IMITATION LEATHER | ||
| A 1109103139 | PANELLING | |
| ORTHOPAEDIC BACKREST;FABRIC | ||
| A 1109103339 | PANELLING | |
| ORTHOPAEDIC BACKREST;LEATHER | ||
| A 1109103239 | PANELLING | |
| ORTHOPAEDIC BACKREST;IMITATION LEATHER | ||
| 116 | A 1109870739 | RUBBER BUFFER |
| PANELLING TO FRONT SEAT BACKREST | ||
| H 007983003221 | BEARING TUBE | |
| PANELLING TO FRONT SEAT BACKREST | ||
| A 0009850662 | WASHER | |
| PANELLING TO FRONT SEAT BACKREST | ||
| 122 | A 1109108905 | SEAT GUIDE |
| INSIDE LEFT | ||
| A 1109109005 | SEAT GUIDE | |
| INSIDE RIGHT | ||
| 128 | A 1109109305 | SEAT GUIDE |
| OUTSIDE LEFT | ||
| A 1109109405 | SEAT GUIDE | |
| OUTSIDE RIGHT | ||
| 136 | A 1109100955 | BACKREST BRACKET |
| BOTTOM LEFT | ||
| 142 | A 1109101055 | BACKREST BRACKET |
| BOTTOM RIGHT | ||
| 147 | A 1109100173 | ROLLER |
| 152 | A 1109100188 | HANDWHEEL |
| 158 | A 1109100018 | COVERING |
| 163 | A 1109100198 | SHAFT |
| N 007987004120 | SCREW | |
| N 006797004331 | TOOTHED WASHER | |
| N 006799009001 | LOCK PLATE | |
| 169 | A 1109180111 | PLATE |
| LEFT | ||
| A 1109180211 | PLATE | |
| RIGHT | ||
| A 1109180511 | PLATE | |
| LEFT | ||
| A 1109180611 | PLATE | |
| RIGHT | ||
| 176 | A 1109190095 | INTERMEDIATE LAYER |
| N 007987006153 | SCREW | |
| 183 | A 1109840332 | SCREW |
| BACKREST TO SEAT ADJUSTMENT BRACKET | ||
| N 900055018001 | SPRING WASHER | |
| BACKREST TO SEAT ADJUSTMENT BRACKET | ||
| N 006797010251 | TOOTHED WASHER | |
| BACKREST TO SEAT ADJUSTMENT BRACKET | ||
| A 0009901330 | SCREW | |
| Repalced by: A 1089900030 | ||
| A 1109900030 | SCREW | |
| Repalced by: A 1089900030 | ||
| A 1089900030 | SCREW | |
| 188 | A 1109100154 | ORNAMENTAL COVER |
| Repalced by: A 1159130528 | ||
| A 1159130528 | COVERING | |
| Repalced by: A 1149130128 | ||
| A 1149130128 | COVERING | |
| OUTSIDE LEFT | ||
| A 1109100254 | ORNAMENTAL COVER | |
| Repalced by: A 1159130628 | ||
| A 1159130628 | COVERING | |
| OUTSIDE RIGHT | ||
| 194 | A 1109100354 | ORNAMENTAL COVER |
| Repalced by: A 1159130728 | ||
| A 1159130728 | COVERING | |
| INSIDE LEFT | ||
| A 1109100454 | ORNAMENTAL COVER | |
| Repalced by: A 1159130828 | ||
| A 1159130828 | COVERING | |
| INSIDE RIGHT | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 5 MM | ||
| 198 | A 1109881078 | CLIP |
| Repalced by: A 1109881178 | ||
| A 1109881178 | CLIP | |
| A 0009901521 | SCREW | |
| Repalced by: N 914028006100 | ||
| N 914028006100 | COMBINATION BOLT | |
| Repalced by: A 0049901601 | ||
| A 0049901601 | SCREW | |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| FRONT SEAT TO CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| FRONT SEAT TO CROSS MEMBER | ||
| A 0009907091 | NUT RETAINER | |
| Repalced by: A 0019902891 | ||
| A 0019902891 | NUT RETAINER | |
| FRONT SEAT TO CROSS MEMBER | ||
| N 000933006130 | SCREW | |
| DRIVER'S SEAT TO FLOOR | ||
| N 912004006102 | LOCK WASHER | |
| DRIVER'S SEAT TO FLOOR | ||
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| A 0009909991 | NUT RETAINER | |
| DRIVER'S SEAT TO FLOOR | ||
| A 1109190333 | SPACER TUBE | |
| Repalced by: A 1109190017 | ||
| A 1109190017 | SPACER | |
| Repalced by: A 1169190017 | ||
| A 1169190017 | SPACER | |
| DRIVER'S SEAT TO FLOOR | ||
| N 000931006084 | SCREW | |
| Repalced by: N 304017006027 | ||
| N 304017006027 | SCREW | |
| DRIVER'S SEAT TO FLOOR | ||
| N 912004006102 | LOCK WASHER | |
| DRIVER'S SEAT TO FLOOR | ||
| A 0009908791 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| A 0009907191 | NUT RETAINER | |
| A 1109190320 | COVERING | |
| OUTSIDE LEFT REAR | ||
| A 1109190420 | COVERING | |
| OUTSIDE RIGHT REAR | ||
| A 1109190520 | COVERING | |
| INTERIOR,REAR,LEFT | ||
| A 1109190620 | COVERING | |
| INSIDE REAR RIGHT | ||
| A 1109101506 | SEAT CUSHION LESS COVER | |
| A 1109102306 | SEAT CUSHION LESS COVER | |
| LEATHER | ||
| A 1109102406 | SEAT CUSHION LESS COVER | |
| IMITATION LEATHER | ||
| A 1109101507 | BACKREST | |
| Repalced by: A 1089100707 | ||
| A 1089100707 | BACKREST | |
| LEFT | ||
| A 1109103507 | BACKREST | |
| Repalced by: A 1089100907 | ||
| A 1089100907 | BACKREST | |
| LEFT; LEATHER | ||
| A 1109103707 | BACKREST | |
| Repalced by: A 1089101107 | ||
| A 1089101107 | BACKREST | |
| LEFT; IMITATION LEATHER | ||
| A 1109101607 | BACKREST | |
| Repalced by: A 1089100807 | ||
| A 1089100807 | BACKREST | |
| RIGHT | ||
| A 1109103607 | BACKREST | |
| Repalced by: A 1089101007 | ||
| A 1089101007 | BACKREST | |
| RIGHT, RIGHT FRONT SEAT BACKREST | ||
| A 1109103807 | BACKREST | |
| Repalced by: A 1089101207 | ||
| A 1089101207 | BACKREST | |
| IMITATION LEATHER; RIGHT | ||
| A 1109102907 | BACKREST | |
| Repalced by: A 1089100107 | ||
| A 1089100107 | BACKREST | |
| ORTHOPAEDIC BACKREST,LEFT | ||
| A 1109103007 | BACKREST | |
| Repalced by: A 1089100207 | ||
| A 1089100207 | BACKREST | |
| ORTHOPAEDIC BACKREST,RIGHT | ||
| A 1109103307 | BACKREST | |
| Repalced by: A 1089100507 | ||
| A 1089100507 | BACKREST | |
| ORTHOPAEDIC BACKREST,LEFT | ||
| A 1109103407 | BACKREST | |
| Repalced by: A 1089100607 | ||
| A 1089100607 | BACKREST | |
| ORTHOPAEDIC BACKREST,RIGHT | ||
| A 1109103107 | BACKREST | |
| Repalced by: A 1089100307 | ||
| A 1089100307 | BACKREST | |
| ORTHOPAEDIC BACKREST,LEFT | ||
| A 1109103207 | BACKREST | |
| Repalced by: A 1089100407 | ||
| A 1089100407 | BACKREST | |
| ORTHOPAEDIC BACKREST,RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RECLINING SEAT FITTINGS | ||
| A 1089100180 | BACKREST ADJUSTER | |
| LEFT | ||
| A 1089100280 | BACKREST ADJUSTER | |
| RIGHT | ||
| 206 | A 0009104385 | BACKREST ADJUSTER |
| WITH ADJUSTER;FABRIC;SEMI-FLUTED | ||
| A 0009104485 | BACKREST ADJUSTER | |
| RIGHT,RIGHT SEAT | ||
| 212 | A 0009180226 | HANDWHEEL |
| A 0009180326 | HANDWHEEL | |
| A 0009104386 | BACKREST ADJUSTER | |
| LEFT;RIGHT SEAT | ||
| 218 | A 0009104486 | BACKREST ADJUSTER |
| RIGHT;LEFT SEAT | ||
| 226 | A 1089180027 | LINK |
| 231 | A 0009180696 | UNDERLAYER |
| N 000088006117 | SCREW | |
| RECLINING SEAT FITTING TO FRONT SEAT BACKREST | ||
| N 001473003004 | GROOVED PIN | |
| A 0009902731 | SCREW | |
| RECLINING SEAT FITTING TO FRONT SEAT CUSHION | ||
| 236 | A 1118410274 | SHELL |
| FRONT SEAT LESS HEIGHT ADJUSTMENT | ||
| A 1088410174 | SHELL | |
| FRONT SEAT LESS HEIGHT ADJUSTMENT | ||
| A 1108400174 | SHELL | |
| Repalced by: A 1088410274 | ||
| A 1088410274 | SHELL | |
| FLOOR SHIFT | ||
| A 0009872441 | RUBBER RING | |
| 242 | A 1108410790 | COVER |
| Repalced by: A 1088400075 | ||
| A 1088400075 | LINING | |
| A 1128400375 | LINING | |
| Repalced by: A 1098410190 | ||
| A 1098410190 | COVER | |
| FLOOR SHIFT | ||
| N 007983004225 | SHEET METAL SCREW | |
| TRAY TO TUNNEL | ||
| N 007983004270 | SHEET METAL SCREW | |
| FLOOR SHIFT | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| TRAY TO TUNNEL | ||
| 248 | A 1109101408 | SEAT ADAPTER |
| RIGHT OUTSIDE CENTRAL | ||
| A 1109101208 | SEAT ADAPTER | |
| IMITATION LEATHER | ||
| A 1109100608 | SEAT ADAPTER | |
| LEATHER | ||
| A 1109100808 | SEAT ADAPTER | |
| COMPLETE,BUT LESS COVER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CENTRAL FOLDING ARMREST | ||
| 253 | A 1109701130 | FOLDING ARMREST |
| FABRIC | ||
| A 1109702130 | FOLDING ARMREST | |
| IMITATION LEATHER | ||
| A 1109702330 | FOLDING ARMREST | |
| LEATHER | ||
| A 1109702730 | FOLDING ARMREST | |
| COMPLETE,BUT LESS COVER | ||
| A 1109704730 | FOLDING ARMREST | |
| COMPLETE,BUT LESS COVER | ||
| A 1109700830 | FOLDING ARMREST | |
| Repalced by: A 1109705930 | ||
| A 1109705930 | FOLDING ARMREST | |
| FABRIC | ||
| A 1119705430 | FOLDING ARMREST | |
| LESS LUGGAGE NET;USED WITH VELOURS TRIM | ||
| A 1109700930 | FOLDING ARMREST | |
| Repalced by: A 1109705730 | ||
| A 1109705730 | FOLDING ARMREST | |
| LEFT, LEFT FRONT SEAT BACKREST | ||
| A 1109700104 | ARMREST LESS COVER | |
| COMPLETE,BUT LESS COVER | ||
| A 1109751530 | CAP | |
| FABRIC | ||
| A 1109701730 | FOLDING ARMREST | |
| LESS LUGGAGE NET;USED WITH VELOURS TRIM | ||
| A 1109701930 | FOLDING ARMREST | |
| LEFT, LEFT FRONT SEAT BACKREST | ||
| A 1109700204 | ARMREST LESS COVER | |
| COMPLETE,BUT LESS COVER | ||
| A 1129703730 | MOUNTING MATERIAL | |
| LESS RECLINING SEAT FITTING | ||
| A 1129703930 | MOUNTING MATERIAL | |
| WITH RECLINING SEAT FITTING | ||
| A 1129730111 | PLATE | |
| INSIDE | ||
| A 1129730211 | PLATE | |
| OUTSIDE | ||
| A 1129900031 | SCREW | |
| 258 | A 1109700120 | SUPPORT |
| FRONT SEAT LESS RECLINING SEAT FITTING | ||
| 266 | A 1109700720 | SUPPORT |
| FRONT SEAT WITH RECLINING SEAT FITTING | ||
| A 1129701820 | SUPPORT | |
| A 1129701720 | SUPPORT | |
| A 1109700120 | SUPPORT | |
| A 1119700720 | SUPPORT | |
| 273 | A 1109900431 | SCREW |
| 279 | A 1089730029 | GUIDE |
| FRONT SEAT FOLDING ARMREST | ||
| 286 | A 1099730026 | STOP |
| FRONT SEAT FOLDING ARMREST | ||
| N 007988006157 | SCREW | |
| A 1129730071 | SCREW | |
| N 000137018202 | SPRING WASHER | |
| A 1129940012 | LOCK | |
| A 1099900050 | NUT | |
| A 1099900012 | SCREW | |
| A 1009730911 | PLATE | |
| N 007988004105 | SCREW | |
| 296 | A 1099900050 | NUT |
| 305 | A 1099900012 | SCREW |
| 310 | A 1009730711 | PLATE |
| Repalced by: A 1009730911 | ||
| A 1009730911 | PLATE | |
| N 007988004101 | SCREW | |
| 316 | A 1109700015 | RAIL |
| 321 | A 0009908391 | NUT RETAINER |
| Repalced by: A 0009907191 | ||
| 321 | A 0009907191 | NUT RETAINER |
| N 000063006142 | SCREW | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HEAD RESTRAINT | ||
| A 1109703950 | HEADREST | |
| FABRIC | ||
| A 1109704050 | HEADREST | |
| LEATHER | ||
| A 1109704150 | HEADREST | |
| Repalced by: A 1089700750 | ||
| A 1089700750 | HEADREST | |
| IMITATION LEATHER | ||
| A 1109702750 | HEADREST | |
| A 1109700573 | CLAMP | |
| LEFT | ||
| A 1109700673 | CLAMP | |
| RIGHT | ||
| A 1109900531 | SCREW | |
| A 0009930126 | DISC SPRING | |
| A 1109750072 | WASHER | |
| A 1109750172 | WASHER | |
| A 1109750099 | MOLDED PIECE | |
| A 1109750030 | CAP | |
| A 1109750114 | BRACKET | |
| BOTTOM LEFT | ||
| A 1109750214 | BRACKET | |
| BOTTOM RIGHT | ||
| A 0009886778 | CLIP | |
| A 1109870639 | RUBBER BUFFER | |
| Repalced by: A 1119871340 | ||
| A 1119871340 | RUBBER BUFFER | |
| Repalced by: A 0009871840 | ||
| A 0009871840 | RUBBER BUFFER | |
| IN SUPPORTS | ||
| N 000091005106 | SCREW | |

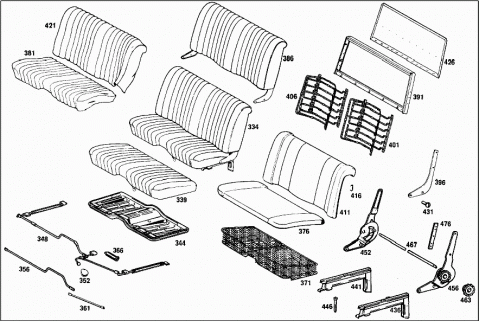

| 334 | A 1109109109 | FRONT SEAT |
| FABRIC; SEMI-FLUTED | ||
| A 1109109209 | FRONT SEAT | |
| FABRIC; SEMI-FLUTED | ||
| A 1109105309 | FRONT SEAT | |
| LEATHER; FULL-FLUTED | ||
| A 1109105409 | FRONT SEAT | |
| LEATHER; FULL-FLUTED | ||
| A 1109105709 | FRONT SEAT | |
| IMITATION LEATHER; FULL-FLUTED | ||
| A 1109105809 | FRONT SEAT | |
| IMITATION LEATHER; FULL-FLUTED | ||
| A 1109103912 | FRONT SEAT | |
| LEATHER | ||
| A 1109104012 | FRONT SEAT | |
| LEATHER | ||
| A 1109104112 | FRONT SEAT | |
| IMITATION LEATHER | ||
| A 1109104212 | FRONT SEAT | |
| IMITATION LEATHER | ||
| 339 | A 1109109730 | SEAT CUSHION |
| WITH ADJUSTER;FABRIC;SEMI-FLUTED | ||
| A 1109109830 | SEAT CUSHION | |
| WITH ADJUSTER;FABRIC;SEMI-FLUTED | ||
| A 1109107730 | SEAT CUSHION | |
| WITH ADJUSTER;LEATHER;FULL-FLUTED | ||
| A 1109107830 | SEAT CUSHION | |
| WITH ADJUSTER;LEATHER;FULL-FLUTED | ||
| A 1109108530 | SEAT CUSHION | |
| WITH ADJUSTER,IMITATION LEATHER, FULL-FLUTED | ||
| A 1109108630 | SEAT CUSHION | |
| WITH ADJUSTER,IMITATION LEATHER, FULL-FLUTED | ||
| 344 | A 1109100222 | CUSHION FRAME |
| Repalced by: A 1109101022 | ||
| A 1109101022 | CUSHION FRAME | |
| Repalced by: A 1109103022 | ||
| A 1109103022 | CUSHION FRAME | |
| LESS ADJUSTER | ||
| 348 | A 1109107505 | ADJUSTER |
| A 1109107605 | ADJUSTER | |
| 352 | A 1109190060 | HANDLE |
| 356 | A 1109190227 | LINK |
| 361 | A 1109190327 | LINK |
| A 1119840335 | CLINCH-BOLT | |
| 366 | N 101209120336 | PART NAME MISSING |
| 371 | A 1109101640 | SPRING CORE |
| 376 | A 1109140614 | PAD |
| FABRIC | ||
| A 1109140914 | PAD | |
| FABRIC | ||
| A 1109141014 | PAD | |
| IMITATION LEATHER | ||
| A 0009842061 | CLIP | |
| 381 | A 1109108246 | COVER |
| FABRIC | ||
| A 1109106046 | COVER | |
| LEATHER,PERFORATED | ||
| A 1109106746 | COVER | |
| IMITATION LEATHER; FULL-FLUTED | ||
| 386 | A 1109109132 | BACKREST |
| FABRIC; SEMI-FLUTED | ||
| A 1109107132 | BACKREST | |
| LEATHER,PERFORATED; FULL-FLUTED | ||
| A 1109108132 | BACKREST | |
| IMITATION LEATHER; FULL-FLUTED | ||
| 391 | A 1109100834 | BACKREST FRAME |
| 396 | A 1109100356 | BACKREST BRACKET |
| LEFT | ||
| A 1109100456 | BACKREST BRACKET | |
| RIGHT | ||
| 401 | A 1109100141 | SPRING CORE |
| LEFT | ||
| 406 | A 1109100241 | SPRING CORE |
| RIGHT | ||
| N 007981005203 | SHEET METAL SCREW | |
| N 000912008045 | SCREW | |
| BACKREST | ||
| N 000125008407 | WASHER | |
| BACKREST | ||
| N 000127008203 | LOCK WASHER | |
| BACKREST | ||
| 411 | A 1109140516 | PAD |
| FABRIC | ||
| A 1109141316 | PAD | |
| LEATHER | ||
| A 1109141416 | PAD | |
| IMITATION LEATHER | ||
| 416 | A 0009842061 | CLIP |
| 421 | A 1109109747 | COVER |
| FABRIC | ||
| A 1109106647 | COVER | |
| LEATHER, PERFORATED FOR BACKREST | ||
| A 1109107347 | COVER | |
| IMITATION LEATHER, FULL-FLUTED FOR BACKREST | ||
| 426 | A 1109100739 | PANELLING |
| PLASTIC FOIL | ||
| A 1109100839 | PANELLING | |
| LEATHER | ||
| A 1109101719 | ORNAMENTAL COVER | |
| IMITATION LEATHER | ||
| A 1369840260 | CLIP | |
| 431 | A 0009902531 | SCREW |
| Repalced by: A 1089900030 | ||
| 431 | A 1089900030 | SCREW |
| BACKREST TO SEAT FRAME | ||
| N 000125010504 | WASHER | |
| BACKREST TO SEAT FRAME | ||
| 436 | A 1109109705 | SEAT GUIDE |
| OUTSIDE LEFT | ||
| A 1109109805 | SEAT GUIDE | |
| OUTSIDE RIGHT | ||
| 441 | A 1109100136 | SEAT ADJUSTER |
| INSIDE LEFT | ||
| A 1109109505 | SEAT GUIDE | |
| OUTSIDE LEFT | ||
| A 1109109605 | SEAT GUIDE | |
| OUTSIDE RIGHT | ||
| A 1109109105 | SEAT GUIDE | |
| INSIDE LEFT | ||
| N 007985006157 | SCREW | |
| Repalced by: N 000000001145 | ||
| N 000000001145 | SCREW | |
| SLIDING SEAT GUIDE | ||
| N 006797006145 | TOOTHED WASHER | |
| SLIDING SEAT GUIDE | ||
| A 1129190131 | CONSOLE | |
| LEFT | ||
| A 1129190231 | CONSOLE | |
| Repalced by: A 1129190131 | ||
| A 1129190131 | CONSOLE | |
| RIGHT | ||
| N 000125006407 | WASHER | |
| RIGHT | ||
| N 000934006007 | NUT | |
| RIGHT | ||
| A 1109190920 | COVERING | |
| FRONT SEAT CONSOLE,OUTSIDE LEFT | ||
| A 1109191020 | COVERING | |
| FRONT SEAT CONSOLE,OUTSIDE RIGHT | ||
| A 1109190720 | COVERING | |
| FRONT SEAT CONSOLE,INSIDE,LEFT | ||
| 446 | A 1109900420 | SCREW |
| FRONT SEAT TO CROSS MEMBER | ||
| A 1109101706 | SEAT CUSHION LESS COVER | |
| WITH ADJUSTER;FABRIC | ||
| A 1109101806 | SEAT CUSHION LESS COVER | |
| WITH ADJUSTER;FABRIC | ||
| A 1109101707 | BACKREST | |
| FABRIC | ||
| A 1109101906 | SEAT CUSHION LESS COVER | |
| WITH ADJUSTER;LEATHER | ||
| A 1109102006 | SEAT CUSHION LESS COVER | |
| WITH ADJUSTER;LEATHER | ||
| A 1109102107 | BACKREST | |
| LEATHER | ||
| A 1109102106 | SEAT CUSHION LESS COVER | |
| WITH ADJUSTER;IMITATION LEATHER | ||
| A 1109102206 | SEAT CUSHION LESS COVER | |
| IMITATION LEATHER | ||
| A 1109102207 | BACKREST | |
| IMITATION LEATHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RECLINING SEAT FITTINGS | ||
| 452 | A 0009104686 | BACKREST ADJUSTER |
| LESS HANDWHEEL,RIGHT | ||
| 456 | A 0009104185 | BACKREST ADJUSTER |
| WITH HANDWHEEL,LEFT | ||
| A 0009104586 | BACKREST ADJUSTER | |
| LESS HANDWHEEL,LEFT | ||
| A 0009104285 | BACKREST ADJUSTER | |
| WITH HANDWHEEL,RIGHT | ||
| 463 | A 0009180226 | HANDWHEEL |
| Repalced by: A 0009180326 | ||
| A 0009180326 | HANDWHEEL | |
| 467 | A 1119180327 | LINK |
| A 0009180396 | UNDERLAYER | |
| A 0009180496 | UNDERLAYER | |
| BITUMINIZED BOARD, 2 MM THICK | ||
| A 0009180596 | UNDERLAYER | |
| N 000091008106 | SCREW | |
| RECLINING SEAT FITTING TO FRONT SEAT BACKREST | ||
| 476 | A 1109180133 | RAIL |
| H 101809700002 | ARMREST | |
| H 101809700102 | ARMREST | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
