Transporto priemonė: 230 S; VIN numerio dalis: 111010

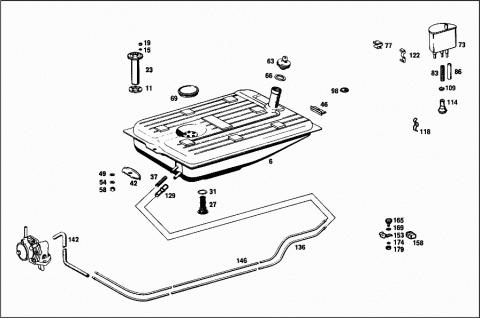

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1084700301 | FUEL TANK |
| 65 L. | ||
| 011 | A 1104710180 | GASKET |
| 015 | N 000137005203 | SPRING WASHER |
| 019 | N 000934005008 | NUT |
| 023 | A 1105421204 | GAUGE SENDER UNIT |
| 027 | A 1114700686 | FUEL STRAINER |
| 031 | A 1109970145 | SEAL RING |
| 037 | A 1104760326 | HOSE |
| Repalced by: A 1149971882 | ||
| 037 | A 1149971882 | HOSE |
| 300 MM | ||
| A 0019976990 | LOOM TIE | |
| N 900269012101 | CLAMP | |
| 042 | A 1304710122 | REINFORCEMENT |
| FRONT | ||
| 046 | A 1304710222 | REINFORCEMENT |
| REAR | ||
| 049 | A 1089900340 | WASHER |
| 054 | N 000127008203 | LOCK WASHER |
| 058 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 058 | N 304032008006 | NUT |
| 063 | A 0004712030 | FILLER CAP |
| MAKE YMOS | ||
| YMOS | ||
| A 0004711830 | FILLER CAP | |
| MAKE HUF | ||
| HUF | ||
| 066 | A 1104710280 | GASKET |
| A 1234710230 | FILLER CAP | |
| A 1154710079 | SEAL RING | |
| 069 | A 1109870145 | LOCKING CAP |
| 073 | A 1114710168 | TANK |
| Repalced by: A 1154710268 | ||
| 073 | A 1154710268 | TANK |
| 073 | A 1154710268 | TANK |
| 077 | A 0039888178 | CLIP |
| 083 | A 2014761126 | HOSE |
| 80 MM | ||
| 083 | A 2014761126 | HOSE |
| 90 MM | ||
| 086 | A 1074763726 | HOSE |
| 110 MM | ||
| N 900269008100 | CLAMP | |
| N 900269010100 | CLAMP | |
| 098 | A 1119972281 | GROMMET |
| 109 | A 1209970381 | GROMMET |
| 114 | A 1114710181 | BOOT |
| N 900269010100 | CLAMP | |
| A 0029884678 | CLIP | |
| 118 | A 1109950332 | CLAMP |
| N 072571002002 | CLAMP | |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| 122 | A 1134710240 | CLIP |
| 129 | A 1114761526 | HOSE |
| FROM FUEL TANK TO FEED LINE | ||
| N 900269018101 | CLAMP | |
| FROM FUEL TANK TO FEED LINE | ||
| N 900269016101 | CLAMP | |
| FROM FUEL TANK TO FEED LINE | ||
| 136 | A 1084760001 | LINE |
| 4120 MM | ||
| 142 | A 1104760326 | HOSE |
| Repalced by: A 1149971882 | ||
| 142 | A 1149971882 | HOSE |
| 300 MM | ||
| A 0019976990 | LOOM TIE | |
| N 900269012101 | CLAMP | |
| 146 | A 1084760201 | LINE |
| 3905 MM | ||
| N 073379008200 | HOSE | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| 60 MM | ||
| A 1809950022 | CLAMP | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| A 1204760184 | DAMPING STRIP | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| 153 | A 1109950022 | CLAMP |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| A 1089950020 | CLAMP | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| A 1109950015 | CLAMP | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| 158 | A 1104760084 | DAMPING STRIP |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| A 0009877770 | RUBBER SECTION | |
| LINES TO FRAME FLOOR UNIT & CROSS MEMBER | ||
| 20 MM | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 165 | A 1204200227 | SCREW |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 169 | A 0009873841 | RUBBER RING |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 174 | N 912004006102 | LOCK WASHER |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 179 | N 000934006007 | NUT |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| N 007976005203 | SHEET METAL SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| N 007976006203 | SHEET METAL SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1263280181 | BUFFER | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
