Transporto priemonė: 230 S; VIN numerio dalis: 111010

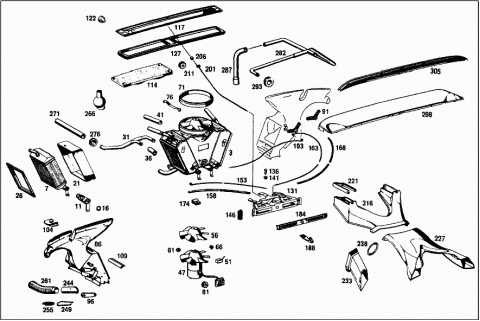

Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 1108300262 | HEATER CASE |
| A 1108300562 | HEATER CASE | |
| ON SPECIAL REQUEST, WITH A HIGHER HEATING POWER | ||
| 007 | A 0008350101 | HEAT EXCHANGER |
| LEFT | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT | ||
| A 0008350301 | HEAT EXCHANGER | |
| Repalced by: A 0008350101 | ||
| A 0008350101 | HEAT EXCHANGER | |
| LEFT ON SPECIAL REQUEST, WITH A HIGHER HEATING POWER | ||
| A 0008350401 | HEAT EXCHANGER | |
| Repalced by: A 0008350201 | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT ON SPECIAL REQUEST, WITH A HIGHER HEATING POWER | ||
| 011 | A 0008350320 | CONTROL VALVE |
| LEFT | ||
| A 0008350420 | CONTROL VALVE | |
| RIGHT | ||
| 016 | A 0008350098 | SEAL |
| Repalced by: A 0008351298 | ||
| A 0008351298 | SEAL | |
| Repalced by: A 0008354198 | ||
| A 0008354198 | SEAL | |
| Repalced by: A 0008355898 | ||
| A 0008355898 | SEAL | |
| 021 | A 0008350023 | WEATHERSTRIP |
| 026 | A 0008350123 | WEATHERSTRIP |
| A 0008350015 | PIPE LINE | |
| FROM FEED LINE TO LINE | ||
| 031 | A 0008350615 | PIPE LINE |
| FROM FEED LINE TO LINE | ||
| 036 | N 900271015009 | HOSE |
| BETWEEN FEED LINE CENTRAL PART AND HEAT EXCHANGER | ||
| A 0009977190 | LOOM TIE | |
| TO ENGINE-TO-HEAT-EXCHANGER HOSE | ||
| 041 | N 900271015009 | HOSE |
| BETWEEN HEAT EXCHANGER AND RETURN LINE | ||
| A 0009977190 | LOOM TIE | |
| TO ENGINE-TO-HEAT-EXCHANGER HOSE | ||
| 047 | A 0008350902 | MOTOR |
| FRESH AIR HEATING | ||
| 051 | A 0008350575 | CARBON BRUSH SET |
| A 0008350385 | FAN | |
| METAL | ||
| 056 | A 0008350785 | FAN |
| PLASTIC | ||
| 061 | A 0009976181 | GROMMET |
| BLOWER | ||
| 066 | A 0009871840 | RUBBER BUFFER |
| BLOWER | ||
| N 000137005203 | SPRING WASHER | |
| BLOWER | ||
| N 000934005008 | NUT | |
| BLOWER | ||
| 071 | A 0008350223 | WEATHERSTRIP |
| TOP | ||
| 076 | A 0008350034 | SPRING |
| 081 | A 0009976181 | GROMMET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| HEATER CASE TO WATER TANK | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| HEATER CASE TO WATER TANK | ||
| N 912004006102 | LOCK WASHER | |
| HEATER CASE TO WATER TANK | ||
| A 0009905991 | NUT RETAINER | |
| HEATER CASE TO FIRE WALL | ||
| N 000933006124 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| HEATER CASE TO FIRE WALL | ||
| N 000137006204 | PART NAME MISSING | |
| HEATER CASE TO FIRE WALL | ||
| 086 | A 1108300719 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1108300819 | DEFROSTER NOZZLE | |
| RIGHT | ||
| A 1108301019 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 091 | A 1108310433 | LEVER |
| RIGHT,DEFROSTER RIGHT | ||
| 096 | A 1108310733 | LEVER |
| LEFT,DEFROSTER LEFT | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| LEVER TO AIR FLAP | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| LEVER TO AIR FLAP | ||
| N 000137006204 | SPRING WASHER | |
| 104 | A 1108310020 | MOUNTING |
| DEFROSTER NOZZLE | ||
| 109 | A 0009874651 | RUBBER SEAL |
| MEDIUM GREEN/YELLOW | ||
| 114 | A 1108300518 | GRILLE |
| FRESH AIR FLAP | ||
| 117 | A 1108300743 | AIR DISTRIBUTOR |
| AT FIRE WALL | ||
| 122 | A 0009871840 | RUBBER BUFFER |
| FRESH-AIR FLAP | ||
| N 000933006085 | SCREW | |
| FRESH AIR FLAP | ||
| N 006797006242 | TOOTHED WASHER | |
| FRESH AIR FLAP | ||
| 127 | A 1108310398 | SEAL |
| FRESH-AIR FLAP | ||
| 131 | A 1108301033 | OPERATING LEVER |
| Repalced by: A 1108302133 | ||
| A 1108302133 | OPERATING LEVER | |
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| 136 | A 1368310089 | SCREW |
| WIRE CABLE TO AIR FLAP | ||
| 141 | A 1360720050 | BUSHING |
| WIRE CABLE TO AIR FLAP | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO AIR FLAP | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO AIR FLAP | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| H 101868880034 | SPRING | |
| Repalced by: A 1868880034 | ||
| 146 | A 1868880034 | SPRING |
| 153 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| 158 | A 1108331230 | SPIRAL |
| Repalced by: A 1118336130 | ||
| 158 | A 1118336130 | SPIRAL |
| 290 MM | ||
| A 1109950001 | CLAMP | |
| 163 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| 168 | A 1108331230 | SPIRAL |
| Repalced by: A 1118336130 | ||
| 168 | A 1118336130 | SPIRAL |
| 168 | ||
| 174 | A 1109950001 | CLAMP |
| N 000933004020 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET | ||
| N 006799004003 | LOCK PLATE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| 184 | A 1108300089 | ESCUTCHEON |
| N 912004006102 | LOCK WASHER | |
| ESCUTCHEON AND ASHTRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| N 000934006007 | NUT | |
| ESCUTCHEON AND ASHTRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| 188 | A 1118330340 | OPERATING HANDLE |
| Repalced by: A 1118330440 | ||
| 188 | A 1118330440 | OPERATING HANDLE |
| HEATING AND VENTILATION | ||
| A 1118330540 | OPERATING HANDLE | |
| Repalced by: A 1118330440 | ||
| A 1118330440 | OPERATING HANDLE | |
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO CONTROL VALVE | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO CONTROL VALVE | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO CONTROL VALVE | ||
| A 0019886878 | CLIP | |
| WIRE CABLE TO HEATER CASE | ||
| 193 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| 465 MM | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 007981003246 | SHEET METAL SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 007981003214 | SHEET METAL SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| H 121368310090 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE LEVER | ||
| H 401218330431 | WIRE CABLE | |
| Repalced by: A 1218330431 | ||
| 201 | A 1218330431 | WIRE CABLE |
| FRESH AIR FLAP 300 MM | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1108331230 | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| FRESH AIR FLAP 230 MM | ||
| 206 | A 1108330091 | GROMMET |
| Repalced by: A 1093270059 | ||
| 206 | A 1093270059 | PROTECTIVE CAP |
| 211 | A 0009978481 | GROMMET |
| Repalced by: A 0009974981 | ||
| A 0009974981 | GROMMET | |
| Repalced by: A 0009971881 | ||
| A 0009971881 | GROMMET | |
| A 1109950001 | CLAMP | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO WATER TANK COVERING | ||
| N 007981003214 | SHEET METAL SCREW | |
| WIRE CABLE TO WATER TANK COVERING | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO WATER TANK COVERING | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO AIR FLAP | ||
| 216 | A 1108300024 | INTERMEDIATE PIECE |
| HEATING IN THE REAR | ||
| 221 | A 1108310199 | SEAL |
| REAR DUCT TO MAIN FLOOR LEFT | ||
| A 1108310299 | SEAL | |
| REAR DUCT TO MAIN FLOOR RIGHT | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DEFROSTER NOZZLE CONNECTION | ||
| N 000933006130 | SCREW | |
| DEFROSTER NOZZLE CONNECTION | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR DUCT TO MAIN FLOOR 5X20X260 | ||
| 227 | A 1108300045 | AIR DUCT |
| HEATING IN THE REAR | ||
| A 1118305045 | AIR DUCT | |
| FLOOR SHIFT | ||
| 233 | A 1108310345 | DUCT |
| LEFT;BELOW FRONT SEATS | ||
| A 1108310445 | DUCT | |
| RIGHT,BELOW FRONT SEAT | ||
| 238 | A 1119870141 | RUBBER RING |
| BETWEEN DUCT AND CROSS MEMBER | ||
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| HEATING DUCT TO TUNNEL | ||
| N 007981004254 | SHEET METAL SCREW | |
| HEATING DUCT AND CONNECTING DUCT TO TUNNEL | ||
| A 0009841755 | WASHER | |
| HEATING DUCT AND CONNECTING DUCT TO TUNNEL | ||
| 244 | A 1108300754 | NOZZLE |
| INSTRUMENT PANEL LEFT | ||
| A 1108300854 | NOZZLE | |
| INSTRUMENT PANEL RIGHT | ||
| H 101208310032 | WIRE CLAMP | |
| Repalced by: A 1208310032 | ||
| 249 | A 1208310032 | VALVE |
| INSTRUMENT PANEL | ||
| 255 | A 1209931610 | SPRING |
| INSTRUMENT PANEL | ||
| 261 | A 1108310188 | HOSE |
| DEFROSTER NOZZLE 168 MM | ||
| A 1108310132 | VALVE | |
| 266 | A 1088310032 | VALVE |
| Repalced by: A 1088310132 | ||
| A 1088310132 | VALVE | |
| A 1108311294 | HOSE | |
| 271 | N 900271018036 | HOSE |
| A 0009976890 | LOOM TIE | |
| FEED LINE HOSE TO HEAT EXCHANGER | ||
| 276 | A 1109972181 | GROMMET |
| FEED LINE THRU FIRE WALL,BOTTOM LEFT | ||
| A 1109971081 | GROMMET | |
| FEED LINE THRU FIRE WALL,BOTTOM LEFT | ||
| A 1118300715 | PIPE LINE | |
| Repalced by: A 1118300915 | ||
| A 1118300915 | PIPE LINE | |
| A 1118300815 | PIPE LINE | |
| A 1118301015 | PIPE LINE | |
| 282 | A 1118300315 | PIPE LINE |
| HEAT EXCHANGER TO AIR DUCT | ||
| A 1118300215 | PIPE LINE | |
| HEAT EXCHANGER TO AIR DUCT | ||
| A 1118310885 | PIPE LINE | |
| A 1118310785 | PIPE LINE | |
| 287 | A 1118310094 | HOSE |
| RETURN 240 MM | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| RETURN LINE TO SIDE MEMBER | ||
| A 0009976890 | LOOM TIE | |
| RETURN LINE TO ENGINE | ||
| A 0009976990 | LOOM TIE | |
| RETURN LINE TO ENGINE | ||
| A 0009977190 | LOOM TIE | |
| CONNECTING HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| 293 | A 1869970781 | GROMMET |
| RETURN LINE THRU FIRE WALL | ||
| 298 | A 1108360023 | CAP |
| WINDSHIELD | ||
| N 007982003215 | SHEET METAL SCREW | |
| AIR FLAP AT COWL,TOP | ||
| N 007981003203 | SHEET METAL SCREW | |
| VENTILATION FLAP | ||
| 305 | A 1118300218 | GRILLE |
| VENTILATION FLAP | ||
| N 007983004202 | SHEET METAL SCREW | |
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| A 0009894585 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| 2 X 20 MM | ||
| A 1118300960 | AIR CONDITIONER | |
| A 1118301060 | AIR CONDITIONER | |
| A 1118300915 | PIPE LINE | |
| A 1108300208 | BLOWER | |
| A 0008380208 | FAN ASSEMBLY | |
| A 0005450611 | SWITCH | |
| Repalced by: A 0005458511 | ||
| A 0005458511 | SWITCH | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
