Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 001 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MERCEDES-BENZ AUTOMATIC TRANSMISSION | ||

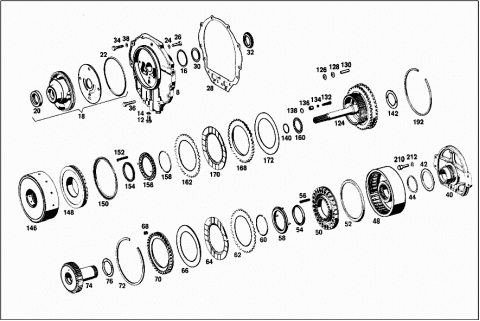

| 006 | A 1112701301 | AUTOMATIC TRANSMISSION |
| 008 | A 1122700505 | COVER |
| Repalced by: A 1122700705 | ||
| 008 | A 1122700705 | COVER |
| A 1122710550 | BUSHING | |
| N 007604014106 | SCREW PLUG | |
| Repalced by: N 007604014110 | ||
| N 007604014110 | SCREW PLUG | |
| N 007603014100 | SEAL RING | |
| 012 | A 1129970530 | SCREW PLUG |
| 012 | A 1129970530 | SCREW PLUG |
| 014 | N 007603010100 | SEAL RING |
| 014 | N 007603010100 | SEAL RING |
| 016 | A 1002720155 | SEAL RING |
| 018 | A 1122701490 | HOUSING |
| WITH PRIMARY PUMP | ||
| A 1122774350 | BUSHING | |
| 020 | A 0089979146 | SEAL RING |
| 022 | A 0049970548 | SEAL RING |
| 022 | A 0049970548 | SEAL RING |
| 024 | N 000137008100 | SPRING WASHER |
| 026 | N 006912008000 | SCREW |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 028 | A 1122710480 | GASKET |
| Repalced by: A 1122711380 | ||
| 028 | A 1122711380 | GASKET |
| 030 | A 1122710052 | SPACER WASHER |
| 0.1 MM | ||
| A 1122710152 | SPACER WASHER | |
| Repalced by: A 1122710052 | ||
| A 1122710052 | SPACER WASHER | |
| 0.2 MM | ||
| A 1122710252 | SPACER WASHER | |
| 0.5 MM | ||
| 032 | A 1122710062 | THRUST WASHER |
| N 007603010100 | SEAL RING | |
| 034 | N 000933007019 | SCREW |
| 036 | N 000933007020 | SCREW |
| 038 | N 000137007200 | SPRING WASHER |
| 040 | A 1122700320 | FLANGE |
| 042 | A 1122720762 | GUARD PLATE |
| 044 | A 1002720155 | SEAL RING |
| A 1122704220 | FLANGE | |
| 048 | A 1122703420 | FLANGE |
| 050 | A 1122721231 | PISTON |
| Repalced by: A 1122722331 | ||
| 050 | A 1122722331 | PISTON |
| REVERSE SPEED | ||
| 052 | A 1122720255 | SEAL RING |
| Repalced by: A 1152721292 | ||
| 052 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 052 | A 3162720792 | BOOT |
| A 0009973841 | SEAL RING | |
| 054 | A 1152721492 | BOOT |
| 056 | A 1129935001 | SPRING |
| A 1129930802 | SPRING | |
| 058 | A 1122720764 | SPRING RETAINER |
| 060 | A 1129940035 | SNAP RING |
| 062 | A 1092721526 | OUTER DISC |
| 064 | A 1122720225 | INNER DISC |
| 066 | A 1122721462 | GUARD PLATE |
| A 1122720473 | LOCK | |
| 068 | A 1129934801 | SPRING |
| A 1122721262 | GUARD PLATE | |
| A 1122723162 | GUARD PLATE | |
| 070 | A 1122723362 | GUARD PLATE |
| 072 | A 1122720173 | LOCK |

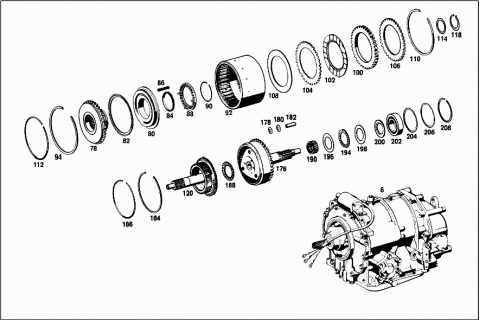

| A 1122700325 | DRIVE SHAFT | |
| WITH INNER DISC SUPPORT | ||
| 074 | A 1122702925 | DRIVE SHAFT |
| WITH INNER DISC SUPPORT | ||
| 076 | A 1122720062 | GUARD PLATE |
| A 1112700420 | FLANGE | |
| 078 | A 1122703720 | FLANGE |
| A 1112720231 | PISTON | |
| Repalced by: A 1112720431 | ||
| A 1112720431 | PISTON | |
| 080 | A 1122722631 | PISTON |
| A 1112720055 | SEAL RING | |
| Repalced by: A 1112720092 | ||
| A 1112720092 | BOOT | |
| 082 | A 1122721192 | BOOT |
| A 0009973841 | SEAL RING | |
| 084 | A 1152721492 | BOOT |
| A 1129934901 | SPRING | |
| 086 | A 1129933102 | SPRING |
| 088 | A 1122720664 | SPRING RETAINER |
| 090 | A 1129940035 | SNAP RING |
| A 1122720124 | DISC SUPPORT | |
| 092 | A 1122721824 | DISC SUPPORT |
| 094 | A 1122720173 | LOCK |
| A 1122721862 | GUARD PLATE | |
| A 1122720326 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1122720426 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1092720826 | OUTER DISC | |
| 100 | A 1122720826 | OUTER DISC |
| Repalced by: A 1122720726 | ||
| 100 | A 1122720726 | OUTER DISC |
| 102 | A 1122720125 | INNER DISC |
| Repalced by: A 1122720225 | ||
| 102 | A 1122720225 | INNER DISC |
| A 1092721526 | OUTER DISC | |
| 104 | A 1092721526 | OUTER DISC |
| A 1002720026 | OUTER DISC | |
| Repalced by: A 1092721826 | ||
| A 1092721826 | OUTER DISC | |
| 106 | A 1122721126 | OUTER DISC |
| A 1112720162 | GUARD PLATE | |
| A 1112720462 | GUARD PLATE | |
| 108 | A 1122721462 | GUARD PLATE |
| 110 | A 1122720073 | LOCK |
| A 1122720673 | LOCK | |
| 112 | A 1129940039 | WIRE RING |
| N 000063004100 | SCREW | |
| 114 | A 1122720052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1122720152 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.7 MM | ||
| A 1122720252 | SPACER WASHER | |
| Repalced by: A 1122720052 | ||
| A 1122720052 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 1122721052 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| N 000471040002 | LOCK RING | |
| 118 | N 900055040301 | LOCK RING |
| A 1122700525 | DRIVE SHAFT | |
| 120 | A 1122703025 | DRIVE SHAFT |
| 124 | A 1122701643 | PLANETARY CARRIER |
| FRONT PLANETARY GEAR TRAIN | ||
| 126 | A 1122723762 | GUARD PLATE |
| 128 | A 1122723562 | GUARD PLATE |
| 130 | A 1122720074 | PIN |
| 132 | A 1129930005 | SPRING |
| 134 | N 005401307000 | BALL |
| 136 | A 1122720067 | RING |
| 138 | N 000472012000 | LOCK RING |
| 140 | A 3072720255 | SEAL RING |
| 142 | A 1122720062 | GUARD PLATE |
| 146 | A 1122700120 | FLANGE |
| Repalced by: A 1122703920 | ||
| 146 | A 1122701720 | FLANGE |
| Repalced by: A 1122703920 | ||
| 146 | A 1122702820 | FLANGE |
| Repalced by: A 1122703920 | ||
| 146 | A 1122703920 | FLANGE |
| 148 | A 1122720931 | PISTON |
| Repalced by: A 1122722231 | ||
| 148 | A 1122722231 | PISTON |
| 150 | A 1122720255 | SEAL RING |
| Repalced by: A 1152721292 | ||
| 150 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 150 | A 3162720792 | BOOT |
| A 1129934901 | SPRING | |
| 152 | A 1129933102 | SPRING |
| A 0009973841 | SEAL RING | |
| 154 | A 1152721492 | BOOT |
| 156 | A 1122720664 | SPRING RETAINER |
| 158 | A 1129940035 | SNAP RING |
| 160 | A 0009814710 | NEEDLE BEARING |
| A 1092721526 | OUTER DISC | |
| 162 | A 1092721526 | OUTER DISC |
| A 1122720326 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1122720426 | OUTER DISC | |
| Repalced by: A 1092720826 | ||
| A 1092720826 | OUTER DISC | |
| 168 | A 1122720626 | OUTER DISC |
| Repalced by: A 1122721126 | ||
| 168 | A 1122721126 | OUTER DISC |
| 170 | A 1122720125 | INNER DISC |
| Repalced by: A 1122720225 | ||
| 170 | A 1122720225 | INNER DISC |
| A 1112720462 | GUARD PLATE | |
| 172 | A 1122721462 | GUARD PLATE |
| A 1122701543 | PLANETARY CARRIER | |
| 176 | A 1122701743 | PLANETARY CARRIER |
| 178 | A 1122723662 | GUARD PLATE |
| 180 | A 1122723862 | GUARD PLATE |
| 182 | A 1122720174 | PIN |
| A 1122720273 | LOCK | |
| 184 | A 1152720273 | LOCK |
| 186 | A 1129940735 | SNAP RING |
| A 1122722262 | GUARD PLATE | |
| 188 | A 0009819910 | NEEDLE BEARING |
| 190 | A 0009814810 | NEEDLE BEARING |
| 192 | A 1122720173 | LOCK |
| A 1122720162 | GUARD PLATE | |
| 194 | A 1009810010 | NEEDLE BEARING |
| 196 | A 0002721062 | GUARD PLATE |
| A 1122720352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1122720452 | SPACER WASHER | |
| Repalced by: A 1122720352 | ||
| A 1122720352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| 198 | A 1002720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1002720252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| 200 | A 1122721962 | GUARD PLATE |
| 202 | N 000625506207 | GROOVED BALL BEARING |
| 204 | A 1122720952 | SPACER WASHER |
| 206 | A 1122720652 | SPACER WASHER |
| 0.1 MM | ||
| A 1122720752 | SPACER WASHER | |
| 0.15 MM | ||
| A 1122720852 | SPACER WASHER | |
| Repalced by: A 1122720652 | ||
| A 1122720652 | SPACER WASHER | |
| 0.2 MM | ||
| 208 | A 0009941640 | SNAP RING |
| 210 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 210 | N 304017008034 | SCREW |
| 212 | N 000137008200 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |

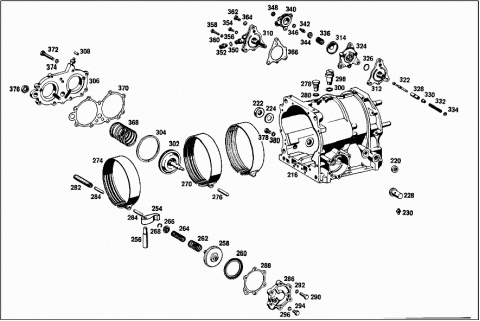

| TRANSMISSION CASE | ||
| 216 | A 1122703611 | TRANSMISSION CASE |
| N 900421006001 | THREADED INSERT | |
| REPAIR SIZE | ||
| N 900421007000 | THREADED INSERT | |
| REPAIR SIZE | ||
| N 900421008003 | THREADED INSERT | |
| REPAIR SIZE | ||
| 220 | N 006503010100 | SEAL RING |
| 222 | A 0019972346 | SEAL RING |
| 224 | A 1129900240 | WASHER |
| N 900059022000 | EXPANSION PLUG | |
| A 1129970032 | SCREW PLUG | |
| A 1129970335 | PLUG | |
| 228 | A 1122701389 | VALVE |
| 230 | A 1122770747 | TUBE |
| 234 | A 1122700356 | LEVER |
| Repalced by: A 1122700556 | ||
| 234 | A 1122700756 | LEVER |
| Repalced by: A 1122700556 | ||
| 234 | A 1122700556 | LEVER |
| 236 | A 1122700357 | DETENT |
| 238 | N 000125006421 | WASHER |
| 240 | N 000093006400 | LOCK PLATE |
| 242 | N 000934006007 | NUT |
| 244 | A 1122700064 | SHIFTING FORK |
| 246 | A 1122700065 | LINKAGE |
| 248 | N 071805010200 | BALL SOCKET |
| 250 | N 000439006100 | NUT |
| 252 | N 071805010400 | SECURING CLIP |
| 254 | A 1122770624 | LEVER |
| A 1122770074 | PIN | |
| 256 | A 1122771074 | PIN |
| 258 | A 1122700132 | PISTON |
| 260 | A 1122770192 | BOOT |
| 262 | A 1129937201 | SPRING |
| 264 | A 1129937101 | SPRING |
| 266 | A 1122770853 | SPACER TUBE |
| 268 | A 0009942741 | LOCK |
| 270 | A 1122702062 | BRAKE BAND |
| Repalced by: A 1122702562 | ||
| 270 | A 1122702562 | BRAKE BAND |
| FORWARD SPEED | ||
| A 1122700762 | BRAKE BAND | |
| Repalced by: A 1122702362 | ||
| A 1122701162 | BRAKE BAND | |
| Repalced by: A 1122702362 | ||
| A 1122702262 | BRAKE BAND | |
| Repalced by: A 1122702362 | ||
| 274 | A 1122702362 | BRAKE BAND |
| Repalced by: A 1122702662 | ||
| 274 | A 1122702662 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 274 | A 1122702362 | BRAKE BAND |
| REVERSE SPEED | ||
| 276 | A 1122770475 | PIN |
| AS REQUIRED | ||
| 35 MM | ||
| A 1122770575 | PIN | |
| AS REQUIRED | ||
| 36 MM | ||
| A 1122770675 | PIN | |
| AS REQUIRED | ||
| 37 MM | ||
| 278 | A 1129970130 | SCREW PLUG |
| 280 | N 007603016401 | SEAL RING |
| 282 | A 1122770171 | SCREW |
| A 1152775375 | PIN | |
| 284 | A 1122773175 | PIN |
| 286 | A 1122770003 | COVER |
| 288 | A 1122770080 | GASKET |
| Repalced by: A 1122771780 | ||
| 288 | A 1122771780 | GASKET |
| 290 | N 000933070019 | SCREW |
| 292 | N 000137007200 | SPRING WASHER |
| 294 | A 1129970030 | SCREW PLUG |
| 296 | N 007603008101 | SEAL RING |
| A 1112600058 | BREATHER | |
| A 1122700382 | BREATHER | |
| REPAIR SIZE | ||
| 298 | A 1122700182 | BREATHER |
| N 007603010100 | SEAL RING | |
| 300 | N 007603014100 | SEAL RING |
| 302 | A 1122700932 | PISTON |
| 304 | A 1122770055 | SEAL RING |
| 306 | A 1122700114 | BEARING COVER |
| Repalced by: A 1122700814 | ||
| 306 | A 1122700814 | BEARING COVER |
| 308 | A 0009976041 | SEAL RING |
| A 1122700271 | HOUSING | |
| 310 | A 1112700071 | HOUSING |
| 312 | A 1122700188 | INSULATING PLATE |
| 314 | A 1122700079 | DIAPHRAGM |
| 322 | A 1122771375 | PIN |
| Repalced by: A 1122772475 | ||
| 322 | A 1122770233 | DIAPHRAGM |
| Repalced by: A 1122772475 | ||
| 322 | A 1122770352 | SPACER WASHER |
| Repalced by: A 1122772475 | ||
| 322 | N 000127003200 | LOCK WASHER |
| Repalced by: A 1122772475 | ||
| N 000934003003 | NUT | |
| Repalced by: N 304032003001 | ||
| N 304032003001 | NUT | |
| 322 | A 1122770946 | SPRING RETAINER |
| Repalced by: A 1122772475 | ||
| 322 | A 1122772475 | PIN |
| AS REQUIRED | ||
| 80 MM | ||
| A 1122772575 | PIN | |
| AS REQUIRED | ||
| 81 MM | ||
| A 1122772675 | PIN | |
| AS REQUIRED | ||
| 82 MM | ||
| 324 | A 1122770514 | INTERMEDIATE PLATE |
| 326 | A 0009976845 | SEAL RING |
| 328 | A 1122770753 | SPACER TUBE |
| A 1122770452 | SPACER WASHER | |
| 330 | A 1122770977 | GUIDE |
| A 1129934001 | SPRING | |
| 332 | A 1129932402 | SPRING |
| 334 | N 006799003200 | LOCK PLATE |
| A 1129938801 | SPRING | |
| 336 | A 1129934002 | SPRING |
| A 1129935202 | SPRING | |
| N 000433005300 | WASHER | |
| A 1122771403 | COVER | |
| 340 | A 1112770003 | COVER |
| 342 | A 1122770271 | SCREW |
| 344 | A 1122771046 | SPRING RETAINER |
| 346 | N 007603006100 | SEAL RING |
| 348 | N 000934006007 | NUT |
| 350 | N 007603010100 | SEAL RING |
| 352 | N 915013004002 | SCREW FITTING |
| 354 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 354 | N 304017005002 | SCREW |
| 356 | N 000137005100 | SPRING WASHER |
| 358 | N 000933005103 | SCREW |
| 360 | N 000137005100 | SPRING WASHER |
| A 1122770157 | INSULATING RING | |
| 362 | A 1129970030 | SCREW PLUG |
| 364 | N 007603008101 | SEAL RING |
| 366 | A 1122771380 | GASKET |
| Repalced by: A 1122771580 | ||
| 366 | A 1122771580 | GASKET |
| Repalced by: A 1102770180 | ||
| 366 | A 1102770180 | GASKET |
| 368 | A 1129931401 | SPRING |
| 370 | A 1122770380 | GASKET |
| Repalced by: A 1122771980 | ||
| 370 | A 1122771980 | GASKET |
| 372 | N 000933007017 | SCREW |
| N 000933007021 | SCREW | |
| N 000933007019 | SCREW | |
| 374 | N 000137007200 | SPRING WASHER |
| A 1122770257 | INSULATING RING | |
| 376 | N 000936014005 | NUT |
| 378 | A 1129970030 | SCREW PLUG |
| FOR CHECK BORE | ||
| 380 | N 007603008101 | SEAL RING |
| FOR CHECK BORE | ||

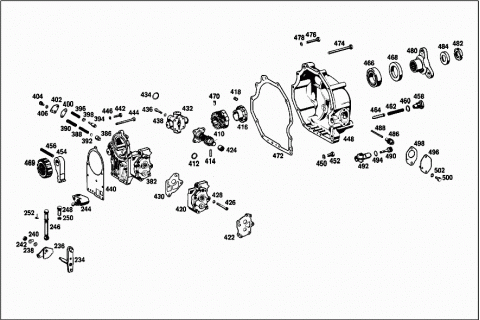

| 382 | A 1122701116 | CASE COVER |
| LESS GOVERNOR, PUMP, AND DRIVE GEAR | ||
| N 900421005000 | THREADED INSERT | |
| 386 | A 1122772731 | PISTON |
| 388 | A 1129937601 | SPRING |
| 390 | A 1129937701 | SPRING |
| A 1129935402 | SPRING | |
| 392 | A 1122770852 | SPACER WASHER |
| MAXIMUM,4 PIECES | ||
| 394 | A 1122775531 | PISTON |
| 396 | A 1129936801 | SPRING |
| 398 | A 1122770752 | SPACER WASHER |
| MAXIMUM,2 PIECES | ||
| 400 | A 1122770180 | GASKET |
| Repalced by: A 1122771680 | ||
| 400 | A 1122771680 | GASKET |
| 402 | A 1122770083 | LOCKING SHEET |
| 404 | N 000084005131 | SCREW |
| 406 | N 000137005100 | SPRING WASHER |
| A 1122700993 | DRIVE SHAFT | |
| 410 | A 1092700193 | DRIVE SHAFT |
| 412 | A 1862770055 | SEAL RING |
| 414 | A 1129910201 | PIN |
| REPAIR SIZE | ||
| 5.4 MM | ||
| A 1129910301 | PIN | |
| REPAIR SIZE | ||
| 5.5 MM | ||
| 416 | A 1122700950 | BUSHING |
| 418 | A 1129930102 | SPRING |
| 420 | A 1122700097 | OIL PUMP |
| SECONDARY | ||
| 422 | A 1122700187 | GASKET KIT |
| 424 | A 1122770453 | SPACER TUBE |
| FOLLOWER TO DRIVE SHAFT | ||
| 426 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 426 | N 304017006027 | SCREW |
| 428 | N 000137006204 | SPRING WASHER |
| 430 | A 1122770980 | GASKET |
| Repalced by: A 1122771880 | ||
| 430 | A 1122771880 | GASKET |
| 432 | A 1122700169 | SENDER UNIT |
| 434 | A 0009977845 | SEAL RING |
| 436 | N 000912005004 | SCREW |
| 438 | N 000137005100 | SPRING WASHER |
| 440 | A 1122770480 | GASKET |
| Repalced by: A 1122771480 | ||
| 440 | A 1122771480 | GASKET |
| 442 | N 000933006123 | SCREW |
| 444 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 444 | N 304014006004 | SCREW |
| 446 | N 000137006204 | SPRING WASHER |
| 448 | A 1122701211 | TRANSMISSION CASE |
| 450 | N 007603008101 | SEAL RING |
| 450 | N 007603008101 | SEAL RING |
| 452 | A 1129970030 | SCREW PLUG |
| 452 | A 1129970030 | SCREW PLUG |
| 454 | A 1122780221 | PAWL |
| 456 | A 1129939001 | SPRING |
| 458 | A 1122780069 | SCREW |
| 460 | N 007603016401 | SEAL RING |
| 462 | A 1129939901 | SPRING |
| 464 | A 1122780374 | PIN |
| N 000625006007 | GROOVED BALL BEARING | |
| 466 | N 000625900201 | GROOVED BALL BEARING |
| A 0029970846 | SEAL RING | |
| 468 | A 0039974746 | SEAL RING |
| A 1122720217 | GEAR | |
| 469 | A 1002720017 | GEAR |
| 470 | A 1002720074 | PIN |
| 472 | A 1122710680 | GASKET |
| Repalced by: A 1122711480 | ||
| 472 | A 1122711480 | GASKET |
| 474 | N 000933007022 | SCREW |
| 476 | N 000933007021 | SCREW |
| 478 | N 000137007200 | SPRING WASHER |
| A 1122720445 | FLANGE | |
| 480 | A 1112620045 | FLANGE |
| 482 | A 1862620226 | GROOVED NUT |
| 484 | A 1862620173 | LOCK |
| 486 | A 1122700527 | SPEEDOMETER DRIVE |
| 488 | A 1122740032 | DRIVE SHAFT |
| 490 | A 1122700627 | SPEEDOMETER DRIVE |
| 492 | A 1122700113 | BEARING BODY |
| 494 | A 0009976845 | SEAL RING |
| 496 | A 1122700008 | COVER |
| 498 | A 1122740180 | GASKET |
| 500 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 500 | N 304017006016 | SCREW |
| 502 | N 000137006204 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |

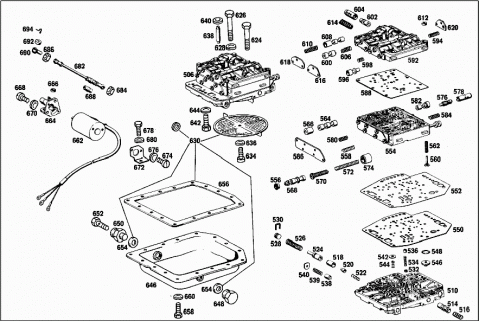

| VALVE BODY ASSEMBLY | ||
| A 1122700807 | VALVE BODY ASSEMBLY | |
| 506 | A 1112700507 | VALVE BODY ASSEMBLY |
| A 1122700907 | VALVE BODY ASSEMBLY | |
| A 1122701407 | VALVE BODY ASSEMBLY | |
| Repalced by: A 1122702207 | ||
| 510 | A 1122702207 | VALVE BODY ASSEMBLY |
| A 1122774129 | SHIFT VALVE | |
| TO 112 270 09 07 | ||
| A 1122774229 | SHIFT VALVE | |
| TO 112 270 09 07 | ||
| A 1129931402 | SPRING | |
| TO 112 270 09 07 | ||
| A 1122771146 | SPRING RETAINER | |
| TO 112 270 09 07 | ||
| 514 | A 1122775329 | SHIFT VALVE |
| TO 112 270 14 07, 112 270 22 07 | ||
| 516 | A 1129932701 | SPRING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 518 | A 1122773550 | BUSHING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 520 | A 1122774531 | PISTON |
| TO 112 270 14 07, 112 270 22 07 | ||
| 522 | A 1129933502 | SPRING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 524 | A 1122774631 | PISTON |
| TO 112 270 14 07, 112 270 22 07 | ||
| 526 | A 1129933702 | SPRING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 528 | A 1122771174 | PIN |
| TO 112 270 14 07, 112 270 22 07 | ||
| 530 | A 1122770073 | LOCK |
| TO 112 270 14 07, 112 270 22 07 | ||
| 532 | A 1122773750 | BUSHING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 534 | A 1129933802 | SPRING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 536 | A 1122774731 | PISTON |
| TO 112 270 14 07, 112 270 22 07 | ||
| A 1122773631 | PISTON | |
| TO 112 270 09 07 | ||
| 538 | A 1122775031 | PISTON |
| TO 112 270 14 07, 112 270 22 07 | ||
| 539 | A 1129934402 | SPRING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 540 | A 1122770583 | LOCKING SHEET |
| A 1129935801 | SPRING | |
| TO 112 270 09 07 | ||
| 542 | A 1152772936 | VALVE PART |
| TO 112 270 14 07, 112 270 22 07 | ||
| 544 | A 1129934802 | SPRING |
| TO 112 270 14 07, 112 270 22 07 | ||
| 546 | A 1122701489 | VALVE |
| 548 | A 0059974145 | SEAL RING |
| A 1122771014 | INTERMEDIATE PLATE | |
| 550 | A 1122771314 | INTERMEDIATE PLATE |
| A 1122770880 | GASKET | |
| Repalced by: A 1122772080 | ||
| A 1122772080 | GASKET | |
| 552 | A 1122771280 | GASKET |
| Repalced by: A 1122772380 | ||
| 552 | A 1122772380 | GASKET |
| A 1122701007 | VALVE BODY ASSEMBLY | |
| 554 | A 1112700307 | VALVE BODY ASSEMBLY |
| A 1122770850 | BUSHING | |
| 556 | A 1122773150 | BUSHING |
| 558 | A 1129930902 | SPRING |
| 560 | A 1122770436 | VALVE PART |
| 562 | A 1129930301 | SPRING |
| A 1122775129 | SHIFT VALVE | |
| 564 | A 1122775629 | SHIFT VALVE |
| 566 | A 1122774031 | PISTON |
| A 1122700570 | REGULATOR VALVE | |
| 568 | A 1122700870 | REGULATOR VALVE |
| 570 | A 1122700177 | THRUST PIN |
| 572 | A 1129938501 | SPRING |
| 574 | A 1122772631 | PISTON |
| 576 | A 1122774729 | SHIFT VALVE |
| 578 | A 1122772950 | BUSHING |
| A 1129931002 | SPRING | |
| 580 | A 1129933902 | SPRING |
| A 1122772929 | SHIFT VALVE | |
| 582 | A 1122775429 | SHIFT VALVE |
| 584 | A 1129931901 | SPRING |
| 586 | A 1122771783 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| 588 | A 1122771114 | INTERMEDIATE PLATE |
| A 1122701207 | VALVE BODY ASSEMBLY | |
| UPPER PART | ||
| 592 | A 1122702107 | VALVE BODY ASSEMBLY |
| UPPER PART | ||
| 594 | A 1129931502 | SPRING |
| A 1129934302 | SPRING | |
| A 1122775131 | PISTON | |
| 596 | A 1122775231 | PISTON |
| A 1129936501 | SPRING | |
| 598 | A 1129934402 | SPRING |
| 600 | A 1122772929 | SHIFT VALVE |
| 602 | A 1122775529 | SHIFT VALVE |
| 604 | A 1122773650 | BUSHING |
| 606 | A 1129931901 | SPRING |
| 608 | A 1122771530 | SHIFT VALVE |
| 610 | A 1129935002 | SPRING |
| 612 | A 1122770392 | BOOT |
| A 1122774050 | BUSHING | |
| A 1129932601 | SPRING | |
| 614 | A 1129933602 | SPRING |
| A 1129930902 | SPRING | |
| 616 | A 1122770883 | LOCKING SHEET |
| 618 | A 1122770983 | LOCKING SHEET |
| 620 | A 1122770483 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| N 900421005000 | THREADED INSERT | |
| 624 | N 000931006055 | SCREW |
| 626 | N 000931006061 | SCREW |
| 628 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 628 | N 000137006204 | SPRING WASHER |
| 630 | A 1122700098 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012104 OIL DRAN HYDRAULIC CLUTCH | ||
| A 1132700098 | FILTER | |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012113 OIL DRAN HYDRAULIC CLUTCH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| 634 | N 000084006134 | SCREW |
| 636 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 636 | N 000137006204 | SPRING WASHER |
| 638 | A 1122770647 | TUBE |
| 640 | A 0009976345 | SEAL RING |
| 642 | N 000933007019 | SCREW |
| 644 | N 000137007201 | SPRING WASHER |
| 646 | A 1122700412 | OIL PAN |
| 648 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 648 | N 007604014110 | SCREW PLUG |
| OIL DRAIN | ||
| 650 | A 1129970372 | FITTING |
| 652 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 652 | N 915036010108 | HOLLOW SCREW |
| 654 | N 007603014100 | SEAL RING |
| 654 | N 007603014100 | SEAL RING |
| 656 | A 1122710980 | GASKET |
| 658 | N 000933007027 | SCREW |
| 660 | N 000137007200 | SPRING WASHER |
| 662 | A 0003040290 | SOLENOID |
| 664 | A 1123000036 | BEARING BRACKET |
| Repalced by: A 1123000636 | ||
| 664 | A 1123000636 | BEARING BRACKET |
| FOR MAGNET | ||
| 666 | A 1123040060 | SEAL RING |
| 668 | N 000084005131 | SCREW |
| 670 | N 000137005100 | SPRING WASHER |
| 672 | A 1123040040 | BRACKET |
| FOR MAGNET | ||
| 674 | N 000084005402 | SCREW |
| 676 | N 000137005100 | SPRING WASHER |
| 678 | N 000933007023 | SCREW |
| MAGNET TO TRANSMISSION CASE | ||
| 680 | N 000137007200 | SPRING WASHER |
| MAGNET TO TRANSMISSION CASE | ||
| A 1123040078 | ROD | |
| 682 | A 1123001015 | ROD |
| 684 | N 000934005008 | NUT |
| 686 | N 000934005010 | NUT |
| L.H. THREAD | ||
| 688 | N 900333005001 | TURNBUCKLE |
| 690 | N 071805008204 | BALL SOCKET |
| 692 | A 0009976041 | SEAL RING |
| 694 | N 071805008400 | SECURING CLIP |
| N 900055005000 | SPRING WASHER | |
| N 000433005300 | WASHER | |
| N 000094001501 | COTTER PIN | |
| A 1122700080 | GASKET KIT | |
| Repalced by: A 1122701800 | ||
| A 1122701800 | GASKET KIT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONNECTING PARTS | ||
| 702 | N 000912006025 | SCREW |
| Repalced by: N 000912006175 | ||
| 702 | N 000912006175 | SCREW |
| Repalced by: A 0019907212 | ||
| 702 | A 0019907212 | SCREW |
| FLEXIBLE SHAFT TO BEARING BODY | ||
| 704 | N 000137006204 | SPRING WASHER |
| FLEXIBLE SHAFT TO BEARING BODY | ||
| N 000912008047 | SCREW | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| N 000933008316 | SCREW | |
| Repalced by: A 0089907401 | ||
| A 0089907401 | SCREW | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| N 000137008200 | SPRING WASHER | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| A 1082700084 | OIL FILLER PIPE | |
| Repalced by: A 1082700284 | ||
| A 1082700284 | OIL FILLER PIPE | |

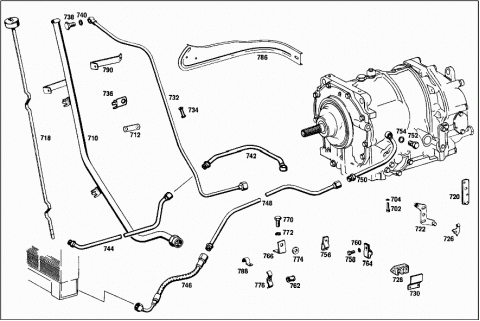

| 710 | A 1112700284 | OIL FILLER PIPE |
| Repalced by: A 1112700384 | ||
| 710 | A 1112700384 | OIL FILLER PIPE |
| 712 | A 1112710440 | BRACKET |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BRACKET TO OIL FILLER PIPE | ||
| N 000127008203 | LOCK WASHER | |
| BRACKET TO OIL FILLER PIPE | ||
| N 000934008013 | NUT | |
| BRACKET TO OIL FILLER PIPE | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| N 007603014100 | SEAL RING | |
| A 1122700083 | OIL DIPSTICK | |
| 718 | A 1162700083 | OIL DIPSTICK |
| 720 | A 1122700656 | LEVER |
| 722 | A 1122600239 | SHIFT LEVER |
| FLOOR SHIFT | ||
| N 000933006130 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000125006407 | WASHER | |
| N 000934006007 | NUT | |
| 726 | A 1132600162 | BRACKET |
| 728 | A 0005466541 | CABLE CONNECTOR |
| 730 | A 1272570490 | COVER PLATE |
| N 000084004164 | SCREW | |
| N 000137004100 | SPRING WASHER | |
| 732 | A 1112701447 | LINE |
| 734 | A 1129970381 | GROMMET |
| 734 | A 1129970381 | GROMMET |
| 736 | A 1112760040 | BRACKET |
| N 900195010200 | THREADED INSERT | |
| 738 | N 007623004302 | HOLLOW SCREW |
| 740 | N 007603010100 | SEAL RING |
| 742 | A 1112700896 | LINE |
| 744 | A 1142700996 | LINE |
| Repalced by: A 1232700396 | ||
| 744 | A 1232700396 | LINE |
| 746 | A 0019971852 | HOSE |
| 748 | A 1112700696 | LINE |
| 750 | A 1112700796 | LINE |
| 752 | N 007623006302 | HOLLOW SCREW |
| 754 | N 007603012104 | SEAL RING |
| 756 | A 1209950005 | CLAMP |
| 758 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 758 | N 304017006016 | SCREW |
| 760 | N 912004006102 | LOCK WASHER |
| 762 | A 1129970281 | GROMMET |
| 764 | A 1209950005 | CLAMP |
| 766 | A 1112770440 | BRACKET |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000137006204 | SPRING WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| 770 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 770 | N 304017008021 | SCREW |
| 772 | N 000127008200 | LOCK WASHER |
| 774 | A 1801550851 | SPACER RING |
| 776 | A 1119951232 | CLAMP |
| OIL PIPE | ||
| N 000084004164 | SCREW | |
| CLAMP TO OIL PIPE | ||
| N 000127004200 | LOCK WASHER | |
| CLAMP TO OIL PIPE | ||
| N 000934004006 | NUT | |
| CLAMP TO OIL PIPE | ||
| N 000931010268 | SCREW | |
| Repalced by: N 304017010050 | ||
| N 304017010050 | SCREW | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000931010239 | SCREW | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000125010500 | WASHER | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000137010200 | SPRING WASHER | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000934010014 | NUT | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 786 | A 1114920330 | PROTECTIVE PLATE |
| Repalced by: A 1114920430 | ||
| 786 | A 1124920730 | PROTECTIVE PLATE |
| Repalced by: A 1114920430 | ||
| 786 | A 1114920430 | PROTECTIVE PLATE |
| 788 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 788 | A 1109950401 | CLAMP |
| A 1114920819 | BRACKET | |
| 790 | A 1114921019 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO TRANSMISSION | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO TRANSMISSION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

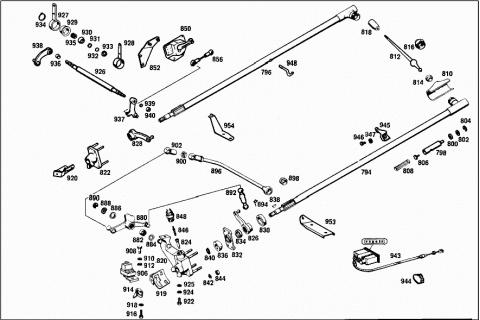

| GEARSHIFT, STEERING COLUMN | ||
| 794 | A 1122600582 | SHIFTING TUBE |
| A 1112603382 | SHIFTING TUBE | |
| Repalced by: A 1092600882 | ||
| A 1092600882 | SHIFTING TUBE | |
| 796 | A 1092600182 | SHIFTING TUBE |
| A 1092600982 | SHIFTING TUBE | |
| Repalced by: A 1092600882 | ||
| A 1092600882 | SHIFTING TUBE | |
| 798 | A 1112680539 | GUIDE PIVOT |
| A 1082680039 | GUIDE PIVOT | |
| 800 | A 1119971240 | SEAL RING |
| 802 | A 1869906940 | WASHER |
| 804 | A 1862680273 | LOCK |
| 806 | A 1862680274 | PIN |
| 808 | A 1829930801 | SPRING |
| 810 | A 1112680397 | BOOT |
| A 1082680097 | BOOT | |
| A 1082680197 | BOOT | |
| 812 | A 1802680524 | SHIFT LEVER |
| A 1082680324 | SHIFT LEVER | |
| 814 | A 1112680392 | RUBBER PAD |
| 816 | A 1802680057 | COVER |
| 818 | A 1082680242 | KNOB |
| 820 | A 1122601294 | BEARING BRACKET |
| A 1092600294 | BEARING BRACKET | |
| 822 | A 1092600194 | BEARING BRACKET |
| 824 | A 1112680850 | BUSHING |
| 826 | A 1112600315 | LEVER |
| A 1102600315 | LEVER | |
| 828 | A 1122600115 | LEVER |
| 830 | A 1112681050 | BUSHING |
| 832 | A 1122680557 | COVER |
| 832 | A 1122680557 | COVER |
| 834 | A 1112680251 | SPACER RING |
| 836 | A 1122680546 | SHIFTING SEGMENT |
| BACK-UP LIGHT | ||
| 838 | N 006888002000 | WOODRUFF KEY |
| 838 | N 006888002000 | WOODRUFF KEY |
| 840 | N 000471013000 | LOCK RING |
| 842 | N 000137006204 | SPRING WASHER |
| 844 | N 000934006007 | NUT |
| 846 | A 1122680474 | PIN |
| 848 | A 0005450806 | SWITCH |
| BACK-UP LIGHT | ||
| 850 | A 0015458724 | SWITCH,AUTOMATIC |
| STARTER NON-REPEAT AND BACK-UP LIGHT | ||
| 852 | A 1095400173 | BRACKET |
| N 000127005203 | LOCK WASHER | |
| N 000934005008 | NUT | |
| A 1092600066 | BALL SOCKET | |
| 856 | A 1092600166 | BALL SOCKET |
| N 000439005200 | NUT | |
| A 0009910822 | BALL SOCKET | |
| Repalced by: A 6089910022 | ||
| A 6089910022 | BALL SOCKET | |
| 880 | A 1122600881 | LEVER |
| A 1092600281 | LEVER | |
| 882 | A 0009812110 | NEEDLE BEARING |
| 884 | A 1809970840 | SEAL RING |
| 886 | A 3129900340 | WASHER |
| 888 | N 900055012000 | SPRING WASHER |
| 890 | N 006799010001 | LOCK PLATE |
| 892 | A 0002680166 | BALL SOCKET |
| 894 | N 071805010400 | SECURING CLIP |
| 896 | A 1112606233 | SHIFTING ROD |
| A 1082600133 | SHIFTING ROD | |
| 898 | A 1122680150 | BUSHING |
| 900 | N 070616010004 | NUT |
| 902 | A 0009913822 | BALL SOCKET |
| A 1092680073 | LOCK | |
| SHIFTING ROD TO LEVER | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| SHIFTING ROD TO LEVER | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| SHIFTING ROD TO LEVER | ||
| 906 | A 0015452524 | SWITCH,AUTOMATIC |
| A 0025450524 | SWITCH,AUTOMATIC | |
| 908 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 908 | N 304017005002 | SCREW |
| 910 | N 000127005200 | LOCK WASHER |
| 912 | N 000125005306 | WASHER |
| 914 | A 1122680039 | GUIDE PIVOT |
| 916 | N 000933006130 | SCREW |
| 918 | N 912004006102 | LOCK WASHER |
| 919 | A 1122600228 | GUIDE PLATE |
| 920 | A 1122680847 | SLOTTED GATE |
| 922 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 922 | N 304017006016 | SCREW |
| 924 | N 912004006102 | LOCK WASHER |
| 925 | N 000125006421 | WASHER |
| 926 | A 1112680732 | SHAFT |
| 927 | A 1112680235 | BEARING |
| 928 | A 1092680001 | HOUSING |
| 929 | A 1112680086 | RUBBER RING |
| 930 | A 1119910029 | BALL |
| 931 | A 1802680076 | WASHER |
| 932 | A 1119971040 | SEAL RING |
| 933 | N 000988010000 | FITTED WASHER |
| 934 | N 000471010000 | LOCK RING |
| 935 | A 0009811810 | NEEDLE BEARING |
| 936 | A 1129910340 | SPACER TUBE |
| 937 | A 1092600081 | LEVER |
| 938 | A 1122601081 | LEVER |
| 939 | N 000127007200 | LOCK WASHER |
| 940 | N 000934007000 | NUT |
| N 000933006056 | SCREW | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| A 0009905991 | NUT RETAINER | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| 943 | A 1122700052 | GEAR INDICATOR |
| A 1122700252 | GEAR INDICATOR | |
| 944 | A 1115450019 | SOCKET |
| N 072601012800 | BULB | |
| 945 | A 1092680215 | LEVER |
| 946 | N 000933006130 | SCREW |
| 947 | N 000137006204 | SPRING WASHER |
| 948 | A 1129900138 | SCREW |
| N 000934006007 | NUT | |
| A 1092680215 | LEVER | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 953 | A 1122600162 | BRACKET |
| GEAR INDICATOR BOWDEN CABLE | ||
| 954 | A 1112600062 | BRACKET |
| GEAR INDICATOR BOWDEN CABLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

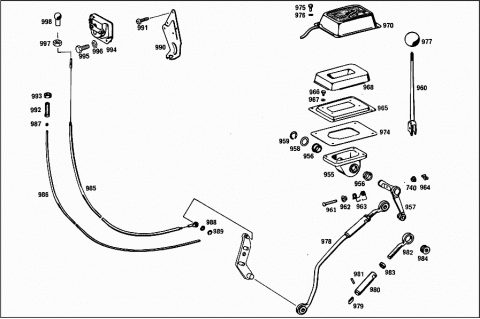

| FLOOR SHIFT, ON SPECIAL REQUEST | ||
| 955 | A 1122670020 | CASE |
| 955 | A 1122670120 | CASE |
| 956 | A 1122670050 | BUSHING |
| 957 | A 1122600237 | LEVER |
| 958 | A 1879900840 | WASHER |
| 959 | N 900055016300 | LOCK RING |
| 960 | A 1122670001 | SHIFT LEVER |
| 961 | A 1122670074 | PIN |
| 962 | A 1122670150 | BUSHING |
| 963 | A 1129930120 | SPRING |
| 964 | A 0009940260 | LOCK |
| 965 | A 1132670640 | BRACKET |
| 966 | N 000933005036 | SCREW |
| 967 | N 000127005203 | LOCK WASHER |
| 968 | A 1132670296 | BOOT |
| A 1112670084 | SHIM | |
| 970 | A 1112600028 | GUIDE PLATE |
| N 072601012140 | BULB | |
| A 0009952220 | CLAMP | |
| A 0005420039 | PLATE | |
| 974 | A 1122670084 | SHIM |
| 975 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 975 | N 304017006018 | SCREW |
| 976 | N 000137006204 | SPRING WASHER |
| 977 | A 1132670010 | HANDLE |
| 978 | A 1112606833 | SHIFTING ROD |
| 979 | A 1132670183 | SEAL |
| 980 | A 1122670059 | GUIDE |
| A 1132670059 | GUIDE | |
| 981 | N 007341004105 | RIVET |
| 982 | A 1122670032 | END PIECE |
| 983 | N 070616010004 | NUT |
| 984 | A 1122680150 | BUSHING |
| 985 | A 1122600051 | WIRE CABLE |
| 986 | N 040621005200 | INSULATING HOSE |
| 404 MM | ||
| 987 | A 1139970141 | SEAL RING |
| 988 | N 000137006204 | SPRING WASHER |
| 989 | N 006799004001 | LOCK PLATE |
| 990 | A 1122700341 | BRACKET |
| 991 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 991 | N 000000002062 | SCREW |
| 992 | A 1132670253 | SPACER TUBE |
| 993 | N 070616010001 | NUT |
| 994 | A 0015458724 | SWITCH,AUTOMATIC |
| STARTER NON-REPEAT AND BACK-UP LIGHT | ||
| 995 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 995 | N 304017006034 | SCREW |
| 996 | N 912004006102 | LOCK WASHER |
| 997 | N 000439005201 | NUT |
| 998 | A 0009910822 | BALL SOCKET |
| Repalced by: A 6089910022 | ||
| 998 | A 6089910022 | BALL SOCKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
