Transporto priemonė: 230 S; VIN numerio dalis: 111010

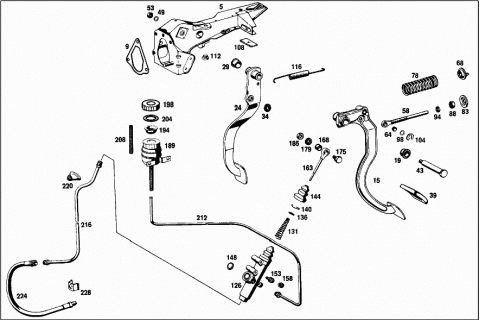

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PEDAL ASSEMBLY | ||
| 005 | A 1102900931 | BEARING |
| A 1092900031 | BEARING | |
| 009 | A 1084310080 | GASKET |
| A 1104310380 | GASKET | |
| 015 | A 1102905216 | PEDAL |
| 019 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 019 | A 1242920050 | BUSHING |
| 024 | A 1102903518 | PEDAL |
| 029 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 029 | A 1242920050 | BUSHING |
| 034 | A 1102920150 | BUSHING |
| 039 | A 1072910182 | PAD |
| 039 | A 1072910182 | PAD |
| 043 | A 1102910674 | PIN |
| A 1102910574 | PIN | |
| 049 | N 000127010200 | LOCK WASHER |
| 053 | N 000936010010 | NUT |
| 058 | A 1102901939 | ROD |
| CLUTCH PEDAL | ||
| 064 | A 1102910750 | BUSHING |
| 068 | A 1072910091 | SPRING RETAINER |
| 078 | A 1109930501 | SPRING |
| 083 | A 1112910491 | SPRING RETAINER |
| 088 | N 070615010001 | NUT |
| 094 | N 007967010000 | NUT |
| 098 | A 1109901740 | WASHER |
| 104 | A 0009940410 | LOCK |
| 108 | A 1114620075 | WASHER |
| 2.0 MM | ||
| 112 | A 1112910086 | STOP |
| 116 | A 1079930410 | SPRING |
| A 1102910187 | PROTECTIVE PLATE | |
| AT PEDAL UNIT SUPPORT | ||
| N 007976005200 | SHEET METAL SCREW | |
| CABLE TO PROTECTIVE PLATE | ||
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| N 000433008406 | WASHER | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| N 000137008200 | SPRING WASHER | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| 126 | A 0002952406 | MASTER CYLINDER |
| A 0002952906 | MASTER CYLINDER | |
| 131 | A 0009932105 | SPRING |
| 136 | A 0009907040 | WASHER |
| 140 | A 0009943335 | SNAP RING |
| 144 | A 0002950983 | BOOT |
| A 0002951583 | BOOT | |
| 148 | N 000470020000 | EXPANSION PLUG |
| 153 | A 0004201055 | BLEEDER VALVE |
| 158 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 158 | A 0004210887 | PROTECTIVE CAP |
| A 0005860629 | REPAIR KIT | |
| A 0005861129 | REPAIR KIT | |
| A 1082950040 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| A 1082950140 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| A 1082950050 | BUSHING | |
| A 1082950076 | WASHER | |
| N 900055034101 | LOCK RING | |
| 163 | A 1102901839 | ROD |
| 168 | A 1102950250 | BUSHING |
| N 000931006115 | SCREW | |
| Repalced by: N 000933006151 | ||
| N 000933006151 | SCREW | |
| MASTER CYLINDER TO SUPPORT | ||
| N 000137006204 | SPRING WASHER | |
| MASTER CYLINDER TO SUPPORT | ||
| N 000934006007 | NUT | |
| MASTER CYLINDER TO SUPPORT | ||
| 175 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 175 | A 1152950172 | NUT |
| 179 | N 000127008200 | LOCK WASHER |
| 185 | N 000936008003 | NUT |
| 189 | A 1112900215 | RESERVOIR |
| 194 | A 0004314334 | STRAINER |
| 198 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 198 | A 0004315433 | FILLER CAP |
| 204 | A 0009976841 | SEAL RING |
| 208 | A 0059978382 | HOSE |
| N 000933006010 | SCREW | |
| RESERVOIR TO BRACKET AT FRONT END | ||
| N 912004006102 | LOCK WASHER | |
| RESERVOIR TO BRACKET AT FRONT END | ||
| N 000934006007 | NUT | |
| RESERVOIR TO BRACKET AT FRONT END | ||
| 212 | A 1102900513 | LINE |
| A 1102901513 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1082900413 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1102903613 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1082900513 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| 216 | A 1102900013 | LINE |
| Repalced by: A 1003202153 | ||
| 216 | A 1003202153 | LINE |
| A 1102903013 | LINE | |
| A 1102900113 | LINE | |
| A 1102903313 | LINE | |
| Repalced by: A 1093207653 | ||
| A 1093207653 | LINE | |
| 220 | A 0079975881 | GROMMET |
| N 073379006101 | HOSE | |
| A 0009870444 | EXPANSION PLUG | |
| 224 | A 0002950135 | HOSE |
| A 0002950535 | HOSE | |
| 228 | A 0002950173 | LOCK |
| N 072571001034 | CLAMP | |
| N 007976004216 | SHEET METAL SCREW | |
| A 1119970772 | FITTING | |
| HOSE TO SLAVE CYLINDER | ||
| A 1102950640 | BRACKET | |
| HOSE TO SLAVE CYLINDER | ||
| A 0002950173 | LOCK | |
| HOSE TO SLAVE CYLINDER | ||
| A 1112900613 | LINE | |
| HOSE TO SLAVE CYLINDER | ||
| N 073379008100 | HOSE | |
| 30 MM | ||
| A 0029884978 | CLIP | |
