Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 35 REAR AXLE

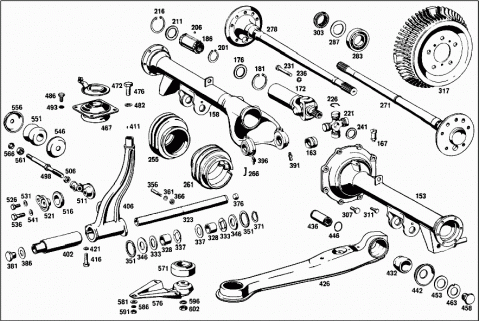

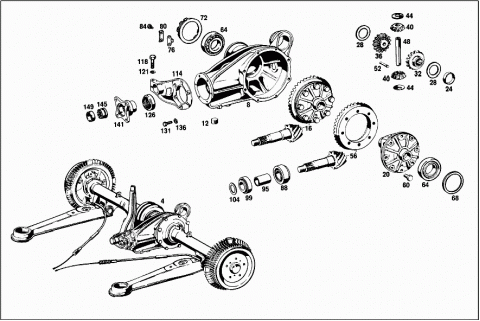

37483
37484
# Kodas Pavadinimas
004 A 1113502200 REAR AXLE
Repalced by: A 1103500203
004 A 1103500203 AXLE HOUSING
WITH MID-CENTERING, RATIO 1:4.08
A 1113502300 REAR AXLE
Repalced by: A 1103500203
A 1103500203 AXLE HOUSING
WITH MID-CENTERING, RATIO 1:4.08
A 1103500203 AXLE HOUSING
RATIO:
1:4.08
008 A 1103500220 AXLE HOUSING
012 A 1869970032 SCREW PLUG
016 A 1113500923 DIFFERENTIAL GEAR
RATIO:
1:4.08
020 A 1103530101 DIFFERENTIAL CASE
024 A 1103530048 RING
028 A 1153531162 THRUST WASHER
AS REQUIRED
1.3 MM
A 1803531162 THRUST WASHER
Repalced by: A 1153531062
A 1153531062 THRUST WASHER
AS REQUIRED
1.4 MM
A 1803531262 THRUST WASHER
Repalced by: A 1153530962
A 1153530962 THRUST WASHER
AS REQUIRED
1.5 MM
A 1803531362 THRUST WASHER
Repalced by: A 1153530862
A 1153530862 THRUST WASHER
AS REQUIRED
1.6 MM
A 1153530762 THRUST WASHER
AS REQUIRED
1.7 MM
032 A 1103530215 SIDE GEAR
LEFT, 16 TEETH
036 A 1103500140 DIFFERENTIAL PINION
RIGHT, 16 TEETH
040 A 1103530214 DIFFERENTIAL PINION
10 TEETH
044 A 1803530024 SPHERICAL WASHER
048 A 1803530021 PIN
052 A 1363530274 PIN
056 A 1113500739 RING GEAR AND PINION
RATIO:
1:4.08
A 1085860135 REPAIR KIT
060 A 1289900001 SCREW
A 1113500539 RING GEAR AND PINION
064 N 000720030208 TAPERED ROLLER BEARING
A 1233532252 SPACER WASHER
AS REQUIRED
1.7 MM
068 A 1283530052 SPACER WASHER
AS REQUIRED
1.8 MM
A 1283530152 SPACER WASHER
AS REQUIRED
1.9 MM
A 1283530252 SPACER WASHER
AS REQUIRED
2.0 MM
A 1283530352 SPACER WASHER
AS REQUIRED
2.1 MM
A 1283530452 SPACER WASHER
AS REQUIRED
2.2 MM
072 A 1103530125 SCREW COLLAR
076 A 1803530173 LOCK
A 1803530273 LOCK
A 1803530373 LOCK
A 1803530573 LOCK
A 1803530673 LOCK
080 A 1809940030 LOCK
084 N 000933006103 SCREW
Repalced by: N 304017006018
084 N 304017006018 SCREW
088 A 0009801002 TAPERED ROLLER BEARING
095 A 1103530242 SPACER BUSHING
099 A 0009800102 TAPERED ROLLER BEARING
A 0009800302 TAPERED ROLLER BEARING
A 0009801102 TAPERED ROLLER BEARING
104 A 1283530552 SPACER WASHER
AS REQUIRED
0.80 MM
A 1283530752 SPACER WASHER
AS REQUIRED
0.90 MM
A 1283530952 SPACER WASHER
AS REQUIRED
1.00 MM
A 1283531152 SPACER WASHER
AS REQUIRED
1.10 MM
A 1283531352 SPACER WASHER
AS REQUIRED
1.20 MM
A 1283531552 SPACER WASHER
AS REQUIRED
1.30 MM
A 1283531752 SPACER WASHER
AS REQUIRED
1.40 MM
A 1283531952 SPACER WASHER
AS REQUIRED
1.50 MM
114 A 1103530308 COVER
118 N 070613010000 SCREW
121 N 000127010200 LOCK WASHER
126 A 0049975646 SEAL RING
126 A 0059974146 SEAL RING
131 N 304017008023 SCREW
136 N 000127008203 LOCK WASHER
141 A 1103500145 FLANGE
145 A 1113500166 GROOVED NUT
149 A 1119940244 LOCK
153 A 1103501219 REAR AXLE TUBE
LEFT
158 A 1103501319 REAR AXLE TUBE
RIGHT
A 1103202443 BRACKET
LEFT FOR SHOCK ABSORBER
A 1103202543 BRACKET
RIGHT FOR SHOCK ABSORBER
163 A 1803510150 BUSHING
TO YOKE
167 A 1153500290 VALVE
LEFT REAR AXLE TUBE
172 A 1103500213 JOINT
Repalced by: A 1103500413
A 1103500413 JOINT
176 A 1803570152 SPACER WASHER
181 A 0009942941 LOCK
186 A 1113500113 JOINT
201 N 000471032000 LOCK RING
A 1103500048 SLEEVE
206 A 1809810086 ROLLER
211 A 1883570052 SPACER WASHER
216 N 000472048000 LOCK RING
221 A 1123500028 UNIVERSAL JOINT
Repalced by: A 1123500128
A 1123500128 UNIVERSAL JOINT
226 A 1869941235 SNAP RING
AS REQUIRED
2.15 MM
A 1869940435 SNAP RING
AS REQUIRED
2.25 MM
A 1869941535 SNAP RING
AS REQUIRED
2.35 MM
A 1869941735 SNAP RING
AS REQUIRED
2.45 MM
A 1869941935 SNAP RING
AS REQUIRED
2.55 MM
231 A 1109970032 SCREW PLUG
236 N 000127010200 LOCK WASHER
241 A 1803533052 SPACER WASHER
AS REQUIRED
1.0 MM
A 1803533152 SPACER WASHER
AS REQUIRED
1.1 MM
A 1803533352 SPACER WASHER
AS REQUIRED
1.2 MM
A 1803533552 SPACER WASHER
AS REQUIRED
1.3 MM
A 1803533752 SPACER WASHER
AS REQUIRED
1.4 MM
A 1803533952 SPACER WASHER
AS REQUIRED
1.5 MM
A 1803534152 SPACER WASHER
AS REQUIRED
1.6 MM
A 1803534352 SPACER WASHER
AS REQUIRED
1.7 MM
A 1803534552 SPACER WASHER
AS REQUIRED
1.8 MM
A 1803534752 SPACER WASHER
AS REQUIRED
1.9 MM
A 1803534952 SPACER WASHER
AS REQUIRED
2.0 MM
255 A 1103570491 BOOT
RIGHT REAR AXLE TUBE
261 A 1103570391 BOOT
SPLIT REPAIR SIZE
266 A 0029881078 CLIP
REPAIR SIZE
271 A 1103571101 REAR AXLE SHAFT
LEFT
278 A 1103571501 REAR AXLE SHAFT
RIGHT
283 A 0019811525 BALL BEARING
Repalced by: A 0029812301
283 A 0029812301 CYLINDR. ROLLER BEARING
287 A 1833530373 LOCK
303 A 1533570026 GROOVED NUT
307 N 000933010164 SCREW
LEFT REAR AXLE TUBE TO REAR AXLE HOUSING
311 N 000933008154 SCREW
Repalced by: N 304017008021
311 N 304017008021 SCREW
N 900288088003 CLAMP
REAR AXLE TUBE
N 900288121000 CLAMP
REAR AXLE HOUSING
317 A 1804210801 BRAKE DRUM
A 1113500068 REPAIR KIT
X XXXXXXXXXXXX PART NAME MISSING
REAR AXLE SUSPENSION
323 A 1103510074 PIN
328 A 1803510153 SPACER TUBE
AS REQUIRED
26.0 MM
A 1803511853 SPACER TUBE
AS REQUIRED
25.8 MM
A 1803511753 SPACER TUBE
AS REQUIRED
25.6 MM
A 1803511653 SPACER TUBE
AS REQUIRED
25.4 MM
A 1803511553 SPACER TUBE
Repalced by: A 1803511653
A 1803511653 SPACER TUBE
AS REQUIRED
25.2 MM
A 1803511453 SPACER TUBE
AS REQUIRED
25.0 MM
333 A 1803511452 SPACER WASHER
2.0 MM
337 A 1803511352 SPACER WASHER
Repalced by: A 1803511452
337 A 1803511452 SPACER WASHER
AS REQUIRED
1.9 MM
A 1803511452 SPACER WASHER
AS REQUIRED
2.0 MM
A 1803511552 SPACER WASHER
AS REQUIRED
2.1 MM
A 1803511652 SPACER WASHER
AS REQUIRED
2.2 MM
A 1803511752 SPACER WASHER
AS REQUIRED
2.3 MM
A 1803511852 SPACER WASHER
AS REQUIRED
2.4 MM
A 1803511952 SPACER WASHER
AS REQUIRED
2.5 MM
A 1803512752 SPACER WASHER
AS REQUIRED
2.6 MM
A 1803512852 SPACER WASHER
AS REQUIRED
2.7 MM
A 1803512952 SPACER WASHER
Repalced by: A 1803513052
A 1803513052 SPACER WASHER
AS REQUIRED
2.8 MM
A 1803513052 SPACER WASHER
AS REQUIRED
2.9 MM
A 1803512052 SPACER WASHER
AS REQUIRED
3.0 MM
A 1803513152 SPACER WASHER
AS REQUIRED
3.1 MM
A 1803513252 SPACER WASHER
Repalced by: A 1803513152
A 1803513152 SPACER WASHER
AS REQUIRED
3.2 MM
346 A 1803510351 SPACER RING
351 A 1803510986 RUBBER RING
356 A 1803510074 PIN
361 N 000127008200 LOCK WASHER
366 N 000934008010 NUT
Repalced by: N 304032008006
366 N 304032008006 NUT
371 A 1809940341 LOCK
376 N 000433020000 WASHER
381 A 1809970430 SCREW PLUG
386 A 1809940112 LOCK
391 N 071412006100 GREASE NIPPLE
REAR RIGHT REAR AXLE TUBE
396 N 071412006200 GREASE NIPPLE
FRONT RIGHT REAR AXLE TUBE
402 A 1103501275 RUBBER MOUNTING
406 A 1093500032 SUPPORT
411 N 001473003001 GROOVED PIN
416 N 070614010018 SCREW
421 N 000127010200 LOCK WASHER
426 A 1103501029 THRUST ARM
LEFT
A 1103501129 THRUST ARM
RIGHT
A 1103501475 REPAIR KIT
432 A 1103521865 RUBBER MOUNTING
436 A 1113520509 PIVOT PIN
442 A 1113521276 WASHER
446 N 009045032000 SNAP RING
453 A 1103520151 SPACER RING
458 A 1113520171 SCREW
A 1113520371 SCREW
463 A 1113520173 LOCK
467 A 1103500675 RUBBER MOUNTING
A 1123500475 RUBBER MOUNTING
472 A 1113500567 THRUST WASHER
A 1103500167 THRUST WASHER
A 1103500067 THRUST WASHER
A 1103510051 SPACER RING
A 1103510045 PAD
A 1123510245 PAD
N 000961016009 SCREW
476 N 000961016004 SCREW
482 N 000127016200 LOCK WASHER
486 N 900161010100 SCREW
493 N 000127010200 LOCK WASHER
498 A 1103500493 ROD
506 N 000934014019 NUT
Repalced by: N 308673014001
506 N 308673014001 NUT
511 A 1113510340 BRACKET
516 A 1113510448 RUBBER MOUNTING
521 A 1113510240 BRACKET
526 N 000933010238 SCREW
Repalced by: N 304017010028
526 N 304017010028 SCREW
531 N 000137010201 SPRING WASHER
536 N 000960012163 SCREW
541 N 000137012203 SPRING WASHER
Repalced by: N 000137012206
541 N 000137012206 SPRING WASHER
546 A 1103510743 CUP
INSIDE
551 A 1113510444 RUBBER BUFFER
556 A 1103510643 CUP
OUTSIDE
561 N 000934012023 NUT
Repalced by: N 308673012002
561 N 308673012002 NUT
566 N 007967012000 NUT
571 A 1103521065 RUBBER MOUNTING
576 A 1103520042 MOUNTING PLATE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
MOUNTING PLATE TO BODY FLOOR
N 000125008407 WASHER
MOUNTING PLATE TO BODY FLOOR
581 A 1089900340 WASHER
MOUNTING PLATE TO BODY FLOOR
586 N 000127008203 LOCK WASHER
MOUNTING PLATE TO BODY FLOOR
591 N 000934008010 NUT
Repalced by: N 304032008006
591 N 304032008006 NUT
MOUNTING PLATE TO BODY FLOOR
596 N 912004014100 LOCK WASHER
602 N 000934014019 NUT
Repalced by: N 308673014001
602 N 308673014001 NUT
