Transporto priemonė: 230 S; VIN numerio dalis: 111010

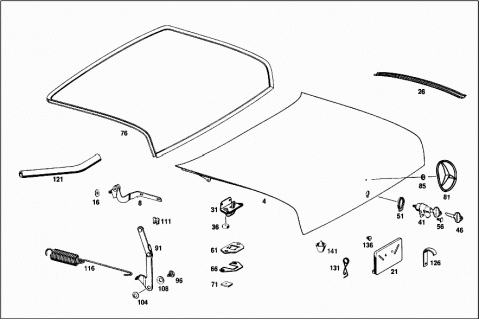

Grupė: 75 REAR LID - 001 OUTSIDE FLAPS

#	Kodas	Pavadinimas
004	A 1107500375	REAR LID
		SHELL
008	A 1107500587	HINGE
		LEFT
	A 1107500687	HINGE
		RIGHT
	N 000933006130	SCREW
		HINGE MOUNTING
	N 000125006407	WASHER
		HINGE MOUNTING
	N 009021010202	WASHER
	Repalced by: N 009021010209
	N 009021010209	WASHER
		REAR LID
	N 006797010153	TOOTHED WASHER
		REAR LID
	N 000934010014	NUT
		REAR LID
016	A 1109971141	SEAL RING
	Repalced by: A 1159970940
	A 1159970940	SEAL RING
021	A 1117500006	FLAP
	Repalced by: A 1117500306
	A 1117500306	FLAP
	N 000933006122	SCREW
	Repalced by: N 304017006034
	N 304017006034	SCREW
		FUEL FILLER NECK
	N 912004006102	LOCK WASHER
		FUEL FILLER NECK
026	A 1107570059	BRACE
	Repalced by: A 1157580897
	A 1157580897	INTERMEDIATE LAYER
	A 1107570059	BRACE
	Repalced by: A 1157580997
	A 1157580997	INTERMEDIATE LAYER
	Repalced by: A 1237580397
	A 1237580397	INTERMEDIATE LAYER
031	A 1107500185	LOCK
036	A 0019870640	RUBBER BUFFER
	Repalced by: A 1239870040
036	A 1239870040	RUBBER BUFFER
	N 007988006120	SCREW
		LOCK TO FLAP
	N 007985006128	SCREW
		LOCK TO FLAP
	N 009021006103	WASHER
	Repalced by: N 009021006208
	N 009021006208	WASHER
		LOCK TO FLAP
	N 006797006145	TOOTHED WASHER
		LOCK TO FLAP
041	A 1107500284	FASTENER
		WITH HANDLE;SAME LOCK AS OF GLOVE COMPARTMENT LID
046	A 0007661006	KEY
		MARKED WITH LETTER "K"
	A 0007662006	KEY
		BLANK;REAR LID AND GLOVE COMPARTMENT LID
051	A 1107580105	PAD
		LOCK TO FLAP
056	A 1109900122	SCREW
		LOCK TO FLAP
	N 000125005306	WASHER
		LOCK TO FLAP
	N 006797005132	TOOTHED WASHER
		LOCK TO FLAP
	N 000934005104	NUT
		LOCK TO FLAP
061	A 1107580103	STRIKER
		REAR LID LOCK
	N 007988006109	SCREW
		STRIKER TO BODY
066	A 1107580310	BASE PLATE
		STRIKER TO BODY
071	A 1107580510	BASE PLATE
		STRIKER TO BODY
076	A 1107500377	SEAL
	A 0009899271	CLEANER
		WEATHERSTRIP
081	A 1107580058	MERCEDES STAR
085	A 1109870741	RUBBER RING
		MERCEDES STAR TO REAR PANEL DOOR
	N 000125008407	WASHER
		MERCEDES STAR TO REAR PANEL DOOR
	N 000934008108	NUT
		MERCEDES STAR TO REAR PANEL DOOR
091	A 1107500188	ARTICULATION PIECE
		LEFT
	A 1107500288	ARTICULATION PIECE
		RIGHT
096	A 1209840033	SCREW
		ARTICULATION PIECE
104	A 0009900448	WASHER
		ARTICULATION PIECE
108	A 0009900048	WASHER
		ARTICULATION PIECE
111	A 0009940160	LOCK
	Repalced by: N 912002008000
	N 912002008000	LOCK
	Repalced by: N 912002008001
	N 912002008001	LOCK
	Repalced by: N 912002008003
	N 912002008003	LOCK
		ARTICULATION PIECE
	N 000137008204	SPRING WASHER
	Repalced by: N 000137008212
	N 000137008212	SPRING WASHER
		ARTICULATION PIECE
116	A 1107500136	SPRING
	Repalced by: A 1107570029
116	A 1107570029	SPRING
121	A 0039977282	HOSE
	Repalced by: A 0119972882
121	A 0119972882	HOSE
		WATER DRAIN, REAR,2.30 MM
126	A 1117580002	HANDLE
	Repalced by: A 1117580102
	A 1117580102	HANDLE
	N 007985005127	SCREW
	Repalced by: N 007985005504
	N 007985005504	SCREW
		FUEL FILLER NECK
	N 000125005306	WASHER
		FUEL FILLER NECK
	N 000127005203	LOCK WASHER
		FUEL FILLER NECK
	N 000934005008	NUT
		FUEL FILLER NECK
131	A 1117580127	SPRING
	Repalced by: A 1087580336
	A 1087580336	SPRING
		FUEL FILLER NECK LEFT
	A 1117580227	SPRING
	Repalced by: A 1087580436
	A 1087580436	SPRING
		FUEL FILLER NECK
136	A 0019870340	RUBBER BUFFER
	Repalced by: A 1269870139
136	A 1269870139	RUBBER BUFFER
		(REAR BODY PANEL),BOTTOM
141	A 1119871540	RUBBER BUFFER
		REAR LID
