Transporto priemonė: 230 S; VIN numerio dalis: 111010

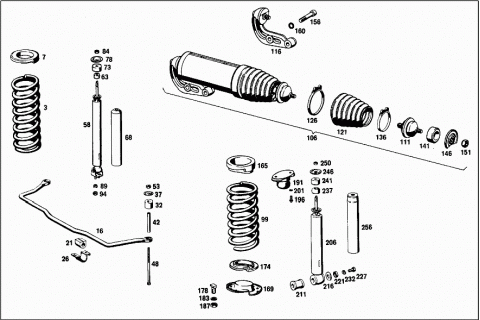

Grupė: 32 SPRINGS AND SUSPENSION

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRINGS
003	A 1113211504	FRONT SPRING
		15.75 MM
	A 1103210904	FRONT SPRING
		16.50 MM
	A 1083210404	FRONT SPRING
007	A 1113220385	RUBBER MOUNTING
		AS REQUIRED
		20.0 MM
	A 1113220485	RUBBER MOUNTING
		AS REQUIRED
		22.5 MM
	A 1113220585	RUBBER MOUNTING
		AS REQUIRED
		25.0 MM
	A 1113220685	RUBBER MOUNTING
		AS REQUIRED
		27.5 MM
	A 1113220785	RUBBER MOUNTING
		AS REQUIRED
		30.5 MM
	A 1113220885	RUBBER MOUNTING
		AS REQUIRED
		32.5 MM
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRINGS
016	A 1113231465	TORSION BAR
		DIA.,
		21.5 MM
021	A 1113230985	RUBBER MOUNTING
026	A 1113231140	BRACKET
	X XXXXXXXXXXXX	PART NAME MISSING
		FOR MOUNTING TO FRAME FLOOR, SEE GROUP 33
032	A 1113230044	RUBBER BUFFER
037	A 1113230267	RETAINER
042	A 1119911040	SPACER TUBE
048	A 1119900501	SCREW
053	N 000985008003	NUT
	A 1103200147	REPAIR KIT
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SHOCK ABSORBERS
058	A 1113200030	SHOCK ABSORBER
058	A 1083200030	SHOCK ABSORBER
	A 1153230767	RETAINER
	A 0003231285	RUBBER MOUNTING
	A 1803260168	RUBBER BUFFER
	N 000934010015	NUT
	Repalced by: N 308673010000
	N 308673010000	NUT
063	A 0003231285	RUBBER MOUNTING
		BOTTOM
068	A 1113230138	DUST CAP
073	A 1803260168	RUBBER BUFFER
		TOP
078	A 1803230083	HOUSING
	Repalced by: A 1153230767
078	A 1153230767	RETAINER
	A 1103200056	REPAIR KIT
084	N 000934010015	NUT
	Repalced by: N 308673010000
084	N 308673010000	NUT
089	N 000127008003	LOCK WASHER
094	N 000934008010	NUT
	Repalced by: N 304032008006
094	N 304032008006	NUT
	X XXXXXXXXXXXX	PART NAME MISSING
		REAR SPRINGS
099	A 1083240204	REAR SPRING
		DIA.,
		15.5 MM
	A 1103241204	REAR SPRING
		DIA.,
		16.3 MM
	A 1103242104	REAR SPRING
	A 1103243304	REAR SPRING
106	A 1113200199	HYD.PNEUM.SPRING LEG ASSY
	Repalced by: A 1113200399
106	A 1113200399	HYD.PNEUM.SPRING LEG ASSY
	A 1113200499	HYD.PNEUM.SPRING LEG ASSY
111	A 0003290630	BALL JOINT
		LEFT
	A 0003290230	BALL JOINT
116	A 0003290030	BALL JOINT
		RIGHT
121	A 1103290292	BOOT
	Repalced by: A 1103290392
121	A 1103290392	BOOT
126	A 0003230377	LOCK WASHER
136	A 0009979090	LOOM TIE
	N 000084002104	SCREW
	N 900288062000	CLAMP
141	A 1103290143	BEARING RING
146	A 1103290276	WASHER
151	N 000985012003	NUT
156	A 1109900820	SCREW
160	N 912004012100	LOCK WASHER
165	A 1083250185	BUSHING
		AS REQUIRED
		30 MM
	A 1083250285	BUSHING
		AS REQUIRED
		24 MM
	A 1083250285	BUSHING
		AS REQUIRED
		18 MM
169	A 1103250715	SPRING CASE
		BOTTOM
174	A 1103250185	BUSHING
178	A 1103250175	SCREW
183	N 000127008203	LOCK WASHER
187	N 000934008010	NUT
	Repalced by: N 304032008006
187	N 304032008006	NUT
191	A 1103200544	RUBBER BUFFER
196	N 000933008107	SCREW
201	N 000137008001	SPRING WASHER
	A 1103261500	SHOCK ABSORBER
206	A 1083200131	SHOCK ABSORBER
211	A 1103260281	RUBBER MOUNTING
	A 1153230767	RETAINER
	A 1103230585	RUBBER MOUNTING
	A 1103260067	RETAINER
	A 1803260168	RUBBER BUFFER
	A 1109900240	WASHER
	N 000934010015	NUT
	Repalced by: N 308673010000
	N 308673010000	NUT
216	A 1109900240	WASHER
221	A 1103260067	RETAINER
227	N 000933010238	SCREW
	Repalced by: N 304017010028
227	N 304017010028	SCREW
232	N 912004010102	LOCK WASHER
237	A 1103230585	RUBBER MOUNTING
		BOTTOM
241	A 1803260168	RUBBER BUFFER
		TOP
246	A 1153230767	RETAINER
		TOP
	A 1103200156	REPAIR KIT
250	N 000934010015	NUT
	Repalced by: N 308673010000
250	N 308673010000	NUT
256	A 1103260259	DUST CAP
		FOR 50-MM-DIA. REAR SHOCK ABSORBERS
	N 916017040000	CLAMP
	Repalced by: N 000000000671
	N 000000000671	CLAMP
		FOR 50-MM-DIA. REAR SHOCK ABSORBERS
