Transporto priemonė: 230 S; VIN numerio dalis: 111010
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1114604301 | STEERING BOX ASSEMBLY |
| A 1114604401 | STEERING BOX ASSEMBLY | |
| 012 | A 1114620350 | BUSHING |
| 018 | A 3094600308 | STEERING WORM |
| A 3094600408 | STEERING WORM | |
| 023 | A 0009815027 | ANGULAR CONTACT BEARING |
| 029 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 036 | A 1114620137 | BALL CUP |
| 042 | N 000472030000 | LOCK RING |
| 046 | A 1114620471 | SCREW |
| 053 | A 1119932101 | SPRING |
| 057 | A 1114620485 | THRUST PIECE |
| 062 | A 1114610462 | THRUST WASHER |
| 066 | A 0049949241 | LOCK |
| 072 | A 1114610406 | SET COLLAR |
| 076 | A 0029974746 | SEAL RING |
| A 0029977046 | SEAL RING | |
| 080 | A 1209900551 | NUT |
| A 0009974846 | SEAL RING | |
| 084 | A 0019979346 | SEAL RING |
| A 0029977146 | SEAL RING | |
| A 0029977246 | SEAL RING | |
| 087 | A 1114600814 | STEERING BOX COVER |
| REPAIR SIZE | ||
| A 1114600714 | STEERING BOX COVER | |
| REPAIR SIZE | ||
| 093 | A 1114620250 | BUSHING |
| 097 | A 1114610280 | GASKET |
| 103 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 103 | N 304017008034 | SCREW |
| 107 | N 000127008200 | LOCK WASHER |
| 111 | N 000934010014 | NUT |
| 116 | N 007604012102 | SCREW PLUG |
| 122 | A 1114632501 | PITMAN ARM |
| A 1114632601 | PITMAN ARM | |
| 126 | N 000937022000 | NUT |
| N 000094005033 | COTTER PIN | |
| 132 | A 1114600310 | STEERING COUPLING |
| Repalced by: A 3094600210 | ||
| A 3094600210 | STEERING COUPLING | |
| A 1154600310 | STEERING COUPLING | |
| Repalced by: A 1154600510 | ||
| A 1154600510 | STEERING COUPLING | |
| 136 | A 1114620165 | RING |
| 139 | A 1119903040 | WASHER |
| 144 | N 900055010000 | SPRING WASHER |
| 148 | A 1369909540 | WASHER |
| N 000094002059 | COTTER PIN | |
| N 912002010001 | LOCK | |
| 153 | A 1119900420 | SCREW |
| 157 | N 000127008203 | LOCK WASHER |
| 162 | N 000931010253 | SCREW |
| 166 | N 912004010102 | LOCK WASHER |
| 171 | A 1084600416 | STEER. COLUMN JACKET TUBE |
| A 1104604516 | STEER. COLUMN JACKET TUBE | |
| A 1084600516 | STEER. COLUMN JACKET TUBE | |
| A 1104604616 | STEER. COLUMN JACKET TUBE | |
| A 1114608916 | STEER. COLUMN JACKET TUBE | |
| ON SPECIAL REQUEST, FLOOR SHIFT | ||
| A 1104605116 | STEER. COLUMN JACKET TUBE | |
| ON SPECIAL REQUEST, FLOOR SHIFT | ||
| A 1114609016 | STEER. COLUMN JACKET TUBE | |
| ON SPECIAL REQUEST, FLOOR SHIFT | ||
| A 1104605416 | STEER. COLUMN JACKET TUBE | |
| ON SPECIAL REQUEST, FLOOR SHIFT | ||
| 178 | A 1164620096 | BOOT |
| 186 | A 1084600409 | STEERING SHAFT |
| A 1084602609 | STEERING SHAFT | |
| A 1104605009 | STEERING SHAFT | |
| ON SPECIAL REQUEST, DB POWER STEERING | ||
| A 1084620050 | BUSHING | |
| 191 | N 000625006024 | GROOVED BALL BEARING |
| 196 | N 000471020001 | LOCK RING |
| 204 | A 1114620628 | BEARING RING |
| A 1154621835 | BEARING BODY | |
| A 0009818910 | NEEDLE BEARING | |
| Repalced by: A 0189816110 | ||
| A 0189816110 | NEEDLE BEARING | |
| 208 | N 000912006014 | SCREW |
| 212 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 212 | N 000137006204 | SPRING WASHER |
| 216 | N 000472042001 | LOCK RING |
| 221 | A 0015458624 | SWITCH,AUTOMATIC |
| A 0035452624 | SWITCH,AUTOMATIC | |
| A 0025455624 | SWITCH,AUTOMATIC | |
| 226 | A 0025452028 | PLUG |
| Repalced by: A 0025457428 | ||
| 226 | A 0025457428 | PLUG |
| A 0005450054 | COVER PLATE | |
| A 0005451737 | BUTTON | |
| N 007985004105 | SCREW | |
| COMBINATION SWITCH TO BASE PLATE | ||
| N 000127004200 | LOCK WASHER | |
| COMBINATION SWITCH TO BASE PLATE | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| COMBINATION SWITCH TO BASE PLATE | ||
| 233 | A 1085460075 | CLAMP |
| 237 | A 1084620196 | BOOT |
| A 1154621396 | BOOT | |
| 242 | A 1154621396 | BOOT |
| A 1074640143 | CONTACT PIECE | |
| 246 | A 0004640928 | CONTACT RING |
| 251 | A 0009811018 | ROLLER BEARING |
| A 1154600897 | PROTECTIVE SLEEVE | |
| A 1154640017 | CONTACT PLATE | |
| N 900055032200 | LOCK RING | |
| A 1164620096 | BOOT | |
| 256 | A 1124600203 | STEERING WHEEL |
| DARK GRAPHITE GREY, WITHOUT HUB PAD | ||
| A 1154640201 | STEERING WHEEL | |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| DARK GRAPHITE GREY, WITHOUT HUB PAD | ||
| A 1124600503 | STEERING WHEEL | |
| IVORY COLORED, WITHOUT HUB PAD, ON SPECIAL REQUEST | ||
| A 1164600003 | STEERING WHEEL | |
| A 1169900121 | SCREW | |
| TO 116 460 00 03 | ||
| A 1169935501 | SPRING | |
| TO 116 460 00 03 | ||
| A 1169935101 | SPRING | |
| TO 116 460 00 03 | ||
| A 1164640050 | BUSHING | |
| TO 116 460 00 03 | ||
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| TO 116 460 00 03 | ||
| A 1164640077 | PROTECTIVE RING | |
| TO 116 460 00 03 | ||
| A 1169901040 | WASHER | |
| TO 116 460 00 03 | ||
| 262 | A 1114641236 | HUB |
| DARK GRAPHITE GREY | ||
| A 1114641236 | HUB | |
| IVORY COLORED, ON SPECIAL REQUEST | ||
| 266 | A 1004640115 | SIGNAL RING |
| 271 | A 1114640073 | LOCK |
| 276 | A 1114640172 | NUT |
| 281 | A 1114640024 | INSULATING PART |
| A 1154640415 | SIGNAL RING | |
| A 1154640134 | BRACKET | |
| N 007513003403 | TAPPING SCREW | |
| 286 | N 912004014100 | LOCK WASHER |
| 291 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 291 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 291 | N 308675014002 | NUT |
| A 1154640024 | INSULATING PART | |
| A 1154640035 | GUIDE PIN | |
| 296 | A 1114600642 | COVER PLATE |
| BLACK | ||
| A 1154640342 | PAD | |
| BLACK | ||
| A 1114600742 | COVER PLATE | |
| IVORY COLORED, ON SPECIAL REQUEST | ||
| A 1154640442 | PAD | |
| IVORY COLORED, ON SPECIAL REQUEST | ||
| 302 | A 0004622430 | STEERING LOCK |
| A 0004625530 | STEERING LOCK | |
| A 0004622530 | STEERING LOCK | |
| A 0004625630 | STEERING LOCK | |
| 308 | A 0004620693 | IGNITION SWITCH |
| WITH STARTER NON-REPEAT UNIT | ||
| N 000084004005 | SCREW | |
| IGNITION SWITCH TO STEERING LOCK | ||
| A 0004620332 | KEY | |
| 312 | A 1114620132 | KEY |
| A 0005830296 | RING | |
| A 0004624830 | TUMBLER | |
| A 0004600004 | TUMBLER | |
| WITH LOCK UNDEFINED | ||
| A 0004620923 | COVER | |
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| A 0007600406 | KEY | |
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004200 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| 316 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 316 | N 304017008034 | SCREW |
| STEERING LOCK TO CROSS MEMBER | ||
| 321 | N 000931008244 | SCREW |
| STEERING LOCK TO CROSS MEMBER | ||
| 326 | N 000127008200 | LOCK WASHER |
| STEERING LOCK TO CROSS MEMBER | ||
| 331 | N 000125008407 | WASHER |
| STEERING LOCK TO CROSS MEMBER | ||
| 336 | A 1114610175 | WASHER |
| STEERING LOCK TO CROSS MEMBER | ||
| A 1114623095 | COVERING | |
| Repalced by: A 1114622995 | ||
| 342 | A 1114622995 | COVERING |
| 342 | A 1114623195 | COVERING |
| A 1109871444 | EXPANSION PLUG | |
| FOR COVER PLATE | ||
| 346 | A 1114620880 | GASKET |
| FOR COVER PLATE | ||
| 352 | A 1114621380 | GASKET |
| A 1084600161 | GASKET | |
| A 1114620023 | COVER | |
| GEARSHIFT,TRANSMISSION | ||
| 360 | N 000931006016 | SCREW |
| COVER PLATE TO FIRE WALL | ||
| 364 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 364 | N 009021006208 | WASHER |
| COVER PLATE TO FIRE WALL | ||
| 368 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 368 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 368 | A 0019906791 | NUT RETAINER |
| COVER PLATE TO FIRE WALL | ||
| 372 | A 1114600665 | STRAP |
| 376 | N 000125008407 | WASHER |
| 381 | N 000985008001 | NUT |
| 383 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 383 | N 304017008042 | SCREW |
| 386 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 386 | N 000137008212 | SPRING WASHER |
| 389 | N 000561006103 | SCREW |
| 391 | N 000137006204 | SPRING WASHER |
| 394 | A 1104600205 | DRAG LINK |
| 397 | A 0003380297 | BOOT |
| Repalced by: A 0003381397 | ||
| 397 | A 0003381397 | BOOT |
| 400 | A 0003381063 | CLAMPING RING |
| 404 | A 1114602319 | INTERMEDIATE LEVER |
| A 1114602419 | INTERMEDIATE LEVER | |
| 406 | A 1114630060 | SEAL RING |
| 409 | A 1114630133 | CAP |
| 412 | A 1119930401 | SPRING |
| 416 | A 1114630062 | THRUST WASHER |
| 419 | A 1819940010 | LOCK |
| 421 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 421 | N 071412008102 | GREASE NIPPLE |
| A 1114600050 | REPAIR KIT | |
| 423 | A 1114630090 | PROTECTIVE PLATE |
| 424 | A 1114631140 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| 427 | A 1209900155 | NUT |
| N 000094002077 | COTTER PIN | |
| A 0003300485 | REPAIR KIT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHOCK ABSORBER | ||
| 430 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 433 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 433 | N 000961010031 | SCREW |
| 436 | N 912004010102 | LOCK WASHER |
| N 000936010003 | NUT | |
| N 000960010026 | SCREW | |
| Repalced by: N 000961010031 | ||
| N 000961010031 | SCREW | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 912004010102 | LOCK WASHER | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 000936010003 | NUT | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

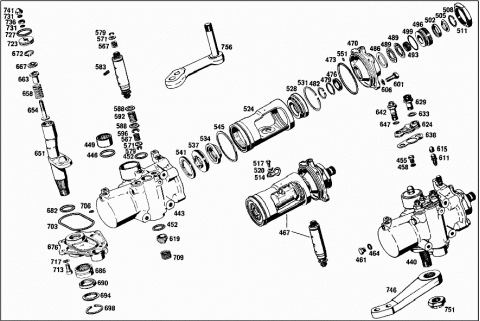

| MERCEDES-BENZ POWER STEERING, ON SPECIAL REQUEST | ||
| 440 | A 1114604501 | STEERING BOX ASSEMBLY |
| Repalced by: A 1094601001 | ||
| A 1094601001 | STEERING BOX ASSEMBLY | |
| A 1094601101 | STEERING BOX ASSEMBLY | |
| 443 | A 1124601202 | STEERING BOX |
| Repalced by: A 1094600402 | ||
| 443 | A 1094600402 | STEERING BOX |
| A 1124601302 | STEERING BOX | |
| Repalced by: A 1094600802 | ||
| A 1094600802 | STEERING BOX | |
| Repalced by: A 1094601101 | ||
| A 1094601101 | STEERING BOX ASSEMBLY | |
| 446 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 446 | A 0139973648 | SEAL RING |
| 449 | A 0009818210 | NEEDLE BEARING |
| 452 | A 0019972545 | SEAL RING |
| 455 | A 1129970030 | SCREW PLUG |
| 458 | N 007603008109 | SEAL RING |
| 461 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 461 | N 007604010108 | SCREW PLUG |
| 464 | N 007603010100 | SEAL RING |
| 467 | A 1124602885 | PISTON |
| WITH WORM AND SLEEVE VALVE | ||
| A 1124602985 | PISTON | |
| WITH WORM AND SLEEVE VALVE | ||
| 470 | A 1124601114 | STEERING BOX COVER |
| Repalced by: A 1124602014 | ||
| 470 | A 1124602014 | STEERING BOX COVER |
| A 1124602114 | STEERING BOX COVER | |
| 473 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 473 | A 0149976148 | SEAL RING |
| 476 | A 1124600061 | GASKET |
| 479 | A 1124620162 | THRUST WASHER |
| 482 | A 0009942641 | LOCK |
| 486 | A 1124610162 | THRUST WASHER |
| 489 | A 0009810418 | ROLLER BEARING |
| A 0009810818 | ROLLER BEARING | |
| 493 | A 0009816310 | NEEDLE BEARING |
| 496 | A 1124600386 | THREADED INSERT |
| 499 | A 0009979745 | SEAL RING |
| 502 | A 0059975846 | SEAL RING |
| 505 | A 0019974040 | SEAL RING |
| 508 | A 0009942641 | LOCK |
| 511 | A 1209900551 | NUT |
| 514 | A 1129950020 | CLAMP |
| FOR BALL GUIDE | ||
| A 1089950420 | CLAMP | |
| FOR BALL GUIDE | ||
| 517 | A 1209900520 | SCREW |
| FOR BALL GUIDE | ||
| 520 | A 1129940005 | LOCK |
| FOR BALL GUIDE | ||
| 524 | A 1124601585 | PISTON |
| A 1124601685 | PISTON | |
| 528 | A 0009813927 | ANGULAR CONTACT BEARING |
| 531 | A 1124660173 | LOCK |
| 534 | A 0009814027 | ANGULAR CONTACT BEARING |
| 537 | A 1124661905 | COVER |
| A 1124661905 | COVER | |
| 541 | A 1124660134 | SCREW COLLAR |
| 545 | A 1124660160 | SEAL RING |
| 551 | A 0049974445 | SEAL RING |
| 567 | A 1129939501 | SPRING |
| 571 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.1 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.2 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.3 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.4 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.5 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.6 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.7 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.8 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.0 MM | ||
| 579 | A 0009943841 | LOCK |
| 583 | A 1129910141 | CLAMPING PIN |
| 588 | A 1124660275 | WASHER |
| 592 | A 1129931902 | SPRING |
| 596 | A 0009945441 | LOCK |
| 601 | N 000933010105 | SCREW |
| 606 | N 000127010200 | LOCK WASHER |
| 611 | A 0004200855 | BLEEDER VALVE |
| 615 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 615 | A 0004210887 | PROTECTIVE CAP |
| 619 | A 1124661105 | COVER |
| 624 | A 1124661205 | COVER |
| TOP | ||
| A 1124661405 | COVER | |
| TOP | ||
| 629 | A 1129971772 | FITTING |
| RETURN | ||
| 633 | N 007603014100 | SEAL RING |
| 638 | A 1124660380 | GASKET |
| 642 | A 1129972172 | FITTING |
| DELIVERY | ||
| 647 | A 0059979845 | SEAL RING |
| 651 | A 1124600511 | STEERG. WORM SECTOR SHAFT |
| 654 | A 1114620471 | SCREW |
| 658 | A 1119932101 | SPRING |
| 663 | A 1114620485 | THRUST PIECE |
| 667 | A 1114610462 | THRUST WASHER |
| 672 | A 0049949241 | LOCK |
| 676 | A 1094600215 | STEERING BOX COVER |
| A 1094600315 | STEERING BOX COVER | |
| 682 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 682 | A 0139973648 | SEAL RING |
| 686 | A 0009818110 | NEEDLE BEARING |
| 690 | A 0059975946 | SEAL RING |
| 694 | A 0019973940 | SEAL RING |
| 698 | A 0009945341 | LOCK |
| 703 | A 0029974745 | SEAL RING |
| 706 | A 0049974445 | SEAL RING |
| 709 | A 1129939701 | SPRING |
| 713 | N 000912008096 | SCREW |
| Repalced by: N 000912008202 | ||
| 713 | N 000912008202 | SCREW |
| 717 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 717 | N 000137008212 | SPRING WASHER |
| 723 | A 1124660172 | NUT |
| 727 | A 0019970145 | SEAL RING |
| 731 | N 007603010100 | SEAL RING |
| 736 | A 1089900051 | NUT |
| 741 | N 001587010000 | CAP NUT |
| 746 | A 1124631601 | PITMAN ARM |
| A 1124631701 | PITMAN ARM | |
| 751 | N 000937022000 | NUT |
| N 000094005033 | COTTER PIN | |
| 756 | A 1124600019 | INTERMEDIATE LEVER |
| A 1124600119 | INTERMEDIATE LEVER | |

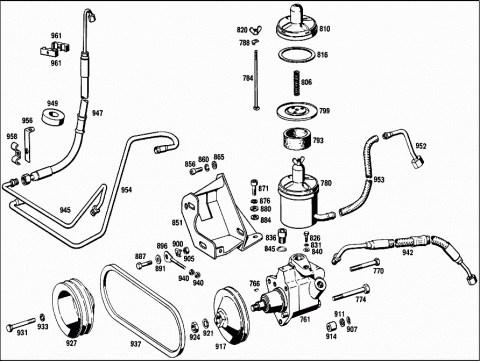

| 761 | A 1274600580 | HYDRAULIC PUMP |
| 766 | A 0009910668 | KEY |
| 770 | A 0002360071 | SCREW |
| 774 | A 0019904301 | SCREW |
| A 0005860146 | REPAIR KIT | |
| Repalced by: A 0005863146 | ||
| A 0005863146 | REPAIR KIT | |
| A 0005860046 | REPAIR KIT | |
| PRESSURE VALVE | ||
| A 0005860746 | REPAIR KIT | |
| 780 | A 1804600083 | OIL TANK |
| 784 | A 0009904133 | SCREW |
| Repalced by: N 000931006172 | ||
| 784 | N 000931006172 | SCREW |
| 788 | A 0004660373 | LOCK |
| 793 | A 0002360055 | FILTER |
| 799 | A 0002360076 | WASHER |
| 806 | A 0019931401 | SPRING |
| 810 | A 0004601282 | COVER |
| 816 | A 0002360080 | GASKET |
| 820 | N 000315006000 | NUT |
| 826 | N 000933999001 | SCREW |
| 831 | N 006797006140 | TOOTHED WASHER |
| 836 | A 0009902512 | SCREW |
| WITH THRU HOLE | ||
| 840 | A 0009970145 | SEAL RING |
| 845 | A 0009977245 | SEAL RING |
| 851 | A 1084600035 | BRACKET |
| 856 | N 000912010043 | SCREW |
| 860 | N 912004010102 | LOCK WASHER |
| 865 | N 000433010505 | WASHER |
| 871 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 871 | N 000000000190 | SCREW |
| 876 | N 000127008203 | LOCK WASHER |
| 880 | N 000433008406 | WASHER |
| 884 | A 1801550851 | SPACER RING |
| 887 | N 000933010145 | SCREW |
| 887 | N 000933010145 | SCREW |
| N 000933010164 | SCREW | |
| 891 | N 000125010504 | WASHER |
| 896 | A 1804660074 | CLAMPING SCREW |
| 900 | A 1274660073 | LOCK |
| 900 | A 1274660073 | LOCK |
| 905 | N 000934010014 | NUT |
| 905 | N 000934010014 | NUT |
| 907 | N 000137010201 | SPRING WASHER |
| 911 | N 000433010505 | WASHER |
| 914 | A 1804660751 | SPACER RING |
| AS REQUIRED | ||
| 12.00 MM | ||
| A 1804660651 | SPACER RING | |
| AS REQUIRED | ||
| 12.25 MM | ||
| A 1804660151 | SPACER RING | |
| AS REQUIRED | ||
| 12.50 MM | ||
| A 1804660251 | SPACER RING | |
| AS REQUIRED | ||
| 12.75 MM | ||
| A 1804660351 | SPACER RING | |
| AS REQUIRED | ||
| 13.00 MM | ||
| A 1804660851 | SPACER RING | |
| AS REQUIRED | ||
| 11.75 MM | ||
| A 1804660951 | SPACER RING | |
| AS REQUIRED | ||
| 11.50 MM | ||
| A 1804661051 | SPACER RING | |
| AS REQUIRED | ||
| 11.25 MM | ||
| 917 | A 1274660215 | PULLEY |
| A 1279900540 | WASHER | |
| 921 | N 912004014100 | LOCK WASHER |
| 924 | A 1899900151 | NUT |
| 927 | A 1804660415 | PULLEY |
| Repalced by: A 1084660515 | ||
| 927 | A 1084660515 | PULLEY |
| 931 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 931 | N 304014008001 | SCREW |
| PULLEY AND VIBRATION DAMPER TO CRANKSHAFT | ||
| 933 | N 000127008203 | LOCK WASHER |
| PULLEY AND VIBRATION DAMPER TO CRANKSHAFT | ||
| 937 | N 007753012500 | NARROW V-BELT |
| 940 | N 000934006007 | NUT |
| TO TIGHTEN BELT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL LINES | ||
| 942 | A 1099970882 | HOSE |
| 945 | A 1114600324 | LINE |
| Repalced by: A 1304600124 | ||
| 945 | A 1304600124 | LINE |
| DELIVERY | ||
| 947 | A 0059971182 | HOSE |
| 949 | A 1124660282 | RUBBER RING |
| 952 | A 1114600124 | LINE |
| Repalced by: A 1144600324 | ||
| 952 | A 1144600324 | LINE |
| FOR RETURN LINE | ||
| A 1114600224 | LINE | |
| FOR RETURN LINE | ||
| 953 | A 0069970982 | HOSE |
| 465 MM | ||
| 953 | A 0069970982 | HOSE |
| 480 MM | ||
| 953 | A 0069970982 | HOSE |
| 60 MM | ||
| N 916001020000 | CLAMP | |
| LOW PRESSURE HOSE TO OIL TANK AND POWER STEERING UNIT | ||
| N 916001020000 | CLAMP | |
| LOW PRESSURE HOSE TO OIL TANK AND POWER STEERING UNIT | ||
| 954 | A 1114660265 | LINE |
| 956 | A 1114600435 | BRACKET |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BRACKET TO OIL PAN | ||
| 958 | A 1219950232 | CLAMP |
| DELIVERY LINE AND RETURN LINE TO BRACKET | ||
| N 000912006002 | SCREW | |
| DELIVERY LINE AND RETURN LINE TO BRACKET | ||
| N 007980006003 | LOCK WASHER | |
| DELIVERY LINE AND RETURN LINE TO BRACKET | ||
| 961 | A 1114660040 | BRACKET |
| HIGH PRESSURE EXPANDING HOSE TO PIPE ELBOW | ||
| N 000931005016 | SCREW | |
| HIGH PRESSURE EXPANDING HOSE TO PIPE ELBOW | ||
| N 000127005203 | LOCK WASHER | |
| HIGH PRESSURE EXPANDING HOSE TO PIPE ELBOW | ||
| N 000934005008 | NUT | |
| HIGH PRESSURE EXPANDING HOSE TO PIPE ELBOW | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
