Transporto priemonė: 230 TE JAPAN; VIN numerio dalis: 124083

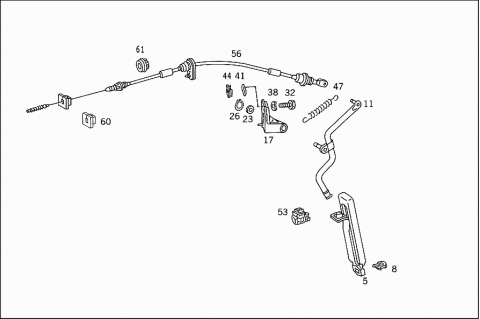

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1263000504 | ACCELERATOR PEDAL |
| 005 | A 1243000004 | ACCELERATOR PEDAL |
| 008 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 008 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 011 | A 1243000225 | LEVER |
| ACCELERATOR PEDAL | ||
| 017 | A 1243010218 | BEARING |
| Repalced by: A 1243010318 | ||
| 017 | A 1243010318 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 023 | N 000988013100 | FITTED WASHER |
| ACCELERATOR PEDAL BEARING | ||
| 026 | N 000471012001 | LOCK RING |
| ACCELERATOR PEDAL BEARING | ||
| 032 | N 304017006020 | SCREW |
| BEARING TO FIRE WALL | ||
| 038 | N 000137006204 | SPRING WASHER |
| BEARING TO FIRE WALL | ||
| 041 | A 1243010080 | GASKET |
| BEARING TO FIRE WALL | ||
| 044 | A 0009902291 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| 047 | A 1249931010 | SPRING |
| ACCELERATOR PEDAL | ||
| 053 | A 0015456314 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 053 | A 0015457814 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 053 | A 0025452214 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 053 | A 0025452214 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 056 | A 1243001230 | WIRE CABLE |
| 056 | A 1243001330 | WIRE CABLE |
| 056 | A 1243001530 | WIRE CABLE |
| 056 | A 1243001630 | WIRE CABLE |
| 060 | A 2023010093 | GUIDE |
| TO WIRE CABLE W/ROLLER GUIDE | ||
| 061 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
