Transporto priemonė: 240 D; VIN numerio dalis: 115119

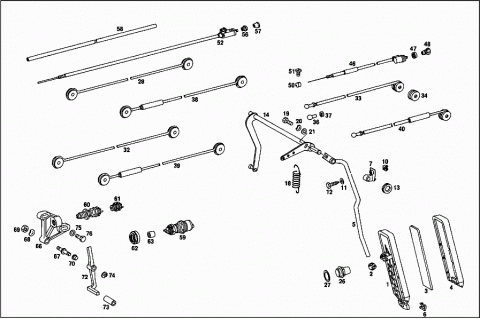

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1153000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1153000304 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1153000404 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1163000004 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1233000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| 001 | A 1233000204 | ACCELERATOR PEDAL |
| A 1153010022 | JOINT | |
| Repalced by: A 1233010022 | ||
| 002 | A 1233010022 | JOINT |
| 003 | A 1153010083 | INSERT |
| Repalced by: A 1163010182 | ||
| 003 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 003 | A 1233000204 | ACCELERATOR PEDAL |
| A 1153010382 | PAD | |
| Repalced by: A 1163010182 | ||
| A 1163010082 | PAD | |
| Repalced by: A 1163010182 | ||
| 004 | A 1163010182 | PAD |
| 005 | A 1153010701 | LEVER |
| A 1153010601 | LEVER | |
| 006 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 006 | A 1249888678 | CLIP |
| A 1153010418 | BEARING | |
| Repalced by: A 1153010518 | ||
| A 1153010518 | BEARING | |
| Repalced by: A 1153010818 | ||
| 007 | A 1153010818 | BEARING |
| 010 | A 0029886778 | CLIP |
| 011 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 011 | N 000125006449 | WASHER |
| 012 | N 007976005205 | SHEET METAL SCREW |
| 013 | A 1839970081 | GROMMET |
| A 1153000220 | SHAFT | |
| Repalced by: A 1143000020 | ||
| 014 | A 1143000020 | SHAFT |
| A 1153001820 | SHAFT | |
| A 1153000920 | SHAFT | |
| Repalced by: A 1153001920 | ||
| A 1153001020 | SHAFT | |
| Repalced by: A 1153001920 | ||
| A 1153001620 | SHAFT | |
| Repalced by: A 1153001920 | ||
| A 1153001920 | SHAFT | |
| A 1153002020 | SHAFT | |
| N 900055012402 | RETAINING RING | |
| 018 | A 1809931710 | SPRING |
| A 1869931810 | SPRING | |
| 019 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 019 | N 304017008016 | SCREW |
| 020 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 020 | N 000137008212 | SPRING WASHER |
| 021 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 021 | N 000125008443 | WASHER |
| 026 | A 1153010241 | STOP |
| 027 | A 1159970640 | SEAL RING |
| A 1153000315 | ROD | |
| Repalced by: A 1153003615 | ||
| 028 | A 1153003615 | ROD |
| A 1153000415 | ROD | |
| Repalced by: A 1153002915 | ||
| 032 | A 1153002915 | ROD |
| A 1153000215 | ROD | |
| Repalced by: A 1153002815 | ||
| 033 | A 1153002815 | ROD |
| 034 | A 1803010097 | BOOT |
| 036 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 036 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 036 | A 0009930461 | CONICAL CUP |
| 037 | N 000934005008 | NUT |
| A 1153001815 | ROD | |
| Repalced by: A 1153003215 | ||
| 038 | A 1153003215 | ROD |
| A 1153003615 | ROD | |
| A 1153001915 | ROD | |
| Repalced by: A 1153003315 | ||
| 039 | A 1153003315 | ROD |
| A 1153002915 | ROD | |
| A 1153002015 | ROD | |
| Repalced by: A 1153003415 | ||
| 040 | A 1153003415 | ROD |
| A 1153004615 | ROD | |
| A 1803010097 | BOOT | |
| A 0009911622 | BALL SOCKET | |
| Repalced by: A 0009918922 | ||
| A 0009918922 | BALL SOCKET | |
| Repalced by: A 0009930461 | ||
| A 0009930461 | CONICAL CUP | |
| N 000934005008 | NUT | |
| A 1103000532 | WIRE CABLE | |
| Repalced by: A 1153000832 | ||
| A 1153000132 | WIRE CABLE | |
| Repalced by: A 1153000832 | ||
| A 1153000332 | WIRE CABLE | |
| Repalced by: A 1153000832 | ||
| 046 | A 1153000832 | WIRE CABLE |
| 047 | A 1105450272 | NUT |
| 048 | A 1105450937 | BUTTON |
| A 1105451137 | BUTTON | |
| A 1203020087 | RING | |
| Repalced by: A 1233000086 | ||
| 050 | A 1233000086 | END PIECE |
| 051 | N 000084005101 | SCREW |
| 052 | A 1153000830 | WIRE CABLE |
| A 1153001030 | WIRE CABLE | |
| Repalced by: A 1153001230 | ||
| A 1153001230 | WIRE CABLE | |
| N 002076001010 | WIRE | |
| 2080 MM,ORDER BY THE METER | ||
| A 0009880672 | WIRE SPIRAL | |
| ORDER BY THE METER | ||
| 056 | A 1103020208 | GUIDE |
| A 1103000507 | KNOB | |
| Repalced by: A 1103000607 | ||
| 057 | A 1103000607 | KNOB |
| A 1159971782 | HOSE | |
| Repalced by: A 0069979782 | ||
| 058 | A 0069979782 | HOSE |
| ORDER BY THE METER | ||
| 059 | A 1153000241 | STOP |
| A 0003000041 | KICK-DOWN SWITCH | |
| Repalced by: A 0003000141 | ||
| A 0003000141 | KICK-DOWN SWITCH | |
| 060 | A 1123000341 | STOP |
| 061 | A 0005451706 | SWITCH |
| 062 | A 1153040151 | NUT |
| 063 | A 1143040085 | RUBBER BUFFER |
| 066 | A 1153040118 | BEARING BRACKET |
| 067 | A 1153040170 | STUD |
| 068 | N 000137010201 | SPRING WASHER |
| 069 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 069 | N 304032010002 | NUT |
| A 1150720050 | BUSHING | |
| Repalced by: A 1150720450 | ||
| 070 | A 1150720450 | BUSHING |
| 072 | A 1153040220 | LEVER |
| 073 | N 073379009100 | HOSE |
| ORDER BY THE METER | ||
| 074 | N 006799007007 | LOCK PLATE |
| 075 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 075 | N 000125008443 | WASHER |
| 076 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 076 | N 304017008034 | SCREW |
