Transporto priemonė: 240 D; VIN numerio dalis: 115119

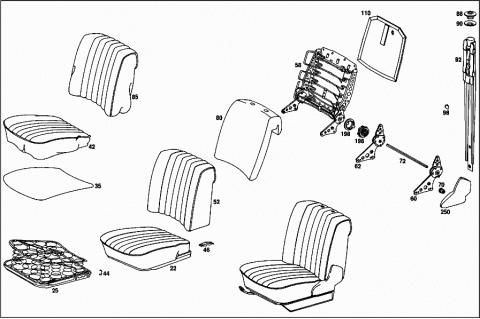

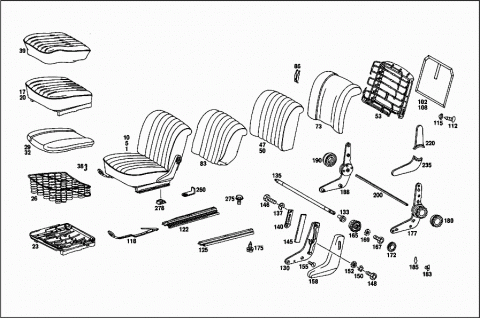

Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1159101550 | FRONT SEAT |
| LEFT | ||
| A 1159101650 | FRONT SEAT | |
| RIGHT | ||
| A 1159105301 | FRONT SEAT | |
| Repalced by: A 1159107301 | ||
| 005 | A 1159107301 | FRONT SEAT |
| LEFT | ||
| A 1159105401 | FRONT SEAT | |
| Repalced by: A 1159107401 | ||
| A 1159107401 | FRONT SEAT | |
| RIGHT | ||
| 010 | A 1159108701 | FRONT SEAT |
| LEFT | ||
| A 1159108801 | FRONT SEAT | |
| RIGHT | ||
| A 1159105309 | FRONT SEAT | |
| LEFT | ||
| A 1159100312 | FRONT SEAT | |
| LEFT | ||
| A 1159101712 | FRONT SEAT | |
| LEFT, "FORMFEDERUNG" | ||
| A 1159105409 | FRONT SEAT | |
| RIGHT | ||
| A 1159100412 | FRONT SEAT | |
| RIGHT | ||
| A 1159101812 | FRONT SEAT | |
| RIGHT, "FORMFEDERUNG" | ||
| 017 | A 1159100053 | SEAT CUSHION |
| 020 | A 1159103830 | SEAT CUSHION |
| 022 | A 1159106430 | SEAT CUSHION |
| A 1159101222 | CUSHION FRAME | |
| 023 | A 1159101322 | CUSHION FRAME |
| Repalced by: A 1159101222 | ||
| 025 | A 1159104422 | CUSHION FRAME |
| A 1159104122 | CUSHION FRAME | |
| Repalced by: A 1159104422 | ||
| 026 | A 1089100040 | SPRING CORE |
| A 1169100040 | SPRING CORE | |
| Repalced by: A 1159104422 | ||
| 029 | A 1159140380 | PAD |
| A 1159140614 | PAD | |
| Repalced by: A 1159141114 | ||
| 032 | A 1159141114 | PAD |
| 035 | A 1169140114 | PAD |
| 038 | A 0009842061 | CLIP |
| 039 | A 1159100068 | COVER |
| Repalced by: A 1159100368 | ||
| 039 | A 1159100368 | COVER |
| COMPLETELY SEWN | ||
| 042 | A 1159100946 | COVER |
| 044 | A 0009842061 | CLIP |
| 046 | A 0039880178 | CLIP |
| A 1159100256 | BACKREST BRACKET | |
| Repalced by: A 1159101932 | ||
| 047 | A 1159101932 | BACKREST |
| 050 | A 1159103232 | BACKREST |
| A 1159104632 | BACKREST | |
| LEFT | ||
| 052 | A 1159106732 | BACKREST |
| LEFT | ||
| A 1159107932 | BACKREST | |
| LEFT, "FORMFEDERUNG" | ||
| A 1159104532 | BACKREST | |
| RIGHT | ||
| A 1159106832 | BACKREST | |
| RIGHT | ||
| A 1159108032 | BACKREST | |
| RIGHT, "FORMFEDERUNG" | ||
| 053 | A 1109102134 | BACKREST FRAME |
| A 1169100534 | BACKREST FRAME | |
| RIGHT | ||
| A 1169101634 | BACKREST FRAME | |
| RIGHT | ||
| A 1159101634 | BACKREST FRAME | |
| RIGHT, "FORMFEDERUNG" | ||
| A 1169100634 | BACKREST FRAME | |
| LEFT | ||
| 058 | A 1169101534 | BACKREST FRAME |
| LEFT | ||
| A 1159101534 | BACKREST FRAME | |
| LEFT, "FORMFEDERUNG" | ||
| A 0009107786 | BACKREST ADJUSTER | |
| LEFT SEAT, LEFT | ||
| A 0009108786 | BACKREST ADJUSTER | |
| Repalced by: A 0009108986 | ||
| 060 | A 0009108986 | BACKREST ADJUSTER |
| Repalced by: A 0019100186 | ||
| 060 | A 0019100186 | BACKREST ADJUSTER |
| LEFT SEAT, LEFT | ||
| A 0009107485 | BACKREST ADJUSTER | |
| LEFT SEAT, RIGHT | ||
| A 0009108485 | BACKREST ADJUSTER | |
| Repalced by: A 0009108685 | ||
| 062 | A 0009108685 | BACKREST ADJUSTER |
| LEFT SEAT, RIGHT | ||
| A 0009107886 | BACKREST ADJUSTER | |
| RIGHT SEAT, RIGHT | ||
| A 0009108886 | BACKREST ADJUSTER | |
| Repalced by: A 0019100286 | ||
| A 0009109086 | BACKREST ADJUSTER | |
| Repalced by: A 0019100286 | ||
| A 0019100286 | BACKREST ADJUSTER | |
| RIGHT SEAT, RIGHT | ||
| A 0009107385 | BACKREST ADJUSTER | |
| RIGHT SEAT, LEFT | ||
| A 0009108385 | BACKREST ADJUSTER | |
| Repalced by: A 0009108585 | ||
| A 0009108585 | BACKREST ADJUSTER | |
| RIGHT SEAT, LEFT | ||
| 070 | A 1169971781 | GROMMET |
| A 0009943151 | LOCK | |
| 072 | A 1169180027 | LINK |
| A 1159140080 | PAD | |
| Repalced by: A 1159140216 | ||
| 073 | A 1159140216 | PAD |
| A 1169140016 | PAD | |
| 080 | A 1169101316 | PAD |
| A 1239100016 | PAD | |
| A 0009842061 | CLIP | |
| 083 | A 1159100074 | COVER |
| Repalced by: A 1159100574 | ||
| 083 | A 1159100574 | COVER |
| COMPLETELY SEWN | ||
| A 1159102747 | COVER | |
| 085 | A 1159102947 | COVER |
| A 1159103447 | COVER | |
| 086 | A 0039880178 | CLIP |
| A 1159880282 | EYE | |
| Repalced by: A 1169880082 | ||
| 088 | A 1169880082 | EYE |
| Repalced by: A 1269880082 | ||
| 088 | A 1269880082 | EYE |
| 090 | A 1159880382 | EYE |
| Repalced by: A 1269901240 | ||
| 090 | A 1269901240 | WASHER |
| 092 | A 1079700115 | RAIL |
| LEFT | ||
| A 1079700215 | RAIL | |
| RIGHT | ||
| 098 | A 1159880478 | CLIP |
| N 000965004023 | SCREW | |
| N 000934004006 | NUT | |
| N 006797004333 | TOOTHED WASHER | |
| 102 | A 1159100089 | PANELLING |
| 108 | A 1089102639 | PANELLING |
| 110 | A 1169100139 | PANELLING |
| 112 | N 007983003216 | SHEET METAL SCREW |
| 115 | A 0009850662 | WASHER |
| A 1159101505 | ADJUSTER | |
| Repalced by: A 1109108105 | ||
| A 1109108105 | ADJUSTER | |
| LEFT | ||
| 118 | A 1159100305 | ADJUSTER |
| LEFT | ||
| A 1159101605 | ADJUSTER | |
| Repalced by: A 1109108205 | ||
| A 1109108205 | ADJUSTER | |
| RIGHT | ||
| A 1159100405 | ADJUSTER | |
| RIGHT | ||
| 122 | A 1159101105 | SEAT GUIDE |
| INSIDE LEFT | ||
| A 1159101005 | SEAT GUIDE | |
| INSIDE RIGHT | ||
| 125 | A 1159100905 | SEAT GUIDE |
| 130 | A 1109100955 | BACKREST BRACKET |
| LEFT | ||
| A 1109101055 | BACKREST BRACKET | |
| RIGHT | ||
| 133 | A 1109100173 | ROLLER |
| 135 | A 1109100198 | SHAFT |
| 137 | N 006799009002 | LOCK PLATE |
| 140 | A 1109180511 | PLATE |
| LEFT | ||
| A 1109180611 | PLATE | |
| RIGHT | ||
| A 1159100111 | PLATE | |
| LEFT | ||
| A 1159100211 | PLATE | |
| RIGHT | ||
| 145 | A 1109190095 | INTERMEDIATE LAYER |
| 146 | N 000965006005 | SCREW |
| A 1109840432 | SCREW | |
| Repalced by: A 1109840332 | ||
| 148 | A 1109840332 | SCREW |
| 150 | N 900055018001 | SPRING WASHER |
| 152 | N 006797010251 | TOOTHED WASHER |
| 155 | A 1109900030 | SCREW |
| Repalced by: A 1089900030 | ||
| 155 | A 1089900030 | SCREW |
| 158 | A 1159130528 | COVERING |
| Repalced by: A 1149130128 | ||
| 158 | A 1149130128 | COVERING |
| LEFT,LEFT FRONT SEAT | ||
| A 1159130828 | COVERING | |
| RIGHT,LEFT FRONT SEAT | ||
| A 1159130628 | COVERING | |
| RIGHT FRONT SEAT,RIGHT | ||
| A 1159130728 | COVERING | |
| LEFT,RIGHT FRONT SEAT | ||
| 165 | A 1109100188 | HANDWHEEL |
| 167 | N 007987004120 | SCREW |
| 169 | N 006797004333 | TOOTHED WASHER |
| 172 | A 1109100018 | COVERING |
| A 0009901521 | SCREW | |
| Repalced by: N 914116006400 | ||
| A 0009902821 | SCREW | |
| Repalced by: N 914116006400 | ||
| N 914116006400 | SCREW | |
| Repalced by: A 1239900822 | ||
| 175 | A 1239900822 | SCREW |
| 177 | A 0009106385 | BACKREST ADJUSTER |
| LEFT | ||
| A 0009106485 | BACKREST ADJUSTER | |
| RIGHT | ||
| 180 | A 0009180426 | HANDWHEEL |
| A 0009180236 | COVERING | |
| 183 | A 0009941260 | LOCK |
| 185 | A 0009941360 | LOCK |
| 188 | A 0009106586 | BACKREST ADJUSTER |
| LEFT | ||
| A 0009106686 | BACKREST ADJUSTER | |
| RIGHT | ||
| 190 | A 0009180136 | COVERING |
| A 0009941260 | LOCK | |
| A 0009941360 | LOCK | |
| A 0009180826 | HANDWHEEL | |
| A 0009180926 | HANDWHEEL | |
| Repalced by: A 0009181026 | ||
| 196 | A 0009181026 | HANDWHEEL |
| 198 | A 0009180336 | COVERING |
| 200 | A 1119185127 | LINK |
| A 0009903130 | SCREW | |
| A 0009902730 | SCREW | |
| A 0009902930 | SCREW | |
| A 1089900030 | SCREW | |
| N 914114008001 | SCREW | |
| N 914114008000 | SCREW | |
| A 1159131928 | COVERING | |
| Repalced by: A 1159132328 | ||
| A 1159132328 | COVERING | |
| Repalced by: A 1159132728 | ||
| 220 | A 1159132728 | COVERING |
| LEFT | ||
| A 1159132028 | COVERING | |
| Repalced by: A 1159132428 | ||
| A 1159132428 | COVERING | |
| Repalced by: A 1159132828 | ||
| A 1159132828 | COVERING | |
| RIGHT | ||
| A 1159131728 | COVERING | |
| Repalced by: A 1159132128 | ||
| A 1159132128 | COVERING | |
| Repalced by: A 1159132928 | ||
| 235 | A 1159132928 | COVERING |
| LEFT | ||
| A 1159131828 | COVERING | |
| Repalced by: A 1159132228 | ||
| A 1159132228 | COVERING | |
| Repalced by: A 1159133028 | ||
| A 1159133028 | COVERING | |
| RIGHT | ||
| A 1169130128 | COVERING | |
| LEFT,RIGHT FRONT SEAT | ||
| A 1169131128 | COVERING | |
| Repalced by: A 1239180530 | ||
| A 1239180530 | COVERING | |
| Repalced by: A 1239185330 | ||
| A 1239185330 | COVERING | |
| LEFT,RIGHT FRONT SEAT | ||
| A 1169130428 | COVERING | |
| Repalced by: A 1149130228 | ||
| A 1149130228 | COVERING | |
| RIGHT,FRONT SEAT,RIGHT | ||
| A 1169131428 | COVERING | |
| Repalced by: A 1239180430 | ||
| A 1239180430 | COVERING | |
| RIGHT,RIGHT FRONT SEAT | ||
| A 1169130228 | COVERING | |
| RIGHT,LEFT FRONT SEAT | ||
| A 1169131228 | COVERING | |
| Repalced by: A 1239180630 | ||
| A 1239180630 | COVERING | |
| Repalced by: A 1239185430 | ||
| A 1239185430 | COVERING | |
| RIGHT,LEFT FRONT SEAT | ||
| A 1169130328 | COVERING | |
| Repalced by: A 1149130128 | ||
| A 1149130128 | COVERING | |
| LEFT,LEFT FRONT SEAT | ||
| A 1169131328 | COVERING | |
| Repalced by: A 1239180330 | ||
| 250 | A 1239180330 | COVERING |
| LEFT,LEFT FRONT SEAT | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | HEXAGON HEAD BOLT | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 260 | A 1159190112 | ANGLE |
| N 000063008123 | SCREW | |
| A 1159102053 | FRONT SEAT | |
| A 1159100706 | SEAT CUSHION LESS COVER | |
| A 1149100506 | SEAT CUSHION LESS COVER | |
| A 1159101556 | BACKREST BRACKET | |
| Repalced by: A 1159100307 | ||
| A 1159100307 | BACKREST | |
| A 1149100107 | BACKREST | |
| RIGHT | ||
| A 1169101807 | BACKREST | |
| RIGHT | ||
| A 1149100207 | BACKREST | |
| LEFT | ||
| A 1169101707 | BACKREST | |
| LEFT | ||
| A 1089900422 | SCREW | |
| Repalced by: A 1239901022 | ||
| 275 | A 1239901022 | SCREW |
| Repalced by: A 0009909622 | ||
| 275 | A 0009909622 | SCREW |
| Repalced by: A 0009909822 | ||
| 275 | A 0009909822 | SCREW |
| Repalced by: A 1249900222 | ||
| 275 | A 1249900222 | SCREW |
| Repalced by: A 1409901122 | ||
| 275 | A 1409901122 | SCREW |
| 278 | A 0009907091 | NUT RETAINER |
| Repalced by: A 0019902891 | ||
| 278 | A 0019902891 | NUT RETAINER |
