Transporto priemonė: 240 D JAPAN; VIN numerio dalis: 123123

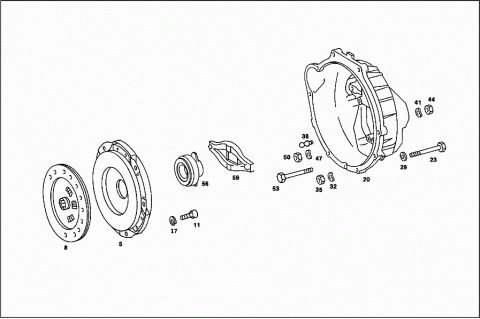

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas
005	A 0012504304	CLUTCH PRESSURE PLATE
	Repalced by: A 0042503204
005	A 0042503204	CLUTCH PRESSURE PLATE
005	A 0032500204	CLUTCH PRESSURE PLATE
	Repalced by: A 0042505304
005	A 0042505304	CLUTCH PRESSURE PLATE
	Repalced by: A 0042503204
005	A 0042503204	CLUTCH PRESSURE PLATE
008	A 0102502503	CLUTCH DISC
008	A 0102503403	CLUTCH DISC
011	N 000912008012	SCREW
		CLUTCH PRESSURE PLATE TO FLYWHEEL
		M 8X22
017	N 912006008000	LOCK WASHER
		CLUTCH PRESSURE PLATE TO FLYWHEEL
020	A 1152512701	BELL HOUSING
	Repalced by: A 1152506905
020	A 1152506905	HOUSING
023	N 000931010268	SCREW
		BELL HOUSING TO INTERMEDIATE FLANGE
029	N 000125010518	WASHER
	Repalced by: N 000125010532
029	N 000125010532	WASHER
		BELL HOUSING TO INTERMEDIATE FLANGE
032	N 000137010201	SPRING WASHER
		BELL HOUSING TO INTERMEDIATE FLANGE
035	N 000934010009	NUT
	Repalced by: N 304032010002
035	N 304032010002	NUT
		BELL HOUSING TO INTERMEDIATE FLANGE
038	A 1159910115	BALL PIVOT
041	N 000137010201	SPRING WASHER
		BALL PIVOT TO BELL HOUSING
044	N 913021010001	NUT
	Repalced by: N 304035010001
044	N 304035010001	NUT
		BALL PIVOT TO BELL HOUSING
047	N 000137010201	SPRING WASHER
		BELL HOUSING TO TRANSMISSION CASE
050	N 000934010009	NUT
	Repalced by: N 304032010002
050	N 304032010002	NUT
		BELL HOUSING TO TRANSMISSION CASE
053	N 000931010282	SCREW
		BELL HOUSING TO TRANSMISSION CASE
053	N 000931010282	SCREW
		BELL HOUSING TO TRANSMISSION CASE
	X XXXXXXXXXXXX	PART NAME MISSING
		RELEASE PARTS
056	A 0002505515	RELEASE BEARING
056	A 0002506815	RELEASE BEARING
059	A 1152900029	RELEASE YOKE
