Transporto priemonė: 250; VIN numerio dalis: 123003
Grupė: 78 SLIDING ROOF - 015 MANUAL SLIDING ROOF
| # | Kodas | Pavadinimas |
|---|---|---|

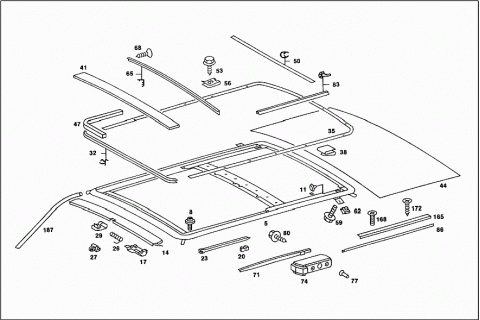

| X XXXXXXXXXXXX | PART NAME MISSING | |
| SLIDING ROOF FRAME | ||
| 005 | A 1237801729 | FRAME |
| Repalced by: A 1237803229 | ||
| 005 | A 1237803229 | FRAME |
| WITH DRAFT DEFLECTOR; USED WITHOUT INCORPORATED ROOF RACK | ||
| 005 | A 1237804129 | FRAME |
| WITH DRAFT DEFLECTOR; USED W/INCORPORATED ROOF RACK | ||
| 008 | A 1107820071 | SCREW |
| BOTTOM FRAME | ||
| 011 | A 1089870240 | RUBBER BUFFER |
| BOTTOM FRAME | ||
| 014 | A 1237800244 | DRAFT DEFLECTOR |
| Repalced by: A 1267800044 | ||
| 014 | A 1267800044 | DRAFT DEFLECTOR |
| Repalced by: A 1267800544 | ||
| 014 | A 1267800544 | DRAFT DEFLECTOR |
| 017 | A 1237840721 | MOUNTING |
| Repalced by: A 1247840121 | ||
| 017 | A 1247840121 | MOUNTING |
| FRONT LEFT | ||
| 017 | A 1237840821 | MOUNTING |
| Repalced by: A 1247840221 | ||
| 017 | A 1247840221 | MOUNTING |
| FRONT RIGHT | ||
| 020 | A 1237840021 | MOUNTING |
| LATERAL | ||
| 023 | A 1237800038 | LEVER |
| Repalced by: A 2017800138 | ||
| 023 | A 2017800138 | LEVER |
| LEFT | ||
| 023 | A 2017800238 | LEVER |
| RIGHT | ||
| 026 | A 1237840135 | SPRING |
| Repalced by: A 1247820535 | ||
| 026 | A 1247820535 | SPRING |
| LEFT | ||
| 026 | A 1237840235 | SPRING |
| Repalced by: A 1247820635 | ||
| 026 | A 1247820635 | SPRING |
| RIGHT | ||
| 027 | A 1247820046 | STAY |
| 029 | A 1237840521 | MOUNTING |
| CENTRAL | ||
| 032 | A 1087820098 | SEAL |
| 035 | A 1237820098 | SEAL |
| BETWEEN TOP AND BOTTOM FRAMES | ||
| A 0009898271 | CLEANER | |
| 041 | A 0009833598 | FOAM PLASTICS |
| 5 MM | ||
| 044 | A 1266821852 | INSULATION |
| REAR | ||
| 047 | A 1236820497 | PAD |
| BOTTOM FRAME,CENTRAL REAR | ||
| 1880X20X25 MM | ||
| 050 | A 0019877625 | PLASTIC SECTION |
| 1020 MM | ||
| 053 | N 914128006200 | SHEET METAL SCREW |
| 056 | A 0009943845 | LOCK |
| 059 | N 914126006001 | SCREW |
| Repalced by: N 910105006002 | ||
| 059 | N 910105006002 | SCREW |
| BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS | ||
| 062 | A 0009909491 | NUT RETAINER |
| BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS | ||
| 065 | A 1237820213 | COVER RAIL |
| BOTTOM FRAME,FRONT | ||
| 068 | N 007983002203 | SHEET METAL SCREW |
| COVER RAIL TO BOTTOM FRAME,FRONT | ||
| 071 | A 1157820124 | RAIL |
| LEFT | ||
| 071 | A 1157820224 | RAIL |
| RIGHT | ||
| 074 | A 2017820036 | LOCK |
| 077 | N 000661003009 | RIVET |
| 080 | A 0009901136 | SCREW |
| MOUNTING RAIL TO REINFORCEMENT FRAME | ||
| 083 | A 1087820198 | SEAL |
| LATERAL LEFT AND RIGHT | ||
| 480 MM | ||
| 086 | A 1107821326 | SLIDING RAIL |
| LEFT | ||
| 086 | A 1107821426 | SLIDING RAIL |
| RIGHT | ||

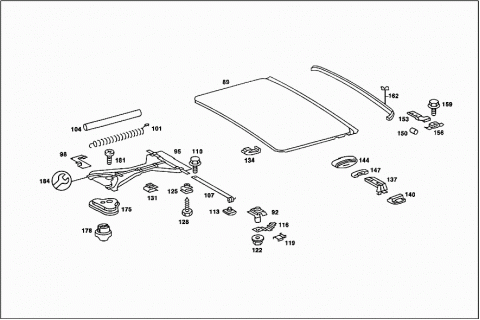

| X XXXXXXXXXXXX | PART NAME MISSING | |
| SLIDING ROOF PLATE | ||
| 089 | A 1237800221 | SLIDING ROOF PLATE |
| Repalced by: A 1237801321 | ||
| 089 | A 1237801321 | SLIDING ROOF PLATE |
| 092 | A 0009905133 | SCREW |
| 095 | A 1237800022 | SLIDING ROOF MECHANISM |
| Repalced by: A 1237800422 | ||
| 095 | A 1237800422 | SLIDING ROOF MECHANISM |
| 098 | A 1237820814 | BRACKET |
| SLIDING ROOF MECHANISM | ||
| 101 | A 1237830134 | SPRING |
| SLIDING ROOF MECHANISM | ||
| 104 | A 1237820396 | HOSE |
| SLIDING ROOF MECHANISM | ||
| 107 | A 1237800176 | ROD |
| LEFT | ||
| 107 | A 1237800276 | ROD |
| RIGHT | ||
| 110 | A 0049908601 | SCREW |
| 113 | A 1157830128 | SLIDE |
| 116 | A 1157870140 | SHACKLE |
| LEFT | ||
| 116 | A 1157870240 | SHACKLE |
| RIGHT | ||
| 119 | A 1107830134 | SPRING |
| 122 | N 913017005000 | NUT |
| 125 | A 0009945545 | LOCK |
| SLIDING ROOF MECHANISM TO SLIDING ROOF PLATE | ||
| 128 | N 007976004205 | SHEET METAL SCREW |
| SLIDING ROOF MECHANISM TO SLIDING ROOF PLATE | ||
| 131 | A 1239900791 | NUT RETAINER |
| 134 | A 1237820728 | SLIDE |
| Repalced by: A 1237820328 | ||
| 134 | A 1237820328 | SLIDE |
| DRAFT DEFLECTOR | ||
| 137 | A 1237820512 | ANGLE |
| Repalced by: A 1237820712 | ||
| 137 | A 1237820712 | ANGLE |
| LEFT FRONT | ||
| 137 | A 1237821112 | ANGLE |
| LEFT FRONT | ||
| 137 | A 1237820612 | ANGLE |
| Repalced by: A 1237820812 | ||
| 137 | A 1237820812 | ANGLE |
| RIGHT FRONT | ||
| 137 | A 1237821212 | ANGLE |
| RIGHT FRONT | ||
| 140 | A 1237820130 | SLIDING JAW |
| Repalced by: A 1237820530 | ||
| 140 | A 1237820530 | SLIDING JAW |
| 140 | A 1237820630 | SLIDING JAW |
| RIGHT | ||
| 144 | A 1157800083 | SLIDING JAW |
| 147 | A 1237820330 | SLIDING JAW |
| 150 | A 0079973581 | GROMMET |
| 153 | A 1157820312 | ANGLE |
| REAR LEFT | ||
| 153 | A 1157820412 | ANGLE |
| REAR RIGHT | ||
| 156 | A 1107820030 | SLIDING JAW |
| 159 | A 0049908601 | SCREW |
| 162 | A 1157820198 | SEAL |
| A 0009899271 | CLEANER | |
| 165 | A 1237822526 | SLIDING RAIL |
| LEFT FRONT | ||
| 165 | A 1237822626 | SLIDING RAIL |
| RIGHT FRONT | ||
| 168 | N 000965004024 | SCREW |
| SLIDING RAIL TO BOTTOM FRAME | ||
| 172 | A 1089900036 | SCREW |
| Repalced by: A 1409900436 | ||
| 172 | A 1409900436 | SCREW |
| SLIDING RAIL TO BOTTOM FRAME | ||
| 175 | A 1237800163 | RECESS |
| 178 | A 1239871140 | RUBBER BUFFER |
| 181 | A 1239900321 | SCREW |
| RECESS TO SLIDING ROOF PLATE | ||
| 184 | A 1237800016 | REPAIR KIT |
| SLIDING ROOF HANDLE MOUNTING PARTS WITH LOCKING HANDLE | ||
| 184 | A 1235860278 | REPAIR KIT |
| SLIDING ROOF HANDLE MOUNTING PARTS WITH LOCKING HANDLE | ||
| 184 | A 1235860078 | REPAIR KIT |
| SLIDING ROOF HANDLE MOUNTING PARTS | ||
| 187 | A 0039976382 | HOSE |
| WASSERABLAUF VORN 1000 MM | ||
| 187 | A 0039976382 | HOSE |
| WASSERABLAUF HINTEN 1160 MM | ||
