Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

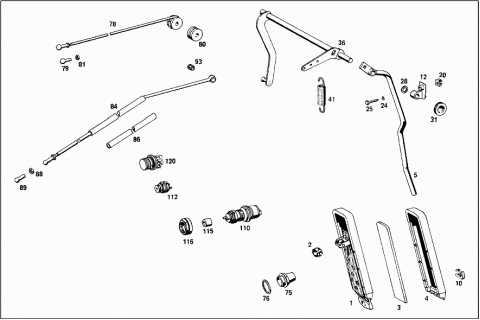

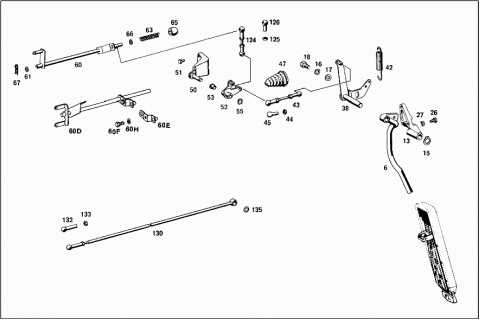

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1153000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1153000304 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| 001 | A 1233000204 | ACCELERATOR PEDAL |
| 002 | A 1233010022 | JOINT |
| 003 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 003 | A 1233000204 | ACCELERATOR PEDAL |
| 004 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 004 | A 1233000204 | ACCELERATOR PEDAL |
| 005 | A 1153010701 | LEVER |
| 006 | A 1143010001 | ACCELERATOR PEDAL |
| 010 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 010 | A 1249888678 | CLIP |
| 010 | A 1249888678 | CLIP |
| 012 | A 1153010818 | BEARING |
| 013 | A 1143010118 | BEARING |
| 015 | N 900055012401 | RETAINING RING |
| 016 | N 000137008204 | SPRING WASHER |
| 017 | N 000125008418 | WASHER |
| 018 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 018 | N 304017008016 | SCREW |
| 020 | A 0029886778 | CLIP |
| 024 | N 000125006407 | WASHER |
| 025 | N 007976005205 | SHEET METAL SCREW |
| 026 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 026 | N 304017006016 | SCREW |
| 027 | N 000137006204 | SPRING WASHER |
| 028 | A 1143010051 | SPACER RING |
| 031 | A 1839970081 | GROMMET |
| 036 | A 1143000020 | SHAFT |
| 038 | A 1143000520 | SHAFT |
| 041 | A 1809931710 | SPRING |
| 042 | A 1169930610 | SPRING |
| 043 | A 1143000815 | ROD |
| Repalced by: A 1020701075 | ||
| 043 | A 1020701075 | ROD |
| 044 | N 000934005008 | NUT |
| 045 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 045 | A 0009918922 | BALL SOCKET |
| A 1143010097 | BOOT | |
| A 1143010197 | BOOT | |
| Repalced by: A 1163010297 | ||
| A 1163010297 | BOOT | |
| 047 | A 1163010297 | BOOT |
| 050 | A 1143000236 | BEARING BRACKET |
| 051 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 051 | N 304017006034 | SCREW |
| 052 | A 1143000028 | LEVER |
| 053 | A 1150720450 | BUSHING |
| 055 | N 006799007007 | LOCK PLATE |
| 060 | A 1143000820 | SHAFT |
| A 1143001020 | SHAFT | |
| 060D | A 1163001920 | SHAFT |
| 060E | A 1163000125 | LEVER |
| 060F | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 060F | N 304017006018 | SCREW |
| 060H | N 000137006204 | SPRING WASHER |
| 061 | A 1093010051 | SPACER RING |
| 063 | A 1169935001 | SPRING |
| 065 | A 1143010118 | BEARING |
| 066 | A 1093010051 | SPACER RING |
| 067 | N 006799004001 | LOCK PLATE |
| N 000137008204 | SPRING WASHER | |
| N 000125008418 | WASHER | |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| 075 | A 1153010241 | STOP |
| 076 | A 1159970640 | SEAL RING |
| 078 | A 1143001115 | ROD |
| 079 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 079 | A 0009918922 | BALL SOCKET |
| 080 | A 1803010097 | BOOT |
| 081 | N 000934005008 | NUT |
| 084 | A 1140700975 | ROD |
| 086 | N 073379006101 | HOSE |
| 088 | N 000934005008 | NUT |
| 089 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 089 | A 0009918922 | BALL SOCKET |
| 093 | A 1102770550 | BUSHING |
| N 000125006407 | WASHER | |
| N 000094002018 | COTTER PIN | |
| 110 | A 1153000241 | STOP |
| 112 | A 0005451706 | SWITCH |
| 115 | A 1143040085 | RUBBER BUFFER |
| 116 | A 1153040151 | NUT |
| 120 | A 0003000141 | KICK-DOWN SWITCH |
| 124 | A 1000700175 | ROD |
| Repalced by: A 1100700275 | ||
| 124 | A 1100700275 | ROD |
| 125 | N 000934005008 | NUT |
| 126 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 126 | A 0009918922 | BALL SOCKET |
| A 1100701075 | ROD | |
| 130 | A 1100701275 | ROD |
| 132 | A 1153000086 | END PIECE |
| Repalced by: A 0009918822 | ||
| 132 | A 0009918822 | BALL SOCKET |
| 133 | N 000934005008 | NUT |
| 135 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 135 | N 000125006449 | WASHER |
| N 000094002018 | COTTER PIN | |
