Transporto priemonė: 250 C USA; VIN numerio dalis: 114023
Grupė: 82 ELECTRICAL EQUIPMENT - 001 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

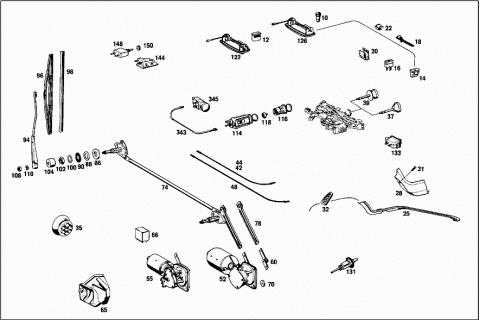

| 010 | A 0005454728 | PLUG |
| CLUTCH | ||
| 012 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 012 | A 0085453728 | PIN BUSHING HOUSING |
| CLUTCH | ||
| 014 | A 0008210725 | PLUG |
| Repalced by: A 0008212026 | ||
| 014 | A 0008212026 | CONNECTOR |
| CLUTCH | ||
| 016 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 016 | A 0095454028 | PLUG HOUSING |
| 018 | A 1149970190 | LOOM TIE |
| 020 | A 0029884878 | CLIP |
| 022 | A 0029883878 | CLIP |
| A 0009832991 | CARDBOARD | |
| TAIL LAMP CABLE HARNESS TO LUGGAGE COMPARTMENT FLOOR | ||
| 80X120 MM | ||
| 025 | A 1158210330 | COVERING |
| IN LUGGAGE COMPARTMENT, FRONT LEFT | ||
| A 1158210430 | COVERING | |
| Repalced by: A 1158210336 | ||
| A 1158210236 | COVERING | |
| Repalced by: A 1158210336 | ||
| A 1158210336 | COVERING | |
| IN LUGGAGE COMPARTMENT, FRONT RIGHT | ||
| 028 | A 1158210030 | COVERING |
| TRUNK REAR RIGHT | ||
| 031 | N 007981004318 | SHEET METAL SCREW |
| 032 | A 1158210551 | CABLE GROMMET |
| LEFT | ||
| A 1158210651 | CABLE GROMMET | |
| RIGHT | ||
| A 1149970190 | LOOM TIE | |
| 035 | A 1149970181 | GROMMET |
| 037 | A 1158200392 | KNOB |
| 039 | A 1158202092 | KNOB |
| A 1158210310 | ELECTRIC CABLE | |
| Repalced by: A 1158211810 | ||
| A 1158211410 | ELECTRIC CABLE | |
| Repalced by: A 1158211810 | ||
| 042 | A 1158211810 | ELECTRIC CABLE |
| Repalced by: A 1078200117 | ||
| 042 | A 1078200117 | ELECTRIC CABLE |
| 044 | A 1158200417 | ELECTRIC CABLE |
| Repalced by: A 1268202215 | ||
| 044 | A 1268202215 | ELECTRIC CABLE |
| A 1158210410 | ELECTRIC CABLE | |
| Repalced by: A 1158212010 | ||
| A 1158211310 | ELECTRIC CABLE | |
| Repalced by: A 1158212010 | ||
| 048 | A 1158212010 | ELECTRIC CABLE |
| A 1158201517 | ELECTRIC CABLE | |
| LIGHT GUIDE FOR AUTO. ANTENNA ROCKER SWITCH & OPERATG. UNIT DEFROSTER PLATE | ||
| A 1078200317 | ELECTRIC CABLE | |
| Repalced by: A 1078200117 | ||
| A 1078200117 | ELECTRIC CABLE | |
| LIGHT GUIDE FOR AUTO. ANTENNA ROCKER SWITCH & OPERATG. UNIT DEFROSTER PLATE | ||
| A 1158200042 | ELECTRIC MOTOR | |
| Repalced by: A 1158201642 | ||
| 052 | A 1158200142 | ELECTRIC MOTOR |
| Repalced by: A 1158201642 | ||
| A 1158201142 | ELECTRIC MOTOR | |
| 055 | A 1158201642 | ELECTRIC MOTOR |
| A 0008242375 | CARBON BRUSH SET | |
| Repalced by: A 0008242275 | ||
| A 0008242275 | CARBON BRUSH SET | |
| A 0008244910 | CRANK | |
| Repalced by: A 1088240010 | ||
| 060 | A 1088240010 | CRANK |
| A 0008200810 | SWITCH | |
| Repalced by: A 0008201510 | ||
| A 0008201510 | SWITCH | |
| A 0008200910 | SWITCH | |
| N 007340003110 | RIVET | |
| Repalced by: N 007340003124 | ||
| N 007340003124 | RIVET | |
| 065 | A 1158240099 | SLEEVE |
| MAKE BOSCH | ||
| A 1158240199 | SLEEVE | |
| MAKE SWF | ||
| A 1158210063 | PULSE SENDER UNIT | |
| 066 | A 1238210063 | PULSE SENDER UNIT |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 006797006145 | TOOTHED WASHER | |
| 070 | A 0009873841 | RUBBER RING |
| A 1158200043 | APPARATUS PANEL | |
| Repalced by: A 1158200443 | ||
| A 1158200143 | LINKAGE | |
| Repalced by: A 1158200443 | ||
| 074 | A 1158200443 | LINKAGE |
| A 0008241006 | ROD | |
| Repalced by: A 0008240906 | ||
| 078 | A 0008240906 | ROD |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 900161006101 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 086 | A 1088240397 | PAD |
| 088 | A 0019901140 | WASHER |
| 090 | A 0009870741 | RUBBER RING |
| A 1158201144 | WIPER ARM | |
| Repalced by: A 1158201744 | ||
| A 1158201744 | WIPER ARM | |
| Repalced by: A 1158201344 | ||
| 094 | A 1158201344 | WIPER ARM |
| LEFT | ||
| A 1158201244 | WIPER ARM | |
| Repalced by: A 1158201844 | ||
| A 1158201844 | WIPER ARM | |
| Repalced by: A 1158201444 | ||
| 094 | A 1158201444 | WIPER ARM |
| RIGHT | ||
| 096 | A 1158200045 | WIPER BLADE |
| 098 | A 0008240727 | WIPER RUBBER |
| 100 | A 0008242282 | WASHER |
| A 0008241472 | NUT | |
| Repalced by: A 0029902651 | ||
| 102 | A 0029902651 | NUT |
| A 1118240172 | NUT | |
| Repalced by: A 1108240472 | ||
| 104 | A 1108240472 | CAPSULE |
| A 0008242572 | NUT | |
| Repalced by: A 0009901253 | ||
| A 0009901253 | NUT | |
| 108 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 108 | N 304035008001 | NUT |
| 110 | A 0009901748 | WASHER |
| 114 | A 1158250253 | CIGAR LIGHTER |
| 116 | A 0008250551 | ELEMENT |
| 118 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 118 | A 0008250252 | INCANDESCENT SPIRAL |
| N 072601012110 | BULB | |
| A 0008250901 | DOME LAMP | |
| Repalced by: A 0008252301 | ||
| A 1159870544 | EXPANSION PLUG | |
| 122 | A 0008252301 | DOME LAMP |
| A 0008253101 | DOME LAMP | |
| Repalced by: A 0008252301 | ||
| A 0008252301 | DOME LAMP | |
| A 1119871215 | PLUG | |
| Repalced by: A 0009871840 | ||
| A 0009871840 | RUBBER BUFFER | |
| A 0008251001 | DOME LAMP | |
| Repalced by: A 0008252401 | ||
| 126 | A 0008252401 | DOME LAMP |
| Repalced by: A 1238200501 | ||
| 126 | A 1238200501 | INTERIOR LAMP |
| A 0008253201 | DOME LAMP | |
| N 072601012120 | BULB | |
| A 0008210952 | CONTACTOR | |
| Repalced by: A 0008211752 | ||
| A 0008211652 | CONTACTOR | |
| Repalced by: A 0008211752 | ||
| 131 | A 0008211752 | CONTACTOR |
| 133 | A 0018210251 | SWITCH |
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| 136 | A 1108250041 | INTERIOR LAMP |
| 138 | A 1158200050 | INTERIOR LAMP |
| Repalced by: A 2018200401 | ||
| 138 | A 2018200401 | INTERIOR LAMP |
| Repalced by: A 2018200801 | ||
| 138 | A 2018200801 | INTERIOR LAMP |
| Repalced by: A 2018201211 | ||
| 138 | A 2018201211 | INTERIOR LAMP |
| LUGGAGE COMPARTMENT LAMP | ||
| 139 | A 0008213152 | CONTACTOR |
| Repalced by: A 0008213252 | ||
| 139 | A 0008213252 | CONTACTOR |
| Repalced by: A 2018201110 | ||
| 139 | A 2018201110 | SWITCH |
| Repalced by: A 2018202110 | ||
| 139 | A 2018202110 | SWITCH |
| N 072601012701 | BULB | |
| N 072601012120 | BULB | |
| N 007981003246 | SHEET METAL SCREW | |
| N 007981004331 | SHEET METAL SCREW | |
| 144 | A 1158250043 | LAMP |
| Repalced by: A 1238200101 | ||
| A 1158250143 | LAMP | |
| Repalced by: A 1238200101 | ||
| A 1238200101 | INTERIOR LAMP | |
| Repalced by: A 1268201301 | ||
| A 1268201301 | INTERIOR LAMP | |
| N 072601012130 | BULB | |
| 148 | A 0008210852 | CONTACTOR |
| 150 | A 0009900597 | RIVET |

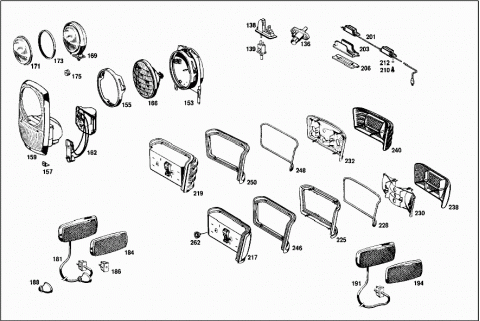

| 153 | A 1158200661 | LIGHTING UNIT |
| 155 | A 0008268289 | RIM |
| 157 | A 1158260012 | ANGLE |
| 159 | A 1158260489 | RIM |
| Repalced by: A 1158260589 | ||
| A 1158260589 | RIM | |
| A 0008263278 | REFLECTOR | |
| 162 | A 0008265482 | LAMP SOCKET |
| N 007981003214 | SHEET METAL SCREW | |
| A 0008260399 | BEAM UNIT | |
| Repalced by: A 0008263599 | ||
| 166 | A 0008263599 | BEAM UNIT |
| Repalced by: A 0008266499 | ||
| 166 | A 0008266499 | BEAM UNIT |
| Repalced by: A 0008266699 | ||
| 166 | A 0008266699 | BEAM UNIT |
| A 1158200056 | EXTERIOR LAMP | |
| Repalced by: A 0008203156 | ||
| A 0008203156 | EXTERIOR LAMP | |
| A 0018261390 | LENS | |
| A 0008261180 | SEAL | |
| N 072601012400 | BULB | |
| 169 | A 0008205656 | EXTERIOR LAMP |
| 171 | A 0028261590 | LENS |
| 173 | A 0008266880 | SEAL |
| N 072601012290 | BULB | |
| 175 | A 0009973181 | GROMMET |
| A 0005454928 | PLUG | |
| Repalced by: A 0045458428 | ||
| A 0045458428 | PLUG | |
| Repalced by: A 1265401081 | ||
| A 1265401081 | PLUG SOCKET | |
| 1-PIN | ||
| N 072601012900 | BULB | |
| PARKING AND CLEARANCE LIGHTS | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT | ||
| N 007981004254 | TAPPING SCREW | |
| 181 | A 0008260341 | SIDE REFLECTOR |
| FRONT LEFT | ||
| A 0008260441 | SIDE REFLECTOR | |
| FRONT RIGHT | ||
| 184 | A 0008261457 | LENS |
| 186 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 186 | A 0095454028 | PLUG HOUSING |
| 188 | A 1159972081 | GROMMET |
| N 072601012900 | BULB | |
| 191 | A 0008260141 | SIDE REFLECTOR |
| REAR LEFT | ||
| A 0008260241 | SIDE REFLECTOR | |
| REAR RIGHT | ||
| 194 | A 0008261557 | LENS |
| A 0025452428 | PLUG | |
| Repalced by: A 0095454028 | ||
| A 0095454028 | PLUG HOUSING | |
| N 072601012900 | BULB | |
| N 000934004004 | NUT | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| 201 | A 1158200062 | LICENSE PLATE LAMP |
| 203 | A 0008260967 | LENS |
| "HELLA" | ||
| A 0008261067 | LENS | |
| "REITTER SCHEFENACKER" | ||
| A 1158260958 | SEAL | |
| Repalced by: A 0008260967 | ||
| 206 | A 0008260967 | LENS |
| N 072601012130 | BULB | |
| A 1109900515 | SCREW | |
| Repalced by: A 1109900521 | ||
| 210 | A 1109900521 | SCREW |
| Repalced by: N 007985004112 | ||
| 210 | N 007985004112 | SCREW |
| Repalced by: N 007985004136 | ||
| 210 | N 007985004136 | SCREW |
| 212 | N 000137004202 | SPRING WASHER |
| A 1158200364 | TAIL LAMP | |
| LEFT | ||
| A 1158200164 | TAIL LAMP | |
| Repalced by: A 1158201964 | ||
| A 1158201964 | TAIL LAMP | |
| LEFT | ||
| 217 | A 1158201964 | TAIL LAMP |
| LEFT | ||
| 219 | A 1148201764 | TAIL LAMP |
| LEFT | ||
| A 1158200464 | TAIL LAMP | |
| RIGHT | ||
| A 1158200264 | TAIL LAMP | |
| RIGHT | ||
| A 1158202064 | TAIL LAMP | |
| RIGHT | ||
| A 1148201864 | TAIL LAMP | |
| RIGHT | ||
| 225 | A 1158260159 | RIM |
| LEFT | ||
| A 1158260259 | RIM | |
| RIGHT | ||
| 228 | A 1158260658 | SEAL |
| Repalced by: A 0009875133 | ||
| 228 | A 0009875133 | RUBBER SECTION |
| 230 | A 1158260181 | REFLECTOR |
| LEFT | ||
| 232 | A 1148200328 | HOUSING |
| LEFT | ||
| A 1158260281 | REFLECTOR | |
| RIGHT | ||
| A 1148200428 | HOUSING | |
| RIGHT | ||
| A 1158260356 | LENS | |
| LEFT | ||
| 238 | A 1158260156 | LENS |
| Repalced by: A 1158261356 | ||
| 238 | A 1158261356 | LENS |
| LEFT | ||
| A 1148200566 | LENS | |
| Repalced by: A 1148200966 | ||
| 240 | A 1148200966 | LENS |
| LEFT | ||
| A 1158260456 | LENS | |
| RIGHT | ||
| A 1158260256 | LENS | |
| Repalced by: A 1158261456 | ||
| A 1158261456 | LENS | |
| RIGHT | ||
| A 1148200666 | LENS | |
| Repalced by: A 1148201066 | ||
| A 1148201066 | LENS | |
| RIGHT | ||
| A 1158260758 | SEAL | |
| Repalced by: A 1158260158 | ||
| 246 | A 1158260158 | SEAL |
| LEFT | ||
| 248 | A 1158260658 | SEAL |
| Repalced by: A 0009875133 | ||
| 248 | A 0009875133 | RUBBER SECTION |
| 250 | A 1148260158 | SEAL |
| LEFT | ||
| A 1158260858 | SEAL | |
| Repalced by: A 1158260258 | ||
| A 1158260258 | SEAL | |
| RIGHT | ||
| A 1148260258 | SEAL | |
| RIGHT | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT AND STOP LIGHT | ||
| N 072601012600 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012160 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012190 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012701 | BULB | |
| TAIL LIGHT | ||
| N 072601012702 | BULB | |
| TAIL LIGHT | ||
| N 072601012701 | BULB | |
| CLEARANCE LIGHT | ||

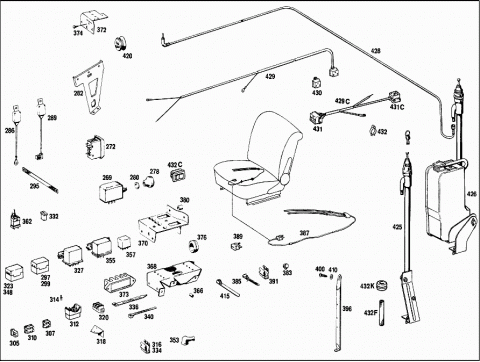

| 262 | A 1159900557 | NUT |
| N 009021005202 | WASHER | |
| Repalced by: A 1114620175 | ||
| A 1114620175 | WASHER | |
| N 000934005008 | NUT | |
| A 0015447032 | SENDER UNIT | |
| Repalced by: A 0015446632 | ||
| A 0015446632 | SENDER UNIT | |
| Repalced by: A 0015449532 | ||
| A 0015449532 | SENDER UNIT | |
| 269 | A 0015449732 | SENDER UNIT |
| A 0025442332 | SENDER UNIT | |
| 272 | A 0018218851 | SWITCH |
| N 072601012230 | BULB | |
| A 1158200592 | KNOB | |
| Repalced by: A 1158201792 | ||
| A 1158201792 | KNOB | |
| 278 | A 1088200392 | KNOB |
| Repalced by: A 1158201792 | ||
| 278 | A 1158201792 | KNOB |
| 280 | A 1158210403 | ESCUTCHEON |
| A 1158261614 | BRACKET | |
| Repalced by: A 1158261714 | ||
| 282 | A 1158261714 | BRACKET |
| N 007976004127 | SHEET METAL SCREW | |
| 286 | A 0001569701 | CONDENSER |
| A 0001569801 | CONDENSER | |
| 289 | A 0011561601 | CONDENSER |
| Repalced by: A 0011566901 | ||
| 289 | A 0011566901 | CONDENSER |
| A 0001569401 | CONDENSER | |
| Repalced by: A 0011566901 | ||
| A 0011566901 | CONDENSER | |
| N 000933006130 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 295 | A 1155400041 | GROUND STRAP |
| N 007986004205 | SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| 297 | A 0005456301 | FUSE BOX |
| 25 A | ||
| 299 | A 0005456201 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 299 | A 0005459901 | FUSE BOX |
| 8 A | ||
| N 007981004331 | SHEET METAL SCREW | |
| A 1158207315 | ELECTRIC CABLE | |
| 305 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 305 | A 0085453728 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 2-POLE | ||
| 307 | A 0025454628 | PLUG |
| Repalced by: A 0055451328 | ||
| 307 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 307 | A 0065458028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 4-POLE | ||
| A 0025454528 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 5-POLE | ||
| 310 | A 0025454428 | PLUG |
| Repalced by: A 0055451328 | ||
| 310 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 310 | A 0065458028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 6-POLE | ||
| 312 | A 0005455528 | PLUG |
| 314 | A 0005452726 | PLUG SOCKET |
| Repalced by: A 0015453526 | ||
| 314 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 314 | A 0035452626 | ROUND PIN BUSHING |
| 316 | A 0029884878 | CLIP |
| 318 | A 1158210914 | BRACKET |
| 320 | A 0005467041 | CABLE CONNECTOR |
| N 007981003326 | SHEET METAL SCREW | |
| 323 | A 0005457101 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 323 | A 0005459901 | FUSE BOX |
| 8-A | ||
| A 0005456201 | FUSE BOX | |
| Repalced by: A 0005459901 | ||
| A 0005459901 | FUSE BOX | |
| A 0005458234 | FUSE | |
| N 072581005100 | FUSE | |
| Repalced by: A 0005458134 | ||
| A 0005458134 | FUSE | |
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | TAPPING SCREW | |
| 327 | A 0005425919 | RELAY |
| N 007985004128 | SCREW | |
| N 007981004331 | SHEET METAL SCREW | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| 332 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 332 | A 0085453728 | PIN BUSHING HOUSING |
| 334 | A 0029884878 | CLIP |
| 336 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 336 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| 340 | A 0019974190 | LOOM TIE |
| A 1158211010 | ELECTRIC CABLE | |
| Repalced by: A 1158211710 | ||
| 343 | A 1158211710 | ELECTRIC CABLE |
| Repalced by: A 1238200017 | ||
| 343 | A 1238200017 | LIGHT GUIDE |
| 345 | A 1158200052 | READING LAMP |
| N 072601012800 | BULB | |
| 348 | A 0005457201 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 348 | A 0005459901 | FUSE BOX |
| 25-A | ||
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | TAPPING SCREW | |
| N 072581025100 | FUSE | |
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| 353 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 353 | A 0005463335 | BOOT |
| 355 | A 0005425819 | RELAY |
| 357 | A 0015420219 | RELAY |
| N 007985004129 | SCREW | |
| N 000934004004 | NUT | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| 362 | A 0005459411 | SWITCH |
| N 000137010205 | PART NAME MISSING | |
| N 000936010003 | NUT | |
| 366 | A 1085460253 | SPACER TUBE |
| 368 | A 1158210114 | BRACKET |
| 370 | A 1158210314 | BRACKET |
| 372 | A 1158211014 | BRACKET |
| 373 | A 0015460941 | CABLE CONNECTOR |
| 4-POLE | ||
| 374 | N 007981004318 | SHEET METAL SCREW |
| 376 | A 1009970881 | GROMMET |
| N 007976004205 | SHEET METAL SCREW | |
| N 007976004211 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| 380 | A 1085460053 | SPACER TUBE |
| 383 | A 0029880278 | CLIP |
| 385 | A 1149970190 | LOOM TIE |
| A 1158200110 | SWITCH | |
| Repalced by: A 1158200210 | ||
| 387 | A 1158200210 | SWITCH |
| 389 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 389 | A 0095454028 | PLUG HOUSING |
| 391 | A 0029884878 | CLIP |
| A 0029880278 | CLIP | |
| A 1149970190 | LOOM TIE | |
| 396 | A 1155451140 | BRACKET |
| 400 | N 007976004205 | SHEET METAL SCREW |
| 410 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 410 | N 009021005205 | WASHER |
| 415 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 415 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 420 | A 1159970981 | GROMMET |
| 425 | A 0008279501 | ANTENNA |
| MECHANICAL,REAR END MOUNTED | ||
| A 0008279401 | ANTENNA | |
| AUTOMATIC;REAR END MOUNTED | ||
| 426 | A 0018270601 | ANTENNA |
| AUTOMATIC;REAR END MOUNTED | ||
| 428 | A 0008204415 | ELECTRIC CABLE |
| Repalced by: A 1248206417 | ||
| 428 | A 1248206417 | ELECTRIC CABLE |
| 429 | A 1148206215 | ELECTRIC CABLE |
| AUTOMATIC ANTENNA | ||
| 429C | A 1148206515 | ELECTRIC CABLE |
| AUTOMATIC ANTENNA | ||
| 430 | A 0025455228 | PLUG |
| Repalced by: A 0045458628 | ||
| 430 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 430 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 430 | A 0155454928 | PLUG |
| 3-POLE | ||
| 431 | A 0008211226 | CONNECTOR |
| 4-POLE | ||
| 431C | A 0025455328 | PLUG |
| Repalced by: A 0045458628 | ||
| 431C | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 431C | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 431C | A 0155454928 | PLUG |
| 2-POLE | ||
| 432 | A 1209930225 | SPRING |
| ANTENNA CABLE TO PROTECTIVE TUBE | ||
| 432C | A 0008202310 | SWITCH |
| AUTOMATIC ANTENNA | ||
| 432F | A 0109978982 | HOSE |
| ANTENNA WATER DRAIN | ||
| 90 MM | ||
| 432K | A 0009973181 | GROMMET |
| WATER DRAIN HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ELECTRICAL PARTS USED FOR WINDOW REGULATOR | ||

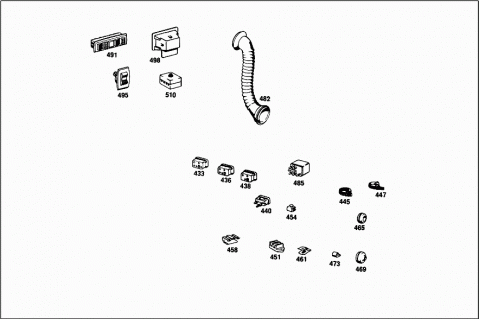

| 433 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 433 | A 0095459428 | PLUG |
| 5-POLE | ||
| A 0035455528 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| 436 | A 0045456428 | PLUG |
| Repalced by: A 0045456528 | ||
| 436 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 436 | A 0095459428 | PLUG |
| 4-POLE | ||
| 438 | A 0045456328 | PLUG |
| Repalced by: A 0045456528 | ||
| 438 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 438 | A 0095459428 | PLUG |
| 3-POLE | ||
| 440 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 440 | A 0095454028 | PLUG HOUSING |
| 2-POLE | ||
| 445 | A 0019974190 | LOOM TIE |
| 447 | A 1149970190 | LOOM TIE |
| 451 | A 0005467041 | CABLE CONNECTOR |
| 454 | A 0029880278 | CLIP |
| 458 | A 0029884878 | CLIP |
| 461 | A 0019881078 | CLIP |
| 465 | A 0009972881 | GROMMET |
| 469 | A 1869970681 | GROMMET |
| 473 | A 0009957601 | CLAMP |
| N 007985004136 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| N 040621014200 | INSULATING HOSE | |
| N 040621008200 | INSULATING HOSE | |
| 482 | A 1158210097 | HOSE |
| A 0015422219 | RELAY | |
| 485 | A 0015420219 | RELAY |
| 491 | A 0018214951 | SWITCH |
| 2 - POLE, WITH SAFETY SWITCH | ||
| A 0018215051 | SWITCH | |
| 495 | A 0018215151 | SWITCH |
| 1-POLE | ||
| 498 | A 1098210665 | CASE |
| Repalced by: A 1238210265 | ||
| 498 | A 1238210265 | CASE |
| 510 | A 0005457101 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 510 | A 0005459901 | FUSE BOX |
| 2-POLES | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
