Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

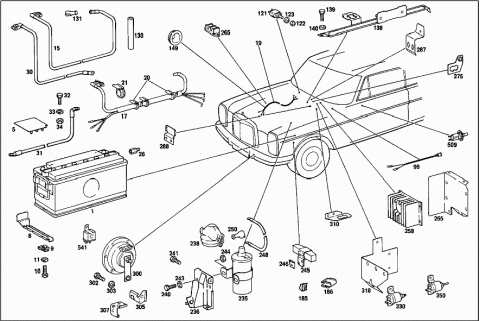

Grupė: 54 ELECTRICAL EQUIPMENT INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0035413101 | BATTERY | |
| CABLE HARNESS MOUNTING | ||
| 12V/66 AH | ||
| 001 | A 0035412301 | BATTERY |
| Repalced by: A 0045410201 | ||
| A 0025417301 | BATTERY | |
| Repalced by: A 0035416601 | ||
| A 0035416601 | BATTERY | |
| Repalced by: A 0045410201 | ||
| A 0045410201 | BATTERY | |
| 12 V 74 AH | ||
| A 0005461835 | BOOT | |
| Repalced by: A 0005462335 | ||
| A 0005462335 | BOOT | |
| Repalced by: A 0015460835 | ||
| A 0015460835 | BOOT | |
| 005 | A 0005462335 | BOOT |
| Repalced by: A 0015460835 | ||
| 005 | A 0015460835 | BOOT |
| A 1145410105 | PROTECTIVE PLATE | |
| 008 | A 1145400173 | BRACKET |
| 009 | A 0009909491 | NUT RETAINER |
| 010 | N 000933006130 | SCREW |
| 011 | N 912004006102 | LOCK WASHER |
| 015 | A 1145400130 | POSITIVE CABLE |
| A 1145400930 | POSITIVE CABLE | |
| A 1145401330 | POSITIVE CABLE | |
| 017 | A 1145400730 | POSITIVE CABLE |
| A 1145404909 | CABLE HARNESS | |
| A 1145404109 | CABLE HARNESS | |
| 019 | A 1145405709 | CABLE HARNESS |
| 020 | A 0005460937 | GROMMET |
| 021 | A 0005461837 | GROMMET |
| A 0005461130 | INSULATING HOSE | |
| Repalced by: A 0005460830 | ||
| A 0005460830 | INSULATING HOSE | |
| A 1115460071 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 000934008013 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| A 1115460235 | BOOT | |
| 024 | A 1165460135 | BOOT |
| 026 | A 1165460044 | CLAMPING PIECE |
| N 000084004156 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| A 0001510011 | MOUNTING BOW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| N 007985005152 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| N 912004005100 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| N 007985004123 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| A 0001510011 | MOUNTING BOW | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 030 | A 1145400231 | NEG. CABLE |
| A 1155400031 | NEG. CABLE | |
| 031 | A 1155400431 | NEG. CABLE |
| 032 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 032 | N 304017008016 | SCREW |
| 033 | N 912004008102 | LOCK WASHER |
| 034 | N 000934008013 | NUT |
| A 1145400605 | CABLE HARNESS | |
| 045 | A 1145401105 | CABLE HARNESS |
| A 1145401605 | CABLE HARNESS | |
| A 1145402205 | CABLE HARNESS | |
| A 1145402305 | CABLE HARNESS | |
| A 1145403305 | CABLE HARNESS | |
| A 1145404005 | CABLE HARNESS | |
| A 1145404905 | CABLE HARNESS | |
| A 1145405005 | CABLE HARNESS | |
| A 1145405105 | CABLE HARNESS | |
| 050 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 050 | A 0085452028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR, 1-POLE | ||
| 052 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 052 | A 0085453728 | PIN BUSHING HOUSING |
| CABLE CONNECTOR, 2-POLE | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| 054 | A 0035454728 | PLUG |
| Repalced by: A 0085450828 | ||
| 054 | A 0085450828 | PIN BUSHING HOUSING |
| CABLE CONNECTOR, 2-POLE | ||
| A 0008210725 | PLUG | |
| Repalced by: A 0008212026 | ||
| A 0008212026 | CONNECTOR | |
| CABLE CONNECTOR, 2-POLE | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| A 0065457828 | PLUG HOUSING | |
| BIPOLAR | ||
| 057 | A 0045459228 | PLUG |
| CABLE CONNECTOR 3-POLE | ||
| A 0055450228 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 3-POLE | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| 059 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 059 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 059 | A 0155454928 | PLUG |
| CABLE CONNECTOR 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 6-POLE | ||
| A 0065459328 | PLUG | |
| Repalced by: A 0095454228 | ||
| A 0095454228 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| A 0045459528 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 6-POLE | ||
| 062 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 062 | A 0065458028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 6-POLE | ||
| 063 | A 0045452628 | PLUG |
| CABLE CONNECTOR 8-POLE | ||
| A 0055455828 | PLUG | |
| Repalced by: A 0095459928 | ||
| A 0095459928 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 8-POLE | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| A 0065458128 | PIN BUSHING HOUSING | |
| COUPLING 8-POLE | ||
| 064 | A 0065459528 | PLUG |
| Repalced by: A 0105450028 | ||
| 064 | A 0105450028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 10-POLE | ||
| A 0005459528 | PLUG | |
| CABLE CONNECTOR 10-POLE | ||
| 066 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 066 | A 0095452628 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 12-POLE | ||
| A 0035454628 | PLUG | |
| Repalced by: A 0105450428 | ||
| A 0105450428 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 14-POLE | ||
| 067 | A 0035454628 | PLUG |
| Repalced by: A 0105450428 | ||
| 067 | A 0105450428 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 14-POLE | ||
| A 0025453128 | PLUG | |
| CABLE CONNECTOR 12-POLE | ||
| 068 | A 0065454128 | PLUG |
| A 0035453828 | PLUG | |
| Repalced by: A 0095452328 | ||
| A 0095452328 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 14-POLE | ||
| A 0095452328 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 14-POLE | ||
| A 0045459428 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 2-POLE | ||
| A 0005455528 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| A 0045459528 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| 070 | A 0005452345 | BOOT |
| 071 | A 0005440486 | PLUG |
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| 073 | A 0025459528 | PIN BUSHING HOUSING |
| 074 | A 0005464640 | CABLE SHOE |
| A 0005467840 | PIN BUSHING | |
| A 0005467940 | PIN BUSHING | |
| A 0005468340 | CABLE SHOE | |
| A 0005464340 | PIN BUSHING | |
| A 0005464540 | CABLE SHOE | |
| A 0005464740 | CABLE SHOE | |
| Repalced by: A 0005464640 | ||
| A 0005464640 | CABLE SHOE | |
| A 0005466940 | CABLE SHOE | |
| 076 | A 0005453540 | COVER |
| 077 | A 1155460085 | PROTECTIVE TUBE |
| LEFT | ||
| A 1085460085 | PROTECTIVE TUBE | |
| A 1155460185 | PROTECTIVE TUBE | |
| RIGHT | ||
| 080 | A 1159970781 | GROMMET |
| A 1149970181 | GROMMET | |
| A 1149970581 | GROMMET | |
| 082 | A 0009972881 | GROMMET |
| A 0009972281 | GROMMET | |
| A 1159971981 | GROMMET | |
| 083 | A 0005460845 | INSULATING SLEEVE |
| A 0005460145 | INSULATING SLEEVE | |
| 085 | A 0005460445 | INSULATING SLEEVE |
| 095 | A 0005455901 | FUSE BOX |
| A 0005458701 | FUSE BOX | |
| A 0005458234 | FUSE | |
| 8 A | ||
| A 0005458134 | FUSE | |
| 5 A | ||
| A 0005458334 | FUSE | |
| 16 A | ||
| N 072581025100 | FUSE | |
| 25A | ||
| 098 | A 0005452004 | SWITCH |
| A 0005452604 | SWITCH | |
| A 0005453704 | LIGHT SWITCH | |
| 099 | A 0008250082 | SOCKET |
| WARNING LAMP WITH SOCKET | ||
| 100 | A 1145840021 | GUIDE SIGN |
| LIGHT ROTARY SWITCH | ||
| 101 | A 1105451137 | BUTTON |
| A 1155400583 | HANDLE | |
| 103 | A 1145450172 | NUT |
| A 1145450076 | WASHER | |
| A 0005451403 | CAP | |
| 107 | A 0005451903 | CAP |
| A 0005451545 | BOOT | |
| 110 | A 0005452445 | BOOT |
| N 007981004325 | SHEET METAL SCREW | |
| N 000137004202 | SPRING WASHER | |
| 113 | A 1155451740 | BRACKET |
| 114 | N 007976005203 | SHEET METAL SCREW |
| 115 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 115 | N 009021006208 | WASHER |
| A 0005456611 | SWITCH | |
| Repalced by: A 0015450211 | ||
| A 0005459611 | SWITCH | |
| Repalced by: A 0015450211 | ||
| 121 | A 0015450211 | SWITCH |
| FOOT OPERATED PARKING BRAKE | ||
| 122 | A 0019906751 | NUT |
| Repalced by: A 0002520372 | ||
| 122 | A 0002520372 | NUT |
| N 000137008204 | SPRING WASHER | |
| 123 | N 912006008000 | LOCK WASHER |
| N 000933004028 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| N 000934004004 | NUT | |
| A 1149970190 | LOOM TIE | |
| 80 MM X 7 MM | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 160 MMX9 MM | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 120 MM X 9 MM | ||
| A 0019974190 | LOOM TIE | |
| 100 X 7 MM | ||
| A 0009883478 | CLIP | |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 250 MM X 9 MM | ||
| 130 | A 0005460830 | INSULATING HOSE |
| 131 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 131 | A 1165460135 | BOOT |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 1155402273 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| 138 | A 1155402273 | BRACKET |
| 139 | N 007976004205 | SHEET METAL SCREW |
| 140 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 140 | N 009021005205 | WASHER |
| A 1155400209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145406209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| 145 | A 1155400409 | CABLE HARNESS |
| DECLUTCHING START SWITCH | ||
| A 1145403909 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1165400308 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| 146 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 146 | A 0065457828 | PLUG HOUSING |
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 4-POLE | ||
| 147 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 147 | A 0085453728 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 2-POLE | ||
| 148 | A 0065459328 | PLUG |
| Repalced by: A 0095454228 | ||
| 148 | A 0095454228 | PLUG |
| CABLE CONNECTOR 4-POLE | ||
| 149 | A 1079971181 | GROMMET |
| A 0005463335 | BOOT | |
| A 1075420340 | BRACKET | |
| A 1109971581 | GROMMET | |
| A 0003040040 | BRACKET | |
| N 007985004123 | SCREW | |
| A 1145401409 | CABLE HARNESS | |
| A 0005454728 | PLUG | |
| CLUTCH | ||
| 155 | A 0005425819 | RELAY |
| 156 | A 1145420240 | BRACKET |
| 157 | N 007981004224 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 157 | N 000000000459 | SHEET METAL SCREW |
| N 007981004326 | SHEET METAL SCREW | |
| A 0005425819 | RELAY | |
| N 007985004129 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| N 000934004004 | NUT | |
| A 0005454334 | FUSE | |
| A 1155400407 | CABLE HARNESS | |

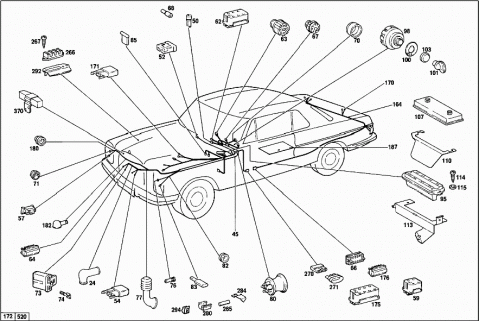

| 164 | A 1155400807 | CABLE HARNESS |
| A 1155400907 | CABLE HARNESS | |
| A 1155401207 | CABLE HARNESS | |
| 170 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 170 | A 0085452028 | PIN BUSHING HOUSING |
| 171 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 171 | A 0085453728 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 2-POLE | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 059 | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 6-POLE | ||
| 175 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 175 | A 0065458028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 6-POLE | ||
| 176 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 176 | A 0095455428 | PLUG HOUSING |
| 180 | A 1119970281 | GROMMET |
| A 1869970681 | GROMMET | |
| 182 | A 1239971681 | GROMMET |
| A 0005464340 | PIN BUSHING | |
| A 0005454540 | BRACKET | |
| A 0005460845 | INSULATING SLEEVE | |
| N 000933004028 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| N 000934004004 | NUT | |
| 185 | A 0009883378 | CLIP |
| 186 | A 0039887978 | CLIP |
| A 0009881778 | CLIP | |
| 187 | A 0009891380 | INSULATION |
| AT TRANSMISSION TUNNEL | ||
| A 1149970190 | LOOM TIE | |
| 120 MM X 9 MM | ||
| A 0029884878 | CLIP | |
| A 1145403509 | CABLE HARNESS | |
| DOOR CONTACT SWITCH,CARBURETOR HEATING,FOOT-OPERATED PARKING BRAKE | ||
| A 0008210725 | PLUG | |
| Repalced by: A 0008212026 | ||
| A 0008212026 | CONNECTOR | |
| CABLE CONNECTOR 2-POLE | ||
| A 0005460645 | INSULATING SLEEVE | |
| A 1145403609 | CABLE HARNESS | |
| DOOR CONTACT SWITCH,CARBURETOR HEATING,FOOT-OPERATED PARKING BRAKE | ||
| A 0045459528 | PLUG | |
| CABLE CONNECTOR 4-POLE | ||
| A 0005460645 | INSULATING SLEEVE | |

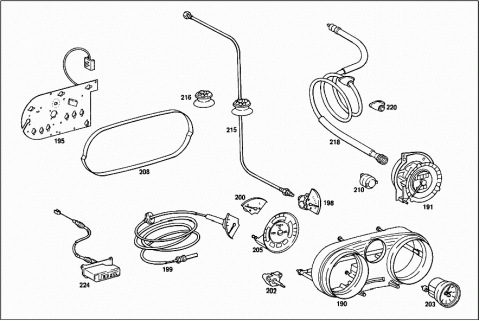

| 190 | A 0005421756 | HOUSING |
| A 0075425506 | SPEEDOMETER | |
| 191 | A 0075425306 | SPEEDOMETER |
| 195 | A 0005421478 | CONNECTION PLATE |
| A 0005422078 | CONNECTION PLATE | |
| 198 | A 0015427502 | OIL PRESSURE GAUGE |
| N 000084003136 | SCREW | |
| Repalced by: N 007985003150 | ||
| N 007985003150 | SCREW | |
| 199 | A 0035421705 | TEMPERATURE GAUGE |
| A 0035424105 | TEMPERATURE GAUGE | |
| N 000084003101 | SCREW | |
| 200 | A 0015420503 | FUEL GAUGE DASH UNIT |
| N 000934004004 | NUT | |
| N 000433004303 | WASHER | |
| N 006797004232 | TOOTHED WASHER | |
| 202 | A 0005421525 | POTENTIOMETER |
| 203 | A 0005420711 | CLOCK |
| 205 | A 0005421458 | DIAL FACING |
| 208 | A 1145420080 | GASKET |
| 210 | A 0005454019 | SOCKET |
| A 0005446794 | BULB | |
| Repalced by: N 072601012240 | ||
| N 072601012240 | BULB | |
| A 0009883378 | CLIP | |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 215 | A 1145420044 | PIPE LINE |
| A 1145420644 | PIPE LINE | |
| 216 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 216 | A 0089971781 | GROMMET |
| 218 | A 1145420707 | FLEXIBLE SHAFT |
| 1170 MM | ||
| A 1145420107 | FLEXIBLE SHAFT | |
| 1280 MM | ||
| A 1145420807 | FLEXIBLE SHAFT | |
| 1320 MM | ||
| A 1145421007 | FLEXIBLE SHAFT | |
| 1360 MM | ||

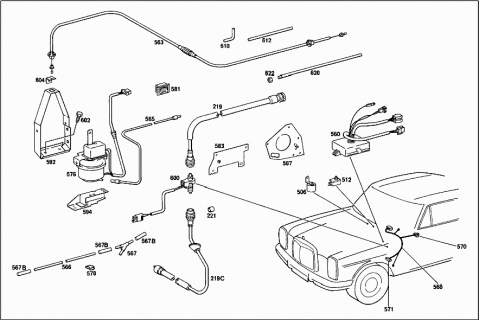

| 219 | A 1155422907 | FLEXIBLE SHAFT |
| 535 MM | ||
| A 1155424207 | FLEXIBLE SHAFT | |
| 515 MM | ||
| 219C | A 1145421307 | FLEXIBLE SHAFT |
| 910 MM | ||
| A 1165421207 | FLEXIBLE SHAFT | |
| 970 MM | ||
| 220 | A 0079975881 | GROMMET |
| A 0009957601 | CLAMP | |
| SPEEDOMETER CABLE TO FIRE WALL | ||
| N 007981004326 | SHEET METAL SCREW | |
| 221 | A 1009911040 | SPACER TUBE |
| 224 | A 1142700352 | GEAR INDICATOR |
| N 007981004254 | TAPPING SCREW | |
| 226 | A 1075420340 | BRACKET |
| 228 | A 1145421340 | BRACKET |
| 229 | A 0039888178 | CLIP |
| A 0001582303 | IGNITION COIL | |
| Repalced by: A 0001582803 | ||
| 235 | A 0001582803 | IGNITION COIL |
| 236 | A 1155400373 | BRACKET |
| A 1145401473 | BRACKET | |
| 238 | A 0001581285 | SUPPRESSOR HOUSING |
| A 0001581485 | SUPPRESSOR HOUSING | |
| N 007981004325 | SHEET METAL SCREW | |
| A 1149970190 | LOOM TIE | |
| 240 | A 2019902201 | SCREW |
| 241 | N 000933006130 | SCREW |
| 243 | A 0009900848 | WASHER |
| 244 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 244 | N 304032006008 | NUT |
| 245 | A 0001581945 | SERIES RESISTOR |
| 0.4 OHM | ||
| A 0001582045 | SERIES RESISTOR | |
| 0.4 MM | ||
| A 0001581345 | SERIES RESISTOR | |
| 0.6 OHM | ||
| A 0001582145 | SERIES RESISTOR | |
| Repalced by: A 0001581345 | ||
| A 0001581345 | SERIES RESISTOR | |
| 0.6 OHM | ||
| 246 | A 1145420640 | BRACKET |
| 248 | A 1085460003 | ELECTRIC CABLE |
| A 1095400238 | ELECTRIC CABLE | |
| N 912004004100 | LOCK WASHER | |
| N 007985004123 | SCREW | |
| 250 | A 0005463335 | BOOT |
| N 007985004149 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| A 0005463335 | BOOT | |
| N 000934005008 | NUT | |
| N 912004005100 | LOCK WASHER | |
| A 1145460103 | ELECTRIC CABLE | |
| N 007985004136 | SCREW | |
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| N 912004004100 | LOCK WASHER | |
| 255 | A 1145401173 | BRACKET |
| N 912004006102 | LOCK WASHER | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| 258 | A 0005454132 | CONTROL UNIT |
| TRANSISTORIZED IGNITION | ||
| A 0005458432 | CONTROL UNIT | |
| TRANSISTORIZED IGNITION | ||
| A 0029886778 | CLIP | |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| N 000933004067 | SCREW | |
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| N 912004004100 | LOCK WASHER | |
| N 000934004004 | NUT | |
| A 1149970190 | LOOM TIE | |
| 265 | A 0005467041 | CABLE CONNECTOR |
| 266 | A 0005469641 | CABLE CONNECTOR |
| 267 | N 007981004219 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 267 | N 000000000453 | TAPPING SCREW |
| N 912004004100 | LOCK WASHER | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| N 912004005100 | LOCK WASHER | |
| N 007985006127 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 1145401509 | CABLE HARNESS | |
| TRANSISTORIZED IGNITION | ||
| A 1165408309 | CABLE HARNESS | |
| TRANSISTORIZED IGNITION | ||
| 270 | A 0045459128 | PLUG |
| 271 | A 0005461635 | BOOT |
| A 0005464640 | CABLE SHOE | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 275 | A 1155400273 | BRACKET |
| 276 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 276 | A 0021547406 | REGULATOR AND CUT-OUT |
| 280 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 280 | A 0009902291 | NUT RETAINER |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 284 | A 1145460075 | CLAMP |
| 284 | A 1145460075 | CLAMP |
| 285 | A 1085460253 | SPACER TUBE |
| 285 | A 1085460253 | SPACER TUBE |
| N 007976004211 | SHEET METAL SCREW | |
| N 007976004211 | SHEET METAL SCREW | |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 160 MM | ||
| 287 | A 1145460843 | BRACKET |
| AT FIRE WALL | ||
| 288 | A 1265453840 | BRACKET |
| N 007976004205 | SHEET METAL SCREW | |
| 292 | A 1145460443 | BRACKET |
| N 007976004205 | SHEET METAL SCREW | |
| 294 | A 0009883478 | CLIP |
| A 0039888078 | CLIP | |
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 300 | A 0035421020 | HORN |
| 335 HZ | ||
| 300 | A 0035421620 | HORN |
| 335 HZ | ||
| A 0035420720 | HORN | |
| 400 HZ | ||
| A 0035421720 | HORN | |
| 400 HZ | ||
| 302 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 302 | N 304017008016 | SCREW |
| 303 | N 912004008102 | LOCK WASHER |
| 305 | A 1145402373 | BRACKET |
| RIGHT | ||
| 307 | A 1145402573 | BRACKET |
| LEFT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 000934008013 | NUT | |
| N 000084004156 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| 310 | A 1145450140 | BRACKET |
| N 007976004205 | SHEET METAL SCREW | |
| A 1145401609 | CABLE HARNESS | |
| A 1145403009 | CABLE HARNESS | |
| A 1145404709 | CABLE HARNESS | |
| A 1145403809 | CABLE HARNESS | |
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 1-POLE | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 2-POLE | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| A 0065458128 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 8-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 6-POLE | ||
| 315 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 315 | A 0065458028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 6-POLE | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| A 0065458128 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 8-POLE | ||
| A 0025453528 | PLUG | |
| Repalced by: A 0095452628 | ||
| A 0095452628 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 12-POLE | ||
| A 0065455728 | PLUG | |
| Repalced by: A 0095455228 | ||
| A 0095455228 | PLUG HOUSING | |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||

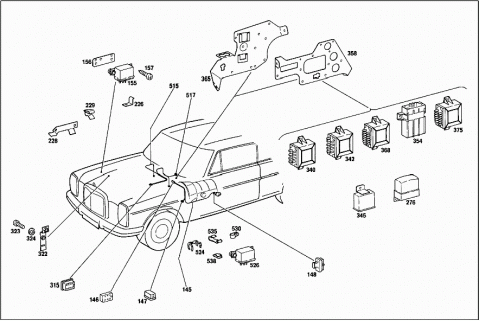

| 318 | A 1145420840 | BRACKET |
| 322 | A 1145402473 | BRACKET |
| 323 | N 007985006126 | SCREW |
| 324 | N 912004006102 | LOCK WASHER |
| 330 | A 0015400097 | VALVE |
| Repalced by: A 0015407097 | ||
| 330 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 330 | A 0015408697 | VALVE |
| 330 | A 0015408697 | VALVE |
| 335 | A 0015400497 | VALVE |
| Repalced by: A 0015403597 | ||
| 335 | A 0015403597 | VALVE |
| Repalced by: A 0015407097 | ||
| 335 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 335 | A 0015408697 | VALVE |
| 335 | A 0015408697 | VALVE |
| 336 | A 0015400797 | VALVE |
| Repalced by: A 0015407097 | ||
| 336 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 336 | A 0015408697 | VALVE |
| 336 | A 0015408697 | VALVE |
| 337 | A 0015401197 | VALVE |
| Repalced by: A 0015407097 | ||
| 337 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 337 | A 0015408697 | VALVE |
| N 007985004136 | SCREW | |
| N 000934004004 | NUT | |
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| 340 | A 0015420319 | RELAY |
| Repalced by: A 0015420919 | ||
| 340 | A 0015420919 | RELAY |
| 342 | A 0015421219 | RELAY |
| A 0015421419 | RELAY | |
| A 0015420219 | RELAY | |
| A 0015420219 | RELAY | |
| 345 | A 0015451232 | CONTROL UNIT |
| WARNING DEVICE | ||
| A 0015450032 | CONTROL UNIT | |
| Repalced by: A 0005459932 | ||
| A 0005459932 | CONTROL UNIT | |
| A 0015451332 | CONTROL UNIT | |
| WARNING DEVICE | ||
| N 914031004201 | COMBINATION BOLT | |
| 347 | A 0025427617 | SENDER UNIT |
| 350 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 350 | A 0015408697 | VALVE |
| 350 | A 0015408697 | VALVE |
| 354 | A 0005453832 | CONTROL UNIT |
| A 0005456432 | CONTROL UNIT | |
| N 007985004179 | SCREW | |
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| A 0009902048 | WASHER | |
| N 000934004004 | NUT | |
| N 007981004318 | SHEET METAL SCREW | |
| N 000137004202 | SPRING WASHER | |
| N 007985004117 | SCREW | |
| 358 | A 1145420940 | BRACKET |
| N 007985006196 | SCREW | |
| Repalced by: N 007985006193 | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| 365 | A 1145421140 | BRACKET |
| A 1145421440 | BRACKET | |
| N 007981004318 | SHEET METAL SCREW | |
| N 007985006190 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| 368 | A 0005456732 | CONTROL UNIT |
| N 007981004325 | SHEET METAL SCREW | |
| N 007981004318 | SHEET METAL SCREW | |
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| A 0015451118 | RESISTOR | |
| 370 | A 0015451518 | RESISTOR |
| N 007981004318 | SHEET METAL SCREW | |
| N 007985004123 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| 371 | A 0015400897 | VALVE |
| Repalced by: A 0015406897 | ||
| 371 | A 0015406897 | VALVE |
| EXHAUST GAS RECIRCULATION | ||
| 372 | A 0015401897 | VALVE |
| Repalced by: A 0015407097 | ||
| 372 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 372 | A 0015408697 | VALVE |
| AIR INJECTION | ||
| A 0015401997 | VALVE | |
| Repalced by: A 0015402997 | ||
| 373 | A 0015402997 | VALVE |
| Repalced by: A 0015407097 | ||
| 373 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 373 | A 0015408697 | VALVE |
| FLOAT CHAMBER VENTILATION | ||
| 373 | A 0015408697 | VALVE |
| FLOAT CHAMBER VENTILATION | ||
| N 007981003324 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| 375 | A 0015423019 | RELAY |
| N 007985004179 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| N 000934004004 | NUT | |
| 376 | A 1145421540 | BRACKET |
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 007976004205 | SHEET METAL SCREW | |
| N 007981004318 | SHEET METAL SCREW | |
| A 0075428910 | WARNING INDICATOR | |
| A 0029901651 | NUT | |
| A 0005421246 | CONNECTOR | |
| A 0045423507 | FLEXIBLE SHAFT | |
| N 007981004326 | SHEET METAL SCREW | |
| A 1155406309 | CABLE HARNESS | |
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0008250082 | SOCKET | |
| N 072601012230 | BULB | |
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| A 0019974190 | LOOM TIE | |
| A 1149970190 | LOOM TIE | |
| A 0019974390 | LOOM TIE | |
| A 1209930225 | SPRING | |
| A 0009881678 | CLIP | |
| A 0009881878 | CLIP | |
| A 1005402109 | CABLE HARNESS | |
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 1-POLE | ||
| A 0065455728 | PLUG | |
| Repalced by: A 0095455228 | ||
| A 0095455228 | PLUG HOUSING | |

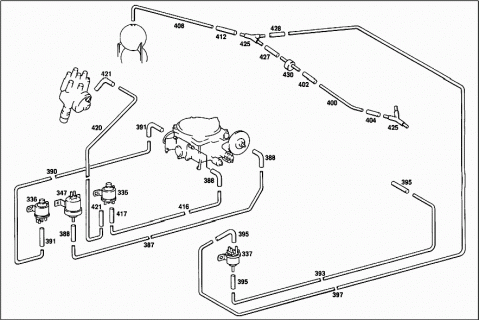

| 387 | A 0001585835 | PIPE LINE |
| BLUE | ||
| 387 | A 0001585835 | PIPE LINE |
| BLUE | ||
| 120 MM | ||
| 387 | A 0001585835 | PIPE LINE |
| BLUE | ||
| 387 | A 0001585835 | PIPE LINE |
| BLUE | ||
| 250 MM | ||
| 388 | A 1179970982 | HOSE |
| 40 MM | ||
| 390 | A 0001583335 | PIPE LINE |
| Repalced by: A 0001581435 | ||
| 390 | A 0001581435 | PIPE LINE |
| GREY | ||
| 391 | A 1179970982 | HOSE |
| 50 MM | ||
| 391 | A 1179970982 | HOSE |
| 50 MM | ||
| 393 | A 0001583435 | PIPE LINE |
| RUSSET BROWN | ||
| 1500 MM | ||
| 393 | A 0001589635 | PIPE LINE |
| BROWN/LILAC/TRANSPARENT | ||
| 1140 MM | ||
| 393 | A 0001589635 | PIPE LINE |
| RUSSET BROWN | ||
| 320 MM | ||
| 393 | A 0001589635 | PIPE LINE |
| RUSSET BROWN | ||
| 1140 MM | ||
| 395 | A 1179970982 | HOSE |
| A 0001583335 | PIPE LINE | |
| Repalced by: A 0001581435 | ||
| A 0001581435 | PIPE LINE | |
| GREY | ||
| A 0001581435 | PIPE LINE | |
| GREY | ||
| 250 MM | ||
| A 1179970982 | HOSE | |
| 40 MM | ||
| 397 | A 0001581435 | PIPE LINE |
| WITHE | ||
| 1500 MM | ||
| 400 | A 0001581435 | PIPE LINE |
| WITHE | ||
| 270 MM | ||
| 402 | A 0079976182 | HOSE |
| 30 MM | ||
| 404 | A 1179970982 | HOSE |
| 40 MM | ||
| 408 | A 0059975982 | HOSE |
| 408 | A 0059975982 | HOSE |
| 1730 MM | ||
| 408 | A 0059975982 | HOSE |
| 412 | A 0079976182 | HOSE |
| 30 MM | ||
| 416 | A 0001581435 | PIPE LINE |
| WITHE | ||
| 417 | A 1179970982 | HOSE |
| 40 MM | ||
| 420 | A 0001581435 | PIPE LINE |
| WITHE | ||
| 421 | A 1179970982 | HOSE |
| 40 MM | ||
| A 0001587435 | PIPE LINE | |
| GREEN | ||
| 350 MM | ||
| A 0001587435 | PIPE LINE | |
| GREEN | ||
| 150 MM | ||
| A 1179970982 | HOSE | |
| 425 | A 1170780145 | BRANCH-OFF FITTING |
| A 1170780581 | HOSE | |
| 427 | A 0079976182 | HOSE |
| 30 MM | ||
| 428 | A 1179970982 | HOSE |
| 40 MM | ||
| 428 | A 1179970982 | HOSE |
| FROM CARBURETOR TO BRANCH FITTING | ||
| 430 | A 1078000778 | VALVE |
| Repalced by: A 1168000378 | ||
| 430 | A 1168000378 | VALVE |
| A 0019974190 | LOOM TIE | |
| 100 X 7 MM | ||
| A 0005462830 | INSULATING HOSE | |
| A 0001583535 | PIPE LINE | |
| RED | ||
| A 0001583535 | PIPE LINE | |
| RED | ||
| A 0001581435 | PIPE LINE | |
| WITHE | ||
| 270 MM | ||
| A 1179970982 | HOSE | |

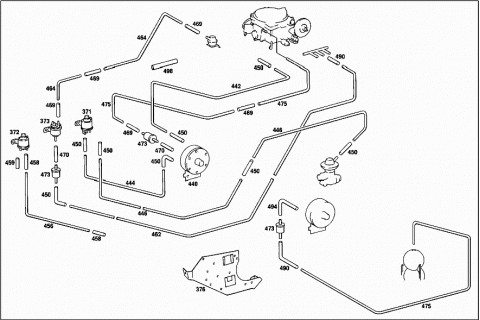

| 440 | A 0001410024 | PRESSURE CONVERTER |
| 442 | A 0001583435 | PIPE LINE |
| RUSSET BROWN | ||
| 444 | A 0001588835 | PIPE LINE |
| RUSSET BROWN | ||
| 446 | A 0001589635 | PIPE LINE |
| RUSSET BROWN | ||
| 1140 MM | ||
| 446 | A 0001589635 | PIPE LINE |
| RUSSET BROWN | ||
| 1140 MM | ||
| 450 | A 1179970982 | HOSE |
| 40 MM | ||
| 450 | A 1179970982 | HOSE |
| 40 MM | ||
| 456 | A 0001589935 | PIPE LINE |
| 350 MM | ||
| 458 | A 1179970982 | HOSE |
| 40 MM | ||
| 459 | A 0009871145 | LOCKING CAP |
| 462 | A 0001589435 | PIPE LINE |
| GREEN | ||
| 464 | A 0001580235 | PIPE LINE |
| GREEN | ||
| 469 | A 1179970982 | HOSE |
| 40 MM | ||
| 470 | A 1170780581 | HOSE |
| 473 | A 1168000378 | VALVE |
| 475 | A 0001581435 | PIPE LINE |
| 480 MM WHITE | ||
| A 0009871145 | LOCKING CAP | |
| 490 | A 1179970982 | HOSE |
| 40 MM | ||
| 494 | A 1170780581 | HOSE |
| A 0019974190 | LOOM TIE | |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 498 | N 040621018200 | INSULATING HOSE |
| 140 MM | ||
| A 0005422623 | BUZZER | |
| 506 | A 0005422423 | BUZZER |
| A 0005423223 | BUZZER | |
| A 0005423323 | BUZZER | |
| N 914031004201 | COMBINATION BOLT | |
| 509 | A 0008211852 | CONTACTOR |
| 512 | A 1245450414 | SWITCH |
| Repalced by: A 1245450214 | ||
| 512 | A 1245450214 | SWITCH |
| N 914031004201 | COMBINATION BOLT | |
| 515 | A 1145401909 | CABLE HARNESS |
| 517 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 517 | A 0085453728 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 2-POLE | ||
| A 0025452428 | PLUG | |
| Repalced by: A 0095454028 | ||
| A 0095454028 | PLUG HOUSING | |
| BIPOLAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 145 | ||
| 524 | A 0029886978 | CLIP |
| 526 | A 0005425919 | RELAY |
| N 007985004123 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| N 000934004004 | NUT | |
| A 0029884878 | CLIP | |
| N 072601012230 | BULB | |
| A 0019974190 | LOOM TIE | |
| 530 | A 0009957401 | CLAMP |
| 530 | A 0009957401 | CLAMP |
| A 0009957601 | CLAMP | |
| N 007981004318 | SHEET METAL SCREW | |
| A 1238212336 | COVERING | |
| A 1156820841 | INSULATION | |
| A 0029884878 | CLIP | |
| 535 | A 0029880178 | CLIP |
| 538 | A 0009888978 | CLIP |
| A 1209930225 | SPRING | |
| A 1078210114 | BRACKET | |
| A 1078210114 | BRACKET | |
| N 007981004318 | SHEET METAL SCREW | |
| 541 | A 0015422819 | RELAY |
| EMERGENCY START | ||
| N 007981004318 | SHEET METAL SCREW | |
| 560 | A 1165450032 | CONTROL UNIT |
| CONTROL UNIT | ||
| A 0055451232 | CONTROL UNIT | |
| TEMPOMAT | ||
| 563 | A 1143000030 | WIRE CABLE |
| A 1143000430 | WIRE CABLE | |
| A 0019951001 | CLAMP | |
| CABLE PULL TO FIRE WALL | ||
| A 1233010173 | LOCK | |
| BOWDEN CABLE | ||
| A 0029880178 | CLIP | |
| WIRE CABLE TO AIR CLEANER | ||
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | TAPPING SCREW | |
| WIRE CABLE TO ACTUATOR | ||
| 565 | A 1145400459 | HOSE |
| 566 | A 0009979652 | HOSE |
| 1050 MM | ||
| 567 | A 1170780145 | BRANCH-OFF FITTING |
| 567B | A 0079976182 | HOSE |
| 30 MM | ||
| 567B | A 0079976182 | HOSE |
| 30 MM | ||
| 568 | A 1145405909 | CABLE HARNESS |
| 570 | A 0008210625 | PLUG |
| 571 | A 0008210426 | CONNECTOR |
| 4-POLE | ||
| 576 | A 0005455832 | THROTTLE ACTUATOR |
| ACTUATOR | ||
| A 0015450732 | CONTROL UNIT | |
| ACTUATOR | ||
| 578 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 578 | A 1149880178 | CLIP |
| A 0019974190 | LOOM TIE | |
| 581 | A 0015451911 | SWITCH |
| 583 | A 1165452440 | BRACKET |
| 587 | A 1165454040 | BRACKET |
| N 000933004067 | SCREW | |
| CONTROL UNIT TO BRACKET | ||
| N 000934004004 | NUT | |
| CONTROL UNIT TO BRACKET | ||
| N 000137004202 | SPRING WASHER | |
| CONTROL UNIT TO BRACKET | ||
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| CONTROL UNIT TO BRACKET | ||
| N 000933006089 | SCREW | |
| BRACKET TO PEDAL ASSEMBLY | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO PEDAL ASSEMBLY | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| BRACKET TO PEDAL ASSEMBLY | ||
| 592 | A 1085401873 | BRACKET |
| A 1165402973 | BRACKET | |
| N 000934008013 | NUT | |
| ACTUATOR TO BRACKET | ||
| N 000137008204 | SPRING WASHER | |
| ACTUATOR TO BRACKET | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 912004006102 | LOCK WASHER | |
| 594 | A 1165452740 | BRACKET |
| A 1165450032 | CONTROL UNIT | |
| 600 | A 0045420517 | SENDER UNIT |
| 602 | N 007976004205 | SHEET METAL SCREW |
| 604 | A 1095452040 | BRACKET |
| BOWDEN CABLE | ||
| N 000933003008 | SCREW | |
| N 913002003000 | NUT | |
| 610 | A 1145450084 | CONNECTOR |
| 612 | A 0009975752 | HOSE |
| 160 MM | ||
| 612 | A 0009975752 | HOSE |
| 195 MM | ||
| 612 | A 0009975752 | HOSE |
| 170 MM | ||
| 612 | A 0009975752 | HOSE |
| 320 MM | ||
| N 072571001026 | CLAMP | |
| N 007976004212 | SHEET METAL SCREW | |
| 620 | A 1169977682 | HOSE |
| 400 MM | ||
| 622 | A 0009907154 | NUT |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
