Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

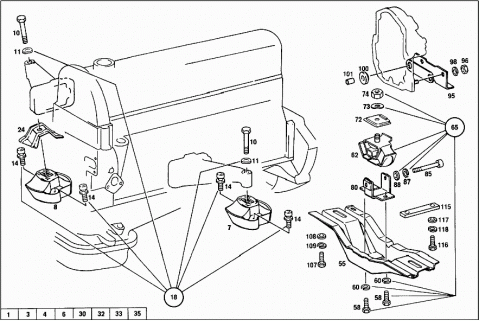

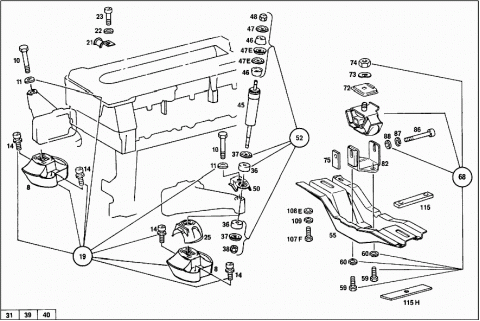

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT

#	Kodas	Pavadinimas
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.1
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.4
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.5
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.10
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.17
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.15
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.22
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.19
007	A 1142230112	RUBBER MOUNTING
		LEFT
	A 1142230212	RUBBER MOUNTING
	Repalced by: A 1072410913
008	A 1072410913	RUBBER MOUNTING
		RIGHT
008	A 1072410913	RUBBER MOUNTING
		RIGHT
010	N 000931012182	SCREW
011	N 000137012203	SPRING WASHER
	Repalced by: N 000137012206
011	N 000137012206	SPRING WASHER
014	N 914019008000	COMBINATION BOLT
018	A 1145860022	REPAIR KIT
019	A 1145860122	REPAIR KIT
021	A 1879950037	CLAMP
022	N 000137006204	SPRING WASHER
023	N 000912006002	SCREW
024	A 1152230234	COVERING
	A 1142410234	SCREENING PLATE
025	A 1142410334	SCREENING PLATE
	Repalced by: A 1142410234
025	A 1142410234	SCREENING PLATE
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.26
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.71
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.32
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.37
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.91
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 039 M 130,GROUP 22,FIG.NO.45
036	A 1072410065	RUBBER BUFFER
		ENGINE SHOCK ABSORBER TO FRONT SUBFRAME
037	A 1082410012	RETAINER
038	N 913002006005	NUT
	Repalced by: N 913002006009
038	N 913002006009	NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.78
	Y YYYYYYYYYYYY	PART NAME MISSING
		SEE SPARE PARTS LIST 037 M 110,GROUP 22,FIG.NO.85
045	A 1162400148	ENGINE VIBRATION ABSORBER
	A 1162400248	ENGINE VIBRATION ABSORBER
046	A 1232410365	RUBBER BUFFER
047	A 1082410012	RETAINER
047E	A 1152410812	RETAINER
048	N 913002006005	NUT
	Repalced by: N 913002006009
048	N 913002006009	NUT
050	A 1142410040	BRACKET
	Repalced by: A 1152410440
050	A 1152410440	BRACKET
	A 1072410065	RUBBER BUFFER
	A 1082410012	RETAINER
	N 913002006005	NUT
	Repalced by: N 913002006009
	N 913002006009	NUT
052	A 1142400017	REPAIR KIT
		ENINE SHOCK ABSORBER MOUNTING PARTS
055	A 1152422601	ENGINE SUPPORT
	A 1152422701	ENGINE SUPPORT
058	N 000933008131	SCREW
	Repalced by: N 304017008016
058	N 304017008016	SCREW
059	N 000933008130	SCREW
	Repalced by: N 304017008039
059	N 304017008039	SCREW
060	N 912004008102	LOCK WASHER
062	A 1232402218	RUBBER MOUNTING
	A 1232420413	RUBBER MOUNTING
065	A 1145860024	REPAIR KIT
	A 1232402218	RUBBER MOUNTING
068	A 1155860224	REPAIR KIT
	A 1232402518	RUBBER MOUNTING
	A 1155860124	REPAIR KIT
	Repalced by: A 1232420413
	A 1232420413	RUBBER MOUNTING
072	A 1082420031	MOUNTING PLATE
073	N 000137012203	SPRING WASHER
	Repalced by: N 000137012206
073	N 000137012206	SPRING WASHER
074	N 000934012023	NUT
	Repalced by: N 308673012002
074	N 308673012002	HEXAGON NUT
075	A 1232420272	NUT
080	A 1232420140	BRACKET
082	A 1152400340	BRACKET
085	N 000912008067	SCREW
086	N 000912008054	SCREW
087	N 912004008102	LOCK WASHER
088	N 007349008002	WASHER
095	A 1144900444	PLATE
	A 1144920318	BASE PLATE
096	N 000934010005	NUT
	N 000933008153	SCREW
098	N 000127010202	LOCK WASHER
	N 000137008204	SPRING WASHER
100	A 1211550181	RUBBER RING
101	A 1084920053	SPACER TUBE
107	N 000933010128	SCREW
107F	N 000933010035	SCREW
108	N 007349010003	WASHER
	Repalced by: N 007349010007
108	N 007349010007	WASHER
108E	A 1159901640	WASHER
109	N 912004010102	LOCK WASHER
115	A 1152421240	BRACKET
115H	A 1152420126	SHIM
116	N 000933010128	SCREW
117	N 007349010003	WASHER
	Repalced by: N 007349010007
117	N 007349010007	WASHER
	N 007349010003	WASHER
	Repalced by: N 007349010007
	N 007349010007	WASHER
118	N 000127010202	LOCK WASHER
