Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

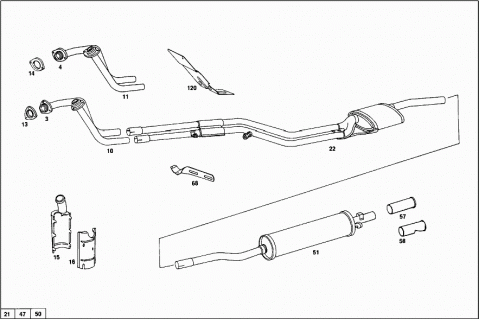

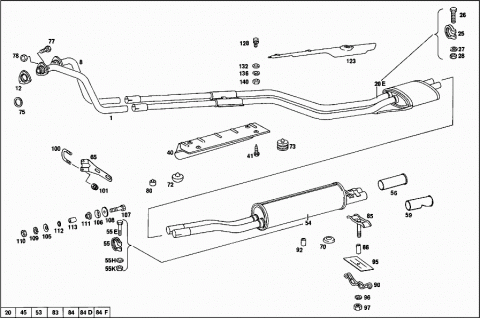

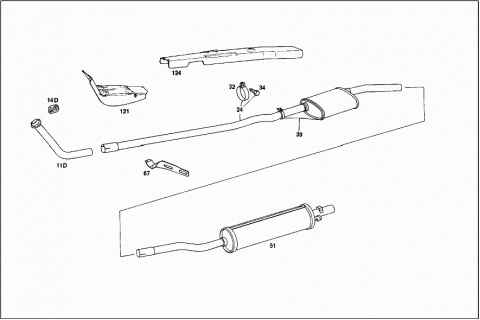

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1144900619 | EXHAUST PIPE | |
| Repalced by: A 1144901619 | ||
| 001 | A 1144901619 | EXHAUST PIPE |
| TO CYLINDERS NOS. 1-3 | ||
| 003 | A 1144902319 | EXHAUST PIPE |
| TO CYLINDERS NOS. 1-3 | ||
| 004 | A 1144903019 | EXHAUST PIPE |
| TO CYLINDERS NOS. 1-3 | ||
| 008 | A 1144901719 | EXHAUST PIPE |
| TO CYLINDERS NOS. 4-6 | ||
| 010 | A 1144902419 | EXHAUST PIPE |
| TO CYLINDERS NOS. 4-6 | ||
| 011 | A 1144903119 | EXHAUST PIPE |
| TO CYLINDERS NOS. 4-6 | ||
| 011D | A 1154901719 | EXHAUST PIPE |
| Repalced by: A 1154902119 | ||
| 011D | A 1154902119 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 1814920011 | FLANGE |
| 013 | A 1124920011 | FLANGE |
| 014 | A 1144920045 | FLANGE |
| 014D | A 1164920345 | FLANGE |
| 015 | A 1141400070 | AIR PRE-HEATER |
| 016 | A 1141430025 | JACKET |
| 020 | A 1144901021 | EXHAUST PIPE |
| Repalced by: A 1144900415 | ||
| 020 | A 1144900415 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| (114 491 12 01) | ||
| 020E | A 1144900415 | EXHAUST MUFFLER WITH PIPE |
| CLAMP-ON VERSION,CENTRAL (114 491 12 01) | ||
| 021 | A 1144901921 | EXHAUST PIPE |
| Repalced by: A 1144900815 | ||
| 021 | A 1144900815 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| (114 491 14 01/16 01) | ||
| 022 | A 1144900815 | EXHAUST MUFFLER WITH PIPE |
| CLAMP-ON VERSION,CENTRAL (114 491 14 01/16 01) | ||
| A 1154900321 | EXHAUST PIPE | |
| Repalced by: A 1154900115 | ||
| A 1154900115 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| (114 491 31 01/35 01) | ||
| 024 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| CLAMP-ON VERSION,CENTRAL (114 491 31 01/35 01) | ||
| 025 | A 1144920140 | CLAMP |
| Repalced by: A 1144900141 | ||
| 025 | A 1144900141 | CLAMP |
| Repalced by: A 0004900341 | ||
| 025 | A 0004900341 | CLAMP |
| A 1124921140 | CLAMP | |
| Repalced by: A 1124900341 | ||
| A 1124900341 | CLAMP | |
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| A 1074900041 | CLAMP | |
| 026 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 026 | N 304017008043 | SCREW |
| 027 | N 000433008406 | WASHER |
| 028 | N 000934008013 | NUT |
| N 003861012007 | GLAND | |
| N 915017012100 | UNION NUT | |
| 030 | A 1154910030 | PROTECTIVE PLATE |
| 032 | A 1159950435 | CLAMP |
| 034 | N 007976005202 | SHEET METAL SCREW |
| 040 | A 1144920630 | PROTECTIVE PLATE |
| 041 | A 0009902036 | SCREW |
| 045 | A 1144901121 | EXHAUST PIPE |
| WELDED VERSION | ||
| 047 | A 1144900421 | EXHAUST PIPE |
| WELDED VERSION | ||
| 050 | A 1144911501 | MUFFLER |
| WELDED VERSION | ||
| A 1144911701 | MUFFLER | |
| WELDED VERSION | ||
| 051 | A 1144900515 | EXHAUST MUFFLER WITH PIPE |
| REAR,CLAMP-ON VERSION (114 491 34 01) | ||
| 053 | A 1144911301 | MUFFLER |
| Repalced by: A 1144900715 | ||
| 053 | A 1144900715 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| 054 | A 1144900715 | EXHAUST MUFFLER WITH PIPE |
| REAR,CLAMP-ON VERSION (114 491 13 01) | ||
| 055 | A 1144920140 | CLAMP |
| Repalced by: A 1144900141 | ||
| 055 | A 1144900141 | CLAMP |
| Repalced by: A 0004900341 | ||
| 055 | A 0004900341 | CLAMP |
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| A 1074900041 | CLAMP | |
| 055E | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 055E | N 304017008043 | SCREW |
| 055H | N 000433008406 | WASHER |
| 055K | N 000934008013 | NUT |
| 056 | A 1134920214 | END PIECE |
| 057 | A 1234920714 | END PIECE |
| 058 | A 1154920914 | END PIECE |
| 059 | A 1164920514 | END PIECE |
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| 065 | A 1144920441 | BRACKET |
| 065 | A 1144920441 | BRACKET |
| A 1144920641 | BRACKET | |
| A 1144920641 | BRACKET | |
| 067 | A 1154920141 | BRACKET |
| 068 | A 1141410240 | BRACKET |
| 070 | A 1074920082 | DAMPING PAD |
| 072 | A 1149870139 | RUBBER BUFFER |
| Repalced by: A 1079870840 | ||
| 072 | A 1079870840 | RUBBER BUFFER |
| Repalced by: A 1079871140 | ||
| 072 | A 1079871140 | RUBBER BUFFER |
| 073 | A 1239870940 | RUBBER BUFFER |
| 075 | N 915035000023 | SEAL RING |
| N 915035000008 | SEAL RING | |
| 077 | N 000931008217 | SCREW |
| 078 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 078 | A 0009903250 | NUT |
| 080 | A 1159870540 | RUBBER BUFFER |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.NO.25 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.NO.26 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.NO.27 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.NO.28 | ||
| 085 | A 1144900043 | BRACKET |
| 086 | A 0004920153 | SPACER TUBE |
| 090 | A 1144920341 | BRACKET |
| 092 | A 0004920053 | SPACER TUBE |
| A 1144920341 | BRACKET | |
| 095 | A 0004920383 | INSULATION |
| Repalced by: A 0004921083 | ||
| 095 | A 0004921083 | INSULATION |
| 096 | N 912004008102 | LOCK WASHER |
| 097 | N 000934008013 | NUT |
| 100 | A 1234920027 | CLAMPING BRACKET |
| 101 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 101 | A 0009903250 | NUT |
| 105 | N 002093016100 | DISC SPRING |
| 106 | N 000440009103 | WASHER |
| 107 | N 000931008244 | SCREW |
| 108 | A 1089900340 | WASHER |
| 109 | N 912004008102 | LOCK WASHER |
| 110 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 110 | N 304032008006 | NUT |
| 111 | A 1211550181 | RUBBER RING |
| 112 | A 1089900340 | WASHER |
| 113 | A 1084920053 | SPACER TUBE |
| 120 | A 1144920830 | PROTECTIVE PLATE |
| 121 | A 1144900230 | PROTECTIVE PLATE |
| 123 | A 1144920430 | PROTECTIVE PLATE |
| A 1144920930 | PROTECTIVE PLATE | |
| 124 | A 1144921130 | PROTECTIVE PLATE |
| A 1143330146 | PROTECTIVE PLATE | |
| N 007976006203 | SHEET METAL SCREW | |
| 128 | A 1204200227 | SCREW |
| 132 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 132 | N 009021006208 | WASHER |
| 136 | N 912004006102 | LOCK WASHER |
| 140 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 140 | N 304032006008 | NUT |
| A 0009902036 | SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| A 1144921430 | PROTECTIVE PLATE | |
| A 0009902036 | SCREW | |
