Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

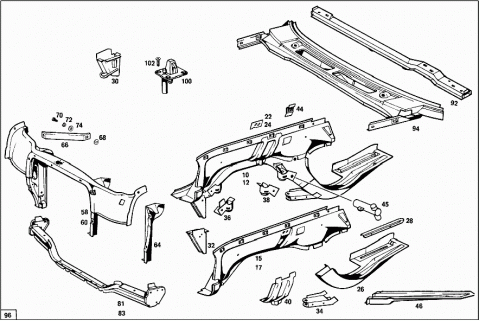

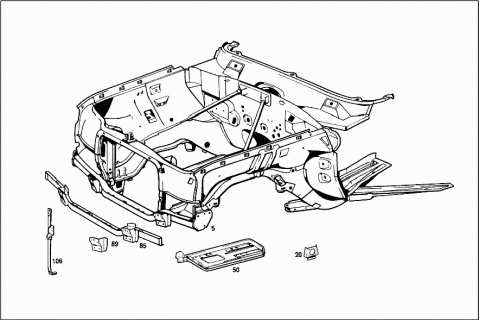

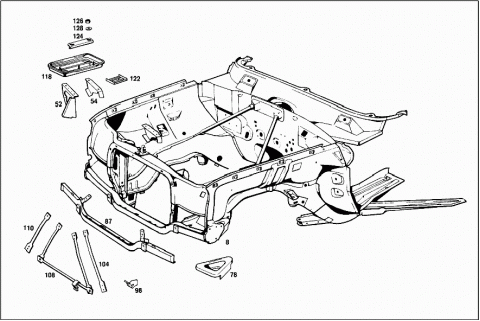

Grupė: 62 FRONT PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1156200905 | COWL | |
| Repalced by: A 1156201505 | ||
| A 1156201505 | COWL | |
| Repalced by: A 1156201905 | ||
| A 1156201905 | COWL | |
| Repalced by: A 1156202305 | ||
| A 1156202305 | COWL | |
| Repalced by: A 1156203505 | ||
| A 1156203505 | COWL | |
| Repalced by: A 1156205705 | ||
| A 1156205105 | COWL | |
| Repalced by: A 1156205705 | ||
| A 1156205705 | COWL | |
| Repalced by: A 1156206105 | ||
| 005 | A 1156206105 | COWL |
| A 1146200105 | COWL | |
| Repalced by: A 1146201705 | ||
| A 1146201305 | COWL | |
| Repalced by: A 1146201705 | ||
| A 1146201705 | COWL | |
| Repalced by: A 1146201905 | ||
| A 1146201905 | COWL | |
| A 1146200505 | COWL | |
| Repalced by: A 1146200905 | ||
| A 1146200905 | COWL | |
| Repalced by: A 1146201505 | ||
| A 1146201505 | COWL | |
| Repalced by: A 1146202005 | ||
| 008 | A 1146202005 | COWL |
| A 1156200961 | WHEELHOUSE | |
| Repalced by: A 1156201361 | ||
| A 1156201361 | WHEELHOUSE | |
| Repalced by: A 1156202161 | ||
| 010 | A 1156202161 | WHEELHOUSE |
| LEFT | ||
| A 1146200561 | WHEELHOUSE | |
| Repalced by: A 1146201361 | ||
| 012 | A 1146201361 | WHEELHOUSE |
| LEFT | ||
| A 1156201061 | WHEELHOUSE | |
| Repalced by: A 1156201861 | ||
| A 1156201861 | WHEELHOUSE | |
| RIGHT | ||
| A 1146200661 | WHEELHOUSE | |
| Repalced by: A 1146201261 | ||
| A 1146201261 | WHEELHOUSE | |
| RIGHT | ||
| A 1156260375 | WHEELHOUSE | |
| Repalced by: A 1156260775 | ||
| 015 | A 1156260775 | WHEELHOUSE |
| LEFT | ||
| 017 | A 1146260175 | WHEELHOUSE |
| LEFT | ||
| A 1156260475 | WHEELHOUSE | |
| RIGHT | ||
| A 1146260275 | WHEELHOUSE | |
| RIGHT | ||
| 020 | A 1156260714 | BRACKET |
| 022 | A 1156260411 | PLATE |
| 024 | A 1156261011 | PLATE |
| 026 | A 1156220904 | SUPPORT |
| LEFT | ||
| A 1156221004 | SUPPORT | |
| RIGHT | ||
| 028 | A 1156220314 | BRACKET |
| LEFT | ||
| A 1156220414 | BRACKET | |
| RIGHT | ||
| 030 | A 1156202031 | CONSOLE |
| RIGHT | ||
| 032 | A 1156201931 | CONSOLE |
| LEFT | ||
| 034 | A 1156220031 | CONSOLE |
| 036 | A 1156202131 | CONSOLE |
| 038 | A 1156202231 | CONSOLE |
| 040 | A 1156201531 | CONSOLE |
| LEFT | ||
| A 1156201631 | CONSOLE | |
| RIGHT | ||
| A 1156200420 | MOUNTING | |
| ENGINE HOOD SUPPORT TO WHEELHOUSE | ||
| 044 | A 1156200020 | MOUNTING |
| ENGINE HOOD SUPPORT TO WHEELHOUSE | ||
| A 1154600638 | TRUNNION BEARING | |
| Repalced by: A 1154600738 | ||
| 045 | A 1154600738 | TRUNNION BEARING |
| STEERING INTERMEDIATE ARM BEARING | ||
| A 1154600938 | TRUNNION BEARING | |
| STEERING INTERMEDIATE ARM BEARING | ||
| 046 | A 1156220143 | DIAGONAL STRUT |
| LEFT | ||
| A 1156220243 | DIAGONAL STRUT | |
| RIGHT | ||
| 050 | A 1156200158 | REST |
| 052 | A 1146200031 | CONSOLE |
| FRONT | ||
| 054 | A 1146200114 | BRACKET |
| REAR | ||
| A 1156200572 | STIFFENING | |
| Repalced by: A 1146200072 | ||
| A 1146200072 | STIFFENING | |
| Repalced by: A 1146200672 | ||
| 058 | A 1146200672 | STIFFENING |
| Repalced by: A 1146200972 | ||
| A 1146200272 | STIFFENING | |
| Repalced by: A 1146200472 | ||
| A 1146200472 | STIFFENING | |
| Repalced by: A 1146200972 | ||
| 060 | A 1146200972 | STIFFENING |
| A 1156200536 | BAFFLE | |
| Repalced by: A 1156201136 | ||
| A 1156200635 | SUPPORT | |
| Repalced by: A 1156201236 | ||
| 064 | A 1156201136 | BAFFLE |
| LEFT | ||
| A 1156201236 | BAFFLE | |
| RIGHT | ||
| 066 | A 1156220616 | REINFORCEMENT |
| 068 | A 3129901940 | WASHER |
| 070 | N 000933008108 | SCREW |
| 072 | N 000127008203 | LOCK WASHER |
| 074 | A 1369903940 | WASHER |
| Repalced by: A 1809900640 | ||
| 074 | A 1809900640 | WASHER |
| N 000933008016 | SCREW | |
| Repalced by: N 000933008131 | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000127008203 | LOCK WASHER | |
| A 1369903940 | WASHER | |
| Repalced by: A 1809900640 | ||
| A 1809900640 | WASHER | |
| 078 | A 1156200128 | BRACING |
| LEFT | ||
| A 1156200228 | BRACING | |
| RIGHT | ||
| A 1156200386 | SUPPORT | |
| Repalced by: A 1146200186 | ||
| 081 | A 1146200186 | SUPPORT |
| 083 | A 1146200586 | SUPPORT |
| 085 | A 1156200186 | SUPPORT |
| Repalced by: A 1146200286 | ||
| A 1146200286 | SUPPORT | |
| 087 | A 1146200386 | SUPPORT |
| 089 | A 1156201731 | CONSOLE |
| LEFT | ||
| A 1156201831 | CONSOLE | |
| RIGHT | ||
| 092 | A 1156200516 | REINFORCEMENT |
| 094 | A 1156201904 | PANELLING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 45 | ||
| 098 | A 1156200914 | BRACKET |
| Repalced by: A 1145402573 | ||
| A 1156201014 | BRACKET | |
| Repalced by: A 1145402373 | ||
| 100 | A 1108800860 | ENGINE HOOD CATCH |
| Repalced by: A 1158800160 | ||
| 100 | A 1158800160 | ENGINE HOOD CATCH |
| 102 | N 000965006004 | SCREW |
| 104 | A 1146230619 | STRUT |
| A 1156200085 | STRUT | |
| Repalced by: A 1156200485 | ||
| 106 | A 1156200485 | STRUT |
| 108 | A 1146200285 | STRUT |
| Repalced by: A 1146200485 | ||
| A 1146200385 | STRUT | |
| Repalced by: A 1146200485 | ||
| 110 | A 1146200485 | STRUT |
| N 000933006026 | SCREW | |
| N 000933006130 | SCREW | |
| N 900161006101 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 0009840222 | SHEET METAL NUT | |
| Repalced by: A 1159840022 | ||
| A 1159840022 | SHEET METAL NUT | |
| Repalced by: N 913008006300 | ||
| N 913008006300 | SHEET METAL NUT | |
| N 000934006007 | NUT | |
| N 000125006407 | WASHER | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006421 | ||
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| A 1076200118 | FRAME | |
| Repalced by: A 1076200218 | ||
| A 1076200218 | FRAME | |
| Repalced by: A 1076200518 | ||
| A 1076200518 | FRAME | |
| Repalced by: A 1076200718 | ||
| 118 | A 1076200718 | FRAME |
| Repalced by: A 1076200818 | ||
| 118 | A 1076200818 | FRAME |
| 122 | A 1076261112 | ANGLE |
| N 914007006013 | COMBINATION BOLT | |
| 124 | A 1076260612 | ANGLE |
| 126 | N 000934006007 | NUT |
| 128 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 128 | N 009021006208 | WASHER |
