Transporto priemonė: 250 C USA; VIN numerio dalis: 114023
Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS

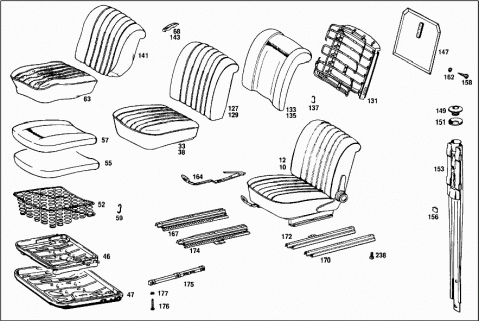

123654

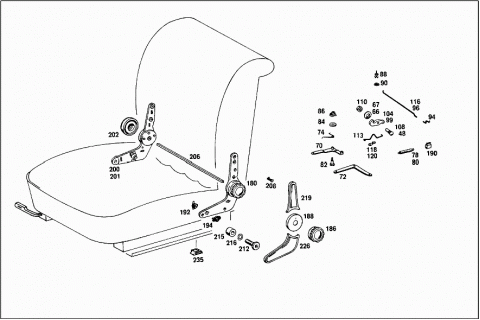

123655
# Kodas Pavadinimas
A 1159100501 FRONT SEAT
LEFT LEATHER TRIM
A 1159102109 FRONT SEAT
LEFT LEATHER TRIM
A 1159100701 FRONT SEAT
LEFT IMITATION LEATHER TRIM
A 1159102309 FRONT SEAT
LEFT IMITATION LEATHER TRIM
A 1149104101 FRONT SEAT
LEFT IMITATION LEATHER TRIM
010 A 1149107901 FRONT SEAT
LEFT IMITATION LEATHER TRIM
010 A 1149107901 FRONT SEAT
LEFT IMITATION LEATHER TRIM
A 1149100309 FRONT SEAT
LEFT IMITATION LEATHER TRIM
012 A 1149104509 FRONT SEAT
LEFT IMITATION LEATHER TRIM
A 1149104301 FRONT SEAT
LEFT LEATHER TRIM
A 1149108901 FRONT SEAT
LEFT LEATHER TRIM
A 1149100109 FRONT SEAT
LEFT LEATHER TRIM
A 1149102709 FRONT SEAT
LEFT LEATHER TRIM
A 1149104309 FRONT SEAT
LEFT LEATHER TRIM
A 1159100601 FRONT SEAT
RIGHT LEATHER TRIM
A 1159102209 FRONT SEAT
RIGHT LEATHER TRIM
A 1159100801 FRONT SEAT
RIGHT IMITATION LEATHER TRIM
A 1159102409 FRONT SEAT
RIGHT IMITATION LEATHER TRIM
A 1149104201 FRONT SEAT
RIGHT, WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149108001 FRONT SEAT
RIGHT, WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149100409 FRONT SEAT
RIGHT, WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149104609 FRONT SEAT
RIGHT, WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149104401 FRONT SEAT
RIGHT, WITH SEAT CONTACT, LEATHER
A 1149109001 FRONT SEAT
RIGHT, WITH SEAT CONTACT, LEATHER
A 1149100209 FRONT SEAT
RIGHT, WITH SEAT CONTACT, LEATHER
A 1149102809 FRONT SEAT
RIGHT, WITH SEAT CONTACT, LEATHER
A 1149104409 FRONT SEAT
RIGHT, LESS SEAT CONTACT, LEATHER
A 1159100530 SEAT CUSHION
Repalced by: A 1149103730
A 1149102130 SEAT CUSHION
Repalced by: A 1149103730
A 1149103730 SEAT CUSHION
LEATHER
A 1149103730 SEAT CUSHION
LEATHER
A 1159100630 SEAT CUSHION
Repalced by: A 1149103830
A 1149102230 SEAT CUSHION
Repalced by: A 1149103830
A 1149103830 SEAT CUSHION
IMITATION LEATHER
A 1149103830 SEAT CUSHION
IMITATION LEATHER
033 A 1149104730 SEAT CUSHION
LEFT IMITATION LEATHER TRIM
A 1149104830 SEAT CUSHION
RIGHT, WITH SEAT CONTACT IMITATION LEATHER TRIM
A 1149105730 SEAT CUSHION
RIGHT, WITH SEAT CONTACT IMITATION LEATHER TRIM
A 1149106530 SEAT CUSHION
Repalced by: A 1149106630
038 A 1149106630 SEAT CUSHION
WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149100231 SEAT CUSHION
WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149101431 SEAT CUSHION
LESS SEAT CONTACT;IMITATION LEATHER
A 1149104930 SEAT CUSHION
WITH SEAT CONTACT, IMITATION LEATHER TRIM
A 1149106330 SEAT CUSHION
Repalced by: A 1149106430
A 1149106430 SEAT CUSHION
WITH SEAT CONTACT, LEATHER TRIM
A 1149100131 SEAT CUSHION
WITH SEAT CONTACT, LEATHER TRIM
A 1149100731 SEAT CUSHION
WITH SEAT CONTACT, LEATHER TRIM
A 1149101331 SEAT CUSHION
LESS SEAT CONTACT;LEATHER
A 1159100822 CUSHION FRAME
Repalced by: A 1149101022
A 1159103922 CUSHION FRAME
Repalced by: A 1149101022
A 1149100122 CUSHION FRAME
Repalced by: A 1149101022
A 1149100722 CUSHION FRAME
Repalced by: A 1149101022
046 A 1149101422 CUSHION FRAME
Repalced by: A 1149101022
046 A 1149101022 CUSHION FRAME
047 A 1149101722 CUSHION FRAME
Repalced by: A 1149101622
047 A 1149101622 CUSHION FRAME
048 A 1159910005 PIN
A 1149101022 CUSHION FRAME
N 001481003004 CLAMPING SLEEVE
A 1089100040 SPRING CORE
Repalced by: A 1149101022
A 1149101022 CUSHION FRAME
052 A 1169100040 SPRING CORE
Repalced by: A 1149101022
052 A 1149101022 CUSHION FRAME
A 1169100040 SPRING CORE
Repalced by: A 1169140314
A 1159140114 PAD
Repalced by: A 1169140314
055 A 1169140314 PAD
Repalced by: A 1169140414
055 A 1169140414 PAD
057 A 1169140414 PAD
059 A 0009842061 CLIP
A 1159100246 COVER
LEATHER
A 1149102046 COVER
LEATHER
A 1159100346 COVER
IMITATION LEATHER
063 A 1149101546 COVER
IMITATION LEATHER
A 0009842061 CLIP
066 A 1149940051 LOCK
Repalced by: A 1159910005
066 A 1159910005 PIN
067 A 1149940151 LOCK
068 A 0039880178 CLIP
070 A 1159101114 BRACKET
LEFT
A 1159101214 BRACKET
RIGHT
072 A 1149180034 LEVER
074 A 1159180137 SPRING
LEFT
A 1159180237 SPRING
RIGHT
078 A 1149180037 SPRING
080 A 1149180137 SPRING
082 A 1159840131 SCREW
084 A 1159904240 WASHER
Repalced by: A 2019900640
084 A 2019900640 WASHER
086 A 0009904991 NUT RETAINER
088 A 1149900192 RIVET
Repalced by: A 0009906092
088 A 0009906092 RIVET
UPPER PART
090 A 1149900292 RIVET
Repalced by: A 0009905548
090 A 0009905548 WASHER
LOWER PART
N 000127005204 LOCK WASHER
ELEMENT TO FRONT SEAT CUSHION FRAME
N 000934005008 NUT
ELEMENT TO FRONT SEAT CUSHION FRAME
094 A 1149180127 LINK
LEFT
096 A 1149180227 LINK
RIGHT
N 006799003202 LOCK PLATE
099 A 1159180376 HOOK
LEFT
A 1159180476 HOOK
RIGHT
A 1159190071 SCREW
Repalced by: A 1159190171
A 1159190171 SCREW
104 A 1079180176 HOOK
A 1079180276 HOOK
108 A 1079840429 SCREW
110 A 1079900056 NUT
113 A 1159180327 LINK
LEFT
A 1159180427 LINK
RIGHT
116 A 1149180027 LINK
118 A 1009940160 LOCK
120 A 1149940060 LOCK
A 1159101532 BACKREST
LEATHER
A 1149103932 BACKREST
LEATHER
A 1149106532 BACKREST
LEATHER
A 1159101632 BACKREST
Repalced by: A 1089100633
A 1089100633 BACKREST
IMITATION LEATHER
127 A 1159104232 BACKREST
IMITATION LEATHER
129 A 1149104132 BACKREST
IMITATION LEATHER
131 A 1109102134 BACKREST FRAME
133 A 1159141780 PAD
Repalced by: A 1089144816
133 A 1089144816 PAD
135 A 1089144816 PAD
137 A 0009842061 CLIP
A 1159100474 COVER
LEATHER
A 1149102747 COVER
LEATHER
A 1159100574 COVER
IMITATION LEATHER
141 A 1159102147 COVER
IMITATION LEATHER
143 A 0039880178 CLIP
A 1089102939 PANELLING
USED WITH LEATHER TRIM
A 1089103039 PANELLING
Repalced by: A 1089102639
147 A 1089102639 PANELLING
USED WITH IMITATION LEATHER TRIM
149 A 1159880282 EYE
Repalced by: A 1269880082
A 1169880082 EYE
Repalced by: A 1269880082
A 1269880082 EYE
151 A 1159880382 EYE
Repalced by: A 1269901240
151 A 1269901240 WASHER
153 A 1079700115 RAIL
LEFT UP TO CHASSIS, SEE GROUP 97
A 1079700215 RAIL
RIGHT UP TO CHASSIS,SEE GROUP 97
156 A 1159880478 CLIP
N 000965004003 SCREW
N 000934004004 NUT
N 006797004333 TOOTHED WASHER
158 N 007983003216 SHEET METAL SCREW
162 A 0009850662 WASHER
164 A 1159100305 ADJUSTER
LEFT
A 1159100405 ADJUSTER
RIGHT
167 A 1159101105 SEAT GUIDE
INSIDE LEFT
A 1159101005 SEAT GUIDE
INSIDE RIGHT
170 A 1159100905 SEAT GUIDE
OUTSIDE
170 A 1159100905 SEAT GUIDE
OUTSIDE
172 A 1159103105 SEAT GUIDE
LEFT SEAT, LEFT
172 A 1159103105 SEAT GUIDE
LEFT SEAT, LEFT
174 A 1159103305 SEAT GUIDE
Repalced by: A 1159103905
174 A 1159103905 SEAT GUIDE
LEFT SEAT, RIGHT
A 1159103205 SEAT GUIDE
RIGHT SEAT, RIGHT
A 1159103205 SEAT GUIDE
RIGHT SEAT, RIGHT
A 1159103405 SEAT GUIDE
Repalced by: A 1159104005
A 1159104005 SEAT GUIDE
RIGHT SEAT, LEFT
A 1239900822 SCREW
175 A 1159191131 CONSOLE
176 N 007985006180 SCREW
177 N 006797006145 TOOTHED WASHER
A 0009105785 BACKREST ADJUSTER
LEFT FOR LEFT SEAT
180 A 0009106985 BACKREST ADJUSTER
LEFT FOR LEFT SEAT
A 0009108185 BACKREST ADJUSTER
LEFT FOR LEFT SEAT
A 0009105885 BACKREST ADJUSTER
RIGHT RIGHT SEAT
A 0009107085 BACKREST ADJUSTER
RIGHT RIGHT SEAT
A 0009108285 BACKREST ADJUSTER
RIGHT RIGHT SEAT
186 A 0009180426 HANDWHEEL
188 A 0009180236 COVERING
190 A 1149880578 CLIP
Repalced by: A 1079880178
190 A 1079880178 CLIP
192 A 0009941260 LOCK
194 A 0009941360 LOCK
A 0009105986 BACKREST ADJUSTER
RECLINING SEAT FITTING, LEFT FOR RIGHT SEAT
A 0009107486 BACKREST ADJUSTER
RECLINING SEAT FITTING, LEFT FOR RIGHT SEAT
A 0009108686 BACKREST ADJUSTER
LEFT FOR RIGHT SEAT
A 0009106086 BACKREST ADJUSTER
RIGHT LEFT SEAT
200 A 0009107386 BACKREST ADJUSTER
RIGHT LEFT SEAT
201 A 0009108586 BACKREST ADJUSTER
RIGHT LEFT SEAT
A 1149880578 CLIP
Repalced by: A 1079880178
A 1079880178 CLIP
202 A 0009180136 COVERING
A 0009941260 LOCK
A 0009941360 LOCK
206 A 1119185127 LINK
208 A 0009902730 SCREW
A 0009902930 SCREW
A 0009903130 SCREW
A 1119840332 SCREW
Repalced by: A 1149840032
212 A 1149840032 SCREW
A 1119185119 SPACER
Repalced by: A 1119185219
A 1119185219 SPACER
215 A 1119185219 SPACER
216 N 900055016001 SPRING WASHER
A 1089130128 COVERING
Repalced by: A 1159132728
A 1159132728 COVERING
LEFT
219 A 1089130528 COVERING
LEFT
A 1089130228 COVERING
RIGHT
A 1089130628 COVERING
RIGHT
A 1119135128 COVERING
LEFT
A 1089130728 COVERING
Repalced by: A 1149130328
226 A 1149130328 COVERING
LEFT
A 1119135228 COVERING
Repalced by: A 1159133028
A 1159133028 COVERING
RIGHT
A 1089130828 COVERING
Repalced by: A 1149130428
A 1149130428 COVERING
RIGHT
A 0009830098 FOAM PLASTICS
Repalced by: A 0009833598
A 0009833598 FOAM PLASTICS
FOR SKIRT UPPER PART 52 X 152 MM FOR SKIRT LOWER PART 95 X 206 MM
A 0009833598 FOAM PLASTICS
FOR SKIRT UPPER PART 52 X 152 MM FOR SKIRT LOWER PART 95 X 206 MM
A 1159100006 SEAT CUSHION LESS COVER
Repalced by: A 1149100306
A 1149100106 SEAT CUSHION LESS COVER
Repalced by: A 1149100306
A 1149100306 SEAT CUSHION LESS COVER
A 1149100706 SEAT CUSHION LESS COVER
A 1089103607 BACKREST
235 A 1089900422 SCREW
Repalced by: A 1239901022
235 A 1239901022 SCREW
Repalced by: A 0009909622
235 A 0009909622 SCREW
Repalced by: A 0009909822
235 A 0009909822 SCREW
Repalced by: A 1249900222
235 A 1249900222 SCREW
Repalced by: A 1409901122
235 A 1409901122 SCREW
238 A 0009907091 NUT RETAINER
