Transporto priemonė: 250 C USA; VIN numerio dalis: 114023
Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1158302762 | HEATER CASE | |
| Repalced by: A 1158304462 | ||
| 010 | A 1158304462 | HEATER CASE |
| A 0008357101 | HEAT EXCHANGER | |
| Repalced by: A 0018353001 | ||
| 013 | A 0018353001 | HEAT EXCHANGER |
| A 1158300024 | INTERMEDIATE PIECE | |
| Repalced by: A 1148300024 | ||
| 016 | A 1148300024 | INTERMEDIATE PIECE |
| 018 | A 1158350039 | COVER |
| A 1158000675 | ELEMENT | |
| Repalced by: A 1158001475 | ||
| 021 | A 1158001475 | ELEMENT |
| SUMMER VENTILATION FLAP | ||
| A 1158000775 | ELEMENT | |
| Repalced by: A 1158001575 | ||
| 024 | A 1158001575 | ELEMENT |
| EVAPORATOR CASE CHANGE-OVER FLAP | ||
| 026 | A 1158050974 | ROD |
| 028 | A 1158051074 | ROD |
| N 912001004000 | LOCK | |
| 031 | A 0009941960 | LOCK |
| Repalced by: N 918002004000 | ||
| 031 | N 918002004000 | CLAMPING SPRING |
| 034 | A 1159950101 | CLAMP |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| 037 | A 1158300424 | INTERMEDIATE PIECE |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| 040 | A 1158350198 | SEAL |
| N 007976006303 | SHEET METAL SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 044 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 044 | A 0009905233 | SCREW |
| N 000934006007 | NUT | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 006797006145 | TOOTHED WASHER | |
| 050 | A 0019874651 | RUBBER SEAL |
| A 1158350107 | BLOWER | |
| Repalced by: A 1158350407 | ||
| A 1158350407 | BLOWER | |
| Repalced by: A 1158350207 | ||
| 052 | A 1158350207 | BLOWER |
| 054 | A 0008352575 | CARBON BRUSH SET |
| A 1158211651 | PLUG | |
| Repalced by: A 1158211951 | ||
| 056 | A 1158211951 | SWITCH |
| 058 | A 1158350098 | SEAL |
| 060 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 060 | A 2019870241 | RUBBER RING |
| N 007976004207 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 007985004149 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| 066 | A 1158310145 | DUCT |
| LEFT | ||
| A 1158310245 | DUCT | |
| RIGHT | ||
| N 007981004331 | SHEET METAL SCREW | |
| A 1158300119 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300719 | ||
| 070 | A 1158300719 | DEFROSTER NOZZLE |
| Repalced by: A 1158300119 | ||
| 070 | A 1158300119 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300819 | ||
| A 1158300819 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300219 | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 074 | A 1158310098 | SEAL |
| 076 | A 1158310046 | VALVE |
| 078 | A 1158313751 | WATER PASSAGE |
| 080 | A 1158350120 | CONTROL VALVE |
| 082 | A 1158350220 | CONTROL VALVE |
| A 1158350098 | SEAL | |
| Repalced by: A 0008351298 | ||
| 085 | A 0008351298 | SEAL |
| A 0008350898 | SEAL | |
| Repalced by: A 0008351398 | ||
| 088 | A 0008351398 | SEAL |
| Repalced by: A 0008354898 | ||
| 088 | A 0008354898 | SEAL |
| 090 | A 1158351814 | BRACKET |
| 091 | N 007976004205 | SHEET METAL SCREW |
| 092 | N 000125005306 | WASHER |
| 093 | N 007976004125 | SHEET METAL SCREW |
| 094 | N 000125005306 | WASHER |
| A 1158300485 | OPERATING UNIT | |
| Repalced by: A 1158300585 | ||
| A 1158300585 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| 096 | A 1158300785 | OPERATING UNIT |
| A 0018351906 | SWITCH | |
| Repalced by: A 0008353706 | ||
| 097 | A 0008353706 | SWITCH |
| N 912003005000 | DUO CLIP | |
| Repalced by: N 912010005001 | ||
| N 912010005001 | LOCK PLATE | |
| 101 | A 0009902248 | WASHER |
| A 1155860083 | REPAIR KIT | |
| Repalced by: A 1238300133 | ||
| A 1238300133 | REPAIR KIT | |
| Repalced by: A 1158300033 | ||
| A 1158300033 | REPAIR KIT | |
| LEFT | ||
| A 0008351943 | LEVER | |
| Repalced by: A 0008352743 | ||
| A 0008352743 | LEVER | |
| Repalced by: A 1155860083 | ||
| 103 | A 0008352443 | LEVER |
| LEFT | ||
| A 1155860183 | REPAIR KIT | |
| Repalced by: A 1238300233 | ||
| A 1238300233 | REPAIR KIT | |
| Repalced by: A 1158300133 | ||
| A 1158300133 | REPAIR KIT | |
| RIGHT | ||
| A 0008352043 | LEVER | |
| Repalced by: A 0008352843 | ||
| 106 | A 0008352843 | LEVER |
| Repalced by: A 1155860183 | ||
| A 0008352543 | LEVER | |
| RIGHT | ||
| 109 | A 0008330081 | CLIP |
| 111 | A 0009949941 | LOCK |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| 116 | A 1158330240 | OPERATING HANDLE |
| 118 | A 1158330540 | OPERATING HANDLE |
| 120 | A 1158330340 | OPERATING HANDLE |
| 122 | A 1158330440 | OPERATING HANDLE |
| 124 | A 1158300731 | WIRE CABLE |
| A 1158300431 | WIRE CABLE | |
| 127 | A 1159971581 | GROMMET |
| A 1158300631 | WIRE CABLE | |
| Repalced by: A 1158301431 | ||
| A 1158301431 | WIRE CABLE | |
| 280 MM | ||
| 130 | A 1158301431 | WIRE CABLE |
| 280 MM | ||
| 132 | A 1158301331 | WIRE CABLE |
| 495 MM | ||
| 134 | A 1159971681 | GROMMET |
| 136 | A 1159840556 | WASHER |
| N 000471012001 | LOCK RING | |
| 140 | A 0019886878 | CLIP |
| 142 | A 1158300188 | LOUVRE |
| 144 | A 1158300389 | ESCUTCHEON |
| 146 | A 1158301089 | ESCUTCHEON |
| 148 | A 0009970381 | GROMMET |
| 150 | A 1158330083 | GARNISH MOULDING |
| 152 | A 1158330183 | GARNISH MOULDING |
| 154 | A 0009912022 | BALL SOCKET |
| 156 | A 1108210159 | ESCUTCHEON |
| N 007981003341 | SHEET METAL SCREW | |
| 160 | A 1158313851 | HOSE |
| Repalced by: A 1158310096 | ||
| 162 | A 1158300096 | HOSE |
| 164 | A 0009900292 | RIVET |
| A 1158300154 | NOZZLE | |
| LEFT | ||
| 168 | A 1158300354 | NOZZLE |
| LEFT | ||
| A 1158300254 | NOZZLE | |
| RIGHT | ||
| A 1158300454 | NOZZLE | |
| RIGHT | ||
| 173 | A 1158314351 | BALL INSERT |
| 175 | A 1158310001 | HANDLE |
| 177 | A 1158311351 | WAVE RING |
| A 0089970082 | HOSE | |
| Repalced by: A 1158310497 | ||
| 180 | A 1158310497 | HOSE |
| 485 MM | ||
| 180 | A 1158310497 | HOSE |
| 485 MM | ||
| 181 | A 1158310088 | HOSE |
| 485 MM | ||
| 182 | A 1158310114 | BRACKET |
| 184 | A 1158300015 | PIPE LINE |
| 186 | A 1158300715 | PIPE LINE |
| 188 | A 1148300515 | PIPE LINE |
| 190 | N 007976005203 | SHEET METAL SCREW |
| N 007976004211 | SHEET METAL SCREW | |
| 193 | A 1085460253 | SPACER TUBE |
| A 1148300015 | PIPE LINE | |
| Repalced by: A 1148301715 | ||
| 195 | A 1148301715 | PIPE LINE |
| 197 | A 1148300615 | PIPE LINE |
| 198 | A 1148301515 | PIPE LINE |
| 200 | A 1148301815 | PIPE LINE |
| A 0009900851 | NUT | |
| RETURN LINE TO CARBURETOR | ||
| N 006797008120 | TOOTHED WASHER | |
| RETURN LINE TO CARBURETOR | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| RETURN LINE TO ENGINE | ||
| N 912004008102 | LOCK WASHER | |
| RETURN LINE TO ENGINE | ||
| N 000125008418 | WASHER | |
| RETURN LINE TO ENGINE | ||
| 201 | N 000933006026 | SCREW |
| 201C | N 912004006102 | LOCK WASHER |
| 201F | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 201F | N 009021006208 | WASHER |
| 201K | N 000934006007 | NUT |
| 203 | A 1139970081 | GROMMET |
| 205 | A 1159970481 | GROMMET |
| A 1158310194 | HOSE | |
| Repalced by: A 1148312394 | ||
| 208 | A 1158313894 | HOSE |
| Repalced by: A 1148312394 | ||
| 209 | A 1148312394 | HOSE |
| ZWISCHEN VORLAUFLEITUNG UND HEIZUNGSKASTEN | ||
| 210 | A 1158312894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 212 | A 1158313894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 214 | A 1158312994 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| 216 | A 1158313694 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| A 1158312794 | HOSE | |
| Repalced by: A 1158313794 | ||
| 219 | A 1158313794 | HOSE |
| 221 | A 1148311094 | HOSE |
| 223 | A 1148310594 | HOSE |
| 225 | A 1148311294 | HOSE |
| 226 | A 1148312094 | HOSE |
| 226C | A 1148312194 | HOSE |
| 227 | A 1088310394 | HOSE |
| 229 | A 1148311194 | HOSE |
| N 900271018036 | HOSE | |
| Repalced by: A 1168311894 | ||
| 231 | A 1168311894 | HOSE |
| Repalced by: A 4615012382 | ||
| 231 | A 4615012382 | HOSE |
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | HOSE CLAMP | |
| N 916026020001 | CLAMP | |
| N 916026020001 | CLAMP | |
| N 916026023001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| 237 | A 1158360365 | GRILLE |
| 239 | A 1158360018 | SCREEN |
| 241 | A 0019872451 | RUBBER SEAL |
| 243 | A 0019872651 | RUBBER SEAL |
| 245 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 245 | A 0009902292 | RIVET |
| A 0005459511 | SWITCH | |
| Repalced by: A 1158211851 | ||
| 248 | A 1158211851 | SWITCH |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000433004303 | WASHER | |
| 253 | A 1158300358 | EVAPORATOR |
| 255 | A 0008350474 | EVAPORATOR |
| 257 | A 1158350072 | VALVE |
| 259 | A 1088350247 | FILTER |
| A 0008351498 | SEAL | |
| Repalced by: A 0008350598 | ||
| 262 | A 0008350598 | SEAL |
| 264 | A 1088350391 | CLAMP |
| Repalced by: A 0009952920 | ||
| 264 | A 0009952920 | CLAMP |
| 268 | A 1158300008 | BLOWER |
| A 0008352775 | CARBON BRUSH SET | |
| Repalced by: A 0008352575 | ||
| 270 | A 0008352575 | CARBON BRUSH SET |
| 272 | A 0008350434 | SPRING |
| Repalced by: A 0008351334 | ||
| 272 | A 0008351334 | SPRING |
| A 1158350071 | TANK | |
| Repalced by: A 1158350471 | ||
| A 1158350271 | TANK | |
| Repalced by: A 1158350471 | ||
| A 1158350371 | TANK | |
| Repalced by: A 1158350471 | ||
| 276 | A 1158350471 | TANK |
| A 0018217351 | REGULATOR | |
| Repalced by: A 0008200710 | ||
| 279 | A 0018219251 | REGULATOR |
| Repalced by: A 0008200710 | ||
| 279 | A 0008200710 | SWITCH |
| Repalced by: A 0008208010 | ||
| 279 | A 0008208010 | SWITCH |
| 281 | A 1158350714 | BRACKET |
| 283 | A 1149950335 | CLAMP |
| N 000933006179 | SCREW | |
| LIQUID TANK TO BRACKET | ||
| N 000934006007 | NUT | |
| LIQUID TANK TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| LIQUID TANK TO BRACKET | ||
| N 007976004205 | SHEET METAL SCREW | |
| BRACKET TO WHEEL ARCH PANEL | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| BRACKET TO WHEEL ARCH PANEL | ||
| N 000127005203 | LOCK WASHER | |
| BRACKET TO WHEEL ARCH PANEL | ||
| A 1158350270 | CONDENSER | |
| Repalced by: A 1158300270 | ||
| 297 | A 1158300270 | CONDENSER |

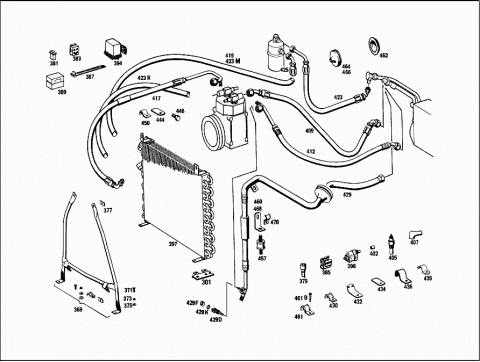

| A 1158300470 | CONDENSER | |

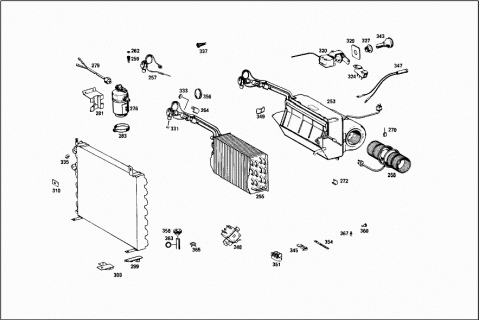

| 299 | A 1158300314 | BRACKET |
| 301 | A 1158300714 | BRACKET |
| 303 | A 1158301114 | BRACKET |
| A 1158300414 | BRACKET | |
| A 1158300814 | BRACKET | |
| A 1158301214 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| N 000933006026 | SCREW | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 310 | A 1159840022 | SHEET METAL NUT |
| Repalced by: N 913008006300 | ||
| 310 | N 913008006300 | SHEET METAL NUT |
| CONDENSER TO FRONT STIFFENING | ||
| N 000933006026 | SCREW | |
| CONDENSER TO FRONT STIFFENING | ||
| N 912004006102 | LOCK WASHER | |
| CONDENSER TO FRONT STIFFENING | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| CONDENSER TO FRONT STIFFENING | ||
| A 1158300137 | SWITCH | |
| Repalced by: A 0008358006 | ||
| A 0008358006 | SWITCH | |
| Repalced by: A 0018351106 | ||
| 320 | A 0018351106 | SWITCH |
| A 1158300137 | SWITCH | |
| Repalced by: A 0018352606 | ||
| A 0008358106 | SWITCH | |
| Repalced by: A 0018352606 | ||
| 324 | A 0018352606 | SWITCH |
| Repalced by: A 0018352906 | ||
| 324 | A 0018352906 | SWITCH |
| A 1158330089 | ESCUTCHEON | |
| 327 | A 1158330289 | ESCUTCHEON |
| 329 | A 1158330173 | SIGN |
| 331 | A 0008350298 | SEAL |
| Repalced by: A 0008356598 | ||
| 331 | A 0008356598 | SEAL |
| 5/8" | ||
| 333 | A 0008350898 | SEAL |
| 7/8" | ||
| 335 | A 0008350498 | SEAL |
| Repalced by: A 0008356698 | ||
| 335 | A 0008356698 | SEAL |
| 3/4" | ||
| 337 | A 1088350047 | FILTER |
| TO 115 830 01 37 | ||
| A 0005458134 | FUSE | |
| A 0005454334 | FUSE | |
| Repalced by: N 072581016100 | ||
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| A 1158200892 | KNOB | |
| 343 | A 1158202192 | KNOB |
| N 009045012002 | SNAP RING | |
| 345 | A 0019886878 | CLIP |
| 347 | A 1158200252 | TELL-TALE LAMP |
| 349 | A 0009947045 | LOCK |
| 351 | A 0005467041 | CABLE CONNECTOR |
| 2-POLE | ||
| N 007981003326 | SHEET METAL SCREW | |
| A 0009979790 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 354 | A 0019974390 | LOOM TIE |
| 356 | A 1869970781 | GROMMET |
| 358 | A 1109970481 | GROMMET |
| 360 | A 1109870539 | RUBBER BUFFER |
| A 1008352497 | HOSE | |
| Repalced by: A 0009978482 | ||
| 363 | A 0009978482 | HOSE |
| 365 | A 0009954244 | CLAMP |
| 367 | A 0005452726 | PLUG SOCKET |
| Repalced by: A 0015453526 | ||
| 367 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 367 | A 0035452626 | ROUND PIN BUSHING |
| 369 | A 1148300008 | STRUT |
| 371 | N 000933006026 | SCREW |
| 373 | N 912004006102 | LOCK WASHER |
| 375 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 375 | N 009021006208 | WASHER |
| 377 | A 1159840022 | SHEET METAL NUT |
| Repalced by: N 913008006300 | ||
| 377 | N 913008006300 | SHEET METAL NUT |
| 379 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 379 | A 0085452028 | PIN BUSHING HOUSING |
| 1-POLE | ||
| 381 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 381 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE | ||
| 383 | A 0025455128 | PLUG |
| Repalced by: A 0045458628 | ||
| 383 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 383 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 383 | A 0155454928 | PLUG |
| 4-POLE | ||
| 385 | A 0029884878 | CLIP |
| 387 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 387 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 389 | A 0005456201 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 389 | A 0005459901 | FUSE BOX |
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | TAPPING SCREW | |
| A 0005454334 | FUSE | |
| Repalced by: N 072581016100 | ||
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| 394 | A 0005425819 | RELAY |
| N 007985004129 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| 398 | A 0005459411 | SWITCH |
| N 000137010201 | SPRING WASHER | |
| N 000936010003 | NUT | |
| 402 | A 1085460253 | SPACER TUBE |
| A 0035450124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035452424 | ||
| 405 | A 0035452424 | SWITCH,AUTOMATIC |
| 407 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 407 | A 0005463335 | BOOT |
| 409 | A 1158313294 | HOSE |
| Repalced by: A 1158301596 | ||
| 409 | A 1158301596 | HOSE |
| FROM EVAPORATOR TO COMPRESSOR 1000 MM LONG | ||
| A 1148311694 | HOSE | |
| Repalced by: A 0009972352 | ||
| 412 | A 1148300396 | HOSE |
| FROM EVAPORATOR TO COMPRESSOR 930 MM WITH SCHRADER VALVE | ||
| A 1158313394 | HOSE | |
| Repalced by: A 0009972152 | ||
| A 1148311894 | HOSE | |
| Repalced by: A 0009972152 | ||
| 417 | A 1148300496 | HOSE |
| FROM COMPRESSOR TO CONDENSER 1000 MM WITH SCHRADER VALVE | ||
| 419 | A 1158310794 | HOSE |
| Repalced by: A 0009973552 | ||
| 419 | A 0009973552 | HOSE |
| FROM CONDENSER TO LIQUID TANK 1330 MM | ||
| A 1148311594 | HOSE | |
| Repalced by: A 0009973552 | ||
| 423 | A 1158310994 | HOSE |
| Repalced by: A 0009941752 | ||
| A 0009972352 | HOSE | |
| N.W. 13,6000 MM L0NG | ||
| A 0009971552 | HOSE | |
| Repalced by: A 0009973552 | ||
| 423M | A 0009973552 | HOSE |
| Repalced by: A 0189971882 | ||
| 423M | A 0189971882 | HOSE |
| Repalced by: A 0189975982 | ||
| 423M | A 0189975982 | HOSE |
| Repalced by: A 0009971752 | ||
| 423M | A 0009971752 | HOSE |
| N.W. 6, BLACK, 2700 MM LONG | ||
| A 0009971752 | HOSE | |
| N.W. 8, 5250 MM LONG | ||
| 423R | A 0009972152 | HOSE |
| N.W. 10, 6000 MM LANG | ||
| A 0009979568 | CONNECTOR | |
| 5/8" 90 DEG I.D.6 WITH UNION NUT | ||
| 425 | A 0009979368 | CONNECTOR |
| 3/4" 90 DEG I.D.6 WITH UNION NUT | ||
| A 0019972068 | CONNECTOR | |
| 3/4" 120 DEG I.D.6 WITH UNION NUT | ||
| A 0019971968 | CONNECTOR | |
| 3/4" 150 DEG I.D.6 WITH UNION NUT | ||
| A 0019971568 | CONNECTOR | |
| 3/4" 90 DEG I.D.6 WITH SOLDERED FITTING | ||
| A 0009970568 | CONNECTOR | |
| 5/8" 135 DEG I.D.8 WITH UNION NUT | ||
| A 0009975168 | CONNECTOR | |
| 5/8" 180 DEG I.D.8 WITH UNION NUT | ||
| A 0009970268 | CONNECTOR | |
| 3/4" 90 DEG I.D.8 WITH UNION NUT | ||
| A 0009975268 | CONNECTOR | |
| 3/4" 180 DEG I.D.8 WITH UNION NUT | ||
| A 0009976668 | CONNECTOR | |
| 3/4" 90 DEG I.D.8 WITH LONG NECK AND UNION NUT | ||
| A 0009973368 | CONNECTOR | |
| 3/4" 150 DEG I.D.8 WITH SOLDERED FITTING | ||
| A 0009971168 | CONNECTOR | |
| 7/8" 90 DEG I.D.10 WITH UNION NUT | ||
| A 0009971468 | CONNECTOR | |
| 7/8" 120 DEG I.D.10 WITH UNION NUT | ||
| A 0009971768 | CONNECTOR | |
| 7/8" 135 DEG I.D.10 WITH UNION NUT | ||
| A 0009972068 | CONNECTOR | |
| 7/8" 150 DEG I.D.10 WITH UNION NUT | ||
| A 0009973568 | CONNECTOR | |
| 3/4" 90 DEG N.W.10 WITH SOLDERED FITTING | ||
| A 0009974168 | CONNECTOR | |
| 3/4" 135 DEG N.W.10 WITH SOLDERED FITTING | ||
| A 0009972168 | CONNECTOR | |
| 7/8" 90 DEG I.D.13 WITH UNION NUT | ||
| A 0009972368 | CONNECTOR | |
| 7/8" 135 DEG I.D. 13 WITH UNION NUT | ||
| A 0009975668 | CONNECTOR | |
| 7/8" 180 DEG I.D.13 WITH UNION NUT | ||
| A 1148301415 | PIPE LINE | |
| FROM EVAPORATOR TO COMPRESSOR | ||
| A 1148301915 | PIPE LINE | |
| Repalced by: A 1148302015 | ||
| 429 | A 1148302015 | PIPE LINE |
| FOR COMPRESSOR-TO EVAPORATOR | ||
| 429D | A 1158320085 | VALVE INSERT |
| A 0001311356 | SCREW PLUG | |
| Repalced by: A 1158320098 | ||
| 429F | A 1158320098 | SEAL |
| Repalced by: A 1238320033 | ||
| 429F | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 429F | A 2019880635 | CAP |
| 429K | A 1159971540 | SEAL RING |
| Repalced by: A 1238320033 | ||
| 429K | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 429K | A 2019880635 | CAP |
| 430 | A 1129950120 | CLAMP |
| N 007976004205 | SHEET METAL SCREW | |
| HOSES TO WHEEL ARCH PANEL | ||
| N 000125005306 | WASHER | |
| HOSES TO WHEEL ARCH PANEL | ||
| N 000127005203 | LOCK WASHER | |
| HOSES TO WHEEL ARCH PANEL | ||
| 432 | A 1143280140 | BRACKET |
| EVAPORATOR-TO-COMPRESSOR HOSE | ||
| 434 | A 1143280240 | BRACKET |
| EVAPORATOR-TO-COMPRESSOR HOSE | ||
| 436 | A 1149950020 | CLAMP |
| FOR COMPRESSOR-TO EVAPORATOR HOSE | ||
| 438 | A 1149950120 | CLAMP |
| EVAPORATOR-TO-COMPRESSOR HOSE | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| EVAPORATOR-TO-COMPRESSOR HOSE | ||
| N 912004006102 | LOCK WASHER | |
| EVAPORATOR-TO-COMPRESSOR HOSE | ||
| N 000934006007 | NUT | |
| EVAPORATOR-TO-COMPRESSOR HOSE | ||
| A 1148350014 | BRACKET | |
| Repalced by: A 1148350314 | ||
| 444 | A 1148350314 | BRACKET |
| 446 | A 1159903101 | SCREW |
| Repalced by: A 0049903001 | ||
| 446 | A 0049903001 | SCREW |
| N 000127010202 | LOCK WASHER | |
| A 1539950120 | CLAMP | |
| Repalced by: A 1149950320 | ||
| 450 | A 1149950320 | CLAMP |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 000934006007 | NUT | |
| N 912004006102 | LOCK WASHER | |
| 457 | A 1890940085 | RUBBER BUFFER |
| EVAPORATOR-TO COMPRESSOR LINE TO WHEELHOUSE | ||
| N 000137008204 | SPRING WASHER | |
| EVAPORATOR-TO COMPRESSOR LINE TO WHEELHOUSE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| EVAPORATOR-TO COMPRESSOR LINE TO WHEELHOUSE | ||
| 460 | A 1148350714 | BRACKET |
| EVAPORATOR-TO-COMPRESSOR-LINE TO WHEELHOUSE | ||
| N 912004006102 | LOCK WASHER | |
| EVAPORATOR-TO-COMPRESSOR-LINE TO WHEELHOUSE | ||
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| EVAPORATOR-TO-COMPRESSOR-LINE TO WHEELHOUSE | ||
| N 000934006007 | NUT | |
| EVAPORATOR-TO-COMPRESSOR-LINE TO WHEELHOUSE | ||
| N 000933006026 | SCREW | |
| EVAPORATOR-TO-COMPRESSOR-LINE TO WHEELHOUSE | ||
| 461 | A 1009950820 | CLAMP |
| Repalced by: A 1239950320 | ||
| 461 | A 1239950320 | CLAMP |
| 25 MM | ||
| 461B | N 007976004205 | SHEET METAL SCREW |
| N 914031004206 | COMBINATION BOLT | |
| 462 | A 1009870044 | EXPANSION PLUG |
| 464 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 464 | A 3359970081 | GROMMET |
| 464 | A 3359970081 | GROMMET |
| 466 | A 1109970481 | GROMMET |
| 468 | A 1148350614 | BRACKET |
| 470 | A 1879950037 | CLAMP |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
