Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

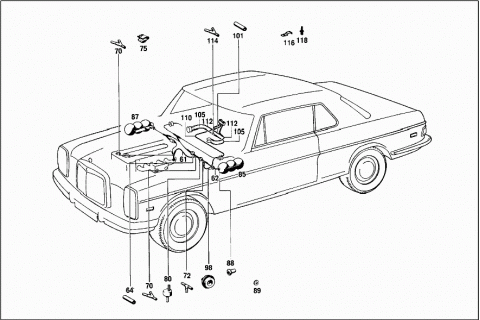

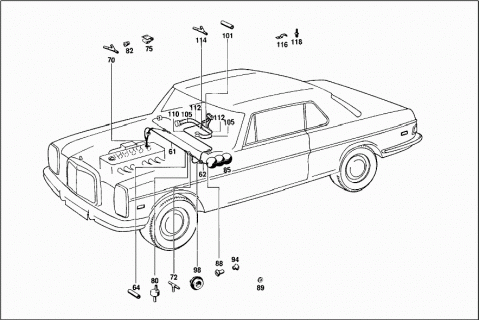

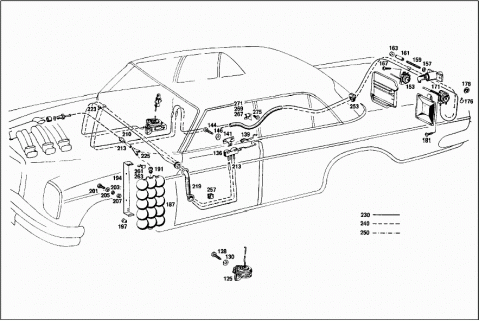

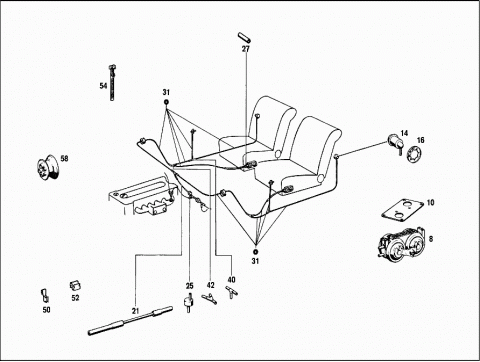

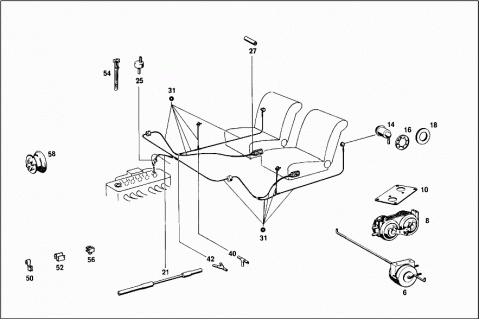

Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1158000975 | ELEMENT |
| A 1148000075 | ELEMENT | |
| Repalced by: A 0008000775 | ||
| 008 | A 0008000775 | ELEMENT |
| 010 | A 1148050011 | PLATE |
| A 1118055073 | SWITCH | |
| Repalced by: A 1148050073 | ||
| 014 | A 1148050073 | SWITCH |
| 016 | A 1148050036 | SPRING |
| 018 | N 000433021002 | WASHER |
| A 1118005162 | THROTTLE | |
| Repalced by: A 1118005462 | ||
| 021 | A 1118005462 | THROTTLE |
| A 1128000178 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1078000778 | VALVE | |
| Repalced by: A 1168000378 | ||
| 025 | A 1168000378 | VALVE |
| 027 | A 0079976182 | HOSE |
| 027 | A 0079976182 | HOSE |
| 027 | A 0079976182 | HOSE |
| 027 | A 0079976182 | HOSE |
| 027 | A 0079976182 | HOSE |
| 027 | A 0079976182 | HOSE |
| A 1128050303 | CONNECTOR | |
| Repalced by: A 1128050203 | ||
| A 1128050203 | CONNECTOR | |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| 031 | A 0089978682 | HOSE |
| A 0119979782 | HOSE | |
| Repalced by: A 0001581435 | ||
| A 0001581435 | PIPE LINE | |
| FROM DISTRIBUTOR IN LEG ROOM TO FRONT SEAT ELEMENT 1100 MM,1300 MM,LIGHT BLUE | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 040 | A 1170780145 | BRANCH-OFF FITTING |
| IN LEG ROOM | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 042 | A 1170780145 | BRANCH-OFF FITTING |
| IN LEG ROOM | ||
| 042 | A 1170780145 | BRANCH-OFF FITTING |
| IN LEG ROOM | ||
| 042 | A 1170780145 | BRANCH-OFF FITTING |
| TO CHECK VALVE IN ENGINE COMPARTMENT | ||
| 042 | A 1170780145 | BRANCH-OFF FITTING |
| TO ELEMENT AT FRONT SEAT | ||
| 050 | A 0029884678 | CLIP |
| 052 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 052 | A 1149880178 | CLIP |
| 054 | A 1149970190 | LOOM TIE |
| 056 | A 0029880178 | CLIP |
| 058 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 058 | A 0089971781 | GROMMET |
| 061 | A 0059975982 | HOSE |
| FROM INTAKE MANIFOLD TO CHECK VALVE 600 MM | ||
| A 0089978482 | HOSE | |
| Repalced by: A 0089978582 | ||
| A 0089978582 | HOSE | |
| FROM DISTRIBUTOR TO CHECK VALVE 350 MM | ||
| 062 | A 0009976652 | HOSE |
| GREY/LIGHT BLUE | ||
| 062 | A 0009976652 | HOSE |
| GREY/LIGHT BLUE | ||
| 064 | A 0079976182 | HOSE |
| 064 | A 0079976182 | HOSE |
| 064 | A 0079976182 | HOSE |
| 064 | A 0079976182 | HOSE |
| 064 | A 0079976182 | HOSE |
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 070 | A 1170780145 | BRANCH-OFF FITTING |
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 072 | A 1170780145 | BRANCH-OFF FITTING |
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| A 1170780145 | BRANCH-OFF FITTING | |
| Y-SHAPE | ||
| 075 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 075 | A 1149880178 | CLIP |
| A 1128000178 | VALVE | |
| Repalced by: A 1078000778 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1078000778 | ||
| 080 | A 1078000778 | VALVE |
| Repalced by: A 1168000378 | ||
| 080 | A 1168000378 | VALVE |
| 082 | A 1118055090 | CAP |
| A 1158050119 | TANK | |
| Repalced by: A 1158000519 | ||
| A 1158000119 | TANK | |
| Repalced by: A 1158000519 | ||
| A 1158000419 | TANK | |
| Repalced by: A 1158000519 | ||
| 085 | A 1158000519 | TANK |
| A 1148000119 | TANK | |
| Repalced by: A 1148000319 | ||
| A 1148000219 | TANK | |
| Repalced by: A 1148000319 | ||
| 087 | A 1148000319 | TANK |
| A 1098050098 | SEAL | |
| Repalced by: A 1238050298 | ||
| A 1238050298 | SEAL | |
| 088 | A 1078050198 | SEAL |
| 089 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 089 | A 2019870241 | RUBBER RING |
| N 006797006145 | TOOTHED WASHER | |
| N 000934006007 | NUT | |
| 094 | A 1128050055 | GUIDE |
| 098 | A 1159971981 | GROMMET |
| A 1002700072 | SCREW | |
| Repalced by: A 1009900663 | ||
| A 1009900663 | HOLLOW SCREW | |
| 101 | A 0079976182 | HOSE |
| 101 | A 0079976182 | HOSE |
| 101 | A 0079976182 | HOSE |
| 101 | A 0079976182 | HOSE |
| 101 | A 0079976182 | HOSE |
| 101 | A 0079976182 | HOSE |
| A 0089978382 | HOSE | |
| A 0089978382 | HOSE | |
| LEFT | ||
| 300 MM | ||
| A 0089978382 | HOSE | |
| RIGHT | ||
| 550 MM | ||
| 105 | A 0009976552 | HOSE |
| MEDIUM GREEN/LIGHT BLUE | ||
| 105 | A 0009976552 | HOSE |
| MEDIUM GREEN/LIGHT BLUE | ||
| 105 | A 0009976552 | HOSE |
| MEDIUM GREEN/LIGHT BLUE | ||
| 105 | A 0009976552 | HOSE |
| MEDIUM GREEN/LIGHT BLUE | ||
| A 0089978482 | HOSE | |
| Repalced by: A 0089978582 | ||
| A 0089978582 | HOSE | |
| 850 MM | ||
| A 0009970352 | HOSE | |
| MEDIUM GREEN | ||
| 110 | A 0009970752 | HOSE |
| Repalced by: A 0009976552 | ||
| 110 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| 110 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| A 0089978582 | HOSE | |
| A 0089978582 | HOSE | |
| LEFT | ||
| 300 MM | ||
| A 0089978582 | HOSE | |
| RIGHT | ||
| 550 MM | ||
| 112 | A 0009976452 | HOSE |
| MEDIUM GREEN/ORANGE | ||
| 112 | A 0009976452 | HOSE |
| MEDIUM GREEN/ORANGE | ||
| 112 | A 0009976452 | HOSE |
| MEDIUM GREEN/ORANGE | ||
| 112 | A 0009976452 | HOSE |
| MEDIUM GREEN/ORANGE | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 114 | A 1170780145 | BRANCH-OFF FITTING |
| 116 | N 072571002015 | CLAMP |
| 118 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 118 | A 0009902292 | RIVET |
| 125 | A 1158001275 | ELEMENT |
| RIGHT FRONT DOOR | ||
| 128 | N 007981004258 | SHEET METAL SCREW |
| ELEMENT ON FRONT DOOR | ||
| 130 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 130 | N 000433005304 | WASHER |
| ELEMENT ON FRONT DOOR | ||
| N 001434004018 | PIN | |
| N 000094001006 | COTTER PIN | |
| N 900055004001 | SPRING WASHER | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| A 1168000273 | SWITCH | |
| Repalced by: A 1168000473 | ||
| 136 | A 1168000473 | SWITCH |
| LEFT FRONT DOOR | ||
| 139 | A 1168050232 | CLAMP |
| 141 | A 1168050114 | BRACKET |
| A 0039891585 | ADHESIVE TAPE | |
| 144 | N 007981004220 | SHEET METAL SCREW |
| SWITCH ON FRONT DOOR | ||
| 146 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 146 | N 000125004319 | WASHER |
| SWITCH ON FRONT DOOR | ||
| A 1157230018 | LEVER | |
| 153 | A 1158000075 | ELEMENT |
| FILLER NECK FLAP | ||
| 157 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 157 | N 000125004319 | WASHER |
| 159 | A 1128050036 | SPRING |
| 161 | A 1158050017 | BUSHING |
| 163 | A 1158050299 | RING |
| 167 | N 007981004322 | SHEET METAL SCREW |
| 171 | A 1158000575 | ELEMENT |
| Repalced by: A 1078000775 | ||
| 171 | A 1078000775 | ELEMENT |
| REAR LID | ||
| 176 | A 1158050036 | SPRING |
| 178 | N 006799004001 | LOCK PLATE |
| 181 | N 007981004322 | SHEET METAL SCREW |
| 187 | A 1078000219 | TANK |
| 191 | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 191 | A 1238050298 | SEAL |
| 194 | A 1158000132 | CLAMP |
| 197 | N 007340004121 | RIVET |
| 201 | N 000933006026 | SCREW |
| 203 | N 912004006102 | LOCK WASHER |
| 205 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 205 | N 009021006208 | WASHER |
| 207 | N 000934006007 | NUT |
| 210 | A 1168000378 | VALVE |
| 213 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 213 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 90 MM | ||
| 213 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 30 MM | ||
| 213 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 50 MM | ||
| 213 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 300 MM | ||
| 219 | A 1158210097 | HOSE |
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 223 | A 1170780145 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| 225 | A 1158050322 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 225 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 230 | A 0059973482 | HOSE |
| BLACK | ||
| 230 | A 0059973482 | HOSE |
| BLACK | ||
| 230 | A 0059973482 | HOSE |
| BLACK | ||
| 230 | A 0059973482 | HOSE |
| BLACK | ||
| 240 | A 0059975982 | HOSE |
| WHITE | ||
| 240 | A 0059975982 | HOSE |
| WHITE | ||
| 240 | A 0059975982 | HOSE |
| WHITE | ||
| 240 | A 0059975982 | HOSE |
| WHITE | ||
| 240 | A 0059975982 | HOSE |
| WHITE | ||
| 250 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 250 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 250 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 250 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 250 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 253 | A 1159971981 | GROMMET |
| WHEELHOUSE | ||
| 257 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 257 | A 1149880178 | CLIP |
| VACUUM LINE MOUNTING | ||
| 261 | A 0029884678 | CLIP |
| 263 | A 0009883378 | CLIP |
| 267 | N 072571002015 | CLAMP |
| VACUUM LINE | ||
| 269 | N 072571002024 | CLAMP |
| VACUUM LINE | ||
| 271 | N 072573003006 | CLAMP |
| VACUUM LINE | ||
| 275 | N 007981003214 | SHEET METAL SCREW |
