Transporto priemonė: 250 C USA; VIN numerio dalis: 114023
Grupė: 97 SEAT ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1159700301 | ARMREST | |
| LEFT | ||

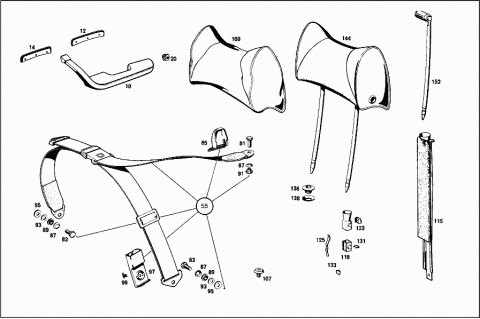

| 010 | A 1159700201 | ARMREST |
| RIGHT | ||
| 012 | A 1159710043 | ORNAMENTAL COVER |
| REAR | ||
| 014 | A 1159710143 | ORNAMENTAL COVER |
| FRONT | ||
| A 0009905921 | SCREW | |
| N 007985006196 | SCREW | |
| Repalced by: N 007985006193 | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 020 | A 0009907191 | NUT RETAINER |
| A 1159700102 | ARMREST | |
| LEFT | ||

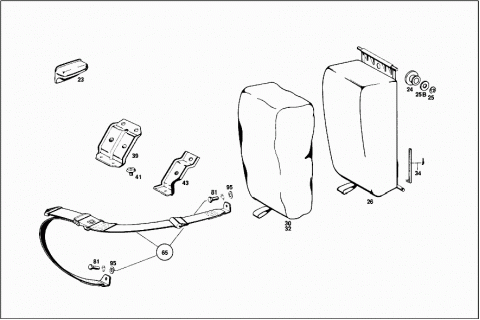

| 023 | A 1159700202 | ARMREST |
| RIGHT | ||
| A 1149700230 | FOLDING ARMREST | |
| LEATHER | ||
| A 1159906540 | WASHER | |
| A 1149900192 | RIVET | |
| Repalced by: N 000923006015 | ||
| N 000923006015 | SCREW | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 024 | A 1159730920 | SUPPORT |
| 025 | N 006799004001 | LOCK PLATE |
| 025B | N 000433006405 | WASHER |
| 026 | A 1149700330 | FOLDING ARMREST |
| IMITATION LEATHER | ||
| A 1149700320 | SUPPORT | |
| A 1149700047 | COVER | |
| LEATHER | ||
| A 1149701247 | COVER | |
| LEATHER | ||
| A 0019870230 | WELT | |
| AS REQUIRED | ||
| 930 MM | ||
| 030 | A 1149700147 | COVER |
| IMITATION LEATHER | ||
| 032 | A 1149701347 | COVER |
| 034 | A 0009875172 | EDGE GUARD SECTION |
| 895 MM | ||
| A 1159702030 | FOLDING ARMREST | |
| Repalced by: A 1149700930 | ||
| A 1149700930 | FOLDING ARMREST | |
| 039 | A 1158600014 | BRACKET |
| 041 | A 0009901322 | SCREW |
| 043 | A 1158600114 | BRACKET |
| LEFT | ||
| A 1158600214 | BRACKET | |
| RIGHT | ||

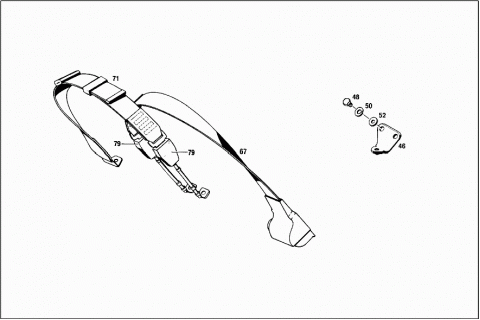

| 046 | A 1148600014 | BRACKET |
| 048 | A 1169900901 | SCREW |
| Repalced by: A 1249901501 | ||
| 048 | A 1249901501 | SCREW |
| 050 | N 000127012201 | LOCK WASHER |
| 052 | A 1119870041 | RUBBER RING |
| Repalced by: A 1159970940 | ||
| 052 | A 1159970940 | SEAL RING |
| 055 | A 1158600185 | SAFETY BELT |
| Repalced by: A 1148601685 | ||
| 057 | A 1158603085 | SAFETY BELT |
| Repalced by: A 1148601685 | ||
| A 1158603785 | SAFETY BELT | |
| Repalced by: A 1148601685 | ||

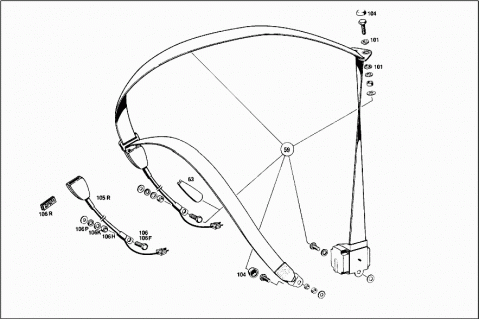

| 059 | A 1148601685 | SAFETY BELT |
| FRONT SEAT | ||
| 061 | A 0008680730 | CAP |
| 063 | A 0008680830 | CAP |
| 065 | A 1158600385 | SAFETY BELT |
| 067 | A 1158603185 | SAFETY BELT |
| REAR SEAT BENCH,OUTSIDE | ||

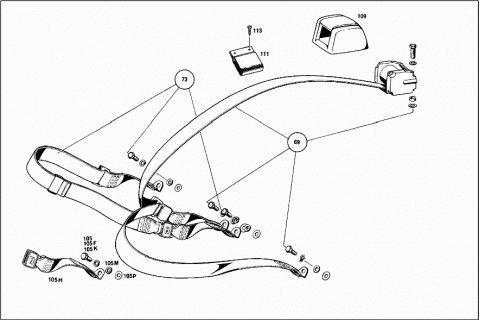

| 069 | A 1158603985 | SAFETY BELT |
| REAR SEAT BENCH,OUTSIDE | ||
| 071 | A 1158603285 | SAFETY BELT |
| Repalced by: A 1168602185 | ||
| A 1168601485 | SAFETY BELT | |
| Repalced by: A 1168602185 | ||
| A 1168602185 | SAFETY BELT | |
| REAR SEAT BENCH,CENTRAL | ||
| 073 | A 1168602185 | SAFETY BELT |
| REAR SEAT BENCH,CENTRAL | ||
| A 0008680169 | FASTENER | |
| Repalced by: A 1168600269 | ||
| 075 | A 1168600269 | FASTENER |
| 077 | A 1008680022 | GUIDE |
| 079 | A 0008681269 | FASTENER |
| 081 | A 0029908801 | SCREW |
| Repalced by: A 1169900901 | ||
| 081 | A 1169900901 | SCREW |
| Repalced by: A 1249901501 | ||
| 081 | A 1249901501 | SCREW |
| 083 | A 0029908901 | SCREW |
| Repalced by: A 0039901701 | ||
| 083 | A 0039901701 | SCREW |
| Repalced by: A 0039902701 | ||
| 083 | A 0039902701 | SCREW |
| 085 | A 0008680030 | CAP |
| 087 | A 0009902948 | WASHER |
| 089 | A 0009920015 | BUSHING |
| 091 | A 0009920115 | BUSHING |
| 093 | A 0019908340 | WASHER |
| Repalced by: A 1159906640 | ||
| 093 | A 1159906640 | WASHER |
| 095 | A 0019908440 | WASHER |
| 097 | A 1158680314 | BRACKET |
| 099 | A 0009941460 | LOCK |
| 101 | A 0009921405 | BUSHING |
| 101 | A 0009921405 | BUSHING |
| 101 | A 0009921405 | BUSHING |
| A 0019924001 | WASHER | |
| 104 | A 0009871445 | LOCKING CAP |
| 104 | A 0009871445 | LOCKING CAP |
| 104 | A 0009871445 | LOCKING CAP |
| 105 | A 0039903601 | SCREW |
| 105F | A 0039903701 | SCREW |
| 105H | A 1078600369 | FASTENER |
| A 0039903701 | SCREW | |
| Repalced by: A 1079900101 | ||
| 105K | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 105K | A 2029901301 | SCREW |
| 105M | A 0019924001 | WASHER |
| 105P | A 1169840356 | WASHER |
| A 0008682669 | FASTENER | |
| Repalced by: A 0008681869 | ||
| A 0008681869 | FASTENER | |
| Repalced by: A 1168600169 | ||
| 105R | A 1168600169 | FASTENER |
| A 1159904001 | SCREW | |
| Repalced by: A 1079900101 | ||
| 106 | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 106 | A 2029901301 | SCREW |
| 106F | A 0039903701 | SCREW |
| 106H | A 1159920201 | BUSHING |
| 106K | A 1159906640 | WASHER |
| 106M | A 0008680830 | CAP |
| N 000127012201 | LOCK WASHER | |
| 106P | A 1169840356 | WASHER |
| 106R | A 1158680088 | PLATE |
| 107 | A 0009901322 | SCREW |
| A 0009921405 | BUSHING | |
| 109 | A 1158600030 | COVERING |
| Repalced by: A 1158680339 | ||
| 109 | A 1158680339 | COVERING |
| 111 | A 1148680022 | GUIDE |
| 113 | N 007981003203 | SHEET METAL SCREW |
| A 1159703750 | MOUNTING MATERIAL | |
| Repalced by: A 1159703950 | ||
| A 1159703950 | MOUNTING MATERIAL | |
| Repalced by: A 1159705450 | ||
| A 1159705450 | MOUNTING MATERIAL | |
| A 1159700415 | RAIL | |
| Repalced by: A 1079700115 | ||
| A 1159700915 | RAIL | |
| Repalced by: A 1079700115 | ||
| 115 | A 1079700115 | RAIL |
| LEFT | ||
| A 1159701015 | RAIL | |
| Repalced by: A 1079700215 | ||
| A 1079700215 | RAIL | |
| RIGHT | ||
| A 1159750022 | GUIDE | |
| 119 | A 1159750122 | GUIDE |
| 121 | A 1159750322 | GUIDE |
| 123 | A 1159750023 | FRICTION PIECE |
| 125 | A 1159750137 | SPRING |
| Repalced by: A 1249750137 | ||
| 125 | A 1249750137 | SPRING |
| RIGHT | ||
| 127 | A 1159750237 | SPRING |
| Repalced by: A 1249750137 | ||
| 127 | A 1249750137 | SPRING |
| LEFT | ||
| 129 | A 1159750024 | SLIDE |
| 131 | A 1159880378 | CLIP |
| 133 | A 1159880478 | CLIP |
| N 007987004130 | SCREW | |
| N 000934004004 | NUT | |
| N 006797004333 | TOOTHED WASHER | |
| A 1159880282 | EYE | |
| Repalced by: A 1269880082 | ||
| A 1169880082 | EYE | |
| Repalced by: A 1269880082 | ||
| 136 | A 1269880082 | EYE |
| 138 | A 1159880382 | EYE |
| Repalced by: A 1269901240 | ||
| 138 | A 1269901240 | WASHER |
| A 1159700950 | HEADREST | |
| Repalced by: A 1159705750 | ||
| A 1159703550 | HEADREST | |
| Repalced by: A 1159705750 | ||
| 144 | A 1089705750 | HEADREST |
| Repalced by: A 1159704350 | ||
| 144 | A 1159704350 | HEADREST |
| Repalced by: A 1089705750 | ||
| 144 | A 1089705750 | HEADREST |
| IMITATION LEATHER | ||
| 146 | A 1159704350 | HEADREST |
| Repalced by: A 1089705750 | ||
| 146 | A 1089705750 | HEADREST |
| IMITATION LEATHER | ||
| A 1159700850 | HEADREST | |
| Repalced by: A 1159705850 | ||
| A 1159703650 | HEADREST | |
| Repalced by: A 1159705850 | ||
| A 1089705850 | HEADREST | |
| Repalced by: A 1169701470 | ||
| A 1169701470 | FRAME | |
| LEATHER | ||
| A 1159704450 | HEADREST | |
| Repalced by: A 1169701450 | ||
| A 1169701450 | HEADREST | |
| LEATHER | ||
| A 1159700373 | CLAMP | |
| Repalced by: A 1159702173 | ||
| 152 | A 1159702173 | CLAMP |
| LEFT | ||
| 154 | A 1159702773 | CLAMP |
| LEFT | ||
| A 1159700473 | CLAMP | |
| Repalced by: A 1159702273 | ||
| A 1159702273 | CLAMP | |
| RIGHT | ||
| A 1159702873 | CLAMP | |
| RIGHT | ||
| 160 | A 1089702856 | COVER |
| IMITATION LEATHER | ||
| 162 | A 1159702156 | COVER |
| IMITATION LEATHER | ||
| A 1089702956 | COVER | |
| LEATHER | ||
| A 1159702256 | COVER | |
| LEATHER | ||
| A 1159701150 | HEADREST | |
| Repalced by: A 1159704850 | ||
| A 1159703850 | HEADREST | |
| Repalced by: A 1159704850 | ||
| A 1159704850 | HEADREST | |

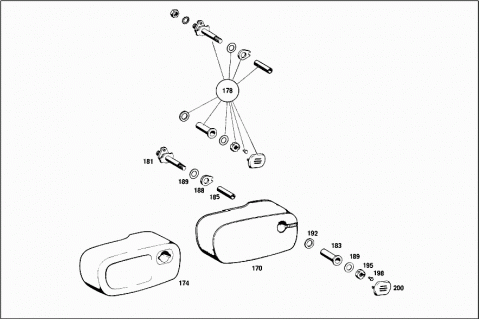

| 170 | A 1149702030 | FOLDING ARMREST |
| IMITATION LEATHER | ||
| A 1149702130 | FOLDING ARMREST | |
| LEATHER | ||
| 174 | A 1149700620 | SUPPORT |
| A 1149702047 | COVER | |
| IMITATION LEATHER | ||
| A 1149702147 | COVER | |
| LEATHER | ||
| 178 | A 1149702330 | MOUNTING MATERIAL |
| Repalced by: A 1149700520 | ||
| 178 | A 1149700520 | SUPPORT |
| 181 | A 1149700520 | SUPPORT |
| 183 | A 1079730137 | SPACER |
| 185 | N 040621018210 | INSULATING HOSE |
| 188 | A 1169840156 | WASHER |
| 189 | A 1099900140 | WASHER |
| 192 | A 1099870041 | RUBBER RING |
| 195 | A 1099900160 | NUT |
| 198 | A 1099900001 | SCREW |
| Repalced by: N 000933005036 | ||
| 198 | N 000933005036 | SCREW |
| 200 | A 1149730011 | PLATE |
| Repalced by: A 1239730511 | ||
| 200 | A 1239730511 | PLATE |
